FIAT Bypass Emergency Start Device Plug and Start with OBD2 Adapter Cable SGW For Chrysler FCA 12 + 8 Repair Diagnostic Tool

Description:

FIAT Bypass - Emergency Start Device Emulator will only work vehicles equipped with metal key. It won't work with a Smart Remote key

Function:

The fastest procedure - car is ready to start right after plugging in Intelligent recognition of the ECU and car Original CarLabImmo tool - you can trust it won't let you down

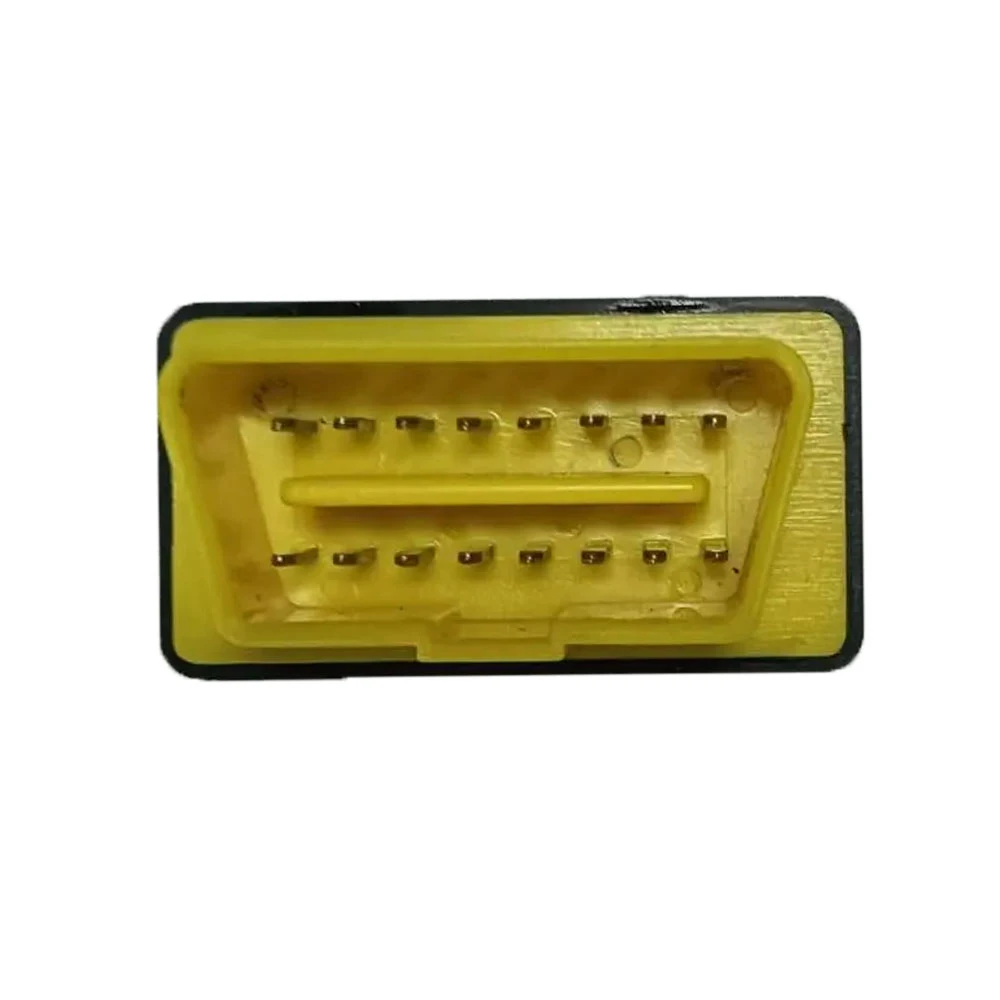

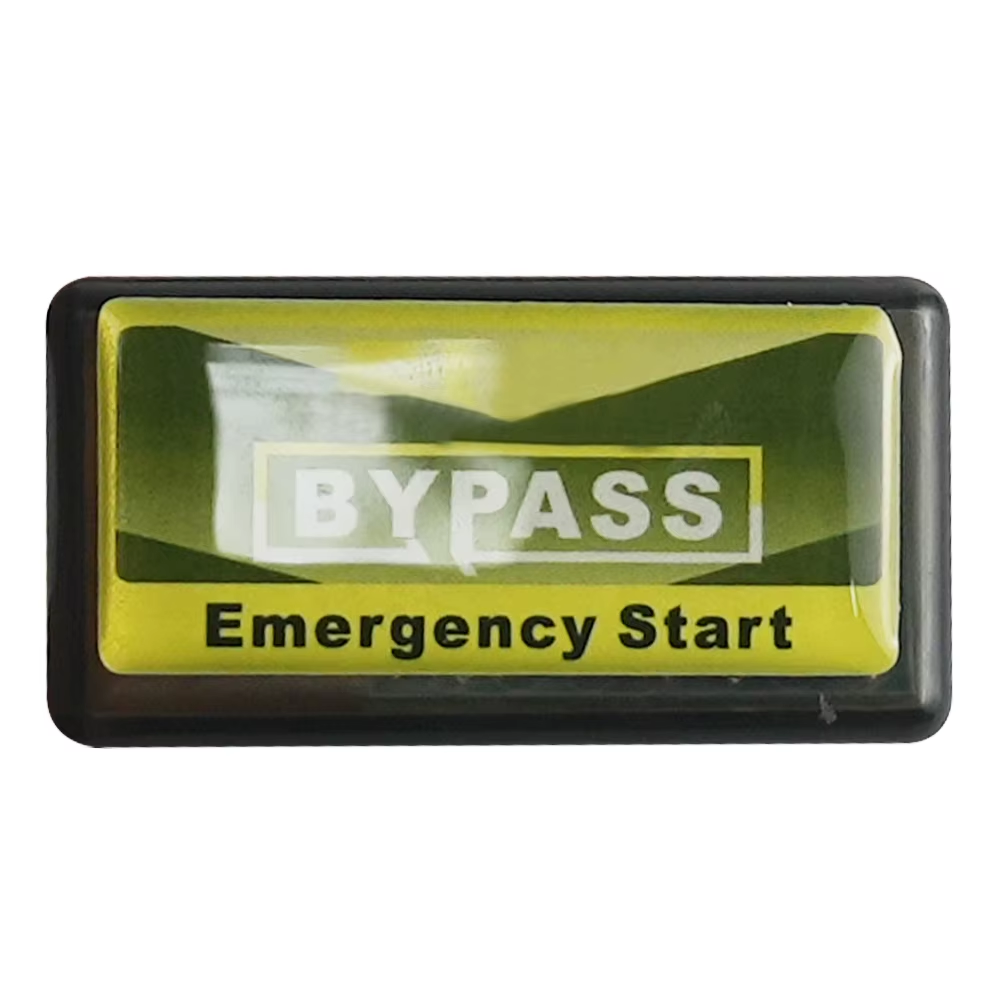

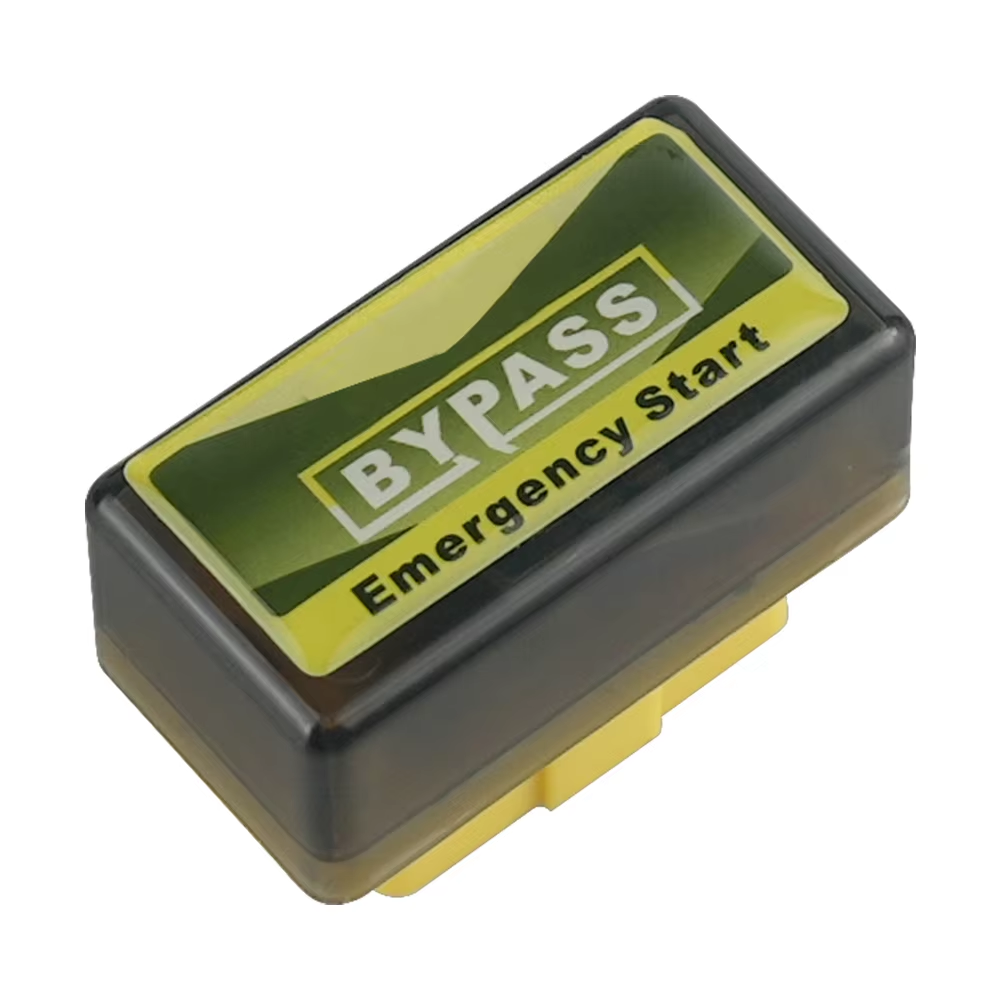

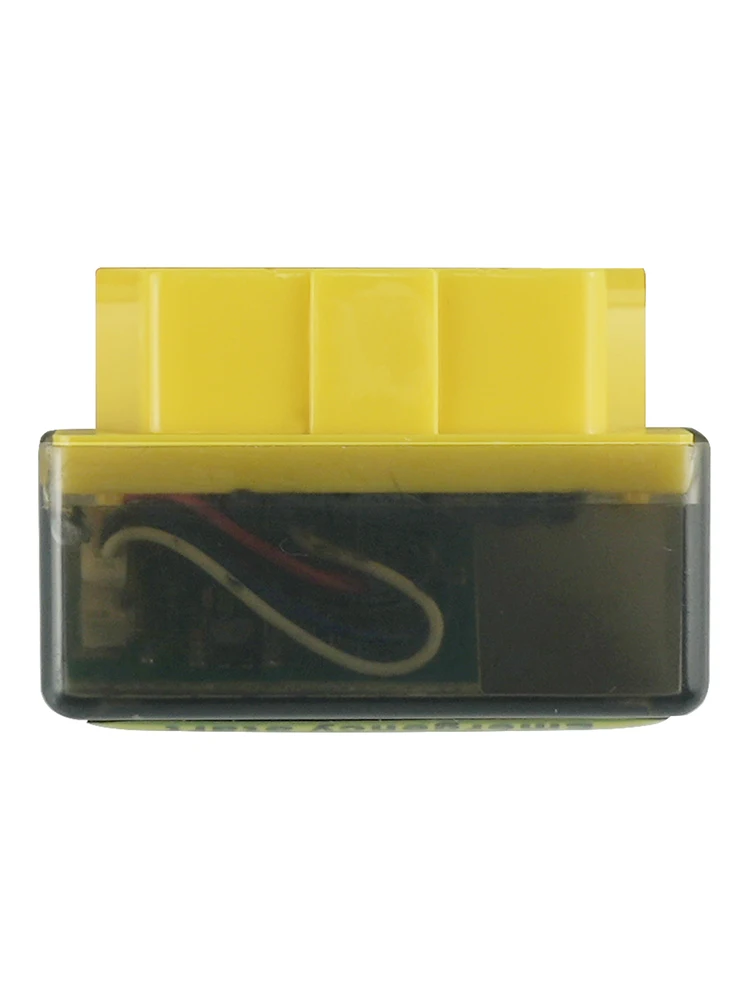

for FIAT By-pass - Emergency Start Device OverviewTo use Fiat Bypass you just need to connect it to the OBD2 socket in the car. The tool bypasses the original immobiliser signal and allows you to start the car right after plugging it in.

for FIAT By-pass - Emergency Start Device Usage Requirements:Car has to be equipped with mechanical key.Car has to be equipped with original parts. The device will work only in case of a lost key.If the car is equipped with an SGW Module (some models starting from 2017 year), you need to use SGW Adapter in order to bypass Security Gateway Module

How to use for FIAT By-pass - Emergency Start Device :

Insert the device into OBD plug(In some models produced from 2017 year, you have to use SGW Adapter), the LED will start blinking fast.Turn the ignition ON - the LED will start blinking slowly.Start the car.If the LED keeps blinking fast after turning the ignition ON, take the key out, wait 30 seconds and turn the ignition ON again. Sometimes the procedure needs to be repeated again.

For FCA Programming Cable 12+8 is used for Chry-sler's Security Gateway Module (SGM) which limits an aftermarket scan tool to only reading DTCs and viewing data,can be used with Autel Maxisys Series like IM608, Launch devices like Launch X431 V, OBDSTAR devices like OBDSTAR X300 DP Plus, XTOOL devices like XTOOL PAD3 etc.

2018 and newer for Chrysler, for Dodge, for Ram, for Jeep, and for Fi-at now have a secure gateway module or SGM. This SGM will not allow your scan tool to do bidirectional controls on the vehicle.The new FCA Programming Cable 12+8 allows communication with latest model for Chry-sler, Dodge, Jeep, Fi-at & Alfa vehicles.

The Programming Cable 12+8 Suitable for:

1: Autel devices like MS906BT+, MS906BT, MS906S, MS908, MS908S, MS908S PRO, Maxisys Elite and IM608 etc.

2: Launch devices like Launch X431 V, Launch X431 V+ etc.

3: OBDSTAR devices like OBDSTAR X300 DP Plus etc.

4: XTOOL Tablet, like X100PAD, X100PAD2, X100PAD3, EZ400PRO, A80PRO , A80PRO MASTER, D7, D8, D9, D9PRO etc.

4: Xhorse devices, Xhorse Key Tool Plus Pad.

Expect to see this message when scanning a Chrysler with the Security Gateway Module:

“DEVICE UNABLE TO COMMUNICATE WITH THE CONTROL UNIT”

NOTE:placement of the SGM varies, but it is often located in the side kick panel, passenger side near the glove box, or behind the radio.

What is it used for?

1. It's used to diagnose for Chry-sler,for Jeep Renegade Wrangler 300C after 2018 year.

2. Most 2018 and newer FCA vehicles include a Security Gateway Module.

3. Read/ Clear Codes

4. Perform Active Tests

5. View Generic & Manufacturer Live Data

6. Perform TPMS OBDII Relearn

7. Coding and Adaptation with Maxisys Tablet Tools MS906BT+

8. AD-AS calibrations (Requires Maxisys ADAS Software)

For FCA Programming Cable 12+8 needed on Vehicles with Secure Gateway Module:

2013+ For RAM Promaster

2015+ For Fi-at 500x

2015+ For RAM Promaster City

2016+ For Jeep Renegade

2017+ For Alfa Romeo Giulia

2017+ For Jeep Compass

2017+ For Jeep Cherokee

2018+ For Jeep Wrangler

2018+ For Ram Trucks

2018+ For Dodge Durango

2018+ For Jeep Wrangler (JL Body only, not JK)

2018+ For Dodge Journey

2018+ For Jeep Grand Cherokee

2018+ For Chry-sler Pacifica

2018+ For Chry-sler 300

2018+ For Dodge Charger

2018+ For Dodge Challenger

2019+ Most For Fi-at/ For Chry-sler/ For Jeep/ For Ram vehicles

2020+ ALL FCA vehicles
