Bitbox Module Toyota Full Package Gen 1& Gen 2 & Gen 3 Work with Scanmatik 2 PRO SM2 Pro SM3 Pro programmer

Manufacturer

BitBox

Downloads

BitBox software (the latest version)

Dongle identification utility

Senselock driver (3.1.0.0)

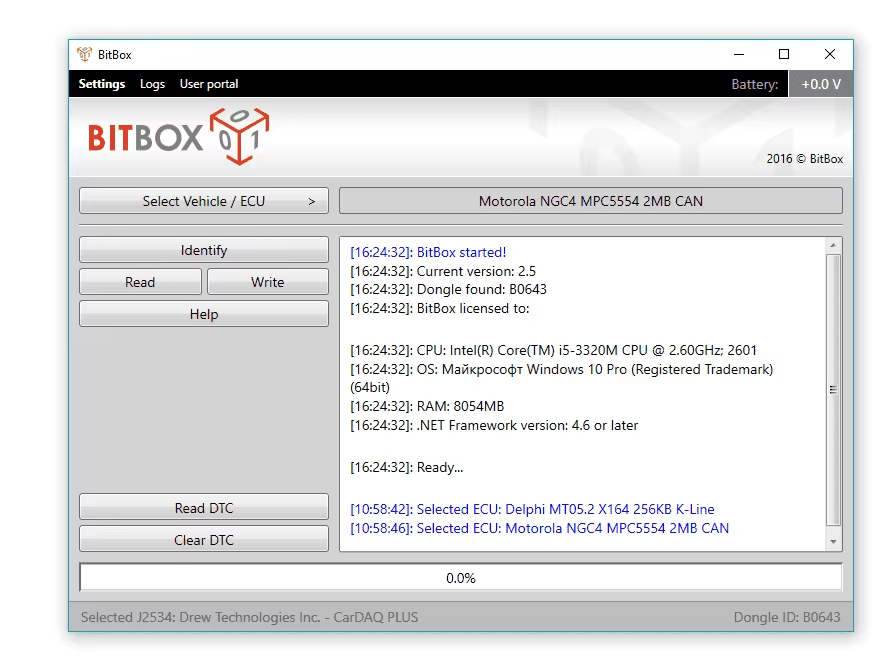

BitBox is a flasher that allows identification, reading and writing of ECU internal flash memory for various purposes. It works via CAN bus or K-line data interfaces using an J2534 Pass-thru adapter.

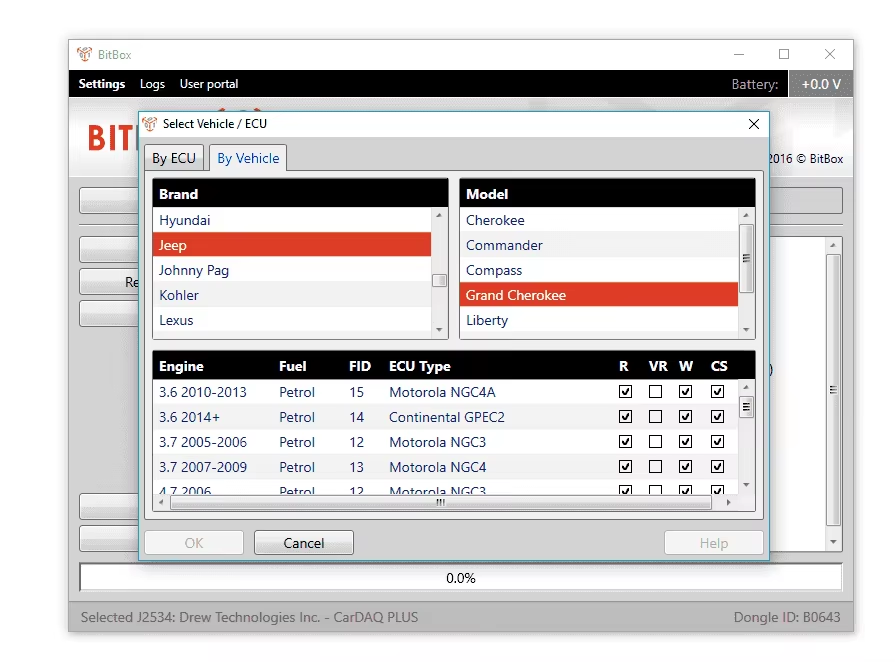

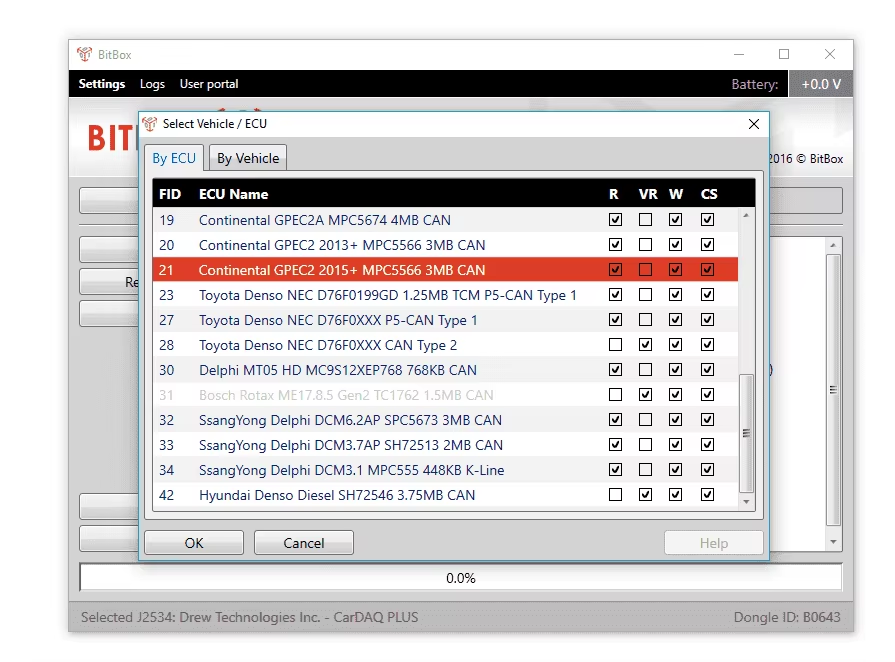

The package consists of a protection USB dongle and software with a set of plug-ins — software modules. The existing modular system allows to get access to needed software functions without excessive cost. The program has a client-server architecture and needs to be connected to the Internet. Activation of additional modules is also possible in the automatic mode via the Internet.

Module Toyota Denso Gen1 CAN

FID: 24, 26

Module for OBD virtual reading and writing with CAN-bus Toyota Denso and Fujitsu Ten Gen1 ECUs used in Toyota/Lexus/Scion/Hino petrol and diesel vehicles.

Toyota Denso NEC 76F00XX (FID: 24)

Toyota Denso NEC TCM 76F00XX (FID: 26) - test

It supports working with ECM and TCM of Denso ECUs with CAN-bus and based on MCUs NEC 76F0038, 76F0039, 76F0040, 76F0070 и 76F0085.

Module allows:

- Software identification
- Virtual reading lastest software update
- Writing (update version or downgrade)
- Checksums and CVN correction
- Recovery from any state*

* This feature allows to recovery ECU broken (with any tool) during CANBus writing or while Techstream update. You don't need any NBD/JTAG device, it CAN BE DONE with J2534 device via CANBus with bootstrap mode. This feature allows easy recovery of ECUs, including LC200 4.5TD without hard opening of the case and neccessary access to back side of PCB, and also new ECUs without NBD/JTAG pins on PCB (for example Camry V50, Highlander 3.5 U50, etc.).

Module Toyota Denso Gen2 (newGen) CAN

FID: 23, 27, 28

Module for OBD reading/virtual reading and writing Toyota Denso newGen ECUs used in Toyota&Lexus petrol and diesel vehicles. Checksum correction included.

Module supports 2 protocols types:

TYPE 1 (FID: 23, 27)

Allowed FullFlash READING and WRITING for Toyota&Lexus petrol vehicles with 2.0 6ARFSE, 2.0T 8ARFTS, 1.2T 8NRFTS, 3.5 2GRFKS, 3.5 7GRFSE etc. engines via P5-CAN-bus.

*Engine MCU D76F0199GD 1280Kb

*Engine MCU D76F0196F1 1536Kb

*Engine MCU D76F0219F1 2048Kb

*Transmission MCU D76F0199GD 1280Kb

*Transmission MCU D76F0196F1 1536Kb

Also this FID allows to set READ PROTECTION PATCH which will disable ECU reading and will protect your MOD files from stole.

Supported vehicles:

Lexus NX 200t AGZ1#
Lexus IS 200t ASE30
Lexus GS 200t ARL10
Lexus RX 200t AGL2#
Lexus RC 200t ASC10
Lexus ES 200 ASV61
Toyota Auris 1.2t NRE185
Toyota Camry 2.0 ASV51
Toyota Crown 2.0t
Toyota Tacoma 3.5 GRN3##
Lexus GS 350 GRL1#
Lexus RX 350 GGL2#
Toyota Highlander 2.0t ASU5#
Toyota C-HR 1.2t NGX##

Supported engines:

2.0 6AR-FSE
2.0 8AR-FTS
1.2 8NR-FTS
3.5 2GR-FKS
3.5 7GR-FSE
3.5hyb 8GR-FXS
1.8hyb 2ZR-FXE

etc...

TYPE 2 (FID: 28)

Allowed FullFlash VIRTUAL READING and WRITING with CS and CVN correction for Toyota&Lexus diesel and NA petrol vehicles with 2.8TD 1GDFTV, 2.4TD 2GDFTV, 4.0 1GRFE, 2.7 2TRFE, 2NRFE, 3ZRFAE engines. Writing possible ONLY if we have file for your vehicle on our server.

We will not respond to the claims about the inability to read a file from our server if we do not have it. Supported files list can be found here.

You can always read missing files with Toyota Denso Gen2 Reader BENCH [SM2/SM3 ONLY] module.

*Engine MCU D76F0199GD 1280Kb

*Engine MCU D76F0196F1 1536Kb

*Engine MCU D76F0198F1 1536Kb

*Engine MCU D76F0219F1 2048Kb

Supported vehicles:

Toyota C-HR ZGX10L
Toyota HiLUX GUN##
Toyota LC150 Prado GDJ##, GRJ15#
Toyota Tacoma TRN2##
Toyota Yaris 1.5 NSP151
Lexus RC-F USC10
Lexus GS-F URL10
Lexus RX450h GYL2#

Supported engines:

2.8TD 1GDFTV
2.4TD 2GDFTV
4.0 1GRFE
2.7 2TRFE
5.0 2URGSE
1.5 2NRFE
2.0 3ZRFAE
2.5 2ARFE
etc...

Toyota Denso Gen3 CAN

FID: 149

Module for OBD reading and writing with CAN-bus Toyota Denso and Fujitsu Ten Gen3 ECUs used in Toyota/Lexus petrol and diesel vehicles with new Dynamic Force engines.

Toyota Denso Gen3 R7F701202/R7F701216 (FID: 149)

Supports Denso ECUs based on MCU Renesas R7F701202/R7F701216 with 4Mb flash memory.

FID allows:

- Software identification
- Reading
- Writing with checksumm correction

Supported vehicles:

Lexus ES250 ES300h (ZA10, ZH10)
Lexus LS500 (F5)
Lexus UX200, UX200h (X10)
Toyota Auris/Corolla 2.0, 2.0hyb (E21)
Toyota Avalon 2.5hyb (XH5)
Toyota Camry 2.5, 2.5hyb (VA70, VH70)
Toyota C-HR 2.0 (X10)
Toyota Crown 2.0hyb (SH20)
Toyota RAV4 2.0, 2.0hyb (A50)
Toyota HiLUX 2.8TD/2.4TD
Toyota LC150 2.8TD
Toyota HiACE 2.8TD etc...

Supported engines:

2.0 M20AFKS
2.0hyb M20AFXS
2.5 A25AFKS
2.5hyb A25AFXS
2.5hyb A25BFXS
3.5turbo V35AFTS
2.8TD 1GDFTV
2.4TD 2GDFTV
etc...

Toyota Denso Gen3 R7F701216 Type 2 BENCH-CAN (FID: 235, 236)

FID allows:
- Software identification
- Virtual reading
- Writing with checksumm correction on the bench

Supports Toyota Yaris GR 1.6T G16E-GTS and Toyota Land Cruiser 300/Lexus LX500d 3.3TD F33A-FTV.

Toyota Denso Gen3 R7F701216 Type 3 BENCH-CAN (FID: 345)

FID allows:
- Software identification
- Reading on the bench
- Writing with checksumm correction on the bench

Supports Toyota Yaris and Yaris Cross with 1.5hyb M15AFXS and 1.5 M15AFKS engines. Also FID can be used for real reading of LC300/LX500d 3.3TD F33AFTV.

Attention! Writing MOD file with incorrect DTC disable can kill an ECU with no way for recover.

Module Toyota Delphi Gen1 CAN

FID: 140

Module for OBD virtual reading and writing with CAN-bus Toyota Delphi Gen1 ECUs used in Toyota and Scion petrol vehicles.

Toyota Delphi MPC565/SH72xx (FID: 140)

Module supports 3 types of Delphi ECUs based on different MCUs: Motorola MPC565, Renesas SH72544 & SH72512

Supported filesize: 1Mb, 1.5Mb, 2Mb

Module allows:

- Software identification
- Virtual reading lastest software update
- Writing (update version or downgrade)
- Recovery from any state

Module supports only CANbus vehicles.

Module Toyota Gen1 Virtual Reader

FID: 8, 9, 22

Service module for identification and virtual reading Toyota, Scion, Lexus and Hino Denso and Delphi Gen1 ECUs with NEC MCUs 76F0004/15/23/38/39/40/70/85 and Motorola MPC565 .

It allows to get ID of the firmware through OBD connector with any J2534 adapter and if this firmware available on our server You can download it for FREE.

Toyota Gen1 ECM Virtual reader (FID: 8)

Toyota Denso Gen1 TCM Virtual reader (FID: 9)

Toyota Denso Gen1 HCM Virtual reader (FID: 22)

Attention! We are not provide WRITING. U can use this module for stock files getting for acquaintance.

Our base is now contains 4700+ files.

Attention! We are not provide ORI files by mail, skype etc. You have to use this module to get file in the car.

We will not respond to the claims about the inability to read a file from our server if we do not have it.

Denso newGen (Gen2) files 1.25, 1.5 and 2.0 Mb available only for owners of Toyota Denso newGen CAN module.

Attention! This module will not allowed to use with Slave dongles.

Package Includes:

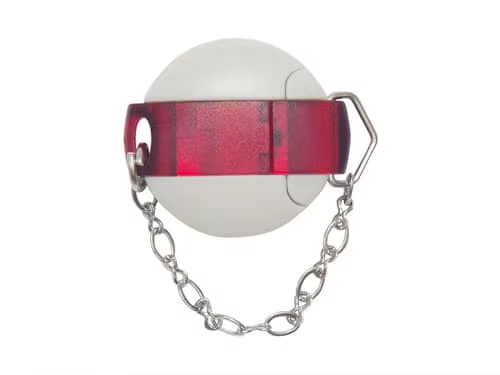

USB dongle (Senselock)

Software
