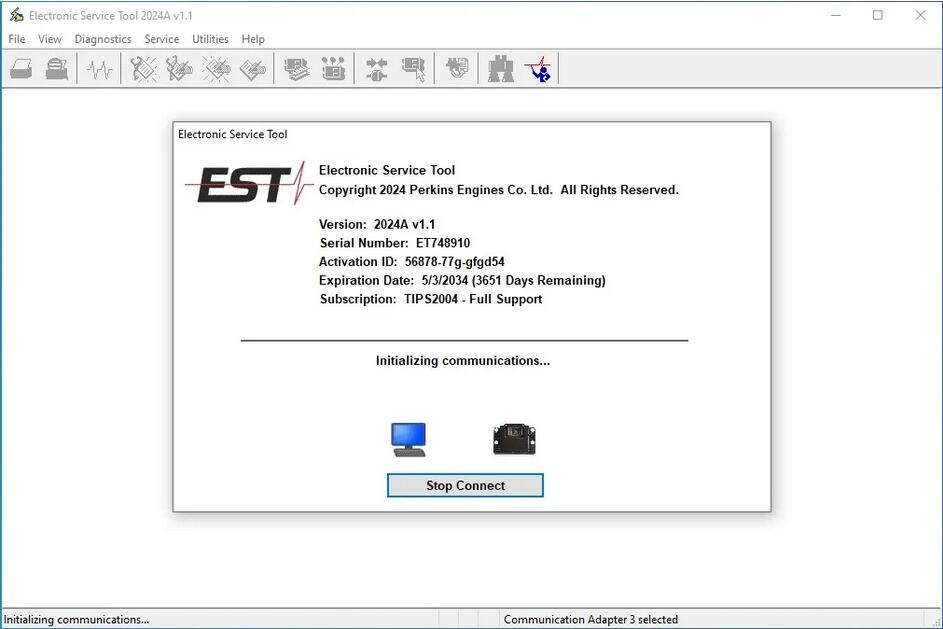

2024A V1.1 Perkins EST Electronic Service Tool Diagnostic Software +One PC Activation

Perkins EST 2024A is designed to run on a personal computer (PC) under Microsoft Windows. It will communicate with the Electronic Control Modules (ECMs) through a communication data link thus allowing you to diagnose existing and potential problems, configure the product, and obtain data for analysis.

Note:It is lifetime activation,you do not need pay for subscription.This price only for one pc installation,if you want to install it for more pc,you need pay times.After payment,you will get the download on payment page automatically,then please contact us to install it for you.This software only can install by our tech team.

Perkins EST 2023A Features:

Date version:2024A

Languages:English, Chinese,Danish,French, German,Italian,Portuguese,Spanish

OS:Window XP,Window 7,Window 8,Window 10

Expiration:Never Expired

Activation type:TIPS2004-Full Support

Note:Only for ONE PC Installation and Activation

Perkins EST 2024A Functions:

View active and logged diagnostics

View events where irregularities occurred and were logged by the ECM

View the status of a group of parameters (temperatures, pressures, etc.) simultaneously

Record and log performance data

Graph a group of status parameters

View the current configuration of an ECM

Change ECM configurations

Perform diagnostic tests

Perform calibrations

Print reports and diagnostic results

Perkins EST 2024A is a diagnostic program, which is a software part of a service system “TIPSS”. The user can use the test program Perkins EST 2020A for communicating with 2300/2800 electronic engines Perkins (FG Wilson 300 – 750 KVA range) and FG Wilson panel PowerWizard. This connection is via the J1939 data link.

Overall interface kit Perkins EST 2023A provides the user with an effective tool for diagnosing        problems engine and the ability to configure the system.

Diagnostic software Perkins EST 2024A allows users to:

Override Powerwizard level three passwords
Configure and/or change system parameters
Display, graph and record logs of parameter status
Display the status of a group of parameters (temperatures, pressures, etc)
View and clear active and logged diagnostic codes
View and clear active and logged event codes
Display, view or change the current Configuration File or Base level Flash File
Upload, download and save configuration files
View a list of irregularities logged by the ECM (engine control module)
Perform diagnostic tests
Perform calibrations
Print reports and diagnostic results.

A diagnostic program Perkins EST 2024A facilitates troubleshooting electronic systems. Key replacing ECM for 2300/2800 series engines Perkins.

Essential in replacing or upgrading the FG Wilson PowerWizard control panel module – the new standard in FG Wilson control systems. The empty module can be configured using the Perkins EST 2024A (installation of the database file to an empty flash module PowerWizard).

Includes dealer to upload, download and save the client configuration. Allows bypassing PowerWizard third level passwords.

Update firmware version PowerWizard. The program allows the dealer to install additional language files PowerWizard, as required.

To work with a diagnostic program Perkins EST 2024A needs a laptop computer with any USB or serial port and Windows 2000 or XP. Program Perkins EST quite demanding on CPU; hence, the slower the processor, the slower the program will work.

Electronic service tool Perkins EST 2024A includes the following changes:

1) WinFlash Screen changes – the WinFlash screen has been updated for improved usability.

2) New Help System – in this system, existing content has been significantly updated, and new content has been added to provide information and instruction on new features.

3) Snapshot Updates – the Snapshot feature now allows users to compare data points and to change the colors on the graph.

4) Time Mode Display Options for Data Log – “Time Mode” button is now available on the Data Log screen. Clicking this button allows users to toggle the display of the graph between the PC Clock Time (HH:MM:SS) and the time that elapsed while the data was being logged.

5) Trainer Enhancements – the following change was made to coach applications: application WinFlash has been added.
