SmartSafe/Launch iSmartTool 601 Max With (2 Years Free Updates)

The iSmartTool 601 Max is a 4 in 1 tool for professional diagnostics, TPMS programming and battery testing, with built in printer

What can be solved in your shop?

The SmartSafe/Launch iSmartTool 601 Max is a powerful TPMS (Tyre Pressure Monitoring System) Programmer and diagnostic scanner tool, suitable for 98% of vehicles equipped with TPMS, with advanced battery testing and battery management. The 601 Max is the successor to the popular Launch X431 Diagun series, but now with added battery, TPMS and printer function.

Main Functions

• Battery: In-car & out-of-car inspection. Battery health test, start-up test and charging test. Battery bar code scanning. Battery matching. Battery registration when installing a new battery

• TPMS: Coverage: 98% of vehicles with tire pressure monitoring system in the world. 315 MHz/433 MHz tire pressure sensor activation and matching learning. Tire pressure data reading: pressure, tire temperature, battery status, etc. Reading/coping/writing sensor ID value, compatible with OE and Launch universal sensors.

• Diagnose: Full system and full function diagnosis of more than 100 vehicle brands. Version information reading, fault code reading, DTC clearing, ECU Coding, Live data reading and recording, activation tests, many special functions

• Maintenance: Support 30 common maintenance functions, such as maintenance light reset, throttle matching, brake

  pad replacement, steering angle reset, anti-theft matching, ABS bleeding injector coding, DPF regeneration, sunroof initialization, Gearbox matching, etc.




ECU Coding and Bi-Directional Control

1) Component Matching: Match the ECU modules after changing and replacement.

2) Flash Hidden Functions: Activate advanced functions or Disable Vehicle Functions: like Deactivating the Start/Stop Function; Beeping When Unlocking and Locking; Seatbelt Warning Sounds; Mirrors Automatically Folding and Unfolding; and more.

3) ECU Coding: Allow you to ECU coding allows you to reset the adaptive data, match replaced control modules, calibrate settings and parameters on various control modules.  Includes online ECU Coding and guided functions for VW/Audi and will suit most requirements for workshops at the best value price point.

4) Through bi-directional active component tests, Launch X431 products can pinpoint the location of vehicle problems, allowing you to quickly know if any component, or subsystem is working properly or not. For example, if the fuel pump is not working and causing the ignition to fail, it could be a faulty pump, wiring, relay, or command. By turning the fuel pump on and off can quickly determine what is faulty.

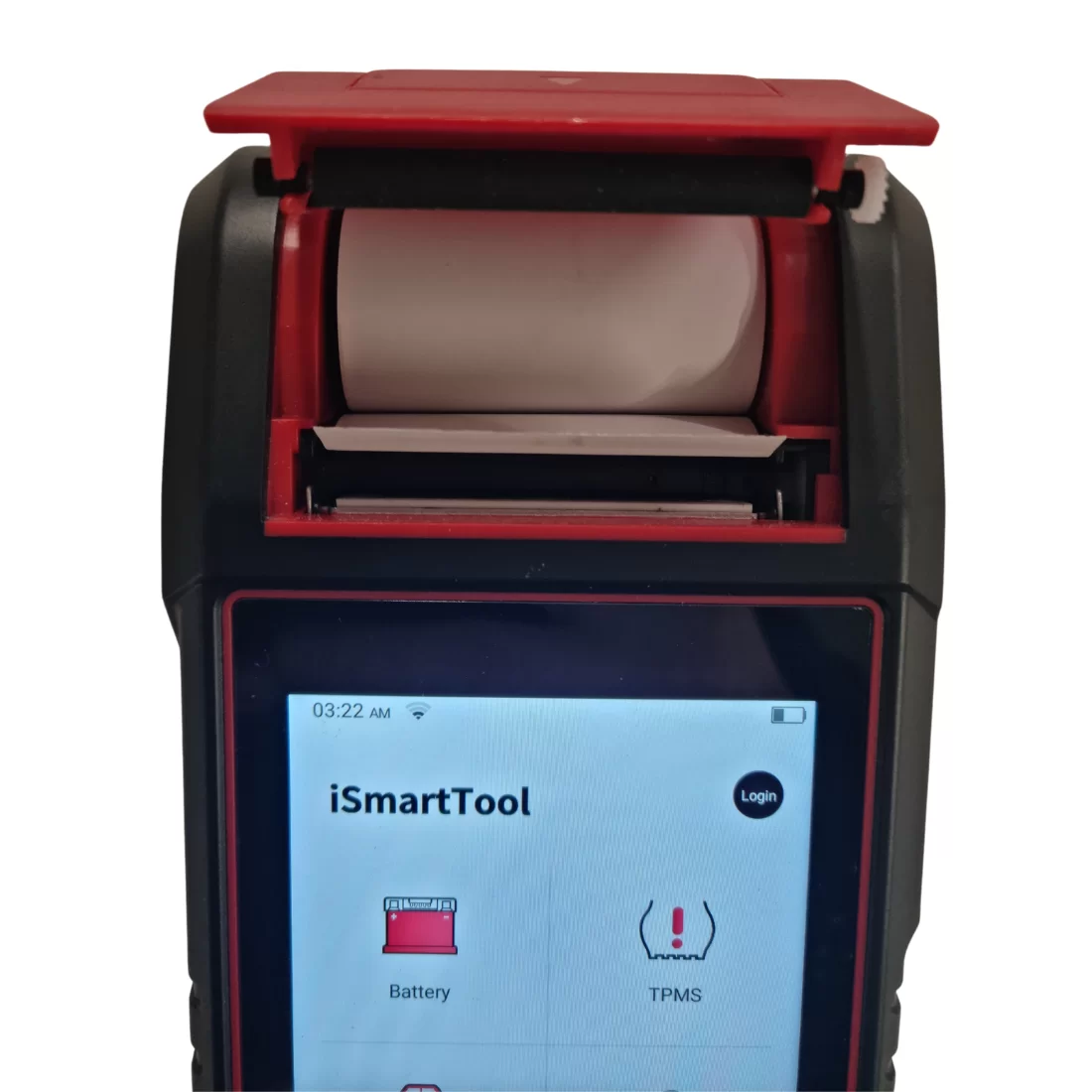

Built in Printer

Other Functions:

• Test Report: Supports the display of battery tests, tire pressure monitoring, fault detection, data flow and other diagnostics reports.

• Tool Software Upgrade: Support online upgrades, including model software, firmware software, and APP software

• Module Expansion: Support the expansion of videoscope functions

• Report Printing: Support printing reports through the built-in thermal printer

Features

• Can test all automotive starting lead-acid batteries: ordinary lead-acid batteries, AGM flat batteries, AGM winding batteries, colloidal batteries, etc.

• Supports common battery standard test: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE and GB.

• The bad cell can be detected directly; Directly test the battery with power loss, and there is no need to fully charge it before testing.

• Directly detect the bad cell and batteries under voltage, no need to charge the batteries before testing.

• Polarity reverse connection protection function: battery clamp reverse connection will not damage the equipment, nor will it have any adverse impact on the car and battery.


• Test report: directly printed or shared by email to provide online report viewing

Specifications:

• CPU: 4 Core 2.0GHz

• System: Android

• Memory: 4GB

• Storage: 64GB

• Display Size: 5.99 inch

• Resolution: 720 X1440

• Battery Capacity: 4500mAh/7.6V

• Camera: 8MP

• Wi-Fi: 2.4GHz/5GHz

• Interface: DB15 diagnostic connection, Battery clip connector, USB Type A, USB Type C

• Working Temperature: 0~45°C

• Storage Temperature: -10~60°C

• CAN FD and DOIP compatible

What’s in the box?

• iSmartTool

• OBD Diagnostic cable

• Battery cable clamps

• External power adaptor

• USB cable

• Password envelope

• User manual

• Cigarette lighter cable

• OBD I adaptor box

• Non-16pin adaptor cable kit
