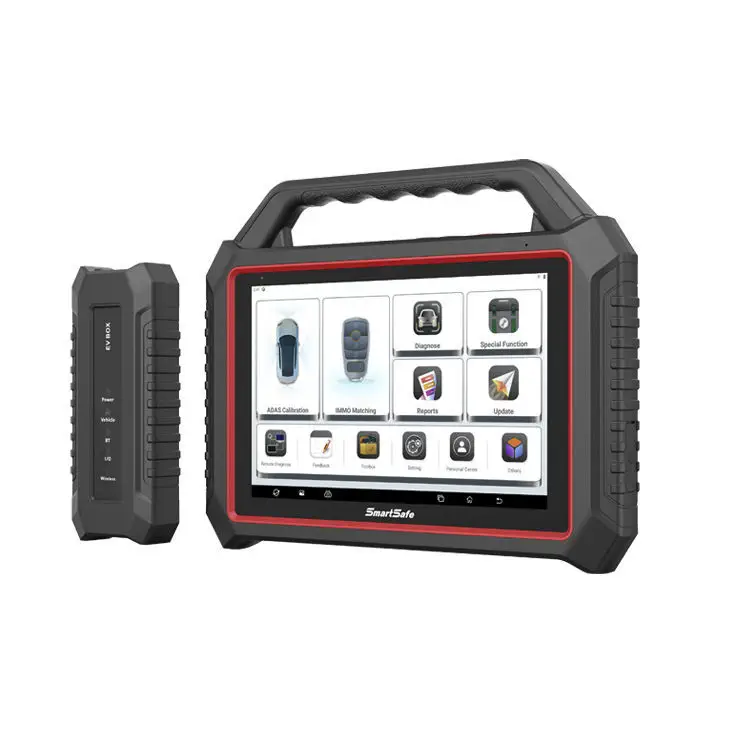

Launch ST10 SmartSafe iSmartlink D01 Cars & Trucks Premium Diagnostic Tool Support Online ECU programming 2 Years Updates

Item No. LX256 In Stock. History sold.

    0 out of 5

    0 global ratings

    5 stars:0%
    4 stars:0%
    3 stars:0%
    2 stars:0%
    1 stars:0%

ratings| answered questions
Latest price:$1859.00
Buy Now: $ 1799.00 3% off

Fast Shipping & No Tax

US Check: Ship from US

UK Check: Ship from UK

EU Check: Ship from Czech

Looking for help? Please contact Whatsapp: +86-19892834301

Shipping:
Free Shipping
Express Shipping ServiceEstimated delivery time: 3-5 Working Days
Quantity:
- +
Stock:34
Add to Wish List
continue
Weight:
8 KG
Package:
Share

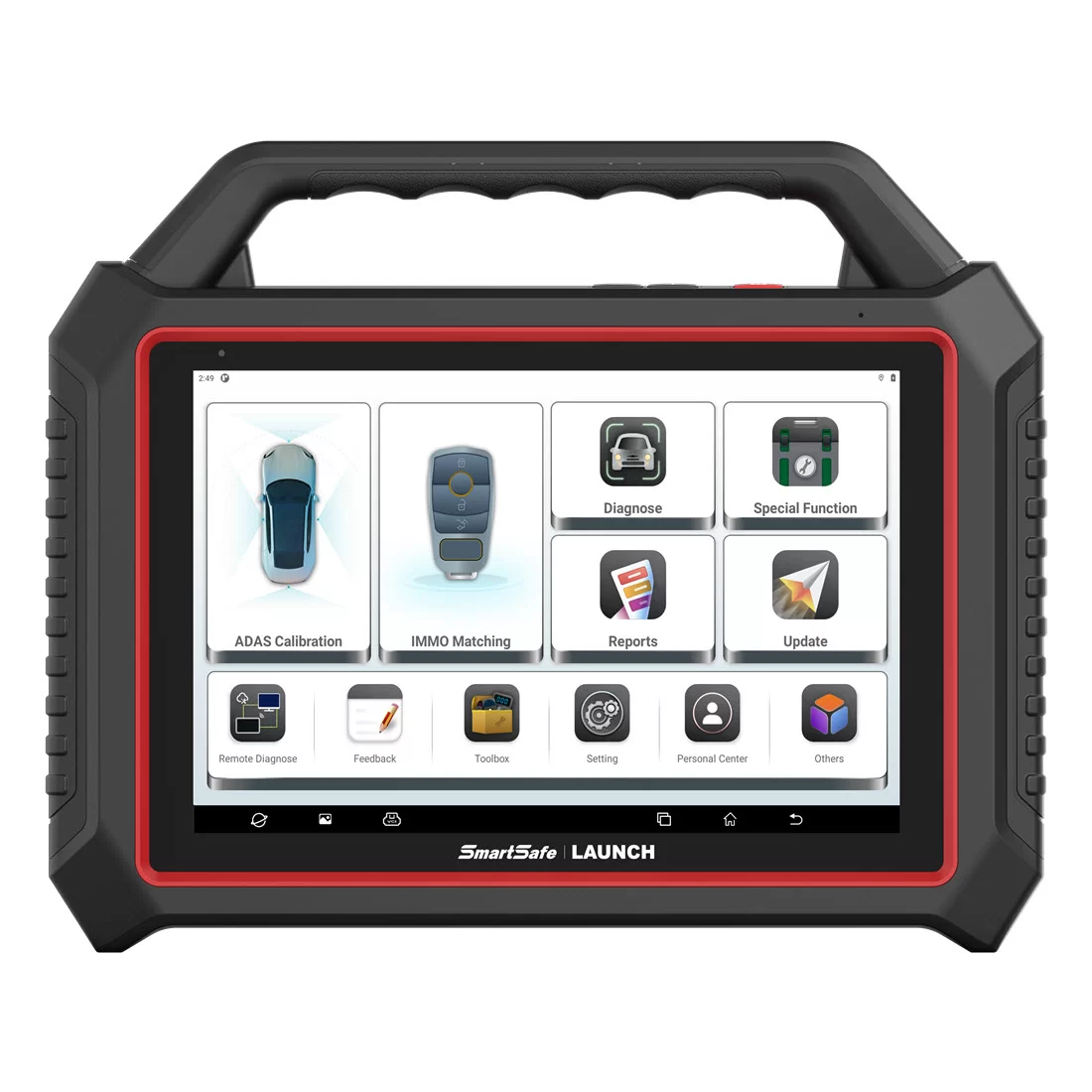

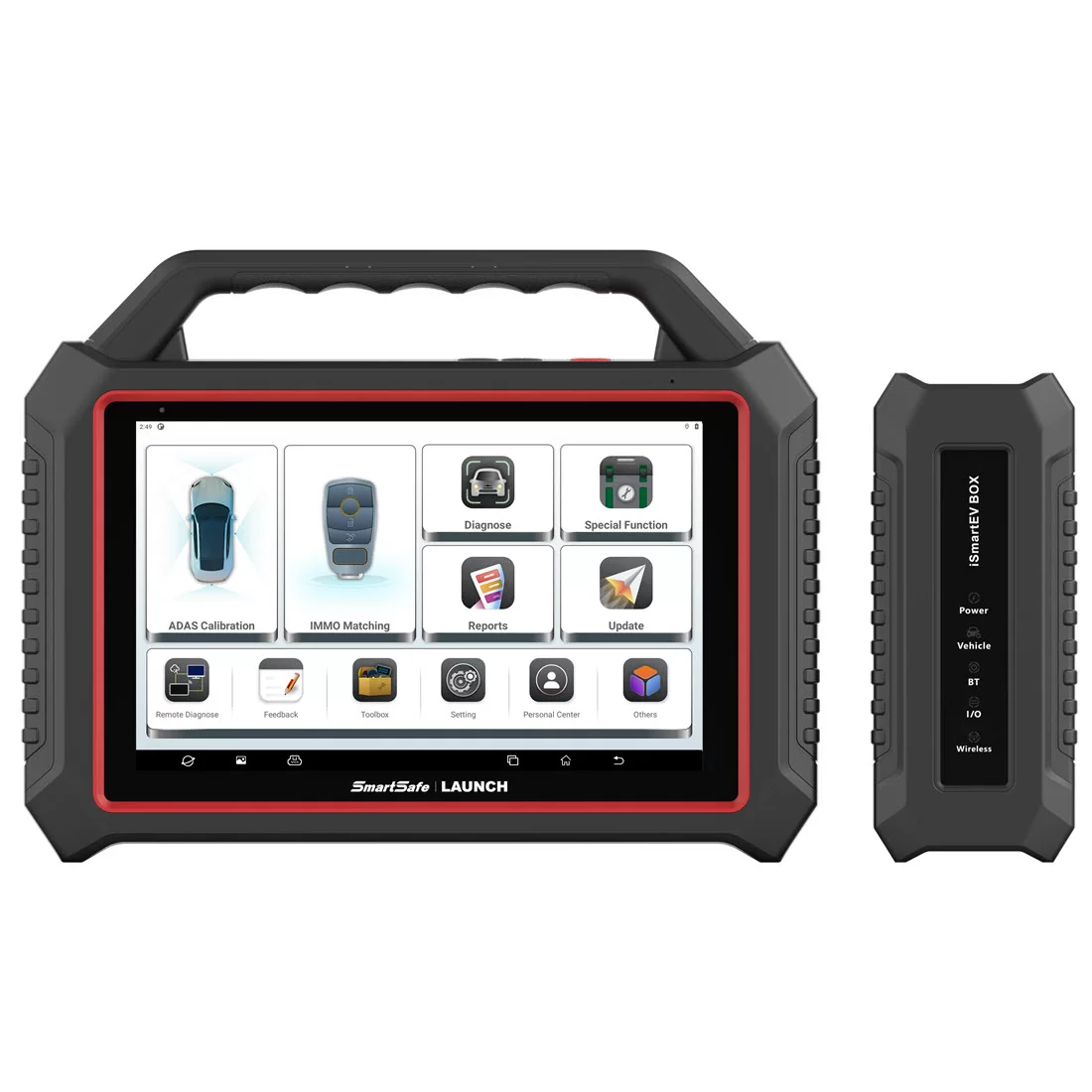

Launch ST10 SmartSafe iSmartlink D01 Cars & Trucks Premium Diagnostic Tool Support Online ECU programming 2 Years Updates


The SmartSafe iSmartLink D01 is our best value Premium diagnostic tool for 2024. With LAUNCH’s online cloud server for online ECU Programming and ECU Coding as well as extensive coverage for 12V Passenger Vehicle and 24V Trucks diagnostics.

Get the same online ECU programming coverage as Launch X431 Pad V with updated hardware at 30% less with FREE HD Trucks coverage

Features of iSmartlink D01:

  • Includes  12V passenger vehicle and 24V heavy duty trucks/buses diagnostics diagnostics

  • Launch SmartSafe iSmartLink ST10 diagnostic Tool: is one of the most advanced automotive diagnostic tools available, suitable for mid-scale or large-scale workshops,

  • Premium hardware for 2024: 128GB ROM, 4GB RAM, Android v10, 9360mAH Battery, DOIP

  • Near OE-Level Diagnostics: Includes all you normal diagnostic functions including special functions like adaptions resets etc for a huge range of makes and models,

  • Online ECU Coding: make software modifications to customize systems (also know as Retrofits and Conversions) for some systems and models on the following brands: BMW E and F series, VAG group, Toyota, Porsche,

  • Cloud-based online ECU Programming: for BMW, BENZ, VW/AUDI/SKODA/SEAT, PORSCHE, LAND ROVER, JAGUAR, SUBARU, NISSAN, and RENAULT without the need of the manufacture software or dealer tool (for coding and programming it does a huge range of systems and models in the above brands). No other tool for this price has this coverage.

  • AutoAuth Access: covering Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, to communicate with FCA SGW Authentication System and bypass SGM for OBDII diagnostics, active test, calibrations etc.

  • System topology diagram: The network topology diagram shows the networks and control units in a diagram which is very useful for us to understand how the different networks and systems are connected and when you do a full system scan we can see at a glance a overview of all the available systems and there status (this feature is new and is being added to many makes and models as updates go by)

  • Special functions/adaptions: huge range of special functions/adaptions for many makes and models, supports special functions such as immobilizer and key coding, injector coding, reset brake bleed, reset TPMS, electronic throttle relearn, reset DPF, reset SAS, reset Oil, reset brakes, reset BMS etc for a huge range of vehicles

  • Guided Functions: with simple step-by-step procedures for quick and accurate car diagnostics.

  • Active Test: control car functions directly from the tablet to activate or test components on demand, without using the vehicle’s own controls.

  • Live data: Numerical and graphing functions and also searchable

  • Module replacement: Module Replacement, Modification, Personalization, Anti-theft & Key Matching, and more (varies by the vehicle manufacturer, year, and model).

  • Maintenance Service: Oil Reset • EPB Reset • SAS Service • ABS Bleeding • TPMS Reset • Gear Learning • IMMO Service • Injector Coding • BMS Service • DPF Regeneration • Throttle Matching • Gearbox Matching • AFS Reset • Sunroof Initialization • Suspension Calibration • EGR Adaption, etc, 34 functions available in total, and still expanding.

  • Camera VINScan: quick recognition of vehicle barcode with rear camera  (for many makes and models)

  • Smart box: The included Smart box connector supports diagnostic protocols such as  D-PDU protocol, RP1210 protocol, CANFD, DOIP protocol and it also supports Security Gateway for FCA group and others coming soon

  • Smart AutoVIN & AutoScan: AutoVIN in many cases will auto identify the car make / model / year, and head towards proper diagnostics and in the cases where it does not AutoVIN the vehicles you can still use the standard manual method of selecting the correct vehicle details

  • Multilingual menu support: Chinese Simplified, Chinese Traditional, English, Japanese, Korea, French, Spanish, Portuguese, Italian, Russian, Deutsch, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Farsi, Finnish, Hungarian, Swedish, Turkish, Serbian.

  • Printing/share: Pint diagnostical reports via WIFI to a WIFI printer or share a report by email

  • Smartbox VCI supports both 12V & 24V diagnostics



ECU Online Programming + ECU Coding +J2534 Programming

iSmartlink D01 automotive scanner is compliant with D-PDU, SAE J2534 & RP1210 to update OEM software, replace the existing software/ firmware in ECU, fix ECU parameters loss, program new ECUs, and fix software-controlled drivability issues. It can do ECU programming for 30+ car brands, including for VW, Ford, Audi, BMW, Hyundai, Kia, Land Rover, MG, Mercedes, Nissa, Porsche, Renault, Seat, Subaru and more.


When you need to do online programming?

  1. Unprogrammed blank module / Control Module not coded

  2. The module data record is lost and the control unit is damaged

  3. Fuel Quality defective Firmware Upgrade

  4. Software upgrade/part number upgrade for Control Modules.






Supported Vehicle Brands

12V Passenger Cars

Abarth, Acura, Alfa, Audi, BAIC, Bentley, BMW, Bugatti, Buick, BYD, Cadillac, Changan, Chery, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Daihatsu, Dodge, Ford, Fiat, Foton, GM, GMSA, GWM, Honda, Hyundai, Infiniti, Isuzu, JAC, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Lincoln, Maserati, Maybach, Mazda Mercedes, MG, Mini, Mitsubishi, Nissan, Opel, Opel South Africa, Peugeot, Porsche, Renault, Seat, Skoda, Smart, Sprinter, Subaru, Suzuki, Tesla, Toyota, Volvo, VW, VW_CV


24V Heavy Duty Trucks and Buses

Bendix, Benz, DAF, DFL, Detroit, ERF, FAW, Freightliner, Fuso, Eaton, Hino, International, Isuzu, Iveco, Kenworth, Mack, Man, Otokar, Peterbilt, Renault, Scania, Setra, Sisu, Temsa, UD, Volvo, Wabco




34 special Maintenance Functions for Cars

Air/Fuel Reset

This function is applied to set or learn Air/Fuel ratio parameters.


Electronic Parking Brake Reset

This function enables you to retract the calipers or reset the brake after replacing the brake pads.


Oil Reset Service

If the service lamp is on, reset the driving mileage or driving time, so as to turn off the service light and enable


Steering Angle Calibration

Reset the steering angle, after replacing the steering angle position sensor, replacing steering mechanical parts, performing four-wheel alignment.


Battery Maintenance System Reset

This function enables you to perform a reset on the battery monitoring unit of vehicle battery when the battery is replaced, or the battery monitoring sensor is replaced.


ABS Bleeding

Perform various bi-directional tests to check the operating conditions of Anti-lock Braking System (ABS) when the ABS contains air or when the ABS ecu or pump, brake cylinder, brake line, or brake fluid is replaced.


Throttle Learning

Calibrate throttle actuators and return the learned values stored on ECU to the default state after replacement of the ECU or throttle assembly.


Tire Pressure Monitor System Reset

Look up the tire sensor IDs from the vehicle’s ECU, reset tire pressure and turn off the tire pressure MIL when pressure is too low or tire pressure monitoring device is replaced or installed, or tire is replaced


Diesel Particulate Filter (DPF) Regeneration

This function enables you to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.


Gearbox Matching

Complete the gearbox self-learning to improve gear shifting quality when the gearbox is disassembled or repaired.


Gear Learning

This function enables you to perform tooth learning for the car, to turn off the MIL after the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced, or if Tthe DTC ‘tooth not learned’ is present.


Motor Angle Calibration

When the rotor position detected by the motor angle position sensor is different from the actual rotor field position, motor angle calibration must be performed.


Coolant Bleed

Use this function to activate the electronic water pump before venting the cooling system.

Engine Power Balance Monitoring


It is used to monitor crankshaft acceleration in the power stroke of each cylinder, to determine the relative power provided by each cylinder.


IMMO Prog

This function supports the reading and writing of car key chip, EEPROM chip, MCU chip, EEPROM and flash of engine ECU and transmission ECU.


IMMO Service

This function enables you to perform the anti-theft key matching function, so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.


High Voltage Battery Diagnosis

It is used for high voltage battery diagnosis and status information detection.


Gas Particulate Filter Regeneration

After the GPF is used for a long time, fuel consumption is increased and engine output power is reduced. In this case, the GPF replacement or regeneration must be performed.


Transport Mode

In order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key


Tire Reset

This function is used to set the size parameters of the modified or replaced tire.


Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.


AdBlue Reset

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.


NOx Sensor Reset

NOx sensor is used to detect the NOx content in engine exhaust. If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned values.


Injector Coding

This function enables you to write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder after the ECU or injector is replaced.


Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU (provided that the vehicle has a hidden function and supported by hardware).


Sunroof Initialization

This function enables you to set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car etc.


Suspension Calibration

A the height of the body when replacing the body height sensor, or control module in the air suspension system and when the vehicle height is incorrect.


Language Change

This function is used to change the system language of the vehicle central control panel.


Intelligent Cruise Control System Diagnosis

It is used for matching after the intelligent cruise control module is replaced or repaired.


AC System Relearn/Initialization

AC system relearn/ initialization must be performed when the vehicle AC ECU or actuator is replaced or the ECU memory is lost.


Seats Calibration

This function is applied to match the seats with memory function that are replaced and repaired.


AFS (Adaptive Front-lighting System) Reset

Initialise the adaptive headlamp system. AFS system adjusts headlamp automatically according to the environmental light intensity, monitors the vehicle’s speed and body posture, and adjust the lighting angle.


EGR Learning

This function is used for learning after EGR (Exhaust Gas Recirculation) valve cleaning or replacement.



What Functions area available on Trucks and Buses?

Service Functions for Trucks:

  • DPF Regeneration

  • Injector Coding

  • Reset Service (MIL)

  • Maintenance Confirmation

  • Injection Quantity Adjustment

  • Particulate Filter Replacement Reset

  • Reset Pressure Differential Sensor

  • Reset Pressure Limiting Valve

  • Bleeding The Adblue Circuit

  • Trip Reset

  • VGT Electronic Actuator

  • Installation and Calibration

  • Parked SCR Efficiency Test

  • DPF Ash Accumulator Reset

Calibrations on Trucks:

  • Idle Speed Adjustment

  • Speed Limit

  • Cruise Control

  • Idle-Stop System

  • PTO

  • Coolant Level Switch

  • Exhaust Brake Valve

  • Intake Air Preheating

  • Vehicle Speed Controller

  • Air Conditioner adaptations

  • Oil Pressure Sensor calibration

  • Electronic Fan

  • ABS Coding

  • Automatic Transmission


Launch Smartsafe D01 supports a range of optional Add-On Modules:





Specifications:

  • Operating System: Android

  • CPU: 8-core Processor,2.OGHz

  • Battery: 7000mh, rechargeable polymer lithium battery

  • Storage: 128GB

  • Extension memory card: 64G(Can up to 128GB )

  • RAM: 4GB

  • LCD: 10.1 inch

  • LCD resolution: 1920*1200

  • Battery: 9360mAH

  • Touch screen: IPD touch screen

  • Front and rear camera

  • Wi-Fi: 2.4G/5GHz Dual Frequency

  • Connectivity: Wi-Fi, USB port,

Smartbox VCI Parameters:

  • Working Voltage: DC 9v ~36V

  • RAM: 256MB

  • ROM: 8GB

  • USB: Type Bx 1

  • Wi-Fi: 2.4G/5GHz Dual Frequency

  • Power: ≤6.6W

  • Working Temp.: o℃ ~ 50℃

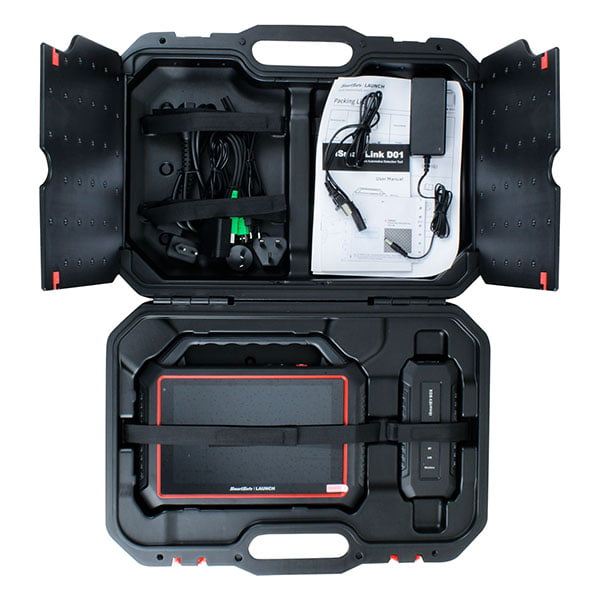

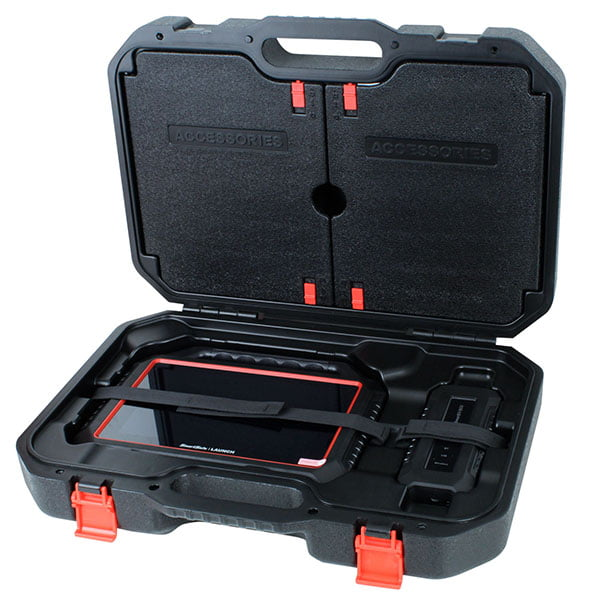

Launch SmartSafe iSmartLink D01 Package List:

  • 1 x Launch SmartSafe iSmartLink D01 main unit

  • 1 x Smartbox 3.0 diagnostic connector

  • 1 x Mains charger

  • 1 x USB cable type C

  • 1 x USB cable type B

  • 1x set adapter cables for Trucks/Buses

  • 1 x User manual

  • 1 x Password envelope

  • 1 x Soft cloth
