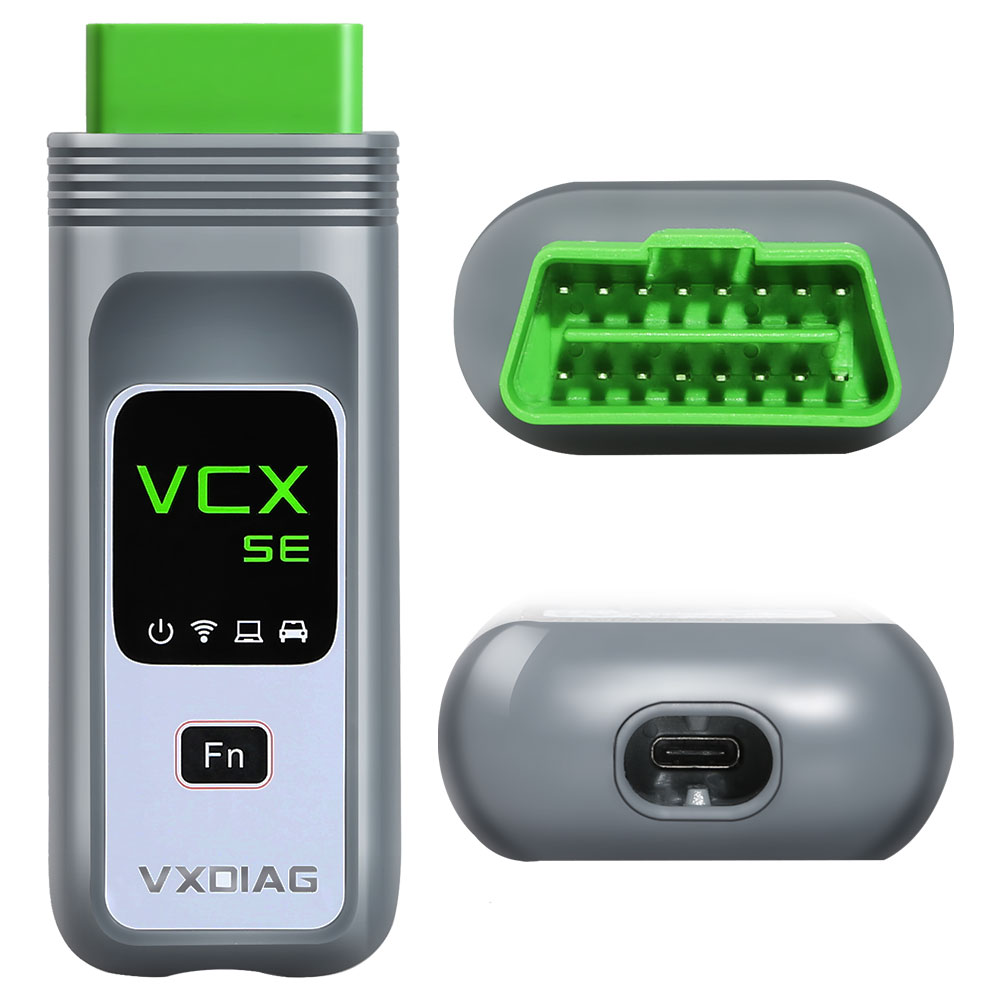

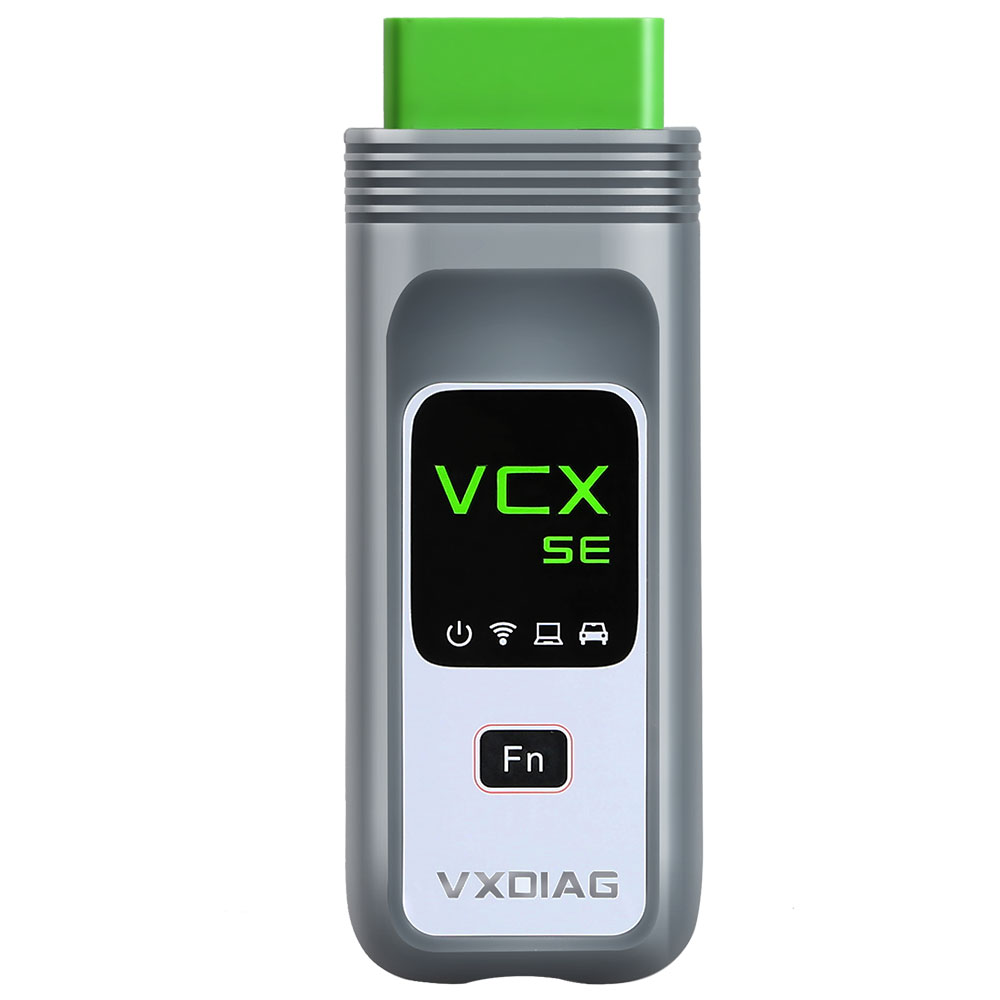

VXDIAG VCX SE OBD2 Diagnostic Tool for Renault & PSA

Top Highlights of VCX SE Renault & PSA:

1. Support Both Renault (2005-), PSA Cars (2006-), Opel 2017-
2. Support to do Full Systems Diagnosis Function.
3. Free software download.
4. Lifetime License, Can Update the Firmware, License to renew in VX Manager for Free.
5. Support both USB, USB type C, WLAN, WIFI connection to PC. (WiFi password: 12345678)
6. Can be used as J2534 passthru for OEM online programming (need online account) , also compatible with 3rd party software pcm-flash, bitbox etc. Free to test by your side.
7. You are able to add license for other car brands.

VCX SE Renault Software Install & Functions:

User Notice: Disable Antivirus software before installing the software.

Free download VXDIAG VCX NANO Renault V219 software and driver

Free download PSA Diagbox 9.85 and PSA VCI Driver (One time activation for free, additional activation needs 10USD one time.)

Renault and PSA use separate VCI drivers. Install the driver separately, you don't need to install vx manager.

*Don't install other software programs on the same system. Other programs may conflict with Renault clip software/driver.

1. Run Install Fix
2. Install CLIP
3. Install Bosch Driver
4. Install VCI Driver
5. Register CLIP

Read DTCs&nD-A-Sh;It can access to the depth of every onboard systems to read and analysis the DTCs
Clear DTCs&nD-A-Sh;it can clear the DTCs hidden in the ECU and clear the lights on the D-A-Shboard.
ECU Information&nD-A-Sh;get ECU information in detail.
Live Data Stream&nD-A-Sh;a valuable reference to determine the specific problems accurately.

ECU Coding

VCX NANO comes with advanced ECU coding capabilities to reprogram the adaptive data for certain components after replacement to enhance vehicle performance and flash hidden functions to customize car settings and disable annoying functions.

Online Calibration

Online Parameterization

Components Matching

Flash Hidden Functions

Rear-view mirror folding

Disable daytime running light

Disable seat belt alarm beep

Remove maximum speed limiter

Note: We don't provide online account for ECU Coding & Programming.

VCX SE PSA Functions:

PSA DIAGBOX V9.85 Software Download (Need to contact us to get activation code by remote)

1. Read identification
Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc...
2. Read fault codes
Displays all stored and pending fault codes with complete description (e.g. "Rail pressure - too low pressure").
Program supports report printing or copy to clipboard.
3. Clear fault codes
This function clears all stored fault codes and other diagnostic information.
4. Auto-scan (complete car scan/test)
Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes.
5. Measured Values
Program displays live Data like Engine Speed, Battery voltage, Oxygen Sensor, Coolant Temperature, etc.
Values can be displayed in graph, 9 values at once, or full listing (all measured values). Logging to file is also supported, which allows offline
6.Actuator test
Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc..)

Vehicle List:

Citroen
DS3, DS4, DS5, AMI, C-ZERO, C1, C2, C3, C3 Picasso, C3 Aircross, C-Elysee, C3-XR, C3L, C4, C4 Cactus, C4 Picasso, C4 Spacetourer, C4 Aircross, C5, C5X(E43C), C5 Aircross, C6, C8, C-Crosser, Nemo, Berlingo, Jumpy, Spacetourer, Jumper, Mca21, AX, Saxo, BX, ZX, Xsara, Xantia, XM, Evasion, C15, Fukang Fukang 988, Elysee, C-Elysee (R3), C-Triomphe, C-quatre

Peugeot
iON, 107, 108, 206, 207, 207+, 208, 301, Hoggar, 307, 308, RCZ, 407, 408, 508, 607, 807, 1007, 2008, 3008, 4007,
4008, 5008, Bipper, Partner, Rifter (K9), Partner (K9), KP0, 106, 205, 306, 309, 405, 406, 605, 806

DS
DS3, DS3 Crossback, DS4, DS4 4S, DS 5LS, DS5, DS6, DS7 Crossback, DS9 E-Tense

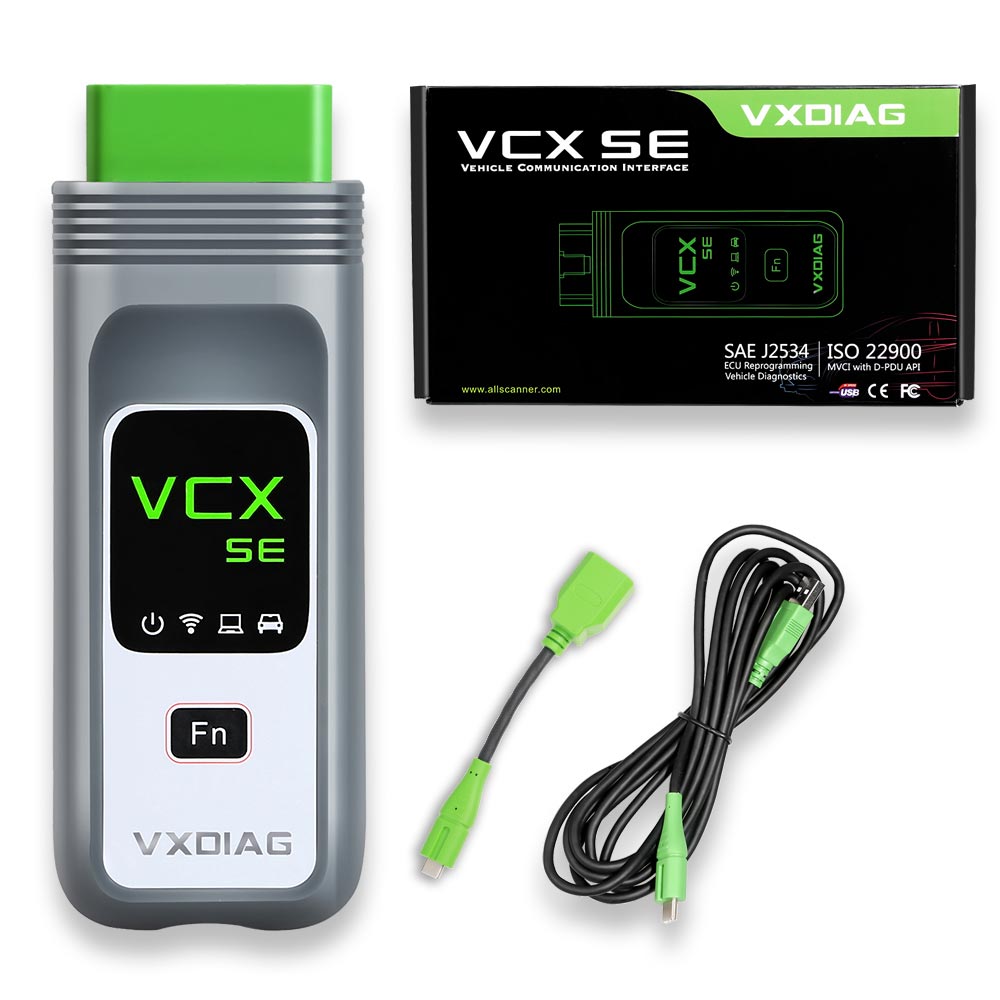

Package List:

1pc x VCX SE PSA

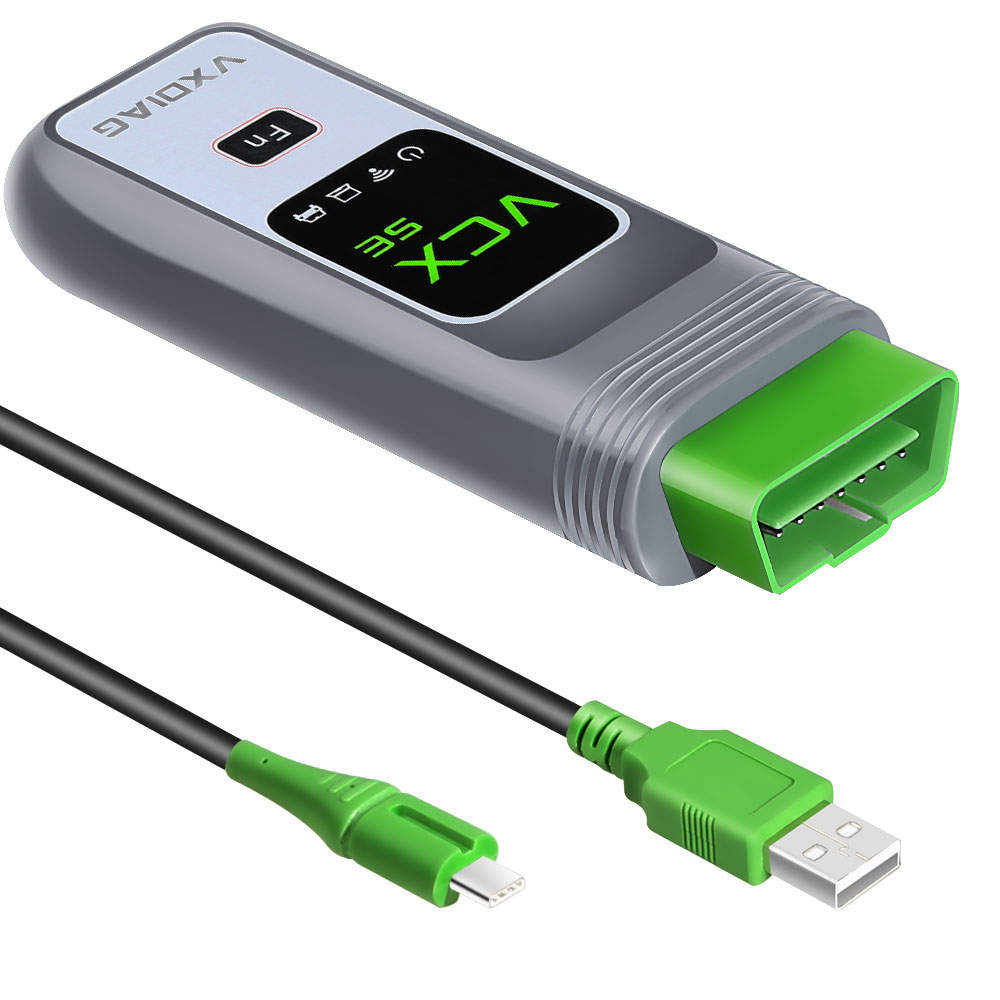

1pc x Type C USB cable
1pc x LAN to USB converter
1pc x Case
