Navistar Engine Diagnostics (NED) V7.8.22 with 2023.06 Database + UNLOCK Patch for multi PC

Data update: 2023.06
Size: 193 Mb
Region: All regions
Type: Diagnostic Software
Language: English
OS: Win 10, win 7, win XP,

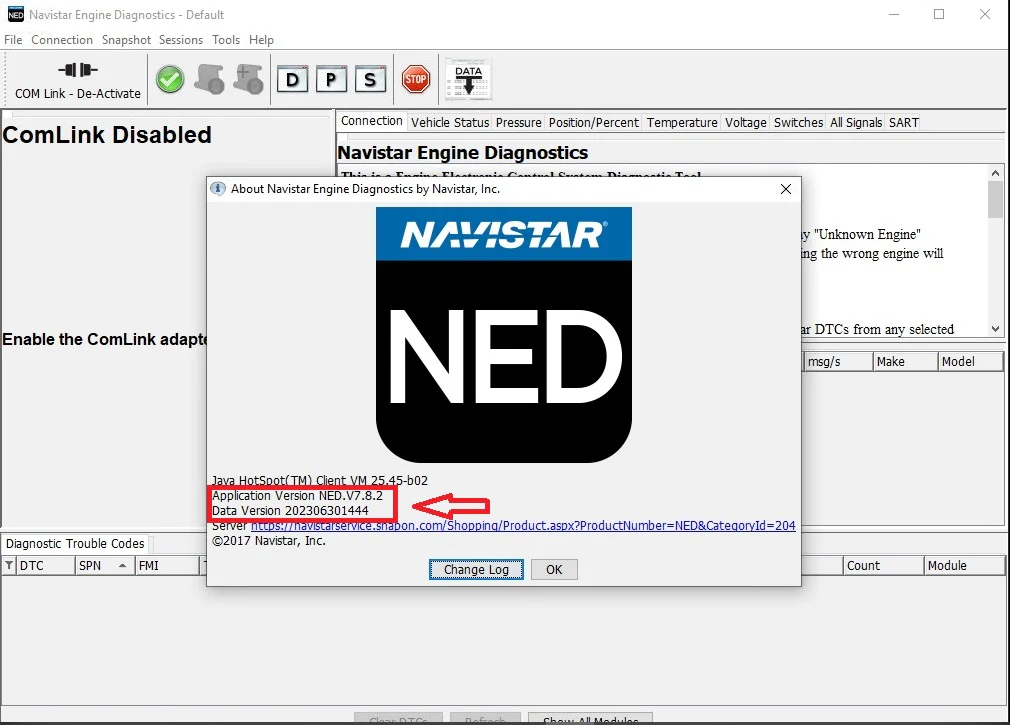

Version NED: V7.8.22
Number of Discs: 1 CD
Instructions: Present
Installation: Multi PC
High speed download link

Navistar Engine Diagnostics is a diagnostic and programming service tool for Navistar Engines. A full-featured PC application, Navistar Engine Diagnostics is designed to meet the wide range of diagnostic challenges of servicing a mixed truck fleet. Coverage includes all J1939 International electronic engine systems. It allows you to monitor the control system, retrieve diagnostic trouble codes (DTC), change parameters, view and graph engine data, and run specialized service bay testing on all engine and aftertreatment systems. The application also features period updates, ensuring you the most up-to-date coverage.

Software Capabilities

• Control System Monitoring

• View

• Record

• Save

• Playing Snapshot Recordings

• Diagnostic Trouble Codes

• Retrieve, View, Clear

• HD-OBD Freeze Frame Data

• HD-OBD Monitors

• Monitor Results

• Diagnostic Readiness

• Monitor Performance Ratio

• View, Save Print

• Service Bay Tests

• Sensor Calibrating

• Part Replacement Resets

• Air Management Test

• Cylinder Cutout Test

• Engine Fan Test (If Equip)

• High Pressure Pump Test

• Aftertreatment System Tests

• Actuator Tests

• Sensor Intermittent Faults

• Cold Start Test

• Key On, Engine Off

• Engine Running

• Procedures

• Programmable Parameters

• View Programming

• Change Programming

• Service Interval Reset

• Engine Feature settings

Minimum System Requirements

*Microsoft Windows Vista, or Windows 7
*1GHz Intel Core 2 Duo, AMD Athlon X2 or better
*2GB (32-bit) or 4GB (64-bit) of RAM
*300MB of available hard disk space
*1024 x 768 pixel monitor
*One or more RP1210A compatible communication devices with SAE J1708 and/or SAE J1939 support

NOTE: Make sure to close Navistar Engine Diagnostics before installing a new version

Recommended Interface Cables

NEXIQ Technologies Link-2
Dearborn Group Technologies DPA 5
Noregon Systems, Inc. DLA, DLA USB

Engine Support

MaxxForce 5 (2007-2009)
MaxxForce 7 (2007-2009)
MaxxForce 7 (2010-2012)
MaxxForce 7 (2013-)
MaxxForce DT, 9, 10 (2007-2009)
MaxxForce DT, 9, 10 (2010-2012)
MaxxForce DT, 9, 10 (2013)
MaxxForce 11, 13 (2008-2009)
MaxxForce 11, 13 (2010-2013)
MaxxForce 15 (2010-2013)
N9, N10 SCR (2014-)
N13 SCR (2013-2014)
N13 SCR (2015-)
International A26 SCR (2017-
