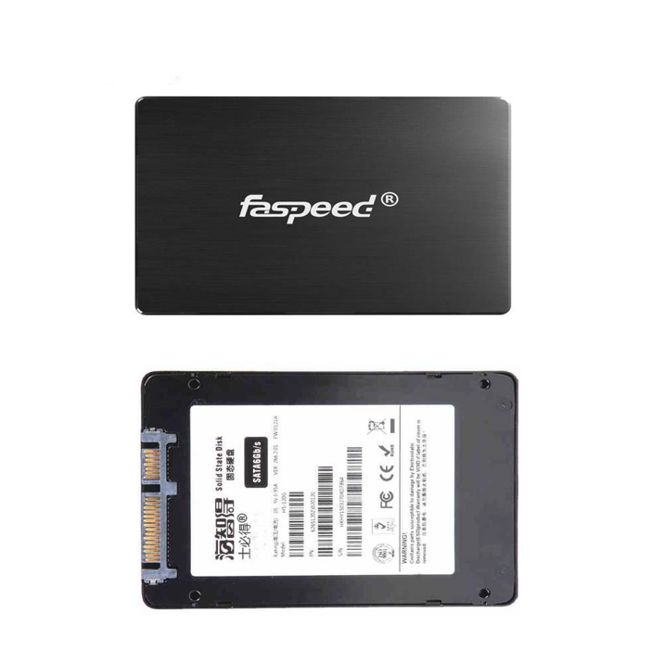

VW ODIS-S V23.01 + ODIS-E V17.01 Diagnostic Software For VAS 5054A and VAS6154 With 256GB SSD Disk

What is VW ODIS?

ODIS System is short called of Offboard Diagnostic Information System, integrates VW Group’s main application system, improves greatly on the efficiency of diagnosis. ODIS System provide flexible fault diagnosis, clear data test display, convenient diagnosis entrance.

VW ODIS Functions List:

Diagnostic logs are saved automatically.
* You can choose a dynamic brand layout. This changes then depending on the brand of the vehicle.
* The special functions are represented thematically sortedly.
* You have the possibility to generate a self diagnostic log.
* You can check the connections to backend systems.
* The enforcement of an update was optimized.
* The data-download is carried out in the background.
* An intermittent download is continued automatically.
* You have the option to shut down the system after an update automatically.
* If no online-connection exists, the login-dialog is skipped in the diagnosis entry.
* The Test Instruments view is printed with white background.
* You have the possiblity to use a standard mail client to send a support message.
* Certain equipment features can be set, if fitted, manually e.g. national variant.
* There is a mode self diagnostic.
* The self diagnostic can be used also in the case of works with order.
* OBD-functions can be carried out in the self diagnostic.
* Various small optimizations at the graphical user interface.
* Estimated remaining times are shown for ECU flash operations.
* Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view,used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests
* The measured value display has been improved.
* Documents in GFF are displayed in separate windows.
* One message box will be shown at the beginning of the test drive mode.
* GFF hotfixes can be integrated during diagnostic sessions.
* Danger messages have been revised.
* Stopping of diagnostic sessions may be interrupted.
* Automatic deletion of autosave diagnostic protocols after successful transmission.
* Selection of PassThru diagnostic hardware has been improved.
* ODIS Service Software update has been stabilized.

VW ODIS Diagnostic Support Vehicle models list:

Audi, Volkswagen, VW Nutzfahrzeuge, Seat, Skoda, Bentley, Lamborghini…

Detail vehicle please read the article: VW ODIS Diagnostic Support Vehicle models list

VW ODIS Diagnostic Software Hardware:

VAS 5054A
VAS6154

Product Configuration

Software:

• Release name: Offboard Diagnostic Information System Service 23.0.5
Vehicle Connection:
• Version of ECF: 57.6.3
• Version of VW-MCD: 20.0.0
• Version of VW D-PDU API: 27.3.0
Measurement Technology:
• Version of high voltage measurement technology: 23.2.0
Java Runtime Environment:
• Version of Java Runtime Environment:
OpenJDK11U-jdk_x64_windows_hotspot_11.0.17_8

Restrictions

Adobe Reader DC:

In some cases the Offboard Diagnostic Information System Application crashes, when the tester is places on or removes from the dockingstation and the Release Notes are open at the same time. To counteract this, please update to the latest Acrobat Reader DC version.

This is available free of charge on the Adobe homepage.

Supported vehicles with version 23.0.5

Approved AUDI vehicles
• All AUDI vehicles are supported.

Approved Volkswagen vehicles
• All Volkswagen vehicles are supported.

Approved Volkswagen Nutzfahrzeuge vehicles
• All Volkswagen Nutzfahrzeuge vehicles are supported.

Approved Seat vehicles
• All Seat vehicles are supported.

Approved Skoda vehicles
• All Skoda vehicles are supported.

Approved Bentley vehicles
• All Bentley vehicles are supported.

Approved Lamborghini vehicles
• The following Lamborghini vehicles are supported:
Gallardo from MY09-MY14 (only immobilizer and radio PIN code), Aventador, Huracán, Urus and
Revuelto.

Approved Bugatti vehicles
• Bugatti Veyron and Bugatti Chiron are supported.

Approved MAN vehicles
• MAN-TGE is supported.
