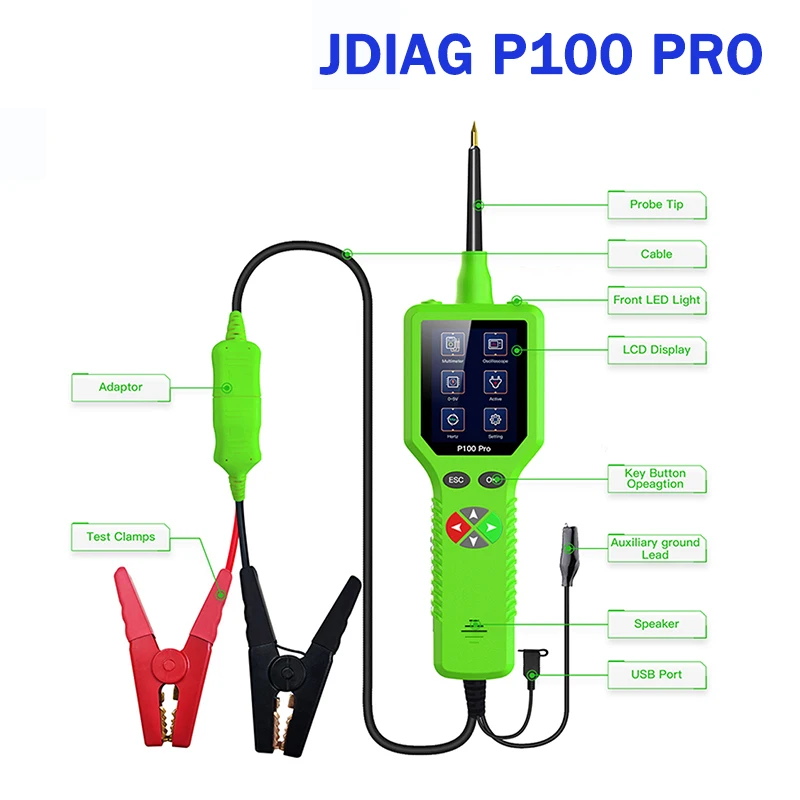

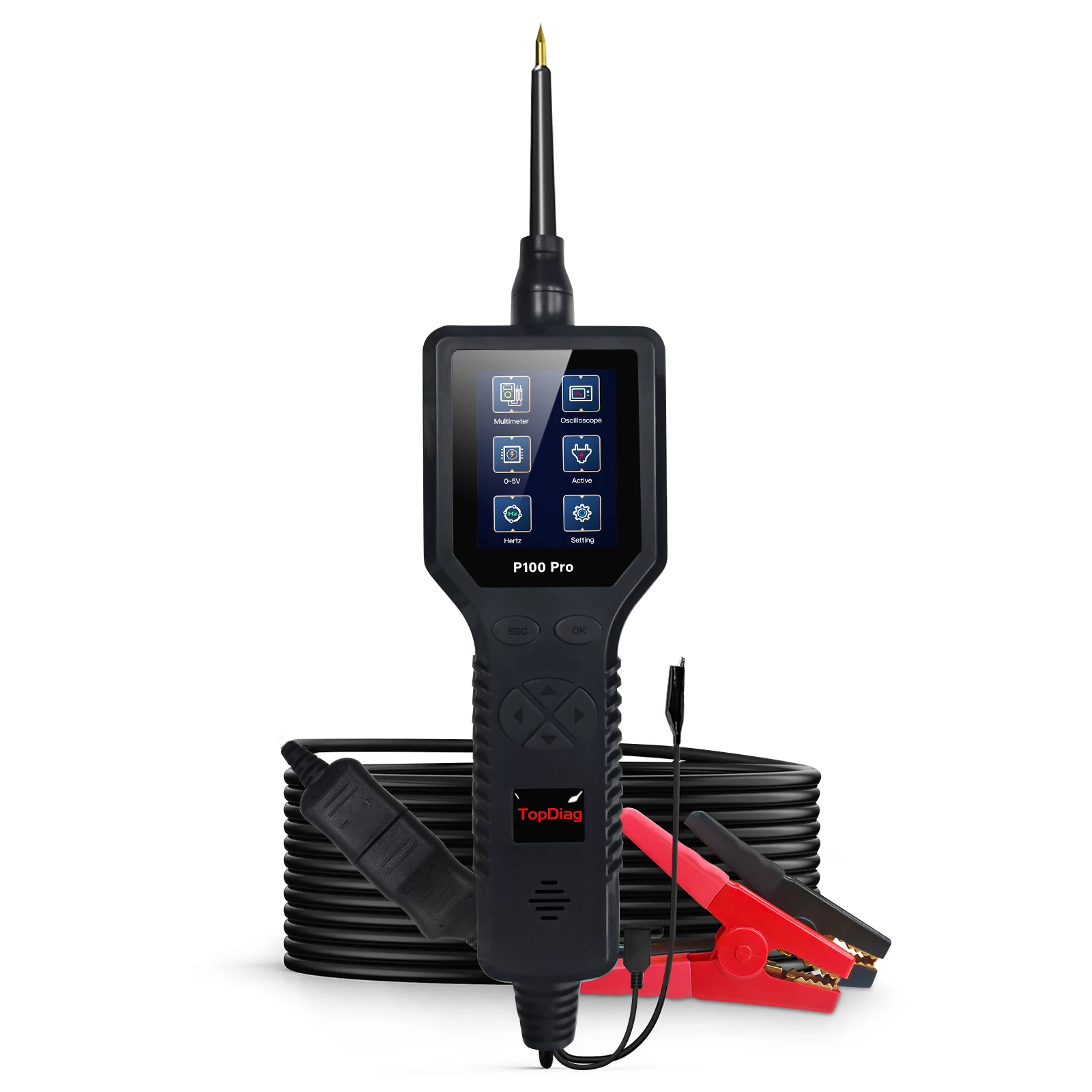

JDIAG P100 Pro 9V-30V Automotive Circuit Tester Powerful Probe Quickly Detect Automotive Circuit Electronic System Battery Test

P100 Pro Automotive Circuit Tester is a new generation of intelligent automotive circuit tester, which can be upgraded with free software for life on the market. It is a tool to quickly detect 9V-30V automotive circuit electronic systems. High test efficiency, fast speed, convenience, speed, intelligence and many other features!

Function:

1,Intelligent identification of voltage/resistance
2,Multimeter mode (measure voltage, resistance, diode, continuity)
3,Oscilloscope function
4,Frequency
5,Activation of vehicle components
6,0-5V adjustable power supply
7,Network online upgrade
8,Built in multiple languages

Languages:

English Spanish German French Portuguese Italian Polish Vietnamese Russian Thai Indonesian Malaysian Filipino Arabic

Specifications and Parameters:

1,Display: 2.4 inches (320*240 DPI) TFT true color display

2,Working temperature: 0-60°C (32-140 F°)

3,Storage temperature: 40-70°C (-40-185 F°)

4,External power supply: 12V or 24V powered by battery

5,Minimum working voltage: 9V

6,Maximum working voltage: 30V

7,Maximum measuring voltage: 100V

8,Minimum measuring voltage: 0.1V

9,Resistance measurement range:1 ohm~200K ohm

10,Active Current measuring range: 0~18A

11,Maximum continuous current: 18A

12,Color: black red orange yellow green blue

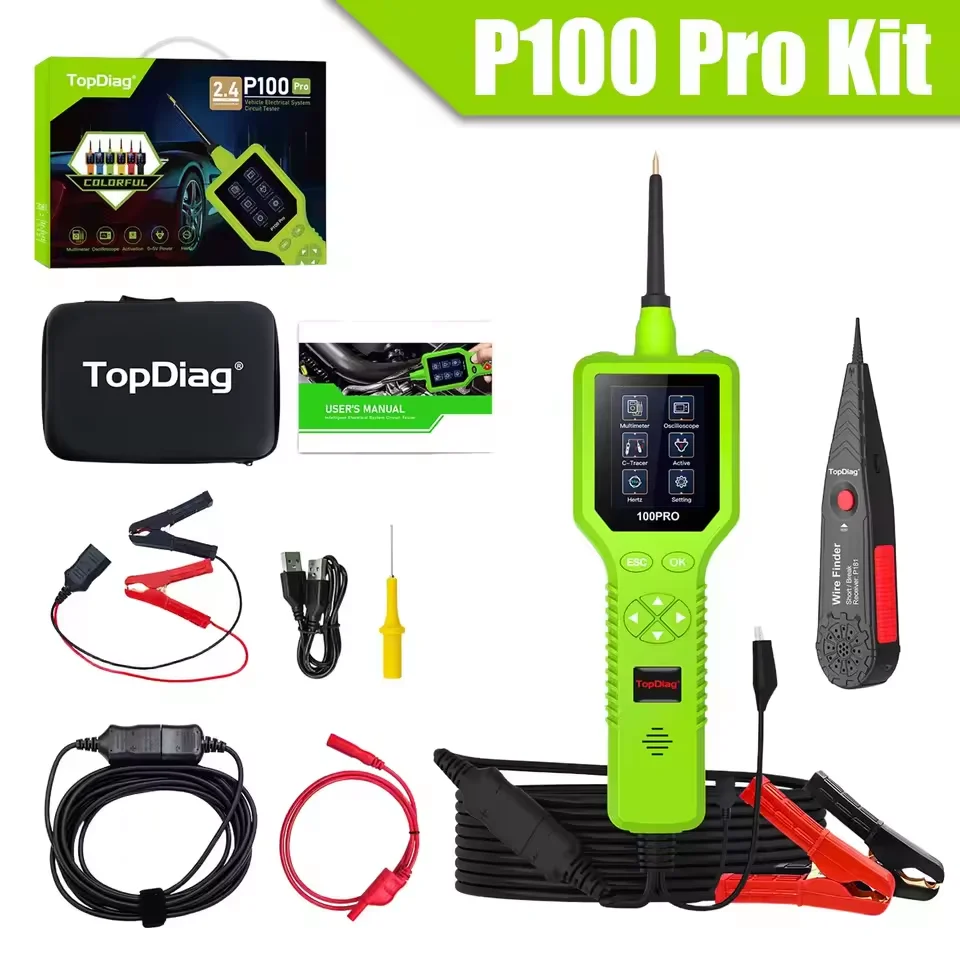

Package List:

1 x P100 Pro Circuit Tester

1 x Alligator Clip Battery Cable

1 x Power Cable

1 x Relay Test Line

1 x Probe Adapter

1 x User Manual

1 x Packing Bag
