New Original Forklift Crown linde Interface PEAK PCAN-USB Crown CAN Interface full system diagnostic tool

Description:

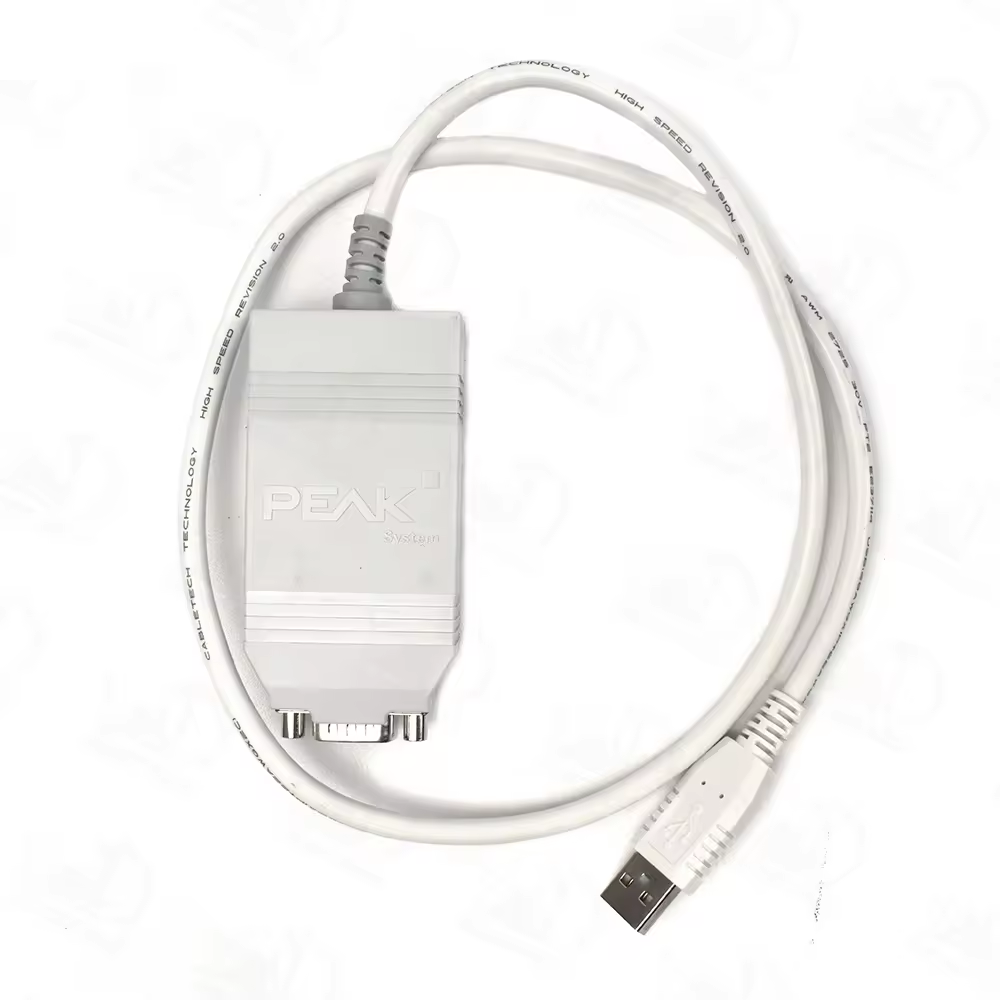

The PCAN-USB adapter enables simple connection to CAN networks. Its compact plastic casing makes it suitable for mobile applications.

The opto-decoupled version guarantees galvanic isolation of up to 500 Volts between the PC and the CAN side.

The package is also supplied with the CAN monitor PCAN-View for Windows and the programming interface PCAN-Basic.

Technical Specifications :

Adapter for the USB connection (Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0)

High-speed CAN connection (ISO 11898-2)

Bit rates from 5 kbit/s up to 1 Mbit/s

Time stamp resolution approx. 42 µs

Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)

CAN bus connection via D-Sub, 9-pin (in accordance with CiA 106)

NXP SJA1000 CAN controller, 16 MHz clock frequency

NXP PCA82C251 CAN transceiver

Galvanic isolation on the CAN connection up to 500 V (only for IPEH-002022)

CAN termination can be activated through a solder jumper

5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter

Voltage supply via USB

Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)

supports models:

All crown forklifts

for LINDE VNA Series ( Linde VNA: V series N series A series)

for STILL:some special models

for-CAT

for Mitsubishi

for NICHIYU

Note:Linde VNA can't be done by ordinary BOX. It needs this line to do it.

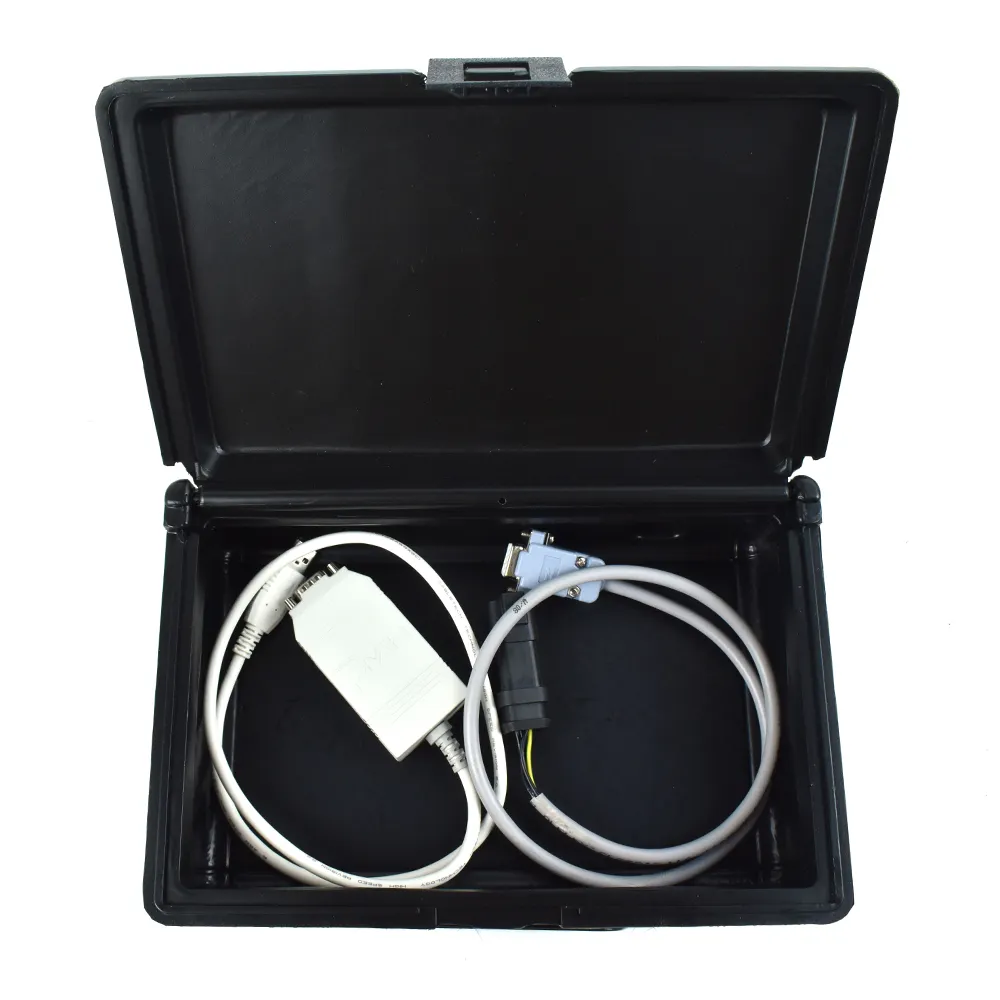

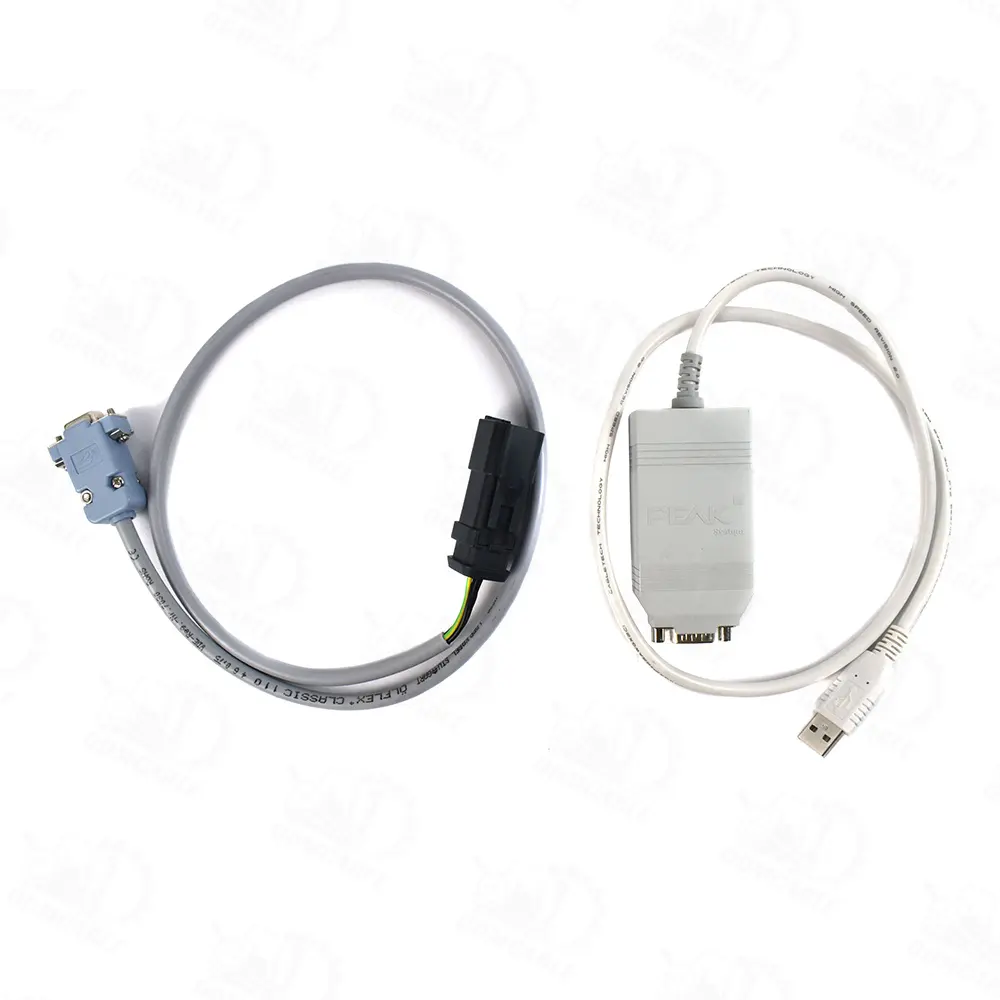

Package List:

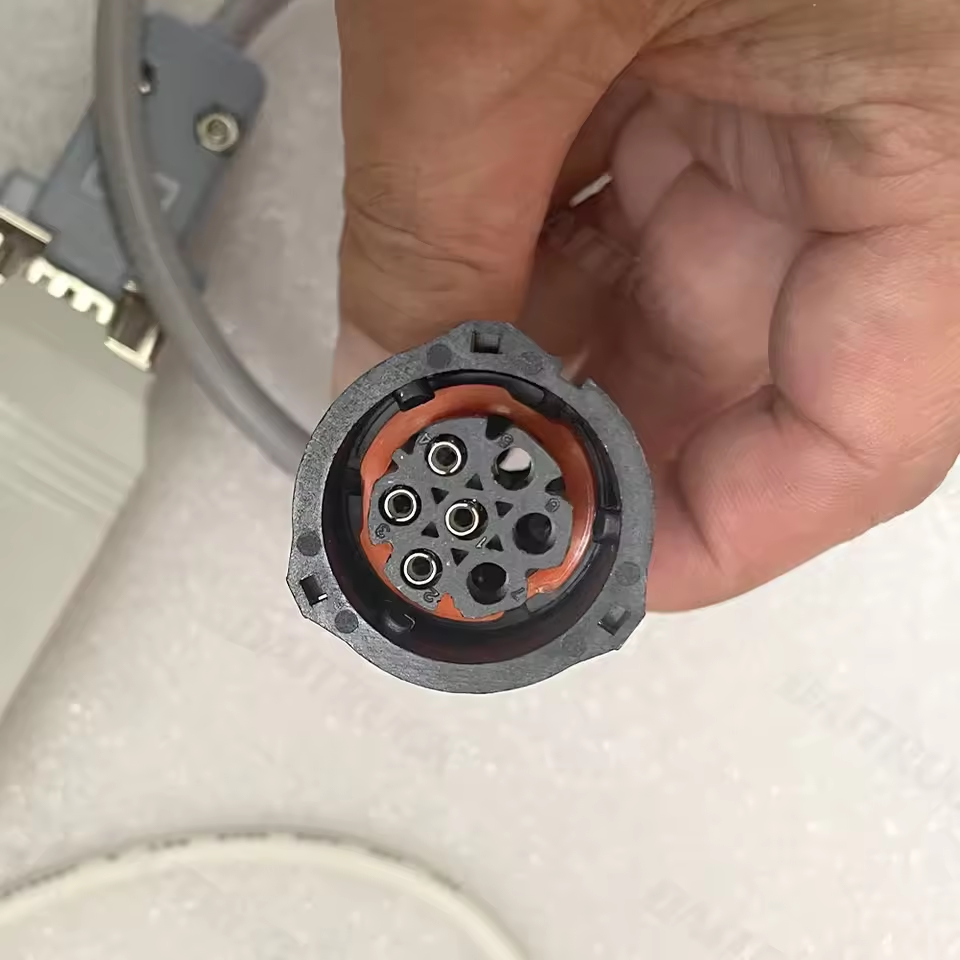

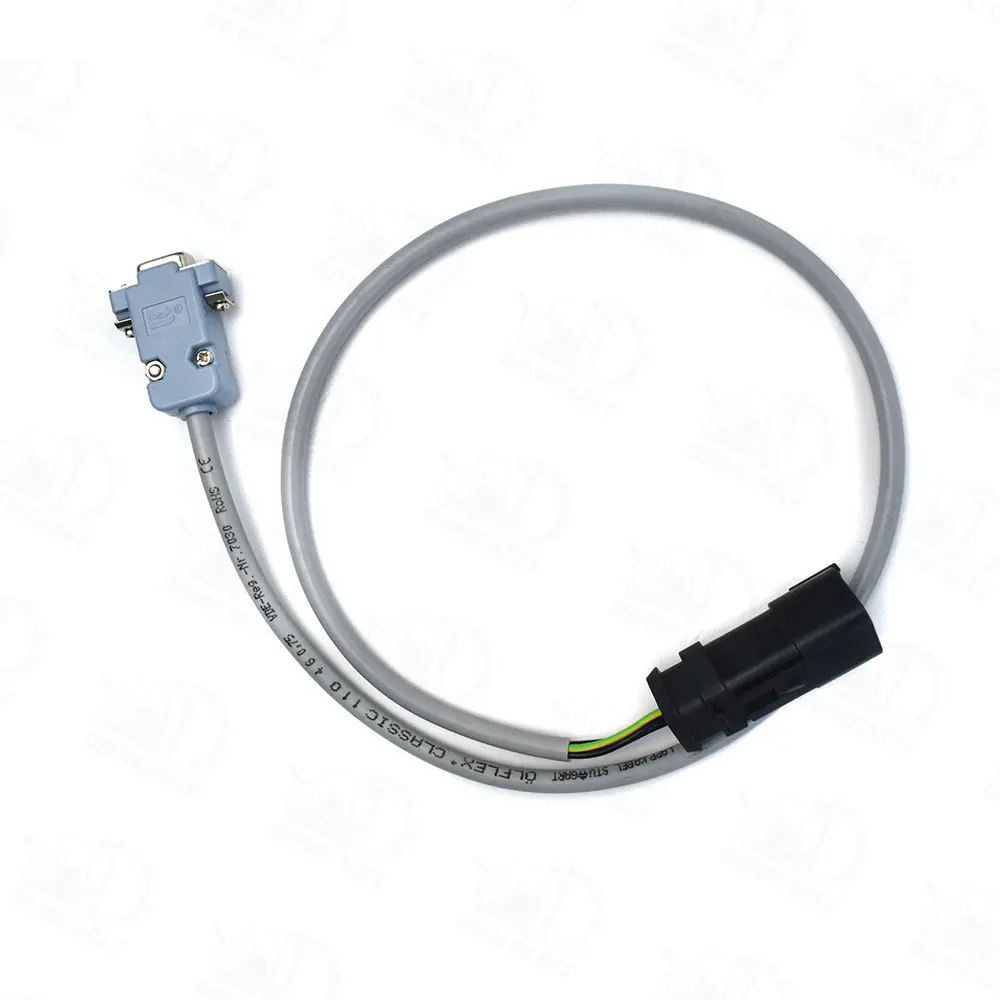

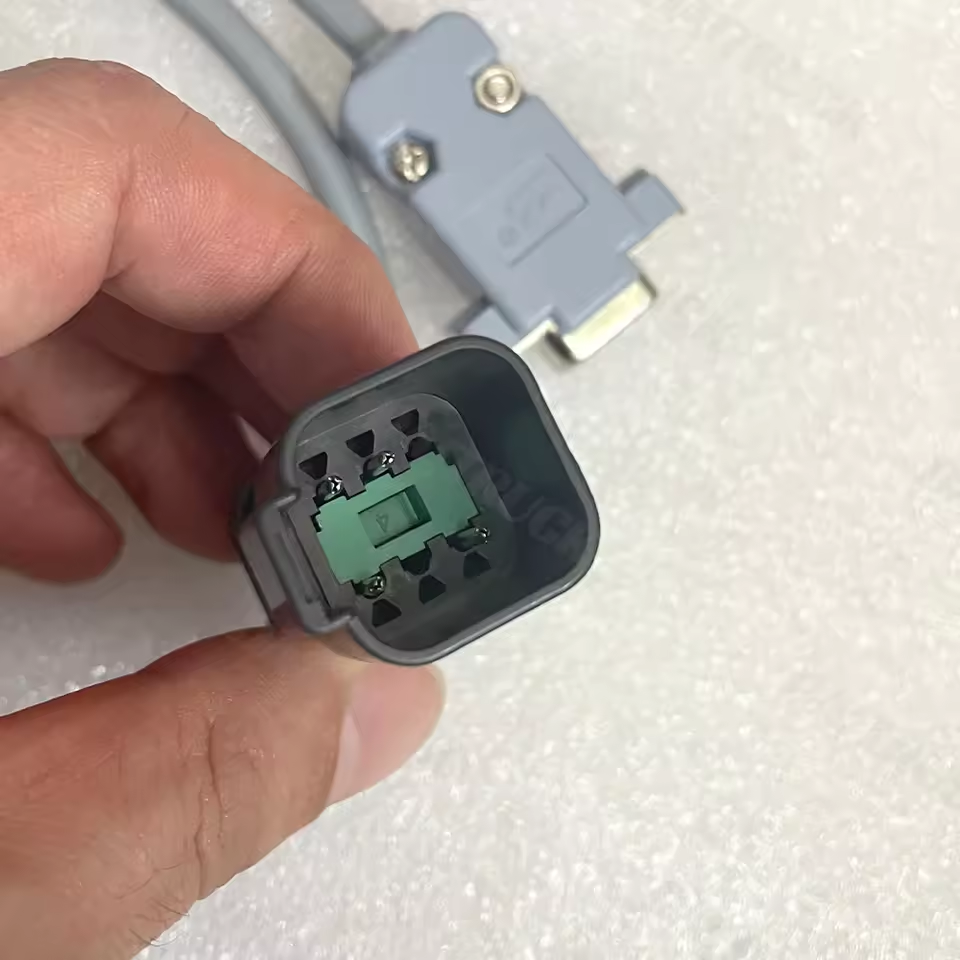

1 pc x Linde cable
1 pc x PEAK PCAN USB cable
1 pc xCrown software(You can contact us after you place an order, and we will install it remotely for you online!)
