CG FC200 ECU Programmer Full Version Support 4200 ECUs and 3 Operating Modes Upgrade of AT200 ISN OBD Reader

Description:

FC200 ecu programmer is new device which is designed for ECU/EGS clone, supports functions including data reading and writing, ISN read and write acquisition, disassembly matching, module clone, VIN modification and DTC shielding ect .

FC200 supports 4200 kinds of ECU, 3 tyeps of operation modes, and covers 80% of the models at the market.

1. No open shell, no punch, keep the original parts, support 4200 kinds of ECUS/EGS, involving 80% of the models on the market.

2. Data loss prevention, automatic verification, 100% accurate analysis of for BMW's ISN code, support for VIN code modification and data cloning of various models.

3. Exclusive support for DTC shielding and function shutdown, exquisite design, adapt to various operating environments, FC200 is your trusted auto repair assistan.

4. Update Version of AT200, with All License Activated and Free Update Online for One Year.

Highlights:

1. Auto ECU Programmer for repair necessary-Support For BMW ECU Data reading, writing and clone.

Effectively solve the problem of replacing the second-hand computer after the damage for BMW ECU control unit, just need to read the original computer data and then clone it.

Support almost all the for BMW ECU model for reading and writing: MSV90/ MSD85 MSD87 N20 N55 B48 B58 etc.

Successfully make up the market for BMW ECU reading and writing equipment, save you high equipment costs.

2. Auto Locksmith necessary-Support BMW IMMO functions, Read BMW ISN Code by OBD

Quickly solve the problem for data collection of for bmw all key lost.

With more stable and efficient unremovable functions.

If you want to do all key lost for BMW 3 Series 5 Series 7 Series X5 X6 GT535 Six-cylinder engine, must need ISN code to program the keys.

3. Original from CGDI and Free Update Online for One Year

After one year, it will cost $125/year

4. FC200 not only support BMW ECU but also support over three thousands of ECUs like KTAG, Kess,kessy ,Dimsport etc.

Check FC200 Support ECU List

5. Bosch search: Free to find out what ECU type

6. 3 Operation modes: With CAN-bus, and No Disassembly (platform mode) and Boot mode

7. Multi-Language: English, French, Spanish, Polish, Traditional Chinese and Simplified Chinese

8.Full Version with All License Activated and Free.

CG FC200 Latest Updae Information:

CG FC200 V1.2.1.0 Registered Version (2024.06.25)

1. Added China DELPHI ECU, supporting OBD and BENCH modes:
MT20U MC912DT128
MT22U MC9S12XET256
MT20U2 MC9S12KG256
MT22.1 MC9S12XEQ512
MT22.1.1 MC9S12XET256

2. Added DELPHI ECU:
BENCH mode:
China DCM7.24
China DCM7.1AP
Hyundai/Kia DCM7.1AP
Tata DCM2.5
BOOT mode:
DCM2.7AP

3. Added DENSO ECU:
Toyota:
GEN3 R7F701202
GEN3 R7F701216
Mazda:
Pxxx SH72543
S5xx SH72546
SHxx SH72543
Suzuki:
33920-xxxx_1N83 MPC5746

4. Add PFlash verification function to Denso ECU
5. Add PFlash/ExtFlash verification function to BOSCH MPC5xx ECU
6. Optimize Flash verification function for BOSCH MG1/MD1 ECU

CG FC200 V1.2.0.0  Registered Version NEW (2024.05.11)

1. Added CONTINEN type ECU: SID209, SIM2K-341 (ECU)
2. Optimize the verification function of BOSCH/CONTINENTAL/KEFICO/DELPHI TC17 ECUs
3.MED17_China adds a new password reading function
4. Added BOSCH TC17 ECUs: MINI: MED17.2.2, Ford/MB: DCU17PC01, Hyundai: DCU24, Peugeot:
ME17.9.53, BOBCAT: EDC17C87, McLaren: ME17.8.33

5. Added Renesas chip ECU:
Honda: KEIHIN 37820-xxx-xxx SH7058, DELPHI DCM3.7AP_CHINA SH72544
FAW: DENSO TD112700-xxxx SH72530
Hyundai: DENSO 33910-05005 adds the function of reading DFlash

6. Added Delphi TC2xx ECU: DCM7.1A/DCM7.1B

CG FC200 V1.1.9.0 Registered Version (2024.03.23)
1. Add BOSCH ST10 ECU and add verification function:
Abarth: ME7.9.10
Alfa Romeo: ME7.9.10, MED7.1.1
Audi: ME7.5.30, ME7.5, MED7.5.10
Bentley: ME7.1.1
BMW: ME7.2
Chery: ME7.9.7, M7.9.7, ME7.9.71
Chrysler: ME2.8.1
Peugeot Citroen: M7.4.4, ME7.4.4, ME7.4.9, ME7.4.6, VALEO_J34P
Ferrari: ME7.1.1
Fiat: ME7.9.9, MED7.6.2, ME7.9.10, MED7.1.1, VALEO_J34P
Geely: M7.9.7
Honda: ME7.9.7, ME7.9.3
Hyundai Kia: M7.9.7, ME7.9
Lancia: MED7.6.2, MED7.1.1, ME7.9.10
Maserati: ME7.1.1
Mercedes: ME2.8, ME2.8.1
Mitsubishi: ME7.7.1
Opel: ME7.6.4
Polaris: M7.9.7
Porsche: ME7.5, ME7.8.1, ME7.2, ME7.8
SAIC: ME7.8.8
Volkswagen Seat Skoda: MED7.5.10, ME7.5.30, ME7.5
Toyota: ME7.9.5
Volvo: ME7.0, ME7.0.1

2. Added DENSO ECU:
Mazda: DENSO R2AA/R2AB/R2AC/R2AJ/R2AK/R2AW/R2AX/R2BG/R2BP/R2BR/R2BS, DENSO RF7x/RF8x
Hyundai/Kia: DENSO 33910-05005
Suzuki: DENSO 33920-67P0

3. Other new ECUs:
Chevrolet/Holden/Opel: DELPHI DCM3.7AP
Suzuki: ME17.9.64
Ford: MG1CS017

4. A new button for "Vehicle Fault Code Support List" is added to the main interface.

BUG FIXED:
1. Fix the problem of EEPROM reading error in ME7.5.20/ME7.5.10/ME7.5 and other ECUs
2. Fix the problem that some ECUs such as DQ380/1 report a program error when writing after verifying PFlash.
3. Fixed the problem of failure to modify VIN in new versions of Mercedes-Benz MED17.7.3/ME17.7.7 and Volkswagen MED17.5.25/MED17.5.5 models.

V1.1.8.0  Registered Version (2024.02.01)
1. Added Hyundai/Kia TCU: TC60.x.x
2. M7/ME7/M17 ST10F725/6 ECU adds the function of turning off the anti-theft system
3. GM E80 adds BOOT mode
4. BMW's new ECUs: MEVD17.8.4, ME17.2.42
5. Peugeot/Citroen MED17.4.2 TC1767 new platform mode
6. EDC17C84 adds the function of modifying VIN
BUG FIXED:
1. Fix the problem that some MD1CS089 cannot start the car after reading and writing data.
2. Fix the problem of Mercedes-Benz 9GT TCU cloning failure
3. Fix the problem of failure to write PFlash in GM 6T/6L gearbox
4. Fix GPEC2A and other unrecognized problems
5. Fix the problem that some ECUs such as EDC16C1 and EDC16CP35 fail to write to ExtFlash.
6. Volkswagen MED9.1 MPC563/4 supplementary wiring diagram
7. Hyundai/Kia EDC17CP14 corrected reading password wiring diagram
8. Volkswagen MED17.5 platform mode supplements other wiring diagrams
9. IVECO EDC17C69 supplementary wiring diagram

FC200 V1.1.7.0  Registered Version (2023.11.24)
1.Add Volvo Electric Equipment ECU: MB279700-9500, MB279700-9801, MB279700-9811
2.Add Audi ECU: Simos8.4x, Simos12.x
3.New Hyundai ECU/TCU: SIM2K-240_ ECU, SIM2K-341_ TCU
4.Fix issues with some ECU cloning failures: MED17.3.1/MED17.7.2/MED117.7.3/MED17.5.5 and general Exx series, etc
5.Fix the issue of some universal ECU recognition failures: E78/E39/E39A/E80, etc
6.Lovol added ECU: EDC17CV43
7.BMW adds ECU: MEVD17.8.4
8.Added ECU for PFlash verification algorithm: MSV90, SID807EVO, EMS3110, SIM2K-240_ ECU, SIM2K-341_ TCU, Simos12. x, Simos8.4
9.Add and modify ECU for VIN: CPGDSH1.21.6, CPGDSH2.2x. x
10.Optimize the PFlash verification algorithm for DQ380
11.Fix some bugs and optimize software performance

FC200 V1.1.6.0 Registered Version (2023.10.16)
1.Added CONTINENTAL TC17 type engine computers (BOOT mode): SID310, SID807EVO, EMS3110;
2.Added CONTINENTAL SPC5xx type engine computers (BOOT mode): GPEC3, GPEC2A, GPEC4, GPEC4LM, GPEC2;
3.Added CONTINENTAL TC17 type engine computer (BOOT mode): SIMOS8.2x, EMS2511, EMS24xx, EMS2205, SDI9, SDI3, SDI4, SDI10.x, SDI21.x;
4.Added new GM type engine computer: E98;
5.Added the Flash verification function of the gear box computer: DQ380, 8HP, 7DCT300, 9GT-VGS-NAG3;
6.Added PFlash verification function for CONTINENTAL TC17 engine computer;
7.Added the function of independently reading and writing DFlash/PFlash/ExtEEPROM/ExtFlash: MSD80/MSD81/MSD85/MSD87/MSV90/SIM271KE;
8.Fix some BUGs and optimize software performance.

FC200 V1.1.5.0 (2023.08.18)
1.New platform mode engine for Bosch MPC5xx class: (Note: To be used with MPC5xx adapter)
EDC16U31,EDC16C1,EDC16C10,EDC16C31,EDC16C32,EDC16C34,EDC16C35,EDC16C36,EDC16C37,EDC16C39,EDC16C41,EDC16C9,EDC16CP33,EDC16CP34,EDC16CP36,EDC16CP39,EDC16U34,EDC16UC40,ME9.1.1,ME9.6.1
2.Newly added BOSCH TC17 series platform and boot mode engines: DCU17HD01,DCU17PC42,DCU17PC43,DCU17CV51,DCU17PC_ DNX
3.KEFICO TC series engines add PFlash verification function
4.GM series engines add PFlash verification function
5.Fix the issue where the 8HP transmission does not support the E-series (R5F72519R)
6.Optimize the verification algorithm for VGS2-FDCT type transmissions
7.Fix some MD1CS089 engine connection failure issues
8.Fix some bugs and optimize software performance

FC200 V1.1.4.0 Registered Version NEW (2023.07.17)
1.Newly added CONNECTAL TC17 platform mode engines: SDI6, Simos8.3x, Simos8.5x
2.Newly added CONNECTAL TC17 BOOT mode engines: SDI6, SDI7, Simos8.1x, Simos8.3x, Simos8.5x, SID208, PCR2.1
3.BOSCH MPC5xx chip ECU adds verification function
4.New platform mode engine: MD1CS089
5.New Volkswagen transmission mileage repair function: DQ200 TC1784
6.Fix the function of modifying the VIN of Volkswagen ME17.5.22/24/26 and other engines
7.Fix some PCR2.1 write PFlash failure issues

V1.1.3.0  Registered Version New (2023.05.24)
1.Newly added CONNECTAL TC17 platform mode ECU: PCR2.1, SDI7, DPS6
2.Add BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8
3.New Volkswagen TCU mileage repair function: DQ200 TC1766, DQ250, VL381, DL382
4.Add Hyundai/Kia/Ssangyong KEFICO CPEGD2.20. x ECU functions: platform mode data read and write, modify VIN functions
5.Add Mercedes Benz CRD2. x MPC556x engine platform mode
6.DELPHI TC17 chip ECU adds PFLASH verification function
7.ECU with PFLASH verification function added to BOSCH ST10F chip: ME7.4.5
8.GM 6T30, 6T80, 6L80 TCU added PFLASH verification function
9.Diesel ECU EDC17C53, EDC17C63, EDC17C81 and other newly added anti-theft system shutdown functions

CG FC200 Version V1.1.2.0 Update Notice on Apr 7th, 2023
1. Fix the problem of engine recognition and read/write failure in GM E38, E67 and E39
2. Add GM E37, E39A, E78, E80 and E83 engine platform mode
3. GM E38, E67, E39 and E39A engines add Ext FLASH verification function
4. Add the "time repair" function of "Lovol harvester" to support the EDC17CV53 engine of Lovol harvester
5. Benz VGS-FDCT, VGS2-FDCT and VGS-FCVT gearbox add PFLASH verification function
6. Volkswagen DL501 Gen2 and DL382 transmissions add PFLASH verification function
7. Add BOSCH ST10 engine: M7.4.4, ME7.3.2, ME7.4.4
8. Fix the connection failure of DELPHI CRD3.10, CRD3.xx TC1797 and other engine platform modes

CG FC200 V1.1.1.0 Software Update Notice on Feb 1st, 2023
1.Setup interface adds-Server Selection function
2.Optimize the device activation interface (add the "Activate" prompt)
3.Repair the failure problem of the Bosch query abroad
4.Added GM AcDelco transmission platform mode: GM 6T30/35/40/45/50, GM 6T70/75/80, GM 6L45/50/80/90
5.New BOOT mode of BOSCH ST10 engine: ME7.1.1, ME7.5.10, ME7.8.2, and MED 7.6.2
6.New BOSCH TC17 engine platform mode: ME17 TC1728 (China)
7.New BOOT mode of KEFICO TC17 engine: CPGDSH2.2x.x, CPGDSH1.26.1, KME 1.9.3.1
8.New BOSCH VAG gearbox PFLASH calibration function: DQ200 TC1784, DQ200 TC1766, DQ250 TC1766, DL501Gen1 TC1766, VL381 TC1766
9.Newly modified VIN model: MED 17.8.3

CG FC-200 V1.1.0.0 Software Update Notice on Dec 13th, 2022:
1. Added DELPHI platform and BOOT engine: CRD3.10, CRD3.E1, CRD3.F1, CRD3E.1, CRD3P.B0, CRD3P.C0, CRD3P.D1, CRD3P.G0, and CRD3xx
2. Added BOSCH BOOT engines: ME7.5.20, M7.9.5, ME7.9.51, and ME7.9.52
3. Add PFLASH check function for MG1C, MD1C SPC5777 and TC298TP engines of BOSCH
4. Added password reading function in the platform mode of GM engine E39
5. Optimize the PFLASH verification algorithm of BOECH's TC17 series engines
6. Added BOSCH platform engine: EDC17CV53
7. Fix some bugs and optimize software performance

FC200 ECU Programmer Powerful Functions:

1. Original parts Protection

FC200 supports OBD and platform mode for more than 98% ecu and egs, no need to open shell, no punch, protect origianal parts of the vehicle.

2. Smart Identification

The "identification" function can help users diagnose whether the ECU module is communicating and check whether the wiring is wrong.

If ECU module is not damaged and can be communicated, wiring is correct and identification is successful, can read chip and firmware information.

3. Module Clone

Supports ECU/EGS reading& writing and modules clone, synchronization matching free, no need online programming.

Flash data by area, automatically check, protect chips and modules furthest

4. ISN Reading and Writing

Supports all for BMW series (including Mini) ECU ISN code acquisition , convenient for all keys lost matching and anti-theft fault maintenance.

5. VIN Writing

Solve the problem of double VIN or VIN mismatch of vehicles, convenient for vehicle maintenance.

6. Data Processing

Support data analysis and modification for the 4th and 5th generations of for Audi/Seat/Skoda/Volkswagen ECUs

Turn off anti-theft system for Bosch MED/EDC17 series ECU

TPROT off function of Bosch VAG MEDC17 series, for BMW/Mini MEVD17/EDC17 series, for Hyundai/Kia EDC17/MED(G)17 series.

FC200 ECU Programmer Software Display:

1. Interactivate Software Interface

brand-model-engine/gearbox-ECU interface structure to help users save time and find the operating directory accurately.

2. Built-in Model Search Function

Support ECU model and Bosch search by number, avoid the trouble of level selection, and enter the function interface as quickly as possible.

3. ECU Search

Take the for BMW MSV90 ECU as an example, First select "BMW", selct "ECU" as the search condition, enter "MSV90",click the search button, and the ECU type will show up.

Same search procedure for Bosch ECUs.

4. Visualized Wiring Diagram

1:1 simulation, bright colors, to avoid wiring errors.

FC200 ECU Programmer Hardware:

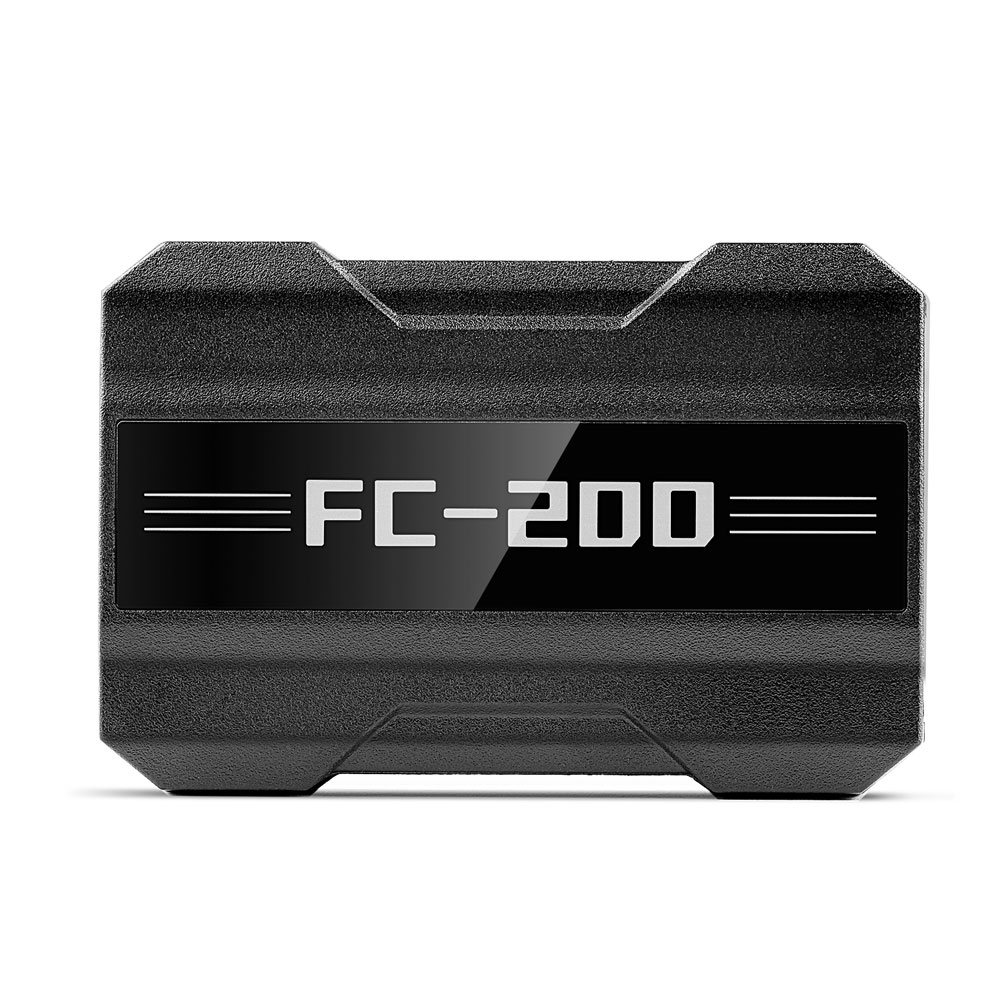

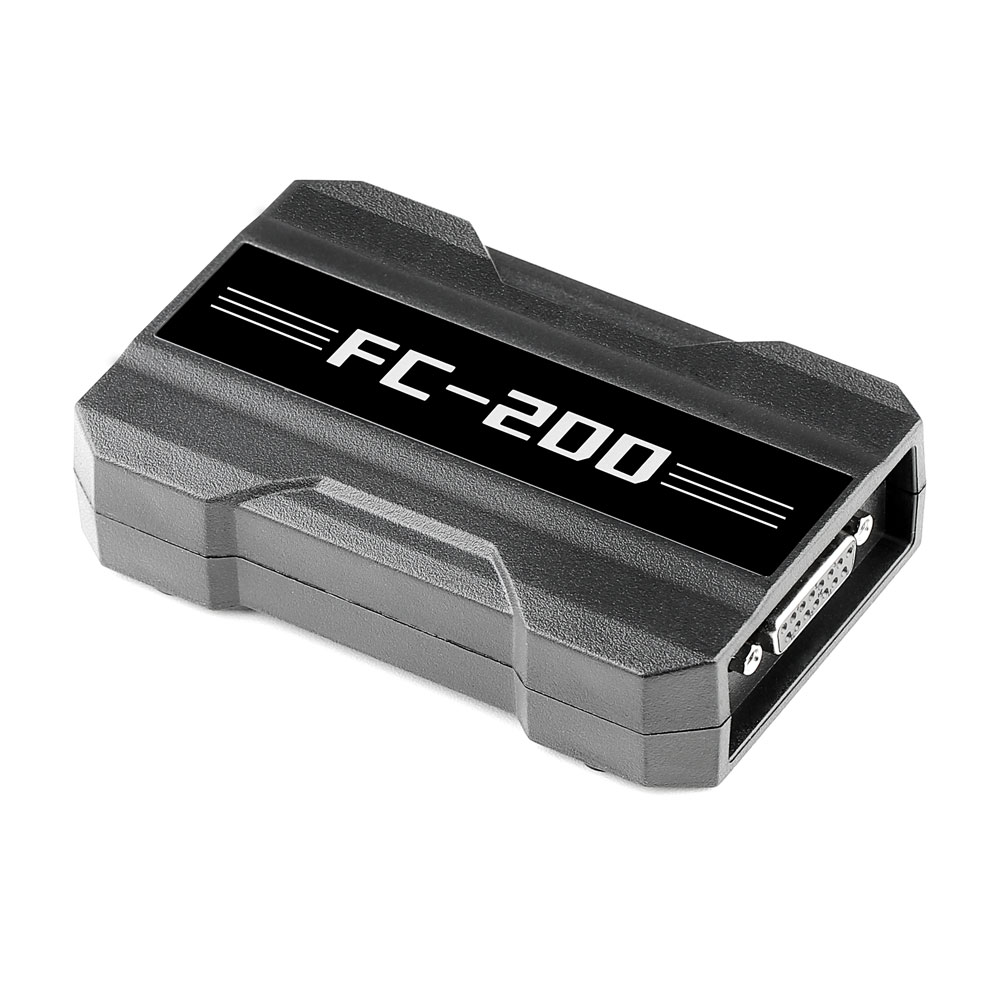

FC200 Main Unit

1. Integrated injection of polymer materials, professional customized internal circuit boards, national patent certification

2. Exquisite design, easy to carry, can shield surrounding interference signals, adapt to various operating environments

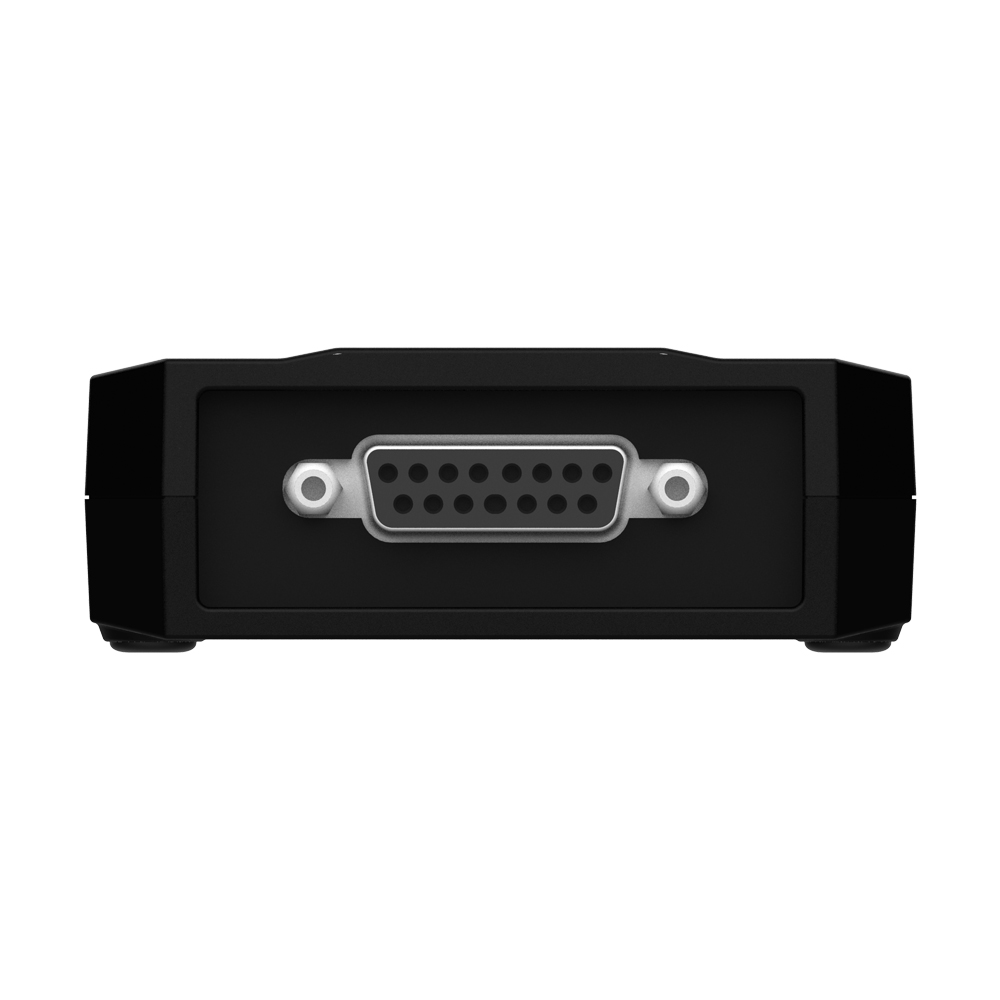

3. There are 3 expansion ports for peripherals, which are automatically diagnosed and identified. They are 12V power port, USB port and DB15 port.The DB15 port can be connected to a free-dismantling adapter and OBD cable.

FC200 Adapters

1.Vehicle-grade wiring harness, made of synthetic metal, has excellent internal conductivity, and can be used continously for 10,0000 times.

2. Tight design, seemless connection between ECU and host to ensure continuours communication and excort your operation

3. Equipped with B-type, C-type, D-type, F-type and G-Type pin interfaces, suitable for many types of ECU and EGS

4. OBD2 Cable

FC200 obd2 cable mainly suitable for BMW B48/B58 ECU at present, read ISN via OBD without disassembly.

110cm, made of synthetic material, resistant to high temperature water-proof, anti-corrosion is designed according to OBD port of the vehicles, built-in anti-falling buckle make connection stable

Item Picture:
