Digital Car Battery Charger Fully Automatic Repair Charge Can select Modes For Car Motorcycle SUV Stea Battery Charger 12V 24V Fully Automatic

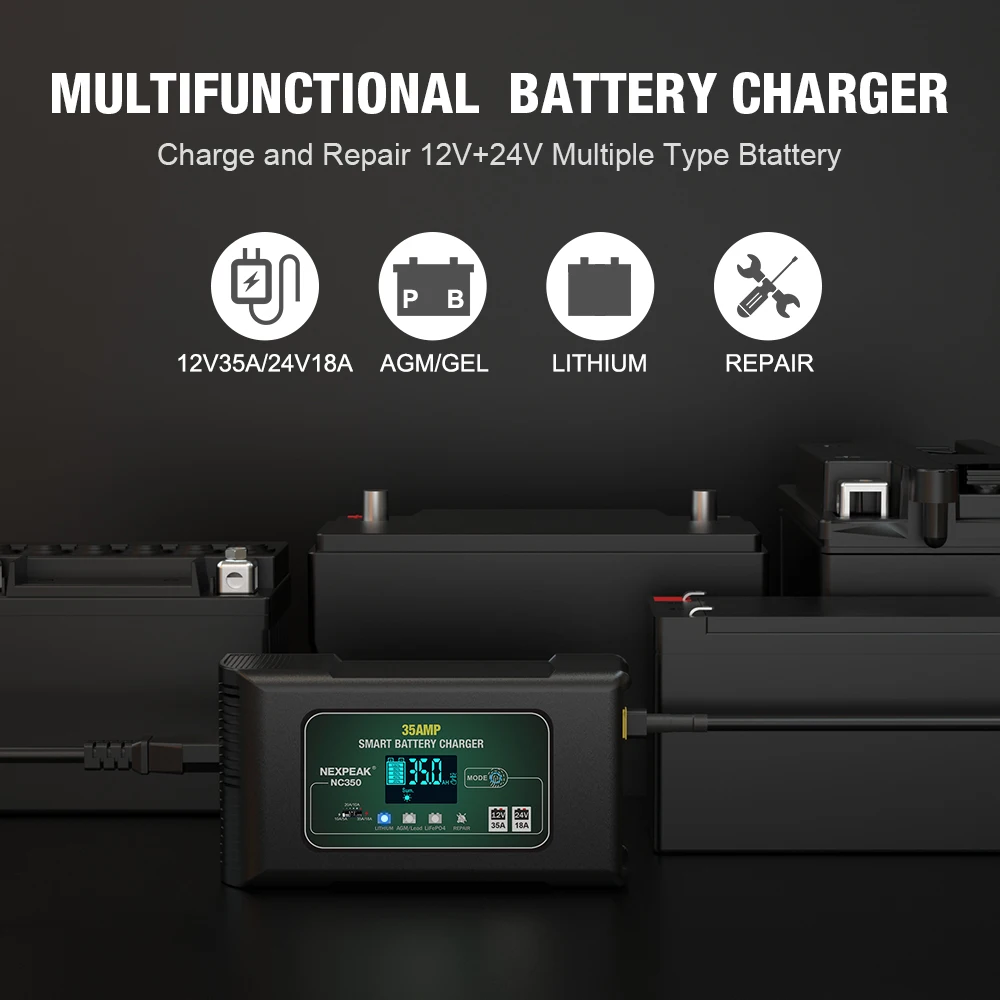

Multifunction battery charger

One-Click Repair To Activate The Battery

Solve the problem of battery feeding, no charging, and large internal resistance

1.The electric pressure is poor in starting power

2.Vehicle is idle for a long time
3. Old battery cannot be charged

4 Modes selection

Lithium+ AGM/Lead-acid+LiFePO4+ repair

Support 12V+24V Multiple type battery charger

Complete 9-stage charging mode

Stage-1: battery desulfation
Step-2: Soft start charging
Stage-3: Bulk charging
Stage-4: Absorption charging
Step-5:Trickle charging
Step-6: Battery test
Stage-7: Recondition charging
Step-8: Monitor and Analysis
Stage-9: Float & maintenance charging

1.Above 28℃ will automatically enter the summer mode.
Overcharge in Summer
2. It will enter the winter mode automatically below 10℃. Adequate charging in winter.

One-click repair, activating battery

Automatic battery repair, increase the battery performance and lifetime

8 Smart Safety Protections

1.Voltage stabilization protection,
2. Overcharge protection
3.Short circuit protection
4.High temperature protection
5.Overcurrent protection
6. Reverse connection protection
7. Cooling protection 8.Smart control protection

Flame retardant shell durable

Use ABS flame-retardant shell, fire-proof, anti-shock, anti-corrosion, strong

Support 3 charging current level select

The higher level of output amps will get fast-charging speed

Intelligent digital display, Intelligent detection

Using full encapsulated crocodile clamp

Rugged and durable, safe to use

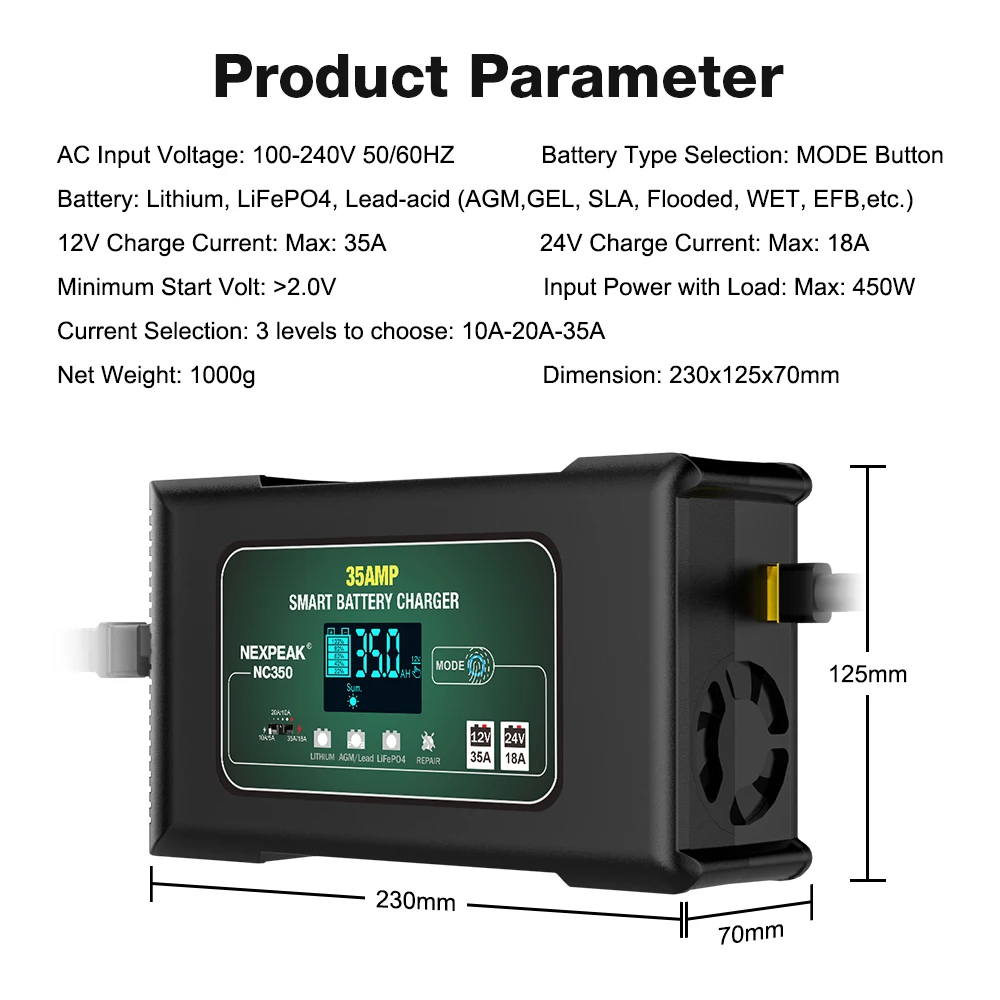

Specification:

AC input: 100-240 V 50/60Hz

Output voltage :12 V / 24 V

Charging Current:Max 35A(12V),Max 18A(24V)

Minimum starting voltage: 2.0V

Power with load :MAX 450W

Size :approx.230x125x70mm

Suit for :Lithium/LiFePO4/Lead-Acid (AGM,GEL,Calcium,EFB, MF, FLOODED, VRLA, SLA and Wet batteries..)

How to use?

Step 1: Connect the charger with the battery(red positive and black negative)

Step 2: Choose the charging current, 3 levels to select: low((12V/10A,24V/5A), Medium(12V/20A; 24V/10A) High(12V/35A;24V/18A), the higher level of output amps will get faster-charging speed.

Step3: Connect the charger with the outlet, AC input voltage from 100-240 volt.

Step 4: NC301 charger has 4 battery modes: Lithium, AGM/LEAD, LiFePO4 and repair. Press the "MODE" button to switch the corresponding battery type

Warm Warn:

1. The charger is designed for 12V and 24V Lithium,Lead-acid,
LiFePO4 batteries with.
2. Check battery specifications before using.
3. Provide ventilation to prevent flames and sparks.
4. Do not expose charger to the sun, or under high temperature
environment.
5. Battery acid is corrosive. Rinse immediately with water if acid
comes into contact with skin or eyes.
6. Do not charge a frozen or damaged battery.
7. Do not charge non-rechargeable batteries.
8. Do not place the charger on the battery while charging.
9. Be extra cautious to reduce risk of dropping a metal tool on
the battery. It might spark or short-circuit battery or other
electrical part that may cause explosion.
10. When working with a lead-acid battery, remove personal
metalitems such as rings, bracelets, necklaces, watch...
11. Do not smoke or allow a spark or flame while charging.
12. In order to reduce risk of electric shock, unplug charger from
AC outlet before doing any maintenance or cleaning .
13. Not intended for children and anyone unable to follow the user
manual.
14. Do not over-charge your battery even it is kept connecting in
any mode.

Packing List:

1X 35A Car Battery Charger

1x 2M Extension Power Cord

1x Cable Clip

1x Manual

1x Retail Box
