20-Amp Smart Battery Charger,12V/20A and 24V/10A.Lithium,Lifepo4,Lead-Acid(AGM/Gel/SLA..) Car Battery Charger,Trickle Charger, Maintainer/Pulse Repair Charger,for Car ,Boat,Motorcycle, Lawn Mower

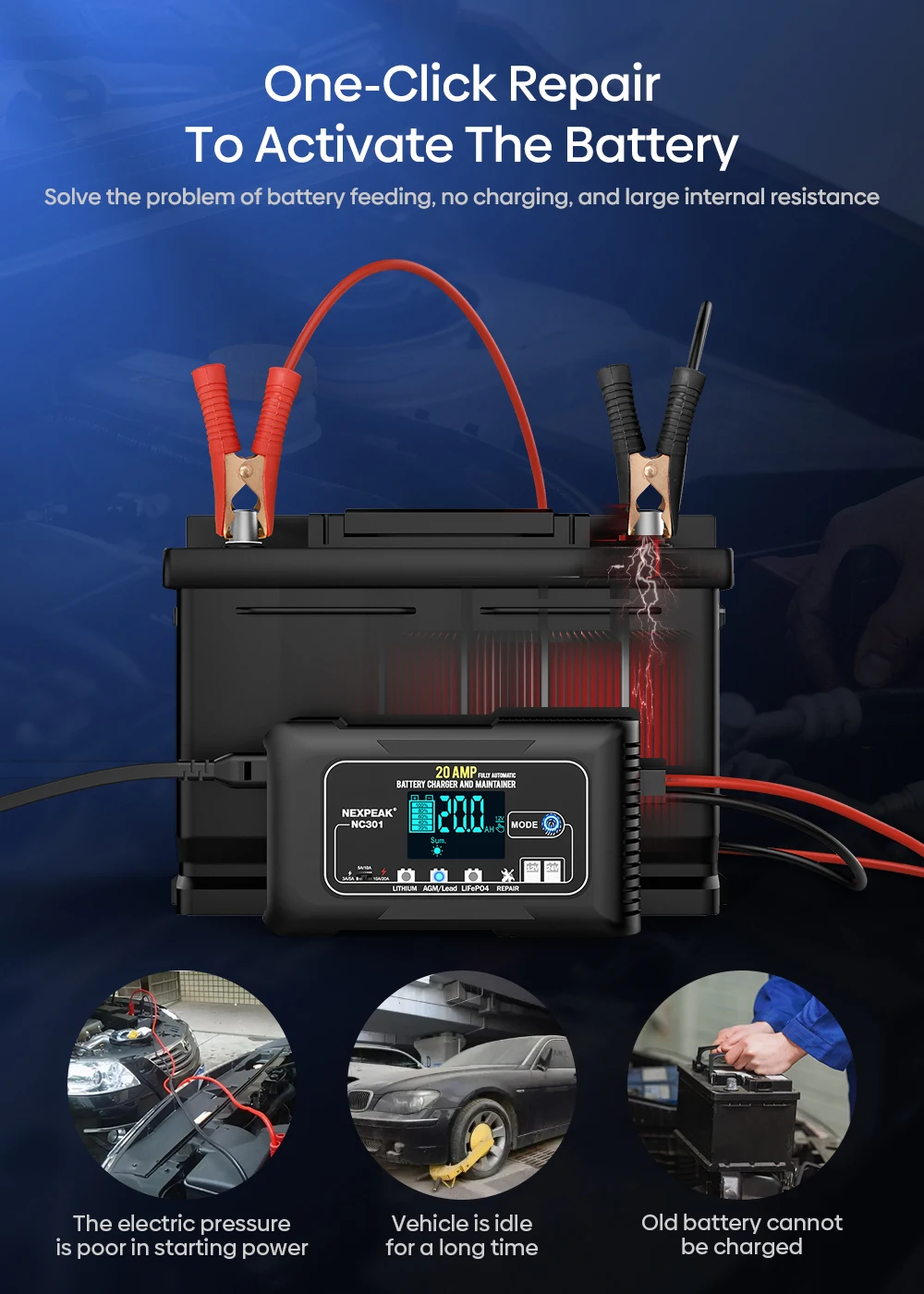

One-Click Repair To Activate The Battery

Solve the problem of battery feeding, no charging, and large internal resistance.
1.The electric pressure is poor in starting power
2.Vehicle is idle for a long time
3. Old battery cannot be charged

AC input voltage :100-240V 50/60Hz Output voltage :12V/24V Output current :12V20A&24V10A Minimum starting voltage :GT;7.0V size :158x90x50mm Net weight :470g Automatically identify the battery status, select the appropriate charging current to charge and protect the battery. One-button repair function extends battery life. It cannot activate a completely failed battery and restore it to a completely new state.

4 Charging Modes Can Selectable

Lithium/LiFePO4/Lead-Acid(AGM,GEL,EFB, MF, FLOODED, VRLA, SLA and Wet batteries) and Repair Mode

12V 20Amp, 24V 10Amp ultra-high power, intelligent identification can be charged quickly, without damaging the battery. Automatic lock button after 10 seconds to prevent misoperation. Lithium, LifePO4, Lead acid (AGM/GEL/EFB, MF, Flooded battery, VRLA, SLA, wet battery..) For cars, trucks, motorcycles, SUVs, golf carts, farm vehicles, motorboats.. Lithium: 12.4V / 24.8V. Lead acid:14.7V / 29.4V. LifePO4:14.6V / 29.2V.

Please select the correct type.

3 Levels Adjustable Current

24V/3A 12V/5A
24V/5A 12V/10A
24V/10A 12V/20A

Automatically detects 12V or 24V batteries and monitors the entire charging process through the latest intelligent CPU control program. 3 gears adjust charging current and battery type, charging current automatically and intelligently adjust, can run at full speed in winter, no load in summer. It can handle all kinds of harsh voltage environments with ease.

Maintainer Trickle Charger

Automatically enters trickle charging after fully charged, detects battery sulfation and acid stratification, takes the newest pulse repair function to restore lost battery performance for stronger engine starts and extended battery life. Note: can not activate or charging totally dead batteries.

Complete 7-Stage Charging Mode

Stage-1: battery desulfation
Step-2: Soft start charging
Stage-3: Bulk charging
Stage-4: Absorption charging
Step-5: Battery test
Stage-6: Recondition charging
Stage-7: Float & maintenance charging

Wide Range of Applications

6V 12V 24V

for Car Truck Lawn Mower Boat Lead Acid Lithium LiFePO4 Batteries

8-fold Charging Protection

Adopt ABS flame-retardant shell, fireproof, anti-shock, corrosion resistance, sturdy and durable, built in circuit protection, spark free system, reverse polarity protection, over-charge, over-voltage and over-temperature protection. The intelligent LCD display shows the charging status and battery status, so that you can charge more at ease.

Temperature Compensation Function

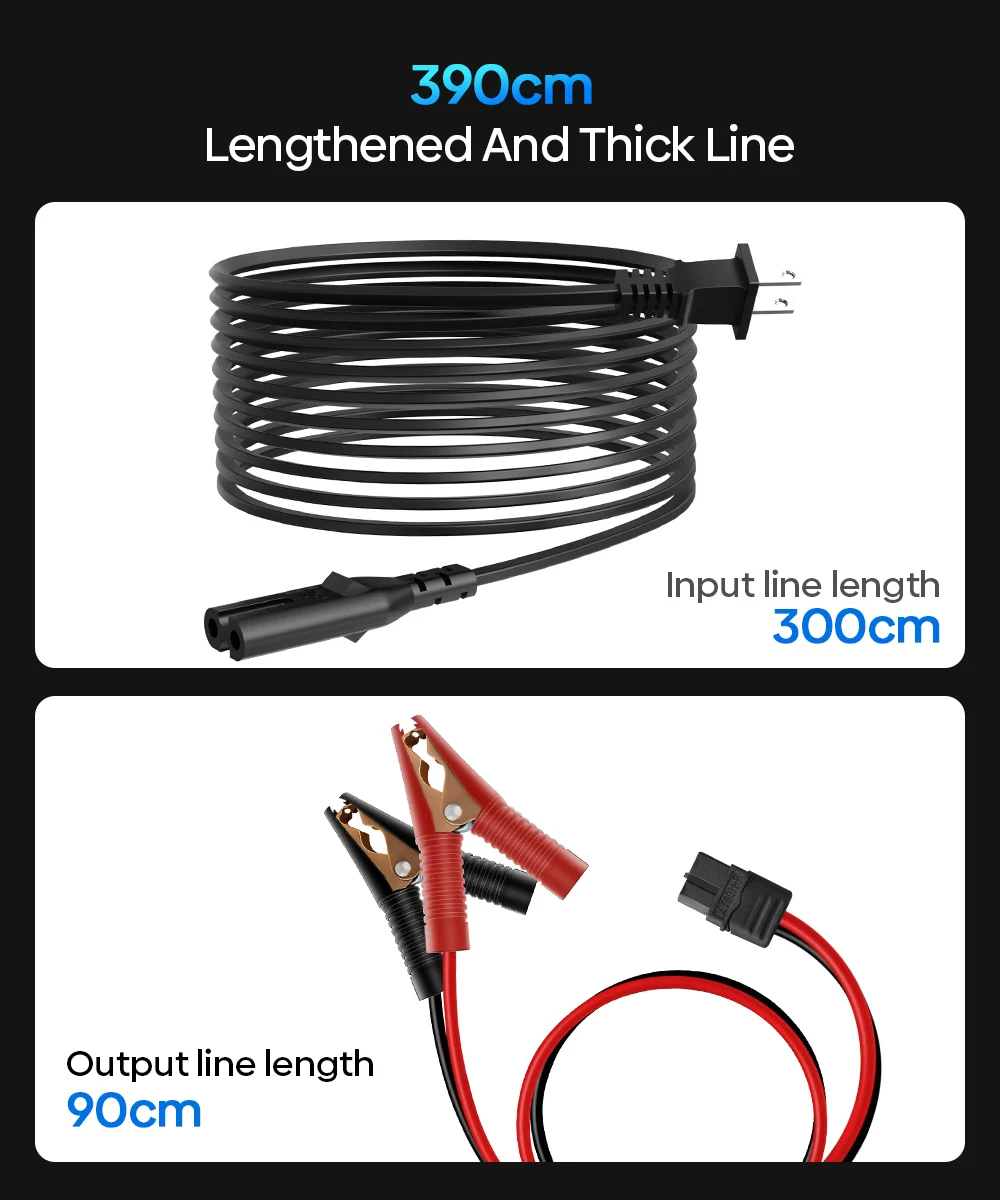

Smart control, temp compensation in hot climates and under-charging in cold climates, reverse protection, cooling system, overcurrent, fireproof material, overvoltage, short circuit. 10ft cord length trickle charger with multiple protection ensure the safety charging at anytime anywhere. No worries!

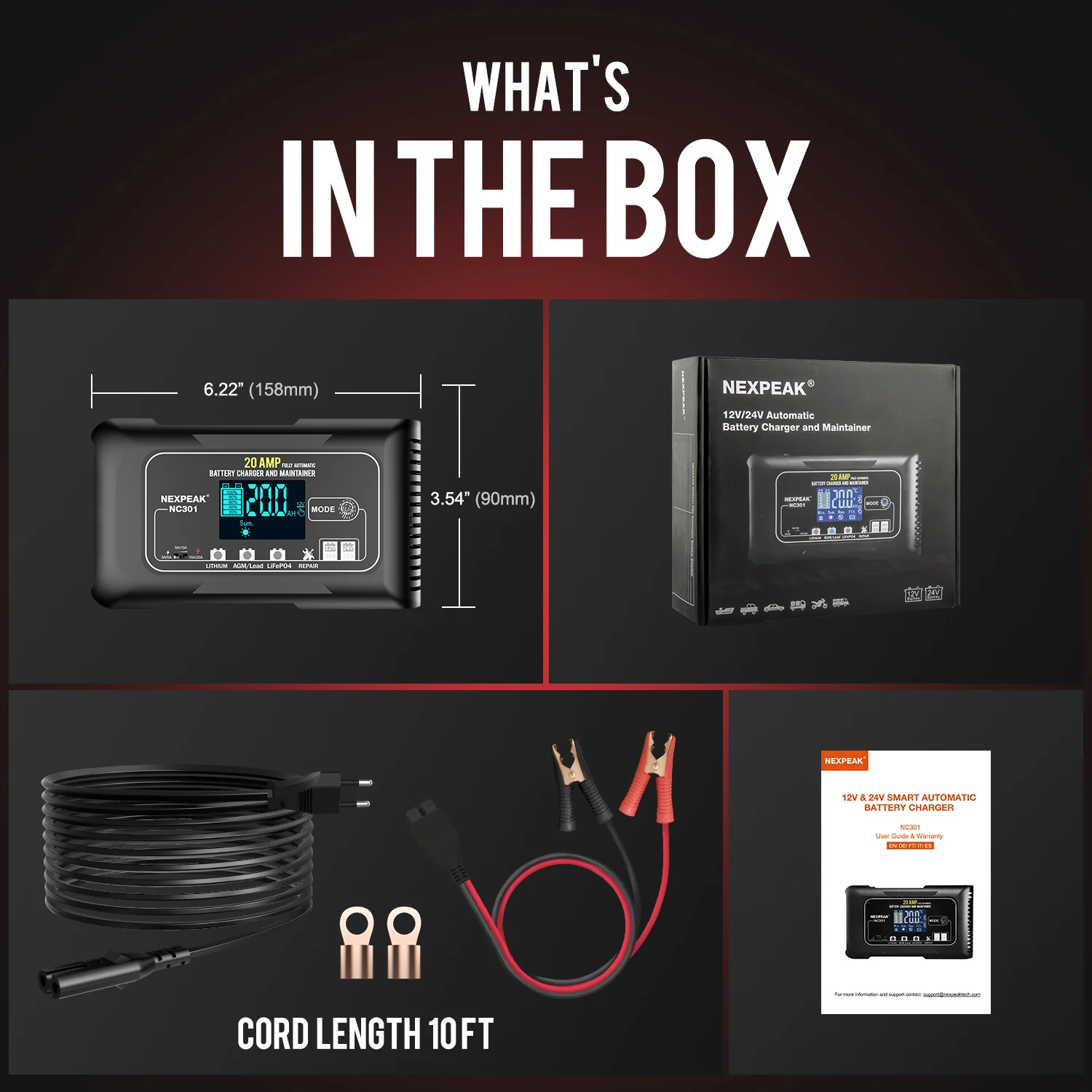

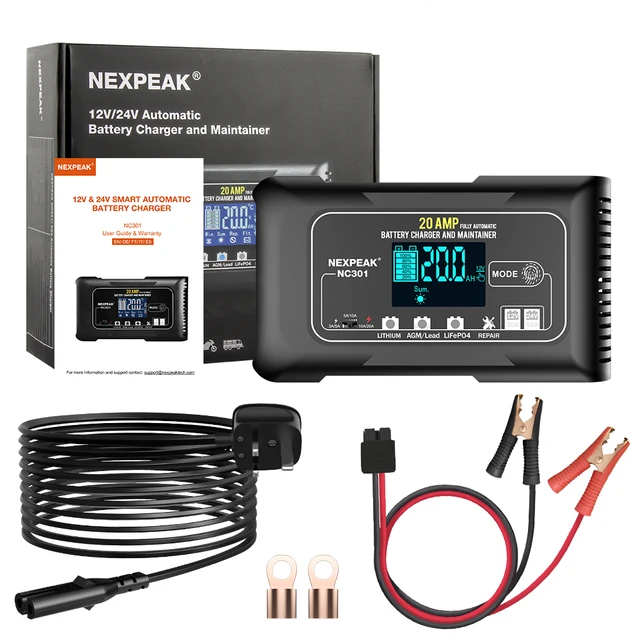

Packing List

1X 20A Car Battery Charger

1x 3M Extension Power Cord

1x Cable Clip

1x Manual

1x Retail Box

2x Oring
