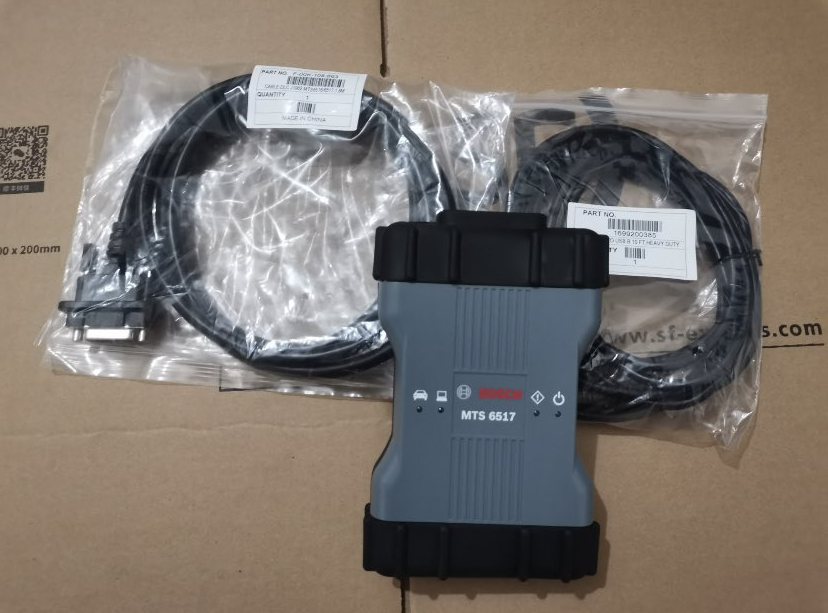

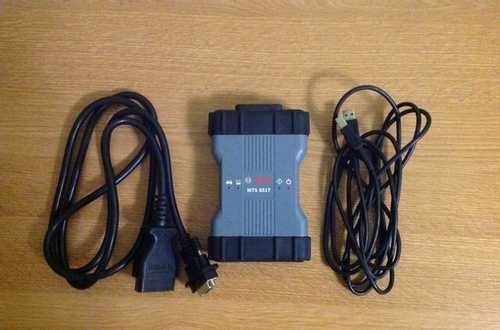

Original Bosch MTS 6517 Vehicle Communication Interface Without Software

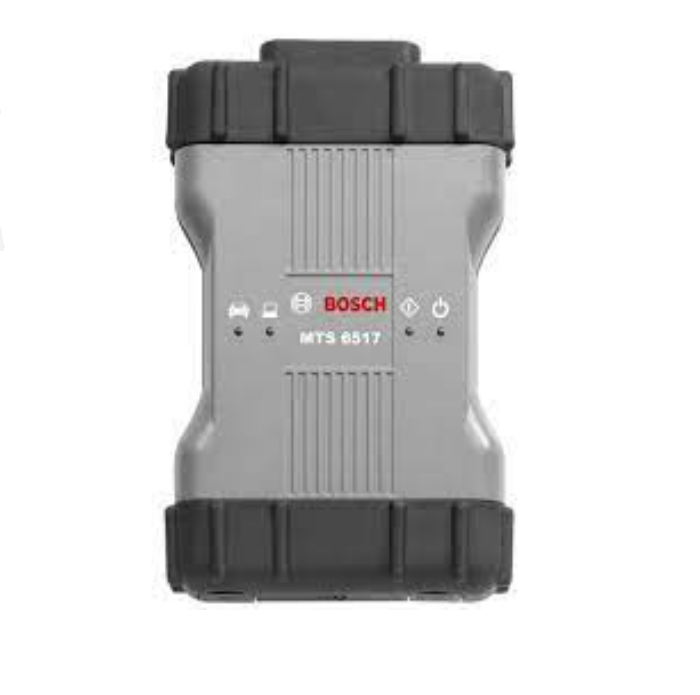

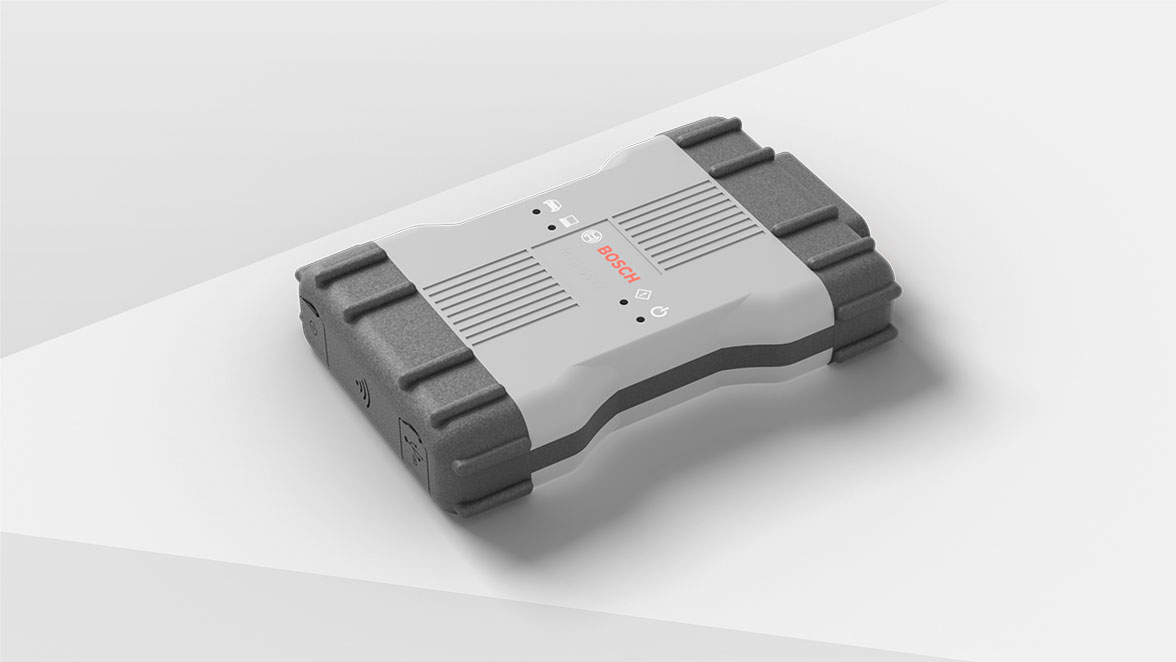

Bosch MTS 6517:

The MTS 6517 is a standard-based tool – supporting the SAE J2534 interface, the ISO 22900-2 Diagnostic-Protocol Data Unit (D-PDU) API and RP1210 API.

MTS 6517 for Maximum Flexibility Designed for flexibility and future needs the MTS 6517 offers OEMs a wide application range far beyond standard vehicle communication leading to reduced investment cost for workshops.

Features:

Workshop efficiency
Setting an industry benchmark for VCI pass-through performance with its 520 MHz ARM processor and optimized software structure. Enabling high speed ECU reprogramming. In addition, the VCI software facilitates secure immobilizer system reprogramming strategies.

More than a Pass-Thru device – Embedded applications

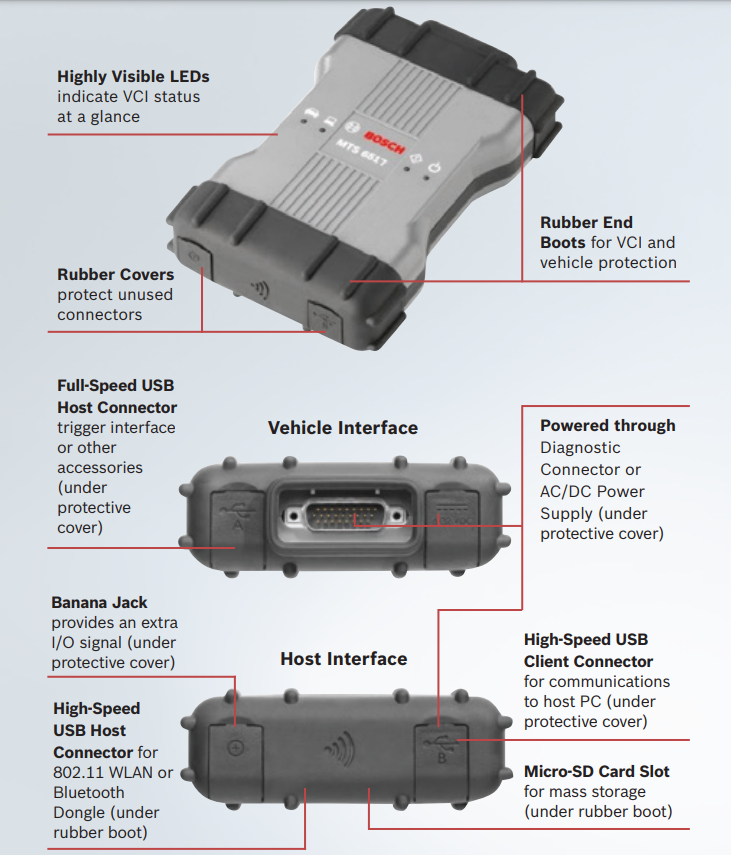

The Bosch MTS 6517 VCI includes an embedded runtime framework which enables the VCI to run embedded applications. This enables a wide range of use cases e.g. drive recorder, parking lot re-flash (standalone reflash), and diagnostic runtime. This is supported by an extended temperature range of -20 to +70 °C, sleep/ wake modes, IP54 protection and 4 GB Micro SD-card to store e.g. drive recorder log files.

Workshop flexibility – Embedded web-server
Embedded web server supports external browser-based display devices via HTML for an extended range of service bay use cases.

Support of 24V systems
With an input voltage of 6-32 V and a 24V diagnostic bus . the MTs 6517 can also be used for 24V systems, e.g. in light and heavy tucks.

Compliant with SAE J2534 and ISO 22900 (MVCI)
Supporting worldwide legislated communication standards, with a wide range of supported protocol.

Supports newest vehicle electrical architectures
The MTS 6517 allows simultaneous communication on three separate CAN channels.

Supports a wide variety of legacy vehicles
Due to its simultaneous communication on two separate UART buses, integrated J1850 controller and wide range of protocols.

Flexible host communication
High-speed USB 2.0 for high performance data communication as well as user-friendly wireless
communication with WiFi 802.11 b/g/n certified for operation in more than 130 countries.

Worldwide emissions testing
Full EOBD/OBDII compliance supporting all standard protocols.

Supported Standards
* MVCI (ISO 22900-1) for hardware interoperability
* D-PDU API (ISO 22900-2) for complete protocol abstraction
* J2534-1/-2 Pass-Thru

Vehicle Interfaces
* CAN – 3 independent high speed channels
* CAN – 1 independent single wire channel
* CAN – 1 independent fault tolerant channel
* ISO K-Line and L-Line – 2 independent channels 12V & 24V
* J1850 VPW and PWM
* J2534 compliant programming voltage terminal

Host Interfaces
* Wired USB 2.0 High Speed
* Wireless 802.11 b/g/n

Other Features
* Processor: PXA270, 520 MHz
* 4 GB micro SD card for mass storage
* IP54 compliant
* USB 1.1 peripheral expansion port
* Auxiliary power input
* Operating temperature range: -20 to +70 degrees C
* Energy management (sleep/wake mode)
