● Read Fault Codes
● Clear Fault Codes
● Read Data stream
● Version Information

Perform a complete diagnosis of your car anytime, anywhere with AUTOPHIX 7110 check engine light diagnostic tool by youself. It is designed for fast use so you can get the results you want in the shortest time with one-click hot keys(I/M or READER DTC) for reading/clearing error readers. It enables you repair the problem yourself, or let you know exactly what needs replacement in case you need to take your car to a repair shop. This helps you avoid blind maintenance and repair costs that could amount to hundreds or thousands of dollars.

Special Function For Volvo Vehicles

✔️Oil Light Reset
The Engine Oil Life System calculates when to change the engine oil and filter based on vehicle use. An oil change is required whenever indicated by the display and according to the recommended maintenance schedule. Whenever the oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where the oil is changed prior to a service indicator being turned on, also reset the system.

✔️D-P-F Service
The D-P-F function allows you to carry out numerous functions on the Diesel Particulate Filter system. The tool will retrieve/erase D-P-F-related codes, reset the D-P-F light after the filter has been replaced, micromanage the injection rate, and burn off collected particles when a maximum fill level is reached.

✔️BMS Service
The BMS function allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, activate the rest state of the vehicle, and charge the battery via the diagnostic socket.

✔️SAS (Steering Angle Sensor)
The SAS Calibration Steering Angle Sensor Calibration permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor.

✔️EPB (Electronic Parking brake)
The EPB function has a multitude of uses to maintain the electronic braking systems safely and effectively. The applications include deactivating/activating the brake control system, assisting with brake fluid control, brake diagnostics, opening and closing brake pads, setting brakes after disc or pad replacement and also reading and clearing EPB/SBC trouble codes. It is also capable of retrieving Fault Codes information from the ECU.

✔️SRS (Adjustment steering-angle sensor)
The SRS crash data diagnose and reset. Read the SRS(Airbag) system error code accurately and erase the error code, turns off the airbag warning light. To prevent the dreadful danger caused by the airbag not working properly after a collision.

✔️ABS (Brake Auto Bleed)
The ABS diagnostic function is used to retrieve and clear error codes, display and save data streams or module information. What is more, the Auto Bleed function will help get air that is trapped in the ABS actuator module out when bleeding your brake lines to ensure that repairs to this vital system are effective and complete.

Offer All System-Checking for Your VOLVO:

1. Engine System: Engine device that provides power for the automobile and the heart of the automobile. It determines the power, economy, stability of the automobile. The 7110 scan tool can read and clear your engine error codes, letting you know what's wrong with your car.

2. Auto Transmission System: AT is a set of transmissions used to coordinate the engine speed a

nd the actual speed of the wheel, which is used to give full play to the best performance of the engine. 7110 OBD2 scanner can read/clear codes and the error information from AT.

3. Airbag System: SRS is a device that expands the airbag to protect the passenger before the second collision occurs called Supplemental Restraint System (SRS). 7110 OBD2 scanner can read/clear code, turn off warning light of airbag.

4. ABS System: ABS automatically controls the braking force of the brake when the car is braking so that the wheels are not locked and in the state of edge rolling slip (the slip rate is about 20%) to ensure the maximum adhesion between wheels and ground. 7110 OBD2 scanner can turn off the light, and locate in the error part.

5. Diesel Particulate Filter (D-P-F) Regeneration : Clear PM (Particulate Matter) from the D-P-F filter through continuous combustion oxidation mode to stabilize the filter performance.

6. Tire Pressure Monitor System Reset: Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7. Battery Register & Battery Maintenance: Re-match the control module and motoring sensor for battery detection more accurately, clear original low battery information and prevent the related control module from detecting false information.

Battery Resgistration

How to register a battery with this car diagnostic tool for VOLVO vehicle?
In fact, it’s much easier than imagination. Here is the process step by step: Remove old battery -Install new battery -Enter a new battery digits code(Please correctly enter the digit battery code, Or it will affect the accuracy of the product). If you still have questions about battery replacement or other detail problems, just write to us, we’ll try our best to help you out.

Multiple Language

Interface:

English, French, German, Spain, Italy, Russian, Portugal, Norway, Denmark, Finland, Sweden

Data stream name and fault database:

England, France, Germany, Italy, Finland, Sweden

Lifetime Free upgrade Online

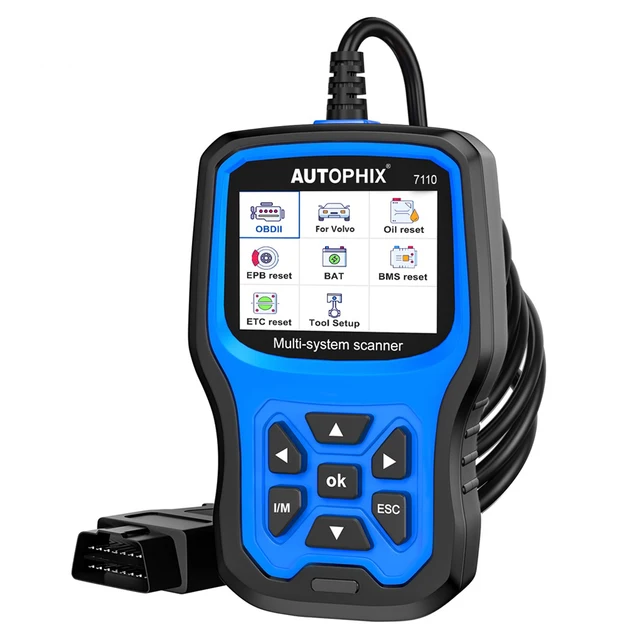

Powerful Diagnostic Functions of AUTOPHIX 7110

The 7110 VOLVO car scanner supports the following protocols and vehicles:

Supports the protocols: KWP,CAN,UDS. Supports all OBDIIEOBD protocols: VPW,PWM, ISO,2000 and CAN.

Vehicles:

🚗➤850 (1992-1997),960 (1991-1997),C30 (2007-2013) ,C70 Conv (1998-2005),C70 Coupe(1998-2002),C70 (2006-2013) .

🚗➤S40 (1996-2012),S60 (2001--2019) S60L (2019-),S70 (1997-200), S80 (1999-2016), S90 (1997-1998),S90 (2017-2019),S90L (2018-2019)

🚗➤V40 (1996-2004), V40 (2013-2018) ,V50 (2004-2012),V60 (2011-2019), V60 (2019-),V70 XC (1997-2000),V70 XC/XC70 (1997-2007),V70 XC/XC70 (2001-2007) V70 (1997-2016),V90 Cross Country (2017-2019),V90 (1997-1998),V90 (2017-2019)

🚗➤XC40(2018-2019),XC60(2009-2019),XC70(2008-2016),XC90(2003-2019)

Full OBD2 Modes

AUTOPHIX 7110 is a handheld scanner that features 6 OBD2 test modes as read/clear code, view real-time data/vehicle information, retrieve I/M readiness status and EVAP system test, etc.The affordable OBD2 scanner cannot only retrieve generic (P0, P2, P3, and U0) but also the manufacturer-specific (P1, P3, and U1) codes, aiming at helping technicians quickly identify the faulty part and accurately diagnose the emissions-related problems.

Product Specifications

Display:Backlit, Colorful, 320x240 pixel
Operating Temperature:0 to 60°C (32 to 140 F°)
Storage Temperature:0 °C to 80°C (32 to 176 F°)
External Power:8.0 to 18.0 V power provided via vehicle battery
Weight: 0.58kg

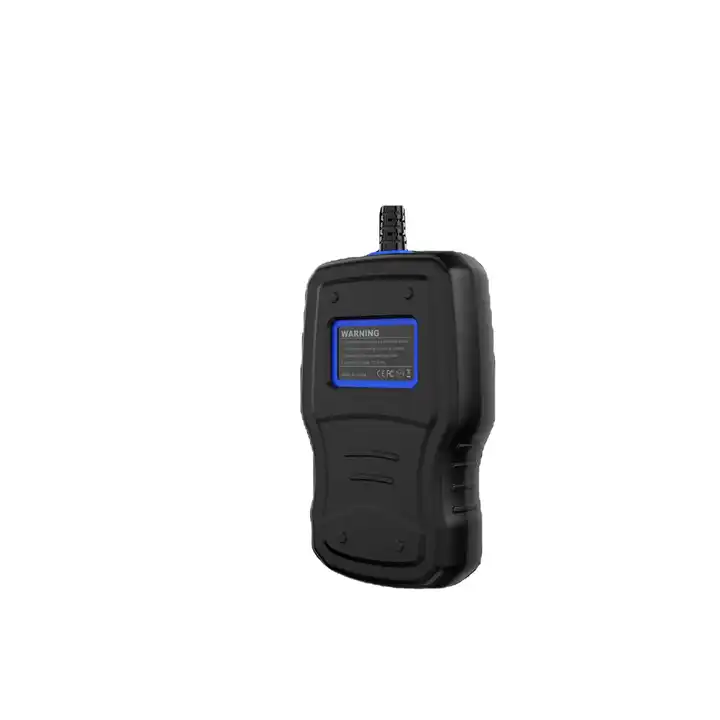

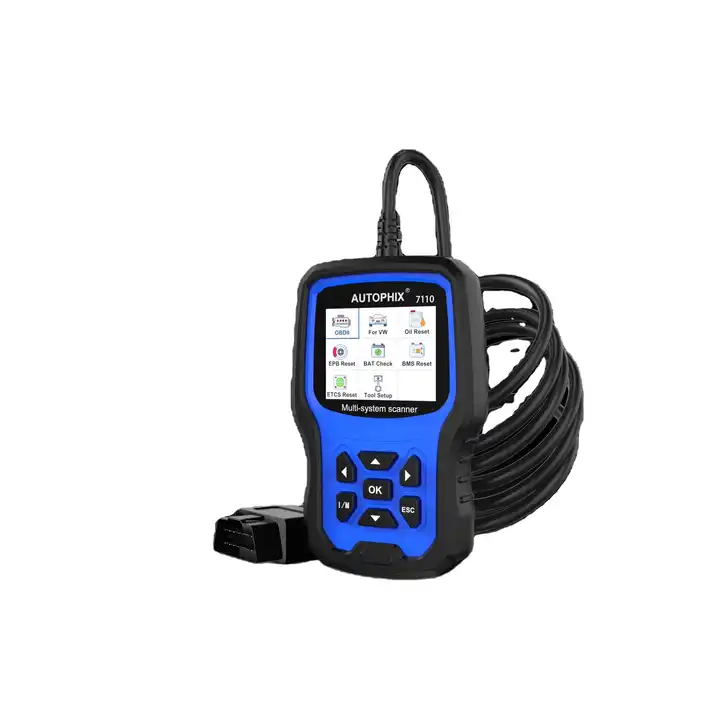

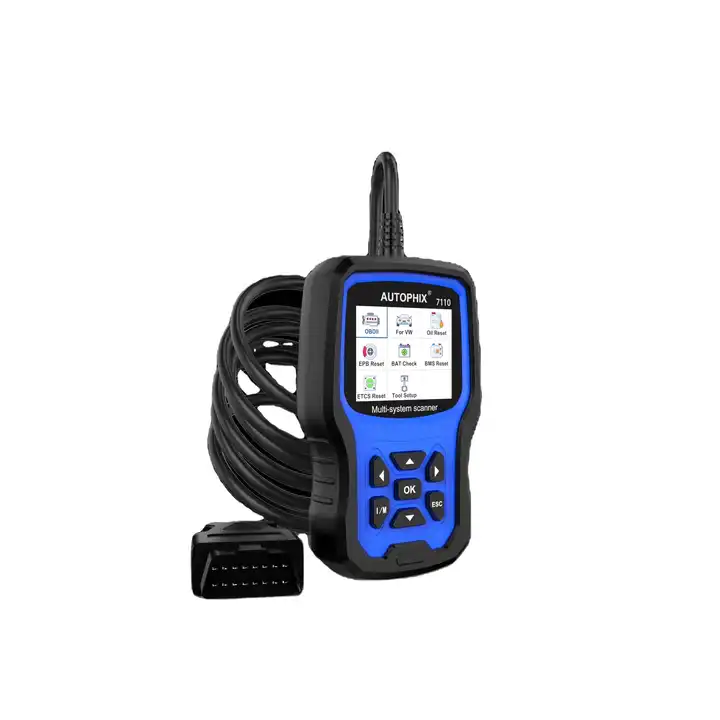

Product as picture show

Questions&Answers Area:

❓ 1. How to get it to start?

Simply plug into the OBD II port on your car and turn the ignition on. It does not need any battery or charger, gets the power directly from the OBDII data link connector in your vehicle.

❓2. Why the vehicle linking error?

I: Confirm that the ignition is ON, check if the scan tool's connector is securely connected to the vehicle's DLC;

II: Turn the ignition off and wait for about 10 seconds and turn the ignition back to on and continue the testing;

III: Verify the control module is not defective.

❓3. How can I change the LANGUAGE?

AUTOPHIX 7110 works with English, German, French, Spanish, Finnish, Dutch, Russian, Sverige, Suomi, Norge, Dansk, and Portuguese, you can choose from the settings menu.

❓4. How can I change the brightness of the screen?

AUTOPHIX 7110 has Two skin styles for choosing, you can choose white skin to enhance visibility during the day, and you can choose black skin to protect your eyes during the night. These functions can be implemented on the settings menu.

❓Does it free update online free?

Yes,lifelong free update online.
