FoxFlash Master Version Super Strong ECU TCU Clone Chip Tuning Tool with OTB 1.0 Expansion Adapter

Package Contains : FoxFlash Master Version + OTB 1.0 Expansion Adapter

FoxFlash is a powerful solution developed for professional chiptuners, calibration engineers and control unit (ECU and TCU) repair shops. foxFlash includes multi-method control unit programming for tuning ability,this tool from tuner design ,so you can get many of them support. With OTB 1.0 Expansion Adapter for FoxFlash extended application engine and transmission computers, and is also suitable for ACM and DCM computer modules.

Wiring Diagrams:

FoxFlash Master Version Highlights:

1. Master Version, Full protocols open
2. VR read online work (some ecu need use our VR system, tool auto connect to ousr server donload file)
3. ECU can be restore to original if your ecu was damage or meet some bad tuning , use our tool can restore to original
4. Free Update Online, No Subscription, No Annual Fee, Two Years Warranty. Latest Update Detail Check Here.
5. Tool can online work (some of ecu and functions can offline)
6. Auto checksum
7. Excellent Online Technical Support
8. Help desk and tuner account
9. ECU and TCU connect wires with pdf
10. Support MEDC17 free clone service (most of others tool need patch the files after read out ,but ours is free)
11. Software can be download on official website: https://www.dfb-technology.com/
12. With the Latest firmware and updates. Use better quality BOM and PCB. More stable, full proof, and reliable.
13. FoxFlash ECU TCU Car List, or check driver list on dfb-technology, it is much easier to search than pdf
14. Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Romanian, Czech, Turkish
15. Please Check the FoxFlash Installation Instruction

FoxFlash Operation Modes:

1. OBD mode: (read the data from Diagnostic port ,you need remove the ecu or tcu from car or open the ecu box , just read everything from car, we also support obd vr read, we supply original file from our server, you can direct obd vr read it )
2. BENCH mode: we also call it service mode,  you can use this mode clone or backup all ecu data, read the internal flash and external flash and eeprom data, so you can save a lot of money for clone ecu and tcu , you also can  clone tcu and chiptuning with this mode.
3. Jtag mode: open the ecu , and wire it or use ours adapter connect ecu ways,some of denso ecu always need use this mode for read and write .
4. Boot mode: open the ecu and always can backup everything , read the flash and eeprom , you can save some ecu cause your obd write failed, or some others reason cause the ecu dead.
5. Full system : you can read and write by pinout for most of ecu and tcu
6. BDM mode: some of the ecu need read and write in bdm mode ,open the ecu and use ours adapter connect it

FoxFlash Support types:

CAR
TRUCK
MOTORBIKE
TRACTOR
BOAT
Additional TCU package available for Automatic Transmissions.

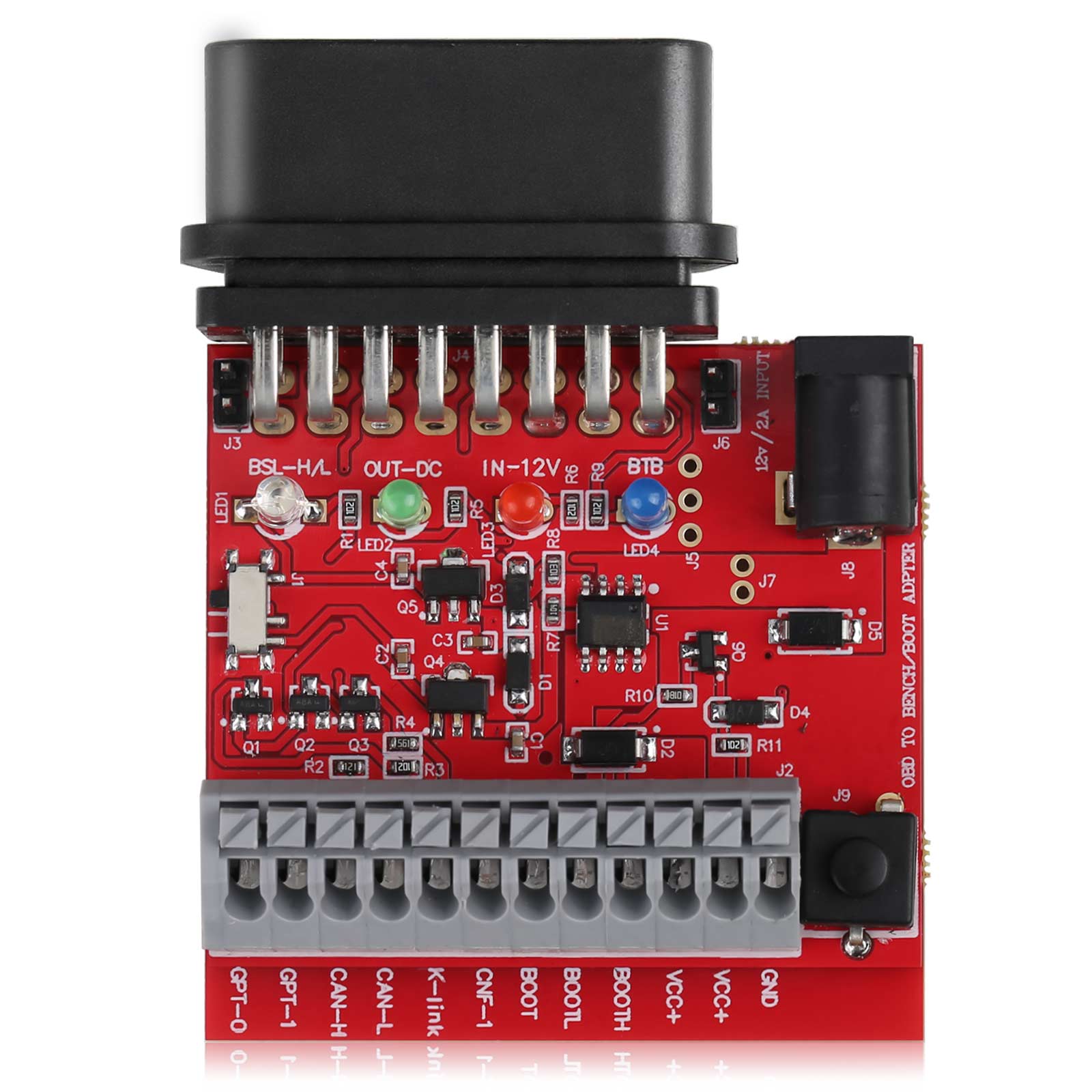

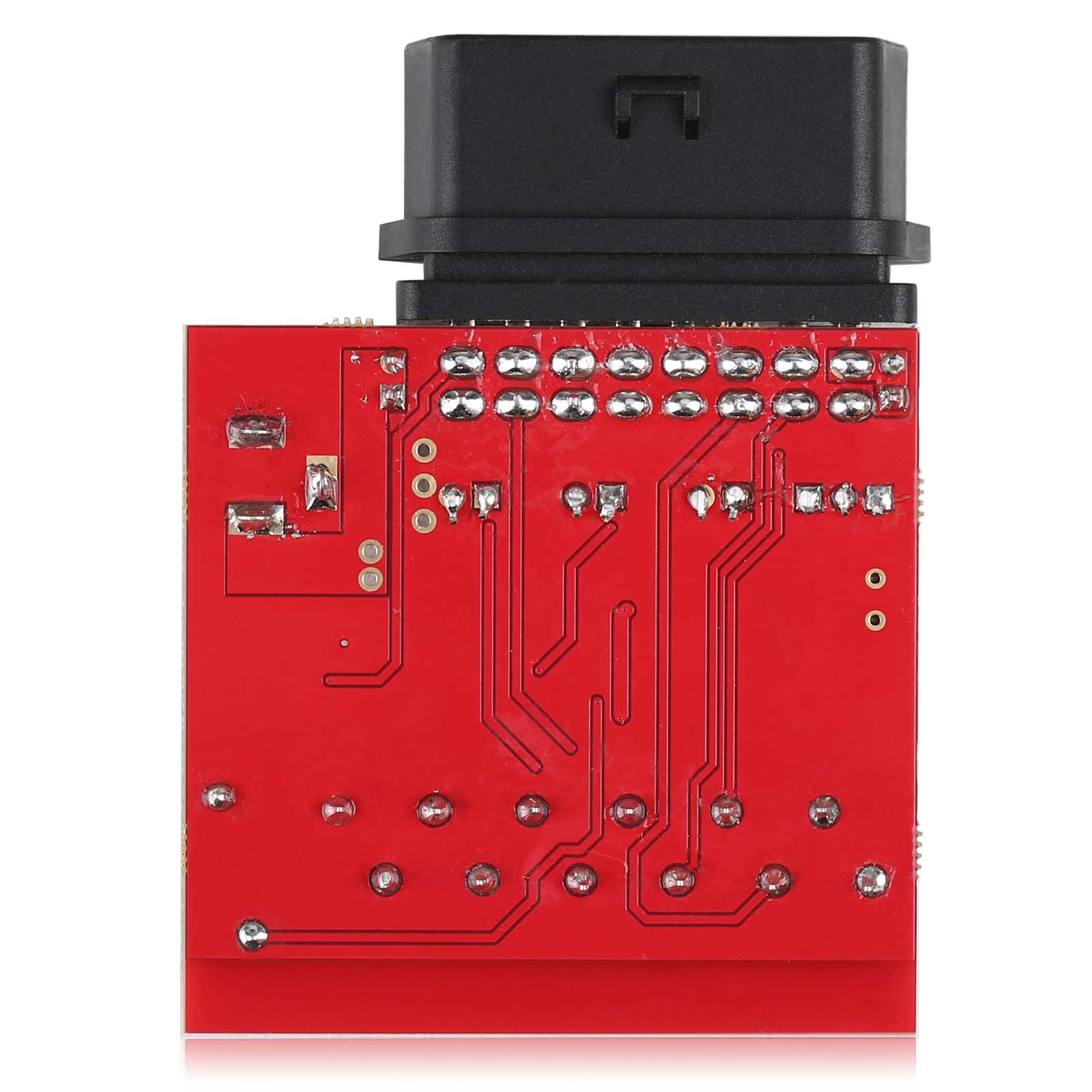

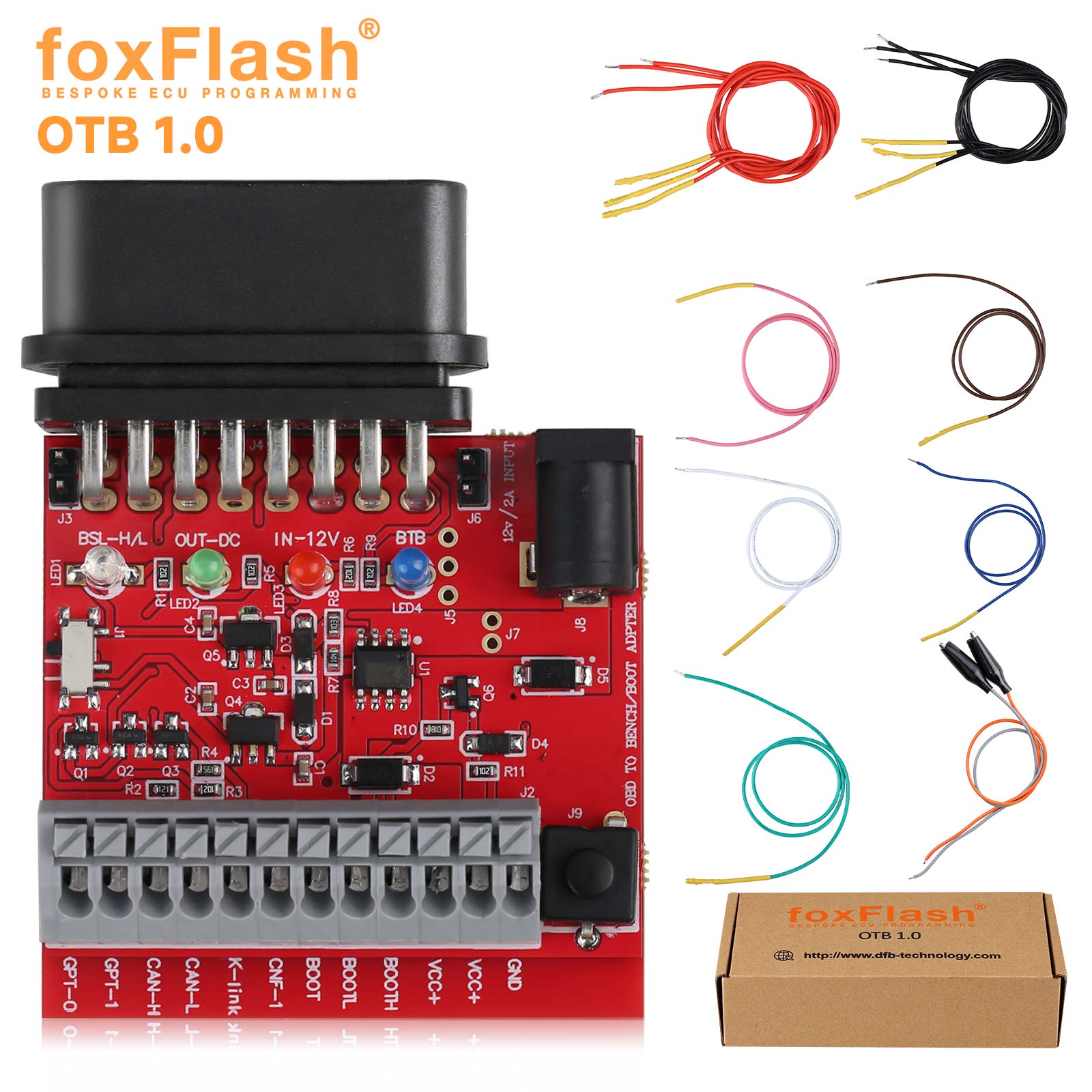

OTB 1.0 Expansion Adapter (OBD on Bench Adapter) for FoxFlash ECU Programmer

The OTB 1.0 Expansion Adapter is suitable for foxFlash extended application engine and transmission computers, and is also suitable for ACM and DCM computer modules.

OTB= OBD mode via bench pinout (OBD on bench) Don't need to connect with bench box.

Supported Functions:

1: Dual-channel high-speed CAN
2: Three-way BOOT
3: Dual VCC power supply
4: GPT encryption and decryption function
5: Adaptive resistance
6: Adaptive CNF signal adjustment

Product Design Purpose:

1: Ensure that foxFlash can be expanded to the OTB mode of BENCH PLUS in any OBD working mode
2: Achieve high-speed reading and writing
3: Ensure communication security and prevent the possibility of ECU brick due to voltage instability.
4: OTB reading and writing in OBD offline mode
5: ECM, TCM, ACM, DCM direct desktop mode reading and writing
6: Improve the reading and writing speed of some OBD drivers

Supported Models List:

Search OTB coverage on Foxflash ECU/TCU Driver List, official website: https://www.dfb-technology.com/driver-list.html

Log in to the browser at the above address and search for OTB to view the models and models that support OTB.

If the query mode cannot be displayed when opened, please clear the browser cache and reopen the website.

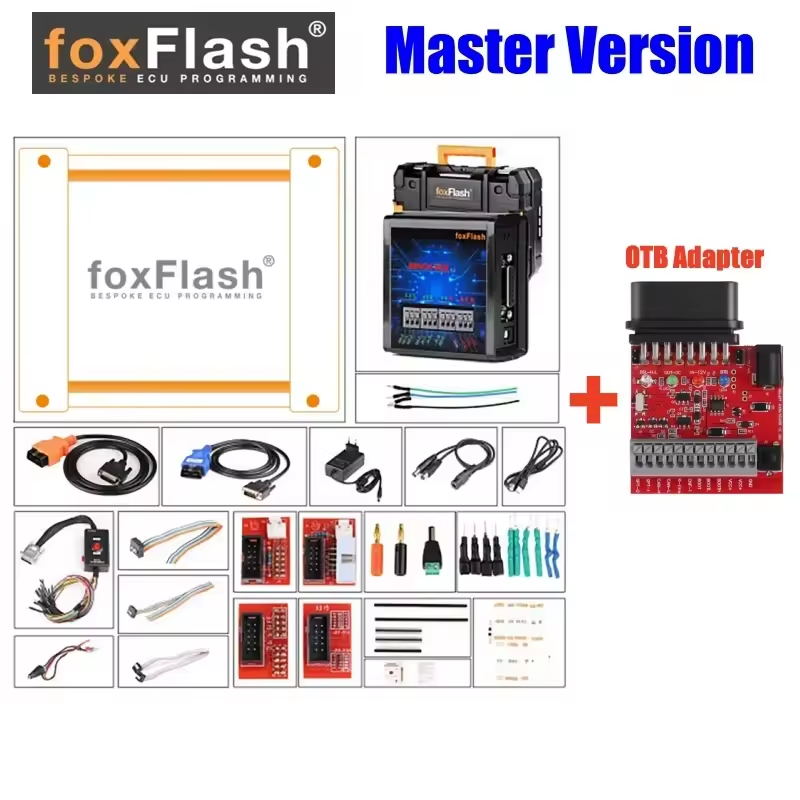

Package List:

1pc x Master machine
1pc x Fox bench box
1pc x USB cable
1pc x Power adapter
1pc x Fox box store over 10 adpaters
1pc x Jtag and bdm cables
1pc x Pen
1pc x Notebook
1pc x Suitcase
1pc x Function cable for boot, bench, kline links .
1pc x Truck OBD cable
1pc x Car OBD cable
1pc x Paper box
1pc x Install guide
1pc x OTB 1.0 expander
1set x OTB 1.0 conversion cable
1pc x Carton
