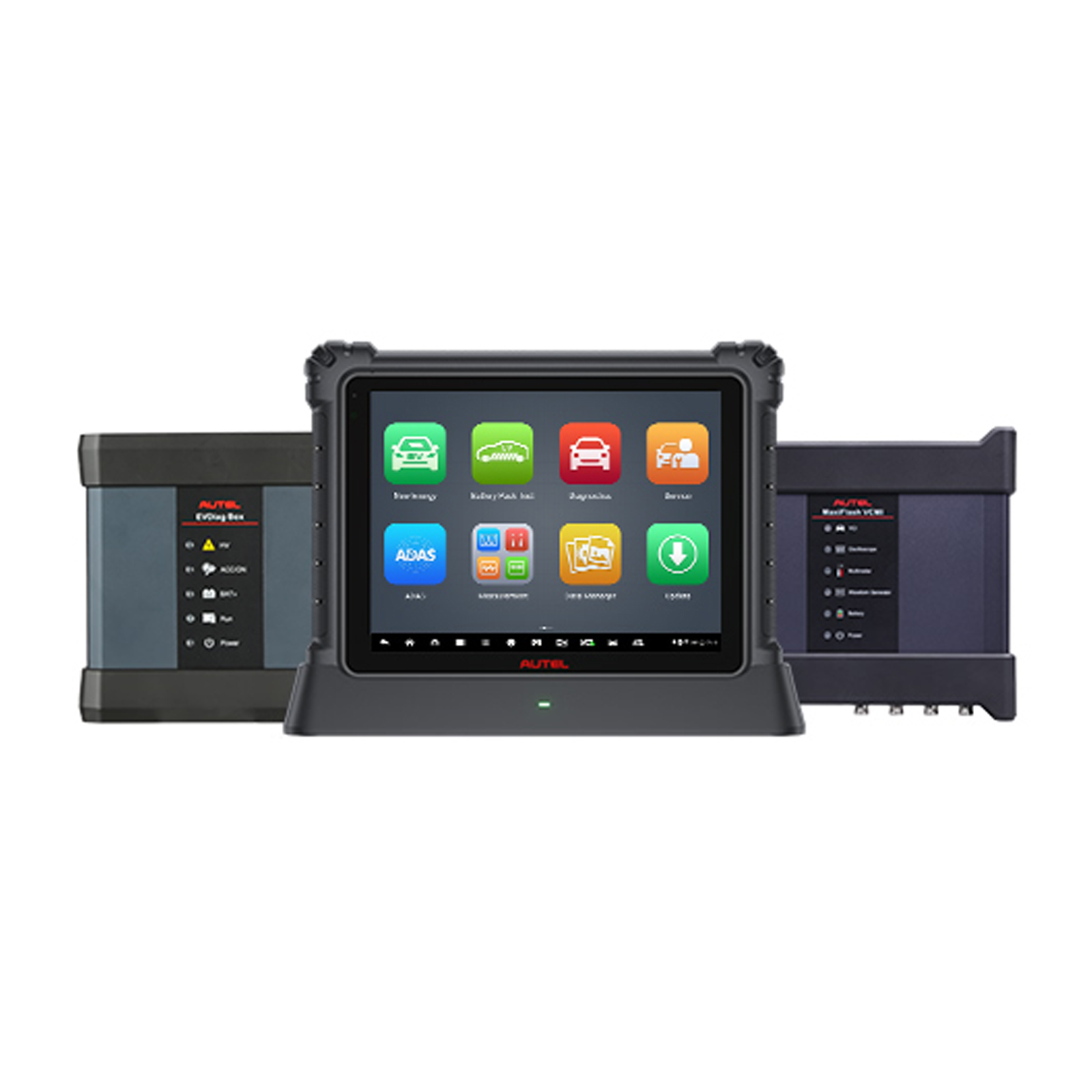

MaxiSYS Ultra EV. Intelligent EV Diagnostics with MaxiFlash VCMI:

The MaxiSys Ultra EV is a new generation of intelligent diagnostics for electric, hybrid, gas, and diesel vehicles. The Ultra EV provides a comprehensive analysis of electric and hybrid vehicles with expanded topology mapping and battery pack analysis that can be performed via OBD or directly with included specialty cables and jumpers. The Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing. The 12.9-inch Ultra EV touchscreen tablet comes equipped with the MaxiFlash VCMI (5-in-1) measurement device, Bluetooth-enabled vehicle communication interface and J2534 pass-thru programming device, and a dedicated EVDiag box.

Rapid analysis of EV high-voltage system:

Ultra EV is able to perform diagnosis on high-voltage (HV) system of new energy vehicles. Tap New Energy to enter the vehicle menu. The icon tagged on the vehicle makes indicates that the HV system can be diagnosed.

In most cases, HV system list appears on the main screen of HV System Diagnostics. Additionally, a System Block Diagram will be displayed for some new energy vehicles, such as BMW, Tesla, BYD, GM, Audi, Toyota, etc.

Tap "HV System Diagnosis" on the Navigation Bar of the New Energy Main Screen to enter the interface, which displays the System List and System Block Diagram.

EVDiag Box & Adapters for Battery Pack Diagnostics:

Using the Autel EVDiag Box, Ultra EV is able to establish communication with the vehicle batteries to perform the Battery Pack Test function.

The Battery Pack Test function has a vehicle mode, which enters diagnostic interface through selecting vehicle information. The battery pack data, including SOC/SOH, total voltage, total current, pack voltage delta, and temperature can be viewed on this mode.

Ultra EV supports the battery pack test of mainstream vehicles such as Tesla, BMW, GM, Audi, BYD, Honda, Toyota, Lexus, etc. The actual function menu may vary among different vehicles.

Advanced 5-IN-1 VCMI ( VCI Connection + Waveform Gerneator+Oscilliscope +CAN BUS CHECK+ Multimeter ):

The VCMI of advanced car scan tool Autel MaxiSys Ultra is integrated with VCI functions + Oscilloscope + Waveform Generator + Multimeter + CAN BUS CHECK, which making the tool has never been so powerful.

1. VCI Connection (Wi-Fi / BT / USB):

Support Dual Wireless Mode, the new host and communication box are connected through Wi-Fi, Wi-Fi communication transmission speed is faster\more stable\strong anti-interference ability, the actual test wireless distance is more than 50m, and the diagnosis speed is more than 30% faster.

2. Waveform Generator:

Supports multiple signal modes, including DC voltage, square wave, square wave (X+Y), triangle wave, actuator drive and arbitrary waveform. Simulate the signals of various sensors and ECU modules, you can intuitively judge whether it is a hardware problem without changing parts.

3. Oscilloscope:

VCMI integrated oscilloscope, through 4 major technologies: Large Bandwidth, High Sampling Rate, Deep Storage, Massive Preset Cases, supports 2 major features: Zoom & Playback, Advanced Triggering, improving the efficiency of solving complex faults.

Ultra-Precision: 20MHz large bandwidth, up to 80MS/s sampling rate, accurate waveform acquisition, covering a wide range of vehicles

More Complete: 32M memory, can capture complex signals, amplify and playback waveforms; support advanced edge triggering and pulse triggers, do not miss any key events.

Easy to Use: Built-in massive preset case and waveform library, supplemented by instant help system

PS: Oscilloscope instant help system: After selecting any function on the oscilloscope screen, click the "bulb" icon to instantly locate the corresponding function in the manual.

4. CAN BUS CHECK:

By detecting the signal of the OBD interface, you can quickly determine whether the communication status is normal. If the signal is normal, the indicator light will flash; if there is no signal, make sure the pins are set correctly.

5. Multimeter:

The Multimeter is mainly used to measure voltage, current, resistance, frequency, diode, duty cycle, pulse width and connectivity.

Intelligent Diagnostics:

With one-stop Intelligent Diagnostics, Autel Scanner MaxiSys UltraEV provides techs with step-by-step repair guidance. It offers multiple repair guidance options: Technical Service Bulletin, DTC Analysis, Repair Assist, Repair Tips, Excellent OE-level functions, Component Measurement, and Relevant Cases, making your work 200% easier than ever.

1.Vehicle System and Detected DTC --- Displays the name of the vehicle system(s) and the detected DTC(s).

2.DTC Analysis --- Provides repair assistance information related to the fault code.

3.Repair Assist --- Intelligently prioritizes DTCs and leads the user to the proper repair.

4.Repair Tips --- Step by step guidance to efficiently to solve multiple faults.

5.Component Measurement --- Provides detailed information and instructional guides on using the oscilloscope to test components for faults.

Topology Module:

The new Topology Module Listing CAN BUS Tree, specially designed for the OEM diagnostic tools, shows all available control units of the test vehicle in different colors, helping users get to know the numbers of systems, the scanned systems, and the scan results at a glance.

● Intuitively display the current module status (includes whether there's a DTC in a specific module, and the number of DTCs);

● Directly display the fault code and enter the system function;

● Supports 50+ brands including For Mercedes-Benz, For BMW, and more! Systematically show the communication structure between the modules;

● Clearly view the color coded module status tree by zooming in and out;

● Compatible with For BMW, For Ford, For Audi, For Chrysler, For Nissan, For Honda, For Toyota, For Lexus, For Land Rover, For Jaguar, For Benz, VW, etc.

● The real vehicle configuration is completely matched with the topology, which is accurate and reliable as OE.

● Automatically scan the communication status of all ECU modules, and quickly locate faults at a glance.

Advanced ECU Programming & ECU Programming:

Autel MaxiSys UltraEV enhanced the process of ECU programming , which can finish program/ rewrite/ code/ match new ECU after new module replacement. Besides the ECU Programming, UltraEV support advanced ECU Coding on 90% cars, which unfold the hidden features and activate high-end functions.

ECU Programming:

Professional automotive scan tool Autel MaxiSys Ultra EV enables enhanced ECU programming on specific BMW and Benz, it also allows for advanced ECU Coding on most of regular cars to unfold hidden features and activate high-end functions to improve vehicle performance.

ECU Coding:

Coding--also known as Teach-in Program, or Component Adaptation, is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts. ECU coding can be employed to program the adaptive data to ECUs; match the component control modules after repairing and replacement; customize the OE settings; personalize the vehicle functions to improve vehicle performance. Compatible with VW, BMW, Seat, Porsche, Renault, etc.

40+ Services Functions:

30+ Commonly Used Reset Functions for Fast Maintenance or Repairs: Oil Reset, EPB, BMS, ABS Bleed, TPMS, Seats Calibration, Language Change, Headlight Matching, Airbag Reset, IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, A/F Setting, Cylinder,Turbocharging,WIN DR Roof, CHG Tire Size, Limit, Trans Adaption.

10+ Advanced Functions for Different Vehicle Models: Clutch Pedal Position Learn,Neutral Gear Position Learning, Torque Sensor Adjustment, Cylinder Power Balance, Component Matching, Stop/Start Reset, Transport Mode,Signal Check, Yaw Rate Sensor (YRS) Learn, Auto-Door Lock, etc.

More High-End Functions:

1.WIFI Print:

Allows you to print from the tablet to a network printer via a computer. Tap Print via PC Link or Print via Wi-Fi to activate the printing function, which enables the device to send files to the printer through the PC or Wi-Fi.

2.FCA AutoAuth:

You can access "AutoAuth" gateway for 2018 and newer FCA vehicles(Chrysler/JEEP/Dodge/Fiat) in the US, Canada, and Mexico to perform diagnostics!

3.Pre-Scan and Post-Scan:

● Auto Scan the Vehicle — the Auto VID function can automatically identify the vehicle and its equipped systems. All available modules in all systems will be scanned automatically. Then DTCs and code details will be listed.
● Print Pre-scan Report — vehicle images can be taken with tablet and attached to scan report. The report file can be = generated and submitted. The report can
be customized with shop and vehicle information.
● Repair Vehicle — creates efficient repair plan from the start.
● Auto Scan Repaired Vehicle — ensures no new faults were created during
repair and no DTCs are present at completion.
● Print Post-scan Report — proves all DTCs on Pre-scan report are fixed.

4.Compatible with Autel MV108/MV105 Inspection Camera:

This is a very pratical and useful functions, which allows you to have a futher wear situation check on your car engine/transmission,etc internal structure, to avoid further damage or avoid potential dangerous driving.

5.Battery Test work with MaxiBAS BT506:

➢ Ultra EV can work with Autel BT506 battery tester to perform professional cranking/ charging system test and In-Vehicle & Out-of Vehicle Battery Test, and with over 95% accuracy result with advanced adaptive condutive technology, which is far more accurate than the 50% of market avreage accuracy.

➢ Autel automotive battery test tool BT506 can test all 6V and 12V 100-2000CCA batteries including the most regular Flooded, AGM, AGM Spiral, EFB and GEL batteries, and compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA standards.

6.Autel Remote Expert:

Developed by Autel, Remote Expert is a cloud-based solution offering Technicians with module programming requirements a connection to pre-qualified Remote Experts in the field.

Offered through supported MaxiSYS Tablets, Technicians now have the ability to connect with Experts ready to complete their programming needs.

7.Bi-Directional Control / Active Test:

Autel intelligent diagnostic scanner MaxiSys Ultra EV is a bi-directional scan tool for sub-system/ component test to detecting the problem. Such as: Open/Close windows & doors; Turn on/off headlamps; Test door lock actuators; Open mirrors; Open/Close windscreen wiper and etc.

8.Clound Report Management:

Allows you to upload diagnostic reports to Autel Cloud so you can share reports with customers through QR Code/ email/ text message directly, customers can view the reports anytime.

9.Refresh Hidden Functions:

Activate the hidden features or disable the annoying features, such as auto side mirrors folding function, automatic engine Start-Stop function, etc. Compatible with BMW, with VW, with Audi, with Skoda, etc.

10.VAG Guided Functions:

Designed with VAG guided functions, this Autel diagnostic scanner provides on-screen instructions for you to fast complete some complicated functions and car maintenance step by step, such as the basic setting and matching of the actuators/ sensors without security access code. Compatible with Bentley, with VW, with Audi, with Skoda, with Seat, with Man LD, etc.

10000+ Covrage, Works With OE Tools:

Top Intelligent Scanner Autel Ultra EV supports D-PDU/SAE J2534/RP1210/DoIP/CAN FD protocols, Wider vehicle coverage for 99.99% makes in the market,which makes it compatible with oe factory tools to peform further services and programmings. Covers more than 80 US domestic, Asian and European models, including supercar, light duty and some medium duty.

Q: Is the ms ultra ev better than old ultra?

A: Yes, the MSultraEV includes a EV diagnostic kit, which MSUltra do not equipped, this EV kit mainly work for electric vehicles to perform battery pack analysis and diagnose true battery condition.

Q: What's the difference between 909ev and ultra ev?

A: Autel MaxiSys Ultra EV scanner is an upgraded version of MS909EV, which has been upgraded in both hardware and software and has added newer functions to improve diagnostic capabilities.

Q: What specific upgrades has Autel ultra ev made on the basis of Autel maxisys ultra?

A: Ultra EV scanner includes all functions of Autel Maxisys ultra Besides, Ultra EV adds an EVDiag box, diagrams of the high-voltage system block, SOC and SOH analysis, EV diagnostics, offline battery pack diagnostics, and high-voltage system testing.
