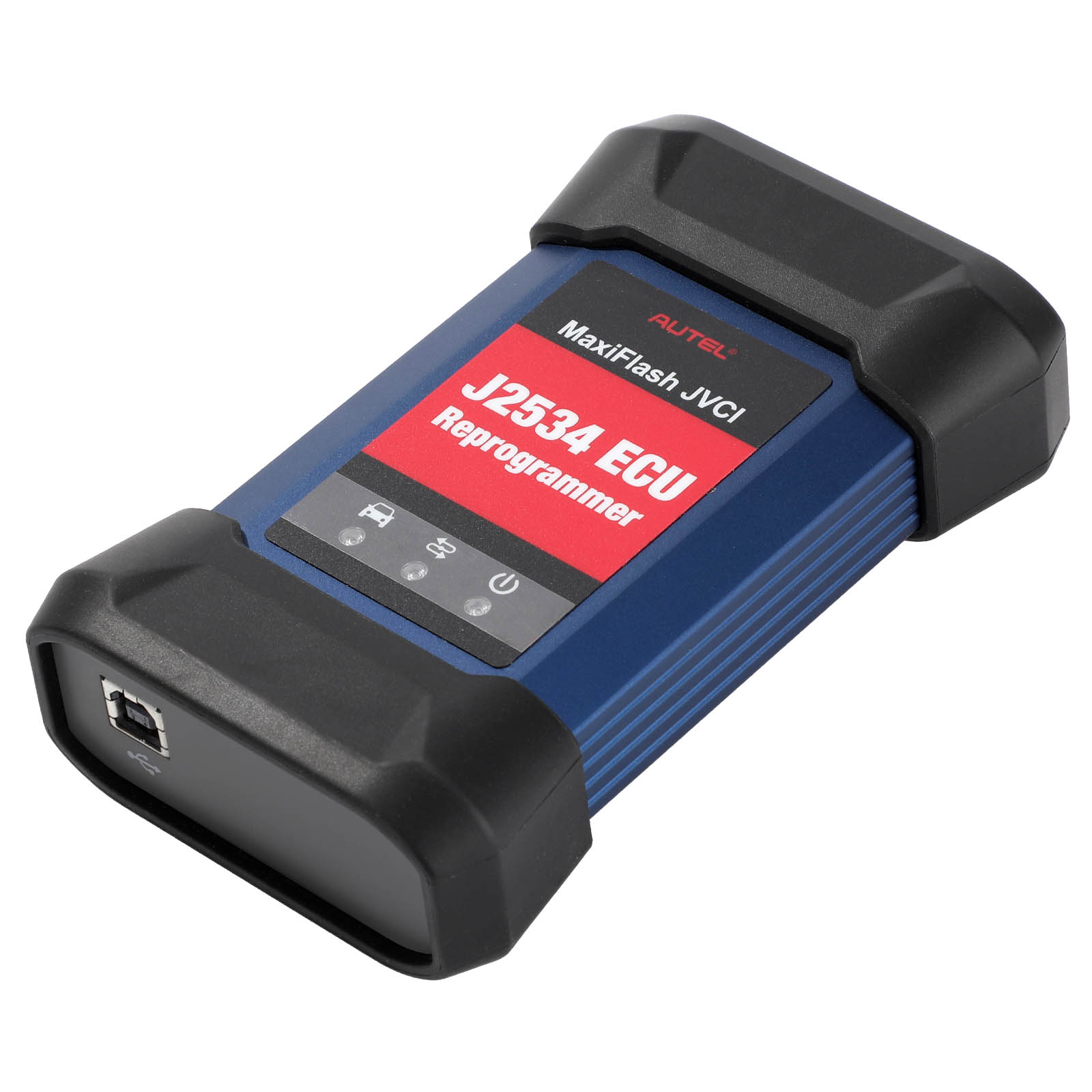

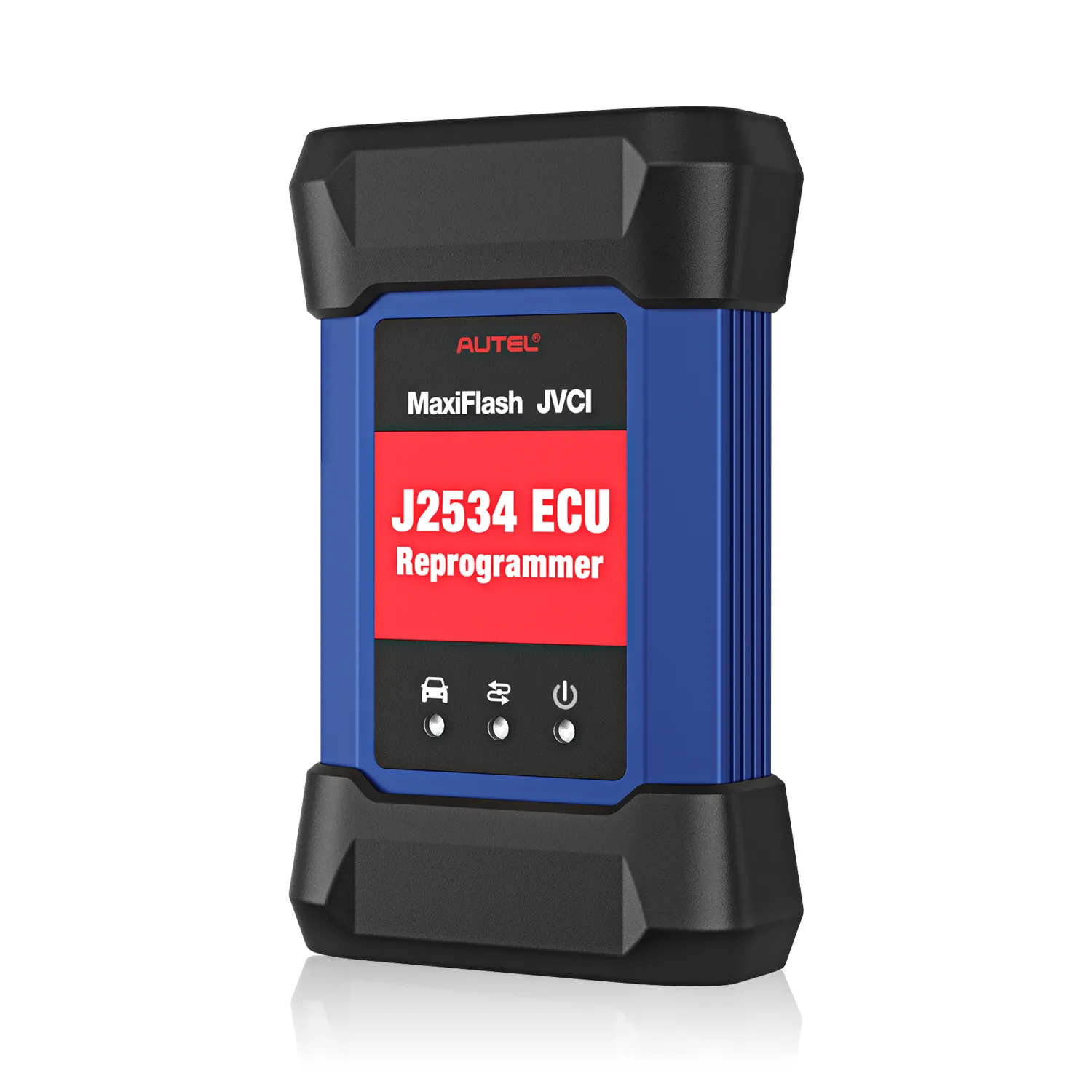

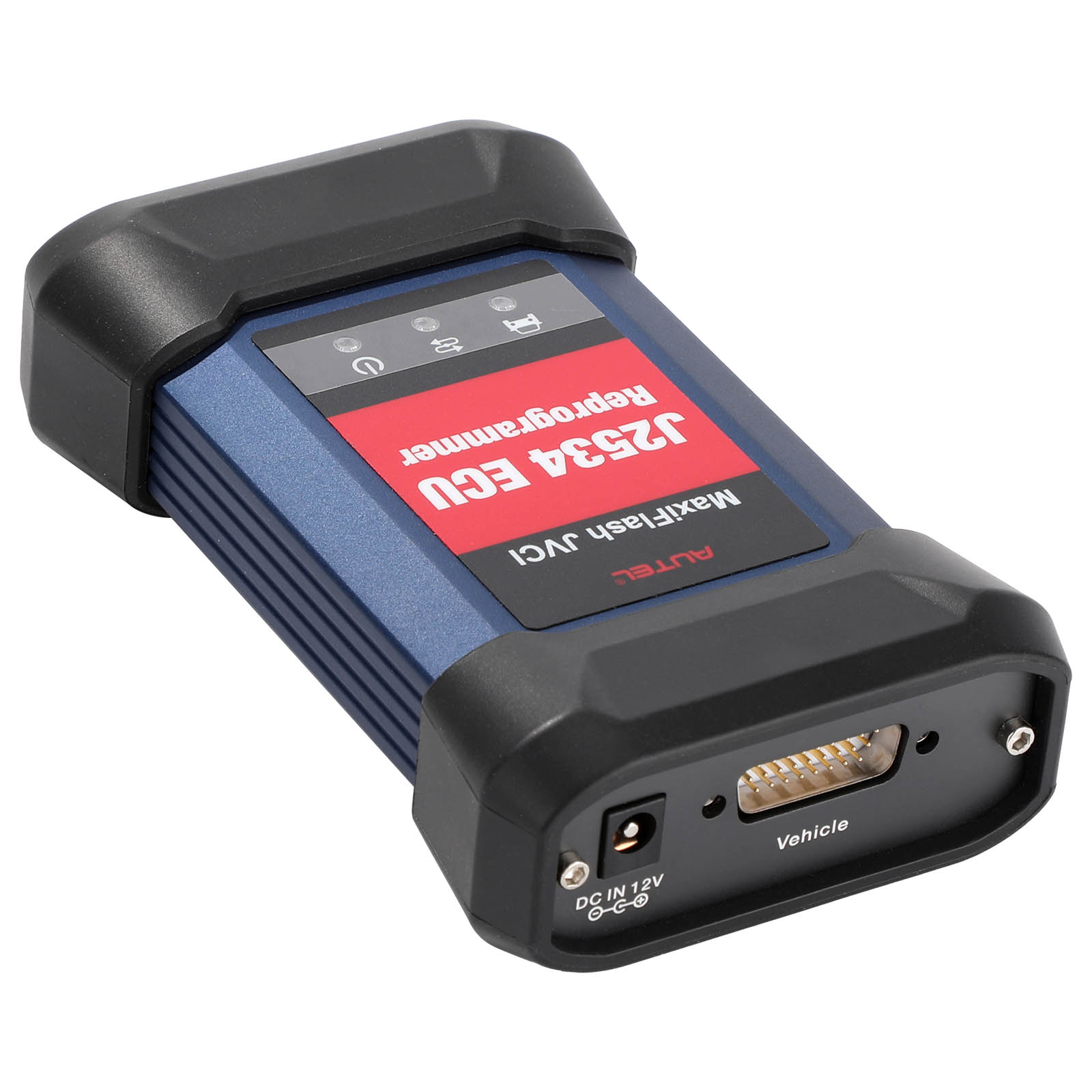

Autel MaxiFlash JVCI J2534 ECU Programming Device works with IM608 / IM608PRO Program ECUs for Specific Functions

Read Me:

● This is MaxiFlash JVCI Bluetooth Device only for Autel IM608/ IM608 Pro

● If the MaxiFlash JVCI of your device is broken or missed, you can buy a new one to replace.

● After you ordered and received the MaxiFlash JVCI. Please send us both of the S/N(12 digits, at the back of the device) of MaxiFlash JVCI and your IM608/IM608PRO Device to us to bind the two device together.

MaxiFlash – Wireless Diagnostic Interface

As a multi-protocol Pass-Thru vehicle interface, MaxiFlash Elite is a fully compliant SAE J2534-1 & SAE J2534-2 (March 2006) device. Specially designed to provide users with convenient PC communication and ECU reprogramming capabilities on any modern vehicle diagnostic bus, MaxiFlash Elite offers the most significant features desired by OEM customers: reliability, fast performance and flexibility.

Features:

1. Works with IM608/IM608PRO to program ECUs on specific BMW/ BENZ for specific functions.

2. Fully compatible with both SAE J2534-1 and J2534-2 reprogramming standards and performs standard Pass Thru J2534 functionality.

3. Compatible with Toyota Techstream, Volvo VIDA, Honda HDS, Jaguar-Land Rover IDS and BMW 3G for OEM diagnostics.

4. Built-In Wireless with advanced networking functions and data storage. Fast performance ensures reprogramming even the newest controllers & Internet upgradable and updatable.

Specification

Communications: Wireless BT V2.1 + EDR,USB 2.0
Wireless Frequency: Wireless BT V2.1+EDR, 2.4GHz
Input Voltage Range: 12VDC to 24VDC
Supply Current: 170mA @ 12VDC 100mA @ 24VDC
Operating Temperature: 0°C to +60°C (ambient)
Storage Temperature: -65°C to +100°C (ambient)
Dimensions Length: 149 mm (5.87") Width: 86mm (3.38") Height: 35 mm (1.28")
Weight 0.29kg (0.64lb)
