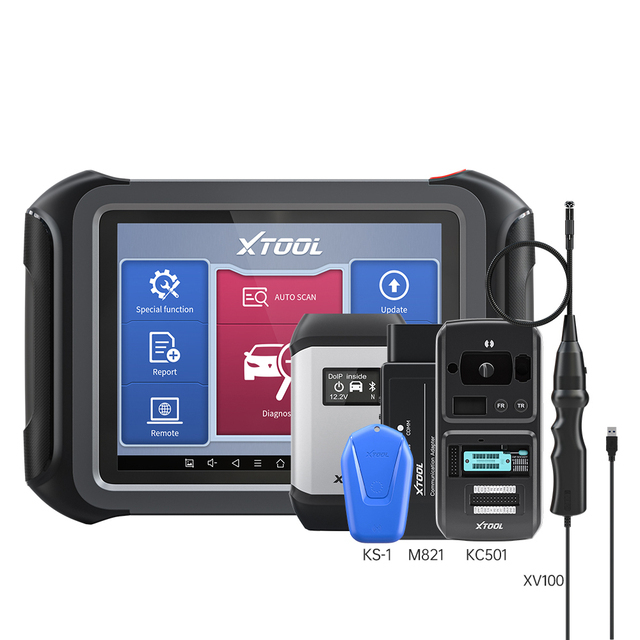

Xtool X100 Max X100 PAD IMMO Key Programmer Plus KS01 KS02 M821 & XV100 With ECU Coding Diagnosis Active Test 42+ Reset Functions Support CAN FD Protocol

X100 MAX Advanced Key Programming Tool 2023 New Model with IMMO & Key Programmer KC501/CHIPS programmer, Bi-Directional Scan Tool & 42+ Services and All Systems Diagnosis with CAN FD

Introduction

X100 MAX is the updadte of the X100 PAD3 with 10-inchAndroid-based touchscreen tablet combining the most advanced key programming and immobilizer capabilities with OE-level diagnostics including the active test and ECU coding and service functions. Equipped with KC501 key programmer and KC100,KS01 ect programmer, X100 PAD Max is a comprehensive immobilizer and key programming tool and ideal for auto technicians and locksmiths.

Key Programming Features:

1.New keys programming
2. PIN Code reading with EEPROM
3.Hexadcimal editor(Win Hex)
4.Reads keys from immobilizer's memory
5.New immobilizer programming
6.Vehicle Identification Number programming
7.Reset ECM & reset immobilizer
8.New remote controller programming
9.With full and strong database for the most important vehicle makes

10.With CAN FD for gm or for Chevrolet car models

KC501 +KS01 SWITCH & CHIP PROGRAMMER

Supported
·MCU / EEPROM Chip Read / Write
·ECU Read / Write
·MC9S12 Encrypted Chip Read / Write
·Key Reading / Writing
·Mercedes Infrared Key Reading / Writing
·Finding the Control Frequency
·IC Card Reading / Writing

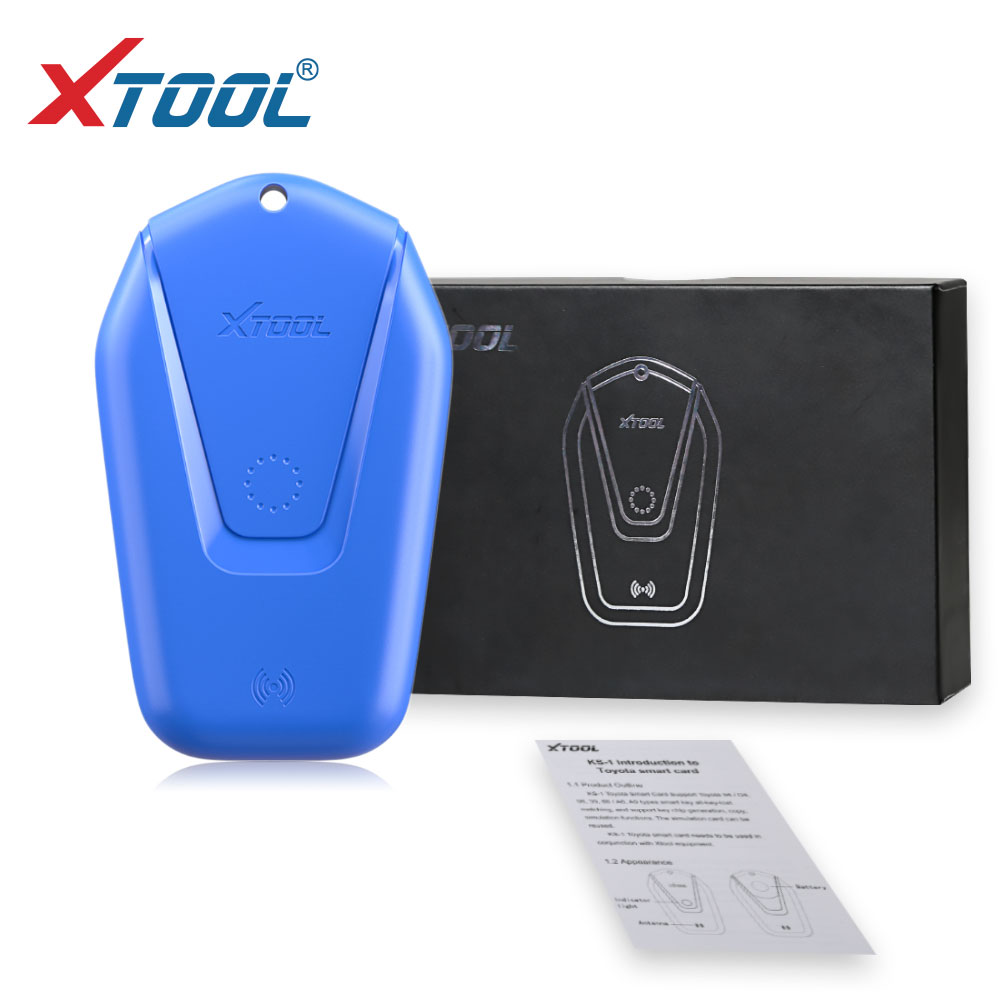

KS01 Functions

*For Toyota / For Lexus All lost Nodisassembly

*Support For Toyota / For Lexus all lost and dismantled, read the original car data from OBD to generate emergency simulation key, directly drive the car without disassembly, intelligent and efficient

*Intelligently generate new keys

*Through the reading of the original car data, a smart key is generated, which can then be operated according to the process of adding a key, supporting the generation, copying, and simulation functions of the key chip.

ALL SYSTEM DIAGNOSTICS FOR 10000+ VEHICLES +5 YEARS WARRANTY X100 PAD Max automotive scanner can read / erase codes, view live data, retrieve ECU version information, do active test and service functions for all systems including ECM, TCM, ABS, SRS, BCM, IMMO, BMS, TPMS, SAS, Fuel System, Light System and A/C system etc

X100 MAX BI-DIRECTIONAL(ACTIVE TEST)+ECU Coding+Auto Vin

ECU Coding is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, durability of mechanical parts etc

Active Test (Bi-directional control)

Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators .For example PAD Max have the ability to actuate relays, injectors, coils, or perform system tests, etc

Auto VIN

X100PAD Max automatically recognizes the vehicle's VIN code, when connected to the device, PAD Max will automatically recognize the vehicle information

42+ Special Functions

42+ Service Functions for various scheduled service and maintenance performances including :Oil Reset, EPB, TPMS, BMS, Brake Bleed, DPF, Immo Keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp,Gear Learning, ABS/SRS, Cylinder, Turbocharging, Limit, Clutch,EEPROM Adapter , Airbag Reset.

The most commonly performed service functions include:

Oil Reset Service: Allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate.

EPB Service: Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.

SAS Service: Allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.

DPF Service: Allows you to carry out numerous functions to the Diesel Particulate Filter system.

TPMS Service: Allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.

IMMO Service: Programs a new anti-theft key, and performs key matching when the ignition switch, the combined instrument panel, ECU, BCM, or the remote control battery is replaced.

And Many More…

Print and report functions

Save the diagnostic date ,Print the diagnostic report after connecting the printer and can report the diagnostic date to xtool for updating

24 hours online remote technical

contact with the xtool for online technical support


2 types Connection method

X100PAD MAX with the Wireless VCI so can diagnostic with the BT.  also it's have the obd2 cables can make cables connect also


2 Year free update

X100PAD MAX Support 2 years free update after 2 years around 400$ Each year for the update ,of course if you don't want to make update here won't have any limited with the old software works

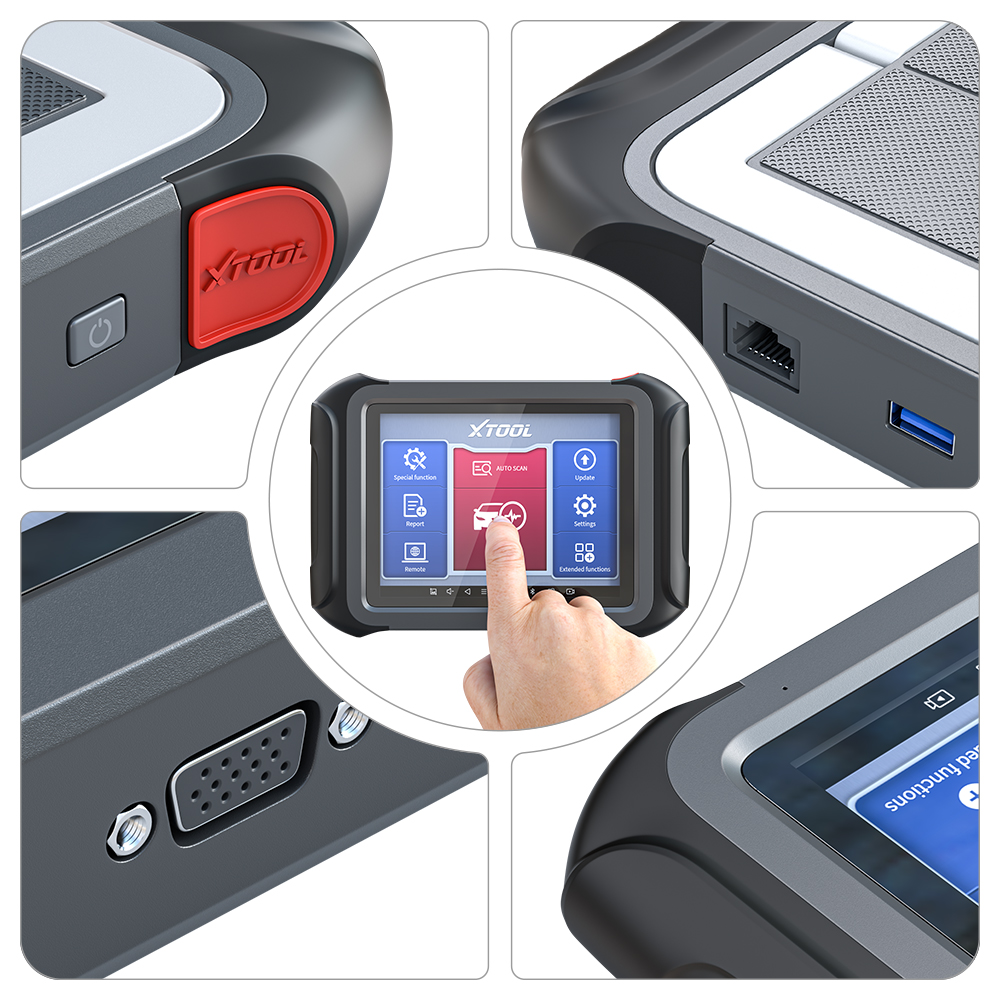

Advanced Hardware

XTOOL X100 MaxAdvanced hardware tablet and software

Android 5.0 Operation system

Quad core 1.8GHz CPU

2GB RAM and 64GB ROM

1024X768P

8 inch Display

with 10000mAh battery

8.0 Megapixel Camera

KS01 Functions

For Toyota / For Lexus All lost Nodisassembly

Support For Toyota / For Lexus all lost and dismantled, read the original car data from OBD to generate emergency simulation key, directly drive the car without disassembly, intelligent and efficient

Intelligently generate new keys

Through the reading of the original car data, a smart key is generated, which can then be operated according to the process of adding a key, supporting the generation, copying, and simulation functions of the key chip.

M821 Introduction

M821 Mercedes-Benz All Keys Lost Communication Adapter is used for finishing and optimizing all key lost programming for multiple Mercedes-Benz modules. M821 should work with kc501

With M821 Adapter, you can save as much as 65% of the calculation time on the process, or save you from plugging the key emulator in and out for hundreds of times

XTOOL XV100 HD inspection videoscope

The videocope is a new type of electronic product. The advantages of this product are: small size, light weight, the front camera housing diameter is 8.5mm, a control box is installed in the middle part (adjust the light and shutter button.

Note: The shutter button can be used only when connecting with the XTOOL tablet), you can adjust the brightness of 8 LED lights, capture images and take photos, and you can record, record the entire process of inspection, to facilitate subsequent observation and analysis.

Xtool X100 Max Includes:
