MB FBS3 BGA Keyless Go Key for W221 W216 W164 W251 After Year 2009

Frequency: 433MHZ
Supported models: W221 W216 W164 W251 After Year 2009, support FBS3 BGA smart key
Including: S Series, ML Series, GL Series and R Series
Erase key: It can be erased up to 3 times. After three times, it can only be returned to the factory to re-burn the key.
Support MBSmartKeyTool software or use with vvdi mb device,other devices currently do not support.
With intelligent function


Mercedes-Benz BGA Smart Key Operation

1. Before writing the key data, you must install the battery to test whether all the keys are normal.
2. It is necessary to use 051 key data (when VVDI infrared writing reaches 96%, it will prompt data writing failure, which is normal).
3.Remove the battery before activating the key, usually insert and remove it 5-6 times for an interval of 5 seconds. After the key can start the vehicle normally, install the battery to test the remote control and keyless start.

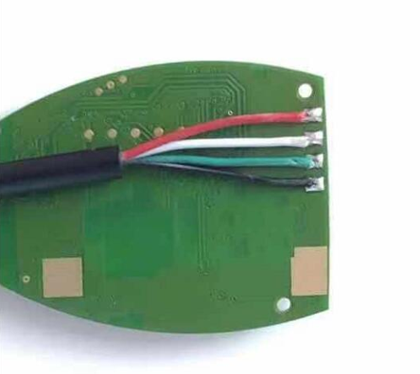

USB Wiring Diagram:

Package includes:

1pc x MB FBS3 BGA KeylessGo Key for W221 W216 W164 W251 After Year 2009
