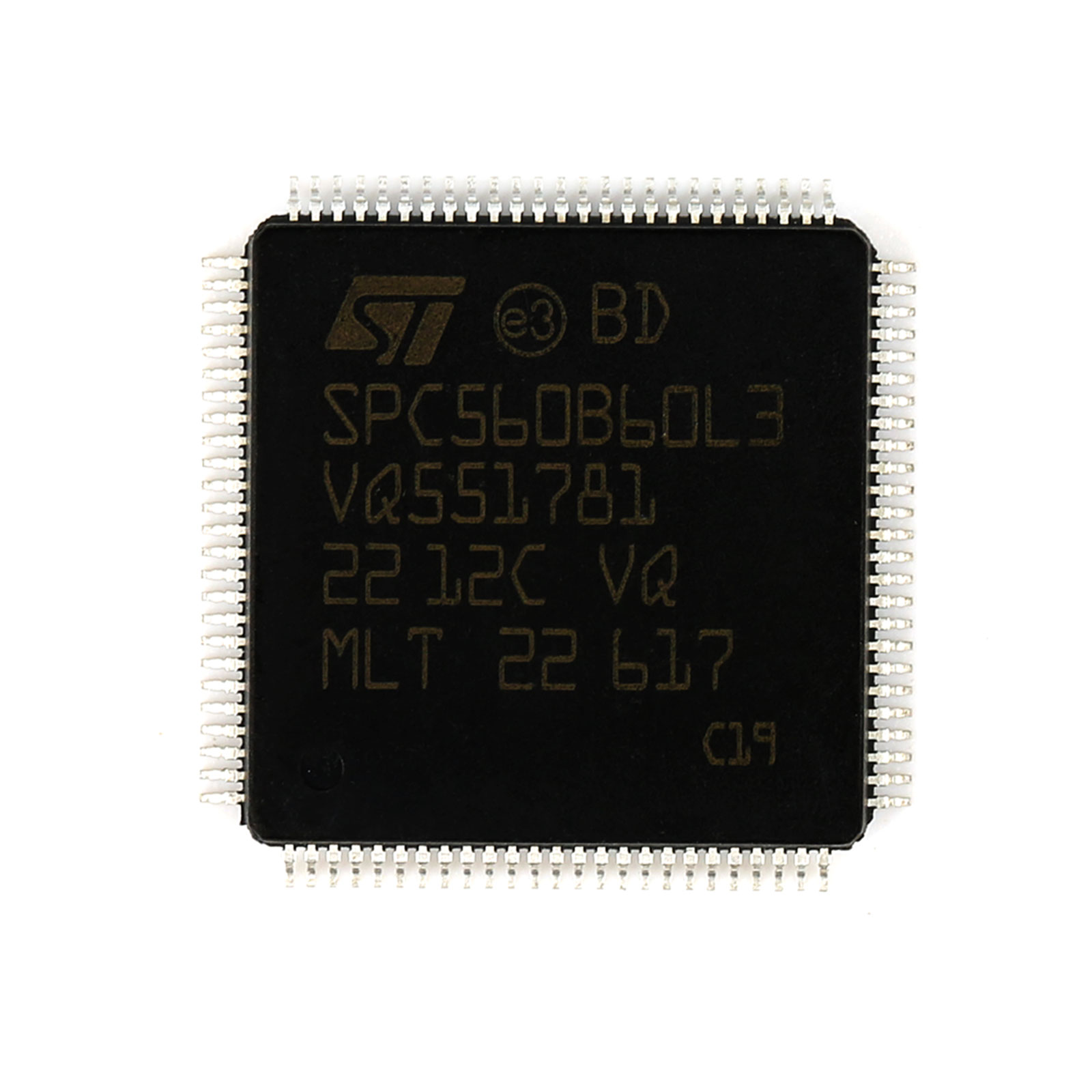

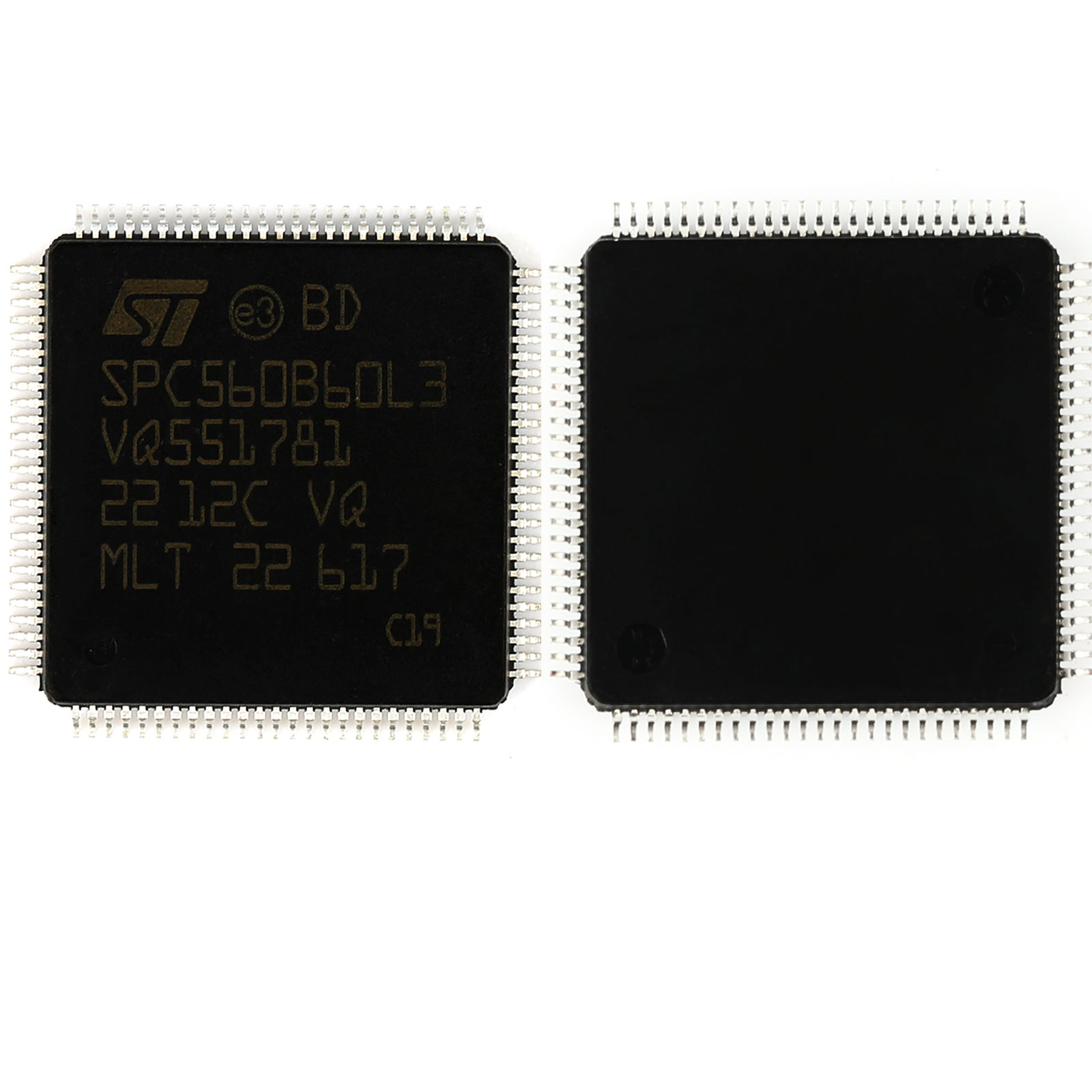

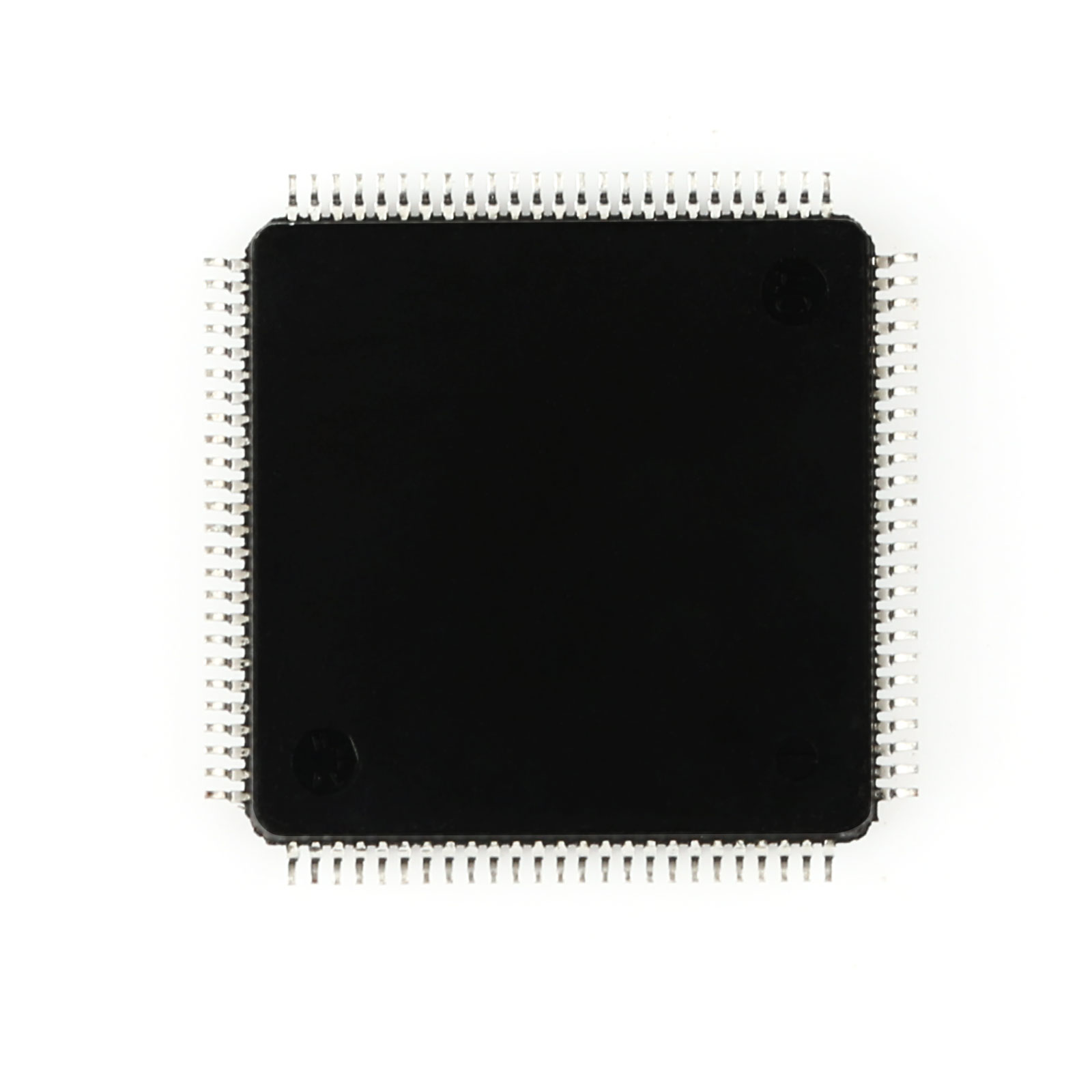

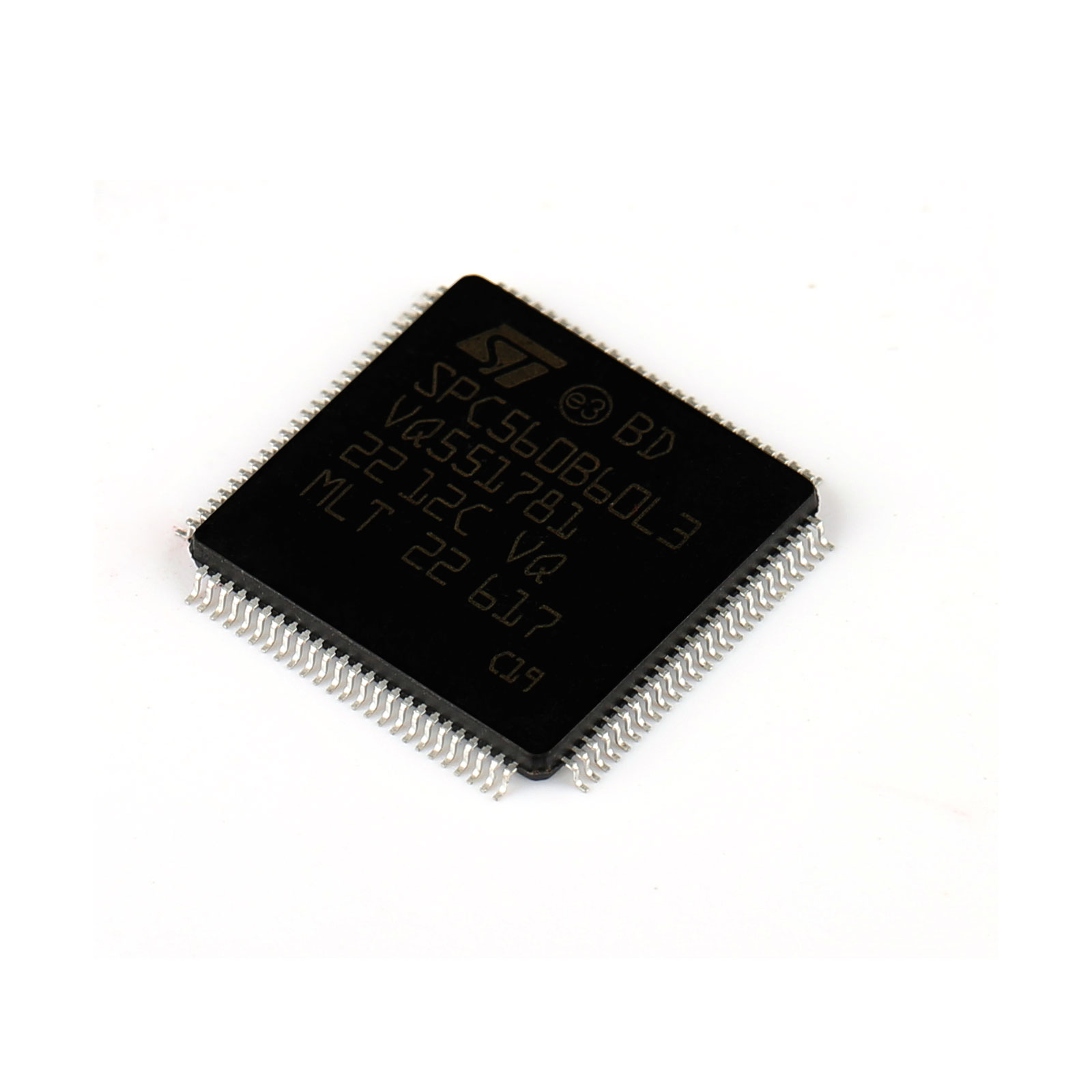

RFA Module CPU SPC560B Blank Chip with Program for Yanhua Mini ACDP Module24 New JLR IMMO

RFA Module CPU SPC560B Blank Chip with 3 Program, choose the one you need.

Feature:

For Yanhua Mini ACDP Module 24
Supports new JLR 2018+ OBD duplicate key (JPLA-14C104-AF)
Supports new JLR 2018+ program new key by replacing RFA black processor or RFA module

NOTE:
OBD duplicate key function supports JPLA-14C104-AF version from 2018-2019 only (OBD detects this version). Other versions need to be programmed.
Must select the key channel with key ID to duplicate key.
Module 24 is for Add key only. Cannot do All Keys Lost for 2018+ JLR.
The new key must be a special key that can change ID (i.e Lonsdor JLR Key).
If don't want to replace the CPU chip, get an RFA module with chip and data, directly program and learn key via OBD.

How to Replace the RFA module CPU chip:
1. Remove the original RFA module, replace the SPC560B chip, write data to the blank chip with clip adapter, no soldering.
2. Yanhua ACDP platform can automatically detect the communication condition of RFA modules, including blank RFA modules and RFA modules after chip replacement.
3. Install RFA module back to the vehicle, connect Yanhua ACDP with the vehicle via OBD, then program key and learn key via OBD.

Package List:
1 pc x RFA Module CPU SPC560B Blank Chip
