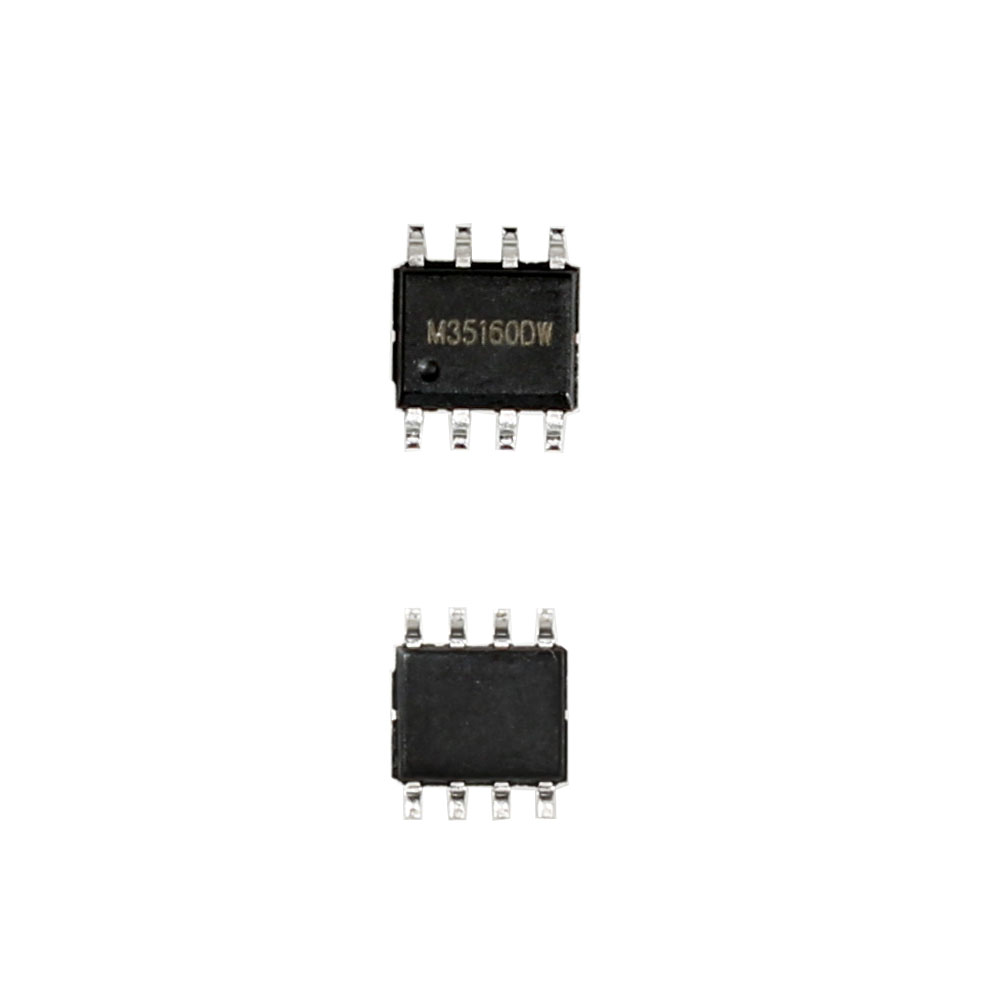

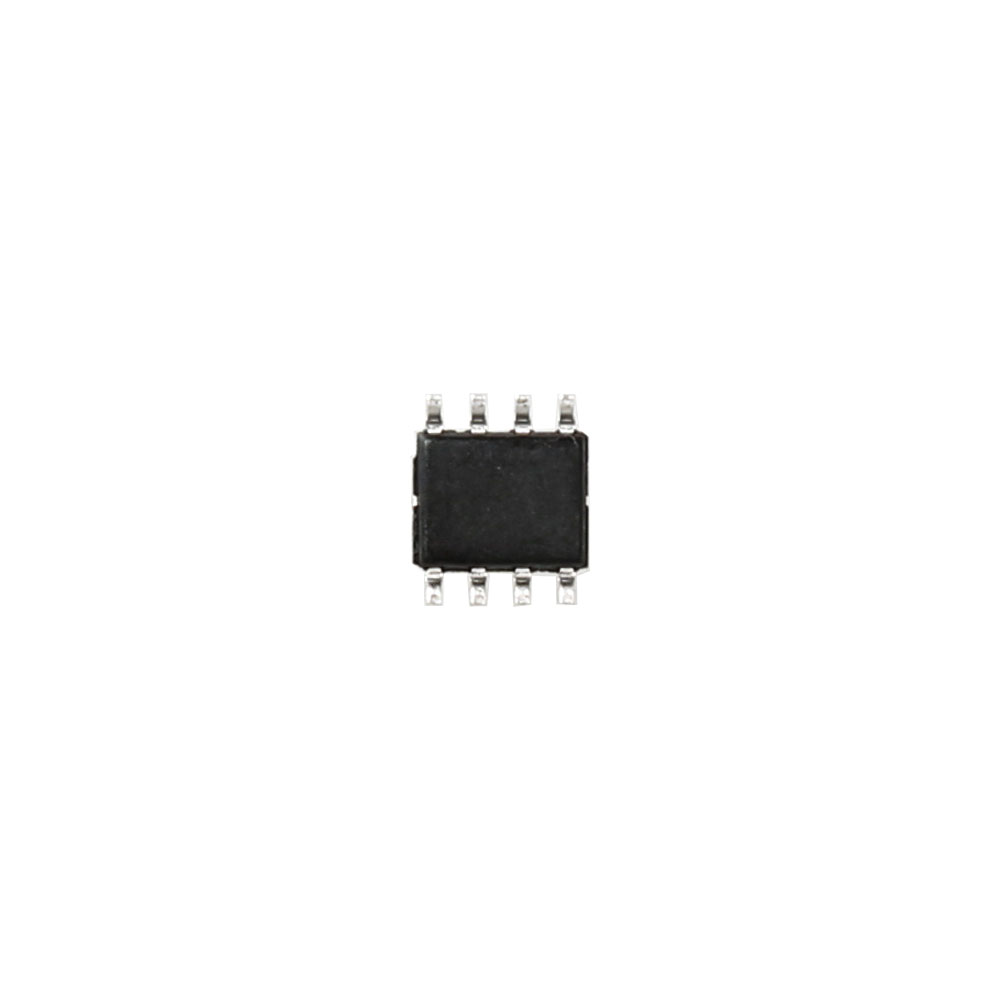

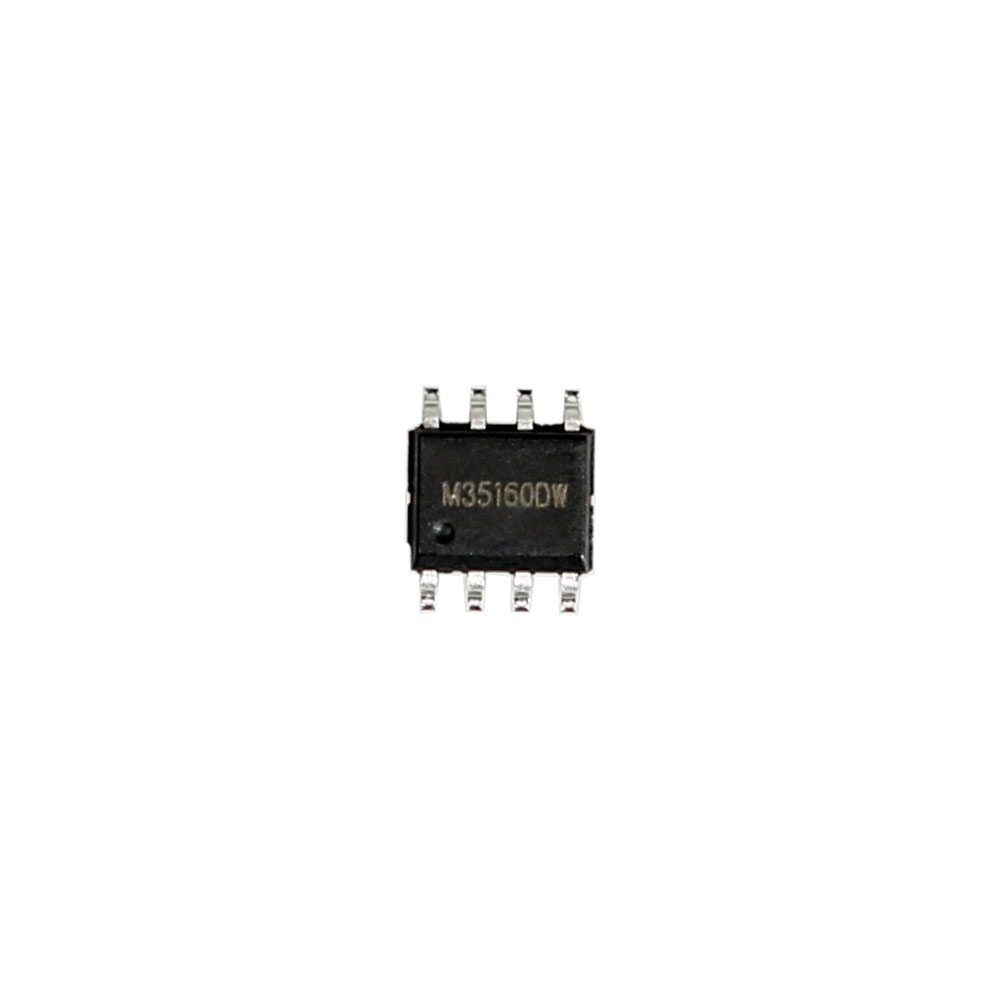

Xhorse 35160DW Chip Reject Red Dot No Need Simulator Work with VVDI Prog

The world's leading maintenance tool From now on,reject the red dot without the simulator,work stable and reliable,can perform as perfectly as the original one

Support Replacement Chip Models:

M35080
M35080-3
M35080-6
M35050V6
M35080VP
D80D0WQ
160D0WQ
35160WT
35128WT

How to use Xhorse VVDI Prog 35160DW Chip?

Need to update VVDI PROG Software to newest version.

This chip used as replacement for ST company 35080xxx,35160xx, 080D0xx, 160D0xx etc types.

Steps:

1. Backup data: Read and Save the dashboard original IC from 3 partitions(MEMORY+LONGID+ID LOCATION) or
ALL option (ALL=MEMORY+LONGID+ID LOCATION), shown as sample picture

2. Write data: After replace original chip by Xhorse 35160xx chip, please write step1 saved 3 dumps to each partition on xhorse chip by VVDI PROG.

3. Mileage correction: ‘Erase INC’ button is for erasing the front 2 lines, after erase INC operation then select ALL or MEMORY option to Read data for verify, Reading data the front 2 lines should all "00" manually enter the targert mileage, then click Write option, operation completed.

4. Verify data: Soldering back the Xhorse chip to dashboard, check whether working well without red dot.

Package List:

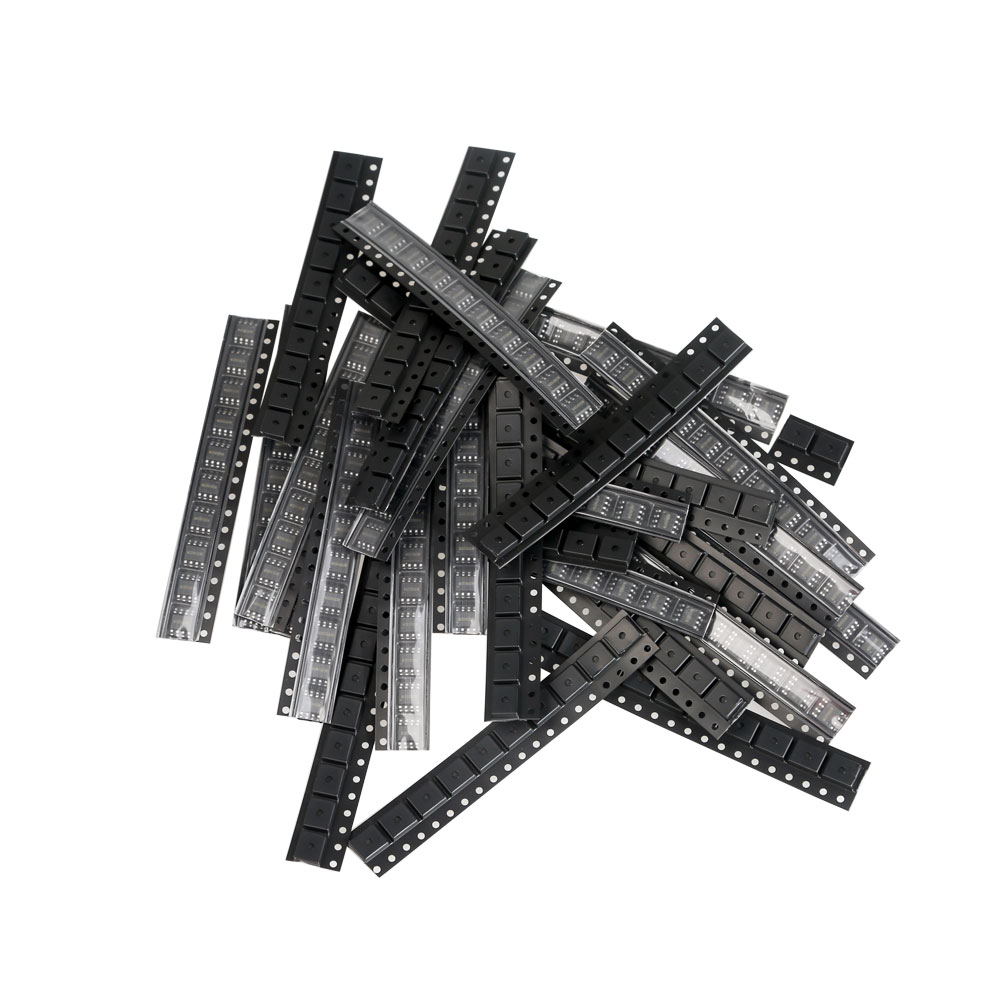

1pc x Xhorse 35160DW Chip
