GM Tech2 Tech 2 Scanner  GM Diagnostic tool with CANdi & TIS For  GM/SAAB/OPEL/SUZUKI/ISUZU/Holden


GM Tech2 Scanner  Description:
The Tech-2 is the same  tester GM Technicians use to diagnose GM vehicles. The Vetronix Tech 2 comes  with Authentic GM software and provides support for on-board diagnostics on all  GM systems 1992 thru  2014.

Cars model  supported: GM/SAAB/OPEL/SUZUKI/ISUZU/HOLDEN


Top 4 Reasons to Get GM  Tech2 Scanner:
1. Multi-langauge:  English, Italian, French, Portuguese, German, Spainish, Korean, Japanese, Thai,  Chinese
2. Update: via 32MB  Software Card, when there is newer version, you can just buy new card to  update
3. Support Car Models:  GM, SAAB, Opel, Suzuki, Isuzu,  Holden
4. Year Coverage of  Diagnosis: From 1992 to 2014, With Help of Tis2000 Software, It Can Do  Programming for Cars Before Year  2007


GM TECH2  Notice:
1. It Can Only Support  12V Cars, No Trucks
2. One Device only Has  One 32MB Card As Default, If You Want do more vehicles, Please Buy Additional  32MB Memory Card
3. It supports  GM/SAAB/OPEL/SUZUKI/ISUZU/HOLDEN Expert/Australia Holden if you select it with  all software before you place  order.


Software Listing  :
GM
GM-English             33.004 1991-2014
GM-Spanish             33.002 1991-2014
GM-Germany             32.007 1991-2013
GM-Japanese            32.006 1991-2013
GM-French              32.007 1991-2013
GM-Italiana            32.007 1991-2013
GM-Portuguese          32.002 1991-2013
GM-Korean              32.002 1991-2013
GM-China               32.002 1991-2013
OPEL
OPEL-English           Newly Update to V180   1997-2014
OPEL-Italian           Newly Update to V180    1997-2014
OPEL- Polski           Newly Update to V180    1997-2014
OPEL- German           Newly Update to V180    1997-2014
OPEL- Turkish          Newly Update to V180    1997-2014
GM Tech2 Card Opel  Software Update to V180 Support Cars from the Year 1997 to  2014
SUZUKI
SUZUKI-English          V01.210.020
SAAB
SAAB-English            V148.000
ISUZU
ISUZU-English  CAN-BUS    V180 2006-2015 (CAN-BUS support car models after  2010)
ISUZU-English  K-Line     V11.680  1996-2014 (K-line support car models from 1996 to  2014)
Holden
Holden-English　           V149.000  1999-2013 (For North American Area  Only)
Holden-English             V147.000  1999-2012 (For  Australia)


GM Tech2  Specification:
1) Authentic software  for GM in the Tech 2 Flash means the most comprehensive diagnostic software  available for latest model vehicles for  GM.
2) Support for on-board  diagnostics on all systems 1992 thru current year for  GM.
3) Removable hardware  modules provide insurance against scan tool  obsolescence.
4) Large, easy-to-read  backlit screen.
5) RS232 & RS485  ports provide the avenue to connect future devices to your Tech 2  Flash.
6) Ability to capture  stored DTCs, Freeze Frame, and Failure Record for later  review.
7) Ability to view the  status of vehicle diagnostic tests as they  run.
8) Bi-directional The  authentic GM 1992-current year software will provide full bi-directional control  when performing power train, chassis, and body  diagnostics.
9) Vetronix Tech 2  Specifications
10) Dimensions:  12
11) Microprocessor: 32  bit,16 MHz
12) Memory: 32 MB flash  type II PCMCIA. Type III slot available for future  expansion.
13) Communications:  Integral RS232 communication  port.
14) Screen: 3.8.8  backlit monochrome with full graphics capability: 320,40 pixels. Displays up to  9 vehicle parameters at once .Download Tech2 Brochure (5.2  Mb)

GM Tech2  Features
1) Authentic GM  software in the Tech 2 Flash means the most comprehensive diagnostic software  available for late model GM  vehicles.
2) Support for on-board  diagnostics on all GM systems 1992 thru  2011.
3) Removable hardware  modules provide insurance against scan tool  obsolescence.
4) Large, easy-to-read  backlit screen.
5) RS232 & RS485  ports provide the avenue to connect future devices to your Tech 2  Flash.
6) Ability to capture  stored DTCs, Freeze Frame, and Failure Record for later  review.
7) Ability to view the  status of vehicle diagnostic tests as they  run.
8) Bi-directional The  authentic GM 1992-current year software will provide full bi-directional control  when performing power train, chassis, and body  diagnostics.

An industry change in  protocol from OBD II to Controller Area Network (CAN) has begun. In order to  perform diagnostics on a vehicle that uses the CAN interface; you will need the  Tech 2 Flash and a CAN diagnostic interface module. The module connects between  the Tech 2 Flashs diagnostic link cable and the OBD adapter. Once the module is  connected, it can be used on all GM vehicle applications,even those vehicles  using other platforms such as OBD I and OBD  II.

The Following GM  Vehicles Utilize The CAN  Interface
05 Buick Allure  (3.6L)
05 Buick LaCrosse  (3.6L)
05 Buick Rainier  (5.3L)
04-05 Buick Rendezvous  (3.6L)
04-05 Cadillac CTS  (3.6L)
04-05 Cadillac SRX  (3.6L / 4.6L)
04-05 Cadillac XLR  (4.6L)
05 Cadillac STS (3.6L /  4.6L)
05 Chevrolet Cobalt  (2.2L)
05 Chevrolet Corvette  (6.0L)
05 Chevrolet Equinox  (3.4L)
05 Chevrolet  TrailBlazer (5.3L)
05 Chevrolet SSR  (6.0L)
04 Chevrolet Malibu  (Body/Chassis only)
05 Chevrolet Malibu  (3.5L)
05 GMC Envoy  (5.3L)
05 Pontiac G6  (3.5L)
05 Pontiac GTO  (6.0L)
05 Pontiac Pursuit  (2.2L)


Difference between GM  tech 2 serials and GM  MDI：

FAQ:

Q: Can GM Tech2 read  VIN?
A: Yes, it can  do.

Q: Does gm tech2 do Hummer  H3?
A: Yes, it does. GM Tech2  can do diagnose for Hummer h3  model.

Q: Can gm tech2 do airbag  resetting for Chev Tahoe  2007?
A: Yes, it can do airbag  reset for this model.

Q: Does gm tech2 support  Saturn?
A: No, it  doen't.

Q: Does gm tech2 work 2007  Cadillac Escalade?
A: The software car list  includes the Cadillac  model.

Q: It can clear the fault code on Saab 2005 1.9  TDi\

A: Yes, it can do  this

Q: Can this product do  coding?

A: Yes,it can do. With TIS2000 software, it can program  GM cars before 2007.

Q: Does it include one 32 mb card, or i have to buy  so22-b again?
A: the item sp23-b includes one 32 mb card, you can  choose which software you need, and if you need extra 32 mb cards, you can buy  so22-b and choose other software you  need.

Q: GM Tech2 can support gmc and pontic and saturn car  model?
A: YES.

Q: Can GM Tech2 send  commands to the various modules and is it able to do diagnostics on a climate  control programmer?
To what year is the  scanner effective? I own a 1997 Cadillac DeVille and a 2001 Chevrolet  Venture.

A: Yes, you can use GM TECH2 to diagnose climate control  programmer, when it has communication GM Tech2 can send commands to the  modules.

Q: Can it do key coding  and control unit programming for all Opel and  Isuzu?

A: GM TECH 2 can't do key coding, but can diagnose for  most Opel and Isuzu from  1992-2011

Q: Does the tech2 includes  the dongle?
A: For this GM Tech2, it  has no dongle included by  default.
If you need the dongle  and do coding, you could buy tis2000 CD USB  Key.

Q: It can work on  windows7?
A: No, it can only work on  Windows XP.

Q: Does it support for  K-LINE?
A: Yes, it  does

Q: Whether this item can program Opel, SAAB and  Suzuki?
A: No, it can only do programming for GM cars before  2007; can not do programming for Opel, SAAB and  Suzuki.

Q: Can GM Tech2 work  diagnose 2005 GMC - Sierra 1500  truck?
A: Want to use our GM  tech2 to diagnose truck, you need to buy an additional truck adapter, because  our GM tech is compatible with truck, but only packed with the car  adapter.

Q: I bought one GM TECH II  and the TIS2000 software can't be installed and no identification, what's the  problem?
A: If the TIS2000 you are  trying to install is contained in the GM TECH2 software, then it is useless to  install TIS2000 software. To program electronic control unit, I advice you buy  an extra TIS2000 to work with GM  tech2.

Q: After receiving GM TECH2, I got some  errors.
A: If it is Blue screen, just replace the Blue Screen  Chip. If it is not the problem of Blue screen, please send us the self-test  report to check where the problem  is;
have no idea on how to  operate self test? Refer the self-test manual at GM TECH2 "technical support /  service".

Q: GM TECH2 one button  doesn't work how to  fix?
A: If you have new version GM tech2, there are two ways  to solve:
1) we send you a new  button to replace;
2) please send back to  repair.
If you have old version  GM tech2 installed with the newest software, the button maybe won't  work.

Q: When I use GM TECH2 for  the second times, the tool starts to smoke, and my car voltage become 14V from  12V, what's the  matter?
A: Please follow the correct operation steps: before  diagnosing, turn on the ignition and then connect the GM TECH2 with the car,  when the car starts you'd better test the voltage, because during this process a  part of cars'voltage will reach up to 24V or more, especially the car which has  a poor contact of electrical  ground.


GM Tech2 Connection  with Candi interface  Picture：




GM Tech 2 Connection  without Candi interface picture  :

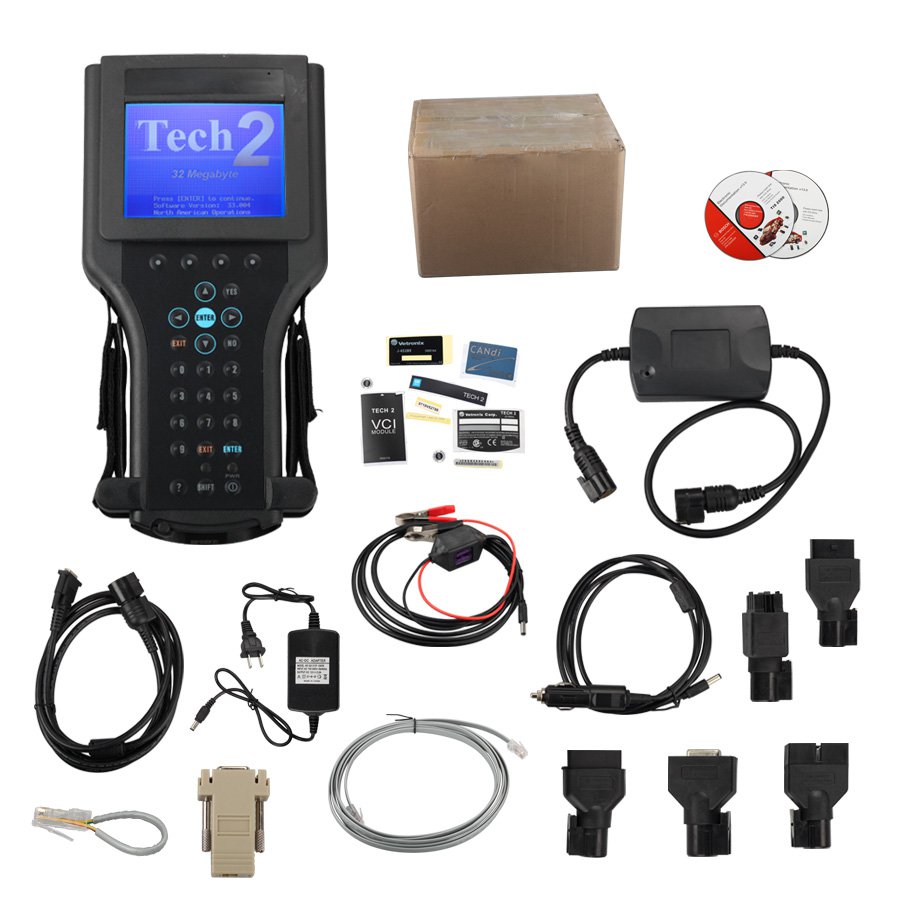

GM Tech2 Package  List:

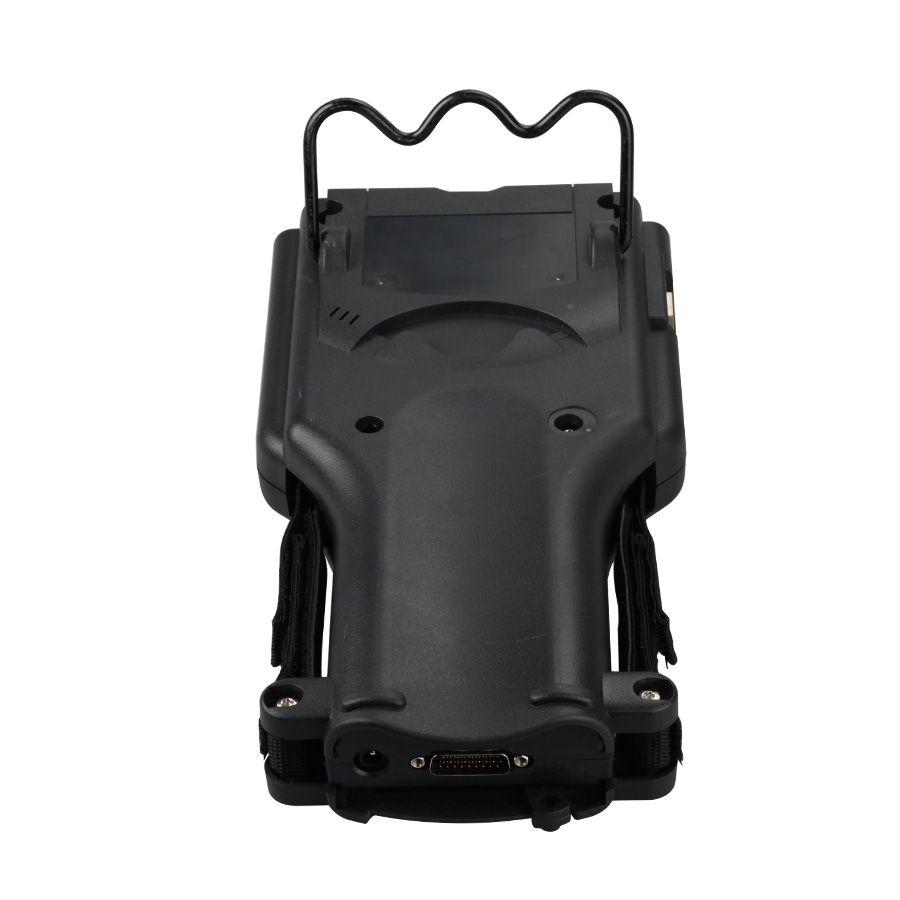

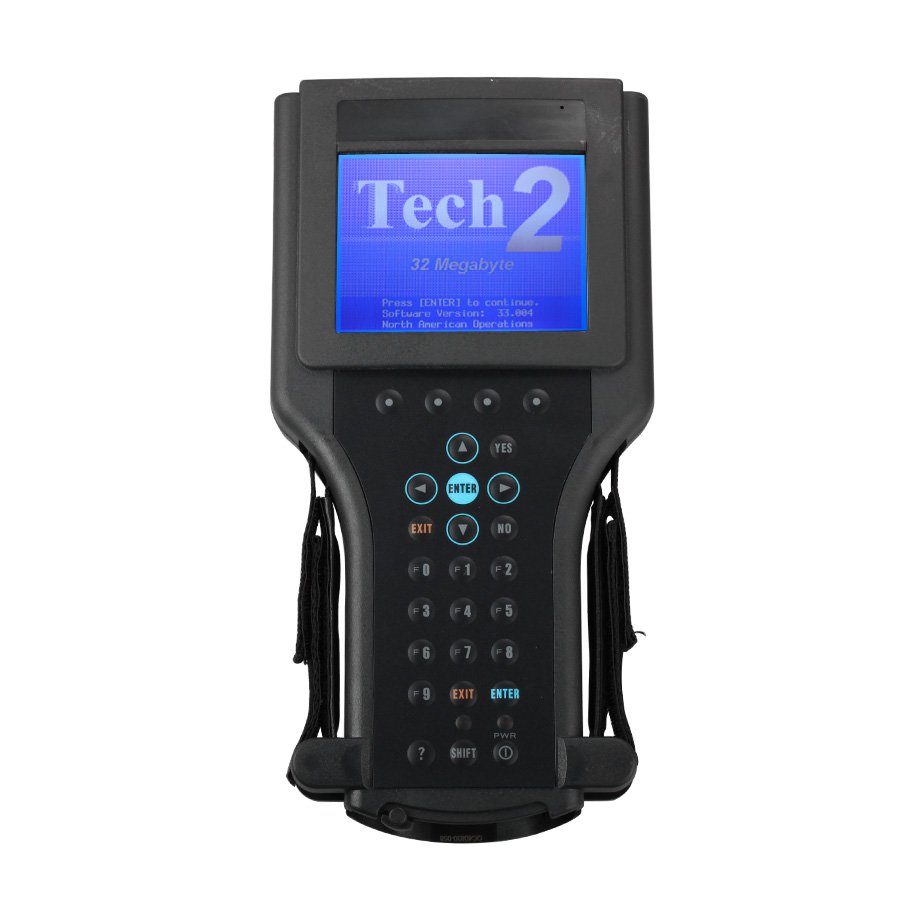

1.Tech-2 Flash  Tester

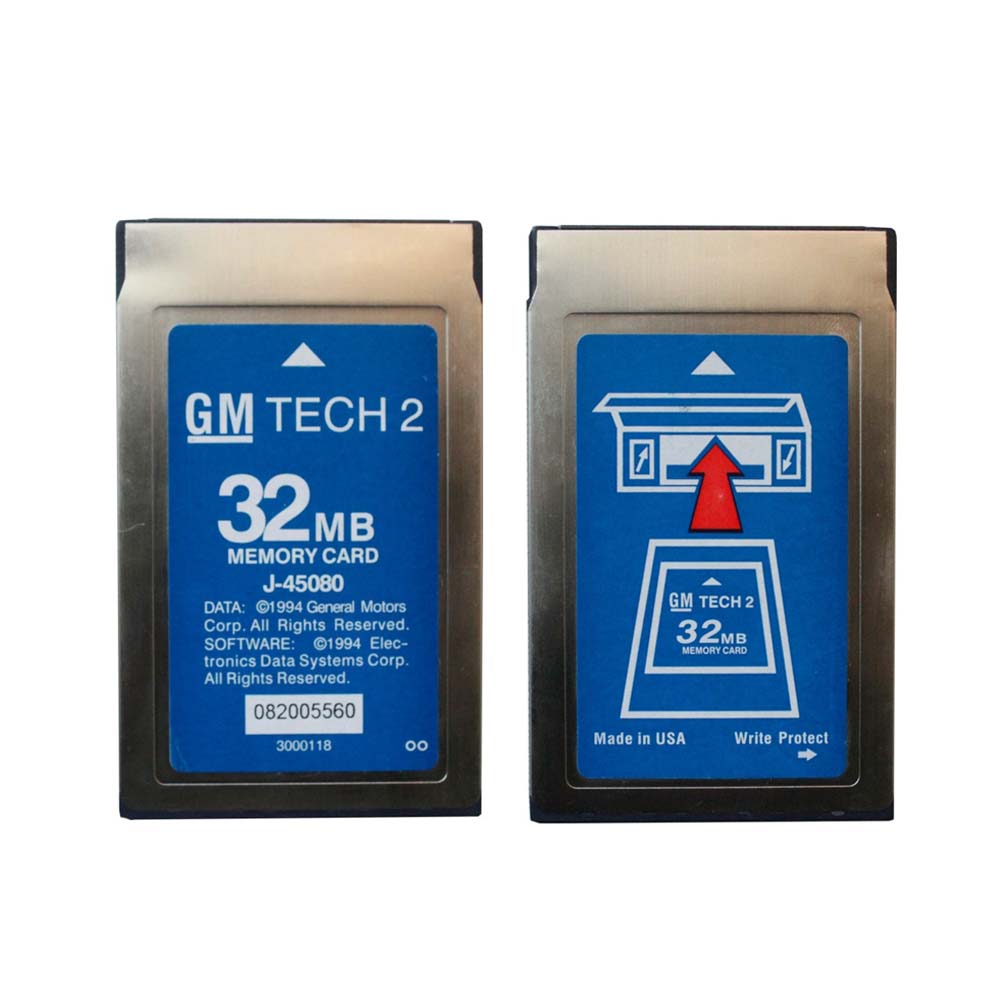

2.32 MB PCMCIA Card  with Applications (We will ship the card based  your selection  )

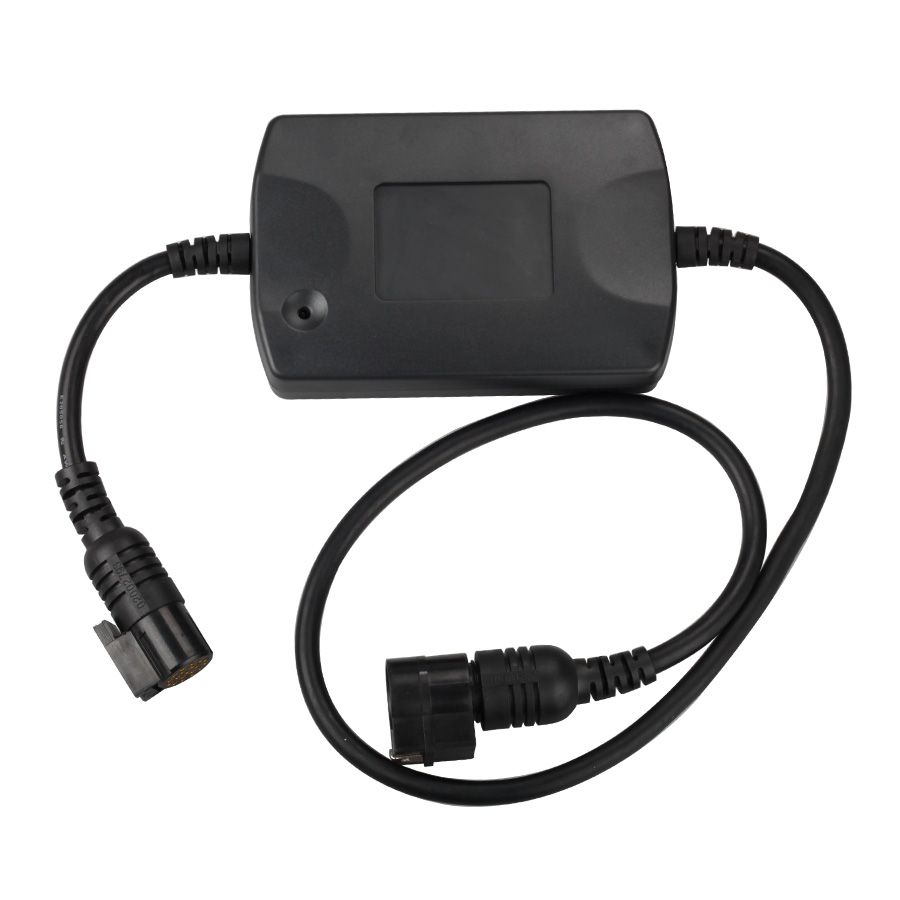

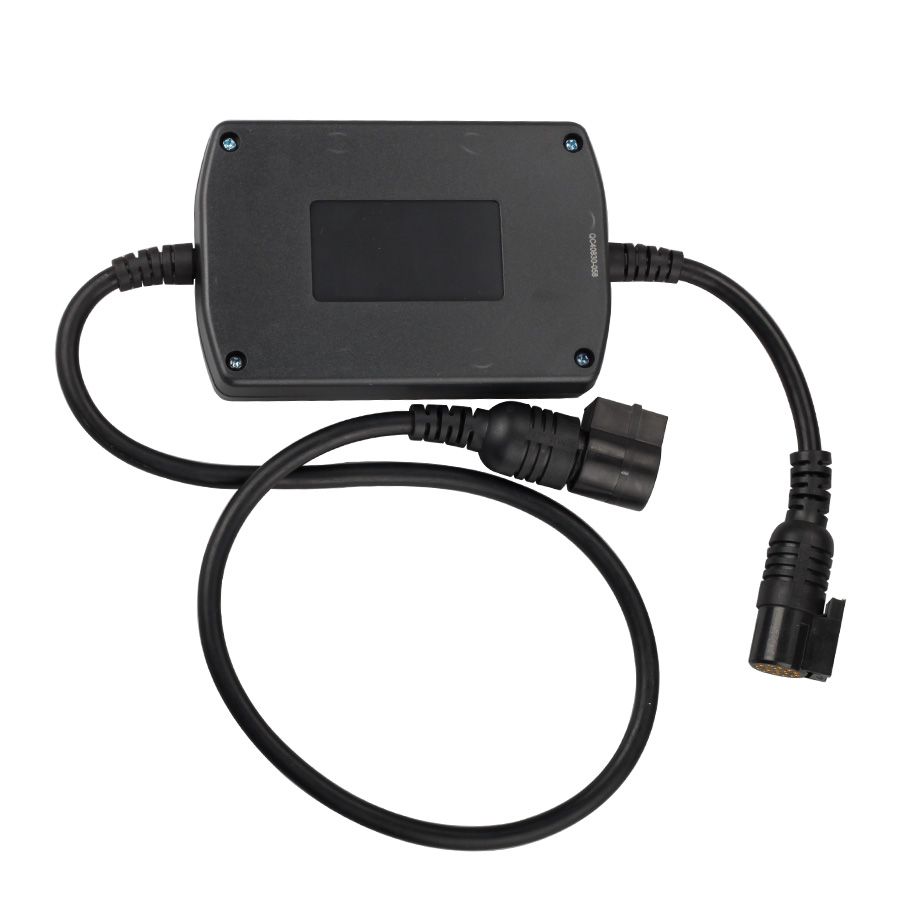

3.CAN diagnostic  interface module(Candi) and instruction sheet download (199.2  kb)
4.RS232 cable and user  manual

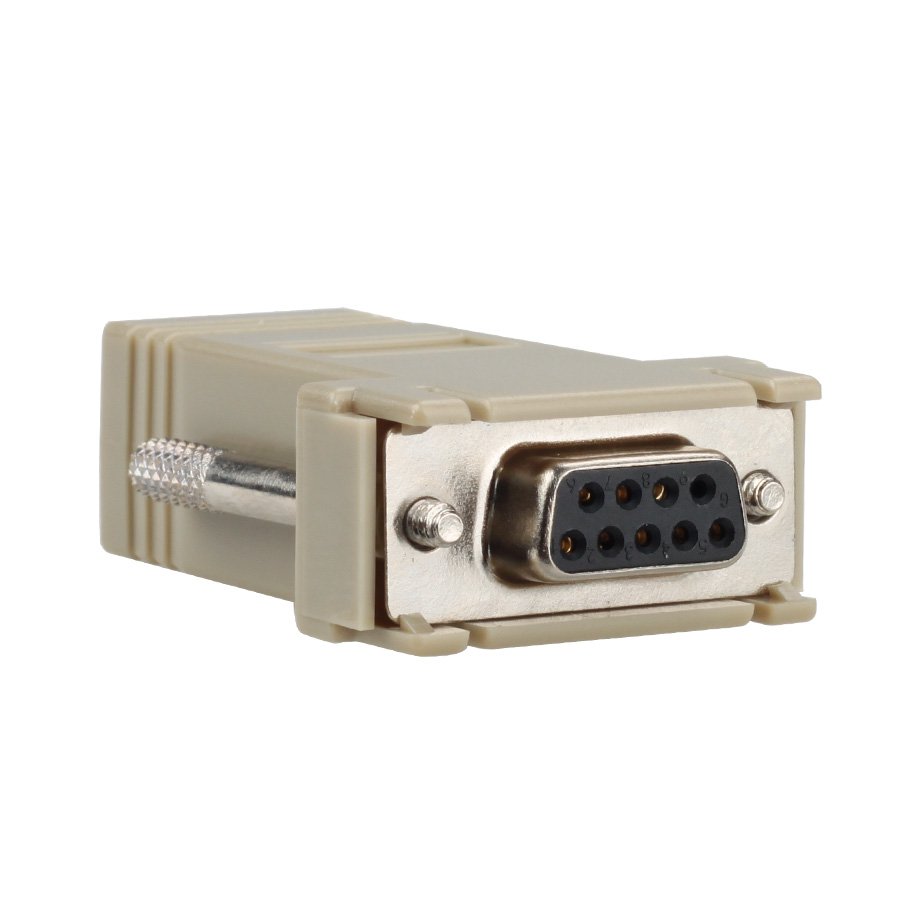

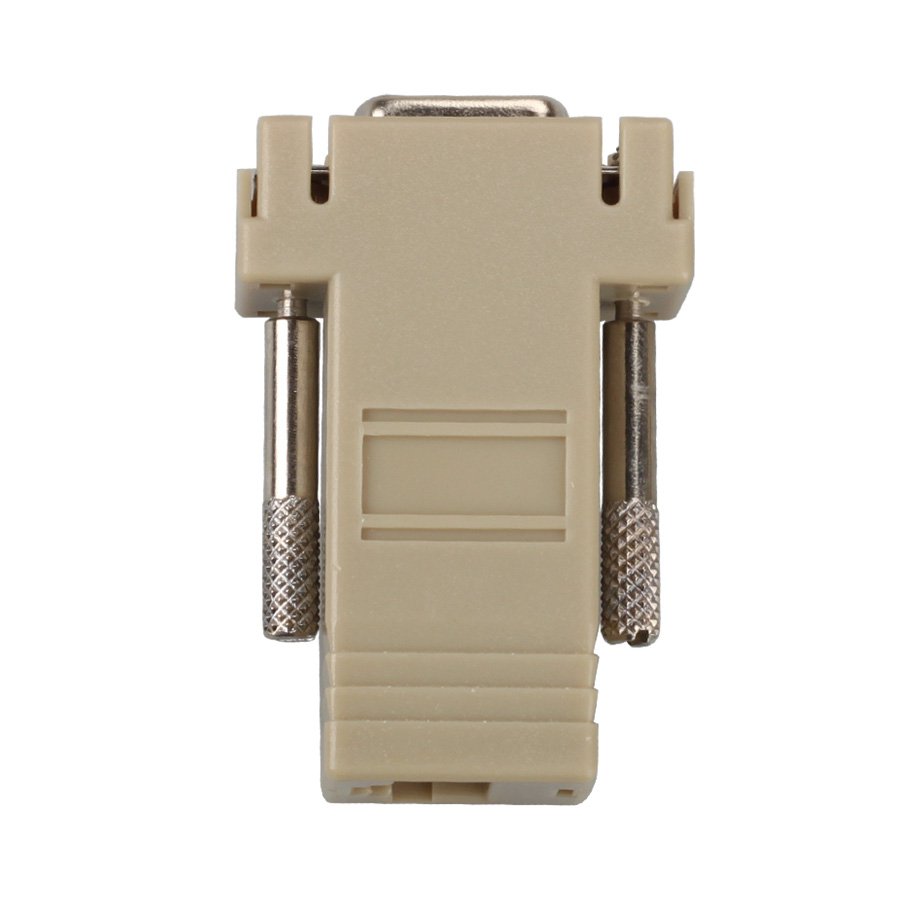

5.RS232-DB9  adapter

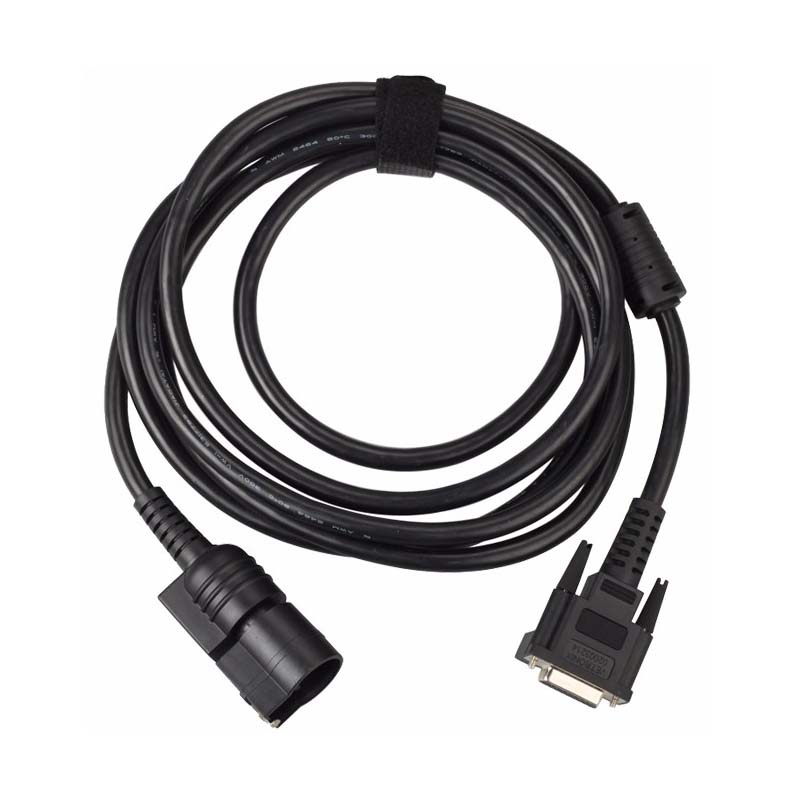

6.DLC Cable, DLC  Loopback Adapter
7.12V Cigarette Lighter  Power Cable

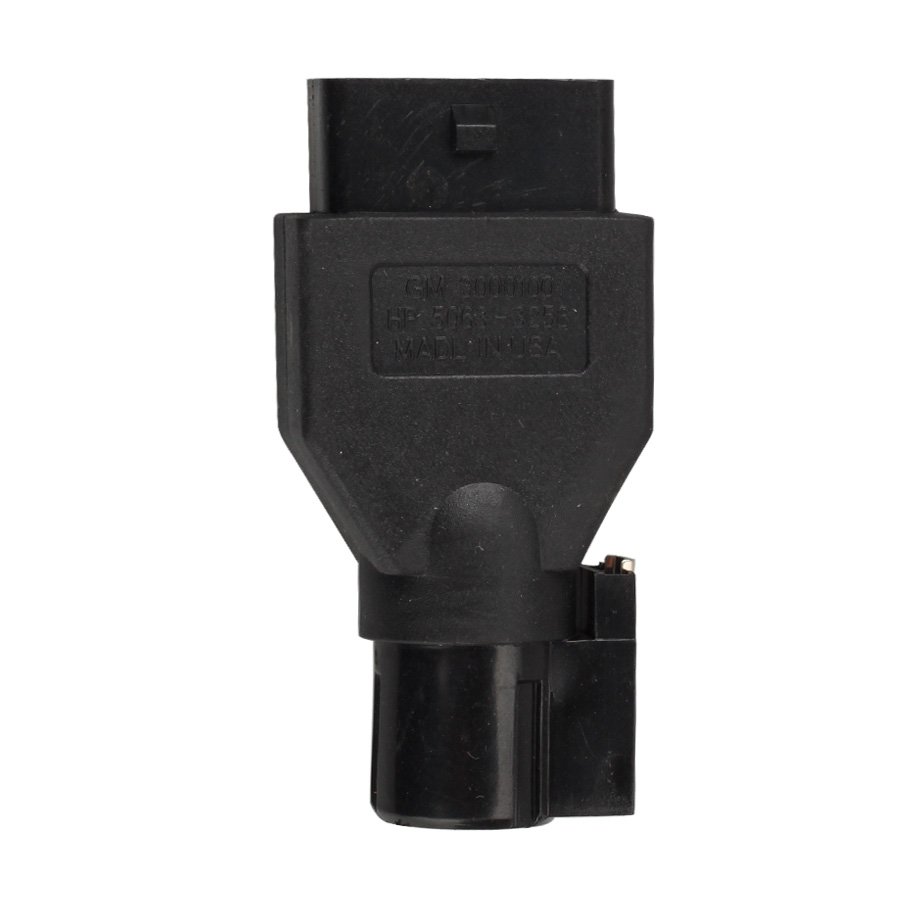

8.SAE 16/19  Adapter

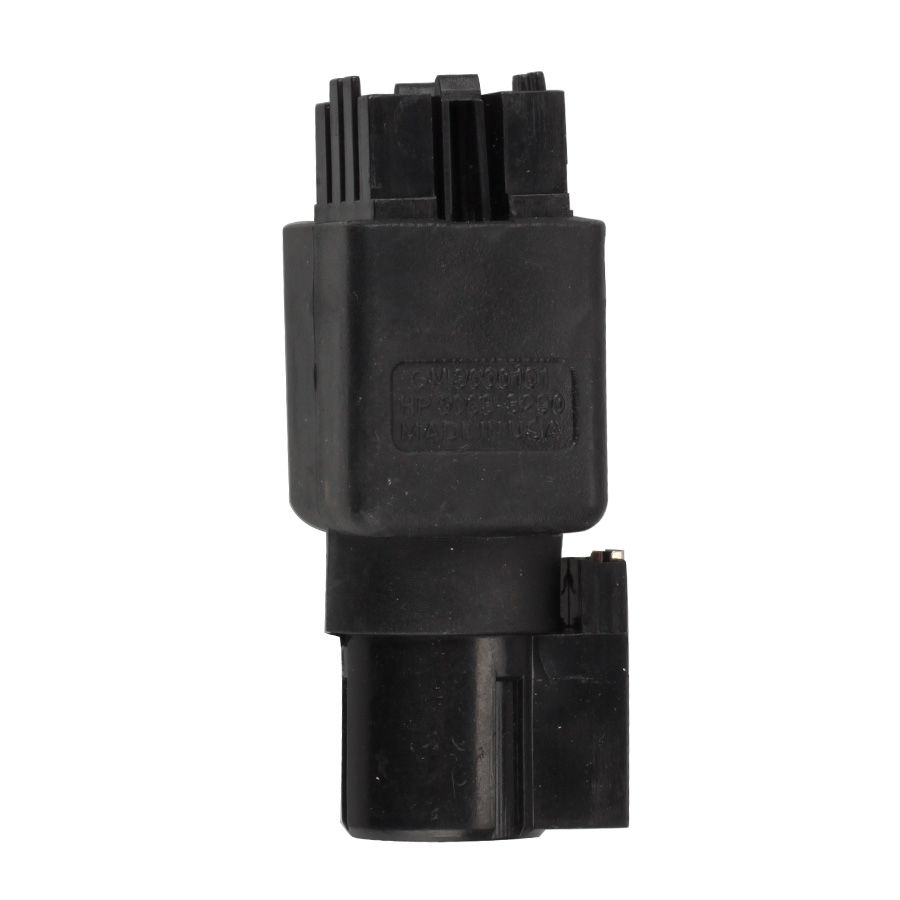

9.NAO 12/19  Adapter
10.Battery Power  Cable
11.TIS 2000  CD

This article is just sharing real experience when use GM Tech 2. Hope this helps someone.

I decided to invest in some tools to diagnose my Opel. After a couple weeks of searching all over ebay, aliexpress and other online store, I finally found the cheapest one on uobdii.com, they were very fast to respond and answer all of my questions. I exchanged emails with Customer service for about 3 days before I finally decided to purchase a tech 2 clone here. I ordered it on Tuesday and I picked it up at Friday (I missed the fed ex guy and you have to sign for it). Yes, it only took 3 days delivery!

I paid $349 for it. The quality of this is amazing. I would never be able to tell it was a clone. I hooked it up to my car and was able to replaces Opel Corsa-C ECU.

So here it is....

Below is the procedure, I search and learn from forum members:

1. Obtain all ECU pin codes especially second hand ECUs (immobilizer or engine). Scan old ECU to obtain VIN code and then obtain car passes to match.
   Obtain all keys they will be required at end of procedure. SPS program new engine ECU with vehicle engine code and VIN number.
   3. Configure engine ECU CAN configuration (Engine/ programming/ program CAN configuration)
   Configure engine ECU variant configuration (Engine/ programming/ program variant configuration)
   4. Reset engine ECU if second hand ECU use pin code from car pass (body/ immobilizer / additional functions/ reset engine ECU)
   Reset immobilizer (body/ immobilizer/ additional functions/ reset immobilizer)
   Reset BCM (body/ BCM/ additional functions /reset BCM)
   Reset instrument cluster (body/ instrument/ additional functions/ reset instrument)
   5. Program immobilizer function (engine and immobilizer): this will program everything together includes new keys. Have all keys programmed (body/ immobilizer/ programming/ program immobilizer function).
   Check and clear all fault codes Engine immobilizer dash BCM ABS and gearbox. Road test and recheck it.

Great! I can see GM Tech 2 replace a new engine ECU for Opel Corsa C successfully!
