New Auto car Break out Box OBDII obd Breakout Box Car Protocol Detector car obd2 interface car monitor

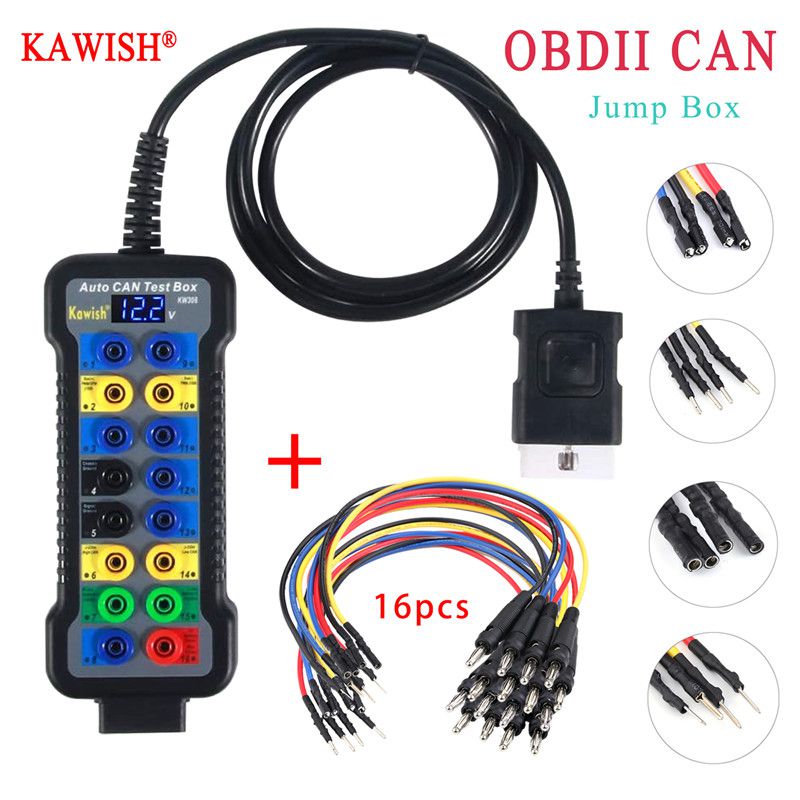

One BreakBox Cover Five Functions

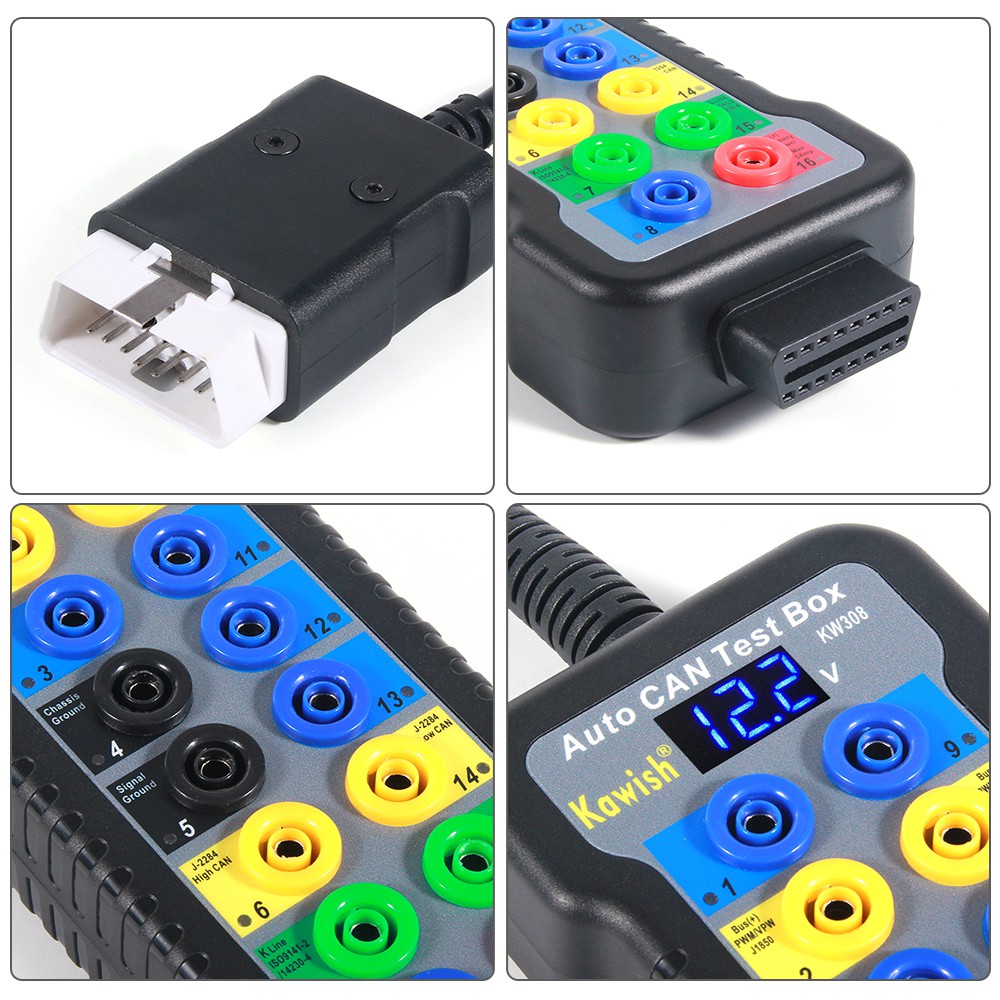

1. OBD2 Male to female extension line:

The Length is 1.5 Meter of the line can Connect between Diagnostic Link Connector (DLC) and scan tool.

2. ALL OBD signal breakout with 4mm Banana socket:

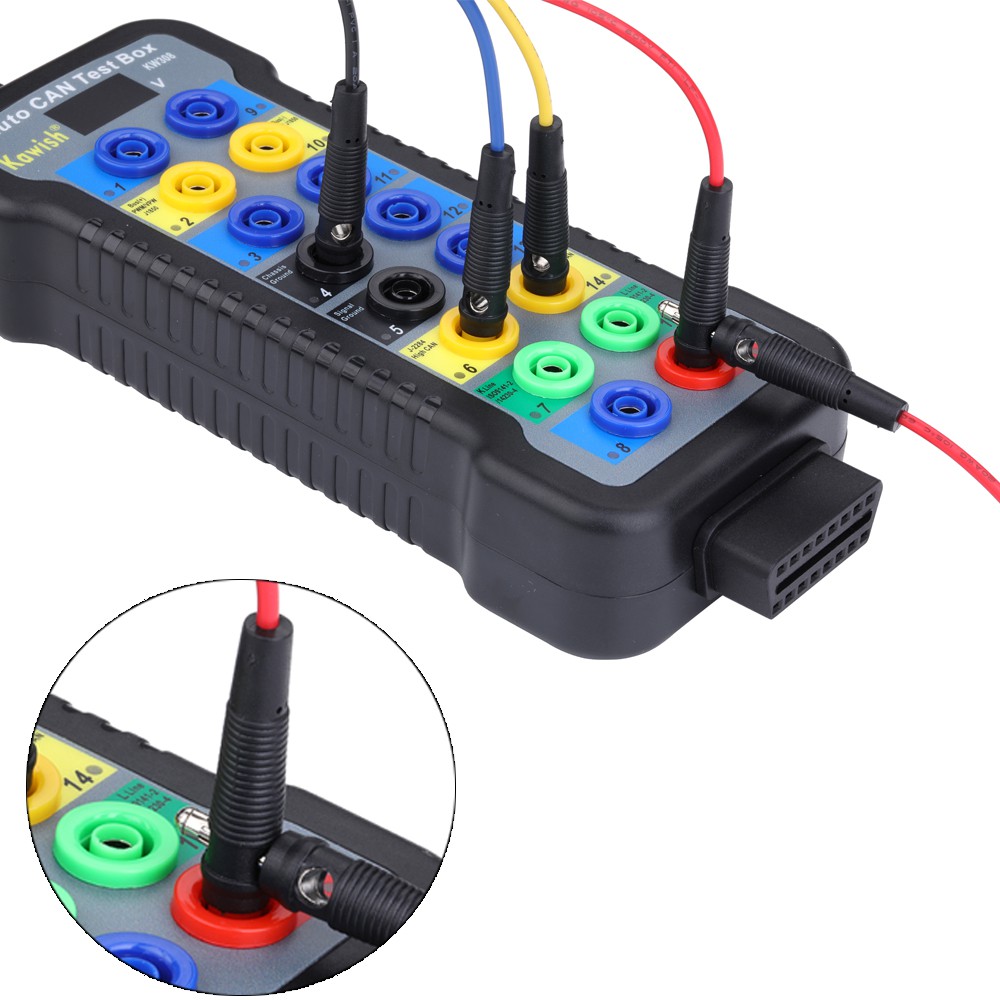

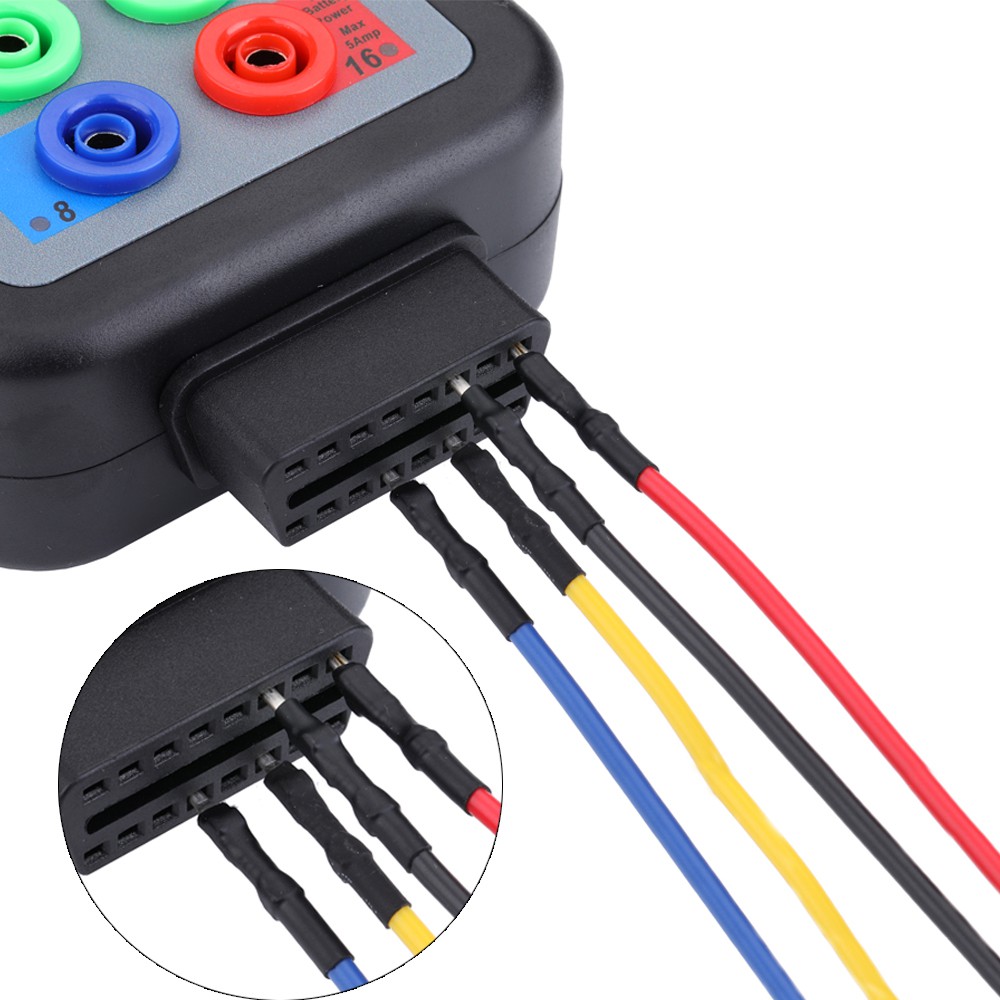

Sixteen high-quality 4mm banana sockets breakout all OBD signal for easy to Connect a multimeter or oscilloscope for detailed signal analysis.

3. OBD Signal Detects :

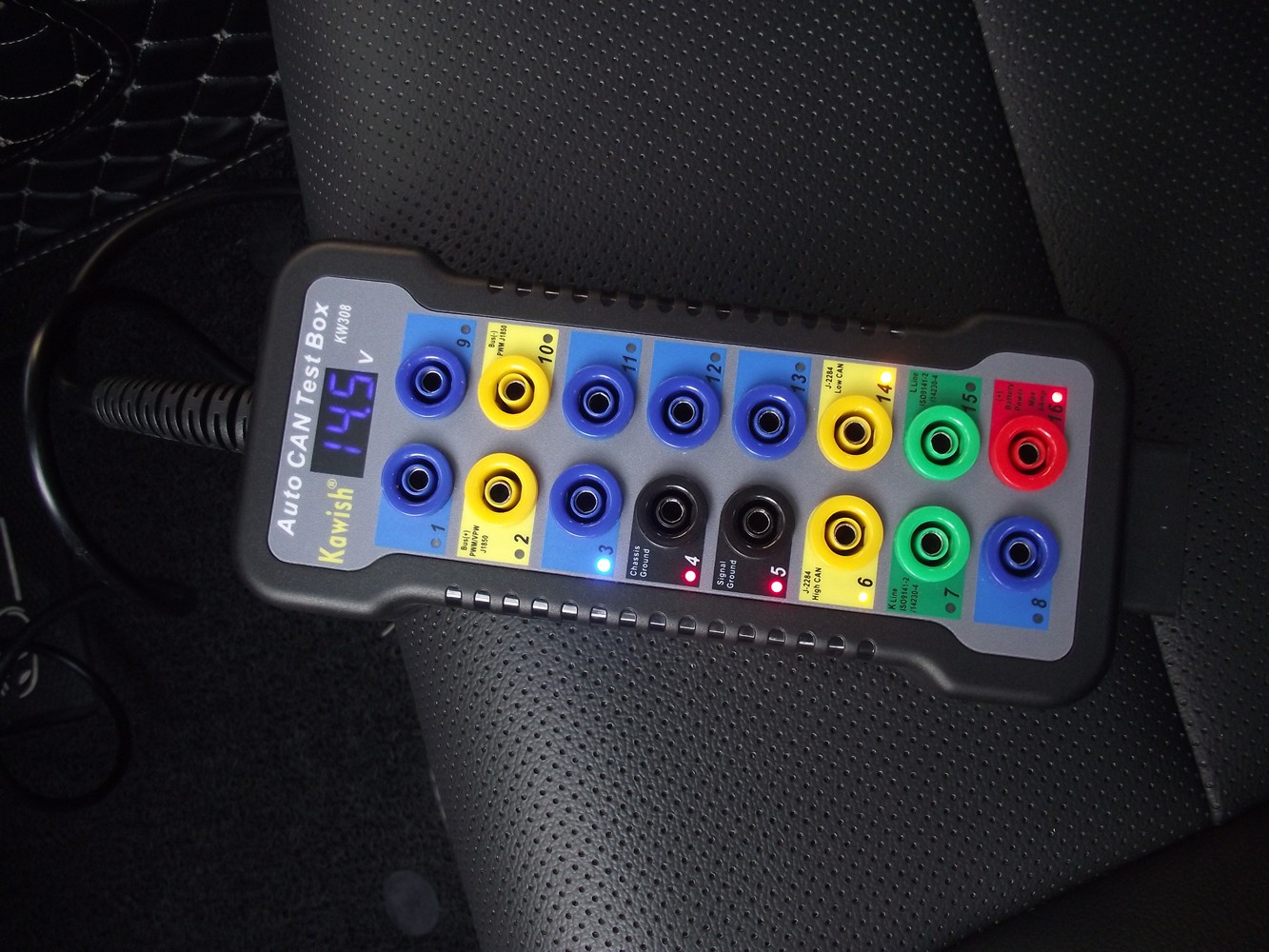

Sixteen Led lights detect the OBD signal . Leds at pin-out display signal detection, Flashing Leds

for ECU activity,the led can Detect PWM (J1850) VPW (J1850) ISO 9141-2,DIS/ISO 14230-4 (12V car and 24V diesel)CAN bus (J-2284) (SAEJ1939) Power signal and ground signal .

4. Battery voltage monitor :

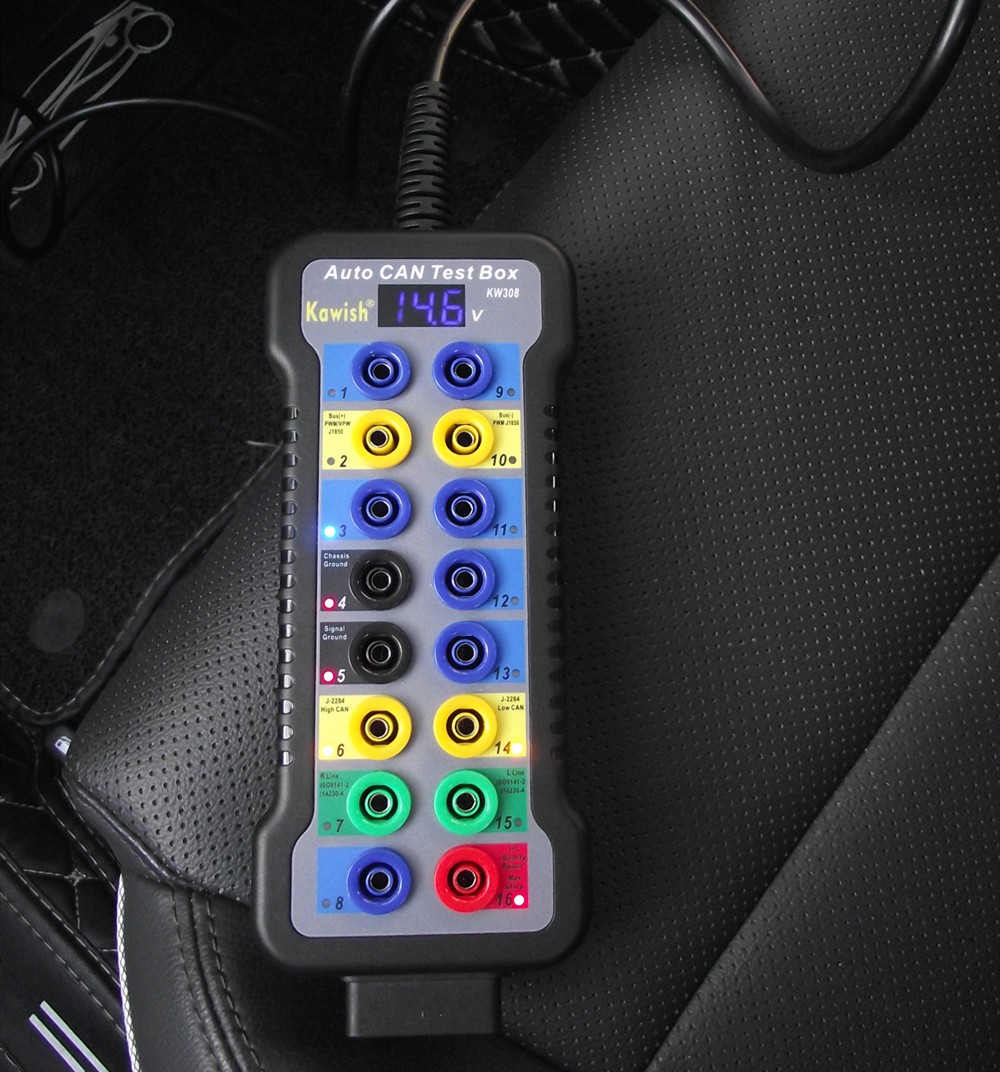

3-digit blue LED (resolution: 0.1 V) Voltmeter can Continuous numeric display of voltage, Measuring range from 8-30V.So the BOX not only can detect car signal but also can detect some of diesel signal for example the diesel of K-line L-line and CAN bus (SAEJ1939)

5.with flashlight function of OBD Connector :

The OBD Male Connector with flashlight function and the button,When operating in the dark the flashlight will be very useful

Pin Assignments

Product Parameters
