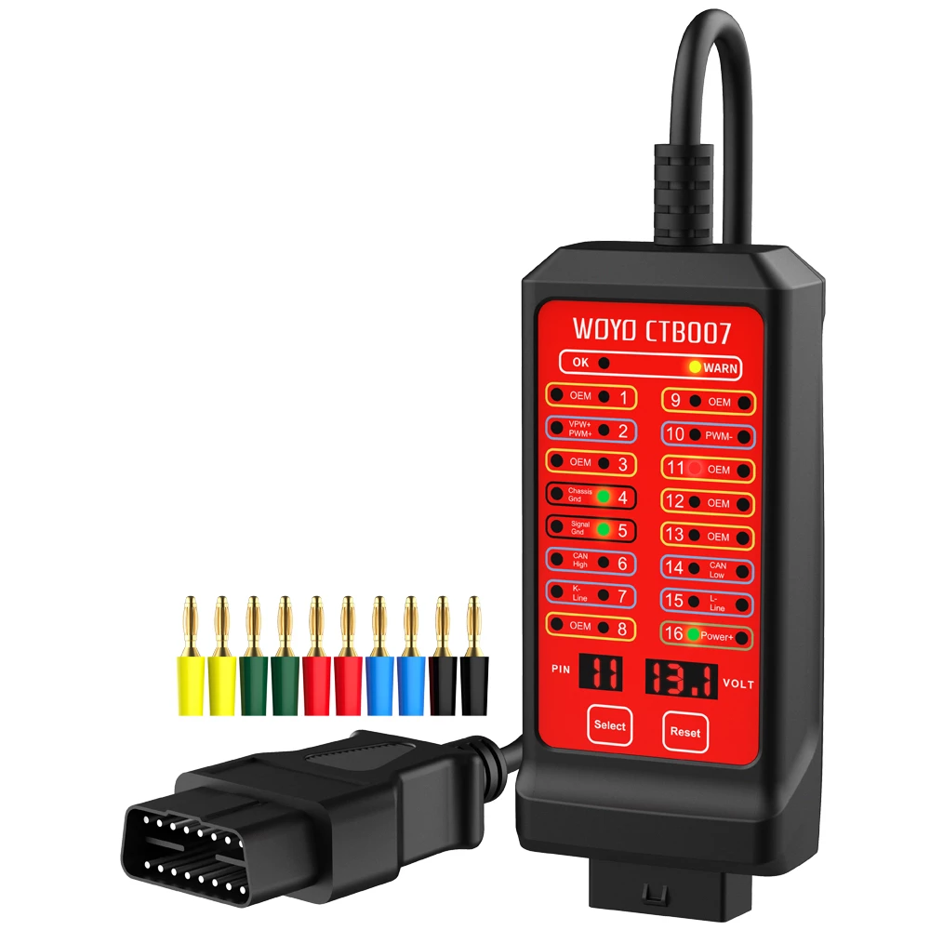

WOYO Car CAN Pinout Box Test Breakout Settings Diagnostic Tool OBD2 Break Out Box Automotive ECU Protocol Communication Detector

The CAN Test Box gives you easy access to the 16 pins of the diagnostic connector that is fitted to all modern vehicles. Depending on the configuration of the vehicle, this may allow you to check power, ground and CAN Bus signal quality. With the test adaptors supplied you can connect your PicoScope automotive scope, or any other suitable scope, to the CAN Test Box to monitor any signals present, such as the CAN High and Low signals.

The CAN Test Box connects to a vehicle's OBDII / EOBD connector and lets you easily diagnose electrical faults.

Instantly check power and ground circuits
Identify communication link protocols
Connect an oscilloscope for signal capture and collection of signal waveform data
Compatible with both 12V and 24V vehicles


Feature:

1.CAN Tester Box is a CAN Bus circuit tester compatible with 12 and 24 volt systems;

2.Testing DLC (OBD port) if any error before connecting connecting other diagnostic equipment to DLC, such as pin short circuit and polarity reverse connection ;

3.Real time display of communication signals ( such as communication protocol signals ) on the allocated pins which can quickly locate faults and replace the voltage measurement function of digital multi-meter ;

4.Fastly connect 16 pins during vehicle maintenance diagnosis;

5.Monitoring input voltage of OBD when burning module, high and low voltage alarm;

Specifications:

Input Voltage:9.0-32.0VDC

Maximum Load:2.0A

Resolution:0.1V

Overload Protection:Yes, PTC Fuse (Self-Healing)

Reverse Polarity Protection:Yes,LED On Pin 4&5 Turn Red

Protocol Standard:PWM(J1850),VPW(J1850),ISO 9141-2,DIS/ISO 14230-4,CAN(J-2284)

Operating Temperature:0℃-50℃,Humidity<70%

Banana Socket:16P*2.0mm

OBD Cable Length:70cm(27.5inch)

Packing list:

1 * CAN Bus Circuit Tester
