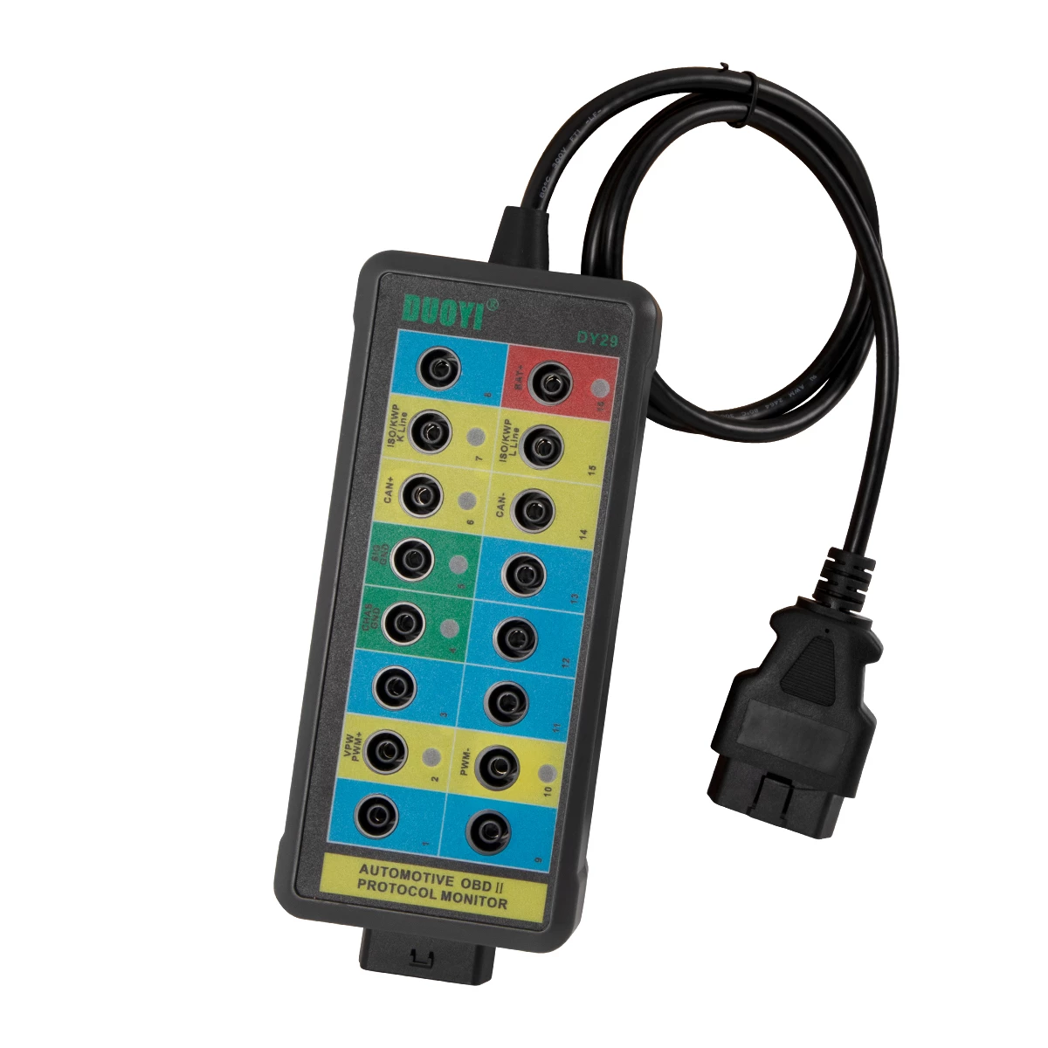

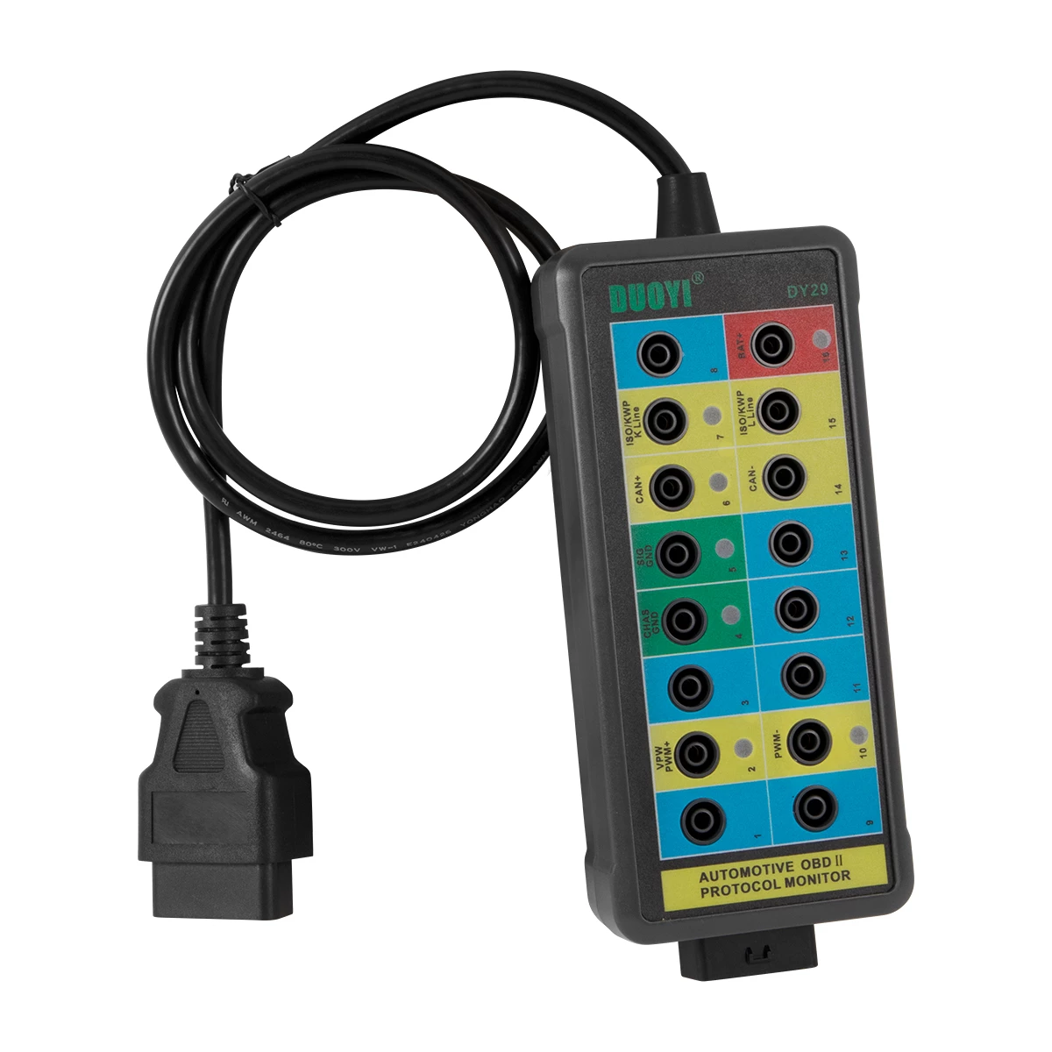

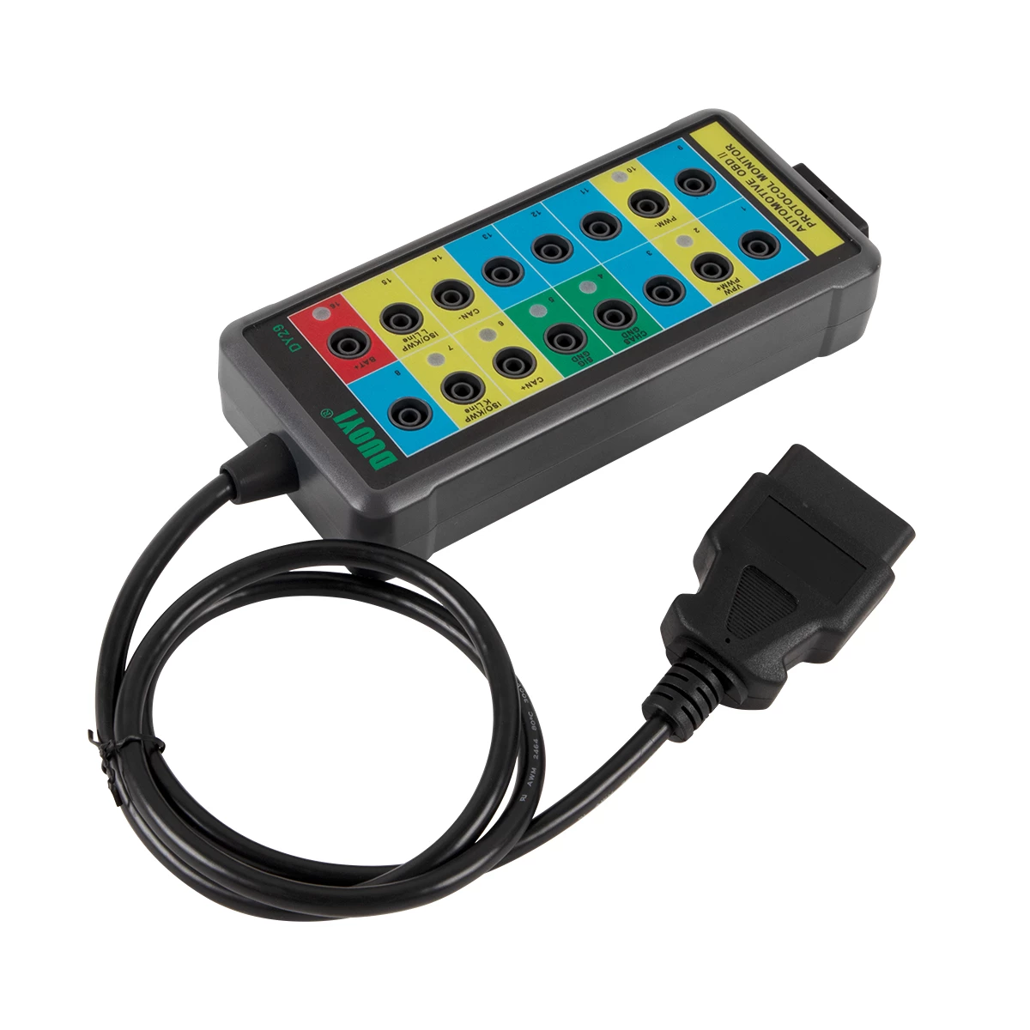

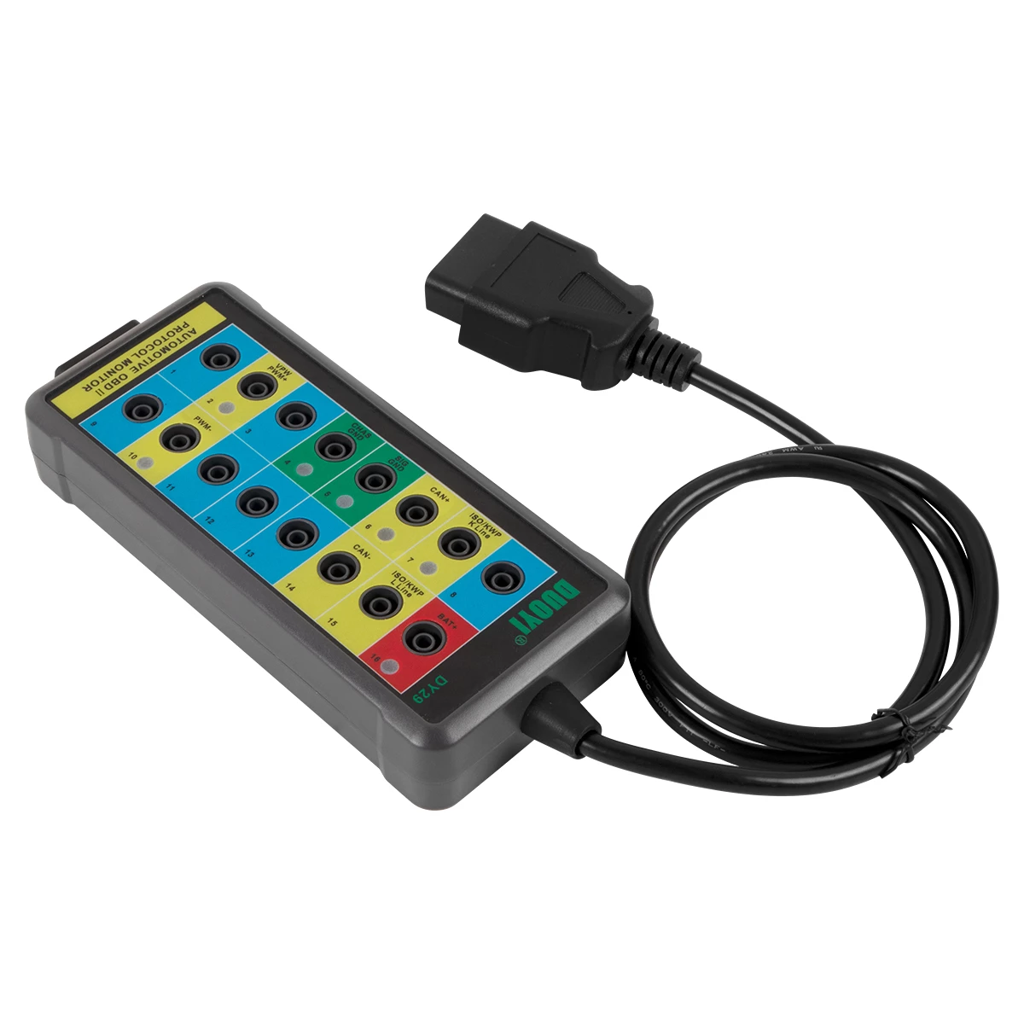

DUOYI DY29 New Auto car Break out Box OBDII obd Breakout Box Car Protocol Detector car obd2 interface car monitor

Product Description

DY29 This is an automotive tool for the OBDII diagnostic link connector which offers easy access to the OBDII connector for monitoring signals of protocol,power and grounds conveniently and safely. It can be also connected to multi-meter or oscilloscope for further testing once unconfirmed signals detected.

FEATURES

- Probing at the OBDII connector is no longer required.

- Easily access each of the 16 pins while scan tool communicating with vehicle.

- LEDs to quickly indicate power or ground problems of OBDII connector.

- Mimics the OBDII connector layout for quick reference.

- Quick, safe and convenient access to chassis ground and power by this monitor.

- Uses safety banana sockets that accept all types of 4mm banana plugs including those with safety sheaths.

LED INDICATIONS

Yellow LED (Pin 2/6/7/10/14/15)

Light up to show communication with scan tool and protocol
identification.

Green LED (Pin 4/5)

Light up to show ground is good.

Red LED (Pin16)

Light up to show there is power.

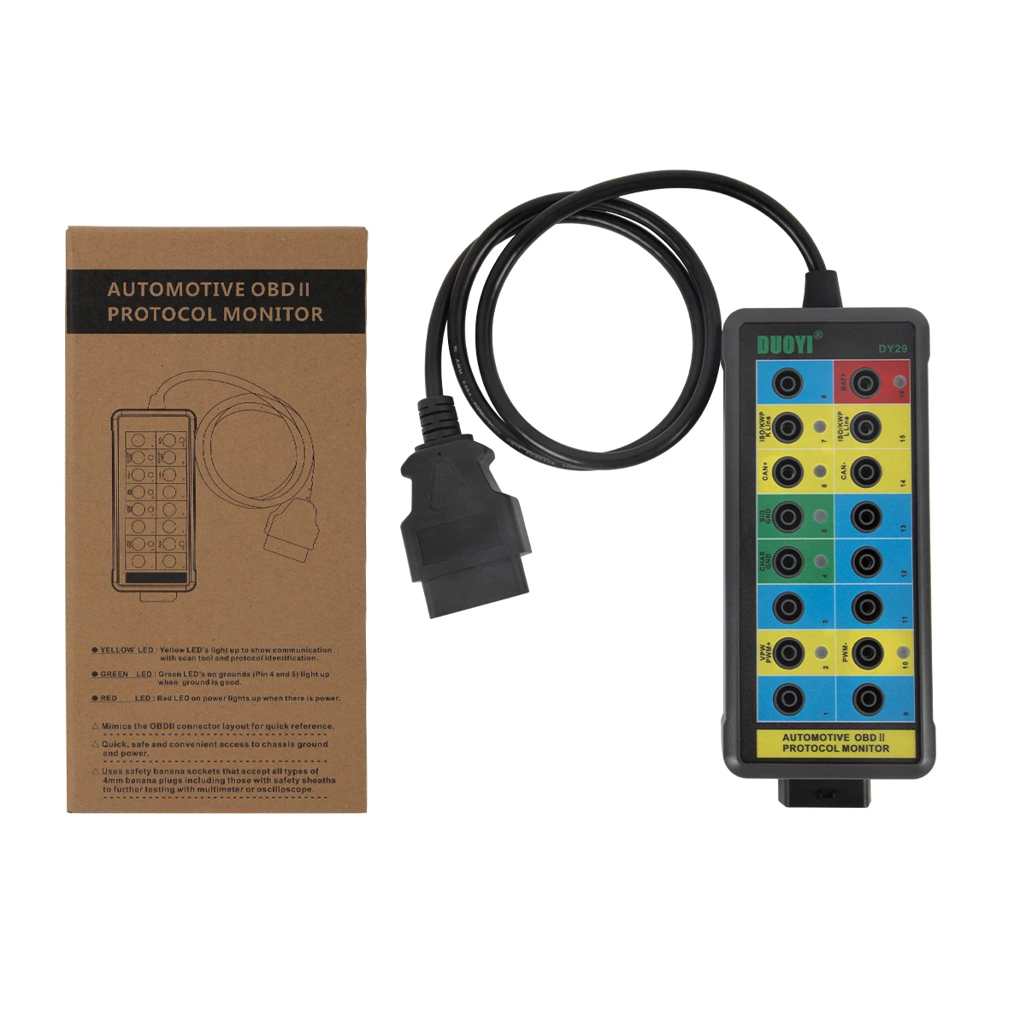

PACKING LIST

Manual*1

Host*1
