Autel AP200C Bluetooth OBD2 Scanner Full System Diagnostic Tool MaxiAP AP200C Wireless Code Reader Car Diagnosis Repair Tools

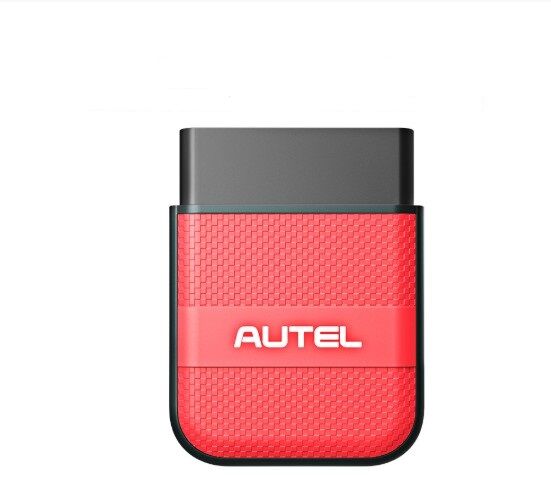

MaxiAP AP200C:

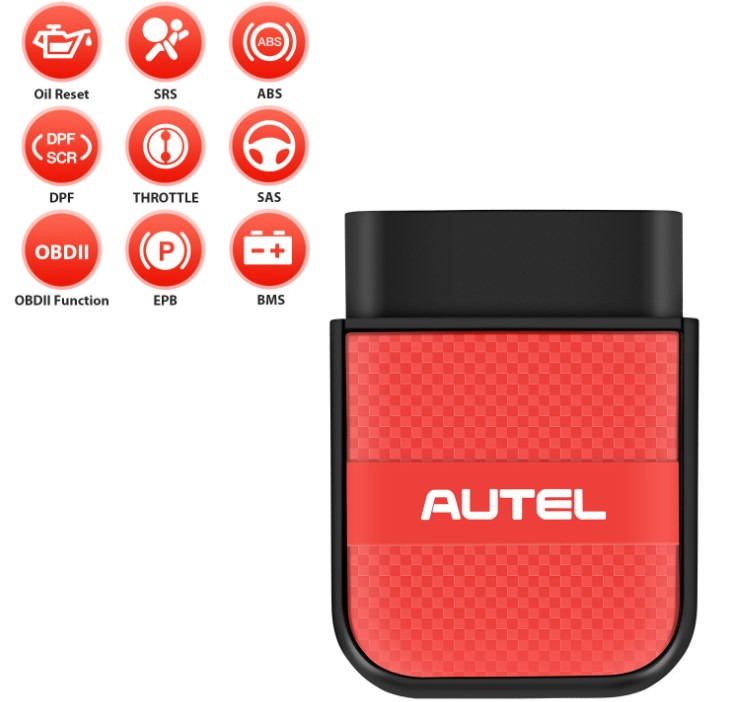

The MaxiAP AP200C is a code reader & service tool to easily perform 8 most common maintenance services, including Oil Reset, EPB, BMS, DPF, SAS, Throttle Match, ABS and Airbag Reset for all vehicle makes and models.

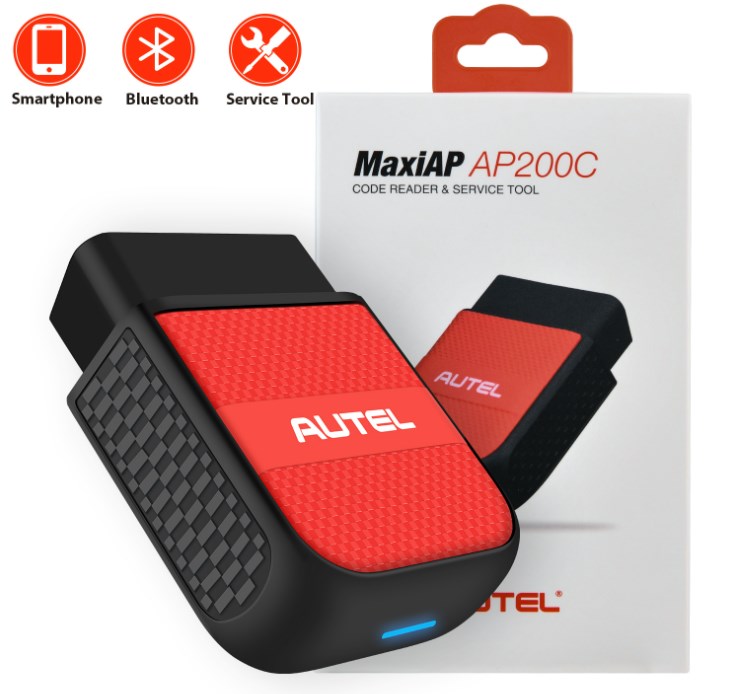

The MaxiAP AP200C package includes a Bluetooth (BT) dongle and a MaxiAP200 app. It is used to connect to a vehicle’s OBDII port and connect with an Android or iOS device for quick and easy service functions. It is almost compatible with all vehicle models of European, Asian, and U.S. vehicles, 1996 and newer.

Why buy AP200C?

1.The purchased software supports all car series, no longer need to buy software one by one according to car series, saving a lot of money.
2.Support 8 kinds of services,OLS/DPF/EPB/SAS/BMS/AIRBAG RESET/THROTTLE MATCH/ABS BLEED
3.ABS, SRS free for the first year.
4.Compared with AP200 and AP200M, AP200C adds more service functions.

Multilingual language

English, traditional Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian.

NOTE:

ABS, SRS free for the first year.The other 6 systems are 29.99 USD/year

Autel AP200C Features:

1. Read & clear codes on U.S., Asian and European vehicles, 1996 and newer. Check Emissions Status. Review Live Data
2. Easily perform the most common maintenance services. Service Menu Includes: Oil/Throttle/DPF/EPB/SAS/BMS/Airbag resets and ABS bleed for all vehicle makes & models
3. Supports diagnostic and service functions of ABS and SRS systems
4. Perfect for the DIY auto mechanic. Save time & money by servicing your vehicle yourself
5. Pay for only the service function you need. Download ABS and SRS systems for all makes for free (Renew system subscription after a year, additional service available with in-app purchase)

AUTEL AP200C Service Functions

All systems diagnosis, Oil Reset, EPB, BMS, DPF, SAS, Throttle Match, ABS and Airbag Reset for all vehicle makes and models.

Oil Reset Service

This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.

Electronic Parking Brake (EPB) Service

This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.

EPB Safety

It may be dangerous to perform Electronic Parking Brake (EPB) system maintenance, so before you begin the service work, please keep these rules in mind.

1.Ensure that you are fully familiar with the braking system and its operation before commencing any work.
2.The EPB control system may be required to be deactivated before carrying out any maintenance/diagnostic work on the brake system. This can be done from the tool menu.
3.Only carry out maintenance work when the vehicle is stationary and on level ground.
4.Ensure that the EPB control system is reactivated after the maintenance work has been completed.

Battery Management System (BMS) Service

The BMS (Battery Management System) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

Diesel Particulate Filter (DPF) Service

The DPF function allows you to carry out numerous functions to the Diesel Particulate Filter system without having to send your car to a main dealer. The tool will manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
ECM monitors driving style and selects a suitable time to employ regeneration. Cars driven a lot at idling speed and low load will attempt to regenerate earlier than cars driven more with high load and high speed. In order for regeneration to take place, a prolonged high exhaust temperature must be obtained.

In the event of the car being driven in such a way that regeneration is not possible, i.e. frequent short journeys, a diagnostic trouble code will eventually be registered, DPF light and “Check Engine” indicator comes on. A service regeneration can be requested in the workshop, using the diagnostic tool.

Before carrying out a forced DPF regeneration using the tool, check the following items:
1.The fuel light is not on.
2.No DPF-relevant faults stored in system.
3.The vehicle has the correct spec engine oil.
4.The oil for diesel is not contaminated.

Throttle Match Service

Initialize the actuator of the vehicle throttle to make the ECU learned value return to the initial status so as to control the intake air volume more accurately.

Steering Angle Sensor (SAS) Service

Steering Angle Sensor Calibration permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. Therefore, the front wheels and the steering wheel must be set exactly to the straight-ahead position before calibration. In addition, the vehicle identification number is also read from the instrument cluster and stored permanently in the steering angle sensor EEPROM. On successful completion of calibration, the steering angle sensor fault memory is automatically cleared.

Calibration must always be carried out after the following operations:

1.Steering wheel replacement
2.Steering angle sensor replacement
3.Any maintenance that involves opening the connector hub from the steering angle sensor to the column
4.Any maintenance or repair work on the steering linkage, steering gear or other related mechanism
5.Wheel alignment or wheel track adjustment
6.Accident repairs where damage to the steering angle sensor or assembly, or any part of the steering system may have occurred.

Antilock Brake System (ABS) Service

This function allows you to perform various bi-directional tests to check the operating conditions of the anti-lock braking system.

Airbag Reset Service

After the airbag related components are replaced, it is necessary to perform this operation to clear the fault entries in the ECU and eliminate the related faults.

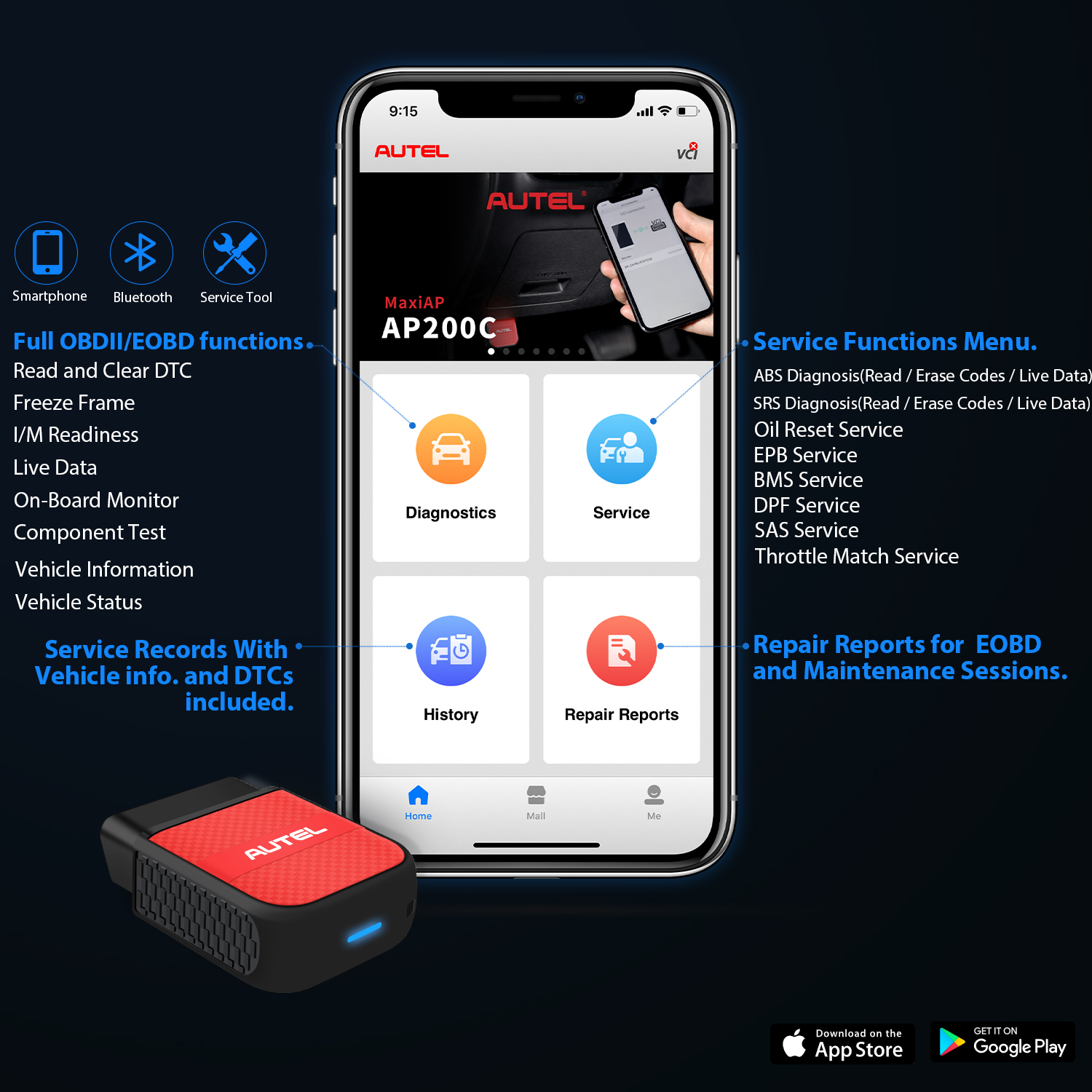

Easy to use

1.Download & install app
2.Register & Log in
3.Bind VCI with device
4.Purchase & install software
5.Plug the connector of the MaxiAP200C Bluetooth dongle into the vehicle's OBDII port.
6.Turn the vehicle ignition to Key On, Engine Off position.

7.VCI Connection
For Android devices, tap Me > VCI Connection or the VCI button near the top right of the Home screen.
For iOS devices, tap Setting > Bluetooth of your iOS device to open the Bluetooth function.
Tap the Bluetooth name on the screen to pair it with the device. The Bluetooth name starts with AP, followed by the serial number of the dongle.

8.Your MaxiAP200C is now ready for use.

Record Diagnosis History:

This function stores records of test vehicle history, including vehicle information and the retrieved DTCs from previous diagnostic and service sessions, and displays all information in an easy-to-check table list, on which you can view summarized details and manually input other information about the test vehicle and services performed, etc. The History application also provides direct access to the previously tested vehicle and allows you to restart a diagnostic/service session without the need to do vehicle identification again.

Repair Reports

The MaxiAP AP200C app can save repair report for EOBD diagnostic and maintenance service sessions. A PDF can also be generated for easy viewing, sharing, and printing.
After finishing vehicle diagnosis and maintenance service, tap Save to create a repair report. The repair report is saved under Repair Reports.

Autel AP200C Specification:

Communications: BL 4.2 Dual-Mode
Wireless Frequency: 2.4 GHz
Input Voltage Range: 9 VDC to 26 VDC
Supply Current: 100 mA@12 V
Sleep Mode Current: 3 mA@12 V
Operating Temp.: 0°C to 50°C
Storage Temp.: -20°C to 70°C
Dimensions (L*W*H): 59 mm (2.32'') * 44 mm (1.73'') * 21.5mm (0.85'')
Weight: 32.1g (0.07 lb.)

Supported Car List:

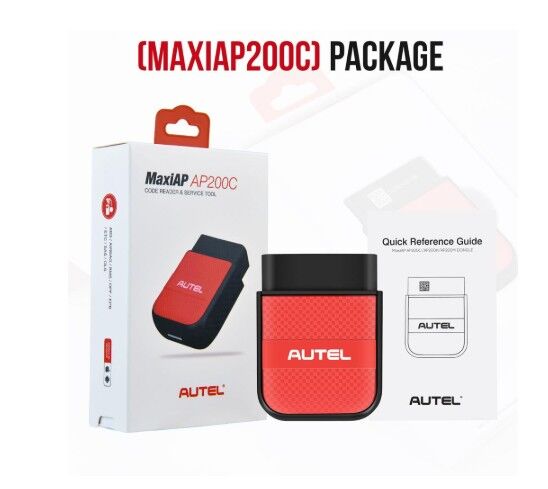

Packing List

1* AP200C
1* AP200C manual
