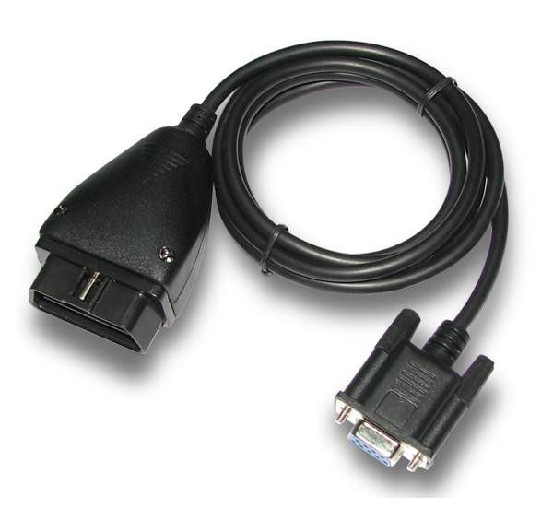

DB9 to OBDII 16 Pin

Cable definition:

OBDII 16 PIN(Male)           DB9PIN Female
• (J2850 BUS+)  2----------------1+2
• (Chassis Ground)  4-------------2
• (Signal Ground)  5--------------1
• (CAN High J-2284)  6------------3
• (ISO 9141-2 K Line)  7----------4
• (J2850 BUS- )  10---------------6
• (CAN Low J-2284)  14------------5
• (ISO 9141-2 L Line)  15---------8
• (Battery Power)  16-------------9

Length: 1500 MM
Diameter: 5MM
