Original Man Cat T427 Man Cat T400 (MAN CATS 3) Professional Diagnostic & Programming Device With Smart Card

MAN T427 original diagnostic & programming device is an external diagnosis system with the most extensive test depth for electrical systems in MAN commercial vehicles.

This diagnosis system is ideally suited to use in a workshop as well as mobile usage.

It is special dealer level diagnostic too for MAN trucks and it support both Diagnose and Offline programming.

Note:
Software not included.
Installation service not provided.

Quality: Genuine

Compatible Software: MAN CATS 3
Operating systems: Windows 10
System updates: Available
Internet connections: Available

Package Contents:

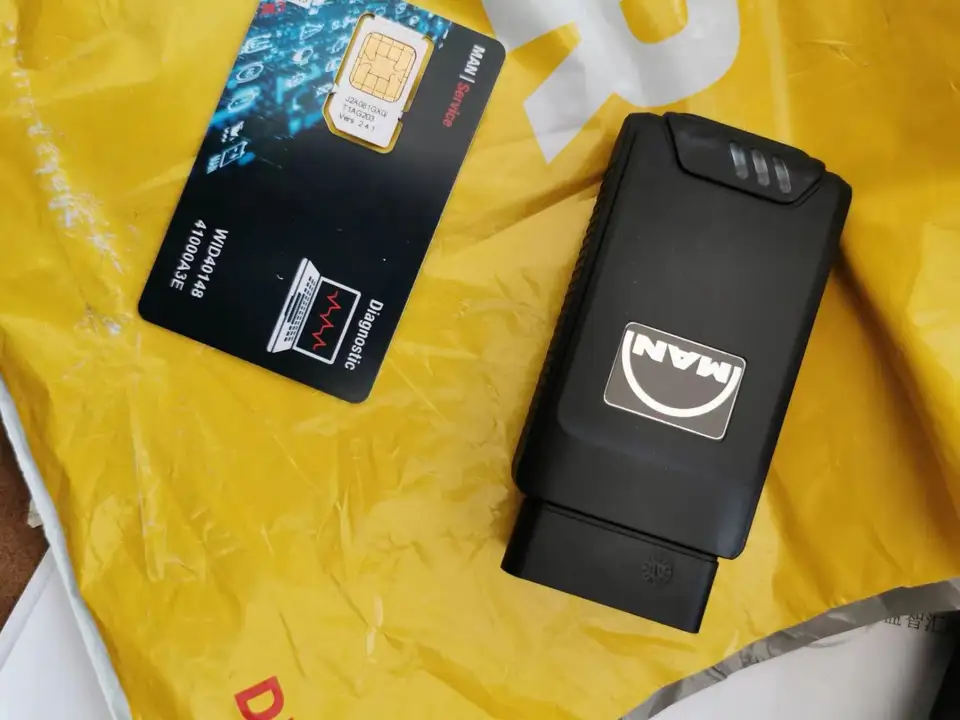

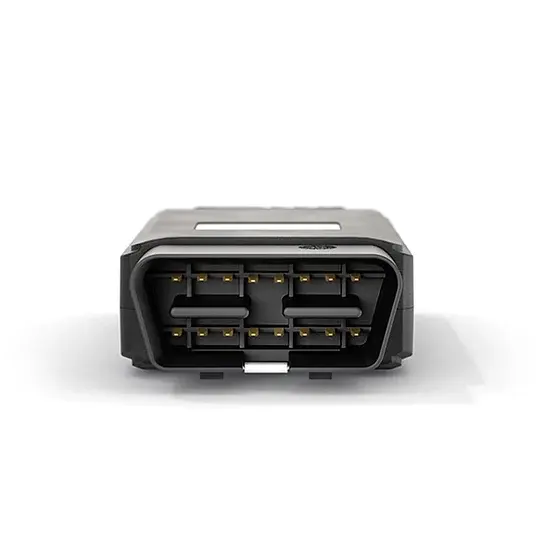

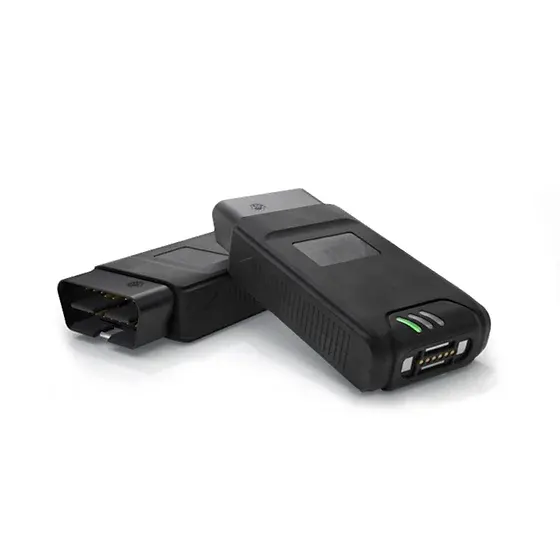

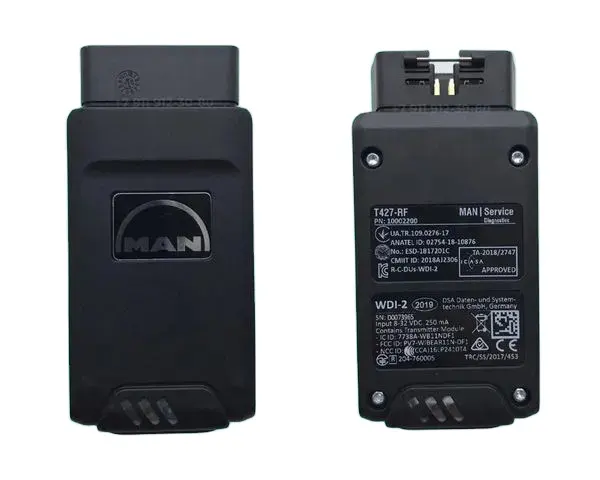

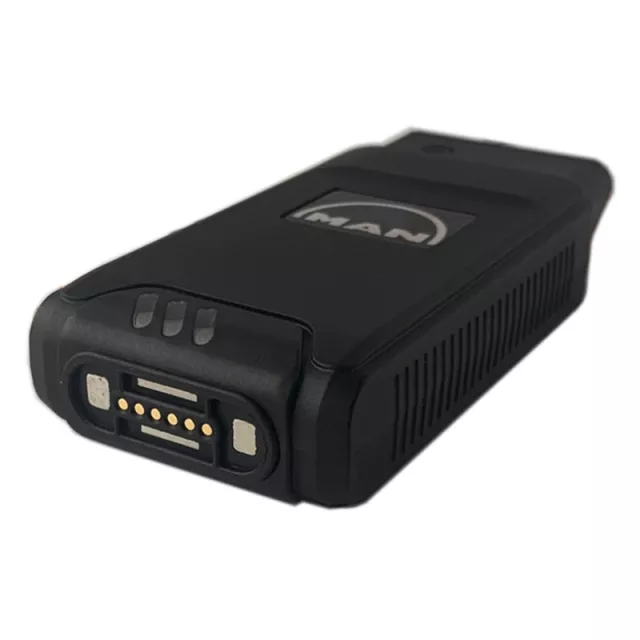

1. MAN VCI T427-RF device (the MAN T427 Communication Interface)
2. Smart Card

Manufactured by DSA
Made in Germany
Input 8-32 VDC 250 mA

Functions:

Electronic brake systems (EBS)
Electronically controlled air suspension (ECAS)
Engine regulation (EDC)
Retarder
Gearbox
Air-conditioning systems
Central computer
Instrumentation
Door module
Airbags
And much more

T427 support all current vehicle buses and diagnostic protocols as well as the D-PDU-API standard/PRODIS.PDU (ISO 22900-2):

• UDS on CAN.
• OBD on CAN und K line.
• KWP2000 on ISO-TP, TP2.0, TP1.6 and K line.
• KW1281 on TP1.6 and K line.
• SAE J1939.
• DoIP.

Supported all MAN and Neoplan vehicles for:

• Diagnostic.
• Monitoring.
• Calibration.
• Tests.
• Parameter programming.

Possibilities of Use:

Simple testing of actuators;
Visualisation and assessment of current sensor signals;
Identification of control unit in assembled condition;
Depiction of all stored diagnosis entries;
Fast orientation on vehicle by means of integrated overview wiring diagrams;
HD-OBD scan tool (Heavy Duty On Board Diagnosis), read-out and presentation of data relevant to exhaust gas.

Package included:

1 * Original Man Cat T427 Man Cat T400 (MAN CATS 3) Professional Diagnostic & Programming Device With Smart Card
