What is TMPro 2?
Transponder Maker Pro (also known as TMPro keymaker or TMPro2 keymaker) is a programmer and softwares for transponder key making, transponder key programming, transponder key copying and PIN code/ security code calculating. Programmer has to be connected to USB port of computer, it does not require external power supply. Main software user interface supports 14 languages – Bulgarian, English, French, Portuguese, Polish, Hungarian, Spanish, Serbian, Italian, Czech, Chinese, Greek, Turkish and Romanian. Programmer and all softwares are auto-updateable to latest version available on server.

TMPro are organized as modular softwares. At begining you can purchase TMPro programmer without any additional softwares and use it only with main software. In the future when job comes to your workshop you can very fast and easy add new softwares by simple software purchasing system.

TMPro2 works with immobilisers eeprom dumps. You must have electronic knowledges and to know how to use soldering-desoldering tools and memory devices programmers. It is your choice what programmer you will use for reading memory devices – TMPro2 memory device programmer or other progarmmer. In order to program transponder you have to remove immobox/BSI/UCH unit from car, open it, desolder memory device or solder wires on testpoints, and read it. Depending of vehicle memory device can be serial eeprom, Motorola MCU, Microchip PIC MCU, ST10F269 MCU, Texas Instruments MCU etc… Next step is to program transponder. Last step is to solder back memory device, reassemble immobox/BSI/UCH and fit back to car.

Working with TMPro2 is easy. You must have some electronic knowledges and equipment, like soldering iron, hot air gun, multimeter etc. Also you need to know which unit contains key data, and it`s location in vehicle. Remove unit from vehicle, open it and locate memory device. For some of units memory device is easy to be accessed, but for other it is not easy – you must cut a hole, dig a silicone etc.

When type of memory device is clear, you have to see how you can read/write it.

For 70% of softwares reading and writing of memory devices can be done either by TMPro2 or by other programmer.
For 5% of softwares reading and writing is mandatory to be made with TMPro2.
For 25% of softwares for reading and writing of memory devices you must use other programmer.

Memory device depends on unit, that contains key data. Memory device can be:

* Serial eeprom. Supported are all 93cXX, 24cXX, 25/95cXXX, X5328, S29190, X24c01, 95p08.To read or write serial eeproms, you must desolder it from board and solder on TMPro2 eeprom adapter. On adapter there are sockets for 3 different types – DIL, SMD and SSOP.
* Motorola 912/9S12 not locked, ST10F269 or Moric. To read or write these MCU you have to use cable with 8 stripped wires. Solder wires according to connection diagram for particular software.
* Motorola HC805P18. To read or write this Motorola you must use TMPro2 Motorola HC805P18 adapter. Desolder MCU from immobox and solder it on adapter.
* Microchip PIC. To read or write Microchip PIC you must use TMPro2 PIC adapter. Solder wires according to connection diagram for particular software.
To connect adapters to TMPro2 box you must use cable for adapters.
* Motorola HC05/HC908/HC11, Motorola 9S12 locked, flash chip, TMS370C702. To read or write these memory devices you have to use other programmer.
NOTE:Microchip PIC adapter, eeprom adapter, cable with 8 stripped wires and cable for adapters are included in basic set of TMPro2.
NOTE:Motorola HC805P18 adapter is not included in basic set of TMPro2. You can buy it along with basic set or at later time.
After all connections are done, you have to press on Select and read memory device button, select correct memory device and press OK to process with reading. After reading is done if you wish you can save file read for your archive.
In case for to read and write memory devices you use other programmer, then after memory device is read and file is saved by your programmer you have to load this file in TMPro2 by clicking on Open file button.
Transponder Maker Pro price list  All prices are NETTO - WITHOUT 20% VAT

TMPro 2 Key Programmer Vehicle List:

Range Rover and Land Rover 2001-2010

TMPro is FIRST tool in the world that can make key for Range Rover Sport and LandRover LR3 with PIC18F6620 in BCM.TMPro is FIRST tool in the world that can make key for Land Rover with SAWDOC immboiliser with PIC18F252.

Using specific softwares 40, 174, 180, 181, 199 you can program transponder ready to start car. For Range Rover Sport or Land Rover LR3 remote part of key will be programmed and will work.

Fiat/ Lancia/ Peugeot/ Alfa Romeo/ Citroen CODE2 Cars:
Softwares cover all vehicles from 1999 till present, which use precoded by chassis number keys with ID44(PCF7935), ID48(Megamos Crypto) and ID46 (PCF7936/PCF7946).NO MORE need to order keys from dealer and to wait for them.Using software modules 6, 7, 8, 9, 45, 48, 59, 100, 112, 118, 175, 194 software prepares chip ready programmed to start car. Softwares also show PIN code if you need to program keys by OBD2.

NOTE:REMOTE part for keys that use PCF7946 will be programmed and will work.

Porsche cars 1997-2005 with PAS ALARM unit that uses ID13 or ID48 in key
Using specific softwares 54 or 165 you can solve LOST KEY or make SPARE KEY very fast, no need car in your workshop, only PAS ALARM unit.

Toyota, Lexus, Subaru, Peugeot and Citroen Cars
Use 4C, 4D-60, 4D-67, 4D-68, 4D-70, 6D-72 and 128-bit AES chips.NO MORE need to wait for reseting of immobox and ECU and to use expencive dealer keys.Using specific softwares 52, 83, 87, 92, 153, 188 you can program transponder ready to start car.

Trucks–Volvo, Mercedes, MAN, Renault, DAF, Scania, Mitsubishi Canter Fuso
Using specific softwares 34, 37, 51, 53, 88, 93, 151, 170 you can solve LOST KEY problem or make SPARE KEY.

Motorbikes and Scooters
BMW, Ducati, Yamaha, Suzuki, Kawasaki, Honda, Aprilia, Moto Guzzi, Gilera, KTM, MV Agusta, Peugeot, Piaggio.THERE IS NO tool in the world that supports more motorbikes for key making!Using specific softwares 25, 33, 58, 66, 67, 68, 90, 96, 97, 98, 101, 108, 109, 128, 129, 131, 168, 171, 177, 178, 182, 183, 186, 189, 191, 193, 196, 197, 198, 203, 204, 205, 206, 207, 208 (35 softwares total) you can solve LOST KEY problem or make SPARE KEY. For BMW, Ducati, Kawasaki and KTM there are softwares for keyless models.TMPro is THE ONLY tool in the world that can make key for keyless BMW motorbikes.

Key Copying Softwares
Allows you to copy many different key types – fixed ID11, ID12, ID13, ID33, ID4C and crypto ID41, ID42, ID44 VAG, ID45, ID46, ID4D, ID8C and ID48 for Kia and Daewoo.

TMPro 2 Hardware:

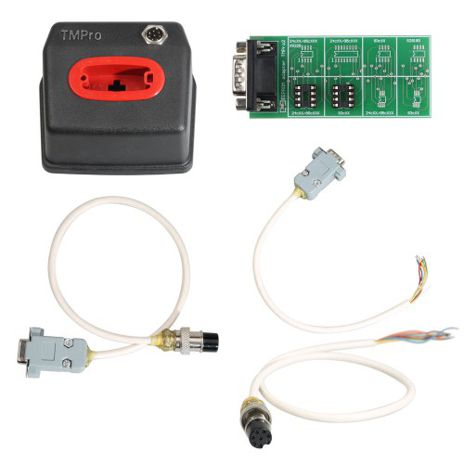

 TMPro box + PIC adapter + Eeprom adapter + Set of 2 cables + Main SW - 200 Euro
 Optional:Motorola HC805P18 adapter (used with SW 140,143,159,173,184) - 100 Euro

TMPro 2 Spare parts:
PIC adapter - 15 Euro

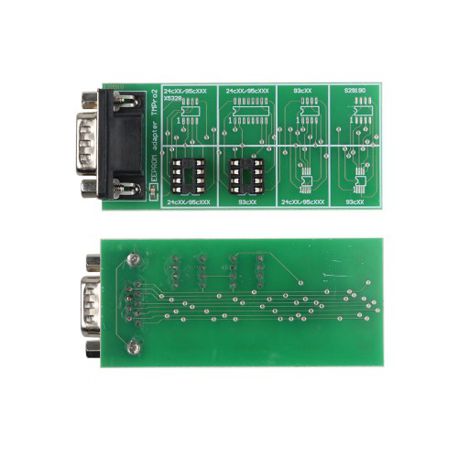

Eeprom adapter - 5 Euro

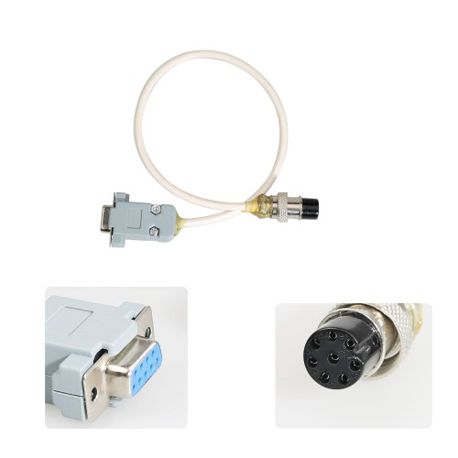

Set of 2 cables - 8 Euro

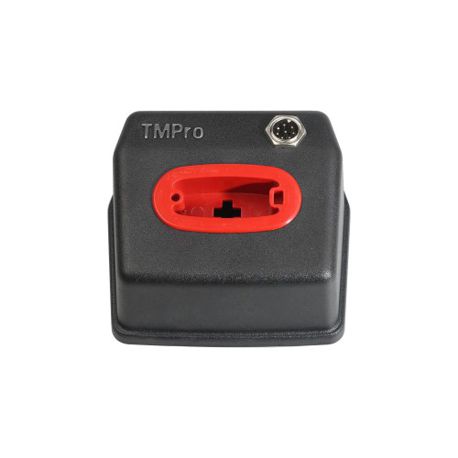

Round 8-pin connector on top of the box - 2 Euro


TMPro 2 Software:
 SW 1 - Fiat,Lancia,Citroen,Peugeot immobox Delphi - 100 Euro
 SW 2 - Fiat,Lancia IMM001-01 immobox Marelli - 100 Euro
 SW 3 - Fiat,Lancia IMM110-01 immobox Marelli - 100 Euro
 SW 4 - Alfa Romeo,Iveco CODE1 immobox Bosch - 100 Euro
 SW 5 - Alfa Romeo CODE2 immobox Bosch - 100 Euro
 SW 6 - Fiat,Lancia,Alfa Romeo BSI Marelli - 100 Euro
 SW 7 - Fiat,Lancia,Alfa Romeo BSI Delphi - 100 Euro
 SW 8 - Fiat,Citroen,Peugeot CODE2 Delphi - 100 Euro
 SW 9 - Fiat,Lancia IMM100-01 immobox Marelli - 100 Euro
 SW 10 - Audi immobox Delphi - 100 Euro
 SW 11 - Peugeot,Fiat,Citroen immobox Siemens - 100 Euro
 SW 12 - Peugeot,Citroen immobox Valeo - 100 Euro
 SW 13 - Peugeot,Fiat,Lancia,Citroen CPH Texton - 100 Euro
 SW 14 - Peugeot 206 BSI Siemens - 100 Euro
 SW 15 - Peugeot 406 BSI Siemens - 100 Euro
 SW 16 - Daewoo immobox - 100 Euro
 SW 17 - Honda,Rover immobox Valeo - 100 Euro
 SW 18 - Honda,Acura immobox Megamos - 100 Euro
 SW 19 - Opel IMMO1 immobox Siemens - 100 Euro
 SW 20 - Opel IMMO2 immobox Siemens - 100 Euro
 SW 21 - Mitsubishi immobox Bosch - 100 Euro
 SW 22 - VW,Skoda,Seat IMMO1 immobox Siemens - 100 Euro
 SW 23 - VW,Seat IMMO2 immobox Siemens - 100 Euro
 SW 24 - VW,Seat,Ford IMMO3 immobox Valeo - 100 Euro
 SW 25 - Seat,Peugeot,Piaggio bikes immobox Marelli - 100 Euro
 SW 26 - Renault immobox Siemens - 100 Euro
 SW 27 - Renault immobox Valeo - 100 Euro
 SW 28 - Renault,Dacia immobox Sagem - 100 Euro
 SW 29 - Renault BSI Valeo - 100 Euro
 SW 30 - Renault UCH Sagem - 250 Euro
 SW 31 - Renault UCH Siemens - 250 Euro
 SW 32 - Mercedes Sprinter,Vito immobox Temic - 100 Euro
 SW 33 - Peugeot bike engine ECU Marelli - 100 Euro
 SW 34 - Volvo IMMO3 immobox Bosch - 100 Euro
 SW 35 - Volvo CARTRONIC immobox Bosch - 100 Euro
 SW 36 - Iveco Daily/Truck immobox Bosch - 100 Euro
 SW 37 - Mercedes Actros,Atego engine ECU Temic - 100 Euro
 SW 38 - Opel,Isuzu immobox Megamos - 100 Euro
 SW 39 - PSA VAG Opel Nissan Ford Mitsubishi new chip - 100 Euro
 SW 40 - BMW,Rover,Mini immobox EWS - 100 Euro
 SW 41 - Mazda immobox Temic - 100 Euro
 SW 42 - Mazda immobox Lucas 19AS - 100 Euro
 SW 43 - Nissan,Subaru immobox Siemens - 100 Euro
 SW 44 - Renault UCH Sagem type 2 - 100 Euro
 SW 45 - Fiat,Citroen,Peugeot,Iveco BSI Marelli type 2 - 250 Euro
 SW 46 - Volvo IMMO1 immobox Bosch - 100 Euro
 SW 47 - Saab body TWICE - 200 Euro
 SW 48 - Fiat New Panda BSI Siemens VDO - 250 Euro
 SW 49 - Opel,Isuzu immobox Megamos type 2 - 100 Euro
 SW 50 - Jaguar immobox - 100 Euro
 SW 51 - Renault immobox Texton - 200 Euro
 SW 52 - Toyota immobox ID33 - 100 Euro
 SW 53 - MAN TGA FFR - 200 Euro
 SW 54 - Porsche body ID13 - 150 Euro
 SW 55 - GM Passkey3 immobox Delphi - 100 Euro
 SW 56 - Acura immobox - - 100 Euro
 SW 57 - Renault UCH Johnson Controls type 1 - 100 Euro
 SW 58 - Ducati bikes dashboard Marelli - 200 Euro
 SW 59 - Fiat Grande Punto BSI Delphi - 250 Euro
 SW 60 - Polonez immobox Megamos - 100 Euro
 SW 61 - Tata Safari immobox Alltech - 150 Euro
 SW 62 - Key copier for ID11,ID12,ID13 and ID33 fixed keys - 100 Euro
 SW 63 - Key copier for ID33,ID41,ID42,ID44 VAG and ID45 keys - 100 Euro
 SW 64 - Key copier for 4C Texas fixed keys - 100 Euro
 SW 65 - Key copier for 4D Texas crypto keys - 150 Euro
 SW 66 - Yamaha bikes immobox Moric - 250 Euro
 SW 67 - Suzuki bikes engine ECU Denso - 250 Euro
 SW 68 - Kawasaki bikes engine ECU Denso - 250 Euro
 SW 69 - Mazda 3 dashboard YNS - 100 Euro
 SW 70 - Ford Focus dashboard Visteon - 100 Euro
 SW 71 - Jaguar dashboard - 100 Euro
 SW 72 - Ford engine ECU Delphi - 100 Euro
 SW 73 - Ford engine ECU EEC5 - 100 Euro
 SW 74 - Ford,Mazda engine ECU Siemens - 100 Euro
 SW 75 - Ford Galaxy immobox - 100 Euro
 SW 76 - Chrysler immobox SKIM - 100 Euro
 SW 77 - KIA immobox Shinchang - 100 Euro
 SW 78 - Suzuki immobox Mitsubishi - 100 Euro
 SW 79 - Renault Megane immobox Siemens - 100 Euro
 SW 80 - Renault Megane UCH Siemens - 100 Euro
 SW 81 - Mazda 6 engine ECU Denso - 100 Euro
 SW 82 - Mazda 6 engine ECU Mitsubishi - 100 Euro
 SW 83 - Toyota Avensis immobox Valeo with ID4D - 100 Euro
 SW 84 - Ford Transit 2008 BCM Siemens VDO - 100 Euro
 SW 85 - SsangYong immobox VDO - 200 Euro
 SW 86 - Chery,Samand immobox Siemens VDO - 200 Euro
 SW 87 - Toyota,Lexus ECU Bosch,Fujitsu,Denso - 200 Euro
 SW 88 - Scania truck Coordinator - 250 Euro
 SW 89 - Mazda RX8 immobox Visteon - 100 Euro
 SW 90 - Yamaha scooter ECU Mitsuba - 100 Euro
 SW 91 - Opel,Isuzu immobox Tokai Rika - 100 Euro
 SW 92 - Toyota,Suzuki,Daihatsu immobox ID4C - 100 Euro
 SW 93 - DAF truck immobox VDO - 200 Euro
 SW 94 - Renault UCH Johnson Controls type 2 - 200 Euro
 SW 95 - Jeep immobox DaimlerChrysler - 200 Euro
 SW 96 - Honda bikes ECU Keihin,OKI - 250 Euro
 SW 97 - Suzuki scooter ECU Keihin - 100 Euro
 SW 98 - Aprilia scooter dashboard Digitek - 100 Euro
 SW 99 - Mitsubishi,Suzuki immobox ID4C type 2 - 100 Euro
 SW 100 - Fiat dashboard Marelli,VDO - 250 Euro
 SW 101 - Ducati bikes dashboard Digitek - 150 Euro
 SW 102 - Samand,Saipa,Chery,Mazda new chip - 200 Euro
 SW 103 - Texas Crypto new chip - 200 Euro
 SW 104 - Honda,Acura immobox Valeo ID46 - 200 Euro
 SW 105 - Honda immobox HIS-5 ID48 - 200 Euro
 SW 106 - Mazda 6 diesel ECU Denso - 100 Euro
 SW 107 - Hyundai,Kia engine ECU Kefico,Bosch - 200 Euro
 SW 108 - Yamaha bikes immobox Moric type 2 - 500 Euro
 SW 109 - BMW bikes engine ECU Bosch - 250 Euro
 SW 110 - Smart,Mitsubishi ETACS Siemens VDO - 250 Euro
 SW 111 - Saab column CIM - 250 Euro
 SW 112 - Fiat,Lancia,PSA BSI Marelli type 3 - 250 Euro
 SW 113 - Daewoo,Chevrolet immobox ID48 - 100 Euro
 SW 114 - Mitsubishi immobox ID46 - 200 Euro
 SW 115 - Chevrolet BSI Siemens - 200 Euro
 SW 116 - Isuzu immobox SiemensVDO - 200 Euro
 SW 117 - Chevrolet,Opel immobox ID46 - 200 Euro
 SW 118 - Alfa Romeo,Fiat key reader - 250 Euro
 SW 128 - Gilera,Piaggio bikes engine ECU EFI - 200 Euro
 SW 129 - KTM bikes immobox ZADI - 250 Euro
 SW 130 - BMW,Mini CAS SiemensVDO - 400 Euro
 SW 131 - Gilera,Piaggio bikes engine ECU Marelli - 200 Euro
 SW 132 - Nissan Sunny dashboard - 200 Euro
 SW 133 - Citroen Xantia CPH Texton ID48 - 200 Euro
 SW 134 - Renault Twingo 2 UCH Temic - 200 Euro
 SW 135 - Subaru immobox Mitsubishi - 100 Euro
 SW 136 - Ford BSI Delphi - 100 Euro
 SW 137 - GM Passkey3+ immobox Delphi ID48 - 200 Euro
 SW 138 - GM Passkey immobox ID46 - 200 Euro
 SW 139 - SsangYong,Proton engine ECU VDO - 200 Euro
 SW 140 - KIA immobox Texton ID13 - 100 Euro
 SW 141 - Suzuki Liana immobox - 200 Euro
 SW 142 - Ford engine ECU Siemens,EEC5 - 100 Euro
 SW 143 - Mitsubishi,Subaru immobox Mitsubishi ID4D - 250 Euro
 SW 144 - Renault UCH Johnson Controls type 3 - 200 Euro
 SW 145 - Key copier onto JMA TPX3/4 transponder - 200 Euro
 SW 146 - VW Audi Seat Skoda dealer key - 200 Euro
 SW 147 - Kia immobox Texton ID48 - 100 Euro
 SW 148 - Mercedes C,E,G masterchip ID44 - 200 Euro
 SW 149 - VW Passat 3C (B6/CC) - 400 Euro
 SW 150 - VW Audi Seat Skoda CAN dashboard VDO - 250 Euro
 SW 151 - Renault truck immobox Delphi ID46 - 200 Euro
 SW 152 - VW Audi Seat Skoda new key CAN - 200 Euro
 SW 153 - Toyota,Lexus immobox ID4D-67,68,70 - 250 Euro
 SW 154 - Hana Benni immobox and ECU ID4D - 100 Euro
 SW 155 - VAG,Porsche KESSY Siemens-VDO - 250 Euro
 SW 156 - Volvo CEM ID48 with flash chip - 250 Euro
 SW 157 - Texas Crypto 4D-63,4D-64,6D-72 new chip - 100 Euro
 SW 158 - Mitsubishi Grandis immobox - 200 Euro
 SW 159 - Honda engine ECU ID48 - 250 Euro
 SW 160 - Mitsubishi Outlander immobox - 200 Euro
 SW 161 - Proton Savvy immobox - 100 Euro
 SW 162 - Kawasaki JetSki Ultra engine ECU ID4D - 250 Euro
 SW 163 - Suzuki engine ECU ID46 - 200 Euro
 SW 164 - Jaguar S-type dashboard ID4D - 100 Euro
 SW 165 - Porsche body PAS with ID48 - 700 Euro
 SW 166 - Huyndai,Kia immobox Shin Chang ID4D - 100 Euro
 SW 167 - Opel Astra J,Chevrolet Cruze BCM ID46 - 400 Euro
 SW 168 - Peugeot JetForce dashboard - 100 Euro
 SW 169 - Daihatsu,Perodua immobox Tokai-Rika ID4D-67 - 250 Euro
 SW 170 - Mitsubishi Canter Fuso immobox Tokai-Rika - 400 Euro
 SW 171 - MV Agusta bikes dashboard - 250 Euro
 SW 172 - Chevrolet immobox Shin Chang ID4D - 200 Euro
 SW 173 - Honda engine ECU ID13 - 100 Euro
 SW 174 - Landrover immobox SAWDOC - 400 Euro
 SW 175 - Fiat BSI Marelli type 5 - 250 Euro
 SW 176 - Volvo CEM Delphi with ID46 - 400 Euro
 SW 177 - Ducati bikes dashboard MAE electronics - 800 Euro
 SW 178 - Ducati bikes handsfree ZADI - 800 Euro
 SW 179 - Jaguar immobox ID48 - 250 Euro
 SW 180 - Unlocking PIC18F252 used in LandRover immobox SAWDOC - 500 Euro
 SW 181 - Landrover Discovery 3 (LR3),Range Rover Sport CEM - 900 Euro
 SW 182 - Ducati Panigale immobox ZADI - 500 Euro
 SW 183 - KTM bikes immobox ZADI type 2 - 500 Euro
 SW 184 - Mazda,Ford,Proton immobox Lucas,Mitsubishi - 300 Euro
 SW 185 - Key copier onto Temic Crypto TK5561 transponder - 100 Euro
 SW 186 - BMW C600 C650,Husqvarna Nuda dashboard - 1200 Euro
 SW 187 - Daewoo,Kia key copier onto TS48 transponder -  100 Euro
 SW 188 - Toyota,Lexus SMART key unit Denso - 900 Euro
 SW 189 - Ducati Hypermotard 2013 dashboard MAE - 700 Euro
 SW 190 - Subaru BCM Mitsubishi - 1000 Euro
 SW 191 - BMW bike 2012 immobox EWS - 1200  Euro
 SW 192 - Ducati 821 dashboard MTA - 700 Euro
 SW 193 - Ducati 1200 dashboard COBO - 700 Euro
 SW 194 - Fiat IMM009.10 immobox Marelli - 250 Euro
 SW 195 - Great Wall immobox Delphi - 250 Euro
 SW 196 - Kawasaki GTR1400 switch Asahi-Denso - 500 Euro
 SW 197 - Ducati Scrambler dashboard - 700 Euro
 SW 198 - BMW bikes handsfree unit HUF - 1200 Euro
 SW 199 - Range Rover Vogue immobox - 100 Euro
 SW 200 - VAG,Porsche KESSY Continental - 1000 Euro
 SW 201 - Fiat BSI Continental type 1 - 600 Euro
 SW 202 - Fiat BSI Continental type 2 - 600 Euro
 SW 203 - Aprilia Caponord dashboard - 150 Euro
 SW 204 - KTM bikes handsfree ZADI - 800 Euro
 SW 205 - Ducati Multistrada dashboard MAE - 700 Euro
 SW 206 - MV Agusta Veloce dashboard COBO - 700 Euro
 SW 207 - Aprilia dashboard COBO - 200 Euro
 SW 208 - Moto Guzzi dashboard - 200 Euro


TMPro 2 Package includes:

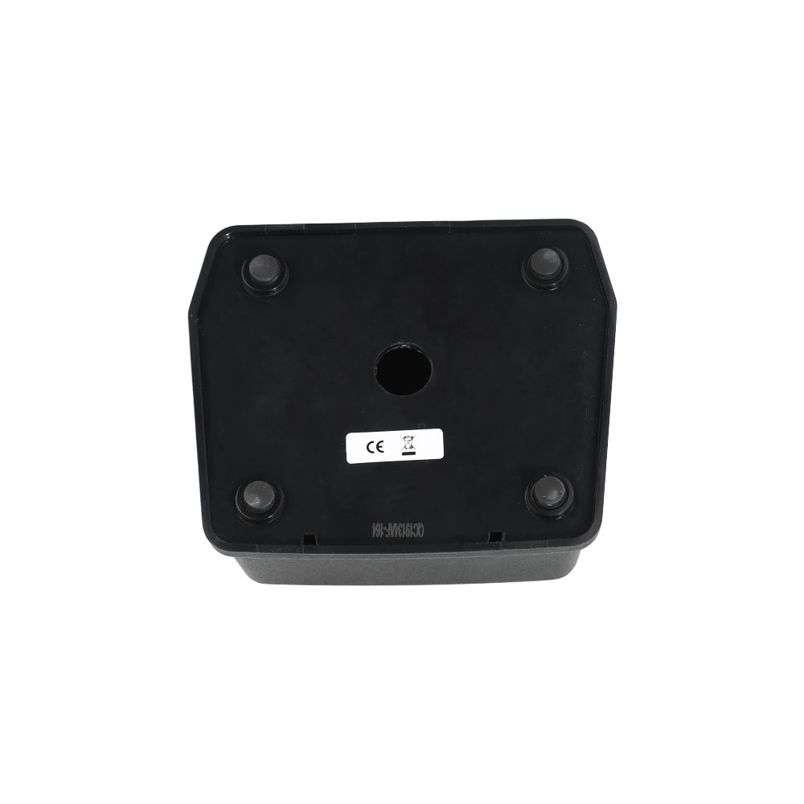

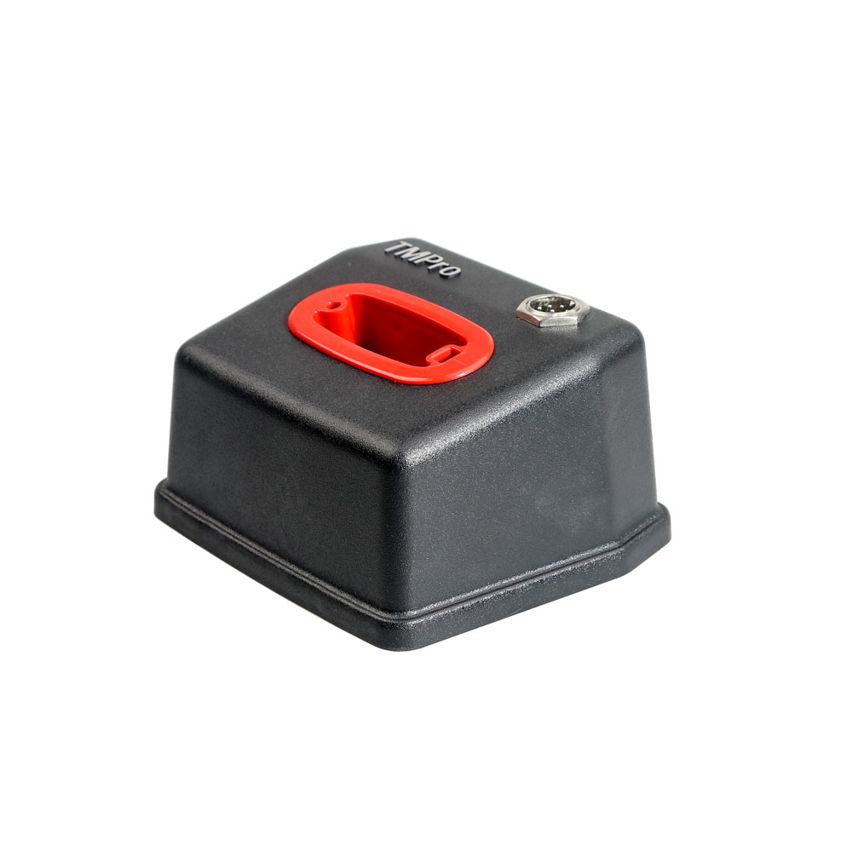

1pc x TMPro 2
