New Release TM100 Transponder Key Programmer(Necessary for Locksmith)

Top 5 Reasons to get TM100:
1. Cheap Price, including full universal key programming function and 5 additional module.
2. Full transponder support. TM100 programmer not only supporst  Philips transponders, Temic transponders, Megamos transponders, Texas transponders, it can also generate images for many different original transponders like Philips ID33, Philips Crypto for different ID's and Texas crypto!
3. Special Function for reading the Kilometers, VIN and transponder type for all BMW keys was added to the BMW software module! Immo pin code is also displayed for some car models.
4. Freee update online for lifetime
5. Support all key lost. TM100 Programmer support Toyota/Lexus all system keys, support BMW CAS1,CAS2,CAS3,CAS3+, support Ducati motorcycle, support Audi EZS Megamos 8E, and many more functions.

Notes:

1. This version includes firmware

2.  update. Please DO NOT disconnect PC with TM100 while updating.

TM100 V7.08 Released 2018-3-12
1. Add support for Toyota smart card type D4.
2. Fix KeyMaker for Audi A4/A5/Q5 by BCM2 dump.
3. Fix KeyMaker for Audi A6/A7/A8, Touareg by BCM2 dump and working key.

Notes:
This version can not be updated from TM100 software. You may download it here: https://mega.nz/#!PIpQhb7A!Eqt-qYecvddO1_8oT-ooYikJX6hnuYI-FMiRcV3tU7E

TM100 V7.06 released (2017-12-22):
    1. Add Chevrolet Epica pin code calculation via BCM dump data
    2. Add Audi A4/A5/Q5 write key with BCM2 data
    3. Add Audi A6/A7/A8/Touareg write key with BCM2 data and working key
    4. Fix write key bugs.

TM100 V7.04 released (2017-9-16):
    1. Add transponder detection for SLK(Toyota emulator smart key)
    2. Add Keymaker for BMW bikes C600, C650, Husqvarna Nuda, Terra (Dashboard).
    3. Add Keymaker for BMW bikes R1200GS, K1300, F800 (Immobox EWS).
    4. Fix bugs.

    Notes:
    This version includes firmware 2 update. Please DO NOT disconnect PC with TM100 while updating.

TM 100 2017-5-17 V6.00 released:
       1. Add image generator for Toyota G transponder;
       2. Add keymaker for Toyota smart system(TMS37126, TMS37200);
       3. Add dump editor for VAG MED17, EDC17.(Component security bytes, PIN);

TM100V3.50  released
1. Add dump edit tool for VAG BCM2.
2. Add keymaker for Isuzu, NPR, D-Max as MY2007. Parts: Immo box, IC: EEPROM 93C56, Transponder: PCF7936.
3. Fix bugs.

How to edit VAG BCM2 dump: (NOTE: INTERNET ACCESS IS MANDATORY)
Select Tools, Dump Editor, VAG, BCM2, then load flash and EEPROM file, TM100 will display VIN, CS, MAC, key IDE etc. Flash file size: 384k/512k/768k bytes, EEPROM file size: 4k/64k bytes.
You can also edit and save EEPROM.

Support models:
  Audi A4/A5/A6/A7/A8/Q5, VW Touareg(Before MY2014.6)
  NEC 70F3379/70F3880/70F3881/70F3634 (P flash size 384k/512k/768k)
  D flash or 25320 (4k/64k)

TM100 V3.46 Released (2016-10-28)
1. Add keymaker for Mitsubishi, Montero as MY2000. Parts: Immo, IC: MC68HC805P18(with mask H44H), Transponder: Tiris 4D.
2. Add keymaker for Mitsubishi, Pajero as MY2000. Parts: Immo, IC: MC68HC805P18(with mask H44H), Transponder: Tiris 4D.
3. Add keymaker for Mitsubishi, Pajero sport as MY2000. Parts: Immo, IC: MC68HC805P18(with mask H44H), Transponder: Tiris 4D.
4. Add keymaker for Mitsubishi, Space Wagon as MY1999. Parts: Immo, IC: MC68HC805P18(with mask H44H), Transponder: Tiris 4D.
5. Add keymaker for Bentley, Arnage MY1998. Parts: Immo, IC: EEPROM 24C04, Transponder: PCF7935.
6. Fix bugs for Ford 93C56.

TM100 V3.44 Released (2016-9-20):
1. Add keymaker for Chevrolet Aveo as MY2012. Parts: Immo, IC: 25160, Transponder: PCF7936
2. Fix bugs
Notes: This version includes firmware 1 update. Please DO NOT disconnect PC with TM100 while updating

TM100 V3.42 Released (2016-9-14):
1. Add function for odometer rewrite of CAS4,CAS4+
2. Add function for BMW CAS3+ save ISN
3. Add keymaker for BMW CAS3+ by ISN
4. Fix bugs

How to edit odometer for CAS4,CAS4+:
Selete Tools, Dump Editor, BMW, CAS4 odometer setting
Open dump file, current odometer value is displayed, input new odometer value, and set new value
Save new generated file and write it back to CAS4

How to save ISN for BMW:
Select keymaker for BMW CAS3+ adding key.
After original key decoded, TM100 will save 16-byte ISN for you.
If the same car lost all keys, you can use the saved ISN to do all key lost without reading ISN from DME

Notes: This version includes firmware 1 and 2 update. Please DO NOT disconnect PC with TM100 while updating.

TM100 V3.40 Released (2016-7-26):
1. Add keymaker for Ducati Diavel,Multistrada. Parts: ZADI, IC: 24C04, Transponder: JMA TPX2, Errebi TX2 or CN2 or YS-01
2. Add immo information display for BMW CAS4, CAS4+

How to view immo information of BMW CAS4, CAS4+:
Select keymaker for BMW CAS4, CAS4+ 5M48H, load immo dump file, click button Immo Info.

TM100 V3.38 Released (2016-7-1):
1. Add keymaker for Ford Ecosport as MY2015. Parts: Instrument, IC: MC9S12XEQ384, Transponder: TIRIS DST80
2. Add keymaker for Ford Explorer as MY2012. Parts: Instrument, IC: MC9S12XEP100 or MC9S12XEP768, Transponder: TIRIS DST80
3. Add keymaker for Ford Fiesta as MY2015. Parts: Instrument, IC: MC9S12XEQ384, Transponder: TIRIS DST80
4. Add keymaker for Ford Edge as MY2007. Parts: Instrument, IC: EEPROM 93C66, Transponder: TIRIS 4D
5. Add keymaker for China vehicle GAC Trumpchi GA3S. Parts: BCM, IC: EEPROM 25640, Transponder: Hitag2
6. Bugs fix;

Notes: EEPROM is 93C66B, SOT-23. You can read it by XProg using Microchip 93xx66B. The wire schematic from 6-PIN to 8-PIN can be got from technical support.

TM100 General Functions:
1. The List of Supported for the Present Transponders.
Philips Transponders:
PCF7930-31 reading
PCF7935 reading, shadow memory
PCF7936 writing, reading, password mode, crypto mode, Manchester or Biphase encodings
PCF7941 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7942 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7943 transponder, remote, Manchester or Biphase encodings
PCF7944 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7945 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7946 transponder, remote, Manchester or Biphase encodings
PCF7947 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7952 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7953 IDE, EEPROM reading
PCF7961 transponder, remote, Manchester or Biphase encodings

Temic transponders:
Temic 11 reading, writing to T5
Temic 12 reading, writing to T5
Temic 8C reading

Megamos Transponders:
Megamos 13 reading, writing to T5, emulating on PCF7930-35
Megamos 48 reading, writing, PIN, unlock by PIN, full range of memory contents
Megamos CRYPTO-2 8E read ID, read/write EEPROM, write Cryptokey

Texas Transponders:
Tiris 4C reading
Tiris 4D DST crypto reading, writing
Tiris 4E DST crypto reading, writing
Tiris DST+ reading

2. The List of Supported Type for Image Generator.
ID33 for Opel
ID33 for Mazda
ID33 for Nissan
ID33 for VW
ID40 for Opel
ID40 for Nissan
ID41 for Nissan
ID44 for VAG
ID45 for Peugeot
ID46 for Chery
ID46 for Chevrolet circle+
ID46 for Chrysler Y170
ID46 for Chrysler Y164
ID46 for Geely Emgrand
ID46 for Mitsubishi
ID46 for Peugeot 206, 307
ID46 for Porsche Cayenne
ID46 for Renault Clio II
ID46 for Renault Clio III
ID46 for Renault Espace4 phase 1
ID46 for Renault Espace4 phase 2
ID46 for Renault Laguna2 phase 1
ID46 for Renault Laguna2 phase 2
ID46 for Renault Master phase 2
ID46 for Renault Megane2
ID46 for Renault Scenic2
ID46 for Renault Trafic phase 2
ID46 for Renault Vel Satis phase 1
ID46 for Renault Vel Satis phase 2
ID46 for VW Phaeton, Touareg
ID48 for China VW Jetta 2011
ID60
ID61
ID62
ID63
ID64
ID65
ID66
ID67 for Toyota
ID68 for Toyota
ID70 for Toyota, Peugeot
ID73 for Mercedes C, E class 1996-1999
ID73 for Mercedes G class 1996-1999
ID73 for Mercedes ML
TP22 for Seat
TP23 for VW
TP24 for Skoda
TP25 for Audi

Special functions:
1. It has following key maker modules at the first version(V1.0):
Module 1: VW Passat B6/CC Megamos 48
Read EEPROM 95320 in comfort module, write transponder with Megamos 48(TP23), write the new generated file back to 95320.
Advanced function: View Login code, VIN, Component Protection Bytes(7-byte).

Module 2: BMW CAS1,CAS2,CAS3,CAS3+ valet key
Read Motorola MCU in CAS module, write transponder with ID46(PCF7936), PCF7942,PCF7943,PCF7944,PCF7945, write the new generated file back to CAS. New key can start engine, but without remote function.
Advanced function: View VIN, DME code, odometer, transponder type, remote frequency.
Highlight: Locked PCF7943, PCF794 can also be reused.

Module 3: BMW motorcycle HITAG key
Read M58BW016, write transponder with ID46(PCF7936), write the new generated file back to M58BW016.

Module 4: Audi EZS Megamos 8E key
Read MC9S12, write transponder with ID8E(Megamos 8E), write the new generated file back to MC9S12.
Advanced function: Unlock Megamos 8E by dump.

Module 5: Honda Key

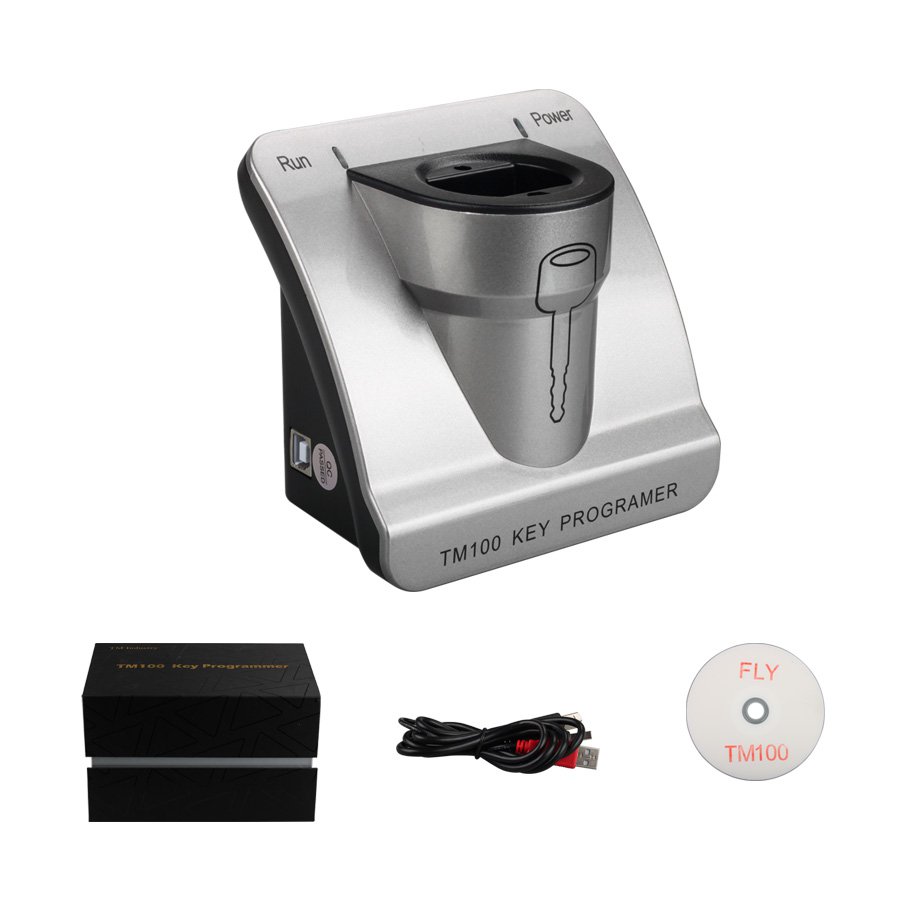

Package Including:
1pc x TM100 Transponder Key Programmer with Basic Module
