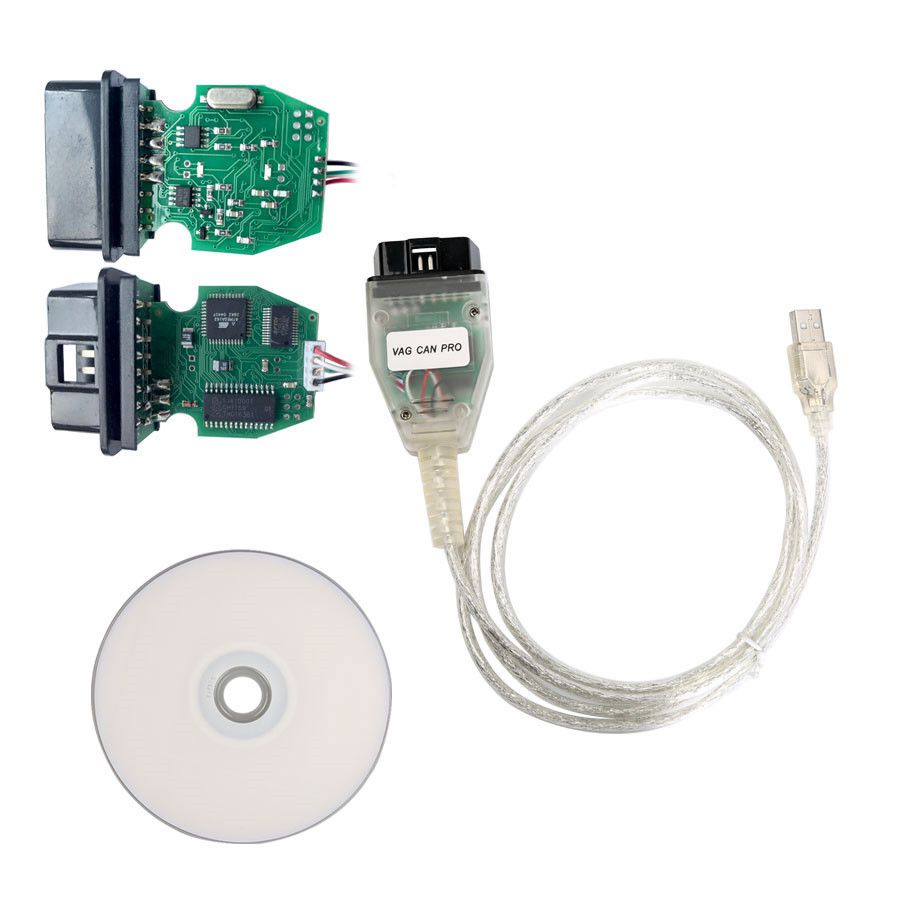

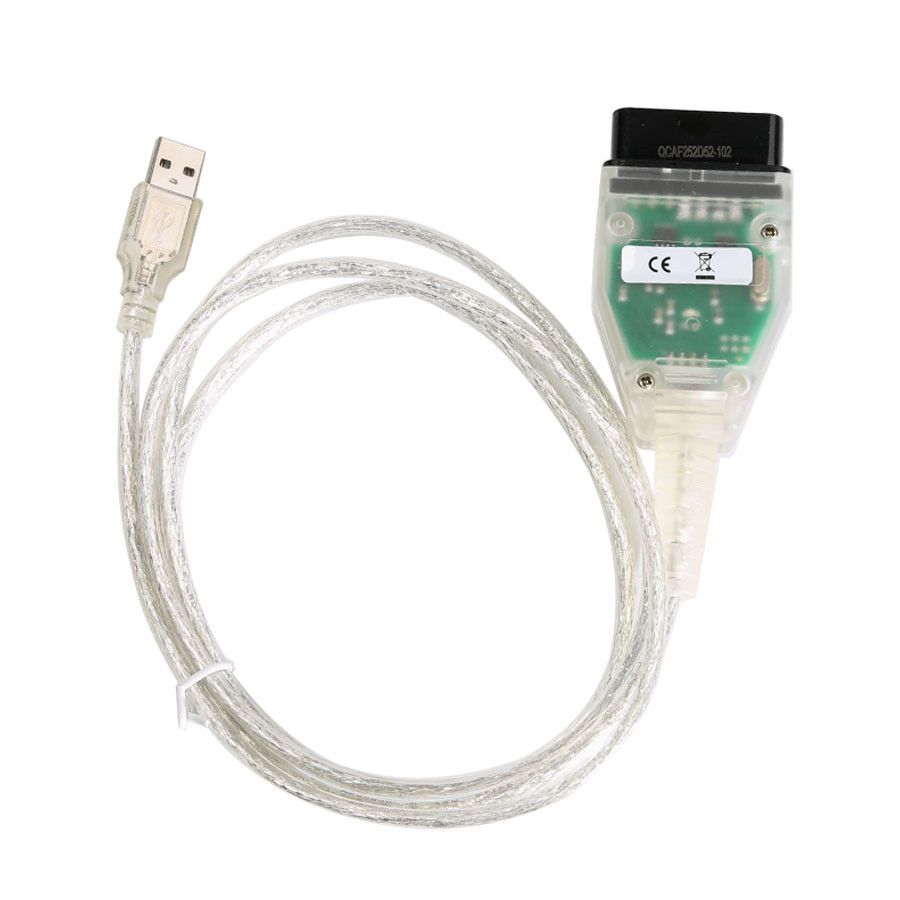

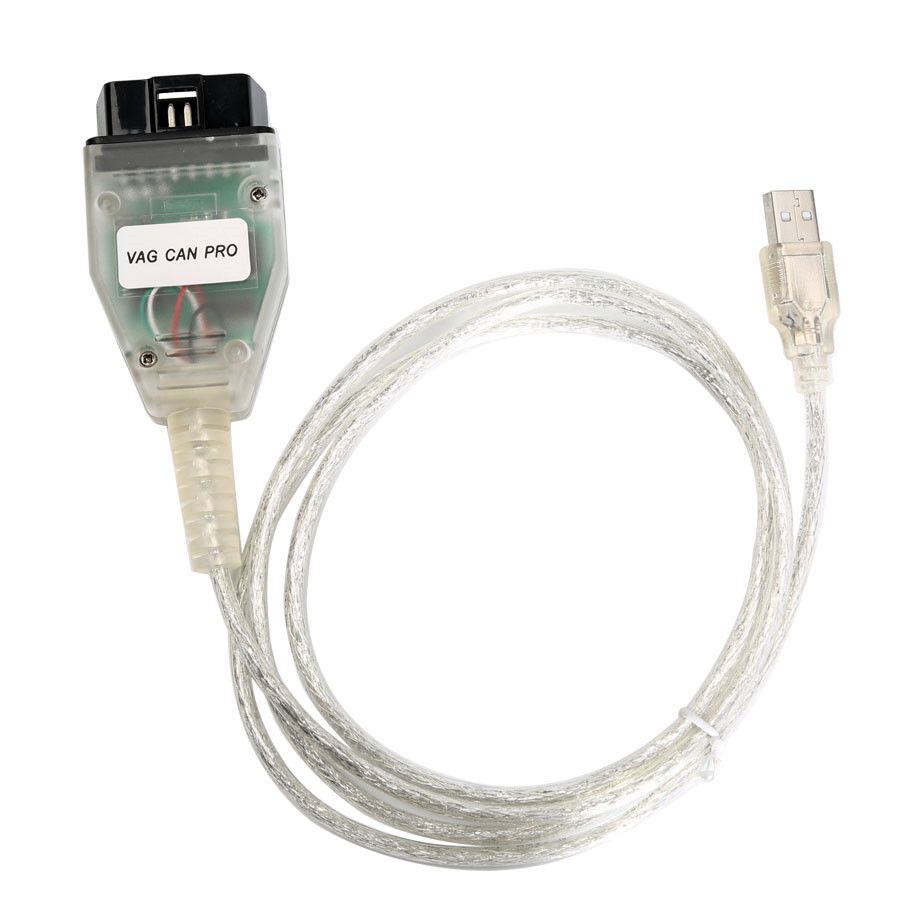

VAG CAN PRO V5.5.1 with FTDI FT245RL Chip VCP OBD2 Diagnostic Interface USB Cable Support Can Bus UDS K Line Works for AUDI/VW


Systems required: Windows 7 / 8 and Windows XP , NOT WORK WITH WIN10

VAG PRO support CAN BUS + UDS + K-Line for diagnostics and programming of electronic components used in vehicles for Volkswagen, for Audi, for Seat, for Skoda, made from 1990 to 2015.

New in Version 5.5.1:
Support for new addresses entered in the MLB-Evo platform
Update database-ODX (support for all models 2015)


Main Features of VAG PRO:
* Unique features OCLF service procedures (One-Click-Function);
* inexpensive flasher for VAG;
* inexpensive flasher with support UDS controllers;
* ESP MK60EC1 decision coding blocks;
* a tool for a complete diagnosis MQB platform (for Golf VII, for Octavia III) Support to 01.2013;
* ZDC-loading containers in the electronic components;
* Unlock video in motion (VIM) on the MQB platform (Discover Pro and MMI-MQB);
* Coding controllers for PR-codes;
* "Login finder" - allows you to scan and logins in the CAN controllers UDS;
* Support for the new for Polo in 2014 Facelift;
* Support for the new for Passat B8;
* Full support for Audi TT-3 on the platform of the IBC;
* Full support for Skoda Fabia III


Major Changes in the PR encoder:
* Now it is possible to keep PR-codes of a file
* PR-self-sustaining encoder may select codes known PR-analysis of current data stored in the ECU
* You can compare the data stored in the ECU against the calculated data, choose what you want to download.
* OCF "Activating automatic folding mirrors", the problem is illuminated space around the machine solved - Thanks Ciamardo / vcp-forum.de
* The new team in the Scripter: GetCardSerial, returns the current smart card number. You can use it to prepare a script that will run only on these smartcards.
* Enhanced TXT-coding, coding calculation is now faster APDUs.
* Updated data base DTC- Fixed problems with parameterization 7N0 cameras
* Fixed problems with parameterization 5M0 ...... F AFS modules
* OCF new section called "Apps", which is: Download the parameter data, coding for PR-code, BCM, and so forth programmer..
* The new procedure OCF "FlashFile Dumper" - can extract content from Flash files (*
.SGO, * .FRF, * .ODX) in a binary dump. Note: The source data format is not changed, *
so that if a Flash file kriptovat and compressed, the binary file will be the same.
* Fixed an issue in the Gateway Sheet MLB-EVO (B7 II, A4 B9) - not all ECU were available through the Gateway.
* Updated database of error codes (added more than 200 new codes, including the MQB / MLB-EVO platform)
* New Firmware v.1.1 for interfaces (04.0D / 02.04) v.2.0 (0A.04 / 0B.04) to support new protocols (TCP-IP) used on the MLB-EVO platform
* Fixed a connection problem with the address 46 (room unit) on the MLB-EVO (B9 A4 / Q7 4M) platform
* Reduced time delays during the loading of large data blocks in the non-flash modes.

This contributes to a more stable connection when connected directly to the ECU (Direct Connect), popular among fans VAG.

Notes for Audi A4:
1. Option A4 8E B6 model
This model has a can-bus (TP1.6), but it is not connected to the diagnostic socket. The car is fully diagnosed on the K-line (VCP required interface + K). Used protocols KWP2000 and KWP1281 it.

2 .Model A4 8E, B7 option
This model has a CAN BUS TP2.0, but the diagnostic socket is only connected to the so- called CAN-Antrieb, i.e. Engine, transmission, airbags, ABS, Quattro drive.
In addition, a standard K-line. In other words, VCP fully supports the diagnosis B7 models, but only in the CAN-Antrieb. Other controllers are available through the K-Line and KWP2000 KWP1281 protocols.

Packing List :
1pc x VAG PRO
1pc x CD
