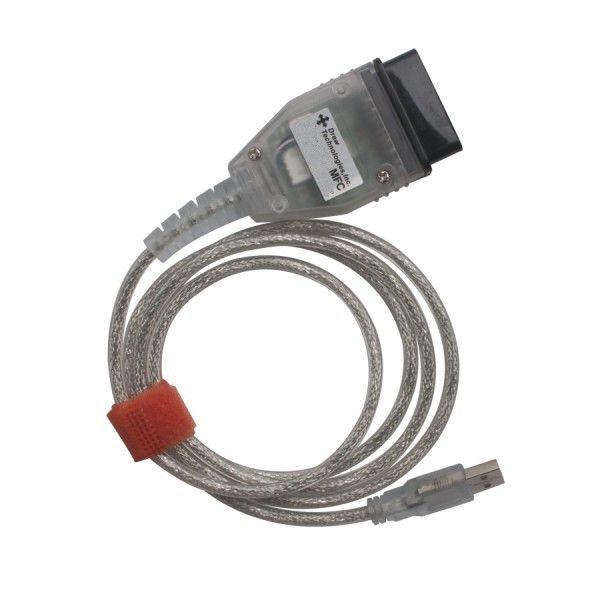

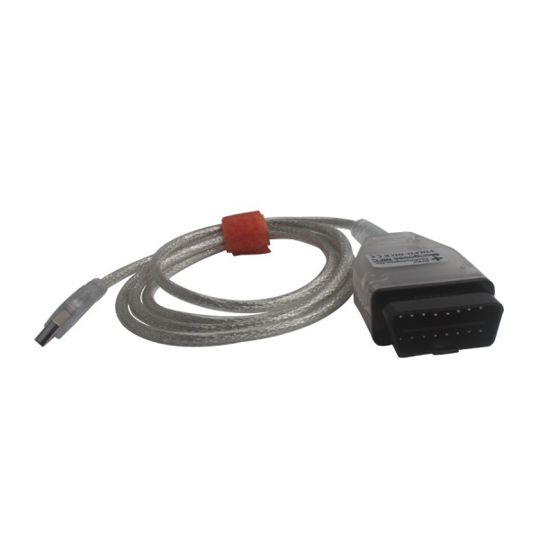

Mangoose for Volvo Vida Dice
Diagnostic Cable
Mangoose
Versions:
M-VPWCAN – Compatible with most
General Motors and newer domestic vehicles
M-PWMCAN – Compatible with most Ford
and newer domestic vehicles
M-ISOCAN – Compatible with most
European, Asian, and newer domestic vehicles
Mangoose
Features:
Lost cost, high performance
pass-thru diagnostic tool for use with PC
Simple packaging with electronics
contained inside the cable
Commercial Range (0 to +70°
C)
Dimensions: 3″ x 1.75″
Cable length: 6 feet
Operating Voltage: Bus-powered by
USB
Mangoose VPW supports GM TIS, SPS,
TIS2WEB, and DPS flash reprogramming software
Bus Protocols
Mangoose VPW CAN/ISO
15765/GMLAN
GM Class2 (J1850VPW)
Mangoose PWM CAN/(ISO
15765 J1850PWM
Mangoose ISO CAN/ISO
15765
KWP2000 (ISO9141 /
ISO14230)
Software Options:
The DrewTech Mangoose is a USB
pass-thru device that utilizes the SAE J2534-1 API. What this means is that the
Mangoose uses a standard communications interface to the vehicle, allowing it to
work with 3rd party diagnostic applications.
Package List:
Mangoose vehicle
interface
Installation CD with device driver
(J2534 compatible)
The Mangoose includes a J2534 driver
and delivers full-speed (12mps) USB 2.0 performance
