Universal CGsulit TPMS80 Receives Both 315MHz and 433MHz Signals TPMS Wireless car Tire Pressure Monitor System Sensor Tool

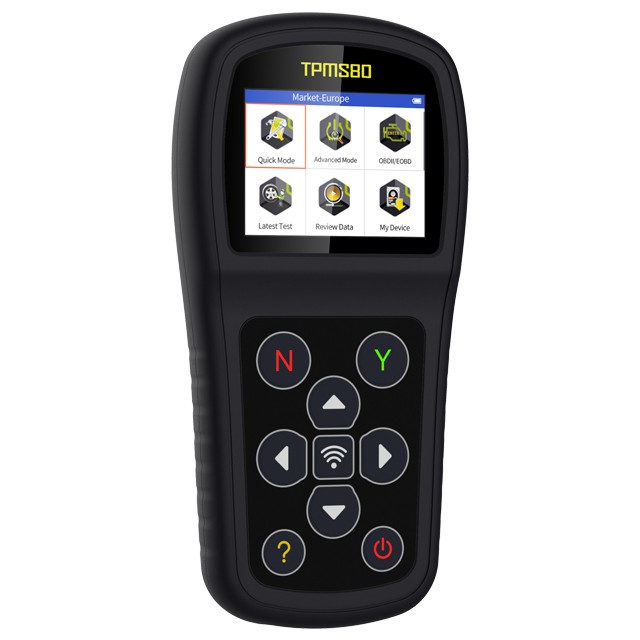

CGsulit TPMS80 - CGsulit 2021 Newest TPMS Tool

CGsulit TPMS80 is a new generation TPMS diagnostic & programming tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program TS01-sensors ,CGsulit TS01 sensor and conduct TPMS relearn. With Quick/Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work.

Features:

1. Quick & Advanced Modes for faster and smarter TPMS repairs, you can save time and energy by choosing the most suitable way to complete TPMS work.
2. Receives both 315MHz and 433MHz signals
3. Reads / clears codes of TPMS system and resets malfunction indicator light

4. Reads / writes sensor ID from vehicle ECU
5. Reads activated sensor data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information
6. Reads, records and playbacks TPMS live data, including tire pressure, signal status, temperature, battery status, etc.
7. Retrieves TPMS ECU information
8. Performs actuation tests and special functions
9. Built-in rechargeable Li-polymer battery
10. On-screen code definitions
11. Programs vehicle ECU to learn sensor IDs and positions
12. Capable of programming single tires for many cars
13.Incredibly easy to use with navigation and step-by-step on-screen instructions
14. Checks Remote Keyless Entry (Key FOB) for transmissions
15. Graphs vehicle with 4 or 5 wheels to simplify the diagnostic process
16. Pre-selection process offers faster activation and diagnostics
17. Provides visual and audible responses to confirm sensors are working properly
18. Automatic power-off to preserve battery life
19. Proper LF signal to prevent being fooled by other RF signals
20. Ergonomic design features strong housing and protective rubber boot
21. Free update on the internet via USB port
22.OBD2 connector to enable users to program sensors by “Copy by OBD” and relearn sensors via “OBD Relearn”.

Note: Multi-Lingual Menu.

Support language: English, French,Spanish.

CGsulit TPMS80 comes with multi-lingual menu. To change the default English menu, please send us the Serial Number(12 digits at the back of the product) for language authorization.

3 Ways of TPMS Sensors Relearn

CGsulit TPMS80 TPMS Relearn Tool can relearn all known sensors (both OEM and aftermarket) on TPMS enabled vehicles(American, European and Asian) to the vehicle’s ECU. It can perform 3 ways of TPMS sensors relearning:

Stationary Relearn: Requires the vehicle be placed in the “Learn Mode”.

Automatic Relearn: For some vehicles, can be completed by driving.

OBD Relearn: Directly writes TPMS sensor IDs to the TPMS module via the OBD connector.

1 Copy by Activation

2 Copy by Manual Input

3 Auto Create 1-16 Sensors

4 Modes to Program CGsulit TS01

CGsulit TPMS80 TPMS sensor programmer tool can program all CGsulit TS01 sensors , both 315MHz and 433MHz to replace the broken sensors. TPMS80 comes with 4 modes to program CGsulit TS01 sensors:

Copy by OBD needs to connect OBD cable to retrieve the sensor ID from the ECU.

Copy by Activation requires activate the original sensors first.

Copy by Manual Input can manually input the original ID.

Auto Create 1-16 Sensors makes it possible to program up to 16 sensors simultaneously.

Note:

CGsulit TPMS80 can program CGsulit TS01 sensors and Autel MX-sensors , does NOT program OEM sensors.

Activate/Reset All Known TPMS Sensors & Read/Clear TPMS DTCs

CGsulit TPMS80 TPMS activation tool can activate all known TPMS sensors (both OEM and aftermarket sensors) to view sensor data like sensor ID, tire pressure, tire temperature, battery power level condition, and sensor position and etc.

TPMS Diagnose & Unique TPMS System Status Screen

With unique TPMS Status Screen feature, CGsulit TPMS80 Reset Tool can diagnose the TPMS system to read and clear TPMS DTCs, view DTCs detail description, read ECU sensor ID, and check sensor ID and ECU ID matching conditions, to check all TPMS sensors status. It’s quick and easy to locate the faulty sensors and get it fixed.

NOTE: Activate all TPMS sensors before TPMS Diagnose.

Supported Car Brands

For ABARTH, for Acuba, for Alfa Romeo, For Alpina, for Aston Martin, for Audi,for Bentley, for BMW, for Bugatti, for Buick, for BYD, for Cadillac, for ChangAn, for Chery, for Chevrolet, for Chrysler, for Citroen, for Dacia, for Daewoo, for Dodge, for Ferrar, for Fiat, for Ford, for Foton, for Geely, for GMC, for GreatWall, for Haval, for Holden, for Honda, for HSV, for Hummer, for Hyundai, for Infiniti, for ISUZU, for JAC, for Jaguar, for Jeep, for Junpai, for KIA, for Lada, for Lamborghin, for Lancia, for LandRover, for Lexus, for Lifan, for Lincol, for Lotus, for Mahindra, for Maserati, for Maybach, for Mazda, for McLaren, for Mercedes Benz, for Mercury, for MG, for Mini, for Mitsubishi, for Nissan, for Oldsmobile, for Opel, for Peugeot, for Plymouth, for Pontia, for Porsche, for Renault, for Rolls-Royce, for SAAB, for Samsun, for Saturn, for Scion, for Skoda, for Smart, for SsangYong, for Subaru, for Suzuki, for Tesla, for Toyota, for Venucia, for Volvo, for VPG, for VW.

CGsulit TPMS80  Specifications

Packing List:
