    Orange5 Orange 5 Super PRO V1.38 Programming Tool with Full Adapter for Airbag Dash Modules Fully Activated

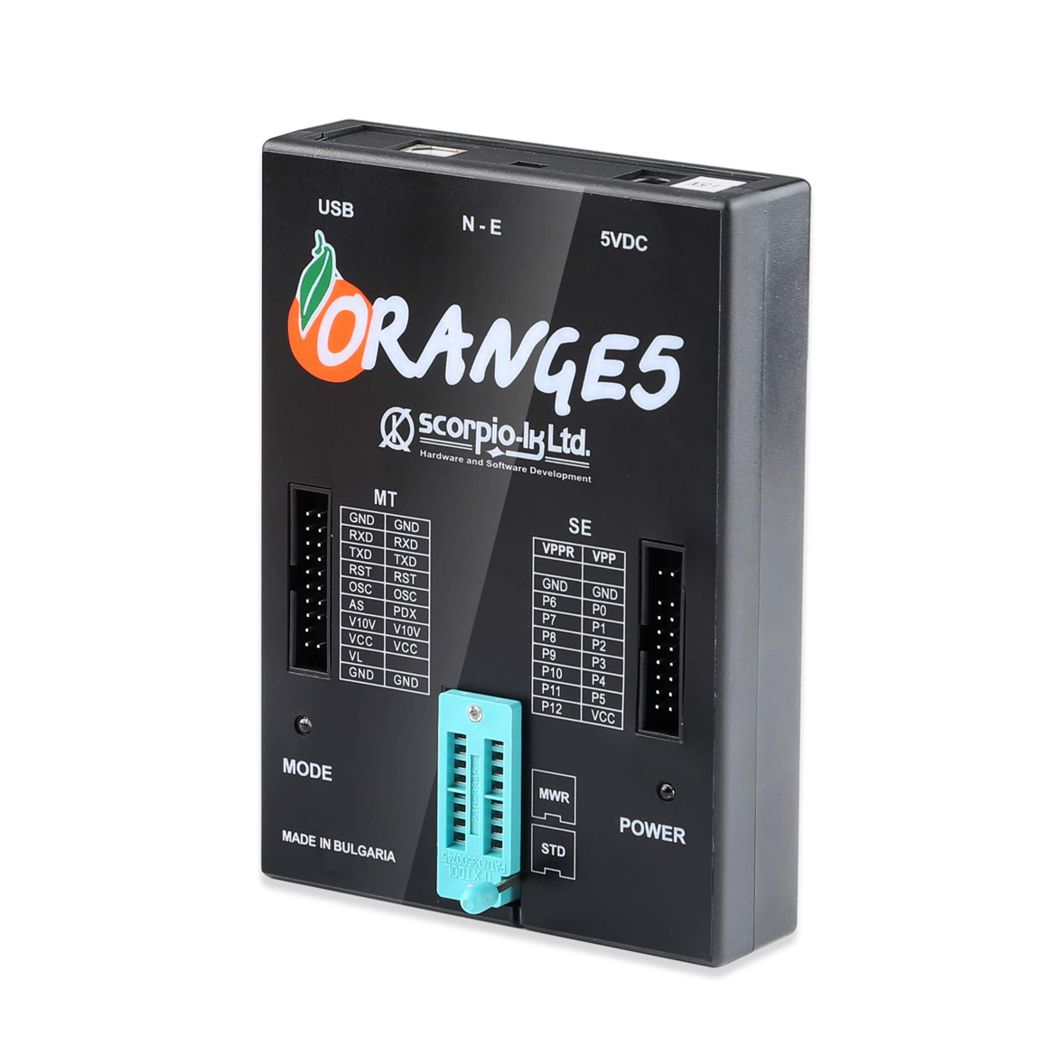

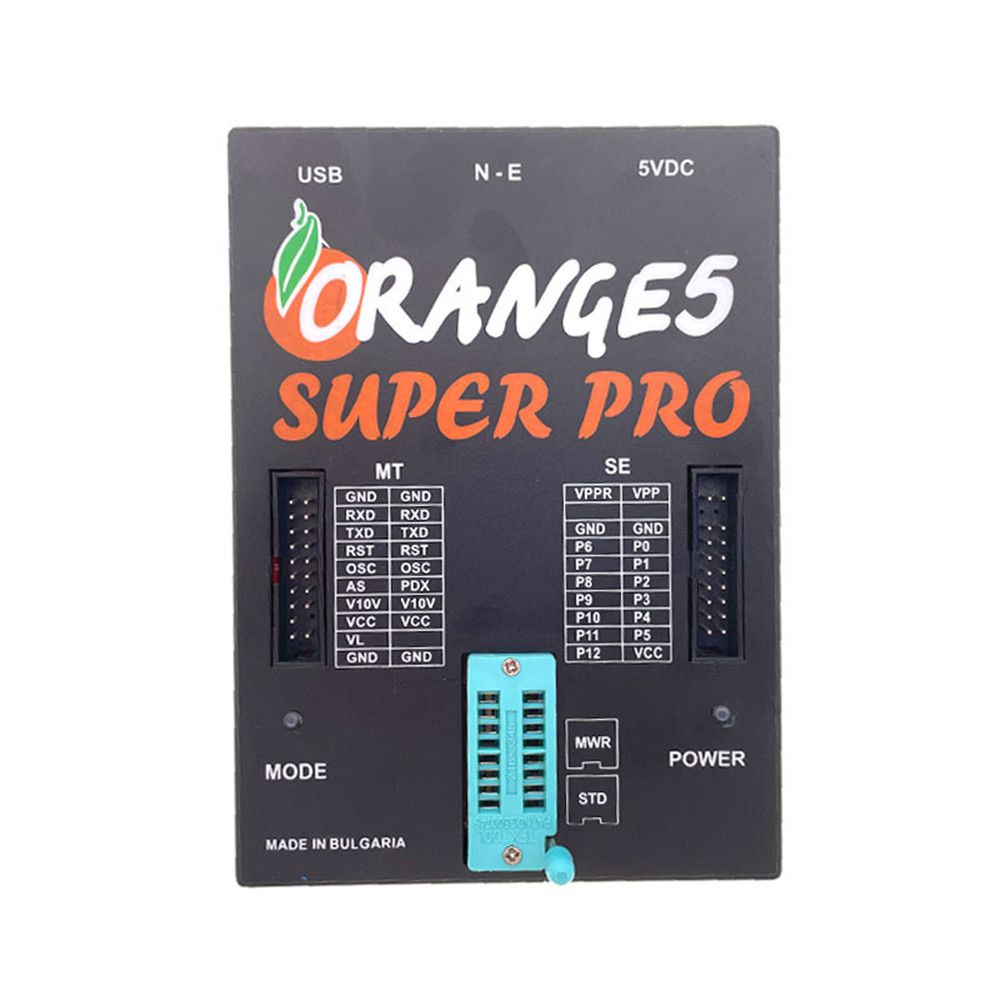

    What is Orange5 Super Pro?


    A professional programming device for memory and microcontrollers. A unique feature of the current series of programmers is a built-in macro language for writing down protocols, which gives the fast and easy capability to add new types of micro schemes, precisely meeting manufacturers' requirements to read/write algorithms.


    Orange5 Highlights :

    1. Adds new licenses : 08-airbag and 09-dashboard, A-car radio, B-airbag, C- immo&pin, D-car mileage, E-motorbike mileage, F- dash tractor



    2. Adds more Renesas licenses for H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78 than others



    3. Without USB Dongle, V1.38 Orange5 can use airbag and dashboard moudels.






    Software Licenses:

    MTRK (Included in Orange-5 base)
    TMS (Included in Orange-5 base)
    M08V NEW
    Immo HPX 9V0
    NEC V850ES/SJ3 V850ES/SG3  UART
    NEC V850E2 NEW



    New license:

    MCU ( Infineon,ST and MicroChip)
    Renesas: H8SX,HD64F,V850 UART,V850 SPI,RH850 V3,RL78
    Special_05
    AIRBAG
    Dash
    Fujitsu
    F-DASH Tractor
    EEPROM
    A/B/C/D/E moudels


    The differences between orange 5 super pro and orange 5 plus:

    More chip models than others in Infineon, ST, and MicroChip of MCU, as shown in the figure:


    2-MCU,SUPER PRO has 11 mudels more than orange 5 plus




    Microchip add more 30 models :


    Renesas:
    More licenses for H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78 than others



    Orange5 plus: Although there are 14 models, only the 10 modules in the red frame can work
    Orange5 super pro: Our 17 models have activated the license and can be used normally, more than others, such as H8SX, V850 UART, V850 SPI, RH850, etc.
    Special_05: We guarantee that everything displayed can be used, no fake stuff, so we will not show this module option in the file we send to customers




    Our greatest advantages:
    AIRBAG: 2020 database, 70 car brands, mostly with help files (wiring diagrams, etc.)




    Dash: 2020 database, 70 car brands, including cars, trucks, motorcycles, snowmobiles, tractors, construction machinery, etc., and most of them have help files such as wiring diagrams



    Orange5 Technical Info:

    * USB power supply (USB2.0/3.0)

    * Universal easy to plug panel ZIF16 for EEPROM

    * Control of contacts in the sockets

    * Two expansions compatible with Orange4 and Omega MTRK

    * Protection against overcurrent

    * Overload voltage protection

    * Two types of power supply: Standart (USB) and enhanced (USB + external power supply)

    * Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers

    * High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)

    * Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment

    * Capability of functional emulation of class CDC USB devices

    * Built-in 32-bit virtual machine

    * Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)

    * Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]

    - Installation and Work with Orange-5 under Windwos 7 and Windows 8.1

    CnCterm - Terminal program for work with COM ports.


    Feature:

    Supports any COM ports, including virtual ones from 1 to 20
    Works with text (ASCII) and HEX mode
    Creating a list of commands that allows editing and fast sending
    Fine-tuning the exchange rate
    Saving files including command and port settings.
    Saving incoming data in binary files
    File transfer via serial port.
    Delay settings for bytes and blocks
    "Echo" mode
    Delay settings between incoming data
    Management of DTR, RTS chains, visualizing DSR, CTS, CD, RI
    The program doesn't need to be installed
    Supports Orange5 programmer in emulation mode.





    Orange5 Programmer Chip List:

    Immo HPX 9V0
    EEPROM:

    MicroWire,4Wire,Adesto,AKM,Altera,Amic,Atmel,BOSCH,Catalyst,Chingis,Dallas/Maxim,EON,ESMT,EXEL,Fairchild,Fujitsu,GI,GigaDevice,Grundig,

    HOLTEK,Hynix,ITT,KHIC,Macronix,MicroChip,Micron,for Mitsubishi,for Motorola,NEC,NSC,Numonyx,OKI,PCT,Philips,Pioneer,PMC,Ramtron,Rohm,Samsung,Seiko,for Siemens,Sony,Spansion,SST,ST,Winbond,Xicor,XUSSR,YMC,MCU,Atmel,Infineon,MediaTek,MicroChip,Nordic,NSC,Philips,for Renesas,for Samsung,SiLabs,ST,TI,for Motorola, for Freescale,MC68HC11,MC68HC12

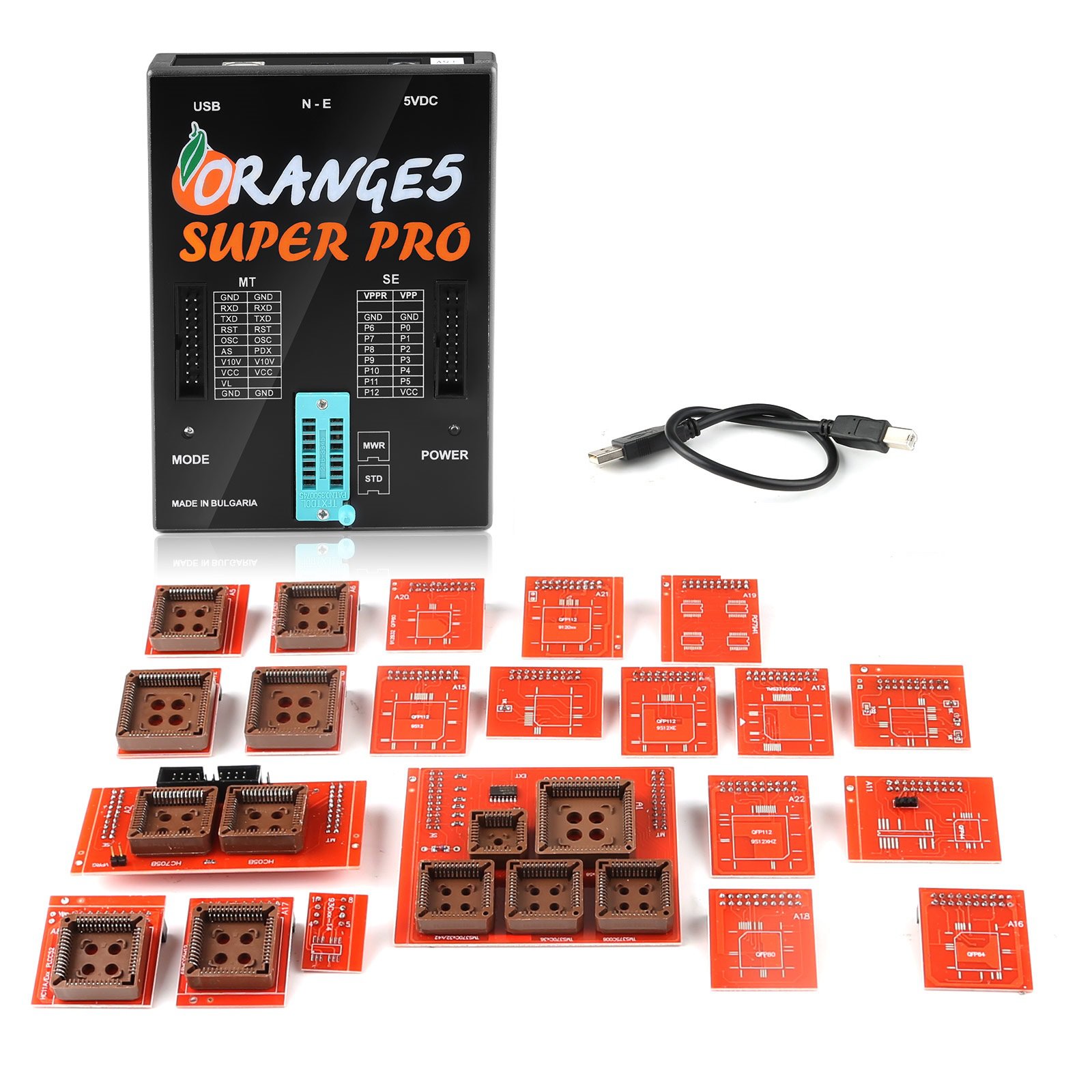

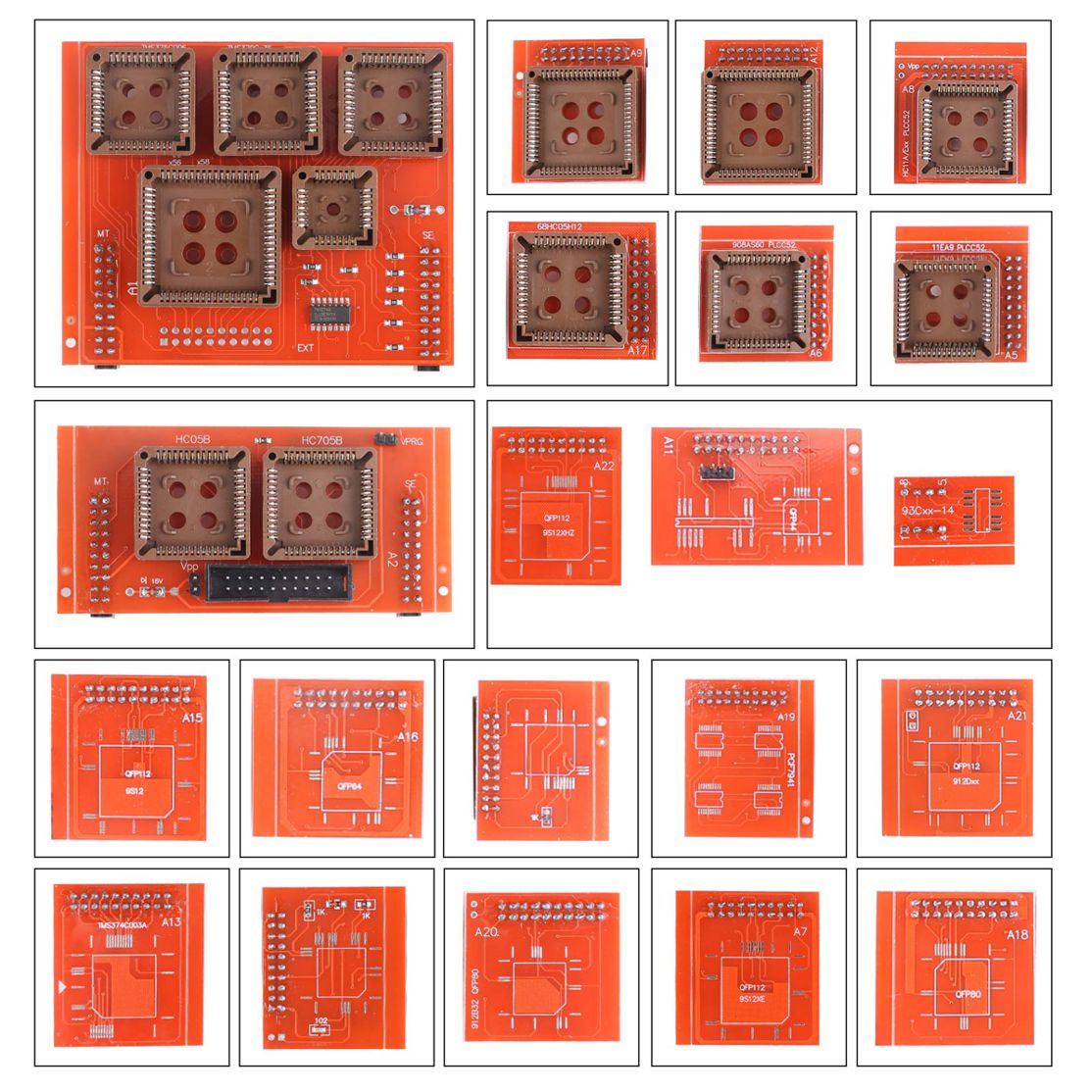

    Packing List

    1   x Orange 5 super pro Programmer
    1   x TMS375C006/TMS370CX36/TMS370CX32/X42    A1
    1   x HC05B/HC705B   A2
    1   x Adapter 11EA9/PLCC52 A5
    1   x Adapter 908AS60 PLCC52 A6
    1   x Adapter QFP112/9S12XE  QFP80/9S12XE/9S12XS  A7
    1   x HC11A/EXX PLCC52  A8
    1   x Adapter HC11F1  A9
    1   x Adapter 908AS60/AZ60 QFP64   A10
    1   x 705E6/705P3/05P3 A11
    1   x Adapter 68HC11L6 A12
    1   x Adapter TMS374C003A A13
    1   x Adapter 05B/X_705B/X QFP64 V2  A14
    1   x Adapter QFP112/9S12 QFP80/9S12DXX A15
    1   x Adapter QFP64   A16
    1   x Adapter 68HC05H12  A17
    1   x Adapter QFP64/QFP80 A18
    1   x Adapter PCF7941 A19
    1   x Adapter 912B32 QFP80 A20
    1   x Adapter 912Dxx A21
    1   x Adapter 9S12HZ/QFP80 1  9S12XHZ /QFP112 A22
    1   x Adapter 93CXX-14

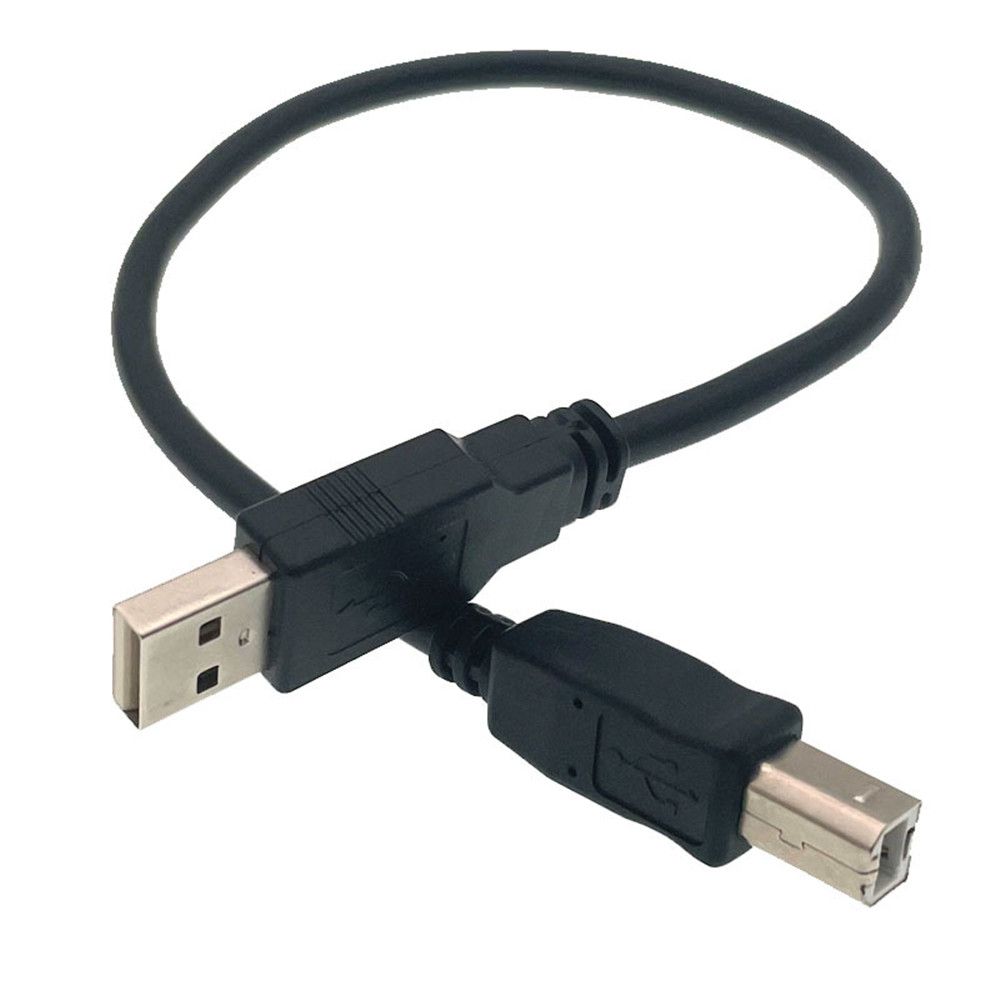

    1    x USB cable
