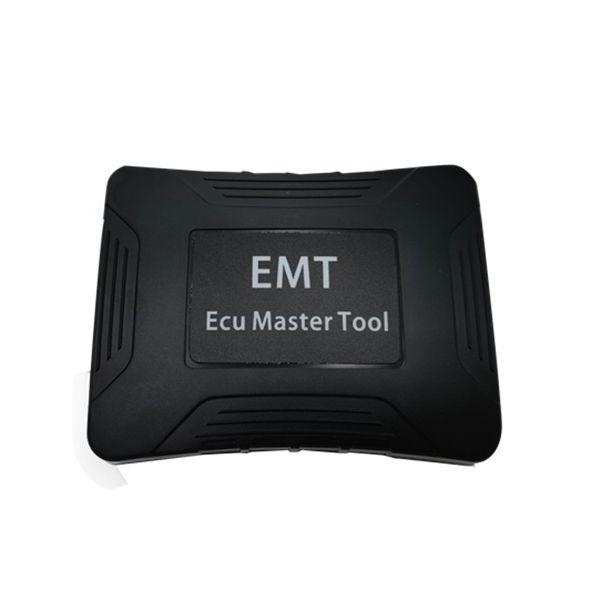

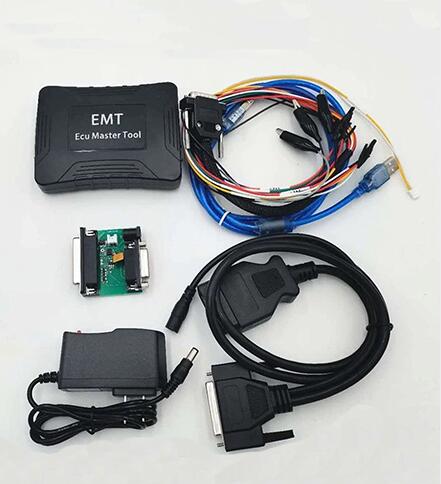

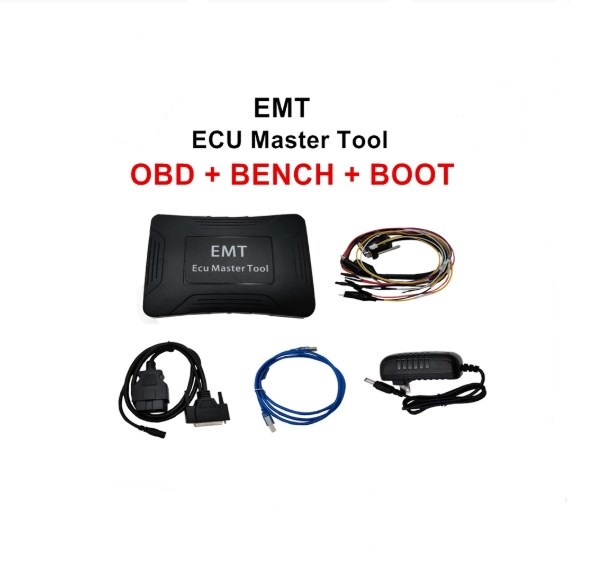

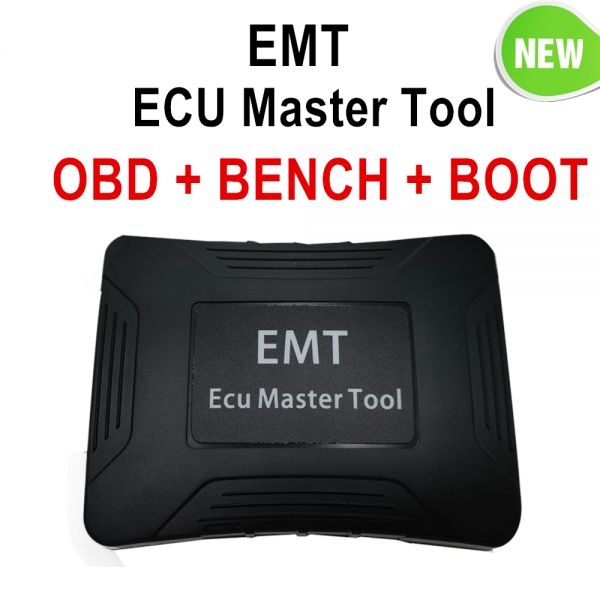

EMT ECU MASTER TOOL ECU Programmer Upgrade version of KTMOBD KTMFLASH KT-M-Bench Multi-Flasher

EMT(ECU Master Tool) features:

1)EMT functions =KTM Bench V1.20 + KTMOBD V1.20 + Multi Flasher + Module14 / 21 / 26 / 33 / 47 / 62 / 63 / 72;

2) it is the update version of KTM BENCH/KTMOBD/KTM FLASH/Multi Flasher.

3) EMT includes all the functions of KTM BENCH V1.20, KTMOBD V1.20 /KTM FLASH V1.95.

4) Only EMT support those modules:  Module14 / 21 / 26 / 33 / 47 / 62 / 63 / 72 .

5) EMT don't support some ECU of KTMOBD v1.95(please check the end of the product specification).

EMT ECU Master Tool is only can be installed in Windows system.

EMT ECU Master Tool is a professional multibrand scanner designed for diagnostics of electronic control systems of American, European, Japanese and Russian vehicles. It can be used as a J2534 device with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.

Description

When installing the driver (included) works with third-party software made for SAE J2534 and RP1210 standards. To connect to the adapter both USB and Bluetooth interfaces can be used (built into the Scanmatik 2 PRO adapter). The kit includes the full current version of the program (all currently available software modules): VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2. It works with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.

EMT ECU Master Tool: Adapter Specifications

1.Interfaces for communication with PC  - USB or Bluetooth;
2.Power supply voltage: 5... 36V from the vehicle network or USB (galvanic isolation with power supply);
3.Current consumption, not more than 350mA;
4.Pulsed power supplies of the company's own design (no heating, wide input voltage range from 5 to 55V);
6.Load-Dump power surge protection (when the generator is switched off on a running engine).

7.Supported data buses:
13 x ISO-9141/ISO-14230 (K-LINE);
1 x J1850VPW;
1 x J1850PWM;
4 x CAN;
1 x Single Wire CAN.

8.Built-in multiplexer for switching diagnostic lines;
9.The widest support of J2534-1/2 standards;
10.Programming voltage supply (5-24V) to the OBD2 connector pins: 6, 8, 11, 12, 13, 14;

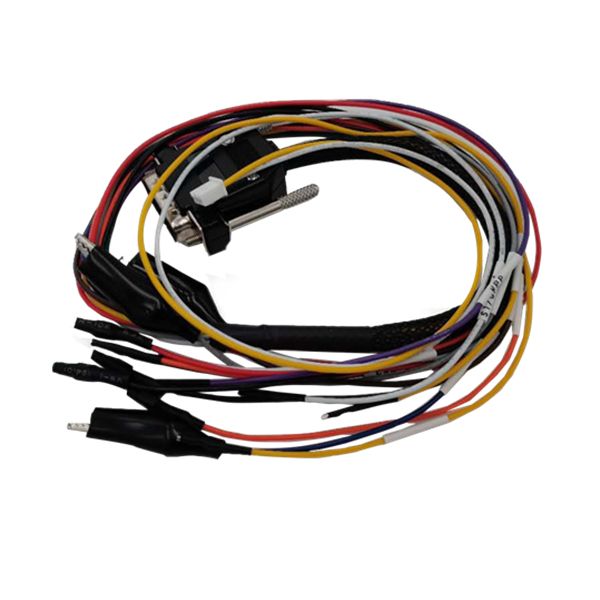

11.AUX programming voltage output (via an additional cable);
12.Bluetooth range, not less than: 10m (Class 2);

New features of EMT ECU Master Tool:

1.Galvanic isolation of the USB port (with power);
2.Redesigned protection of K-lines and CAN buses on a new element base;
3.Increased speed of work via Bluetooth by about 20%;
4.Pulsed power supplies of the company's own design (no heating, wide input voltage range from 5 to 55V);
5.Load-Dump power surge protection (when the generator is switched off on a running engine).

ECU list of EMT ECU Master Tool:

Module 12

Honda/Acura CAN-bus

Honda: Honda PGM-FI Generic Read-Only

Honda: Honda AT/CVT/DCT Generic Read-Only

PGM-FI (Keihin SH7058/1MB)

PGM-FI (Keihin SH72543/2MB)

PGM-FI (Keihin SH72546/3.75MB)

PGM-FI (Keihin MPC5566/3MB)

PGM-FI (Keihin TC1782/2.5MB)

AT/CVT/DCT (Keihin 512KB)

AT/CVT/DCT (Keihin 1MB)

PGM-FI (Matsushita SH7058/1MB)

PGM-FI (Matsushita SH72543/2MB)

PGM-FI 2013+ (Matsushita SH72543/2MB) (Test)

PGM-FI (Panasonic TC179X/4MB)

AT/CVT/DCT (Matsushita 512KB) (Test)

Honda: PGM-FI (Continental MPC5554/2MB)

PGM-FI (Hitachi SH7058/1MB) (Test)

PGM-FI (Hitachi SH7059/1.5MB) (Test)

PGM-FI (Hitachi SH72543/2MB)

PGM-FI (Hitachi MPC5554/2MB) (Test)

AT/CVT/DCT (Hitachi SH72531/1280KB)

AT/CVT/DCT (Hitachi SH725x3/2048KB)

Reading, writing, checksum correction.

Module 13

Honda/Acura K-Line

Honda: Accord 7 2003-2005 (Matsushita RBA/RBB SH7055/512KB)

Honda: Accord 7 2006-2007/TSX 2004-2005 (Matsushita RBA/RBB SH7055/512KB)

Acura: TSX 2006 (Matsushita RBB A56-A62 SH7058/1MB)

Honda: Accord/CR-V/Element/Legend/Odyssey/Ridgeline (Keihin SH7058/1MB)

Honda: Element/Inspire (Keihin SH7055/512KB)

Honda: Legend/Acura TL 2005-2007 (Keihin RJA SH7058/1MB)

Honda: CR-V 2002/2005-2007 (Keihin PPA/PNL SH7058/1MB)

Honda: Fit/Jazz/Airwave 2001-2007 (Keihin OKI ML66Q592/192KB)

Acura: MDX 2003-2007 (Motorola RDJ SH7055/512KB)

Honda: Accord 7 USA (Motorola RCA SH7055/512KB SH7058/1024K)

Only writing, checksum correction. Stock files database included!

Module 14

Petrol engines 1.6L, 2.0L, 2.3L, 2.5L Ford Mondeo 4

Ford Mondeo 4: 1.6L Sigma Ti-VCT 110/125PS (EMS2101)

Ford Mondeo 4: 2.0L Duratec HE (ESU312 Galaxy/S-Max 2006)

Ford Mondeo 4: 2.0L, 2.3L Duratec HE (ESU412/415)

Reading, writing, checksum correction.

Ford Mondeo 4: 2.5L Duratec I5 225PS (ME9.0)

Only writing, checksum correction. VBF writing and VBF to BIN conversion is supported!

Module 19

Kia/Hyundai

Kia/Hyundai: 1.4L, 1.6L (M(G)7.9.8)

Kia/Hyundai: 1.1L-1.6L (M(G)7.9.7)

Only writing, checksum correction.

Kia/Hyundai: 1.4L, 1.6L (ME17.9.11/12/13)

Kia/Hyundai: 1.4L, 1.6L (ME(G)17.9.21)

Kia/Hyundai: 1.6L, 3.0L (ME17.9.2/ME(D)(G)17.9.8)

Reading, writing, checksum correction.

Module 20

Ford Focus 2/Fiesta/Fusion (automatic transfer for VID area)

Ford Focus 2: 1.4L, 1.6L Duratec 85/100/115PS (SIM28/29)

Ford Focus 2: 1.8L, 2.0L Duratec HE 125/145PS (ESU131/411/418)

Ford Focus 2: 1.8L, 2.0L Duratorq Lynx/DW10C (SID202/SID206)

Ford Fiesta/Fusion: 1.4L, 1.6L Duratec 85/100PS (SIM210)

Ford Focus 2 ST: 2.5L Duratec I5 225PS (ME9.0)

Reading, writing, checksum correction.

Ford Kuga 1: 2.5L Duratec I5 200PS (ME9.0)

Writing, checksum correction.

Module 21

Ford USA (automatic transfer for VID area)

Mazda6 3.0L AJ 2003-2005

Escape, Explorer, Mazda CX9 -2009 (PCM150F)

Explorer, Mazda CX9 2010-2011/2012 (M799G)

Focus 2008-2011 (GreenOak/PCM190)

Escape, Mariner, Tribute 2009-2011 (9L8A)

Ford F350 6.0L (BlackOak/PCM122/448KB)

Expedition, Navigator 5.4L (Bosch ME9.8/2048KB)

F-150 5.4L (Bosch MEG9.8.1/2536KB)

Reading, writing, checksum correction

Mustang 2005-2009 (PCM170F)

Reading, writing.

Module 26

Mitsubishi Diesel CAN-bus

Denso Diesel (SH7058/SH7058S/1MB)

Reading, writing, checksum correction.

Module 29

Ford PWM (Ford VCM2 or Scanmatik is required)

Mondeo 3 1.8L, 2.0L, 2.5L, 3.0L Duratec HE (LEVANTA)

EEC-V 216K (EEC-V)

3.0L, 4.0L, 4.6L Duratec V6/V8 (PCM150)

Reading, writing, checksum correction

1.8L, 2.0L, 2.2L Duratorq TDCi (Visteon)

1.8L, 2.0L, 2.2L Duratorq TDCi (Delphi)

Reading, writing

Module 30

Kia/Hyundai SIM2K

2.0L, 2.4L (SIM2K-140)

2.0L, 2.5L (SIM2K-D160)

2.0L, 2.4L (SIM2K-141/142/341)

2.0L (SIM2K-C201)

2.0L, 2.0T (SIM2K-240/241/242/245)

Reading, writing, checksum correction.

Module 32

Ford Focus 3 2015, Ford Explorer 2016, Ford Kuga 2 2017

Ford Fiesta: 1.0L Ecoboost GTDI 100/125PS [C1BA] (MED17)

Ford Focus 3 2015: 1.0L Ecoboost 2015+ GTDI 100/125PS [DA6A] (MED17)

Ford Focus 3 2015: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511)

Ford Kuga 2 2017: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511)

Ford Explorer 2016: 3.5L Cyclone V6 Ti-VCT 249/294PS (2016)

Ford Mondeo 5: 1.5L Ecoboost GTDI MT 150/180PS (MED17)

Ford Mondeo 5: 2.5L Duratec Ti-VCT 150/171PS [GV6A] (EMS24XX)

Reading, writing, checksum correction.

Module 33

Ford EcoSport/Fiesta 2015+

2.0L Duratec HE 140PS (IAW 7GFR.HR)

Reading, writing, checksum correction.

1.6L Sigma Ti-VCT 85/105/110/122PS (EMS2211)

1.6L Sigma Ti-VCT USA [C1BA] (EMS2214)

Writing, checksum correction.

Module 34

Kia/Hyundai EDC15/EDC16

2.0L, 2.5L CRDI K-Line (EDC15C7)

2.0L, 2.2L, 2.5L CRDI K-Line Calibration (EDC16C39)

3.0L CRDI K-Line Calibration (EDC16CP34)

Reading, writing, checksum correction.

2.0L, 2.2L, 2.5L CRDI (EDC16C39)

3.0L CRDI (EDC16CP34)

Writing, checksum correction.

Module 35

Toyota/Lexus/Scion/Hino

76F0038/39/40/70/85, MPC565/SH72512/SH72544 CAN-bus

76F0038/39/40/50/70/85 GearBox CAN-bus

76F0038/39/40/50/70/85 HV Control CAN-bus

76F0004/23/38/39/40/70/85, MPC565 K-Line

Writing, checksum correction.

Module 36

Kia/Hyundai EDC17

1.6L, 2.0L CRDI (EDC17C08/TPROT3)

2.0L, 2.2L CRDI (EDC17CP14/TPROT3)

2.0L, 2.2L CRDI (EDC17CP14/TPROT11)

1.6L, 2.0L CRDI (EDC17C53)

2.2L CRDI (EDC17C57) (after unlocking with Module 53 or 71)

Reading, writing, checksum correction.

Module 40

Kia/Hyundai SIMK

2.0L, 2.7L K-Line (SIMK-41/43)

2.0L, 2.4L CAN (SIMK-43/SIM2K-47)

Reading, writing, checksum correction.

Module 42

Denso SH705X Bootloader

SH7055/SH7058(S)/SH7059 FLASH (512KB/1024KB/1536KB)

Reading, writing, checksum correction.

Mazda3 Z6 -2009 SH7055/SH7058 EEPROM (56)

Mitsubishi/Nissan/Subaru Diesel SH7058(S)/SH7059 EEPROM (86)

Subaru Metal-Case SH7055/SH7058 EEPROM (56)

Subaru Plastic-Case SH7058 EEPROM (86)

Subaru Plastic-Case SH7058S EEPROM (56)

Subaru Plastic-Case SH7058S EEPROM (86)

Suzuki Liana/Jimny SH7055 EEPROM (56)

Suzuki SH7055/SH7058 EEPROM (56)

Suzuki SH7058S EEPROM (56)

Volvo SH7058 EEPROM (56)

Opel 1.7L CDTI SH7058/SH7059 EEPROM (86)

Reading, writing.

Module 46

Toyota/Lexus/Scion/Hino 2 Generarion

76F0196/198/199/219 CAN-bus

Writing, checksum correction.

76F0196/198/199/219 P5-CAN-bus

76F0199 GearBox P5-CAN-bus

Reading, writing, checksum correction.

Module 47

Mitsubishi Gearbox CAN-bus

CVT Lancer X/ASX 1.8/2.0L, Outlander XL/3 2.0/2.4L (MH8104F/512KB MH8106F/1MB)

AT Pajero Sport (2010-), Lancer X 1.5/1.6L (MH8102F/512KB)

AT Outlander XL 3.0L (MH8104F/512KB)

Reading, writing.

TC-SST Getrag 6DCT470

Getrag 6DCT470 Boot (MICRO)

Getrag 6DCT470 Boot (EEPROM

Reading, writing, checksum correction.

Module 52

Kia/Hyundai Delphi MT38/86

2.7L, 3.3L, 3.8L (MT38/CAN)

Writing, checksum correction.

2.7L, 3.3L (MT38/K-Line)

2.7L, 3.3L, 3.8L (MT38/BSL)

3.3L, 3.8L, 5.0L (MT86)

Reading, writing, checksum correction.

Module 53

Infineon Tricore BSL

TC1762/TC1766 MICRO (1504KB)

TC1762/TC1766 EEPROM (32KB)

TC1792/TC1796 MICRO (2048KB)

TC1796 MICRO+EXT (4096KB/6144KB)

TC1796 EXT (2048KB/4096KB)

TC1792 EEPROM (64KB)

TC1796 EEPROM (128KB)

TC1738/TC1767 MICRO (2048KB)

TC1738/TC1767 EEPROM (64KB)

TC1797 MICRO (4096KB)

TC1797 EEPROM (64KB)

TC1797 MICRO+EXT (6144KB/8192KB)

TC1797 EXT (2048KB/4096KB)

TC1724/TC1728 MICRO (1536KB)

TC1724/TC1728 EEPROM (64KB)

TC1782/TC1784 MICRO (2560KB)

TC1782/TC1784 EEPROM (128KB)

TC1791/TC1793 MICRO (4096KB)

TC1791/TC1793 EEPROM (192KB)

TC1791/TC1793 MICRO+EXT (6144KB/8192KB)

TC1791/TC1793 EXT (2048KB/4096KB)

Delphi MT86 EEPROM (16KB)

Delphi CRD3.1 EEPROM (32KB)

Bosch, Siemens/Continental, Delphi ECUs, etc. Reading, writing, checksum correction for most ECUs.

Possible password reading for SIM2K-24x, Ford EMS22XX, Ford SID20X, Bosch, Bosch GPT, etc.

Module 54

Delphi DCM3.7/AP (SH72513/72543/72544)

Kia/Hyundai 2.5L CRDI (DCM3.7AP)

Opel/Chevrolet 2.0L, 2.2L CDTI (DCM3.7)

SsangYong 2.0L XDI (DCM3.7AP)

VAG 1.2L TDI (DCM3.7)

Great Wall/Haval 2.0L TD (DCM3.7)

Reading, writing, checksum correction.

Module 55

Kia/Hyundai Kefico/Denso

Kia/Hyundai 2.5L CRDI (SH72546)

Reading, writing, checksum correction.

Module 57

SIMOS 8/10/11/PCR2.1

2.8L V6 FSI (SIMOS8.1)

3.2L V6 FSI (SIMOS8.2)

Reading, writing, checksum correction.

3.0L V6 TFSI (SIMOS8.3)

3.0L V6 TFSI (SIMOS8.4)

3.0L V6 TFSI (SIMOS8.5)

Virtual reading, writing, checksum correction.

2.8L V6 FSI (SIMOS8.6)

Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)

SIMOS8.6 (EEPROM/UNLOCK/BSL)

Reading, writing (EEPROM reading/writing, ECU unlocking)

1.2L TSI (SIMOS10)

1.2L MPI (SIMOS11)

Virtual reading, reading, writing, checksum correction.

1.6L TDI (PCR2.1)

Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)

PCR2.1 (EEPROM/UNLOCK/BSL)

Reading, writing (EEPROM reading/writing, ECU unlocking).

Module 58

VAG DSG/CVT

DQ200MQB/G2 (0CW)

DQ250MQB (0D9)

VL381/DL382 (0AW/0CK)

DL501/G2 (0B5)

DQ200 (0AM)

DQ250E/F (02E)

VL300/V30 (01J/0AN)

Writing, checksum correction

DQ200/MQB/G2 Boot (EEPROM)

DQ250E/F/MQB Boot (EEPROM)

DL501/G2 Boot (EEPROM)

VL381 Boot (EEPROM)

DL382 Boot (EEPROM)

Reading, writing

DQ200/MQB/G2 Boot (MICRO)

DQ250E/F/MQB Boot (MICRO)

VL381 Boot (MICRO)

DL501/G2 Boot (MICRO)

DQ500 (0BH/0BT)

VL300/V30 BSL (FLASH)

VL300/V30 BSL (EEPROM)

DQ250C (02E)

DL382 Boot (MICRO)

Reading, writing, checksum correction.

Module 61

Kia/Hyundai CPGDSH/CPEGD

1.6L (CPGDSH2.24.1/CPEGD2.20.1/UDS

Reading, writing, checksum correction.

Module 62

Ford/Getrag 6DCT450

PowerShift TCM (6DCT450)

PowerShift 6DCT450 Boot (MICRO)

PowerShift 6DCT450 Boot (EEPROM)

Reading, writing.

Module 63

Renault DC4

EDC DC4 Gearbox (TC1766/1506KB)

Reading, writing, checksum correction.

Module 66

Honda Bosch

PGM-FI (Bosch EDC17CP06/EDC17CP16/2MB)

Writing, checksum correction.

PGM-FI (Bosch EDC17CP50/4MB) [Unlocked]

PGM-FI (Bosch EDC17C58/4MB) [Unlocked]

PGM-FI (Bosch EDC17C72/2.5MB) [Unlocked]

PGM-FI (Bosch MED17.9.3/4MB) [Unlocked]

PGM-FI (Bosch ME17.9.55/1.5MB) [Unlocked]

Writing after unlocking with Module 53 or 71, checksum correction.

Module 71

Bosch MEDC17 Bootloader

MEDC17 (TC1762/1766/1792/1796)

MEDC17 (TC1724/1728/1767/1782/1784/1797)

MEDC17 (TC1791/1793) FLASH

Reading, writing, checksum correction.

MEDC17 (TC1762/1766/1792/1796) EEPROM

MEDC17 (TC1724/1728/1767/1782/1784/1797) EEPROM

MEDC17 (TC1791/1793) EEPROM

Reading, writing.

MEDC17 BSL PASSWORD

Reading.

Module 72

Mazda Gen 4

1.5L, 2.0L, 2.5L SKYACTIV-G P5/PA/PE/PY MY2019 (Mitsubishi) [PYFA]

1.5L, 2.0L, 2.5L SKYACTIV-G P5/PA/PE/PY MY2019 (Denso) [PYFB]

Reading, writing, checksum correction.

Module 73

Ford MG1

Ford F-150: 3.5L Ecoboost V6 (MG1CS015) [HL3A]

Ford Fiesta 8: 1.5L Ecoboost MT (MG1CS016) [JX6A]

Ford Focus 4: 1.0L, 1.5L Ecoboost MT (MG1CS016) [JX6A]

Ford Focus 4: 1.5L Ecoboost AT (MG1CS017) [JX6A]

Ford Mustang 6: 2.3L Ecoboost (MG1CS017) [JR3A]

Ford Mustang 6: 5.0L Coyote V8 (MG1CS019) [JR3A]

Reading, writing, checksum correction

Module 74

Toyota/Lexus Gen 3

R7F701202 P5-UDS

Reading, writing, checksum correctio

EMT don't support below ECU, but KTMOBD V1.95 Support:

Application version: 1.1.94
Ford Focus 3: 1.0L Ecoboost 2015+ GTDI 100/125PS [DA6A] (MED17) (permanent)
Ford Focus 3: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511) (permanent)
Ford Kuga 2: 1.6L Ecoboost GTDI AT 150/182PS (MEDG17) (permanent)
Ford Kuga 2: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511) (permanent)
Ford Kuga 2: 2.5L Duratec Ti-VCT 150/171PS (permanent)
Ford Kuga 2: 2.5L Duratec Ti-VCT MY2017 150/171PS [GV6A] (EMS24XX) (permanent)
Ford Mondeo 5: 2.0L Ecoboost GTDI 200PS (MEDG17) (permanent)
Ford Mondeo 5: 2.5L Duratec Ti-VCT 150/171PS (permanent)
Ford Explorer: 3.5L Ecoboost V6 GTDI 360PS (MEDG17) (permanent)
Ford Explorer: 3.5L Cyclone V6 Ti-VCT 249/294PS (2011) (permanent)
Ford Explorer: 3.5L Cyclone V6 Ti-VCT 249/294PS (2016) (permanent)
Ford F150/250/350: 6.2L Boss V8, 5.0L Coyote V8 (permanent)

Mazda: 1.6L Z6 AT (Mazda3 2003+/1MB) (permanent)
Mazda: 1.6L, 1.4L Z6/ZJ MT (Mazda3 2003+/512KB) (permanent)
Mazda: 1.3L ZJ (Mazda Demio 2003-/512KB) (permanent)
Mazda: 1.8L, 2.0L, 2.3L L8/LF/L3 (Mazda3/6/CX7 2004+/1MB) (permanent)
Mazda: 1.8L, 2.0L, 2.3L L8/LF/L3 (Mazda6 2003-2004/512KB) (permanent)
Mazda: 2.3L L3 USA (Mazda6 -2004/512KB) (permanent)
Mazda: 1.3L N3 (Mazda RX8 2003-/512KB) (permanent)
Mazda: 1.3L N3 (Mazda RX8 -2008/512KB) (permanent)
Mazda: 1.3L N3 (Mazda RX8 2009-2012/1MB) (permanent)
Mazda: 1.3L, 1.5L ZJ/ZY (Mazda2 2011+) (permanent)
Mazda: 1.5L ZY (Mazda2 US 2011+) (permanent)
Mazda: 1.6L Z6 (Mazda3 2010+) (permanent)
Mazda: 1.8L, 2.0L, 2.5L L8/LF/L5 (Mazda6 2008+) (permanent)
Mazda: 2.0L, 2.3L, 2.5L LF/L3/L5 (Mazda3/5/CX7 2010+) (permanent)
Mazda: 2.0L LF (Mazda Biante 2013+/2MB) (permanent)
Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5/PE/PY (Mazda3/CX5/6 Mitsubishi) (permanent)
Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5/PE/PY (Mazda3/CX5/6 Denso) (permanent)
Mazda: 2.5T SKYACTIV-G PY (Mazda CX9 Mitsubishi) (permanent)
Mazda: 2.2L SKYACTIV-D SH (Mazda3/CX5/6 Denso) (permanent)
Mazda: 1.6L Z6 (Mazda3 2013+ Denso) (permanent)
Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5/PE/PY (Mazda3/CX5/6 Denso Crypted) (permanent)
Mazda: 2.2L SKYACTIV-D SH (Mazda3/CX5/6 Denso Crypted 2MB) (permanent)
Mazda: 1.5L, 2.2L SKYACTIV-D S5/SH (Mazda2/3/CX5/6 Denso Crypted 3.75MB) (permanent)
Mazda: 1.6L Z6 (Mazda3 2013+ Denso Crypted) (permanent)

Nissan: EFI 705415N (Hitachi SH7054/384KB) (permanent)
Nissan: EFI 705507N (UJ/Hitachi SH7055/512KB) (permanent)
Nissan: EFI 705513N (Hitachi SH7055/512KB) (permanent)
Nissan: EFI 705520N (Hitachi SH7055/512KB) (permanent)
Nissan: EFI 705821N (Hitachi SH7058/1MB) (permanent)
Nissan: EFI 705823N (Hitachi SH7058/1MB) (permanent)
Nissan: EFI 705826N (Hitachi SH7058/1MB) (permanent)
Nissan: EFI 705524N (Almera Classic) (Hitachi SH7055/512KB) (permanent)
Nissan: EFI 705529N (Almera Classic) (Hitachi SH7055/512KB) (permanent)
Nissan: EFI Generic Read-Only (Hitachi) (permanent)
Nissan: EFI SH705519N (Hitachi SH7055/512KB) (permanent)
Nissan: EFI SH705822N, SH705828N (Hitachi SH7058/1MB) (permanent)
Nissan: EFI SH705927N (Hitachi SH7059/1.5MB) (permanent)
Nissan: EFI SH725331N (Hitachi SH72531/1.25MB) (permanent)
Nissan: EFI S7253332N (Hitachi SH72533/2MB) (permanent)
Nissan: EFI SH72533 Gen 2 (2014+) Calibration (Hitachi SH72533/2MB) (permanent)
Renault: Koleos/Latitude 2.5 SH705822N (Hitachi SH7058/1MB) (permanent)
Renault: Koleos 2 2.5L S7253332N (Hitachi SH72533/2MB) (permanent)
Renault: Samsung 1.6T (Hitachi SH72533/2MB) (permanent)
Renault: 1.5L dCi Delphi DCM 1.2 K-Line (ST10/512KB) (permanent)
Renault: 1.5L dCi Delphi DCM 1.2 CAN-bus (ST10/512KB) (permanent)
Renault: 1.5L dCi Delphi DCM 3.4 (SH7059/1536KB) (permanent)
Renault: 1.5L dCi SID 301/303/304 (MPC562/2MB) (permanent)
Renault: 1.5L dCi SID 305/306 (TC1766/1504KB) (permanent)
Renault: 1.5L dCi SID 307 (TC1767/2MB) (permanent)
Renault: Renault 2.3L dCi SID 309 (TC1767/2MB) (permanent)
Nissan: Nissan 2.3L dCi SID 309 (TC1767/2MB) (permanent)
Nissan: 1.2T EMS3155 UDS (TC1782/2.5MB) (permanent)
Nissan: 1.5L dCi SID309 UDS (TC1767/2MB) (permanent)
Subaru: Forester, Impreza, Legacy 1998-2002 K-Line (UJ WA12212920/128KB) (permanent)
Subaru: Forester, Impreza, Legacy 2000-2002 K-Line (UJ WA12212930/256KB) (permanent)
Subaru: Forester, Impreza, Legacy 2002-2005 K-Line (UJ/Hitachi WA12212940/384KB) (permanent)
Subaru: Forester, Impreza, Legacy 2002-2005 K-Line (UJ/Hitachi WA12212970/512KB) (permanent)
Subaru: Forester 2006, Impreza 2006-2007 K-Line (Hitachi WA12212970/512KB) (permanent)
Subaru: For 2007-2008, Imp 2008+, Leg 2006+ CAN (Hitachi WA12212970/512KB) (permanent)
Subaru: Forester 2009-2011/Legacy 2010-2011 K-Line (Hitachi SH7058/1MB) (permanent)
Subaru: Forester 2009-2011/Legacy 2010-2011 CAN (Hitachi SH7058/1MB) (permanent)
Subaru: Forester 2013+ CAN (Hitachi SH7059/1.5MB) (permanent)
Subaru: Forester 2013+ CAN (Hitachi SH72543/2MB) (permanent)
Subaru: 2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7055/512KB) (permanent)
Subaru: 2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7055S/512KB) (permanent)
Subaru: 2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7058/1MB) (permanent)
Subaru: 2.5L, 3.0L, 2.0T, 2.5T Denso 2007+ CAN-bus (SH7058S/1MB) (permanent)
Subaru: 2.0L, 2.5L, 3.0L, BRZ Denso 2013+ CAN-bus (SH72531/1.25MB) (permanent)
Subaru: 1.6L, 2.0L DI Denso 2018+ CAN-bus (1N83M/1.5MB) (permanent)
Subaru: 2.0L Denso Diesel Euro 4 CAN-bus (SH7058S/1MB) (permanent)
Subaru: 2.0L Denso Diesel Euro 5 CAN-bus (SH7059/1.5MB) (permanent)
Subaru: 2.0L Denso Diesel Euro 6 CAN-bus (SH72543/2MB) (permanent)
Kia/Hyundai: 1.1L, 1.4L, 2.5L CRDI (DCM3.7AP) (permanent)
Chevrolet: 2.0L, 2.2L CDTI (DCM3.7) (permanent)
SsangYong: 2.0L XDI (DCM3.7AP) (permanent)
VAG: 1.2L TDI (DCM3.7) (permanent)
Mitsubishi: MH Generic Read-Only (permanent)
Mitsubishi: Colt MT (MH8304F/512KB) (permanent)
Mitsubishi: Colt AT (MH8304F/768KB) (permanent)
Mitsubishi: Galant 9 2.4L (2005-) (MH8304F/768KB) (permanent)
Mitsubishi: Pajero MT (2007-) (MH8302F/512KB) (permanent)
Mitsubishi: Pajero AT (2007-) (MH8304F/768KB) (permanent)
Mitsubishi: Pajero Sport (2010-) (MH8106F/1MB) (permanent)
Mitsubishi: Lancer X 1.5L (2007-), Outlander XL JDM (MH8104F/512KB) (permanent)
Mitsubishi: ASX (-2014), Lancer X 1.6/1.8/2.0L, Outlander XL (MH8106F/1MB) (permanent)
Mitsubishi: ASX (2014-), Mirage, Outlander 3 (2013-) (MH8115F/1.25MB) (permanent)
Mitsubishi: Denso Diesel (SH7058/SH7058S/1MB SH7059/1.5MB) (permanent)
Mitsubishi: CVT Lancer X/ASX 1.8/2.0L, Outlander XL/3 2.0/2.4L (MH8104F/512KB MH8106F/1MB) (permanent)
Mitsubishi: AT Pajero Sport (2010-), Lancer X 1.5/1.6L (MH8102F/512KB) (permanent)
Mitsubishi: AT Outlander XL 3.0L (MH8104F/512KB) (permanent)
Mitsubishi: AT Pajero 4 (2007-) (Aisin/512KB) (permanent)
Mitsubishi: TC-SST Getrag 6DCT470 [Test] (permanent)
Mitsubishi: Getrag 6DCT470 Boot (MICRO) [Test] (permanent)
Mitsubishi: Getrag 6DCT470 Boot (EEPROM) [Test] (permanent)
Mitsubishi: K-Line/Bootloader (MH720xF/MH810xF/MH820xF/MH830xF) (permanent)
Mitsubishi: K-Line Bootloader (MH8115F) (permanent)

Denso: Opel 1.7L CDTI SH7055 EEPROM (66) (permanent)
Denso: Opel 1.7L CDTI SH7058/SH7059 EEPROM/1 (86) (permanent)
Denso: Opel 1.7L CDTI SH7058/SH7059 EEPROM/2 (86) (permanent)
Denso: Opel 1.7L CDTI SH7058/SH7059 EEPROM/3 (86) (permanent)
Denso: Opel 1.7L CDTI SH7059 EEPROM/4 (86) (permanent)
Fuso Canter K-Line (EDC7C4-6/EDC16C31) (permanent)
Fuso Canter CAN-bus (EDC7C4-6/EDC16C31) (permanent)
Fuso Canter Euro 5 CAN-bus (EDC17CP15) (permanent)
Fuso Canter Euro 5 CAN-bus (EDC17CP52) (permanent)
