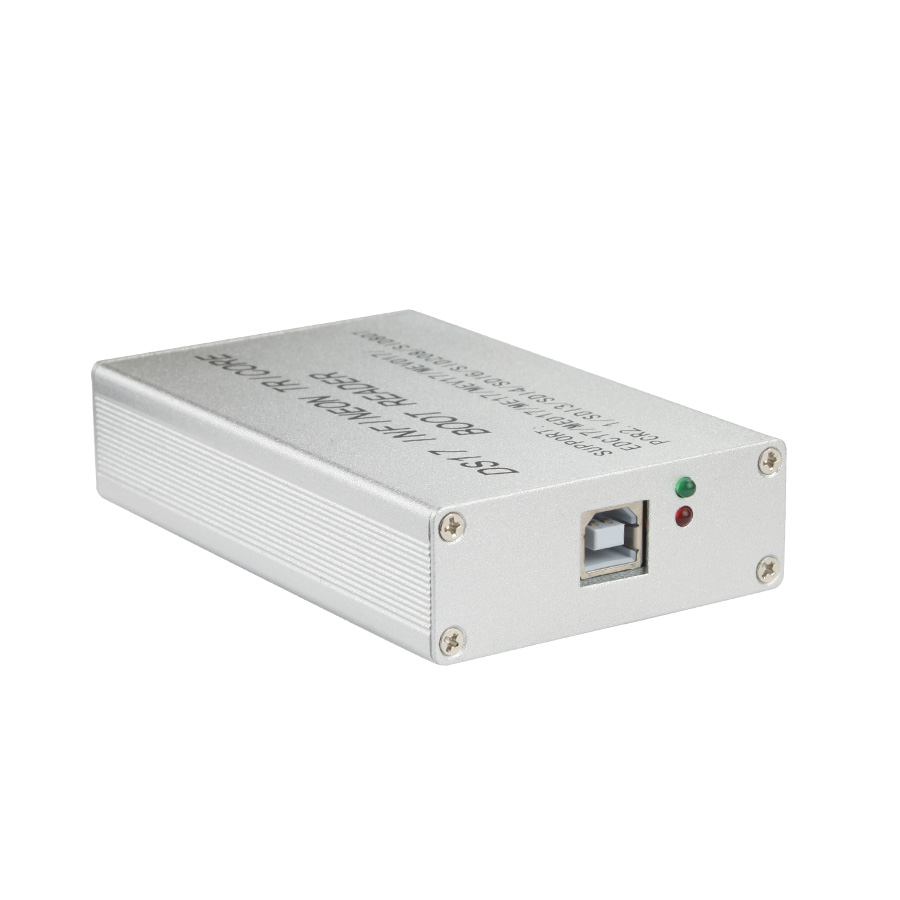

DS17 Infineon Tricore Boot Reader Support EDC17 And Tricore
Item No. CT034
In Stock.
History sold.
0 out of 50 global ratings
- 5 stars:0%
- 4 stars:0%
- 3 stars:0%
- 2 stars:0%
- 1 stars:0%
ratings| answered questions
0 out of 5
0 global ratings
- 5 stars:0%
- 4 stars:0%
- 3 stars:0%
- 2 stars:0%
- 1 stars:0%
Latest price：$99.00
Buy Now:
$
89.00
10% off
Fast Shipping & No Tax
US Check: Ship from US
UK Check: Ship from UK
EU Check: Ship from Czech
Looking for help? Please contact Whatsapp: +86-19892834301
- Shipping：
-
Free Shipping
Express Shipping ServiceEstimated delivery time: 3-5 Working Days
- Quantity：
- Stock：12
- Weight：
- 0.5 KG
- Package：
Related Download Files
Share
DS17 Infineon Tricore Boot Reader Support EDC17 And Tricore
Notice:
1.This DS17 cannot be updated
2. Pls just use our software, or mutiplexer will get blocked if you use other software
Commonly named as bootmode this port
is the Infineon pendent to the Motorola/Freescale BDM port. In contrast to the
BDM port, whose pins only have this purpose, the bootmode is done over one of
the CAN busses of the processor.
Because new assembled ECUs are
programmed over this port, Bosch has put it on a 14 pin pad array. It looks like
the BDM port but works completely different.
To put the processor into the
bootmode a modification on the printed circuit board is necessary. This
modification depends on the type of the processor and so the type of the ECU. In
the most simple case one pin of the processor must be connected to ground.
Therefore a contact needle with a wire and a tripod is attached to the
system.
The power is also supplied over the
probe, but is spite to the BDM system the voltage is not manually switchable but
automatically controlled by the DS17.
DS17 Infineon Tricore Boot Reader
Support:
EDC17/MED17/ME17/MEV17/MEVD17/PCF2.1/SD13/SD14/SD16/SID208/SID807
Here you can see a list of cars,
which are successfully tested at DS17 Infineon Tricore Bott
Reader:
Car | ECU | |||
|---|---|---|---|---|
Manufacturer | Type | Version | Manufacturer | Type |
Alfa-Romeo | Julietta | 1750 TBI | Bosch | MED17 |
Audi | A3 | 1.4L TSI | Bosch | MED17.5.5 |
Audi | A3 | 1.4L TSI | Bosch | MED17.5.20 |
Audi | A3 | 1.8L TFSI | Bosch | MED17.5 |
Audi | A3 | 2.0L TDI CR | Bosch | EDC17CP14 INTERN |
Audi | A3 | 2.0L TDI CR | Bosch | EDC17C46 |
Audi | A3 | 2.0L TFSI | Bosch | MED17.5 |
Audi | A4 | 1.8L TFSI | Bosch | MED17.5 |
Audi | A4 | 2.0L TDI CR | Bosch | EDC17CP14 INTERN |
Audi | A4 | 2.0L TFSI | Bosch | MED17.1 |
Audi | A5 | 2.0L TDI CR | Bosch | EDC17CP20 HW31 |
Audi | A5 | 2.0L TFSI | Bosch | MED17.1 |
Audi | A5 | 3.0L V6 TDI | Bosch | EDC17CP14 HW02 |
Audi | A6 | 2.7L V6 TDI | Bosch | EDC17CP14 EXTERN |
Audi | Q5 | 2.0L TFSI | Bosch | MED17.1 |
Audi | Q5 | 2.0L TFSI | Bosch | MED17.5 |
Audi | Q5 | 3.0L V6 TDI | Bosch | EDC17CP24 |
Audi | Q7 | 3.0L TDI | Bosch | EDC17CP04 HW01 |
Audi | Q7 | 4.2L V8 TDI | Bosch | EDC17CP24 |
Audi | RS5 | Bosch | MED17.1.1 HW03 | |
Audi | TT | 2.0L TFSI | Bosch | MED17.5 |
BMW | 116i (E81) | 1.6L | Bosch | ME17.4.5 |
BMW | 118d (E81) | 2.0L D | Bosch | EDC17C06 DDE7.0 |
BMW | 118i (E81) | 2.0L | Bosch | ME17.4.6 |
BMW | 120d (E81) | 2.0L D | Bosch | EDC17CP02 DDE7.1 |
BMW | 120d (E82) | 2.0L D | Bosch | EDC17CP02 DDE7.1 |
BMW | 120d (E88) | 2.0L D | Bosch | EDC17CP02 DDE7.1 |
BMW | 120i (E81) | 2.0L | Bosch | ME17.4.6 |
BMW | 120i (E88) | 2.0L | Bosch | ME17.4.5 |
BMW | 123d (E81) | 2.0L D | Bosch | EDC17CP02 DDE7.1 |
BMW | 123d (E82) | 2.0L D | Bosch | EDC17CP02 DDE7.1 |
BMW | 316i (E90) | 1.6L | Bosch | ME17.4.5 |
BMW | 318d (E90) | 2.0L D | Bosch | EDC17C06 DDE7.0 |
BMW | 318d (E91) | 2.0L D | Bosch | EDC17C06 DDE7.0 |
BMW | 318i (E90) | 2.0L | Bosch | MEV17.4.6 |
BMW | 318i (E91) | 2.0L | Bosch | MEV17.4.6 |
BMW | 320d (E90) | 2.0L D | Bosch | EDC17CP02 DDE7.1 |
BMW | 320d (E91) | 2.0L D | Bosch | EDC17CP02 DDE7.1 |
BMW | 320d (E92) | 2.0L D | Bosch | EDC17CP02 DDE7.1 |
BMW | 320d (E93) | 2.0L D | Bosch | EDC17CP02 DDE7.1 |
BMW | 320i (E90) | 2.0L | Bosch | MEV17.4.6 |
BMW | 320i (E91) | 2.0L | Bosch | MEV17.4.6 |
BMW | 320i (E92) | 2.0L | Bosch | MEV17.4.6 |
BMW | 320i (E93) | 2.0L | Bosch | MEV17.4.6 |
BMW | 325d (E93) | 2.5L D | Bosch | EDC17CP09 DDE7.3 |
BMW | 330d (E91) | 3.0L D | Bosch | EDC17CP09 DDE7.3 |
BMW | 535D (F11) | 3.0L D | Bosch | EDC17C41 |
BMW | 535GT (F07) | 3.0L D | Bosch | EDC17CP09 DDE7.3 |
BMW | 540i (F10) | 3.0L Turbo | Bosch | MEVD17.2 |
BMW | X1 (E84) | 1.8L D | Bosch | EDC17C06 DDE7.0 |
BMW | X3 (E83) Facelift | 2.0L D | Bosch | EDC17CP02 DDE7.1 |
BMW | X6 (E71) | 4.0L D | Bosch | EDC17CP45 |
BMW-Motorrad | S1000RR | 1.0L | Bosch | ME17.2 |
Citroen | C3 | 1.6L Turbo | Bosch | MEV17.4 |
Citroen | C4 | 1.6L Turbo | Bosch | MED17.4 |
Citroen | C5 | 1.6L Turbo | Bosch | MED17.4 |
Citroen | DS3 | 1.6 HDI | Siemens | SID807 |
Fendt | Bosch | EDC17CV52 | ||
Fendt | 724 | Bosch | EDC17CV56 | |
Ford | Siemens | SID208 | ||
Ford | C-Max | 1.6 TDCI | Siemens | SID807 |
Ford | F-250 | 6.7L TDI | Bosch | EDC17CP05 |
Ford | F-350 | 6.7L TDI | Bosch | EDC17CP05 |
Ford | F-450 | 6.7L TDI | Bosch | EDC17CP05 |
Ford | Focus | ST | Bosch | MED17.2.2 |
Ford | Mondeo | Bosch | EDC17CP42 | |
Honda | Accord | 2.2iCDTi | Bosch | EDC17CP06 |
Hyundai | i25 | 1.4L | Bosch | MEG17.9.12 |
Hyundai | Tuscon, Santa Fe | 2.2 CDTi | Bosch | EDC17CP14 |
Iveco | Daily | 3.0CR | Bosch | EDC17CP52 |
Kia | Mohave | 3.0D | Bosch | EDC17CP14 INTERN |
KIA | Sportage | 2.0 CRDI | Bosch | EDC17C08 |
Land Rover | Defender | 2.2D | Siemens | SID208 |
Land Rover | Discovery 4, Range Rover | 3.0D | Bosch | EDC17CP11 |
Land Rover | Evoque | 2.0T | Bosch | MED17.2-V4 |
Mercedes-Benz | A 180 (W169) | 2.0L CDI | Bosch | EDC17C43 |
Mercedes-Benz | A 250 (W176) | 2.0L CGI | Bosch | MED17.7.2 |
Mercedes-Benz | C 200 (W204) | 2.0L CDI | Bosch | EDC17CP01 |
Mercedes-Benz | C, CL, CLS, E, S | 350, 500, 63 | Bosch | MED17.7.1 |
Mercedes-Benz | CLS, E | 350CDI, 450CDI | Bosch | EDC17CP46 |
Mercedes-Benz | G | 65 AMG | Bosch | MED17.7.8 |
Mercedes-Benz | Sprinter | 319CDI | Bosch | EDC17CP10 |
Mercedes-Benz | Viano | 120CDI | Bosch | EDC17CP10 |
Mini | One | 1.6L Turbo | Bosch | MEV17.2.2 |
Mini | One (R56) (0261S04158, 0261S04443) | 1.6L Turbo | Bosch | MED17.2-V1 |
Mini | One (R56) (0261S04161) | 1.6L Turbo | Bosch | MED17.2-V2 |
Nissan | Qashqai | 1.6 DCI | Bosch | EDC17C42 |
Opel | Insignia | 2.0L CDTi | Bosch | EDC17C19 |
Peugeot | 207 | 1.6 HDI | Siemens | SID807 |
Peugeot | 207 | 1.6L HDI | Bosch | EDC17C10 |
Peugeot | 207 | 1.6L Turbo | Bosch | MED17.4 |
Peugeot | 207 RC | 1.6L Turbo | Bosch | MED17.4 |
Peugeot | 308 | 1.6L Turbo | Bosch | MED17.4 |
Polaris | RZR-S | 800cc | Bosch | M17.8.7 |
Porsche | Cayenne | 3.0L V6 TDI | Bosch | EDC17CP14 HW03 |
Porsche | Cayenne | 4.8L V8 Turbo | Siemens | SDI4 |
Porsche | Cayenne II | 3.0L V6 TDI | Bosch | EDC17CP44 |
Porsche | Cayenne S | 4.8L V8 | Siemens | SDI4 |
Porsche | Cayman S | 3.4L | Siemens | SDI3 |
Porsche | Panamera | Siemens | SDI6 | |
Renault | Clio | 1.5 DCI | Bosch | EDC17C42 |
Sea-Doo Jetski | RXT-iS 260 | 1.5L Supercharger | Bosch | ME17.8.5 |
Seat | Altea | 1.4L TSI | Bosch | MED17.5.1 |
Seat | Altea | 1.4L TSI | Bosch | MED17.5.5 |
Seat | Altea | 1.4L TSI | Bosch | MED17.5.20 |
Seat | Altea | 1.8L TSI | Bosch | MED17.5 |
Seat | Bocanegra | 1.4L TSI | Bosch | MED17.5.5 |
Seat | Ibiza 4 | 1.4L TDI | Bosch | EDC17U1 |
Seat | Ibiza 4 | 1.9L TDI | Bosch | EDC17U1 |
Seat | Ibiza 4 | 2.0L TDI CR | Bosch | EDC17C46 |
Seat | Leon 2 | 1.4L TSI | Bosch | MED17.5.20 |
Seat | Leon 2 | 1.8L TSI | Bosch | MED17.5 |
Seat | Toledo 3 | 1.4L TSI | Bosch | MED17.5.20 |
Seat | Toledo 3 | 1.8L TSI | Bosch | MED17.5 |
Skoda | Octavia 2 | 1.4L TSI | Bosch | MED17.5.20 |
Skoda | Octavia 2 | 1.8L TSI | Bosch | MED17.5 |
Skoda | Superb 2 | 1.4L TSI | Bosch | MED17.5.1 |
Skoda | Superb 2 | 1.4L TSI | Bosch | MED17.5.5 |
Skoda | Superb 2 | 1.4L TSI | Bosch | MED17.5.20 |
Skoda | Superb 2 | 1.8L TFSI | Bosch | MED17.5 |
Skoda | Superb 2 | 2.0L TDI CR | Bosch | EDC17CP14 INTERN |
Skoda | Yeti | 2.0L TDI CR | Bosch | EDC17CP14 INTERN |
Skoda | Yeti | 2.0L TDI CR | Bosch | EDC17C46 |
Toyota | Urban Cruiser | 1.4L D4-D | Bosch | EDC17CP07 |
Volkswagen | EOS | 1.4L TSI | Bosch | MED17.5.20 |
Volkswagen | EOS | 2.0L TDI CR | Bosch | EDC17CP14 INTERN |
Volkswagen | EOS | 2.0L TSI | Bosch | MED17.5 |
Volkswagen | Golf 5 | 1.4L TSI | Bosch | MED17.5.1 |
Volkswagen | Golf 5 | 1.4L TSI | Bosch | MED17.5.20 |
Volkswagen | Golf 5 | 2.0L TSI | Bosch | MED17.5 |
Volkswagen | Golf 6 | 1.4L TSI | Bosch | MED17.5.5 |
Volkswagen | Golf 6 | 1.4L TSI | Bosch | MED17.5.20 |
Volkswagen | Golf 6 | 2.0L TDI CR | Bosch | EDC17CP14 INTERN |
Volkswagen | Golf 6 | 2.0L TSI | Bosch | MED17.5 |
Volkswagen | Golf 6 | 2.5L | Bosch | MED17.5 |
Volkswagen | Jetta 3 | 1.4L TSI | Bosch | MED17.5.20 |
Volkswagen | Jetta 3 | 2.0L TDI CR | Bosch | EDC17CP14 EXTERN |
Volkswagen | Jetta 3 | 2.0L TSI | Bosch | MED17.1 |
Volkswagen | Jetta 3 | 2.0L TSI | Bosch | MED17.5 |
Volkswagen | Jetta 3 | 2.5L | Bosch | MED17.5 |
Volkswagen | Passat | 1.4L TSI | Bosch | MED17.5.20 |
Volkswagen | Passat | 1.8L TFSI | Bosch | MED17.5 |
Volkswagen | Passat | 2.0L TDI CR | Bosch | EDC17CP14 INTERN |
Volkswagen | Passat | 2.0L TSI | Bosch | MED17.5 |
Volkswagen | Passat CC | 1.8L TFSI | Bosch | MED17.5 |
Volkswagen | Passat CC | 2.0L TSI | Bosch | MED17.5 |
Volkswagen | Phaeton | 3.0L V6 TDI | Bosch | EDC17CP04 INTERN |
Volkswagen | Polo | GTI | Bosch | MED17.5.5 HW02 |
Volkswagen | Polo, Golf 6, Passat, Caddy | 1.6TDI CR | Siemens | PCR2.1 |
Volkswagen | Scirocco | 1.4L TSI | Bosch | MED17.5.5 |
Volkswagen | Scirocco | 1.4L TSI | Bosch | MED17.5.20 |
Volkswagen | Scirocco | 2.0L TDI CR | Bosch | EDC17CP14 INTERN |
Volkswagen | Scirocco | 2.0L TSI | Bosch | MED17.5 |
Volkswagen | Tiguan | 1.4L TSI | Bosch | MED17.5.1 |
Volkswagen | Tiguan | 1.4L TSI | Bosch | MED17.5.20 |
Volkswagen | Tiguan | 2.0L TDI CR | Bosch | EDC17CP14 INTERN |
Volkswagen | Tiguan | 2.0L TSI | Bosch | MED17.5 |
Volkswagen | Touareg | 3.0L V6 TDI | Bosch | EDC17CP04 INTERN |
Volkswagen | Touareg | 3.0L V6 TDI | Bosch | EDC17CP24 |
Volkswagen | Touareg II | 3.0L V6 TDI | Bosch | EDC17CP44 |
Volkswagen | Touran | 1.4L TSI | Bosch | MED17.5.1 |
Volkswagen | Transporter T6 | 2.0L TDI CR | Bosch | EDC17CP20 HW31 |
Volkswagen | Vento | 2.0L TDI CR | Bosch | EDC17CP14 INTERN |
Volvo | Bosch | EDC17CP01 | ||
Volvo | Bosch | EDC17CP22 | ||
Volvo | D2 | 1.6D | Siemens | SID807 |
Volvo | XC60 | 2.4 D5 | Bosch | EDC17CP48 |

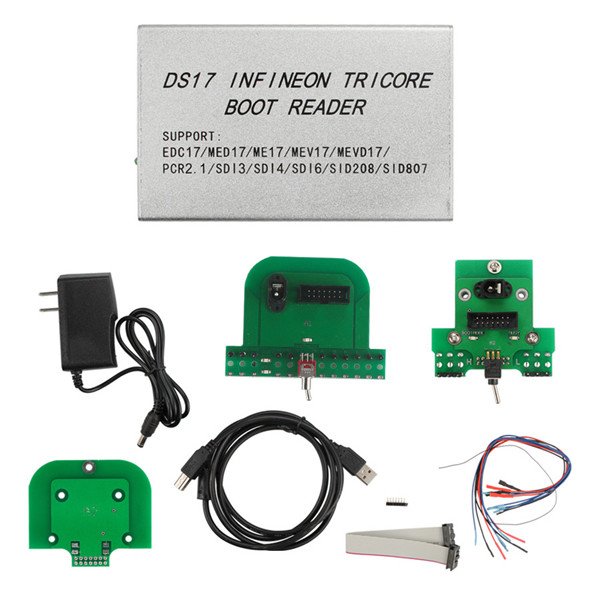

Package
including:

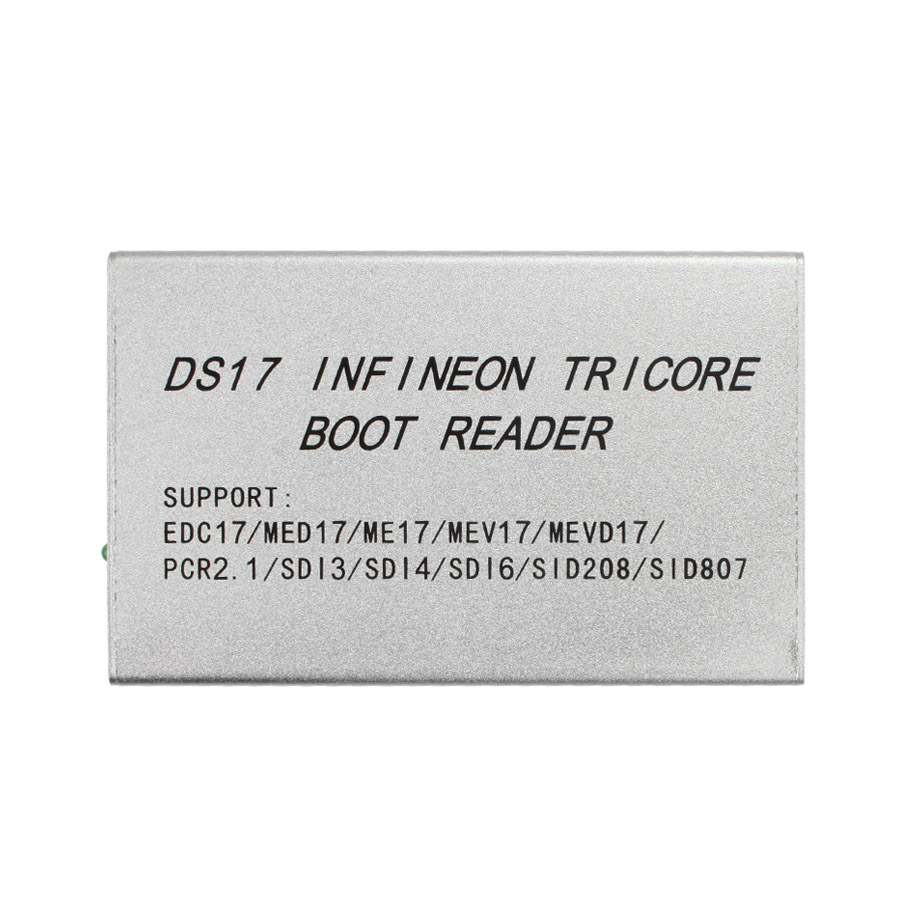

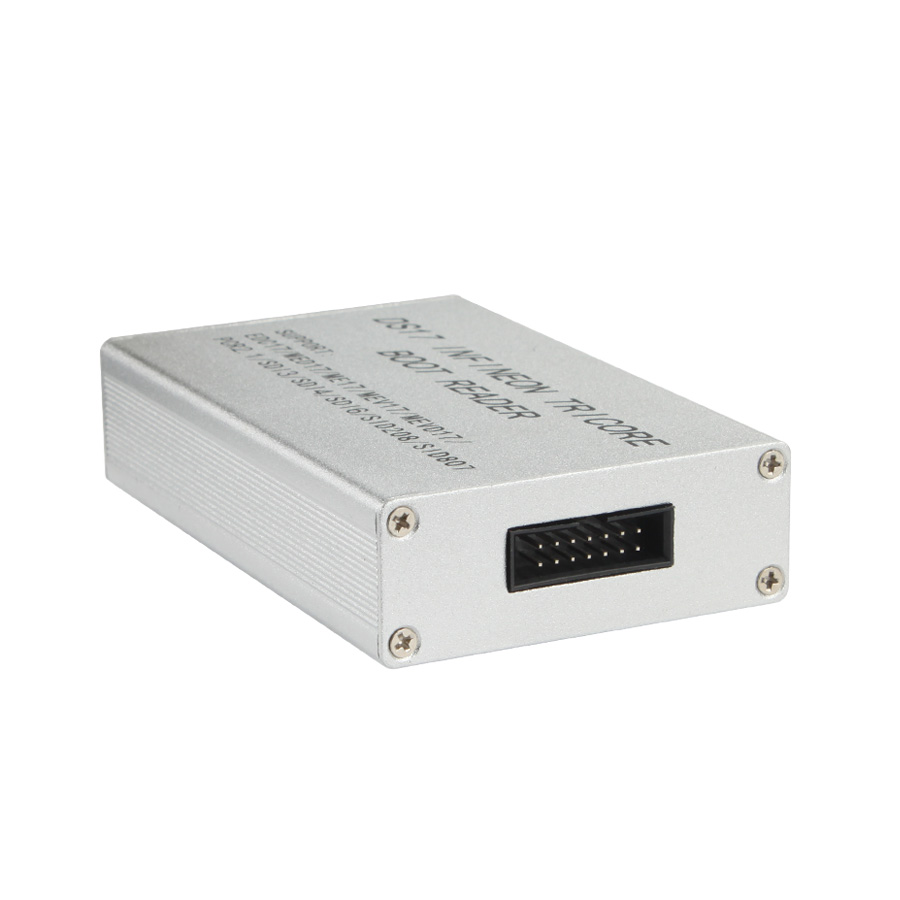

1pc x DS17 Infineon
Tricore Boot Reader

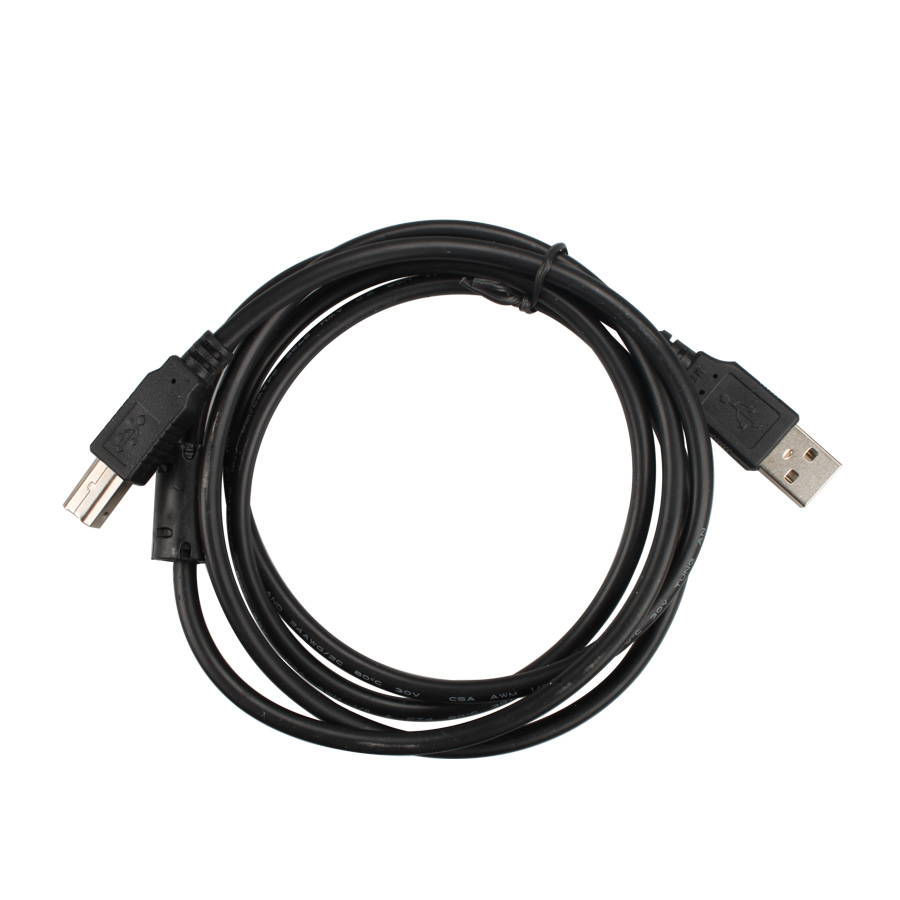

1pc x USB
Cable

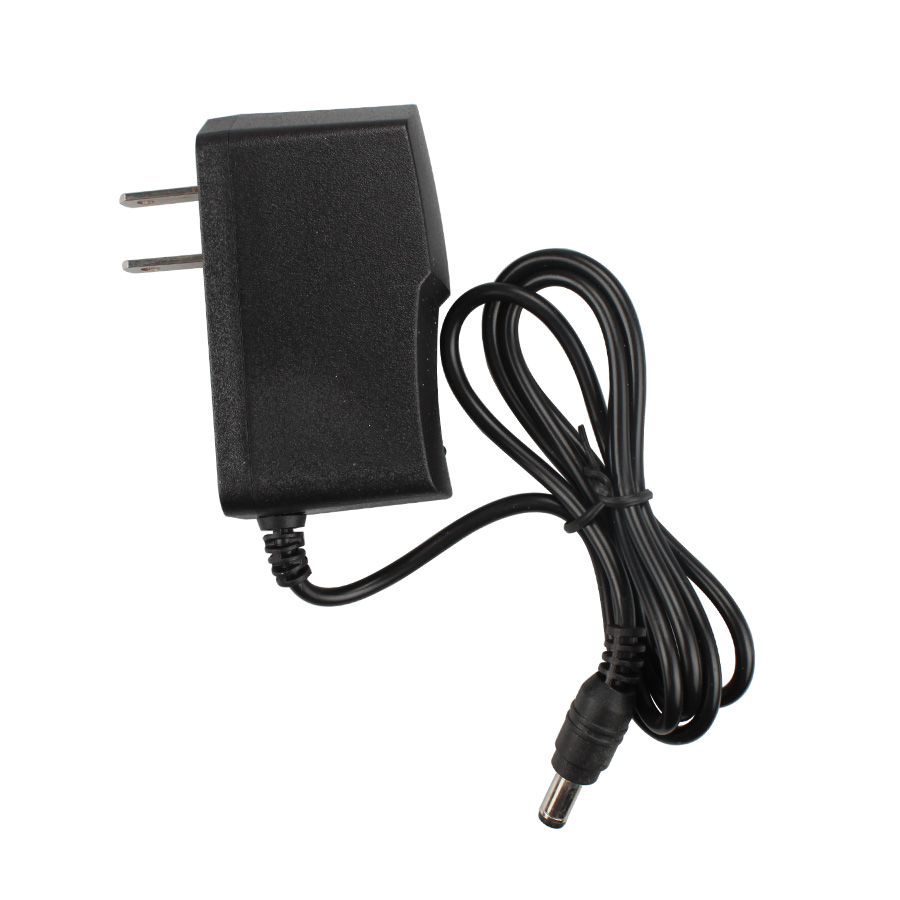

1pc x Power
Adapter

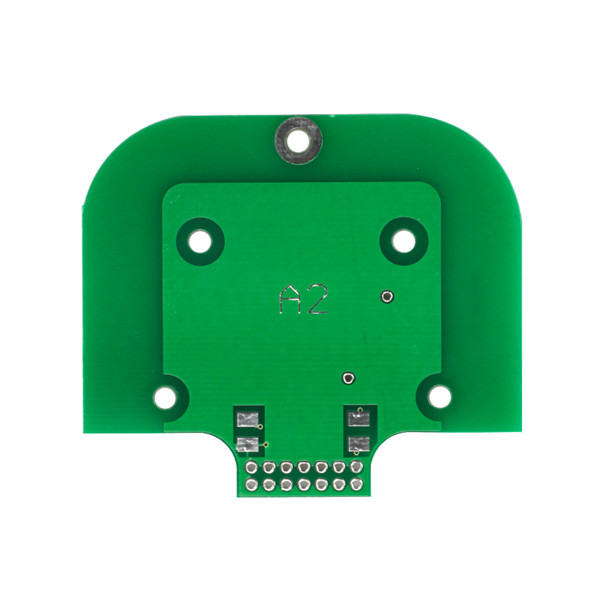

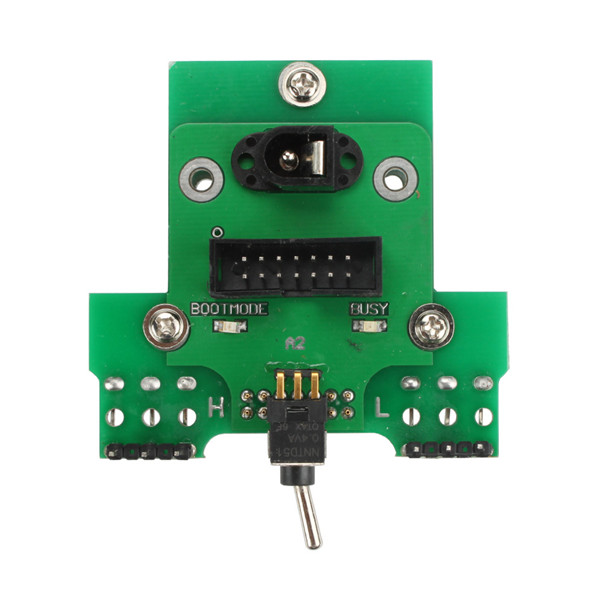

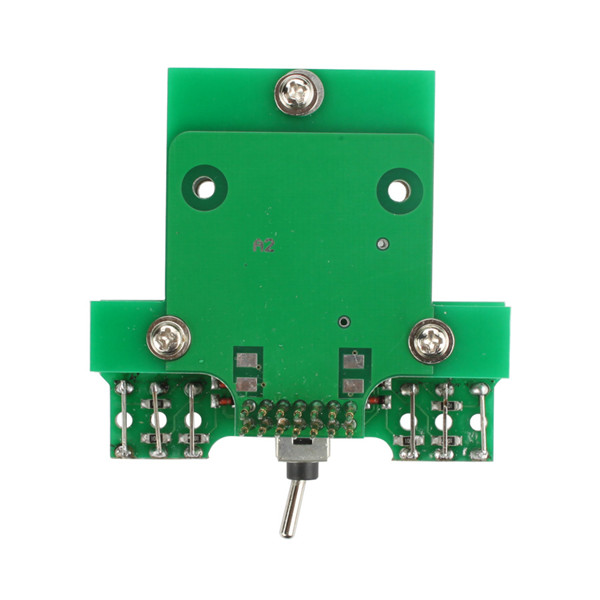

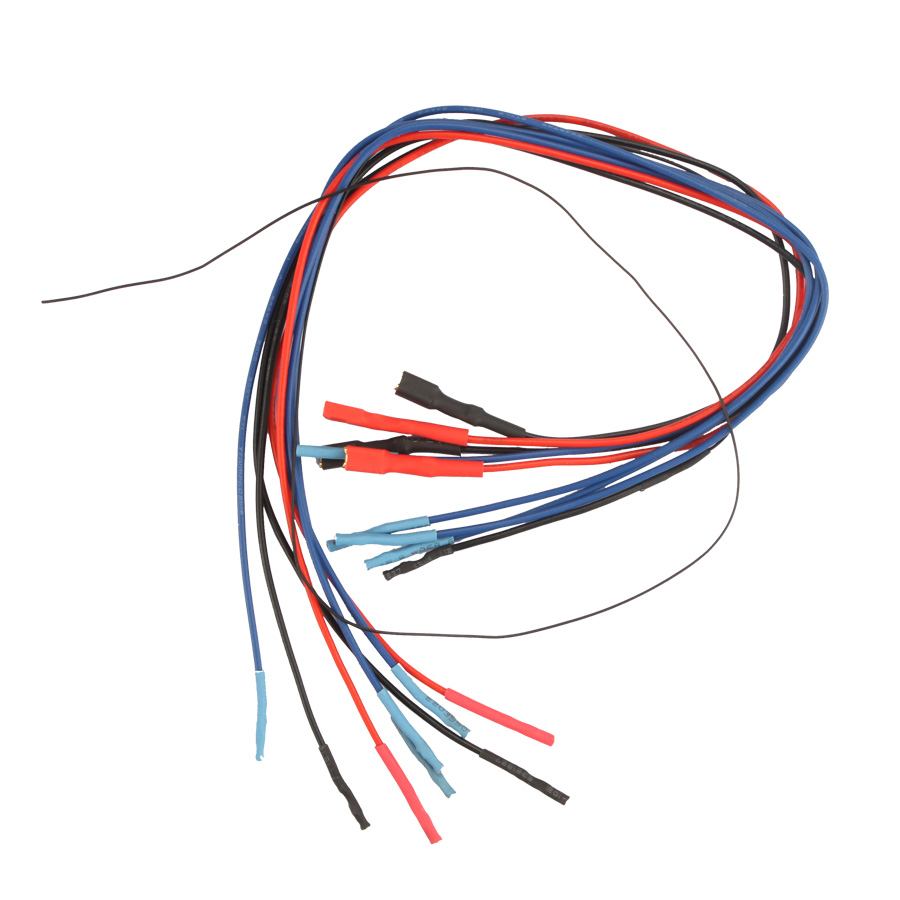

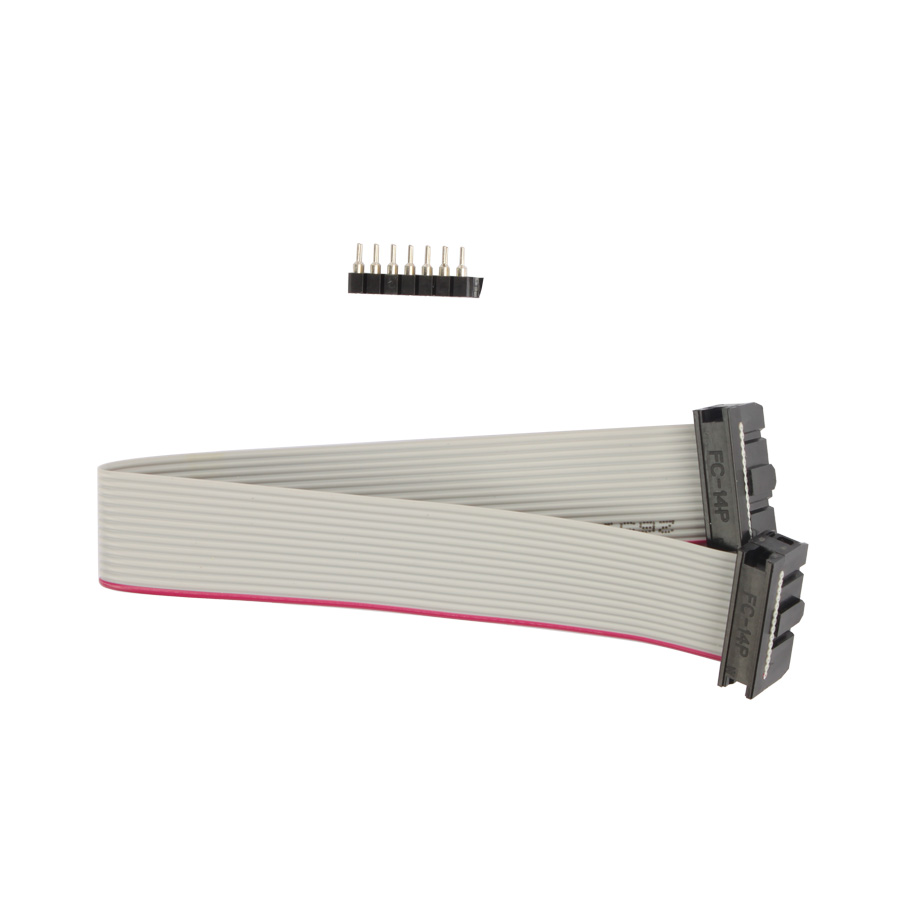

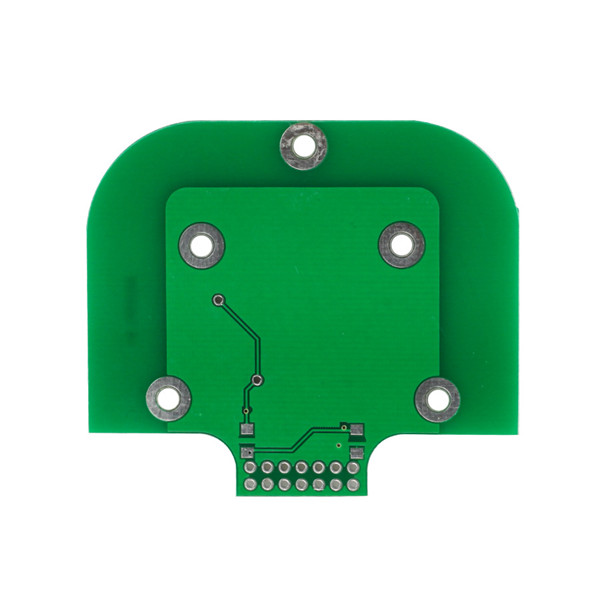

4pcs x Adapter and
cables
