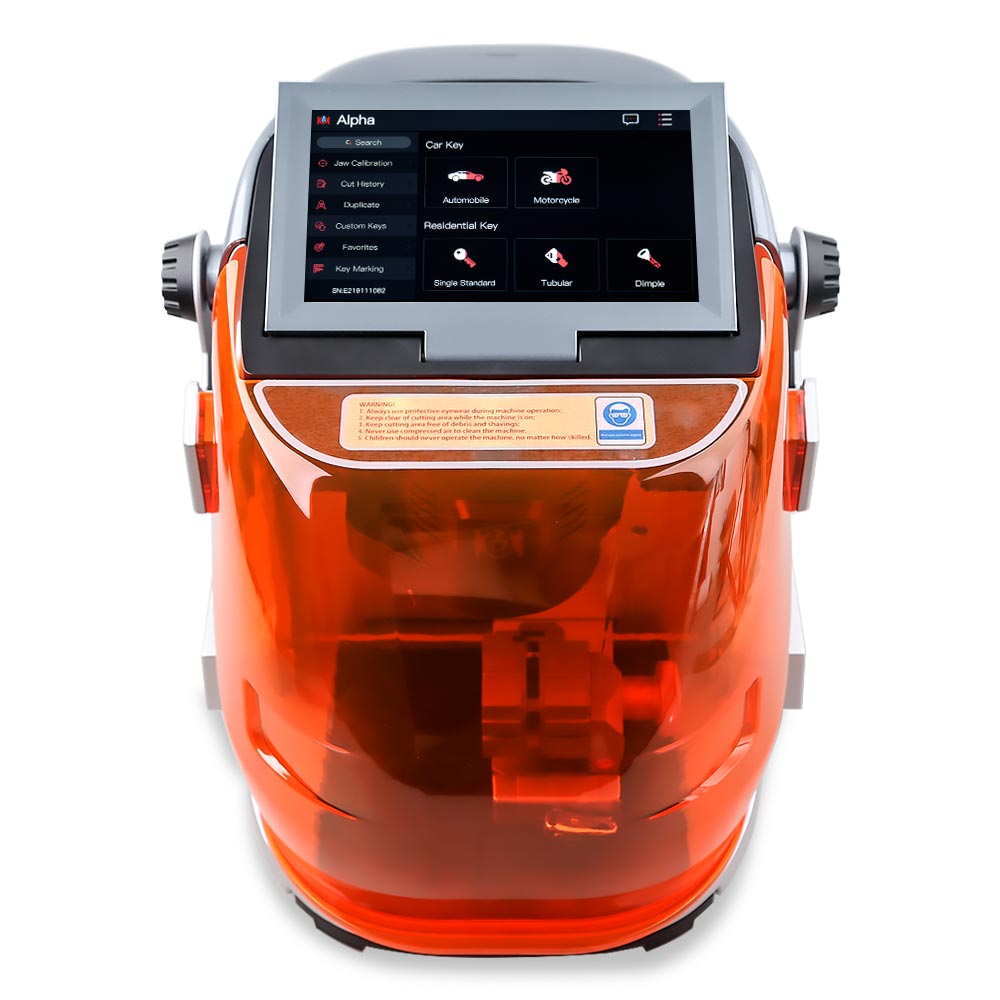

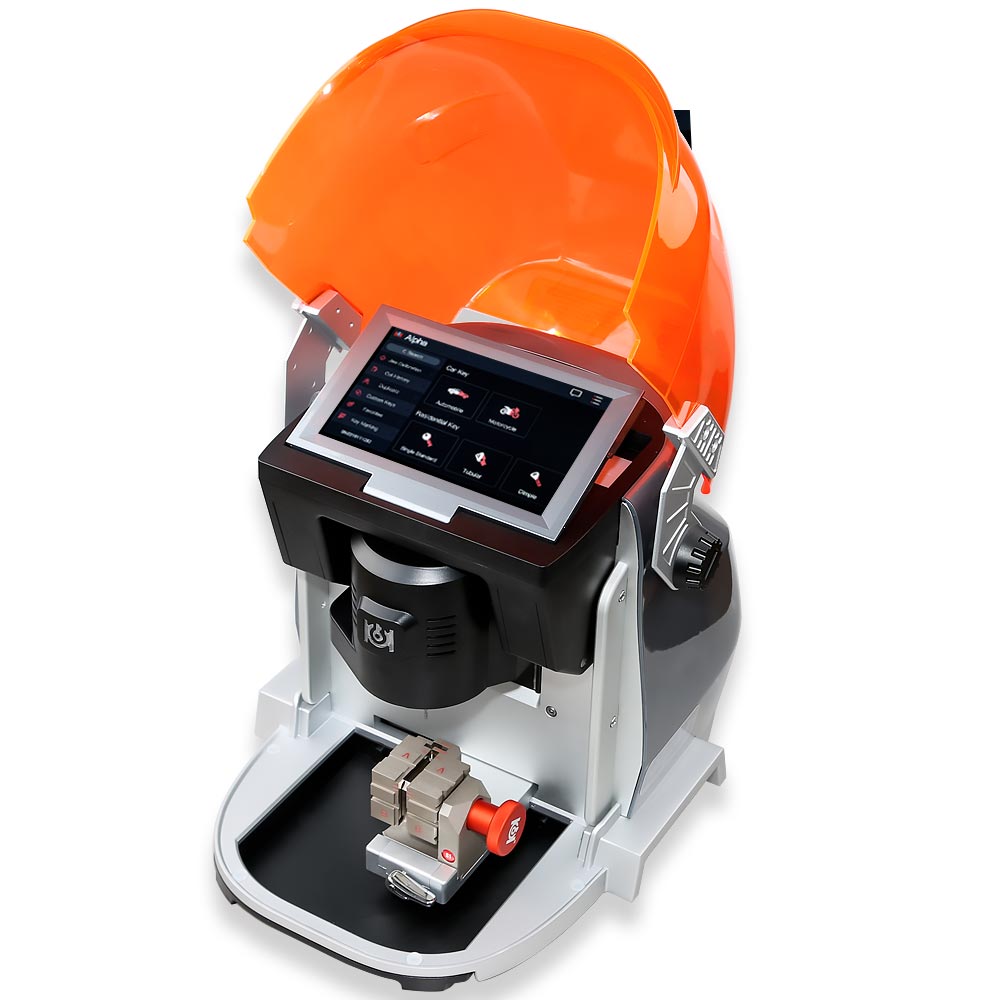

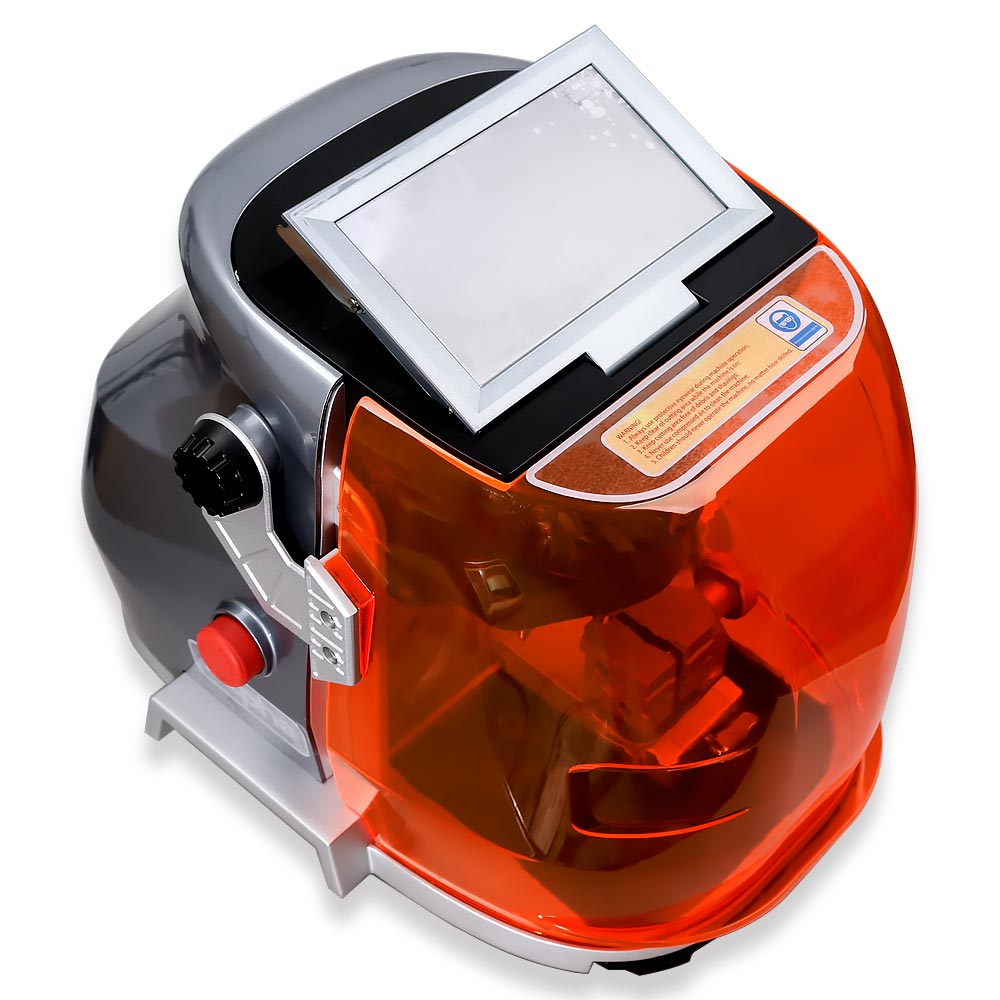

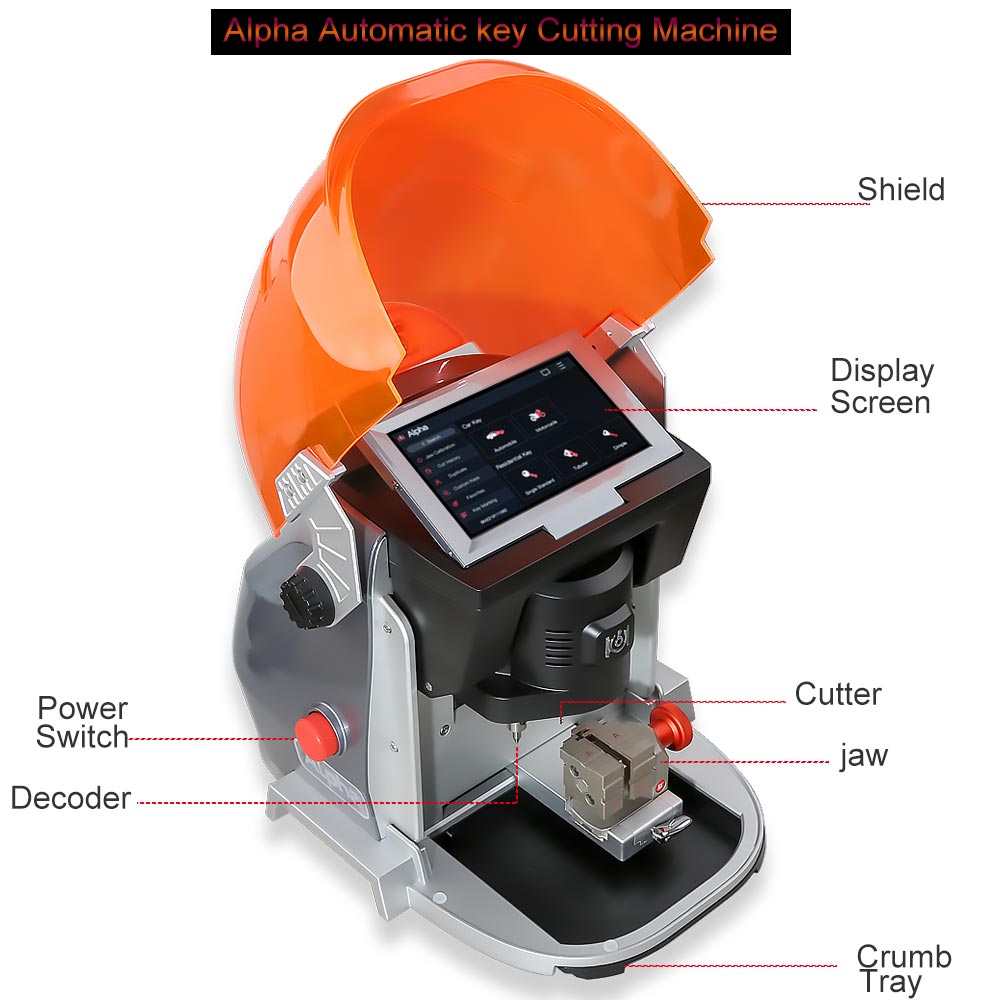

Alpha Automatic Key Cutting Machine

The first automatic key cutting machine that support to check missing teeth of ignition lock for HU162T through teeth numbers of door lock,and vice versa,greatly improving the work efficiency for locksmith.

Highlights of Alpha Automatic Key Cutting Machine:

1. AB side for laser keys (single external groove keys,single internal groove keys,double external groove keys,double internal groove keys and dimple keys),CD side for standard keys(double standard keys),no need extra small jaws;
2. New jaw and cutting system,better compatible with folding keys and smart card small keys,more convenient and versatile;
3. Latest original jaw design,to support to directly cut Volkswagen Audi HU162T key and Toyota&Lexus TOY2 key,no need small jaws;
4. The first automatic key cutting machine that support to check missing teeth of ignition lock for HU162T through teeth numbers of door lock,and vice versa,greatly improving the work efficiency for locksmith;
5. Graphic display of each key;
6. Optimize the data lookup logic according to different operational habits; play operation videos in key information.
7. 2 Years Warranty.
8. No battery, more safety
9. 7 inch industrial-grade display screen,runs smoothly.
10. Equipped with tool box to place decoder,cuter,calibration block etc.

Alpha Key Cutting Machine Feature:

Support to cut automobile,Chinese car,residential,dimple & tubular keys etc.
Adopted high-precision ballscrew for X, Y & Z axis,bringing higher repetitive positioning accuracy.
Adopted DC brushless motor for Z axis to control cutter directly,bring higher cutting precision and lower noise.
Portable for mobile, easy to work outside
Equipped with tool box to place decoder, cutter, calibration block etc.

Alpha Key Cutting Machine Special Features:

Support to duplicate keys without key data in database
Including single standard keys, double standard keys, single external groove keys,double external groove keys,internal groove keys & tubular keys

Alpha Key Cutting Machine Technical Parameter:

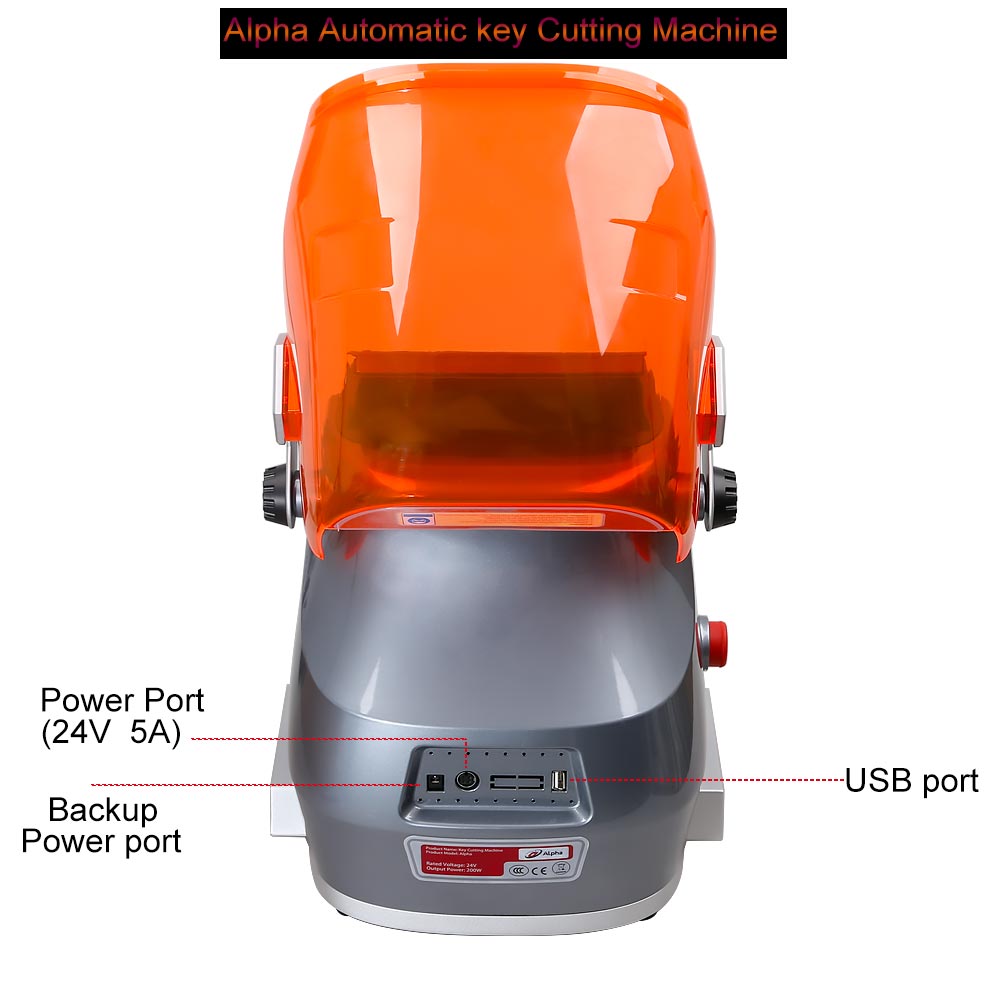

Voltage:                                             24V 5A
Power:                                               120W
Dimension:                                        305(W)x300(H)mmx400(D)mm
Weight:                                              16KG
Accuracy:                                           XY Axis 0.0025mm Z Axis 0.0025mm
Spindle Speed:                                  12000+ rpm
Working Temperature Range:          0-10℃
Working Humidity Range:                10-90℃
Usage:                                               Automobile Keys,residential key,motorcycle keys,dimple keys,tubular keys,FO21 tible keys.

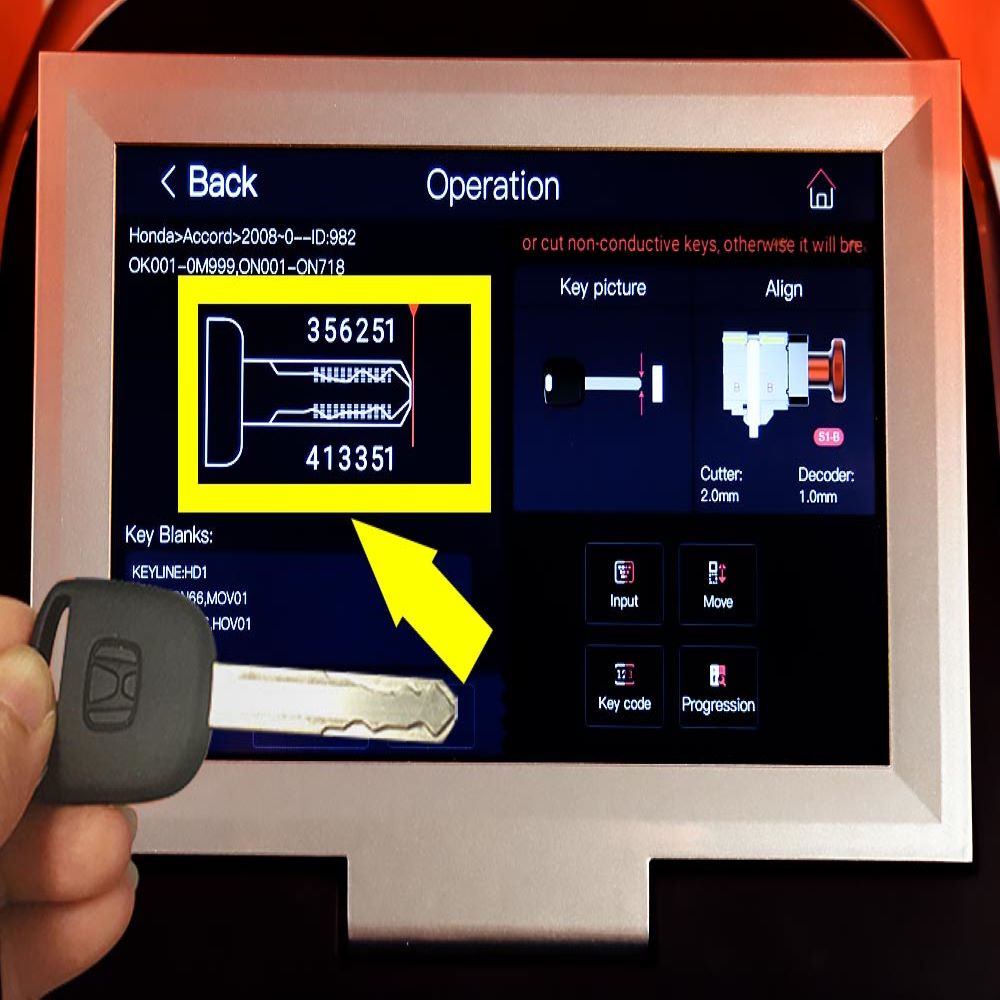

Alpha Key Cutting Machine Software Display:

Comparasion Table for Alpha and SEC-E9 Key Cutting Machine:


Details	SEC-E9	Alpha
Appearance	Industrialize	Modernize
Screen	E9: 7" Touch Screen (Without Battery) EP&EB&EU: 8" Tablet (With Battery) EA: 7" Android Screen (Without Battery)	7" Android Screen (Without Battery)
Size	255(W)*360(H)*340(D)mm	305(W)*300(H)*400(D)mm
Weight	19kg	16kg
Main Jaw	One Jaw to support car keys (including double standard keys and laser keys)	4-way Jaw to support car keys (including double standard keys and laser keys), special car keys( HU66,HU64, VA2, TOY2, BW9, SIP22, HU162T) and dimple keys
Optional House Jaw	Dimple key jaw, Single sided key jaw, Tubular key jaw	Single sided key jaw, Tubular key jaw
Optional Car Jaw	HU66,HU64, VA2, TOY2, BW9, SIP22, HU162T, FO21, LDV	FO21
Accuracy	High	Higher
Engraving Function	Serial Number starting by E9,EP, EU only	Yes
Duplicating Function	Double sided keys, Single sided key, Tubular keys	Double sided keys, Single sided key, Tubular keys, Single external groove keys, Double external groove keys, Internal groove keys
Key Code Function	Yes	Yes, but have detailed key code range and classification based on car brand list.
Progression Function	Serial Number starting by EP, EB, EU, EA only	Yes, and support to search bitting numbers of ignition lock based on those of door lock for HU162T (Vice Versa)
Create Key Profile Function	Yes	Yes
Cutting History Function	Yes	Yes
Favorite Function	Yes	Yes
Software Upgrade Way	Wifi and USB	Wifi and USB
Conmmunication Way	USB and Bluetooth for different versions	USB and Bluetooth for different versions
Extra Function	LED light	LED light & 2 Tool boxes for putting decoders/cutters/calibration block/stopper
Launched Time	2014	2019
Warranty	1 Year	2 Years

Alpha Automatic Key Cutting Machine Jaws:

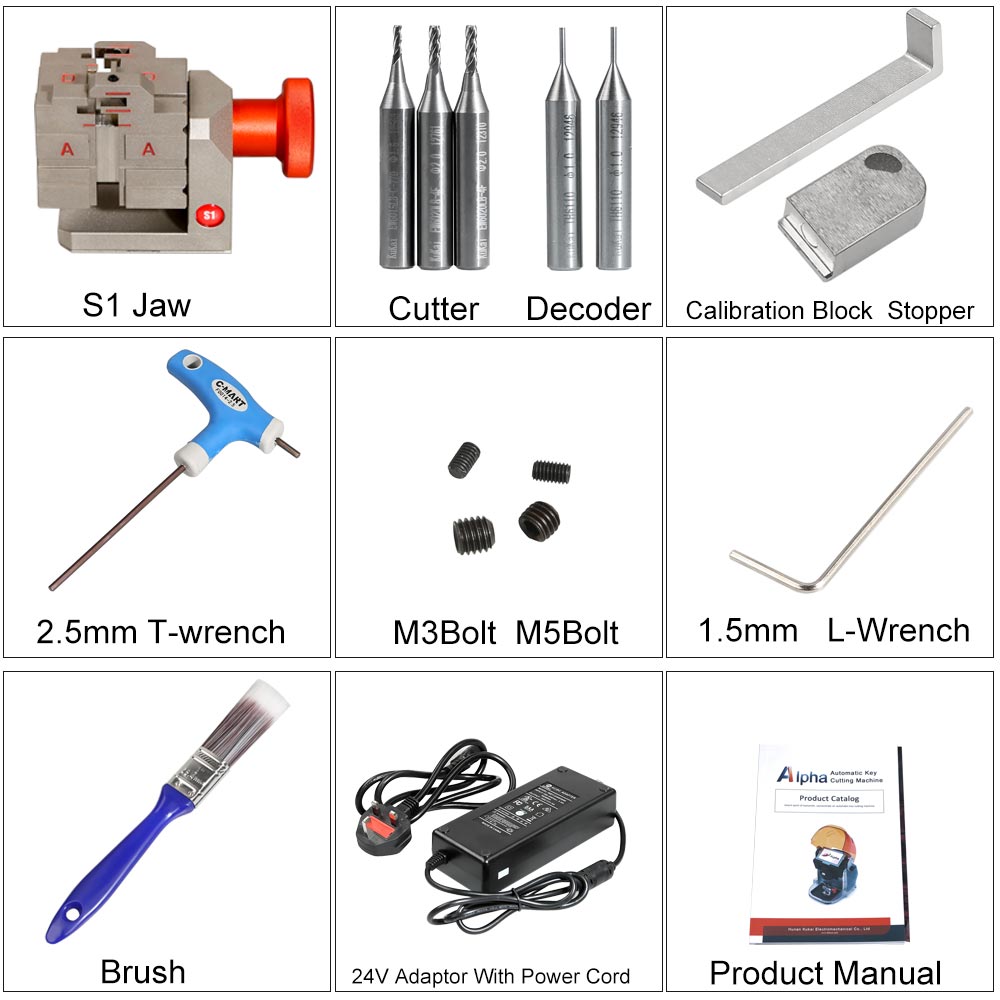

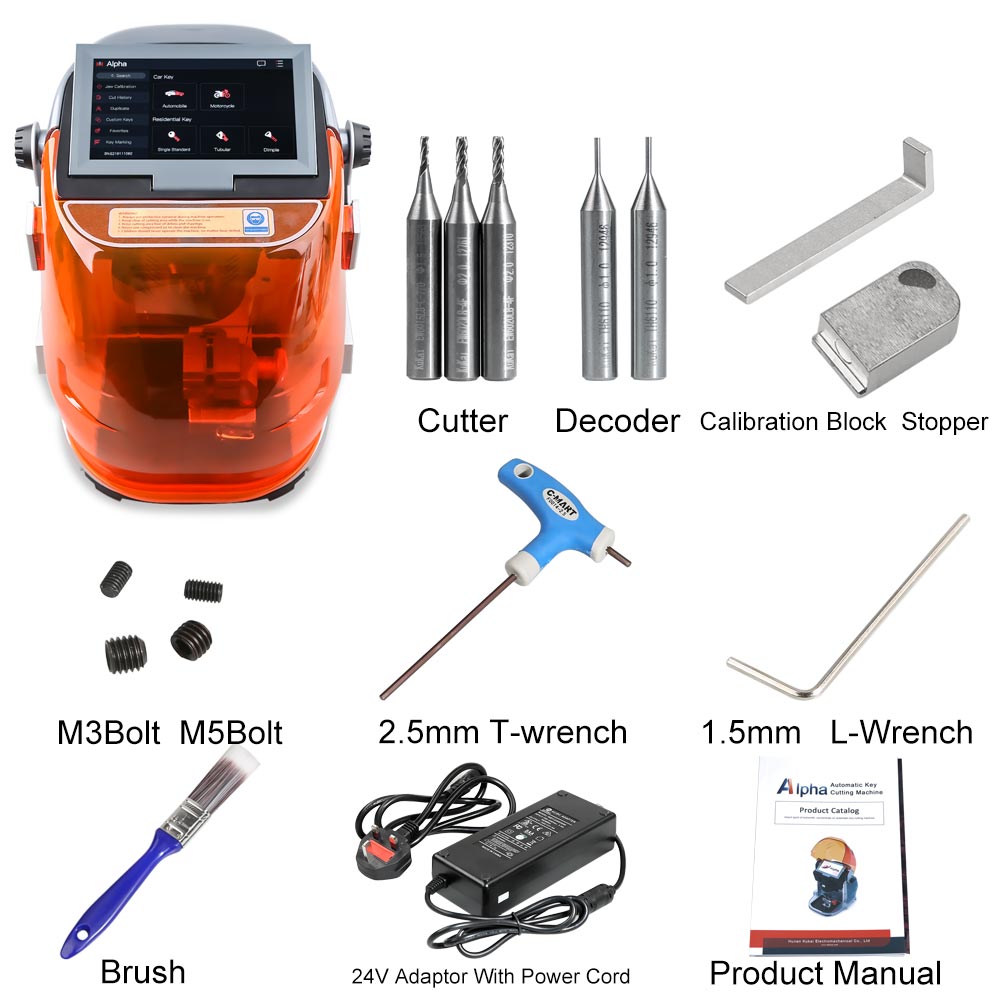

Alpha Key Cutting Machine Package List:

1 pc x S1 Jaw
2 pc x Cutter
2 pc x Decoder
1 pc x Calibration Block
1 pc x Stoper
2 pc x M3 Bolt
2 pc x M5 Bolt
1 pc x 1.5mm L-wrench
1 pc x 2.5mm T-wrench
1 pc x 24V Adapter with Power Cord
1 pc x Brush
1 pc x User Manual
