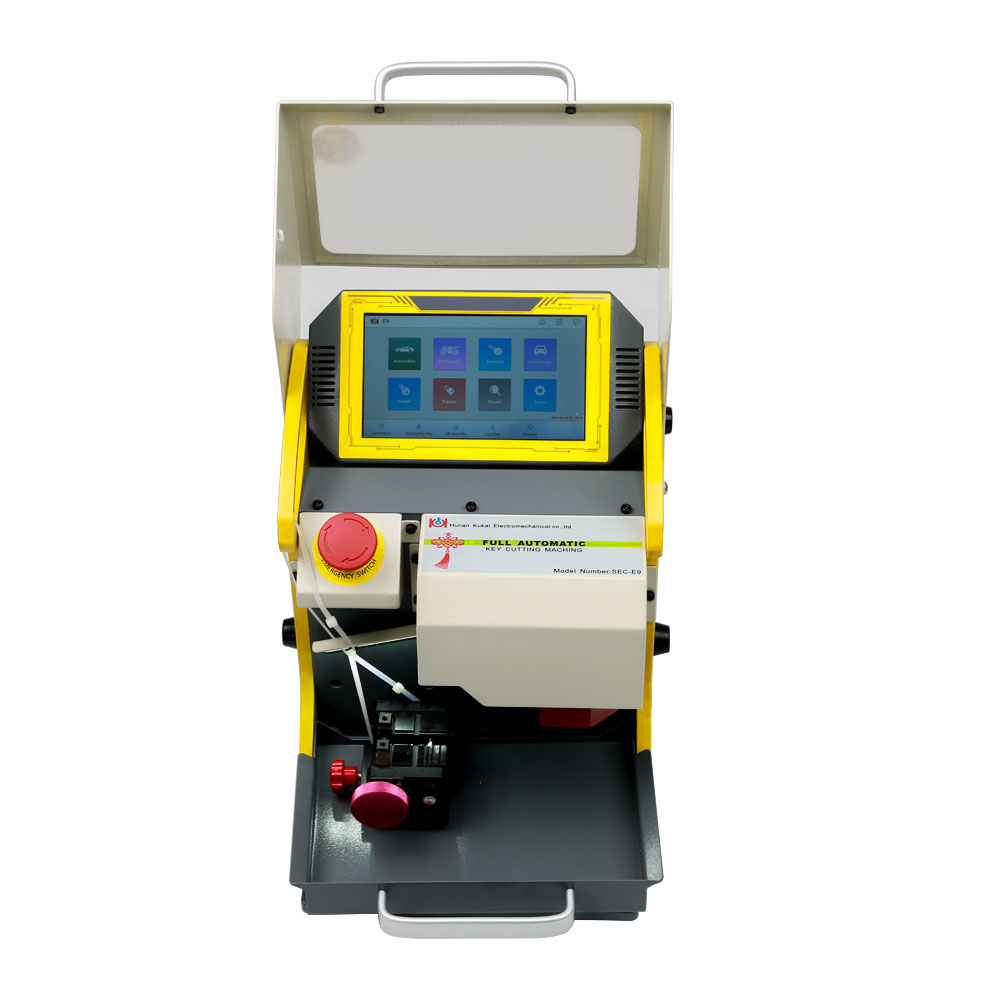

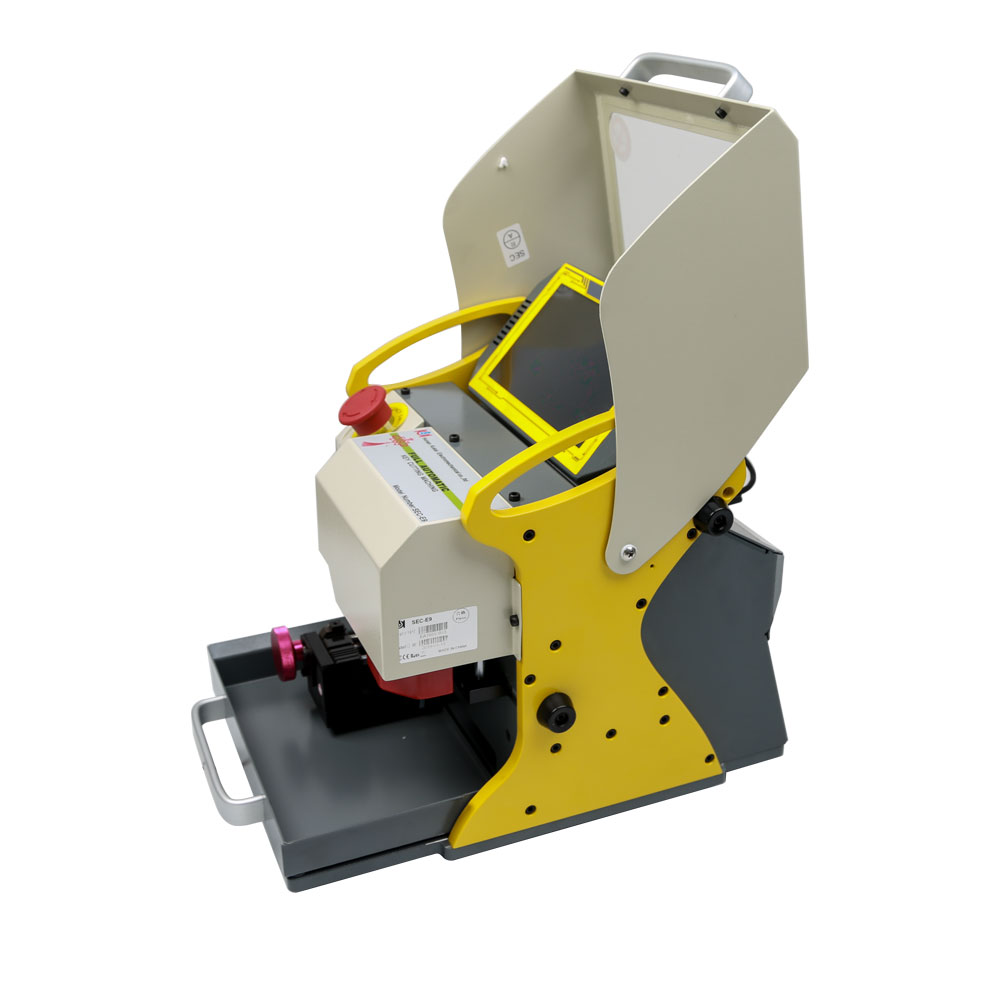

SEC-E9 CNC Automated Key Cutting Machine Multi-Language Upgradable Work on Car, Truck, Motorcycle, House Key

SEC-E9 Automated Key Cutting Machine Specification:
·  No.: SEC E9

·  Power: 120W

·  Dimension: 255(W)×360(H)×340(D)mm

·  Weight: 19.5KG

·  Resolution: XY axis: 0.005mm, Z axis: 0.0015mm

·  Spindle Revolution: 16000+rpm

·  Temperature: 0-40°

·  Humidity: 10-90%

SEC-E9 portable metal desktop air cooling fully automatic smart key cutting machine is able to cut standard keys and high security keys, such as BMW, VW, HONDA, OPEL,etc, SEC-E9 also supports to cut house keys, including dimple keys, tubular keys, single standard keys and motorcycle keys. Ford Tibbe keys and LDV keys are available to cut. SEC-E9 is a good choice for locksmith since you do not need to buy other small key cutting machines for house keys, just need to buy the corresponding clamps for different key types. Moreover, SEC-E9 can cut a new key without original key. It is the main difference from the traditional manual key cutting machine.

SEC-E9 is all-in-one key cutting machine which can be easily operated by users steadily thanks to the state-of-art technique. It combines the mechanical and electronic precision to guarantee unique key cutting performances and quality.

SEC-E9 CNC Automated Key Cutting Machine:
1. Latest Version: V16.0.0.3 Newly added key data includs: Scion, Toyota, Lexus, Renauit, Nissan, Acura, Subaru, Chrysler
2. Can directly search key bitting number by key code for some keys. No need to search from Instacode
3. Support all key lost, can cut a new key by bitting number
4. Multi-Language: English, Spanish, French, German, Italian, Korean, Portuguese, Russian, Turkish, Czech.
5. Can cut veritcal milling, flat milling, internal milling and external milling.
6. Work on Car, Truck, Motorcycle, House Key, Dimple & Tubular Keys, cut automobile keys,motorcycle keys ,dimple keys, tubular keys, and single-sided standard keys.
7. Can cut Tibbe keys and LDV keys
8. Auxiliary Clamp is available
9. CE Approved
10. Free Update Online
11. Support network remote upgrade, no need to return to factory

SEC-E9 Key Cutting Machine Newly Update(2018-12-10)
Software version is 16.0.0.3, Database version is 15.16.

Newly added key data includes:
1. YM23 8-cut(IC card 1896)key
2. FIAT 500L key and key code
3. ONDA motorcycle CB150 key
4. Oldsmobile, Mahindra, maruti key and key code

Improved key data includes:
1. Improved Hyundai,Kia,Toyota menu: add new choices of manufacture year in and after 2015.
2. Hyundai,Kia,Toyota key and key code
3. HONDA(IC card 982)key code
4. Mitsubishi,Maserati,Chevrolet key code

Two ways to enter key data:
1. Search car manufacturer, model and manufacture year
2. Search key blank or IC card

Three ways to get key cuts:
1. decode original keys
2. Input key cuts
3. Search key code

SEC-E9 CNC Automated Key Cutting Machine Features:
Built-in database, support key missing teeth inquiry;
Light weight, small size, easy to work out;
Equipped with two spindle belts, decoder and cutter;
Interpretation and cutting can be completed at one time;
Support plain milling key, face milling key, Allen key(F021), Stiletto key andCylinders key;
Repair the wear keys to recover the original precision.

Quick Function of SEC E9:
Key data search
Key cutting history
Frequently used key data registration
Last key
Clamp calibration
Tool length calibration
Automatic setting of clamp origin
Checking calibration value

SEC-E9 Key Cutting Machine Car List:
Acura/Alfa Romeo/Aston Martin/Auti/BMW/Bentley/Buick/Cadillac/Carryboy/Chevrolet/Chrysler/Citroen/Dacia/Daewoo/Daihatsu/Dodage/Eagle/Ferrari/Fiat/ Ford(Australia)/Ford(Europe,USA)/Fuso Trucks/GMC/Hino Truck/Holden/Honda/Hummer/Hyundai/Infiniti/Isuzu/Iveco/Jaguar/Jeep/Kia/LDV/Lamborghini/
Lancia/Land Rover/Lexus/Lincoln/MAN Trucks/Mack Trucks/Maserati/Mazda/Mercedes/Mercury/Mini/Mitubishi/Neiman/Nissan/Opel/Peugeot/Plymouth/
Pontiac/Porsche/Range Rover/Renault/Rolls Royce/Rover/Saab/Saturn/Scania/Scion/Seat/Skoda/Smart/Ssangyong/Subaru/Suzuki/Tata/Toyota/Triumph/
Volkswagen/Volvo/Volvo Trucks

SEC-E9 Key Cutting Machine Household Key List:
AGA/ASSA/ATP/AXA/Abloy/Absa/Abus(SD)/Ace/Alpha/American Padlock/Anchor/Anker/Ankerslot/Atal(SD)/Atala/BAB/BKS/BMB/BTV/Basta/Batu/Bauer/Bellville/Beram/Best/Beta/Brabantia/Briggs&Stratton/Brisant/Burg/CES(SD)/CIB/CL/Caver/Chicago(SD)/Chubb/Cisa(SD)/City/Clausor/
Colomenca/Corbin(SD)/CorbinRusswin/Corni/Cyber Lock/Dad/Detex/Diebold/Difi/Diplomat/Doblina/Dom(SD)/Dorma/Dubois/E-Z-SET/ERA/Elgin/Emhart/Emka/Etna/Eurolocks/Eurospec/Evva/FAB/FB/FFFacchinetti/FPB/FTH/Falcon/Fama/Feb/Flambo/Fort(SD)/Fral/ GEGE/GHE/GSA/Gete/Goa/GuLi/Guard/GuervilleRiquier/Hafele/Henkna/Hobes/Hon/Hudson/Hurd/Huwil/IFAM/Ideal/Ikea/Iseo(SD)/ JCB/JPM/JinDianYuanZi/Jore/Junkunc/Padlock/Kaba(SD)/Kale/Kasp/Keiper/Kiferm/Kwikset/LaFonte/Lane/Las/Legge/Lips(SD)/Lista/ Litto/Lockwood/Lowe&Fletcher(SD)/MCM/MEFA/MLM/Marco/Marks/Master/Mauer/Maxus/Merit/Meroni(SD)/MetalRousseau/ Mippart/Miwa/National/Neiman/Nemef/Nobo/Norwalk/ODA/Omec/PYCM/Papaiz/Penn/Pfaffenhain/Prefer/Presta/Protec/QLP/ Riople/Ronis(SD)/Royal/Ruko/Runo/Russwin/SOS/STA(SD)/Sama/Santos/Sargent/Sargent&Greenleaf/Schlage/Securemme/ Securicraf/ShangHaiQiuJing/Showa/Siam/Sofi/Sperrkolb/Squire/Strafor/Strattec/Sul/Talon/Technal/Teka/Technal/Teka/Teknion/ Terca/TesaThomee/Touch/Trelock/TriMark/TrioVing/UAP/Unifor/Union/VIP/Vachette/Vario/Veronelli/Vinco/Viro/Weiser/Weslock/
Whitco/Wigro/Wilka(SD)/Wilmont Breeden/Winkhaus(SD)/Yale(SD)/YueMa/Yvel/Zadi(SD)/Zwiss-Ikon

SEC-E9 Punch Key List:
AGA/AGB/Abloy/Abus/Alpha/Atal/Atra/Avocet/Azbe/Baton/Bricard/CES/CVL/Cadman/Cays/Chubb/Cisa/Corbin/DOSSIV/DOM/Domus/
Esety/Ezcurra/FAC/FAG/GTV/Gerda/Goal/IFAM/Iseo/Kada/Kaken/Kale/Keso/Lince/Lips/Lock Focus/Lockman/M&C/M-loy/MCM/MLS/Magnum/Master/Mauer/Miwa/Mottura/Mul-T-Lock/Omec/Pfaffenhain/Potent/Royal/Guardian/STS/Securemme/Showa/Space/Squire/Tecon/Tesa/UCEM/Viro/WanJia/West/Wika/Winkhaus/Yale/Yardeni/Zadi

SEC-E9 Motorcycle Key List:
Aprilia/BMW Cycles/Ducati/Harley/Davidson/Honda Cycles/KTM/Kawasaki/Kymco Cycles/Moto Guzzi/Peugeot Cycles/Suzuki Cycles/Victory/Yamaha

SEC-E9 Tubular Key List:
AGA/Beaver/Bilma/Bumil/Chicago/Dynaconsult/Fort/LYF/Lowe&Fletcher/Meroni/R.O.C/Ronis/SAG/Sentry

SEC-E9 Key Cutting Machine Update Gudie:
1. Click ”Setup”

2. Click”Wifi”

3. Connect Wifi
4. Press ”UpdateCheck” after the wifi is connected successfully.
( Please notice that you just need to click the ”UpdateCheck” once, no need to click it repeatedly)

5. Click ”Upgrade” button

6. After upgrading successfully, the tablet PC will automatically jump to the main page.

Notice:
1. Please keep the Wifi conncted when upgrade
2. Please keep the network smooth
3. Please do not turn off tablet PC when upgrading
4. Please do not operate the tablet PC when downloading the upgrade files.
5. Please disconnect Wifi after upgrade is done. ( otherwise the system will generate garbage when tablet PC updates automatically . Also cause the system to run slowly.)

SEC-E9 Key Cutting Machine FAQs:
Q: Can the SEC-E9 machine cut household keys?
A: definitely yes!
Q: Condor mini cannot support the moto key; SEC-E9 support that?
A: Yes,SEC-E9 can cut motorbike keys without issues.
Q: What’s the different between Condor key cutting machine and SEC-E9?
A: SEC-E9 can cut motorcycle keys and household keys that Condor cannot support.

Quick Function:

Comparison Chart for E9Ⅰ vs  E9Ⅱ vs  E9Ⅲ vs E9IV

HOW TO USE SEC-E9:

DETAILS PARAMETER:

DETAILS OF DISPLAY:

Embedded 8-inch Tablet PC
Embedded 8-inch Tablet PC offers easier  key cutting capability with graphical user interface.

Equipped with both decoder and cutter
Quick and easy duplication of key is available.

Various types of key cutting supported
-Automobile key (including ford tibbe)
-Dimple key
-Single-sided domestic key
-Tubular key

Replaceable vise
Various kinds of replaceable clamps are available for easy key cutting.

Spindle driven by two spindle belts
Supplied with two spindle belts to ensure high-torque key cutting without loss of cutting speed.

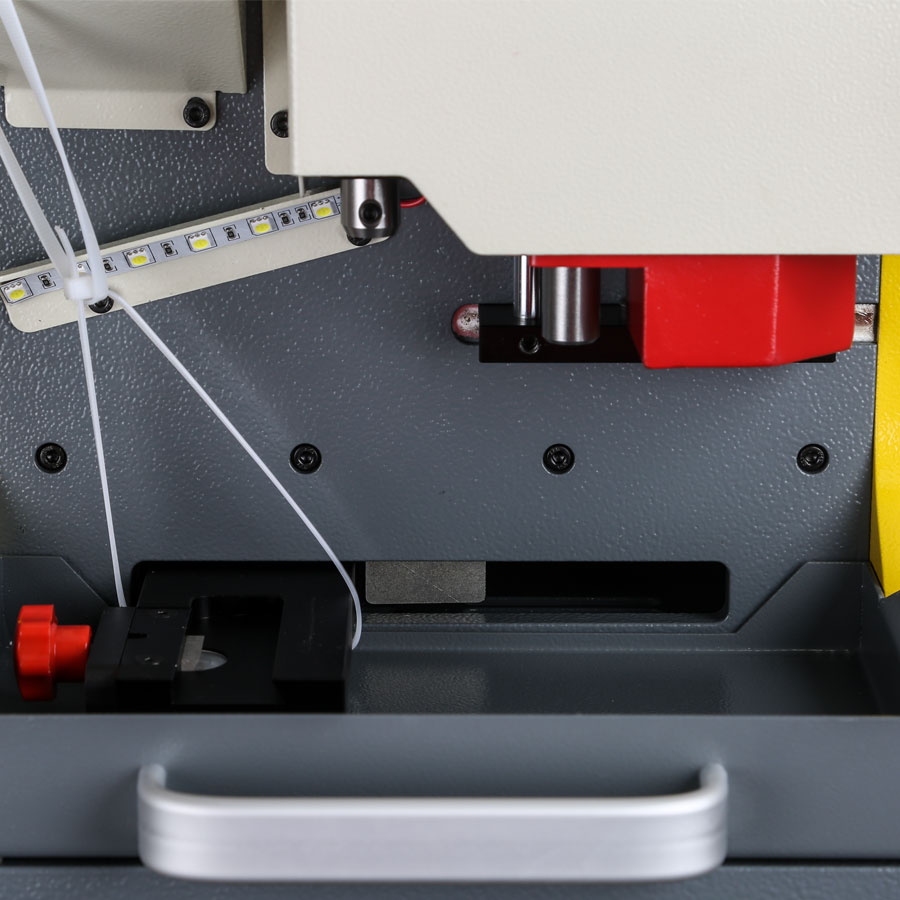

Wide and brighter LED light
long-life imported lamp beads

SEC-E9 Clamp Replacement Cautions:
When you fix the clamp by pressing the lever,the clamp origin may be changed or the clamp may get shaken.Make sure to turn the lever to fix the clamp.



          Never fix the clamp by pressing                     Make sure to fix the clamp by turning

SEC-E9 Key Fixation
SEC-E9 is a key cutting machine to cut the vehicle key,as well as various kinds of keys.It provides the clamp and stopper to fix various kinds of keys easily and quickly.The key fixing method is as follows.

Top and Botton Clamp:
The key can be held on top or botton of clamp depending on the type of key.Edge or double sided non laser keys are always held on top clamp.Laser key can be held on either,but using bottom clamp is recommended.

      Fixing a Key on Top Clamp:(Mostly Edge or Double-Sided Non Laser Keys)

      Fixing a Key on Bottm Clamp:(Mostly Laster Keys)

SEC-E9 Key Cutting  Machine  Stopper:
Stopper shown in the left figure is used to align key correctly.Insert the stopper into proper groove.
The place a key making its shoulder or tip touch this stopper.

Use Right-to-Left Stopper Block to hold laser key with short length.

Standard Key:(Single & Double-Sided Key)

1.Put the stopper in the stip of Shoulder Align Stop.
2.Place the key shoulder to touch the stopper and fasten the clamp tighten handle to fix the key.

About SEC-E9:

- X/Y Axis with cross roller guide

stable and accurate
-Z Axis with ball screw to drive
Powerful and high precision
- Equipped with both decoder and cutter
Duplicating and cutting keys easily
-8 inch tablet PC tilting screen
Tilting from 30° to 84°,large storage capacity
- Various types of key cutting supported With Replaceable clamp
Changed according to the cut keys
- Automatic key measurement
Key thickness, key tip position and center position could be measured
- Wide and brighter LED light
easily operating at night
- Equipped with two spindle belts&27W DC motor with 24VDC
Faster cut speed
-Upgrade
Autogrades
- Portable
easily operating outdoors

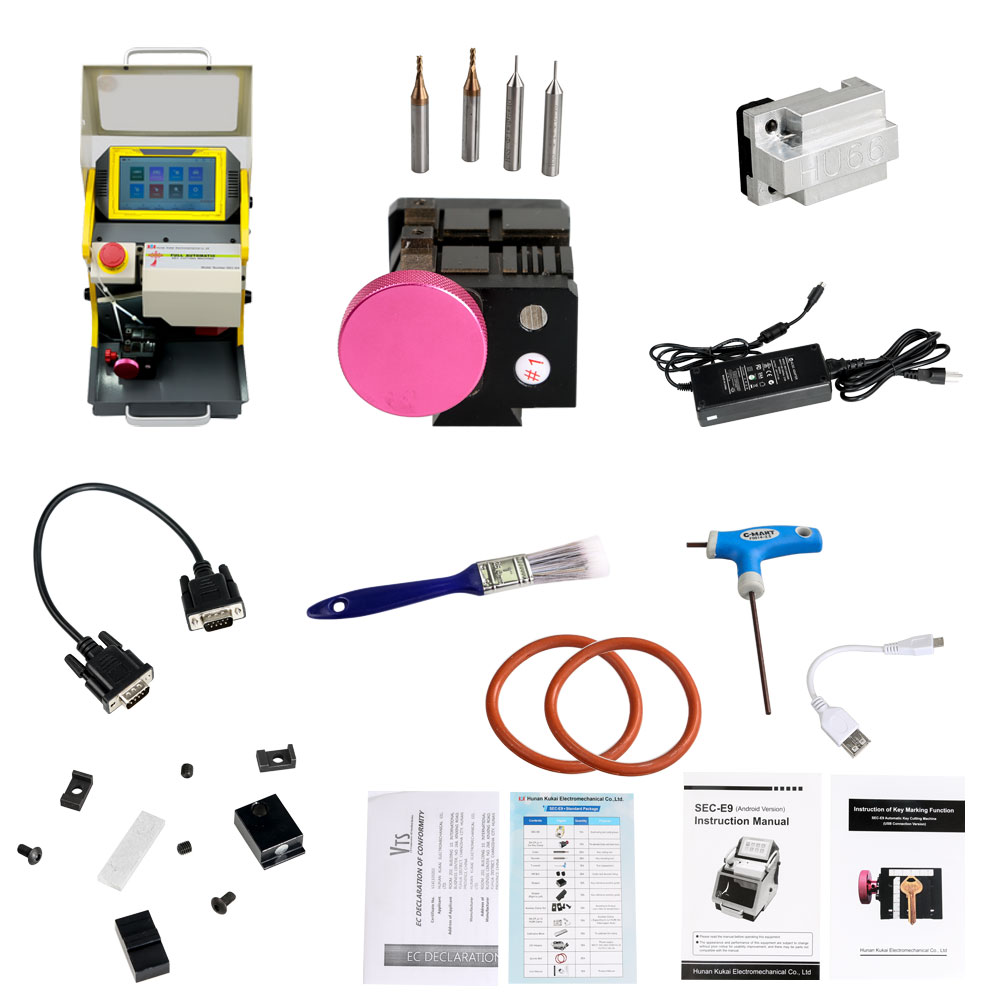

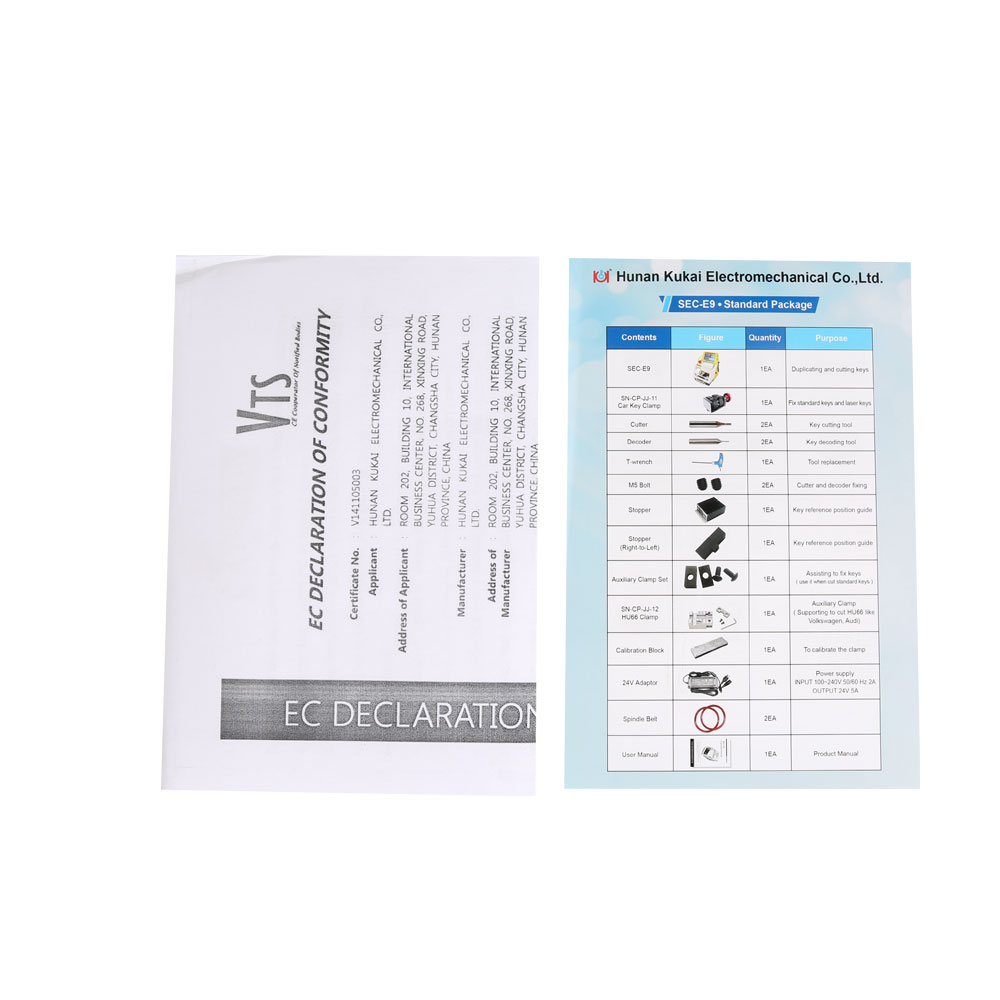

SEC-E9 Key Cutting Machine Standard Package

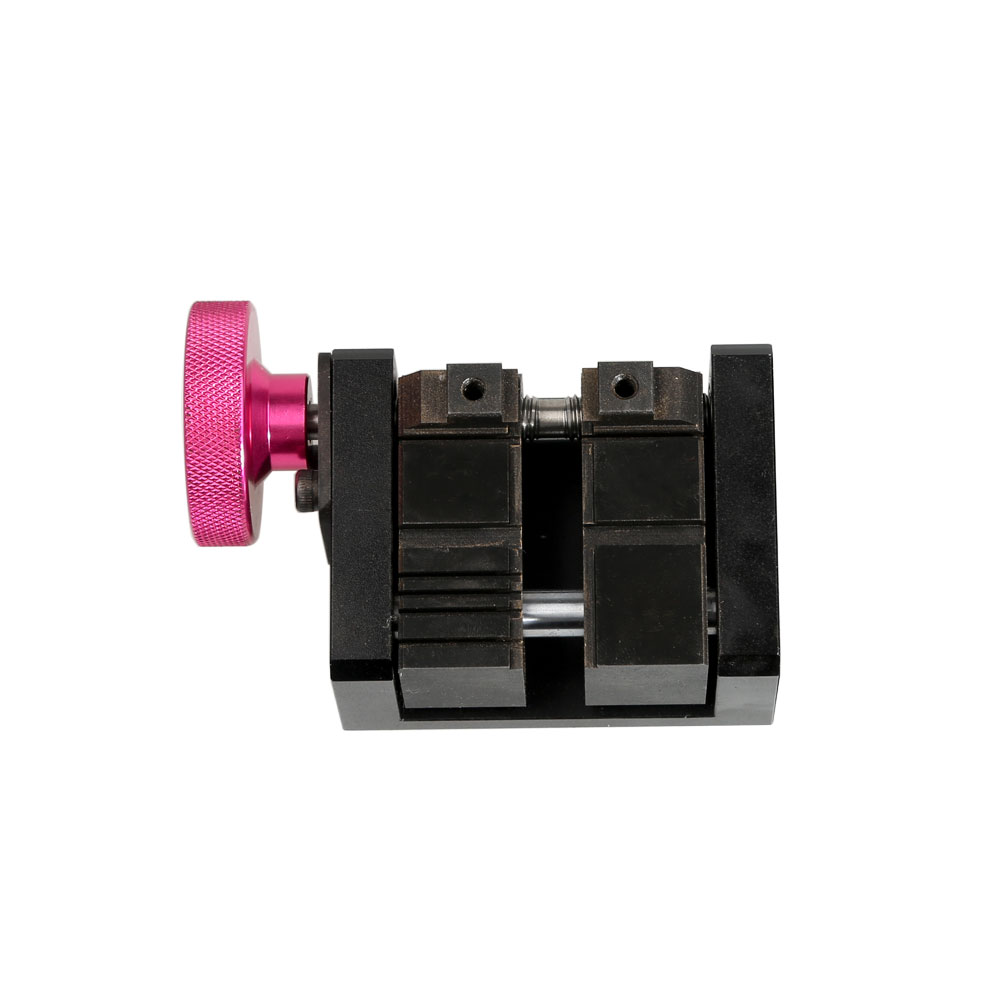

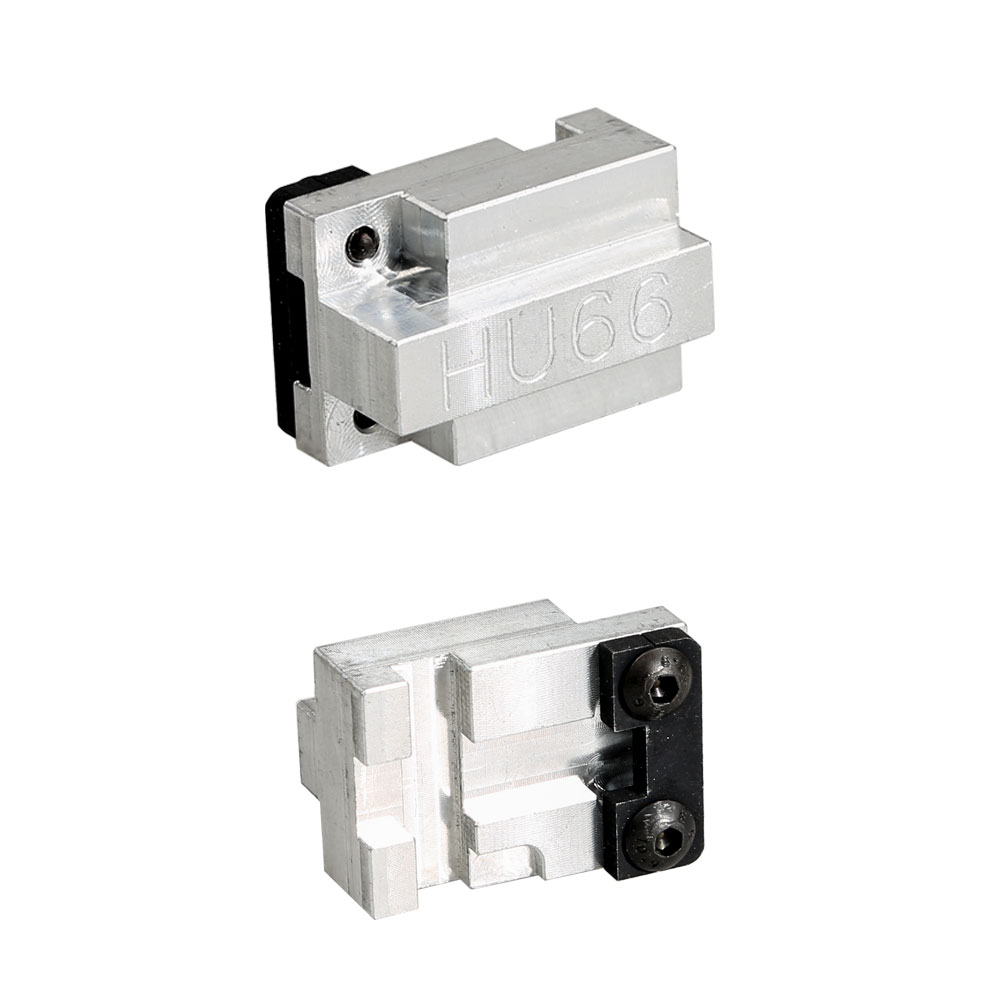

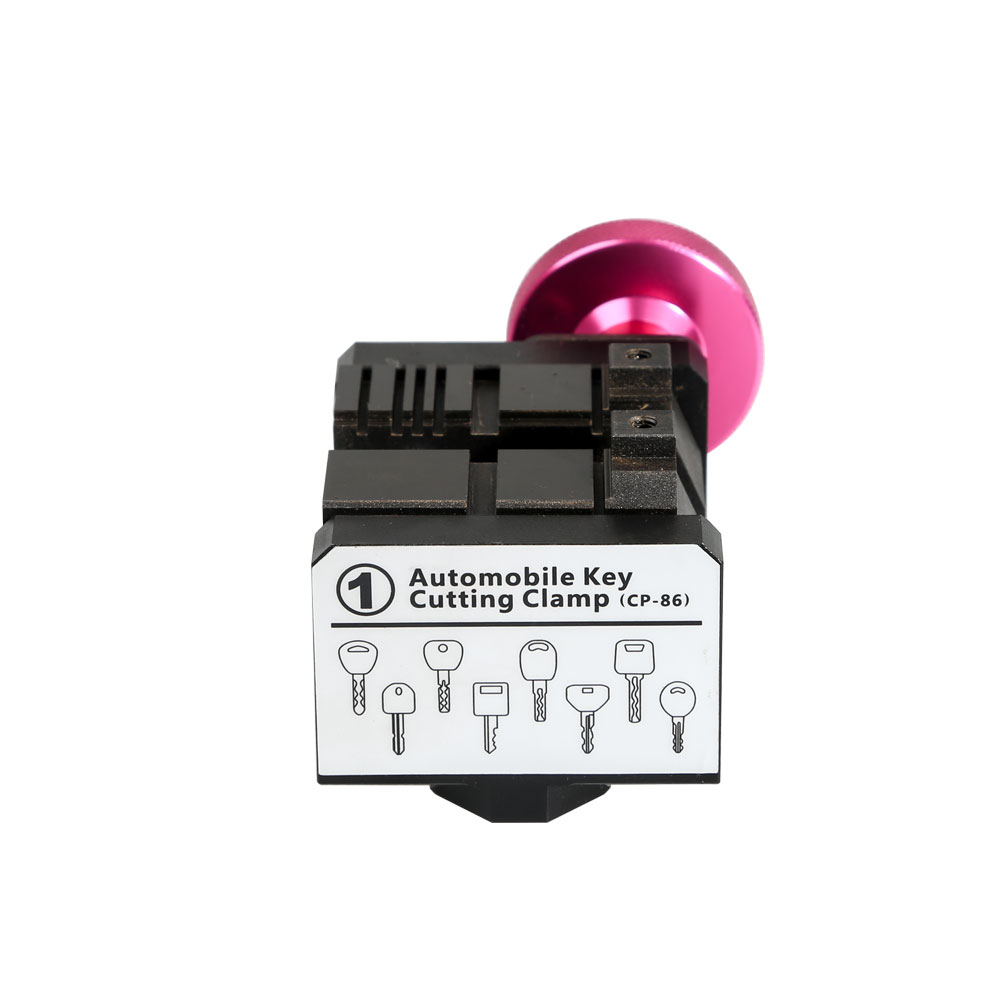

Clamp for Machine:
Different kinds of key clamps for SEC-E9 Key cutting machine optional. You just need to install the corresponding clamps for different key types, no software is needed when replacing the clamps. Automabile key clamp is included in the standard specification
