CGDI CG100X New Generation Programmer for Airbag Reset Mileage Adjustment and Chip Reading

Description:

CG100X is Covering 90% of models and modules on the market, including American, German, French, European, Korean, Japanese, Italian, domestic series, as well as engineering vehicles and motorcycles, it is powerful and the first choice for opening a store. Stable and safe, convenient and intelligent.

Highlights:

1. Functions Including Airbag Reset, Mileage Adjustment, ECU and BCM Chip Reading
2. Support BMW Land Rover Key match
3. Free Update for 1 Year, after one year, it will cost $89 per year. Not force to update, device can still perform if you don't want to pay for the update cost after the first year.
4. Language: English/ Chinese
5. CG100X Support List:
CG100X Airbag Reset Vehicle List

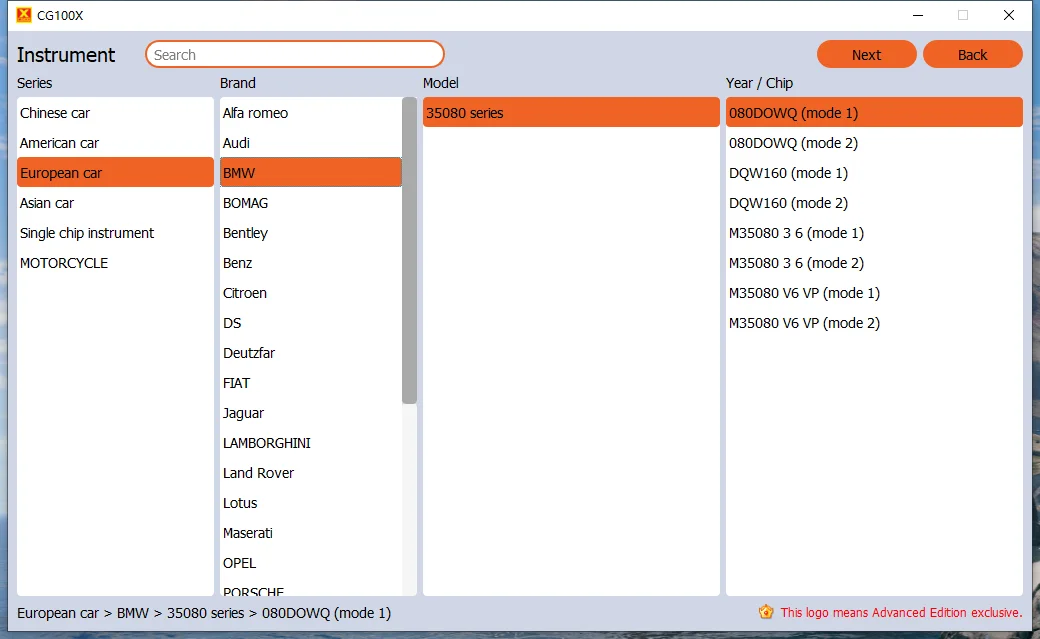

CG100X Dashboard Vehicle List

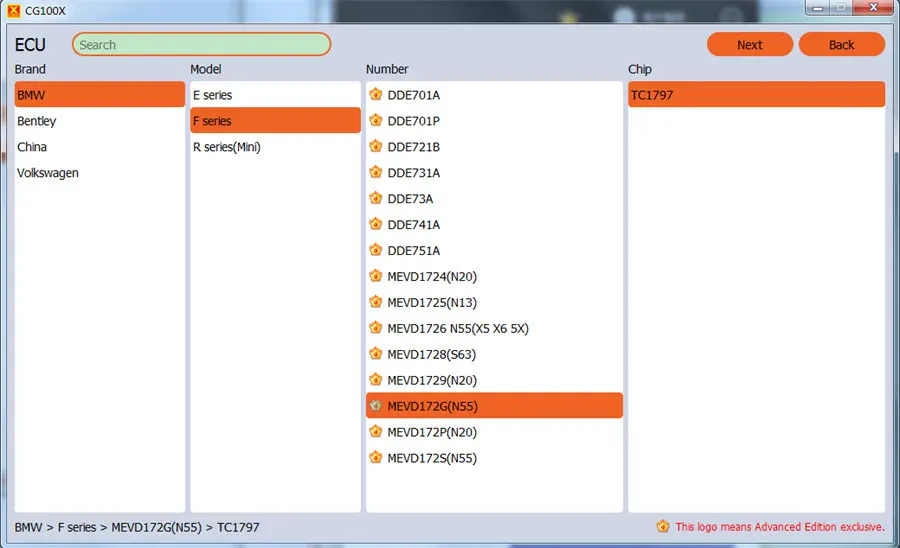

CG100X ECU Vehicle List

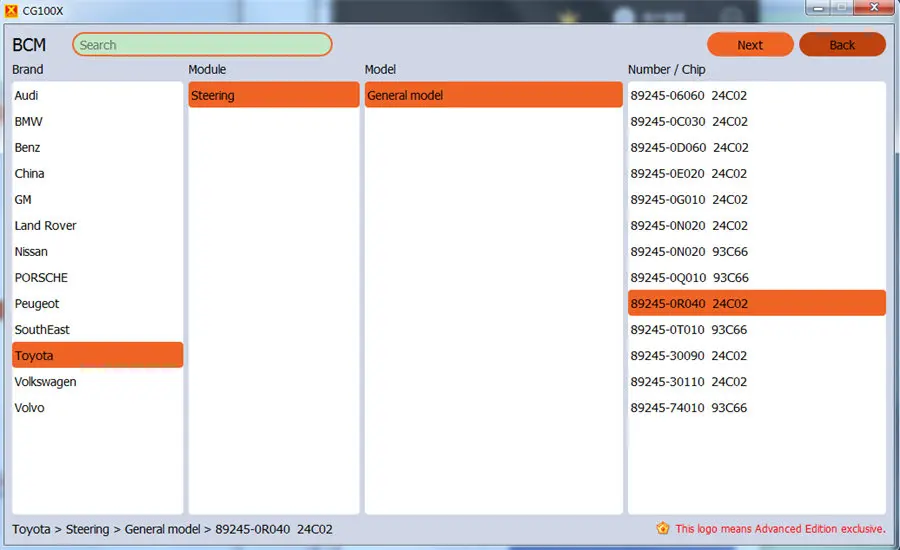

CG100X BCM Vehicle List

CG100X Functions List:

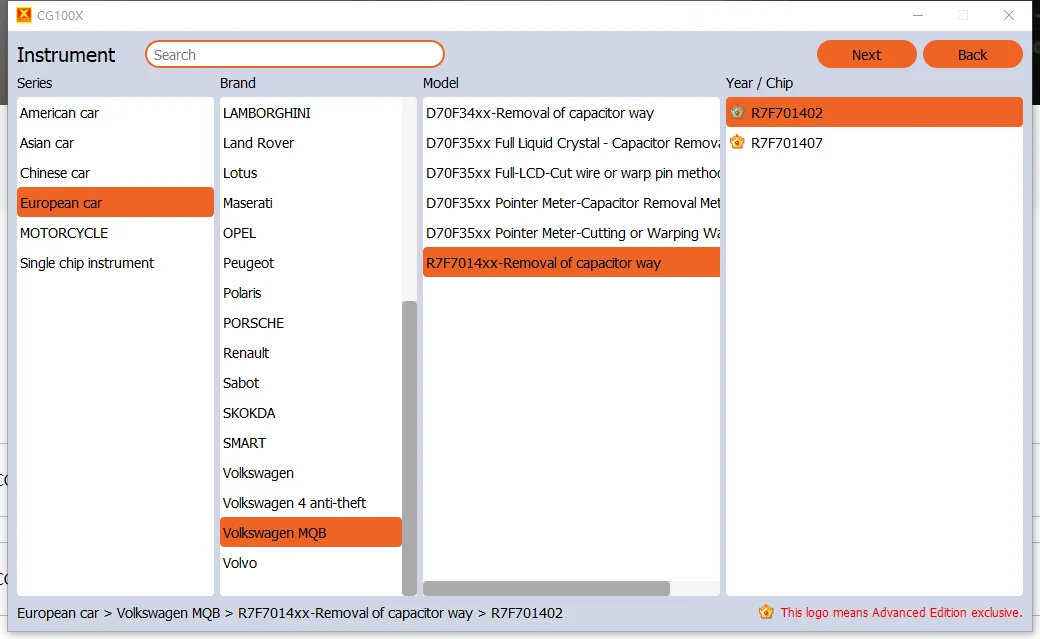

1. Meter mileage adjustment
The software is embedded with intelligent algorithms, and the mileage data is automatically analyzed. It supports more than 4,600 car models, with a success rate of over 95%. It is closely following the market and is being upgraded in real time.

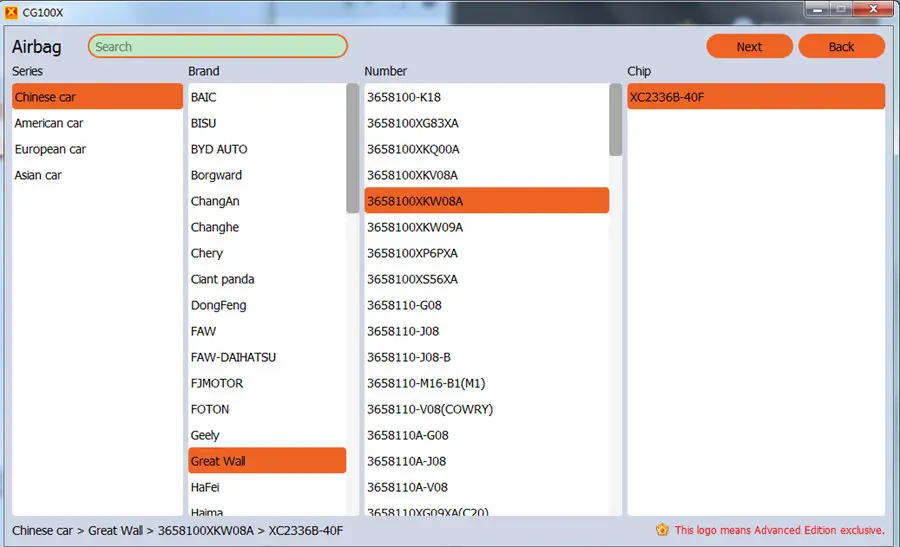

2. Airbag computer reset
Contains more than 4,500 ACU models, dedicated to solving airbag faults, analyzing the cause of the light, perfectly clearing the fault code, giving car owners peace of mind, and more models are continuously added.

3. Car body failure maintenance
Focus on automotive electronic faults, good at repairing various common faults, support engine computer, steering angle, footwell module, keyless entry module, audio amplifier, gearbox computer, 48V light hybrid lithium battery, 12V lithium battery, etc. A body computer that provides vehicle data and assists repairmen in resolving vehicle failures.

4. Accessory clone replacement
Solve the pain points of the repair shop, a single device can replace accessories, data cloning, analysis and repair, one-click operation without asking for help.

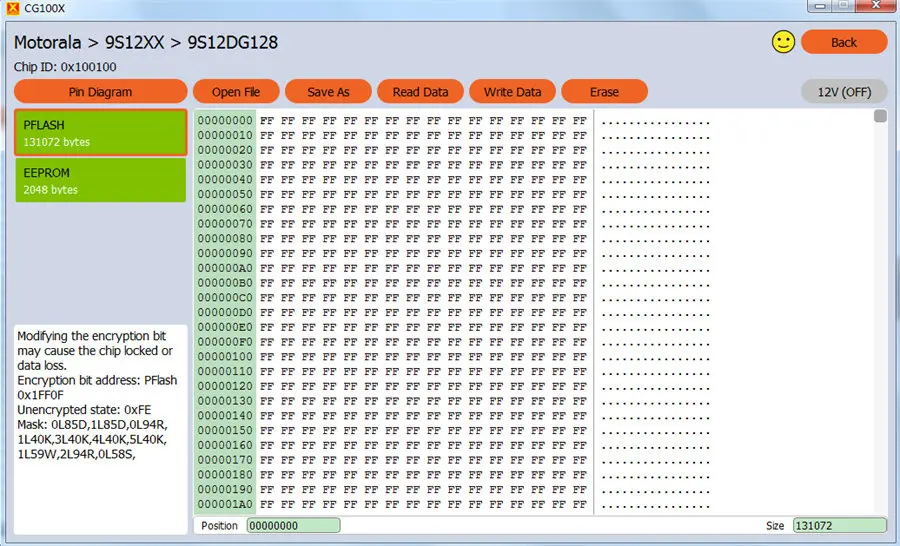

5. Chip Data Burning
Covers more than 90% of automotive chips, supports more than 1,800 models, reads, modifies, writes, erases, partitions and saves to meet daily car repair needs, and can also use the browser that comes with the software to analyze data.

Octal Chip (EEPROM):
24 series, 25 series, 35 series, 93 series, 95 series, X50 series, S29 series, RH series, CAT10 series, CR series

Fujitsu
MB90 series, MB91 series, MB96 series

Microchip
PIC18F series

Texas Instruments (TI)
TMS series
NXP (NXP)
S32K1 series
Motorola/Freescale
9S08 series, 9S12 series, HC908 series, HC912 series, MAC series, MPC56 series
Atmel
ATMEGA series
Renesas
H8SX series, M32R series, R5F10D series, RH850 series, V850 series
Infineon
TC series, XC series
Saiyi Law (ST)
SPC series, ST10F series, STM32F series, STM8 series
Cypress/Spansion Semiconductor (Cypress/Spansion)
S6J series

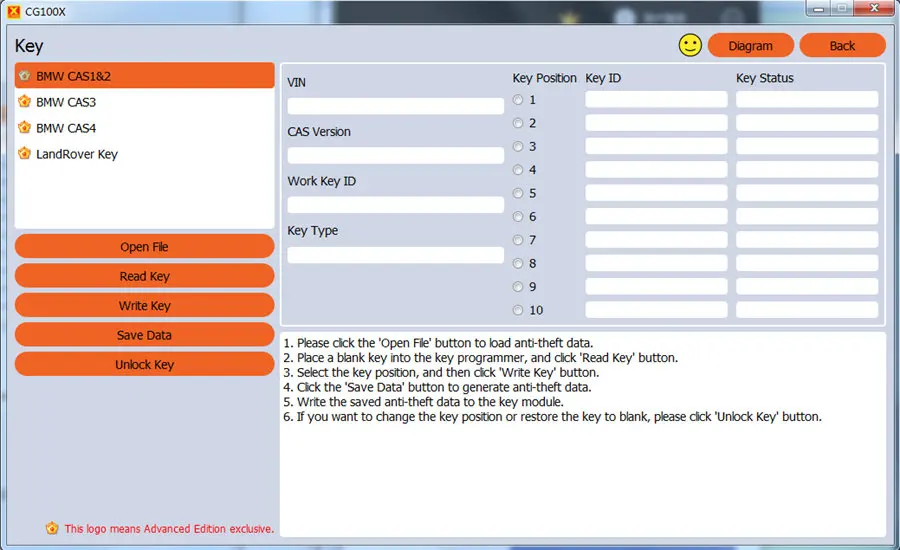

6. Car key matching
Support BMW CAS series and Land Rover models, automatically display the key ID and usage status, and assist the locksmith to complete the key matching work.

CG100X Features:

1. Top ten accessories, functional classification
In addition to the main unit, it comes with 10 kinds of accessories, and the functions do not overlap; the DB25 connection method is used, which is more stable and safe; the wire number is clearly marked to avoid welding errors.

2. Reading and writing speed up, status monitoring
Compared with conventional programmers on the market, CG100X has an overall speedup of more than 120% for chip reading and writing, and some chips can reach 200%. The operation is monitored in real time to protect data and chips. For large-capacity eight-pin chips, the speed of reading and writing is increased by more than 500%, shortening the operation time, so that customers no longer have to wait, and truly achieve twice the result with half the effort.

3. Eight pins without dismantling, pin detection
Supports eight-pin chips without dismantling, avoiding the risk of back and forth soldering. Strong drive capability, free from communication interference. Provide pin detection, red means poor contact, green means good contact, visually display the pin status. It is more compatible with Honda instruments without dismantling, and provides wiring diagrams to avoid motor damage caused by disassembling the pointer. More disassembly-free
wiring diagrams are continuously added.

4. Intelligent algorithm, real-time upgrade
Automatic analysis of instrument kilometers, the error does not exceed 32Km, some hybrid models support modification of HEV+EV, engineering vehicles can modify working hours, and more than 50% of trucks provide fuel consumption modification.

Airbag Computer Reset Provides Two Solutions: Fault Clearing and Data Overwriting.
Fault clearing:
The original data is stored in the chip, and the fault code is clear, such as collision fault or air curtain fault. If you choose this repair method, only the relevant fault data in the chip will be cleared, and other data areas will not be
affected.

Data Coverage: When we are not sure how many jobs we have received and the data is not the most original, we can choose this repair method. After replacing all the data in the chip, a fault code may be reported due to the different configuration of the vehicle, and we need to reprogram and match. Focus on the development of R7F7 instrument, D70F instrument, SPC instrument and new airbag computer, so that 100% of the eight-pin chip can be disassembled, and is committed to covering 99% of the models and modules in the market.

5. Hardware upgrade, data loss prevention
Although CG100X and CG100 are different in one word, the equipment is completely different. CG100X adopts the industry's ideal architecture design and is equipped with the world's most advanced MCU. It is known as a fighter among single-chip computers, and its operation is more stable and safer. The advantages in hardware come from market demand. We attach great importance to customer feedback and suggestions. CG100X will support new modules and new chips more easily.

Adopting DB25 communication interface, compact design, stronger driving ability, OBD mode can be upgraded later, and supports CAN, LIN, K and other automotive communication protocols.

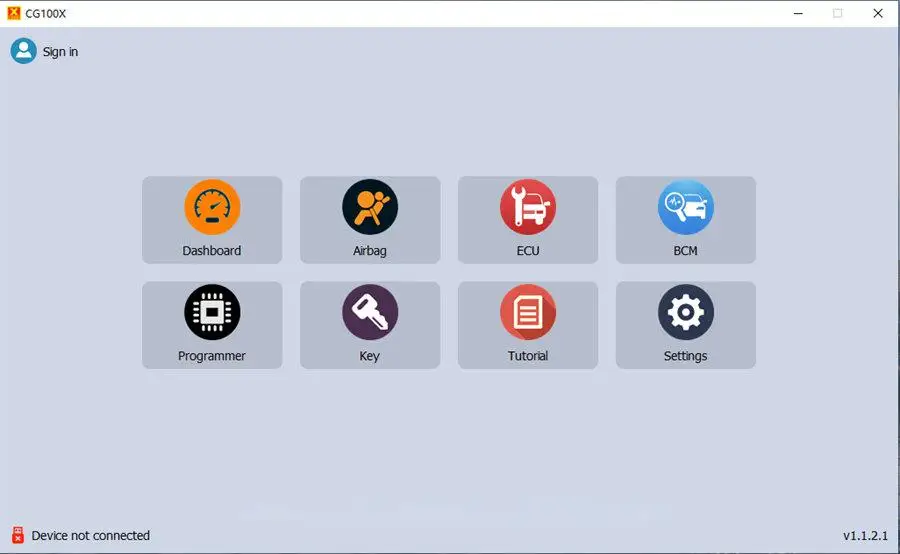

6. Easy access, automatic search
● Open the software without plugging in the device, which is convenient for viewing the vehicle model and functions;
● The car model search automatically matches special characters such as spaces and bars, regardless of case;

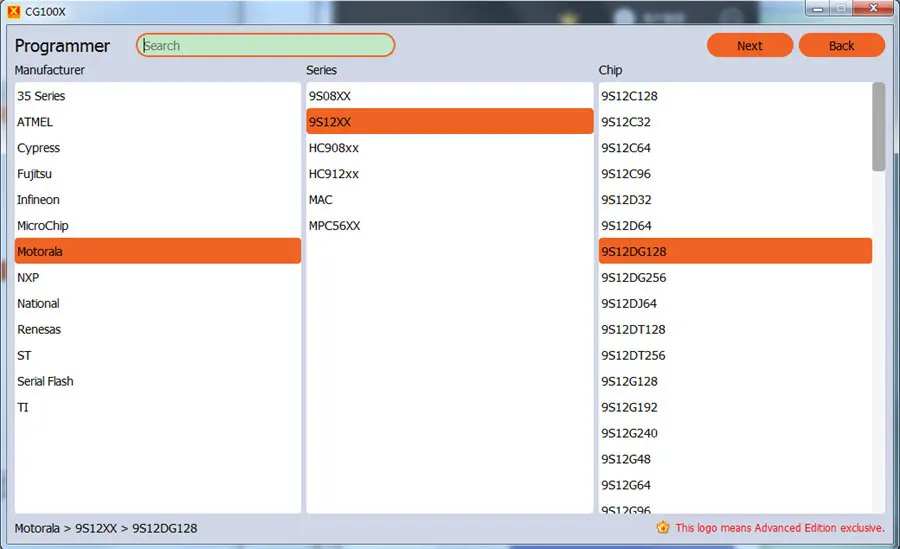

● The general programmer search mask directly displays the chip;
● In the list interface, click to enter and press Enter to enter;
● Support picture scaling, display file open/save path.

CG100X vs CG100 vs CG70


	CG100X	CG100	CG70
Hardware
	The connection software requires a 12V power supply, and the use process is needed	The connection software does not require a 12V power supply, The use process is needed	The connection software requires a 12V power supply, and the use process is needed
Packing	Plastic suitcase	White Carton Box	Plastic suitcase
Annual fee	First year is free to use,  annaul fee is needed from the 2nd year	First year is free to use,  annaul fee is needed from the 2nd yea	First year is free to use,  annaul fee is needed from the 2nd year
Language	English/Chinese	English/Chinese	English/Chinese
Features	1. Instrument adjustment 2. airbag repair 3. Body failure repair 4. BCM module read and write 5. Reading and writing of various non -encrypted chips 6. BMW Land Rover writes key	1. Instrument adjustment 2. airbag repair 3. Engine and computer read and write 4. BCM module read and write 5. Reading and writing of various non -encrypted chips	Mainly work for Airbag repairng, No Welding No Disassembly Get Free ECU Uncover Tool
Highlight	Hardware upgrade, read and write data faster and more stable The upgrade frequency is faster. 1. 8 -foot removal of adapter (CG100 Many customers ask) 2. CAN line communication (similar to CG70) 3. BMW Land Rover Key match (CG100 cancel KEY adapter) 4. Can support more chips, keep pace with the times, and have strong new MCUs. The adapter is upgraded. 5. BCM can be enhanced, for battery repair, and various types of common problems (steering angle), the future growth will be stronger. 6. All of the CPT wiring will be added (add 3-5K airbag model at a time), mainly for foreign models	Support multiple instrument and airbag repair BMW FRM repair Mercedes -Benz Porsche Battery Repair	No need to disassemble the airbags to repair the airbags without welding 1. Similar to the CPT device, the price is more competitive 2. The operation is easy, no need to disassemble the welding line 3. models are constantly upgrading
Support Models	A total of 1538 chips, 4600 instrument mileage, more than 4,500 ACUs, ECUs, BCM; Contact sales to get the support list	Support 1503 chip models, 4767 instruments, 4570 airbags, ECU, BCM Contact sales to get the support list	Support 3806 airbag models, continuously increasing (final 5000+); Contact sales to get the support list

CGDI CG100X Support List Check

CG100X Latest Update Information:

CG100X V1.1.2.0 NEW(2023.04.24):
CG100X Software Free Download

1.The following car models are added for car mileage adjustment:

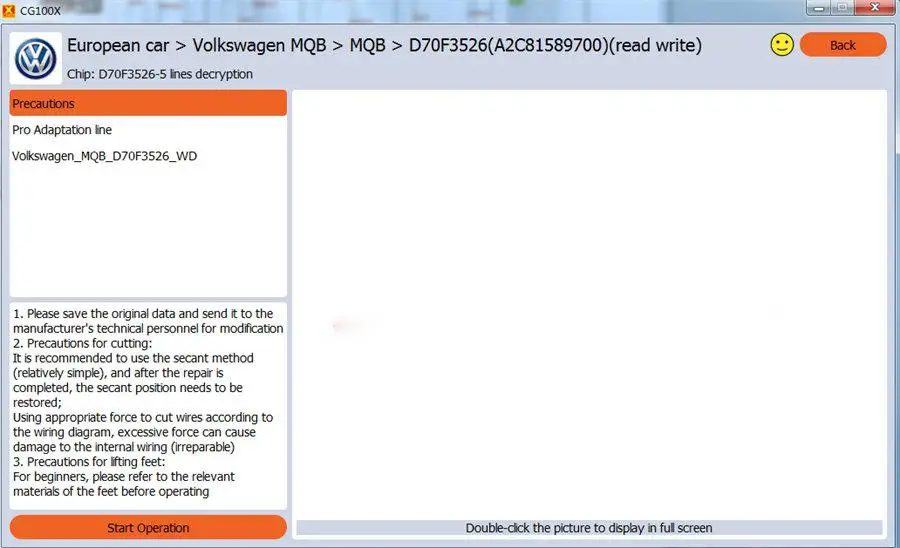

Volkswagen MQB D70F3526(A2C81589700) (reading and writing)
Volkswagen MQB D70F3529 (read and write)
Volkswagen MQB D70F3532(A2C81589500) (reading and writing)
Buick GL8 D70F3558(BCM) (read and write)

CG100X V1.1.2.0 V1.1.1.0 (2023.04.17)

1.Added 71 models to dashboard.
2.Added 22 models to airbag.
3.Added 16 models to read-write.

The following models are added for dashboard.
Aochi X3 2022- 24C16
Boruda DS8 2018- 24C04
BAIC Kustu T1 2022- R5F10DPGJ
Besturn E50 2009- 9S12HZ128
Honda CIIMO 2013- 93C66 Large screen
Honda Motor CB190X Wuyang Honda 2020- 24C04
Honda Motor CM300 24C04
BYD AUTO SONG PLUS 2021- 24C16
Changhe LIANA 2011- 24C02
Changhe Changhe Suzuki Huaduoli 24C02
Spring breeze 700 CLX 24C08
MAXUS MAXUS Istanbul 2013- CTA1023
Dima Harvester 2021- 24C16(16CM)(mileage+time)
Dongfanghong Agricultural machinery 9S12HY64(hour) V2
DongFeng HuashenF5 MPC5606S
DongFeng Fengxing LingzhiM3L 2017- 24C04(04CM)
DongFeng Yufeng EM26 2018- 24C256
DongFeng Fengshen AX4 25040
DongFeng Furuika 2022- 93C86
DongFeng Liuqi Chenglong H5 2022- 24C64
DongFeng DFSK V27 2012- 9S12HA32
DongFeng Fengshen AX4 2018- 25040(25LC04)
DongFeng Fengguang 500 2021- 24C16(4G16)
DongFeng Fengguang 360 2015- 9S12HA32
Toyota Coaster CAT1023
FOTON Oumake CAT1023
FOTON Oumake S1 130 2020- 24C04
FOTON shidai xiaoka 3 2013- MB96F673A
Hanteng Hanteng X5 2019- 24C04
HONGRI U8 R5F10DPXXX
Geely Binrui 2022- 24C64
Geely geometry A 2019-24C16(24G16)
JAC JUNLING 2022- 24C16
JAC JUNLING 2022- 24C08
JAC JUNLING V5 2022- 24C04
JAC Sihao A5 2021- 24C04
JAC IEV5 2015- 24C04
JMC shunda 2015-24C08(08CM)
JinBei Grace 24C01B
JinBei HIAC X30 2022- 24C16
KINGLONG Jinwei 2018- 9S12HA32
KaiMa Ruihang X1 24C08
Excelle 525X 24LC32
LOVOL Corn machine 2021- 24C04(mileage+time) (Signal processor)
LiFan Remarkable blue maple leaf 80V 2021- 9S12XHY128((Dashboard))
Leopaard Mattu(merrto) 2021- 9S12ZVH128
LonKing Forklift 25040(time)
LonKing LonKing ZhuangZaiJi 24C64
LonKing Forklift 95640
Nezha V 9S12G64
Chery Finless porpoiseEV 2022- 24C16
Nissan navara 2017- 93C86 V2
Roewe E550 2016- 9S12XHZ512(Dashboard)+160DOWT(BCM)
Roewe craig EV360 2021- 25160(Dashboard)+95320(BCM)
Lingong E660 Digger 9S12ZVH64
Shaanxi Auto Xuandeyi 9 2021- 24C08
Shaanxi Auto Dragon X3000 2019- R5F10TPxxx
MAXUS T70 9S12XHY256
SOJEN Skatel 9S12HY48
ISUZU ISUZU  100P 2022- 24C16(4G16)
ISUZU Electric car 2022- R5F10DSLL
Hyundai Oncino 2021- 24C32
XCMG Roller 95640(mileage+time)
Yanmar 85 Harvester 2018- R5F10DMFJ(hour)
ChangAn crossover D5 2021- 9S12HY64(SC667529CLL)
ChangAn kaicheng F70 MPC5606S(SC667585CL SPC5606S)
ChangAn kaicheng The star of Changan 2014- 9S12HA32
ChangAn XingkaA 9S12HY48
nissan nissan ruiqi  2021- R5F10DPGJ
CNHTC HOWO 2020-25256 (mileage+time)
ZOOMLION Gengwang Tractor 9S12ZVH128

The following models are added for airbag.
BAIC E00098305 R7F701A033
Benz A204 901 27 04 95640
Honda 77960-T7A-B610-M2 R5F61725
Honda 77960-T70-H310-M4 SPC56AP54
Honda 77960-TVA-B010-M4 SPC56AP54
Honda 77960-TL4-Y630-M4 SPC56AP54
Honda 77960-TJH-B210-M2 R7F701A233
BYD AUTO SCEA-3658100(SEC30) Step One 25640
BYD AUTO SCEA-3658100(SEC30) Step Two SPC560P50L3
BYD AUTO SA3HA-3658100A(SEC30-C) Step One 95128
BYD AUTO SA3HA-3658100A(SEC30-C) Step Two PC560P50L3
Buick 13518781 SPC56AP54
Buick 13523856 SPC56AP54
DongFeng U40003760 SPC560P40L1
Toyota 89170-33T30 R7F701A223
Geely 6600016556 643422800 XC2336A-72
Chrysler P68186642AD 95256
MAXUS C00224537 95320
Subaru 98221 AL240 95640
Hyundai 95910-BU050 95512
Great Wall 3658110XKM03A TC222-16F
Great Wall 3658100XP6PXA R7F701009(single airbag)

The following models are added for dashboard read-write.
LiFan Remarkable blue maple leaf 80V 2021- D70F3637(BCM)(read write)
Hyundai Kustu 2021- 24C16(read write)
Buick 13594403 D70F3548(read write)
Volkswagen 5QD 959 655L R7F7010423(read write)
Toyota 89170-47840 R7F701A223(read write)
Toyota 89170-07580 R7F701A223read write)
Ford FJ5T-14B321-AB 95640(read write)
Geely 8889512208 A3C1041920000 431028 R7F701009(read write)
Geely 8889464868 A3C0273950000 431028 R7F701009(read write)
Geely P8890543891 T2006120000075 25160(read writer)
Mazda K123 57K30B 95128(H128)(read write)
MAXUS C00266722 R7F701008(read write)
WuLing 23764804 R7F701009(read write)
WuLing 23814190 R7F701009(read write)
Chevrolet 26684818 D70F3548(read write)
Iveco 5WK44339 95080(read write)
Iveco J3858527(5802115751) 25160(read write)

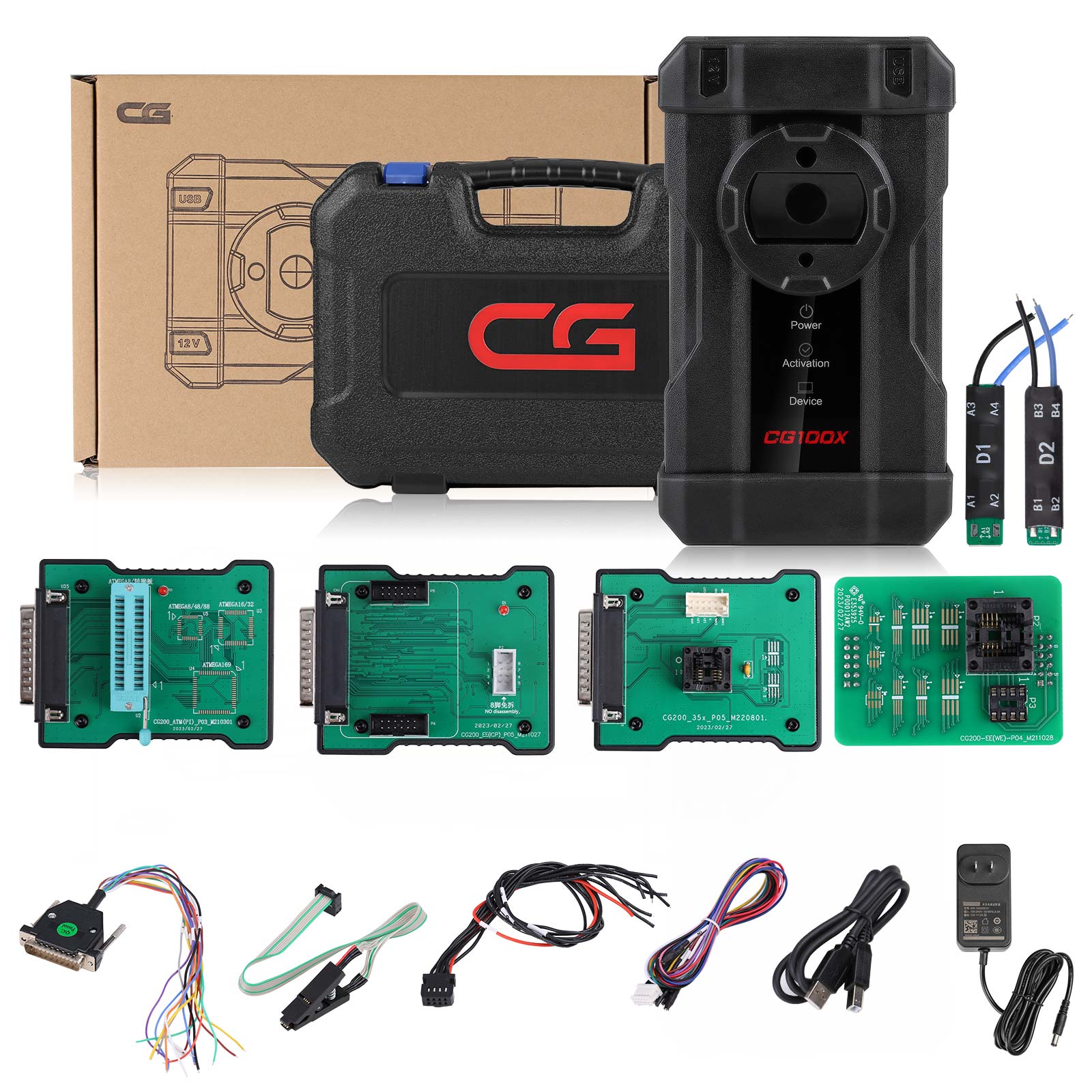

Package List:

1pc x CG100 Hardware
1pc x EEPROM Holder
2pcs x EEPROM Adapter
1pc x 35X-CAN Adapter
1pc x 12V Power Adapter
1pc x PRO Cable
1pc x USB Cable
1pc x CAN Cable
1pc x EEPROM Soldering Cable
1pc x EEPROM Clip
