OBDSTAR P003 KIT working with OBDSTAT DC706 Series/MS80

P003 Kit, working with OBDSTAR IMMO series tablets, supports reading and writing ECU eeprom & flash data and caculating IMMO data of BOSCH ME17XX, MED17XX, EDC17XX & CONTINENTAL PCR2.1 for VW/Skoda/Audi/Seat, Bentley, Peugeot/Citroen/DS, Lamborghini, Porsche, Mahindra etc..


Can be working with OBDSTAR IMMO series tablets:

OBDSTAR X300DP Plus Key Master DP Plus
X300 Pro4 Key Master 5
OBDSTAR DC706 ECU TCU Clone Tool

Notice:
New version of OBDSTAR P003 KIT ( OOT083 ) can work with DC706/ MS80
Old version (OOT041 ) can work with X300 DP/ X300 DP PLUS/ X300 PRO4/ Key Master DP

OBDSTAR P003 Kit Highlights:

1.Portable Design
2.Easy Operation
3.High Performance

OBDSTAR P003 Kit Supported ECU list:

Supports ECU including BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5 HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.

OBDSTAR P003 Kit Overview:

1.Diag cable OBDconnector(male)
2.Connect P003 connector(female)

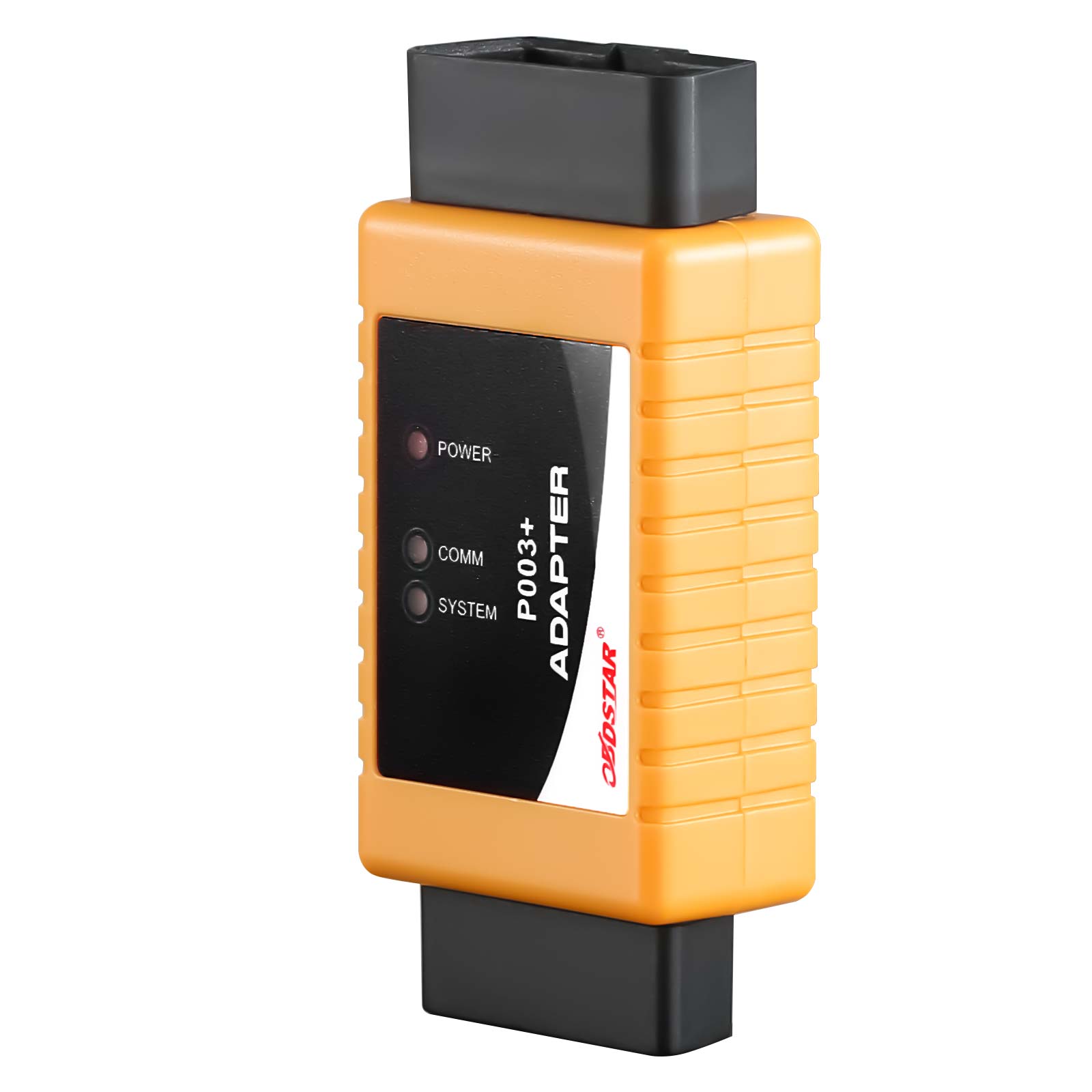

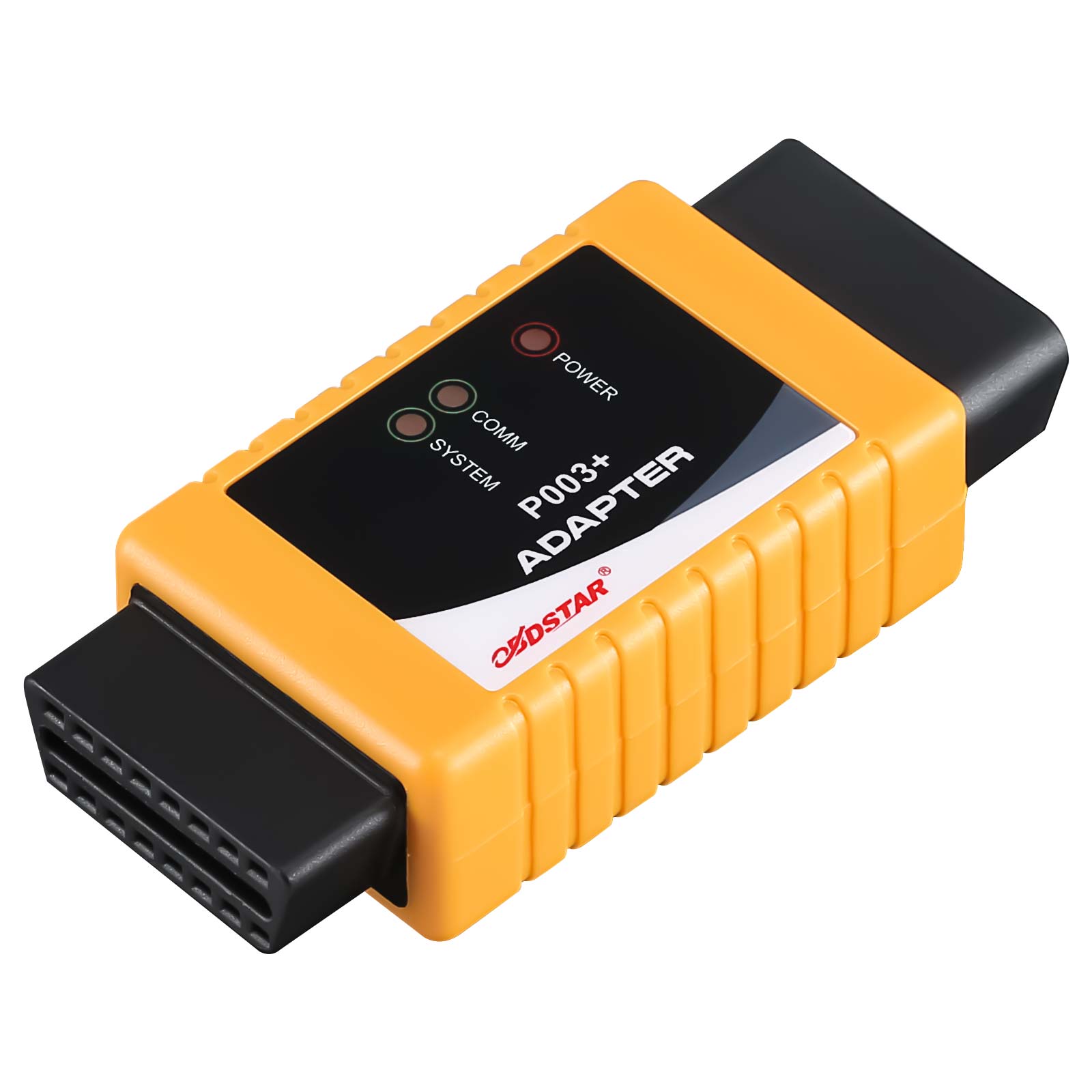

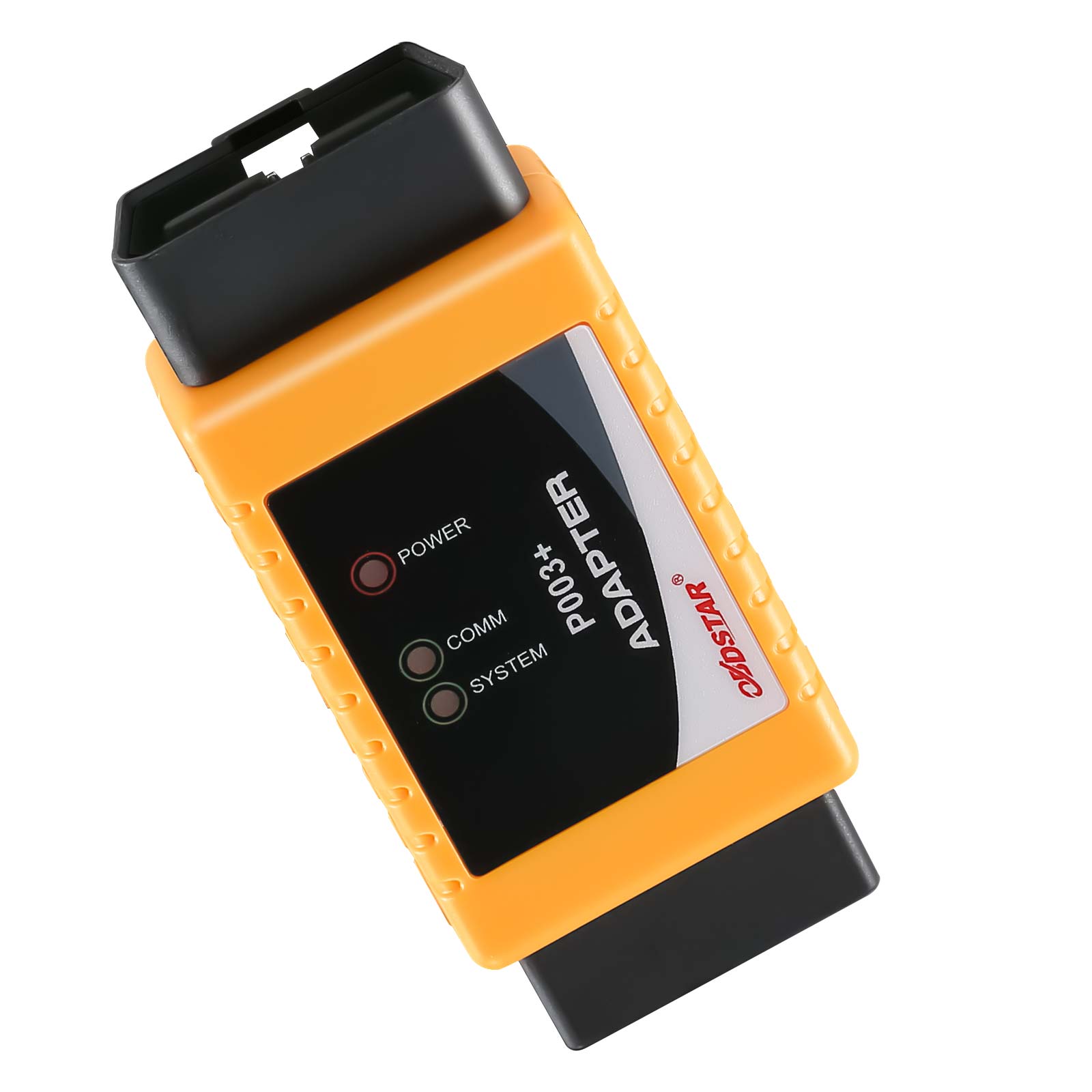

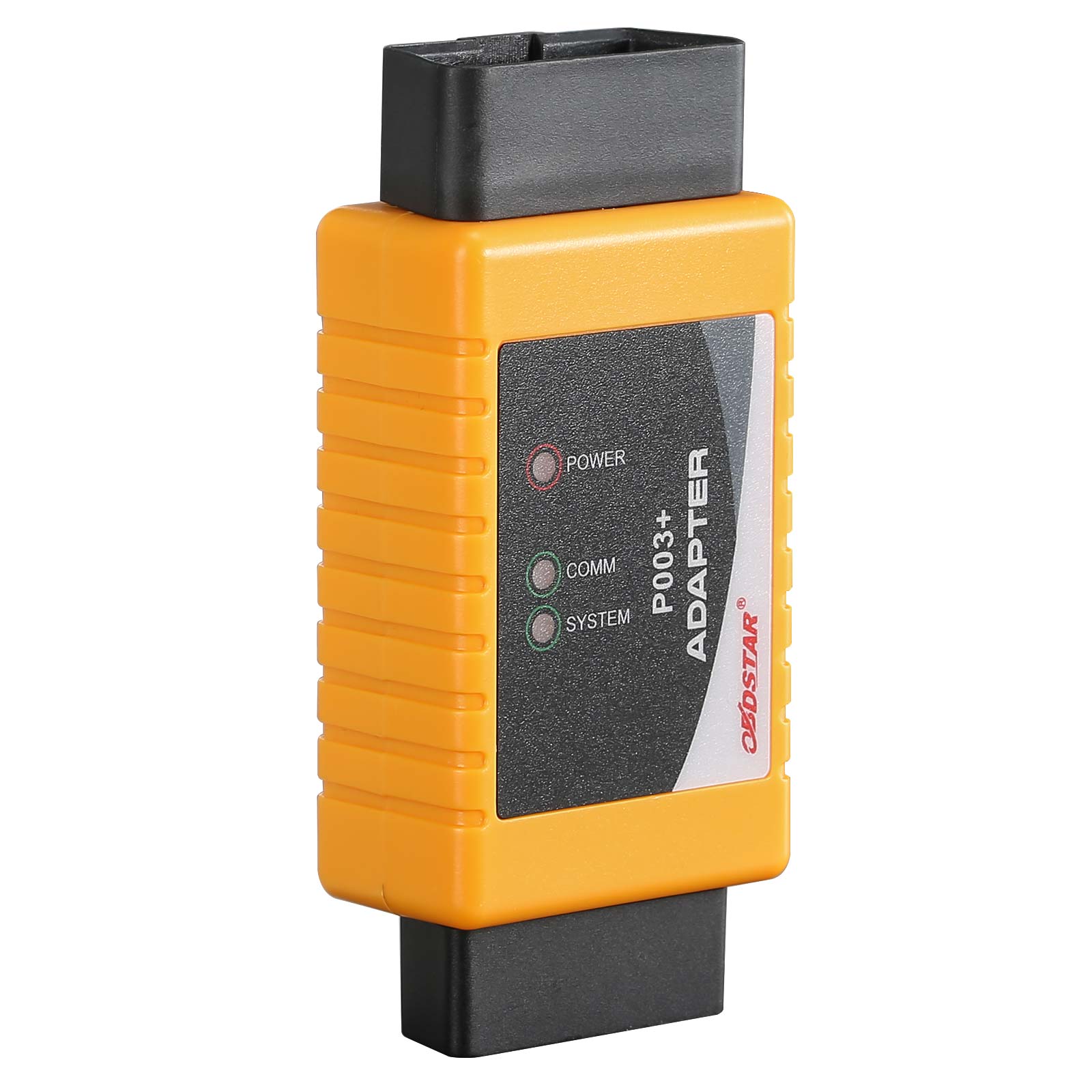

3. P003 adapter
4.Boot jumper(spring needle)
5.Boot jumper(welding)
6.ECU pin connector
7. ECU boot connector
8.12V power

Connecting Methods:

BENCH MODE
Step 1:Connect 1,2,3 together as pic below;

Step2:connect the ECU pin connector to the ECU according to the wiring diagram;
Step3:connect 12V power with diagnostic device;
Step4: read data on diagnostic device.

BOOT MODE

Step 1: Connect 1, 2, 3 together as pic below;

Step2:connect the ECU pin connector to the ECU according to the wiring diagram;
Step3:connect 7 with 4 or 5 and connect it to ECU;
Step4:connect 12V power with diagnostic device;
Step5: read data on diagnostic device.

Specifcations:

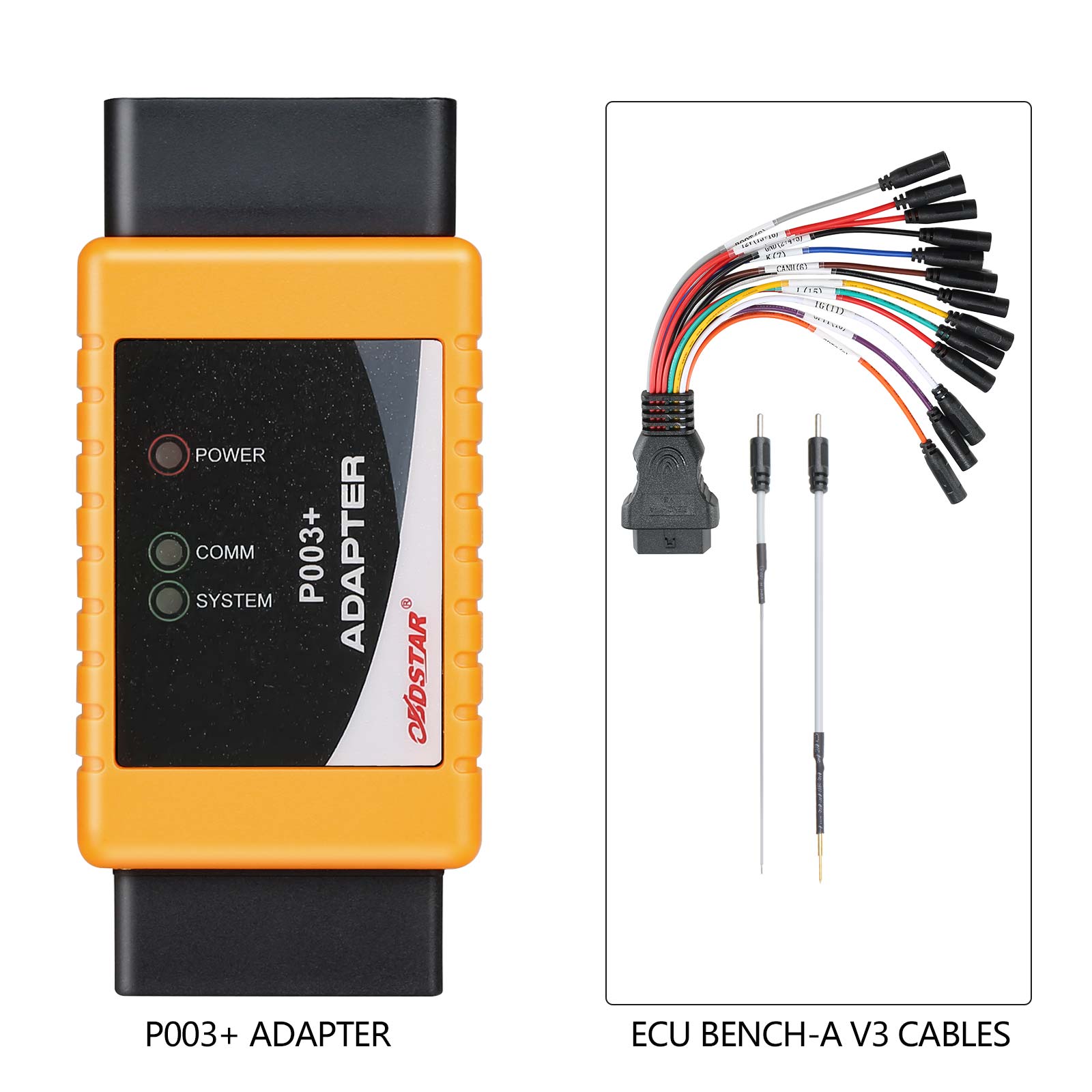

OBDSTAR P003 KIT Package:

1. P003 adapter
2. ECU BENCH cables
