OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version


Dealer Code: 860755B1
Language: English
Update: One Year Free Update Online, Update Cost is 499USD/year after first year.
(2020-07) Newest Upgrade  FORD IMMO [V34. 08] Add FORD F150 F250-750 2020

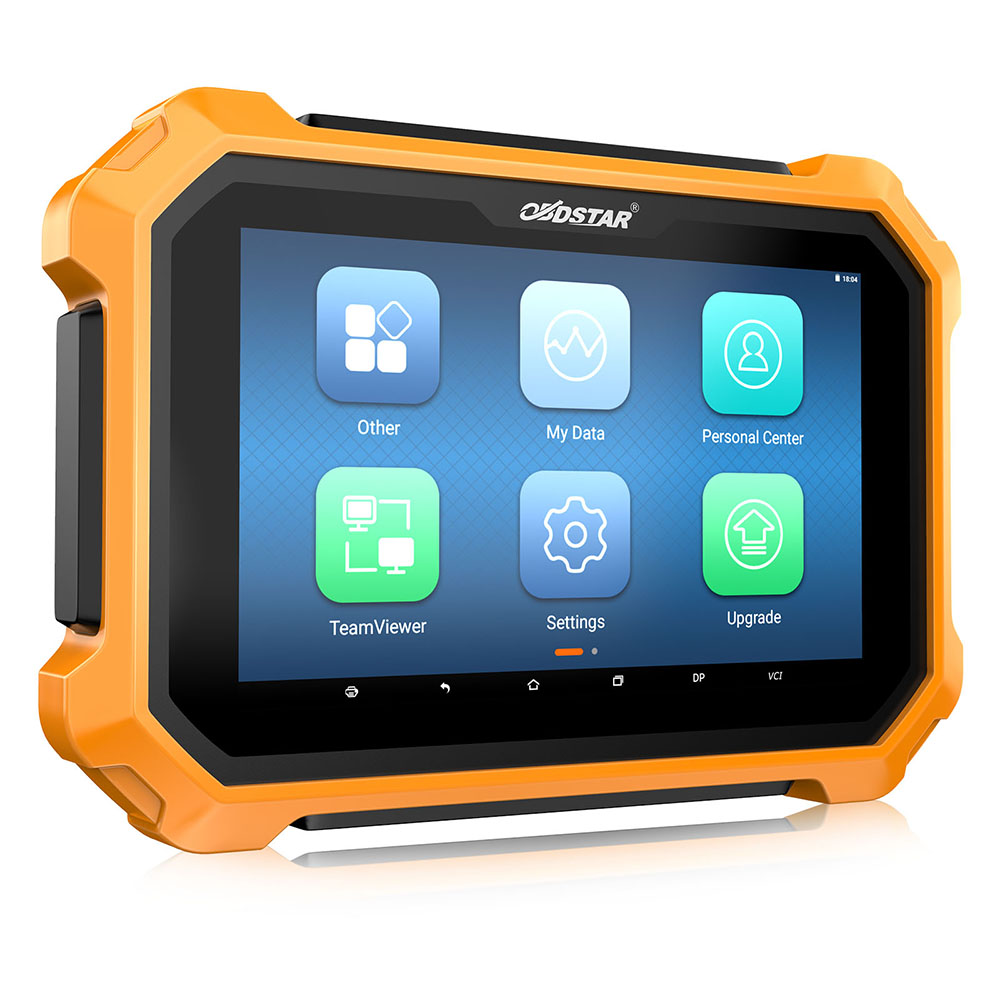

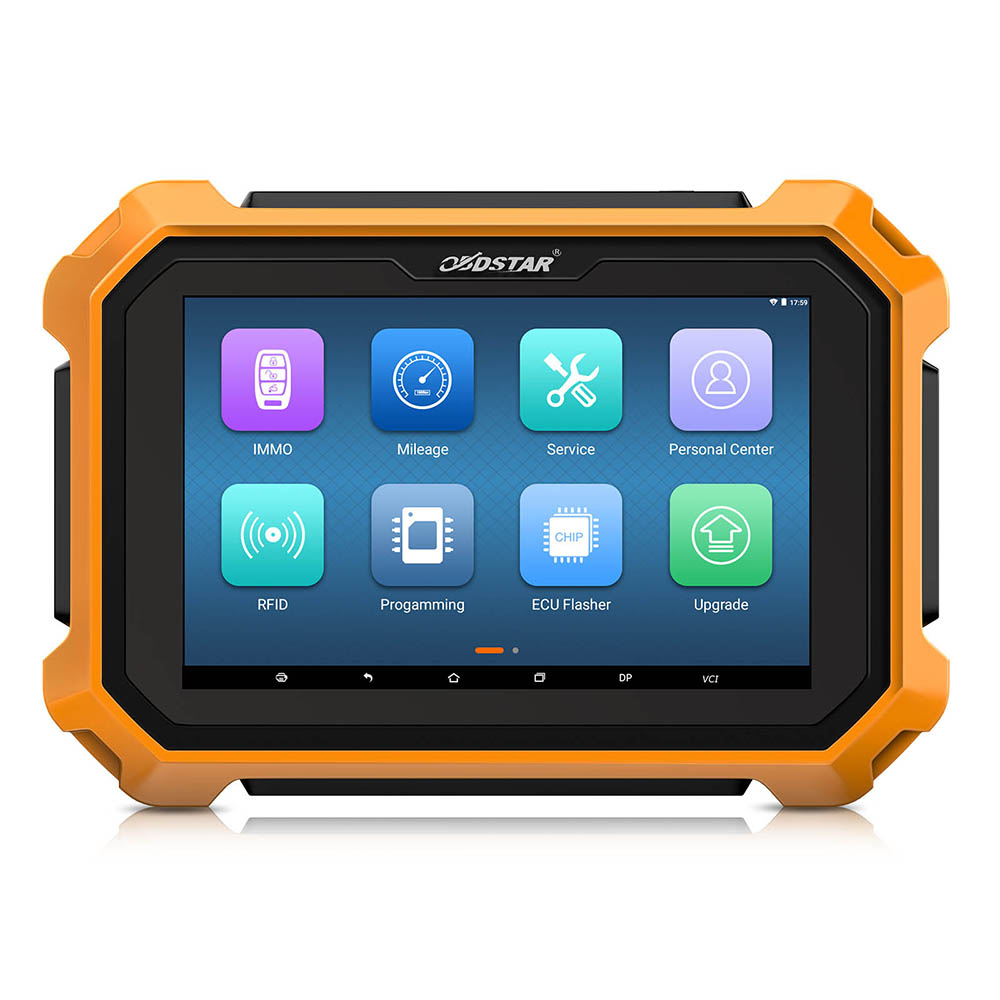

OBDSTAR X300 DP Plus Description:

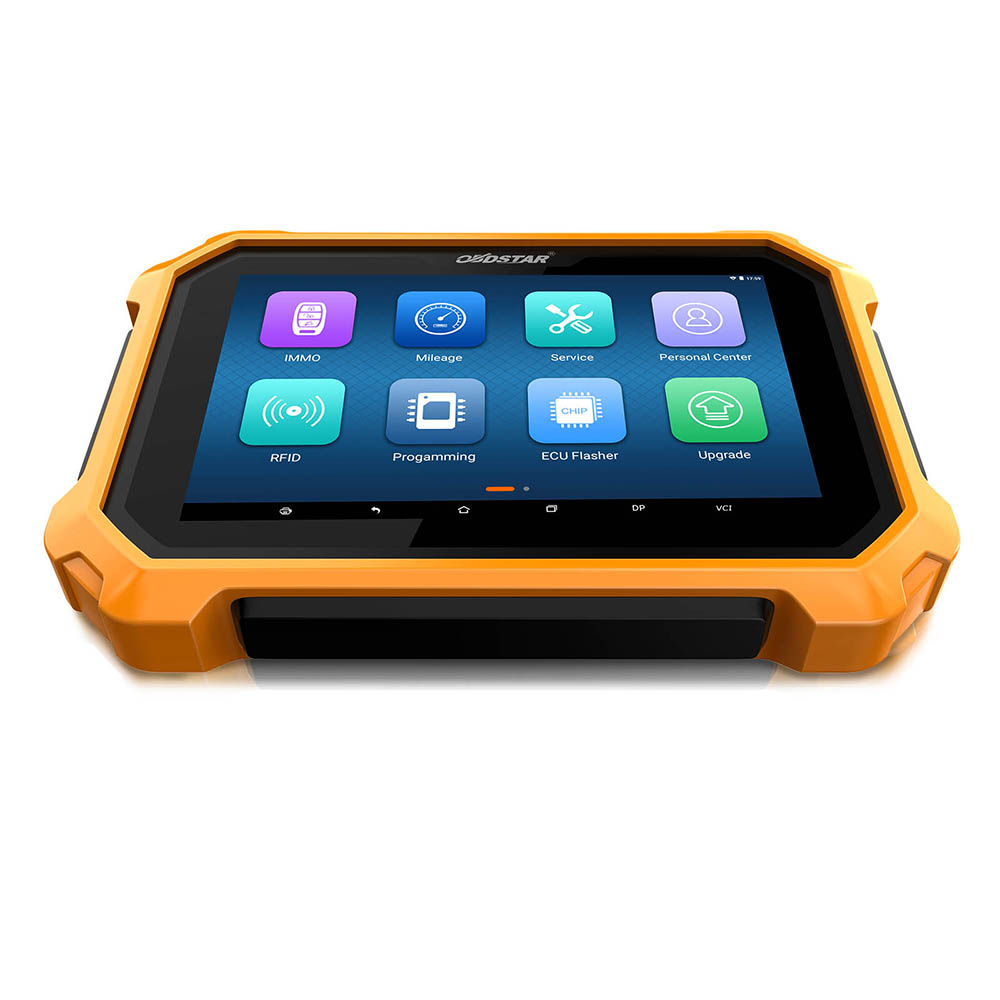

OBDSTAR X300 DP Plus is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.

OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version Functions:

Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)

OBDSTAR X300 DP Plus Hardware Features:

1. The built-in VCI box offers more stable communication.
2. The 8" touch screen offers better vision experience.
3. Allow the user to charge by the OBD port of car. Not like the X300 DP 7" Pad, which need to be 100% charged before use.

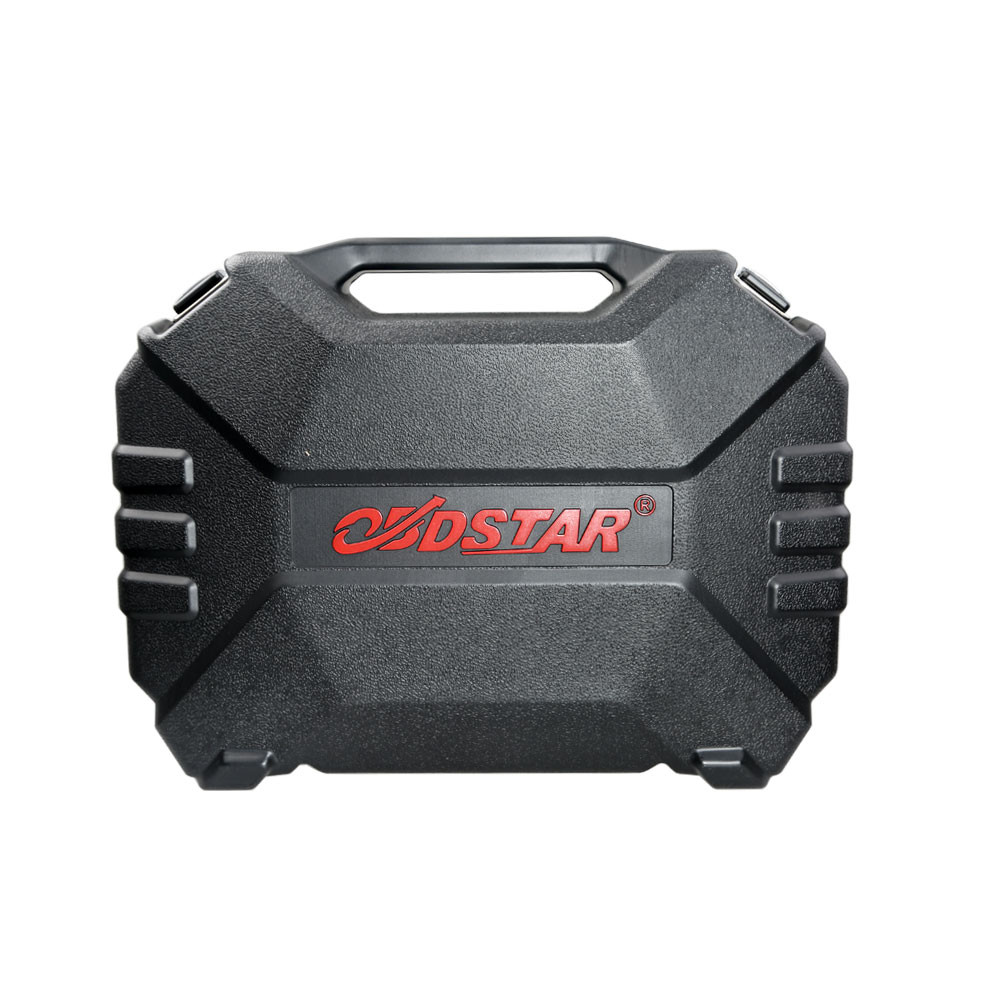

4. With specialized toolkit, high grade and practical.
5. Industrial -grade design, comes with the silicone sleeve

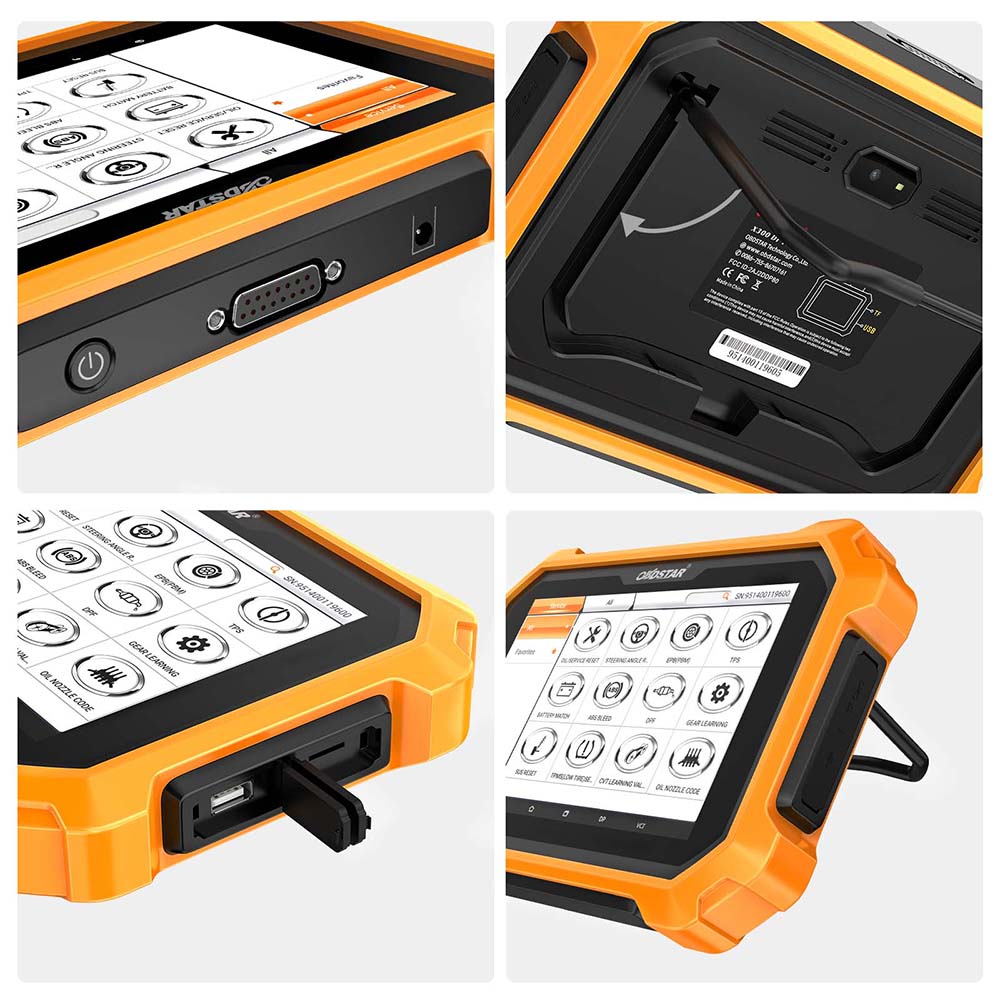

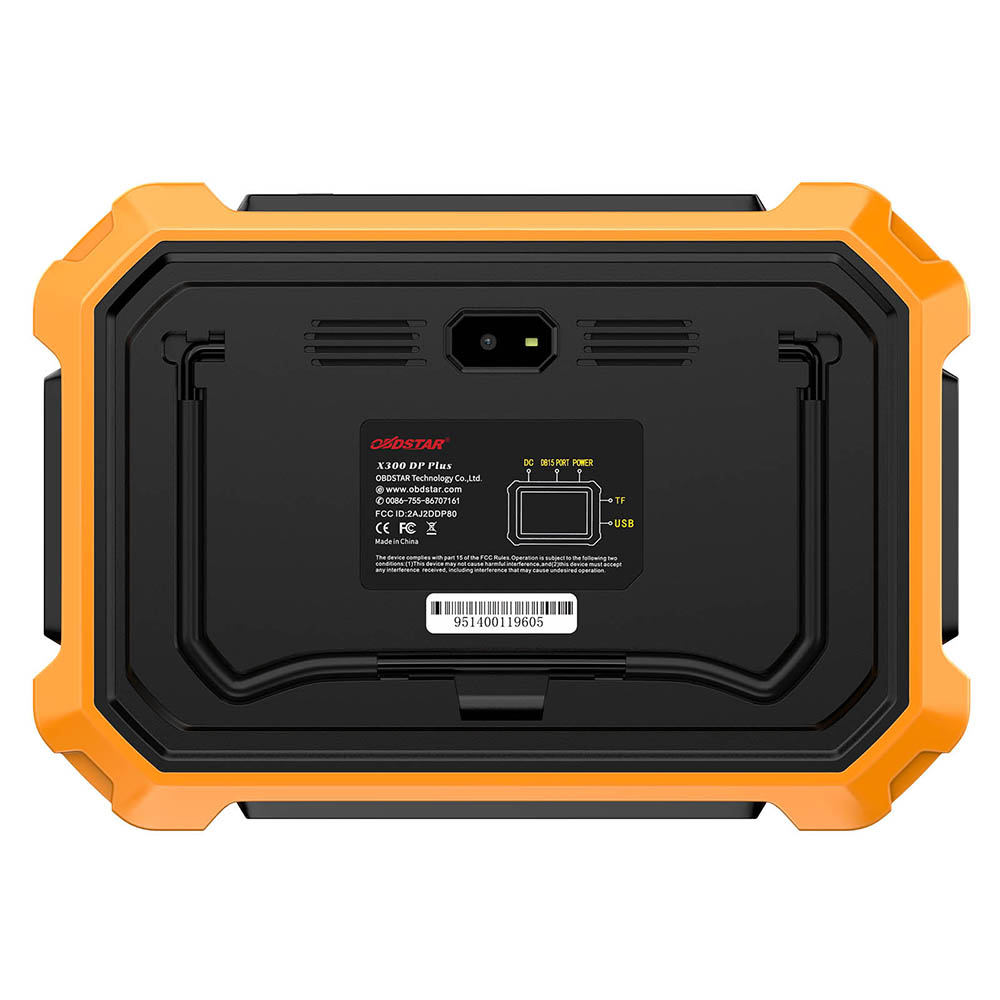

6. The back bracket allows the user to hang it on the steering wheel or stand on the table, which brings great convenience to the operator.
7. Comes with Toyota Lexus Emulators (The first 4 pieces are already released, and the 5th one is under development)
8. The following 3 adapters are integrated into the X300 PAD plus: EEPROM /PIC 2-in-1 adapter, RFID adapter (VW Audi 4th / 5th IMMO programming and other cars e.g Porsche, BMW, Fiat etc.) and Renew Key PCF79XX adapter.
9. Adds the clip for reading SOP 8PIN EEPROM.

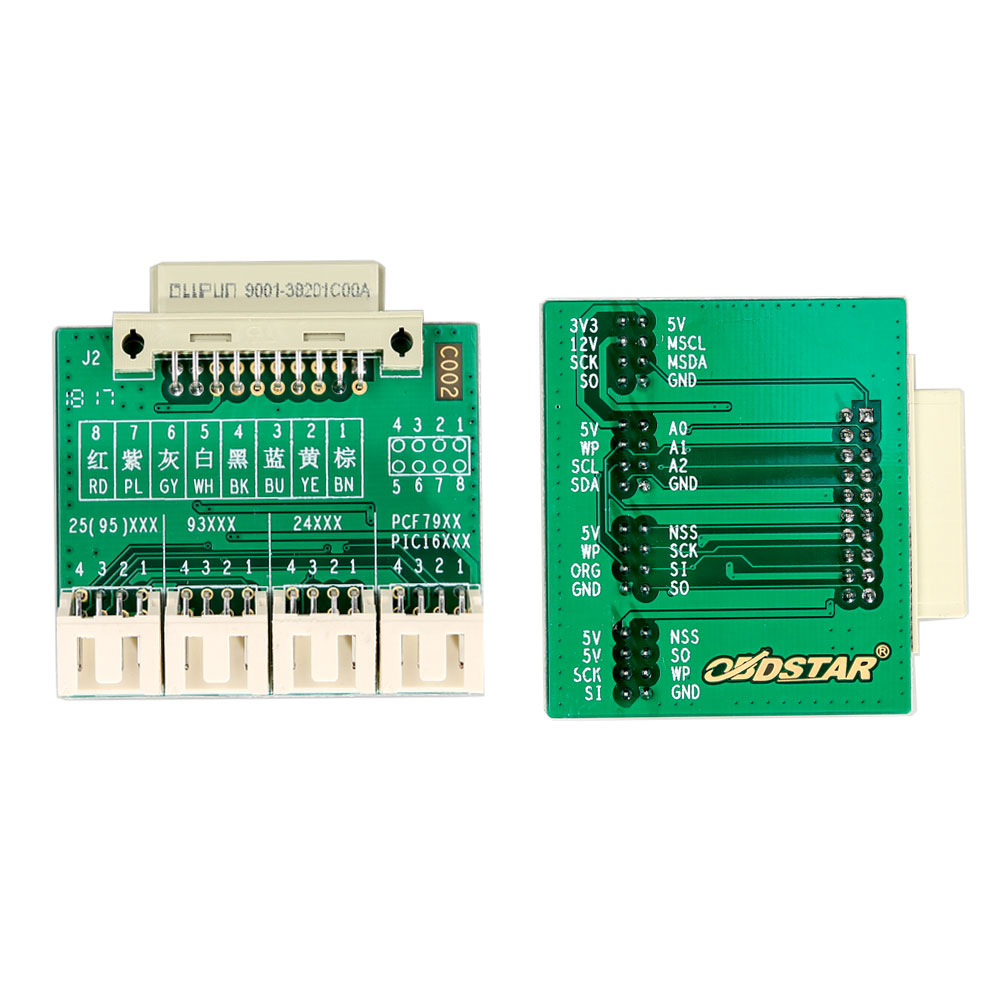

10. C001/C002 circuit board to read and write chip data with welding
11. IMMO induction coil to detect the key induction coil failure of the vehicle.
12. Adds the cables for reading ECU via OBD (Used to clone ECU and active the switch).

OBDSTAR X300 DP Plus Functions: (Software Keep Updating):

IMMOBILISER:

1. EEPROM
2. Renew Key
3. Key programming
4. Remote programming

Cluster Calibrate: wild vehicle coverage, pls check the car list

Diagnosis: realize all vehicle systems diagnosis

Special Functions:

Obdstar X300DP PLUS Key Master support TPS/ABS/EPB/DPF/TPMS/SRS Reset/Fuel Injector/Gear Learning/Battery Matching/ECU Programming/Throttle Matching/
Oil service reset/Steering Angle Reset/Remote Manual Setting/Electronic Steering Reset/CVT Learning value Reset

ECU Clone

1. ECU Clone, means ECU duplication.
Obdstar key master copies all the data from the original vehicle ECU, and then writes all data copied into ECU with the same hardware to realize the same ECU function with the original vehicle.

2. Clone directly when replacing a new or a used ECU!
Without online matching in 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!

3. Three features for ECU Clone:

A. Free of 4S online:
break monopoly from 4S, benefiting automobile maintenance industry
B. Simplified operation procedures: realize foolproof operation
C. Non-dismantling with zero risks: read and write data without dismantling ECU

Switch activation function

Nowadays, many car models' secondary power supply of the dashboard or audio equipment needs to be activated to enter the boot status through the related module CAN.
However, when the car technician maintains the dashboard / audio equipment, the main unit is out of the CANBUS network so it maybe won't boot. X300 DP plus " switch activation function" can emulate the CANBUS communication to active the power supply of dashboard / Audio so that it can enter the boot status, then it will test and verify the dashboard and the Audio, also the technician can save money avoiding to purchase many the boot platform and cables of kinds of car models.

Adds the "Help" function

including the testable car models, update notice, special features, help instruction, wiring diagram etc.
Testable car models: The user can read the testable car models and year.
Update notice: The user can read all of the update content.
Features: The user can read all of the special features and the functions that only X300 DP Plus supports.
Help instruction: Built-in the guide and instruction for each car model or function.
Wiring diagram: Built-in ECU wiring diagram, more intuitive and convenient.

OBDSTAR X300 DP Plus Software Update Instruction:

It is easy to update OBDSTAR X300DP Plus Software, Enter the main interface, you can find "Upgrade", Enter "Upgrade" and will show your local latest version and the latest version which you can update. Just choose the software you want to update or bulk update.

OBDStar X300DP Plus Lastest Update: (2020-07)

CHRYSLER IMMO [V33.09] UPGRADE

1. Increased AFRICA: GRAND VOYAGER 2009-2014 FOBIK, REMOTE
2. Increased AUSTRALIA: 300/300C 2019- PROXIMITY
3. Increased MIDDLE EAST: PACIFICA 2018 PROXIMITY
4. Increased USA-CANADA: VOYAGER 2020 PROXIMITY

CHRYSLER IMMO [V33.08] UPGRADE

Increased JEEP WRANGLER 2020 SMART KEY
Increased USA GLADIATOR 2020 SMART KEY

DODGE IMMO [V33.09]

1. Increased ASIA: CHARGER 2019- PROXIMITY; DURANGO 2003-2006 BLADE; DURANGO 2015 PROXIMITY; RAM 2002-2005 BLADE/ REMOTE
2. Increased AUSTRALIA: RAM 2009-2012 FOBIK
3. Increased SOUTH AMERICA: NEON 2016-2018 BLADE

JEEP IMMO [V33.09]

1. Increased AFRICA: CHEROKEE 2008-2012 FOBIK ; COMPASS 2007-2014 BLADE; LAREDO 2008-2010 FOBIK; RUBICON 2007-2009 BLADE
2. Increased ASIA: COMPASS 2007-2016 BLADE; PATRIOT 2007-2016 BLADE; WRANGLER 2007-2018 BLADE; WRANGLER 2018-2019 PROXIMITY; WRANGLER 2020 PROXIMITY
3. Increased AUSTRALIA: CHEROKEE 2014-2018 FOBIK
4. Increased SOUTH AMERICA: COMPASS 2019-2020 PROXIMITY
5. Increased USA-CANADA: CHEROKEE 2008-2012 FOBIK

FORD IMMO [V34. 08] UPGRADE

1.Increased ECOSPORT SOUTH AMERICA BLADE 2020
2.Increased ECOSPORT USA PROXIMITY 2019-2020
3.Increased ESCAPE USA BLADE 2019-2020
4.Increased ESCAPE USA PROXIMITY 2020
5.Increased EXPEDITION 2020 Smart Key
6.Increased EXPLORER USA 2020 BLADE
7.Increased EXPLORER 2020 Smart Key
8.Increased F150 2019-2020 Smart Key
9.Increased F250-750 SUPER DUTY BLADE 2020
10.Increased F250-750 SUPER DUTY PROXIMITY 2020
11.Increased FUSION USA PROXIMITY 2019-2020
12.Increased KUGA EUROPE 2019-2020 Smart Key
13.Increased MUSTANG 2020 BLADE
14.Increased RANGER EUROPE BLADE 2019-2020
15.Increased TRANSIT 2020 BLADE
16.Increased TRANSIT CUSTOM EUROPE BLADE 2020

FORD IMMO [V34.10] UPGRADE
(Bypass Pincode)

1.Increased PATS1/2/3/4/5/6 BLADE
2.Increased ECOSPORT USA 2018-2019 BLADE
3.Increased FIGO AFRICA 2018- BLADE
4.Increased KA AFRICA 2002-2008 BLADE
5.Increased RANGER AFRICA 2016-2019 BLADE
6.Increased RANGER AFRICA 2018-2019 PROXIMITY
7.Increased ECOSPORT AUSTRALIA 2012-2017 BLADE
8.Increased ECOSPORT AUSTRALIA 2017-2019 PROXIMITY
9.Increased ECOSPORT AUSTRALIA 2018-2019 BLADE
10.Increased ENDURA 2018- PROXIMITY
11.Increased ESCAPE AUSTRALIA 2018-2019 PROXIMITY
12.Increased RANGER AUSTRALIA 2018-2019 BLADE
13.Increased RANGER AUSTRALIA 2018-2019 PROXIMITY
14.Increased TRANSIT AUSTRALIA 2017-2019 BLADE
15.Increased TOURNEO CONNECT 2018-2019 PROXIMITY
16.Increased TOURNEO CUSTOM EUROPE 2016- BLADE
17.Increased TRANSIT CONNECT EUROPE 2018-2019 PROXIMITY
18.Increased RANGER S.AMERICA 2019 BLADE
19.Increased TRANSIT CONNECT USA-CANADA 2018-2019 BLADE
20.Increased TRANSIT CONNECT USA-CANADA 2018-2019 PROXIMITY

MAZDA IMMO[30.70] UPGRADE (Bypass Pincode)

Increased Mazda 2 / Type 1 / Blade / 2002-2007


OBDSTAR X300 DP Plus vs OBDSTAR X300 DP PAD:

OBDSTAR X300 DP Plus have back holder,it can work separately without VCI and Charged by OBD2.
4 Toyota emulators
P001 programmer
Wiring harness for new functions,such as ECU cloning and switch activation
ECU clone switch activation function
Help function-covers built in support car list,upgrade announcement,help notes and wiring diagrams
No need pay for software update ofr free during the valid time (one year)

Different among OBDSTAR X300 DP Plus C Package (Full Version), A Package and B Package:


OBDSTAR X300 DP Plus Technical Parameter:

 ● Operation system:                                   Android 5.1.1
 ● CPU:                                                         Exynos4418  Dual Core ARM Cortex A9 1.4GHz
 ● Battery:                                                    3700mA, rechargeable polymer lithium battery
 ● Extension memory card:                          32G Micro SD (TF) card supported
 ● Memory capacity:                                    1GB
 ● Storage capacity:                                     32GB
 ● LCD:                                                          8.0 inch
 ● LCD resolution:                                        1280*800
 ● Touch screen:                                           Capacitive touch screen
 ●  Camera:                                                   5 mega rear view camera
 ● Wi-Fi:                                                        Supported
 ● Working temperature:                             -10℃  ~  55℃（14℉  ~  131℉ ）
 ● Storage temperature:                              -20℃  ~  70℃（-4℉  ~ 158℉ ）
 ● Weight:                                                     about 1.0 Kg

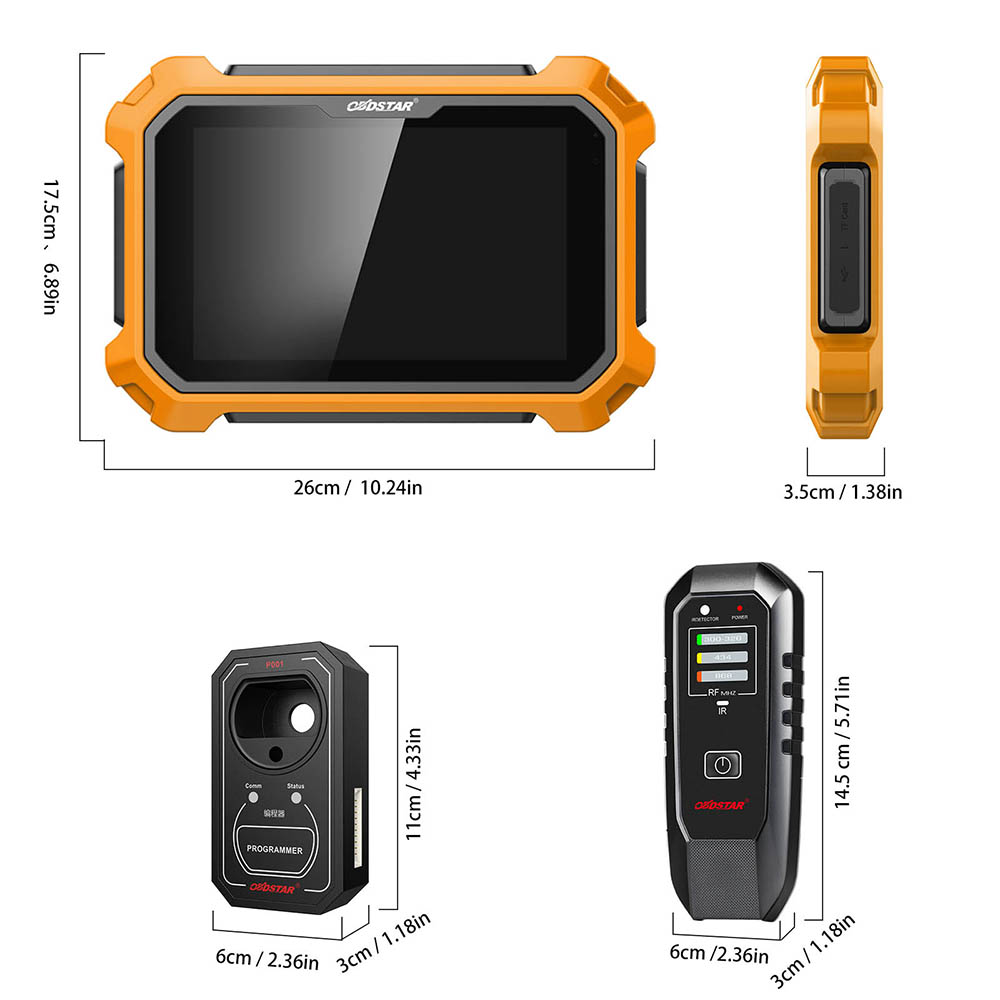

 ● Dimension:                                               254mm*174*mm*35mm

OBDSTAR X300 DP Plus FAQs:

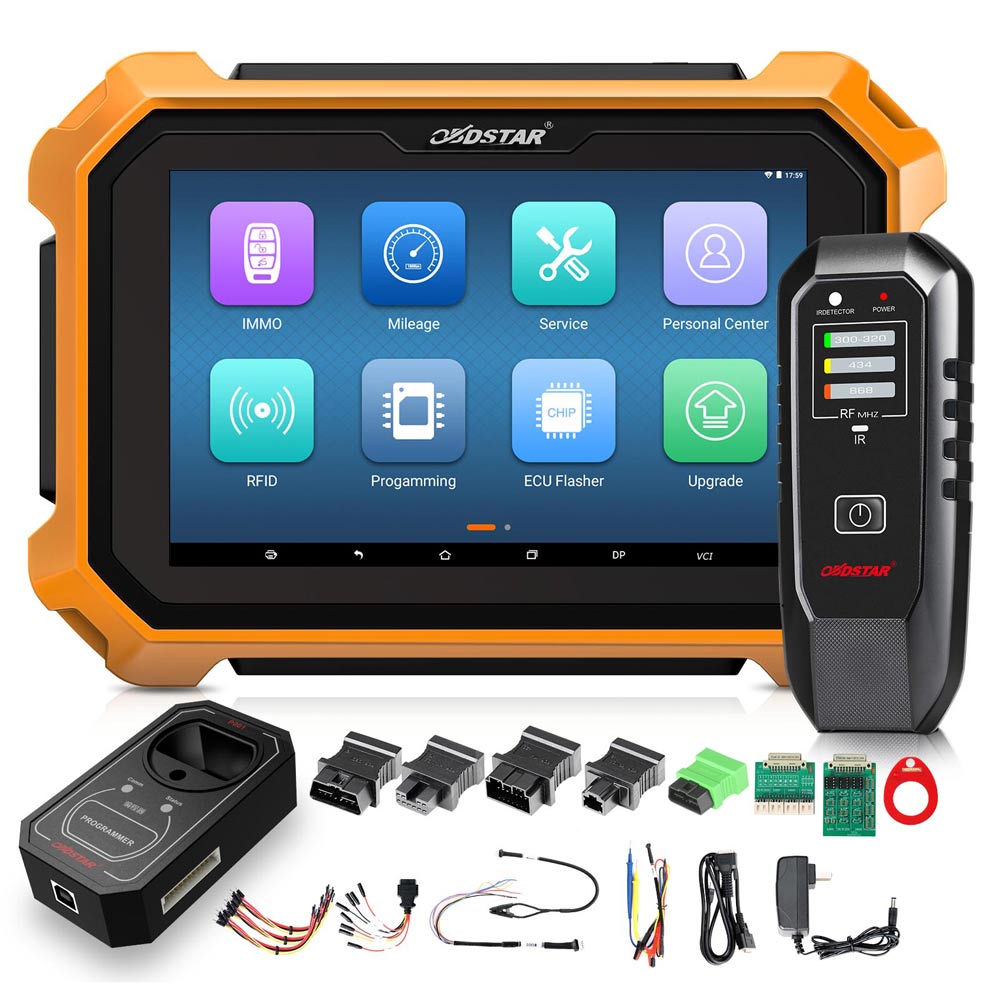

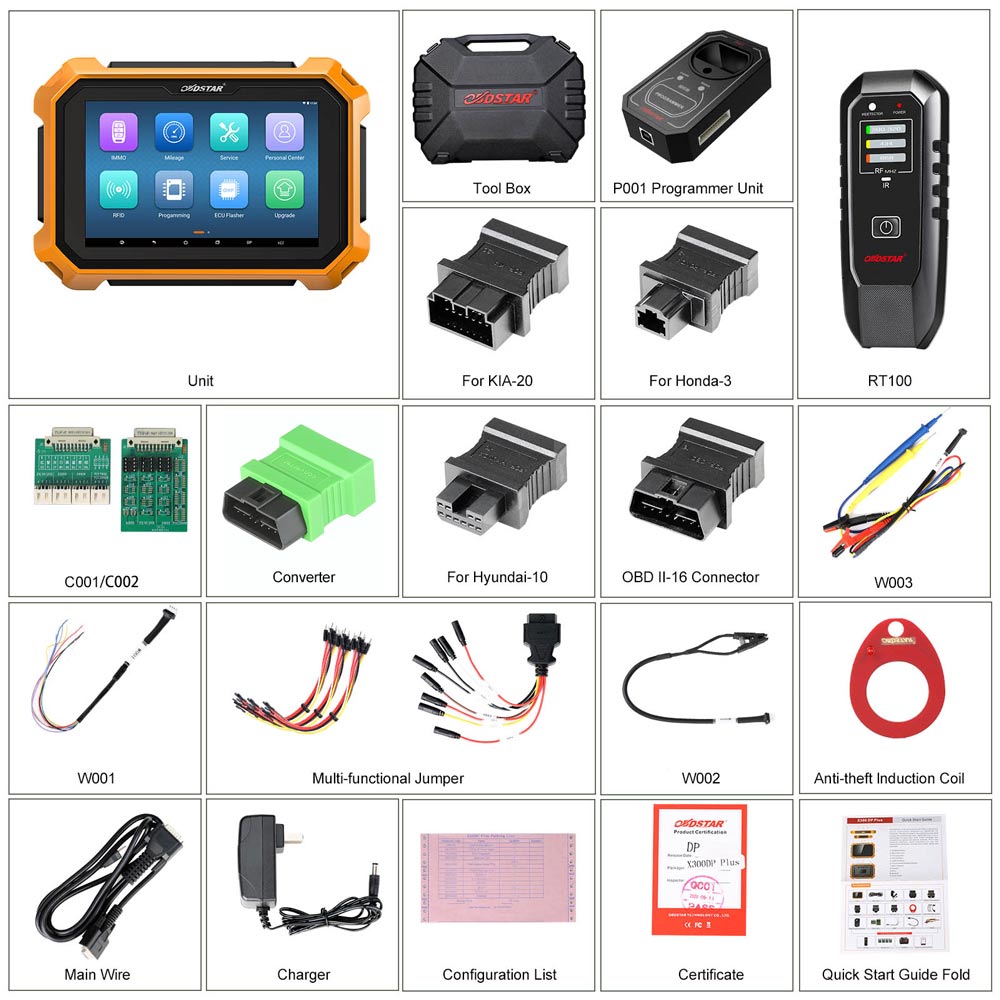

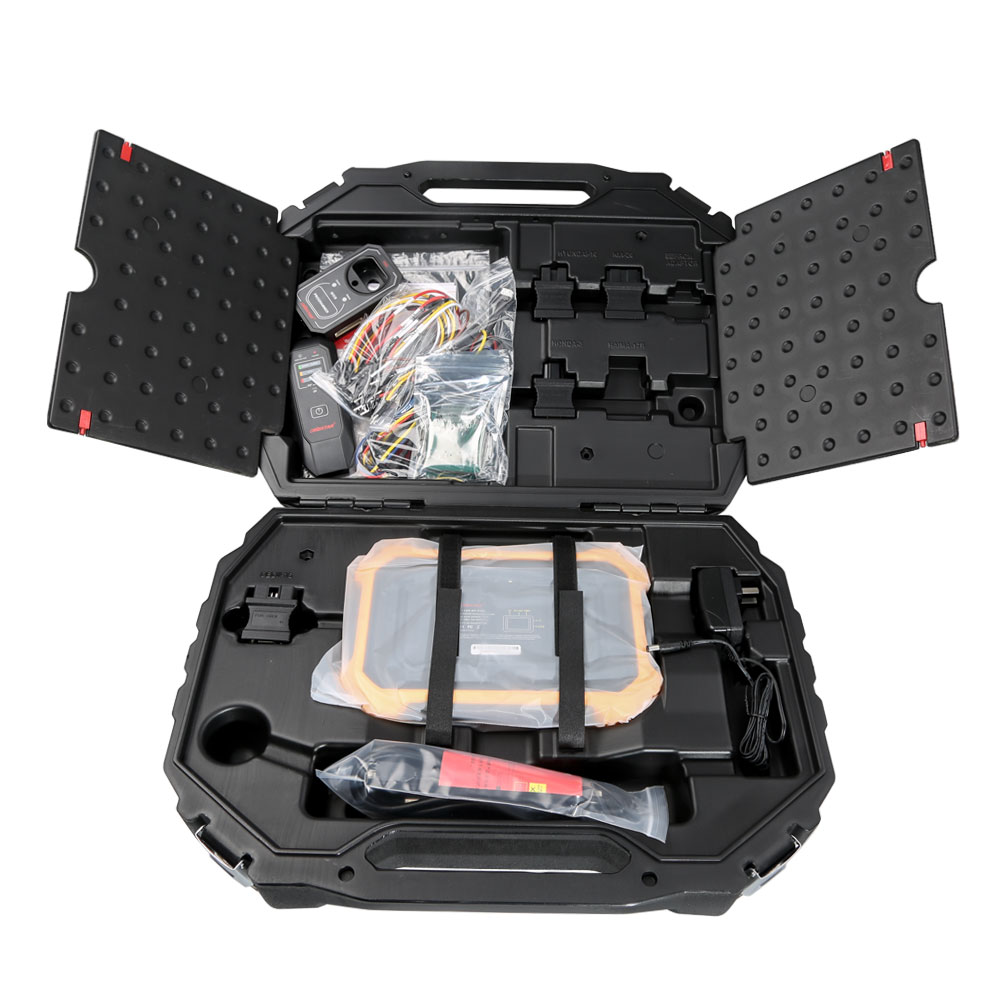

OBDSTAR X300 DP Plus X300 PAD2 Package List:

 Key Master DP Plus Unit

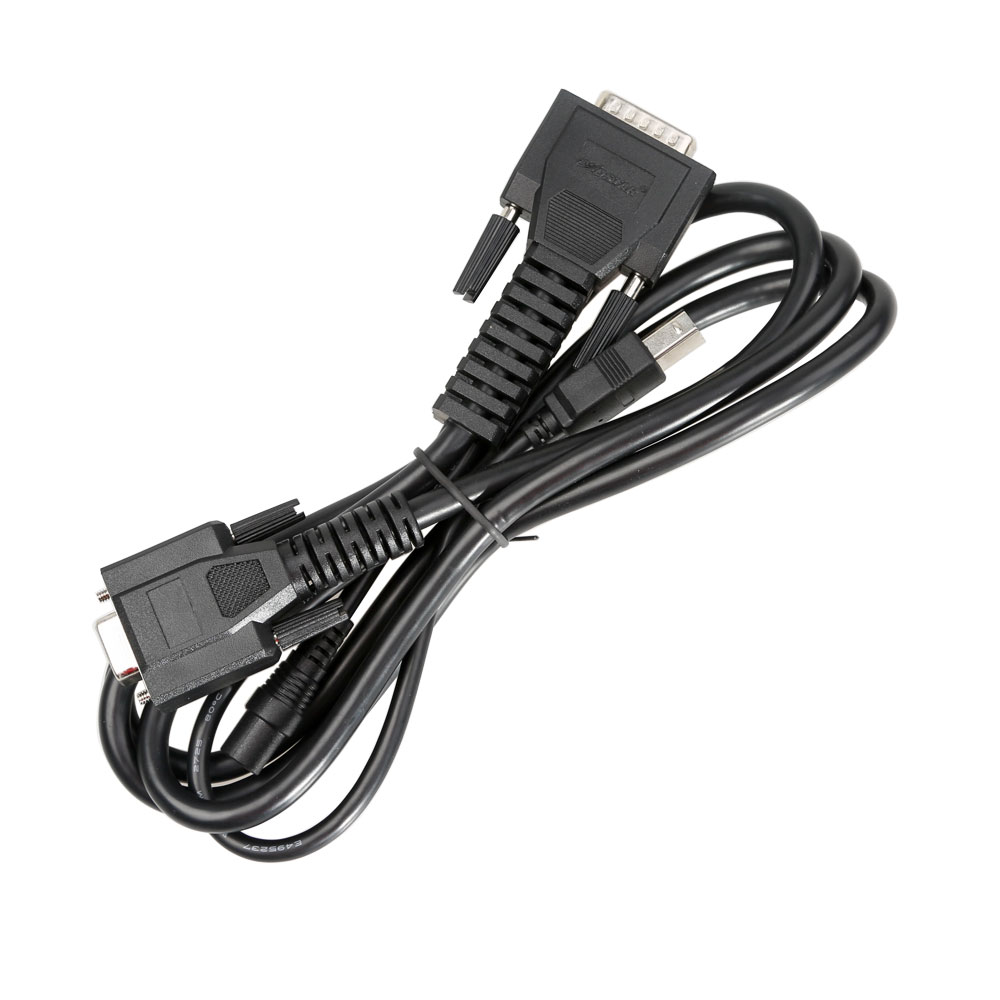

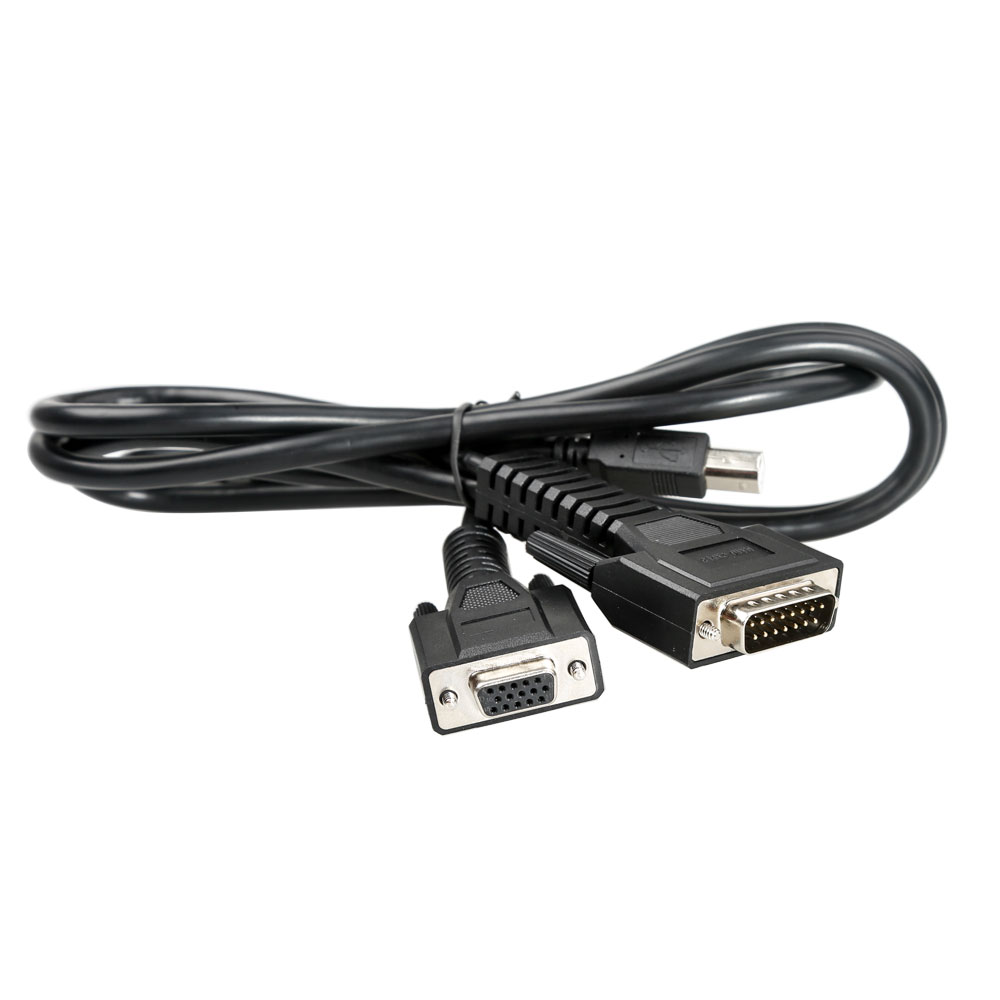

 Main Wire
 12V2A DC Charger
 KIA-20
 OBD II-16 Connector
 HONDA-3
 HYUNDAI/KIA-10
 IMMO Induction Coil

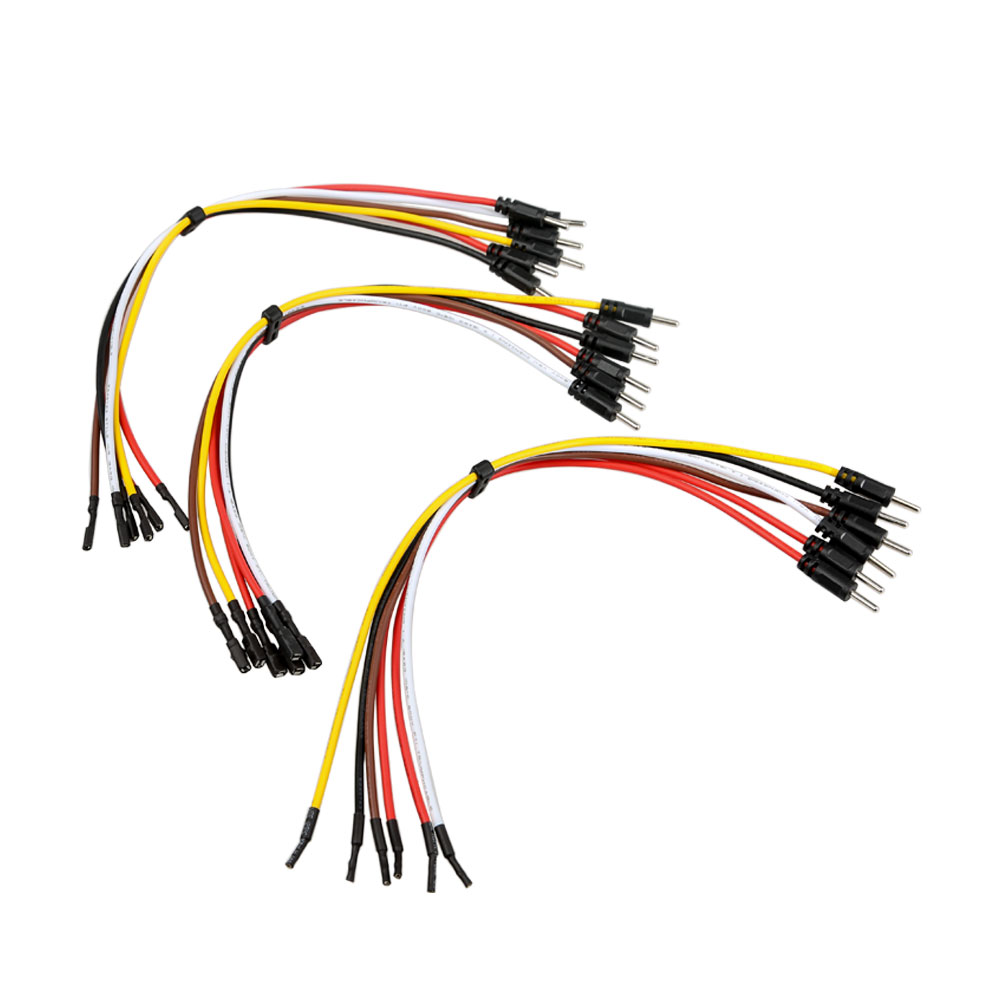

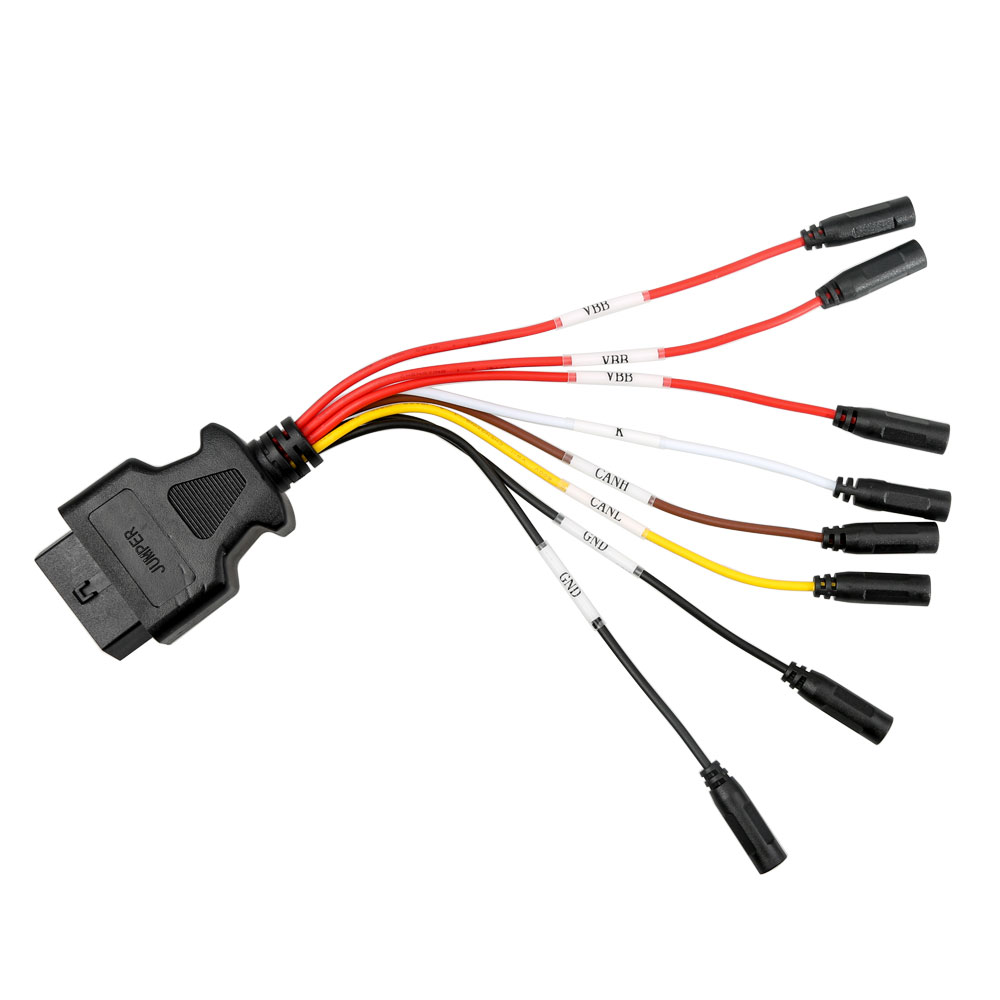

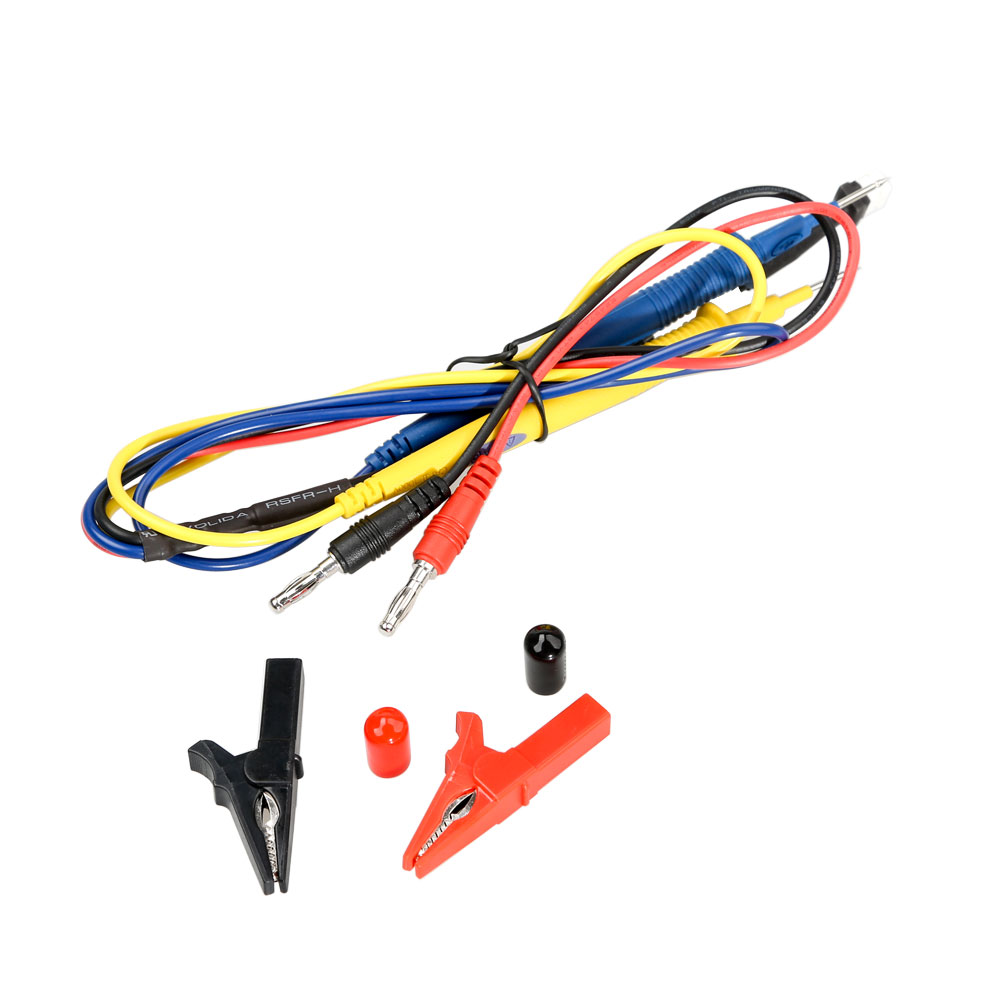

 Muti-functional Jumper

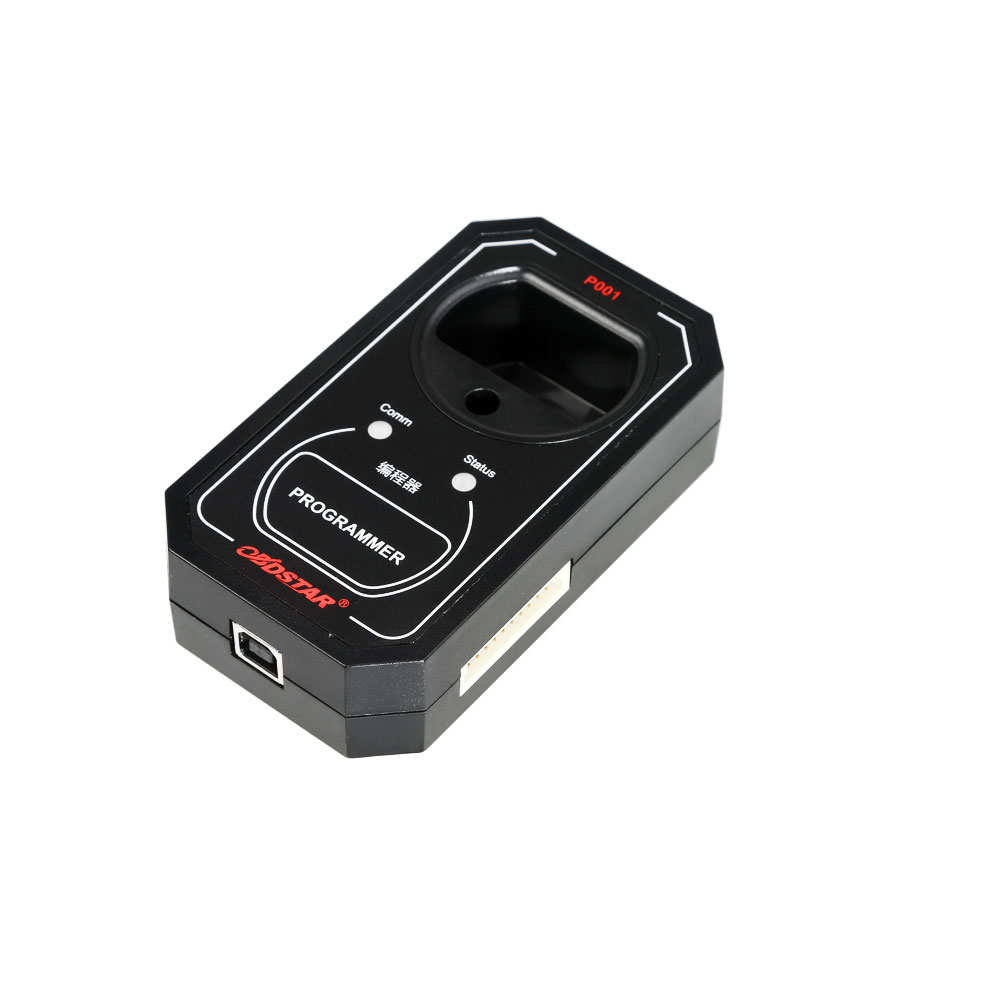

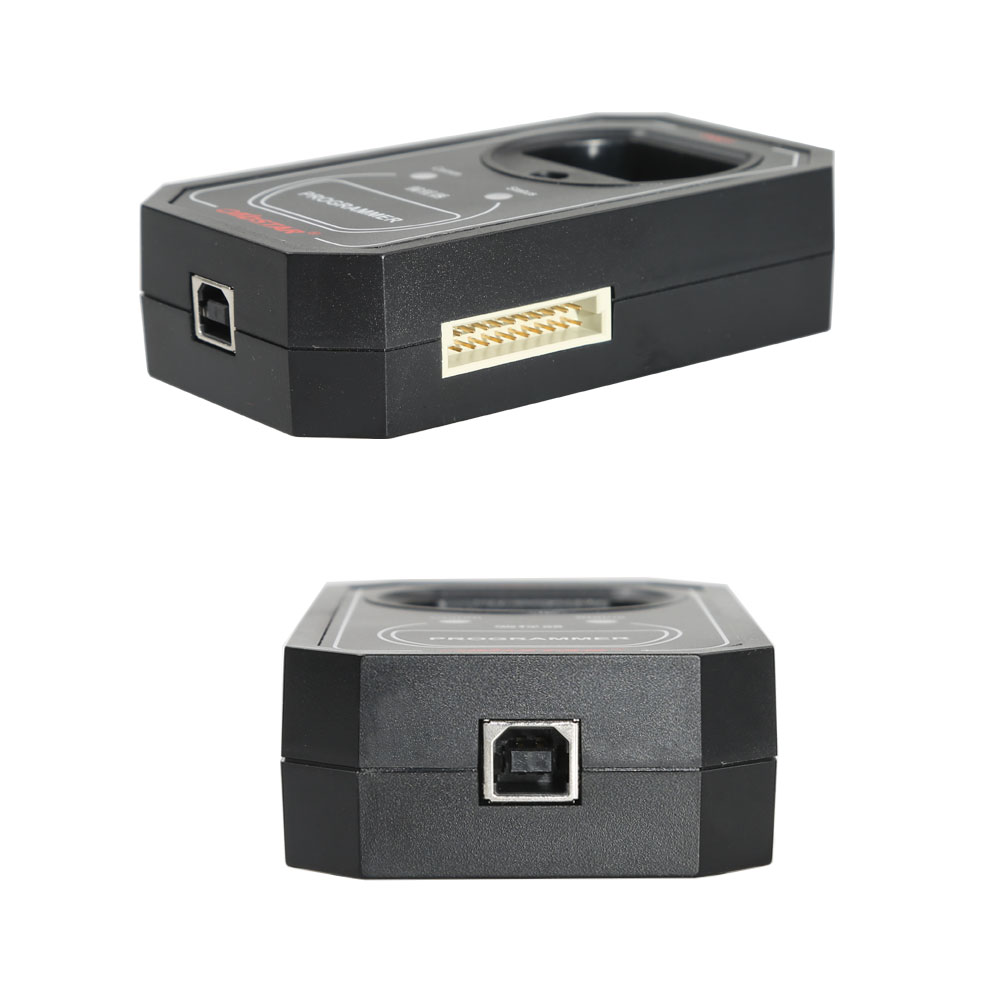

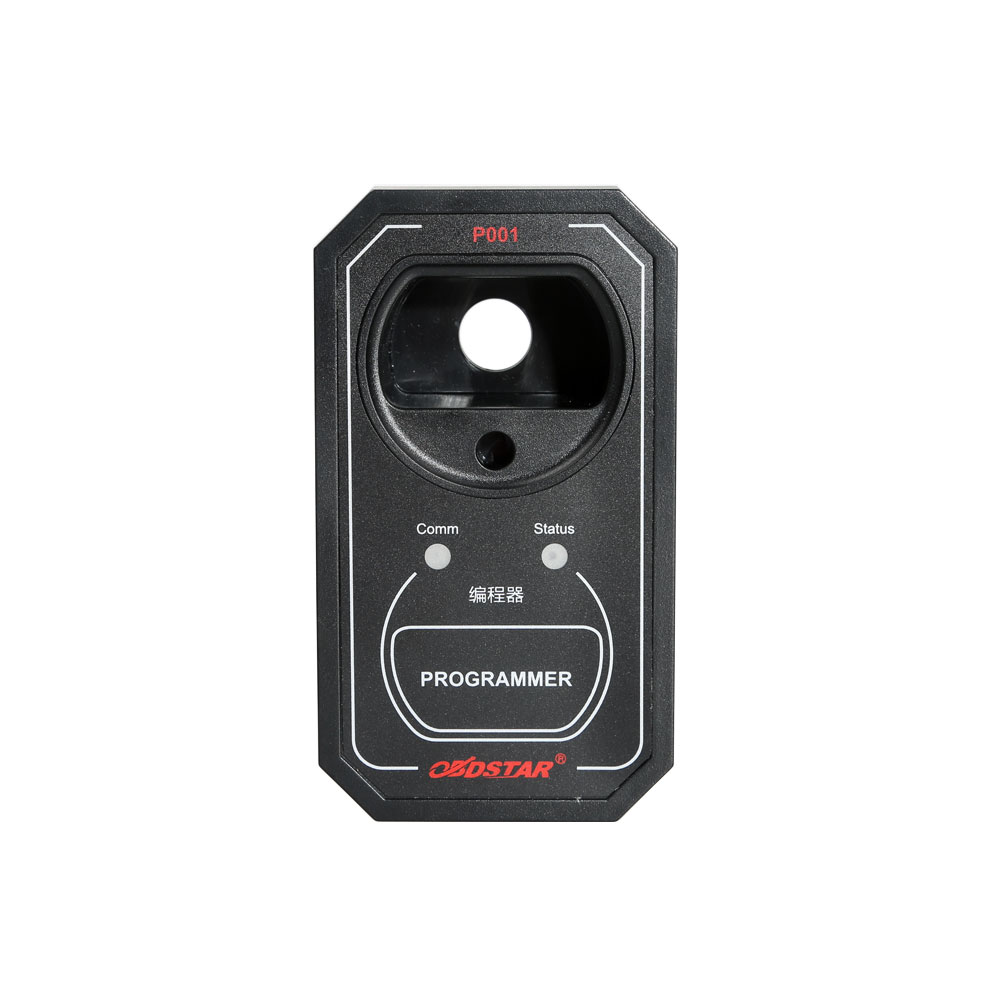

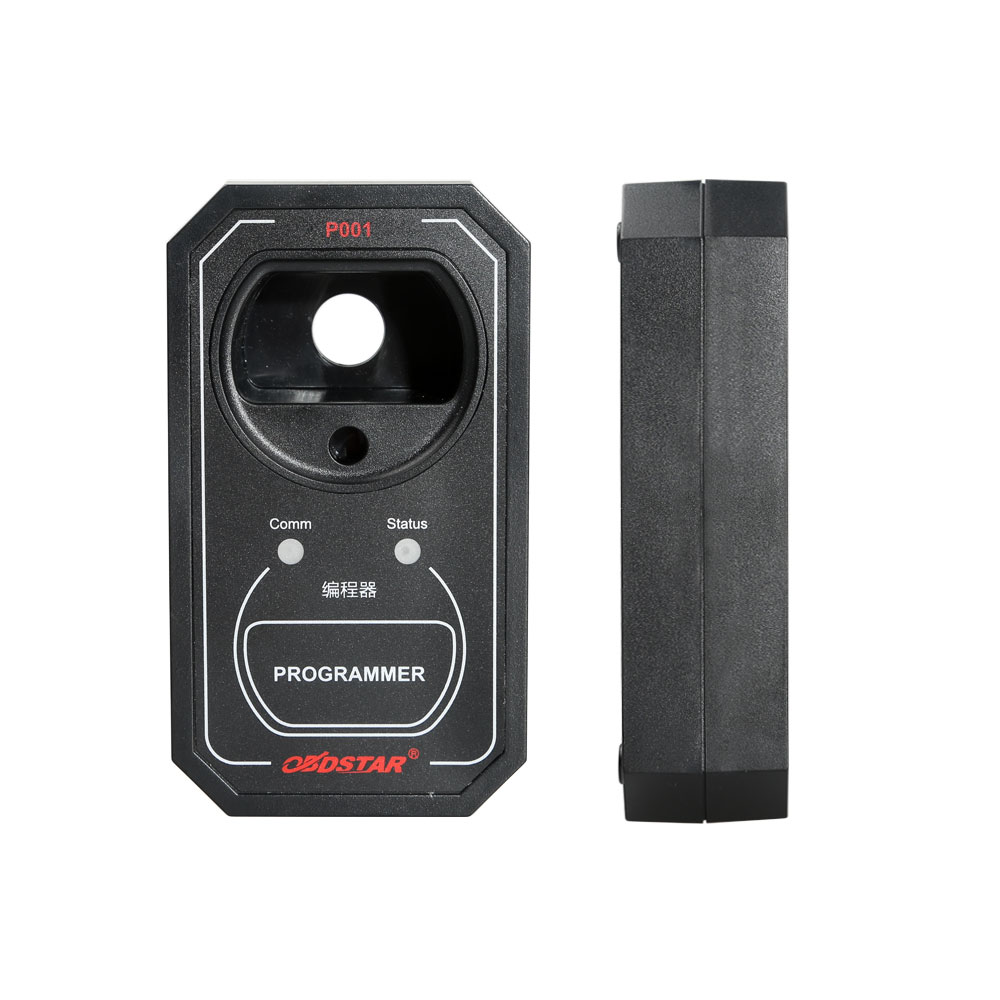

 P001 Programmer Unit

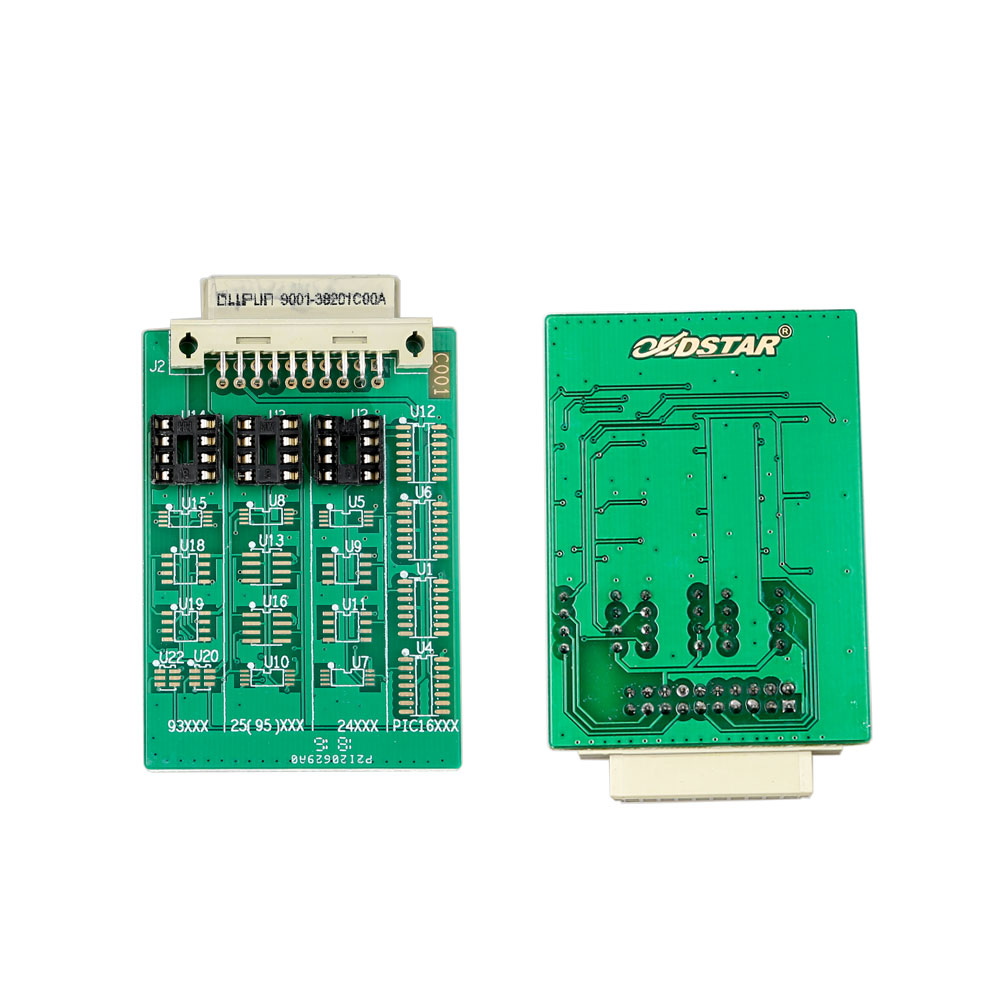

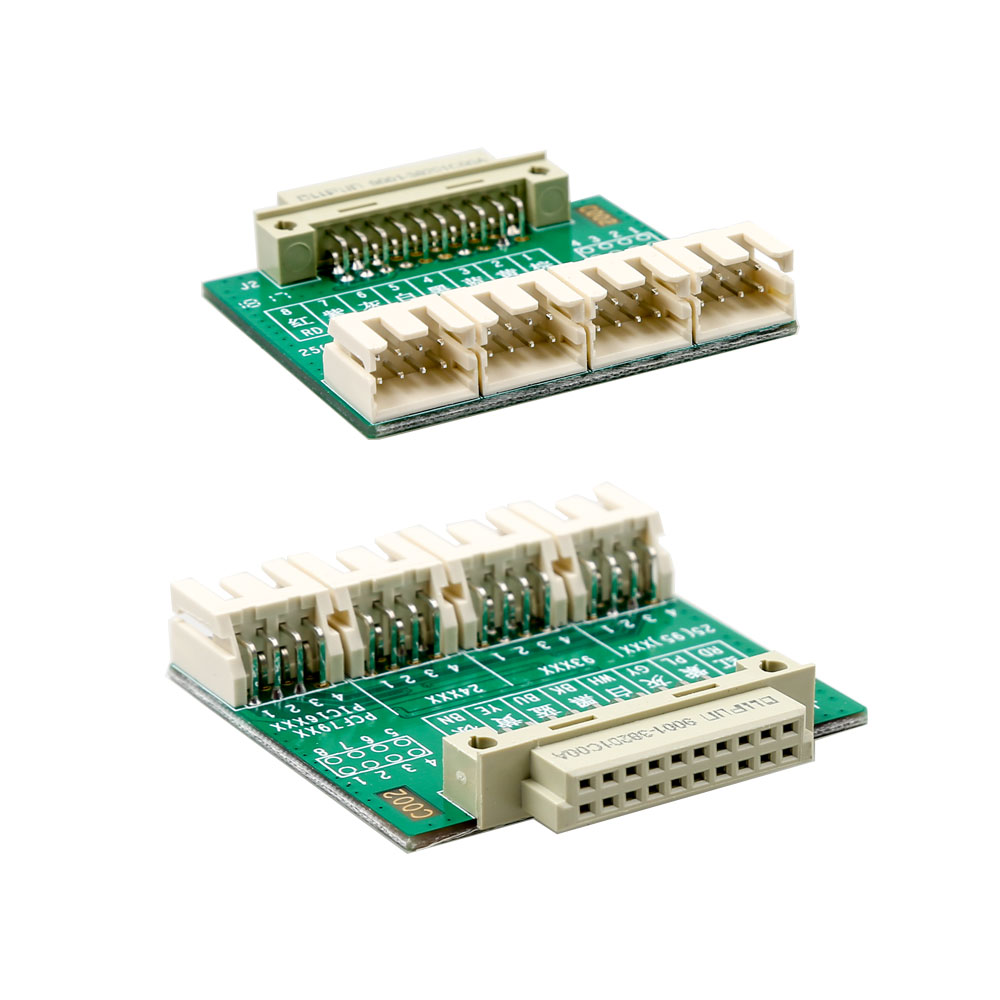

 C001/C002 Circuit Board

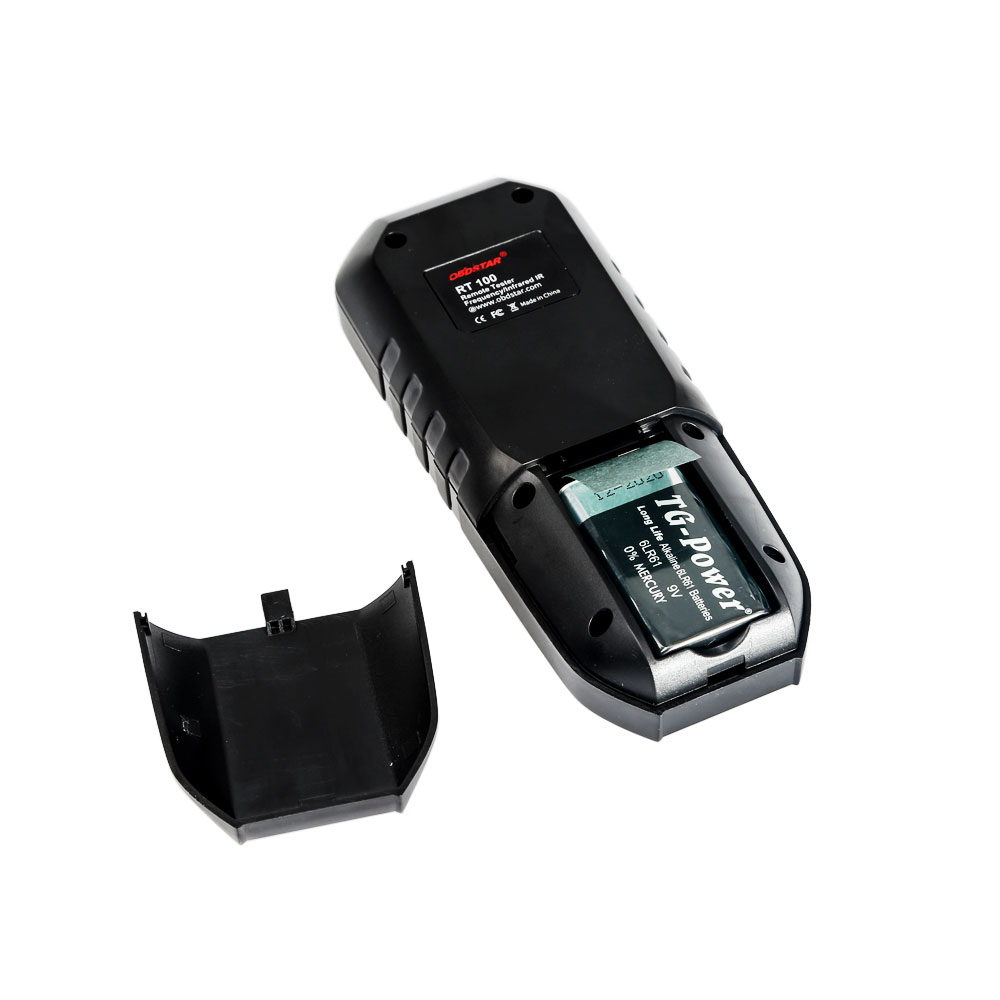

 W001/W002/W003/RT100
 TOYOTA Simulation Smart Key
 Configuration List/Certificate/Quick Start Guide Fold
