EDIAG P02 V1.5 ELM327 Bluetooth PIC18f25k80 Chip 4MHz Diagnostic Scanner Elm 327 OBD2 Android Torque Pro ICAR2



EDIAG P01 P02 P03 Version:

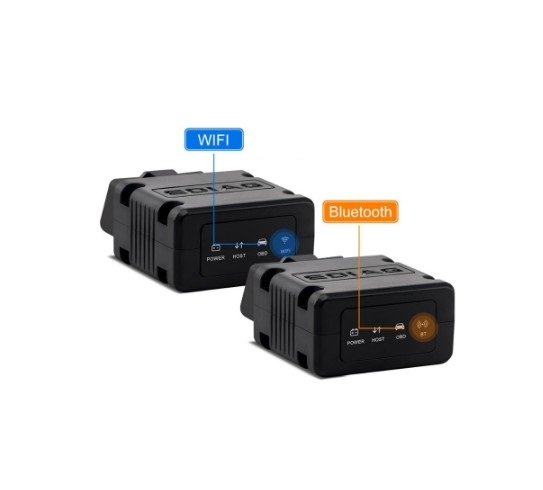

2 Versions for each model:Bluetooth and WIFI, performance gets fully upgraded, connection speed gets faster and staber.

EDIAG P01 Bluetooth: supports android system only
EDIAG P01 Wifi: supports both android and IOS system

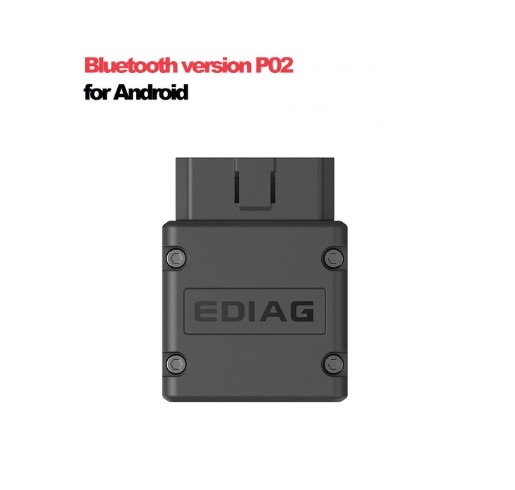

EDIAG P02 Bluetooth: supports android system only
EDIAG P02 Wifi: supports both android and IOS system
EDIAG P03 Bluetooth: supports android system only
EDIAG P03 Wifi: supports both android and IOS system






EDIAG P01 P02 P03 Features and Product Comparison:

Firmware Version V1.5 (Supports more protocols SAE J1850 than V2.1).

It understand commands such as ATPPS and other.

The frequency of the crystal oscillator is 4mHz.




With chip:PIC18F25K80

supports all elm327 fucntions,in program ELM327 identifier,it shows full functions.






EDIAG P01 P02 P03 Product Design:

Real 16 Pin OBD connector;
ABS fireproof Material;
Non-slip Design;
Bottom LED light:with 4 function lights, connection display is clear

In Ediag P03,
the logo is desinged with build-in LED lights, which will light up after plugging in the OBD connector.
Prompt light, the LED light will continue shinning if the connection is successful; if the connection is unsuccessful, the LED light will not light up.



EDIAG P01 P02 P03 main functions list:

With proper software installed in the host device, you may have following parameters read out from your vehicle:
Battery Check
Engine Errors
O2 Sensor
Water Temp
Faulty Lights
Fuel Pressure
Intake Manifold Pressure
Vehicle Speed
RPM
Fuel Consumption
Engine Coolant Temp
Calculated Engine Load
Throttle Position
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim

Note:
Your vehicle may not support all above parameters.How many parameters you can get is depended on the vehicle manufacturer's implementation.





EDIAG P01 P02 P03 Highlight Features:

Connect Smart phone directly;
Read & Clear DTC;
Bluetooth V3.0(for Bluetooth version);
Work directly after connect the car;
DTC Checking;
Data dream;
Inspection Tester;
Supports Almost all kinds of cars.



EDIAG P01 P02 P03 5A Performance:






EDIAG P01 P02 P03 Supported Protocols:


1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
   *default settings(user adjustable)


EDIAG P01 P02 P03 Supported cars:

If your vehicle does not fall into any of the above categories, look under the hood and try to locate a label that explicitly states that the vehicle was designed to comply with OBD-2 legislation.

This elm327 usually can work on most new car with OBD 16pin Aadapter and 12V engine:
For USA Car brand,after 1996;
For Europe Car brand(petrol),after 2001;
For Europe Car brand(diesel),after 2004;
For Japan Car brand,after 2008;
For Korea Car brand,after 2010;
For Chinese Car brand,after 2009;
For Russian Car brand,after 2012;
...
