WIFI OBD2 Car Scanner Tool Support All cars ELM327 Android Apple system

It Supports All OBD2 Protocol works on IOS, Android, Symbian, Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).

Top 5 Reasons To Get Mini OBD2 Wifi Scanner:

1. Software Version: V2.1 (depending on software)

2. Hardware Version: V1.5

3. Works with all OBD-II compliant vehicles

4. Wireless (Wifi)

5. Support Four operating platforms (IOS, Android, Symbian, Windows)

Supported protocols:

1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW (10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4 Kbaud)

4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

Mini OBD2 Wifi Scanner Functions:

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2: Clear trouble codes and turn off the MIL ("Check Engine" light)

3: Display current sensor data, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages / associated short term fuel trims

17: Fuel System status

18: Fuel Pressure

19: Many others

How to Connect to My Car:

Mini OBD2 Wifi Scanner Specifications:

SSID: WiFi_OBDII

IP: 192.168.0.10

Port: 35000

Communication: WIFI

Master Chip: ST

Support System: IOS, Android, Symbian, Windows

Working Voltage: 9v ~ 16v

Working Current: 65mA

Standby Current: 45mA

Operating temperature: -40 ℃ ~ 85 ℃

Working Humidity: less than 60%

Size: 45mm * 25mm * 75mm

Compatible systems:

Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian.

Compatible software:

Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

IOS: Auto Doctor, Mini OBDII

Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.

Symbian: OBDScope

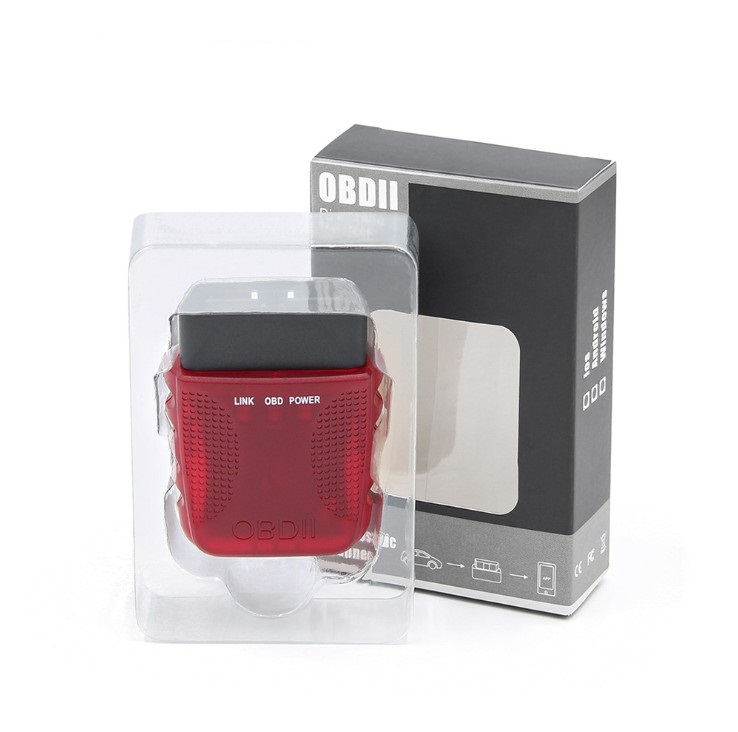

Package List:
1pc x Mini OBD2 Wifi Scanner
1pc x Box
