Product Description
Lonsdor K518ISE, the English version of Lonsdor K518, is an universal key programmer for all makes from Europe, America, Asia and China, also it can perform odometer adjustment for some makes. Its nice features are built-in Volkswagen 4th 5th adapter & RFID transponder reader / writer, program Toyota/Lexus smart key all key lost via OBD and free BMW FEM key programming (for all keys lost, enter 32-bit ISN code). Lonsdor K518ISE is specialized on Volvo, Maserati, Ferrari, Lamborghini, Bentley, Nissan etc. Lonsdor K518ISE is free update online and no token limitation.
Lonsdor K518ISE Main Functions & Features:
Immobilization
Odometer adjustment
Built-in Volkswagen 4th 5th adapter
Built-in Chip & remote detection module.
Free BMW FEM key programming
Program Toyota/Lexus smart key all key lost via OBD
Lonsdor K518 Key Programmer Special Features:
Volvo (S40, S60, S80, XC60, XC90, C30, C70, V40, V60, V70) key programming.
Toyota/Lexus: smart key all key lost - via OBD ( without dismantle)
BMW CAS3/CAS3+/CAS3++: direct OBD programming
BMW CAS4/CAS4+: dismantle & read data programming
16 -New Maserati: smart key programming
16 -New Ford: smart key programming
Hyundai / Kia 46/47/8A smart key: PIN code reading via OBD, all key lost included.
Renault ( Megane, Koleos, Scenic) without PIN code key programming
VAG group 4th & 5th immobilizer system
Ferrari (458, F12, F149): direct OBD programming
Peugeot /Citroen: two ways to read PIN code & programming, all keys lost included.
Lonsdor K518 Highlights:
1.The best car diagnostic tool based on Android
2.WIFI networking ensures software upgrading more convenient
3.No need to plug memory card,or connect the computer with data cable,more flexible in online upgrading,updating and activating.
4.With USB-B2.0 standard connector,OBD-II test cable integrated with the diagnostic connector function of the adapter.
5.Diagnostic speed greatly accelerated,work efficiency improved,better time saving.
6.7 inches high brightness,high definition color IPS capacitive screen
7.3800mAh prolymer battery
8.Support external memory expansion,better within 32G
9.Built-in professional,poerful operation assistant system
Lonsdor K518ISE Newest Update Info:
Free update 2017 Buick GL8 smart key programming
Fiat ottimo toothless knob key programming via OBD
update time [Nov.15,2017]
Free Update(Oct.27,2017)
BMW FEM/BDC series key programming

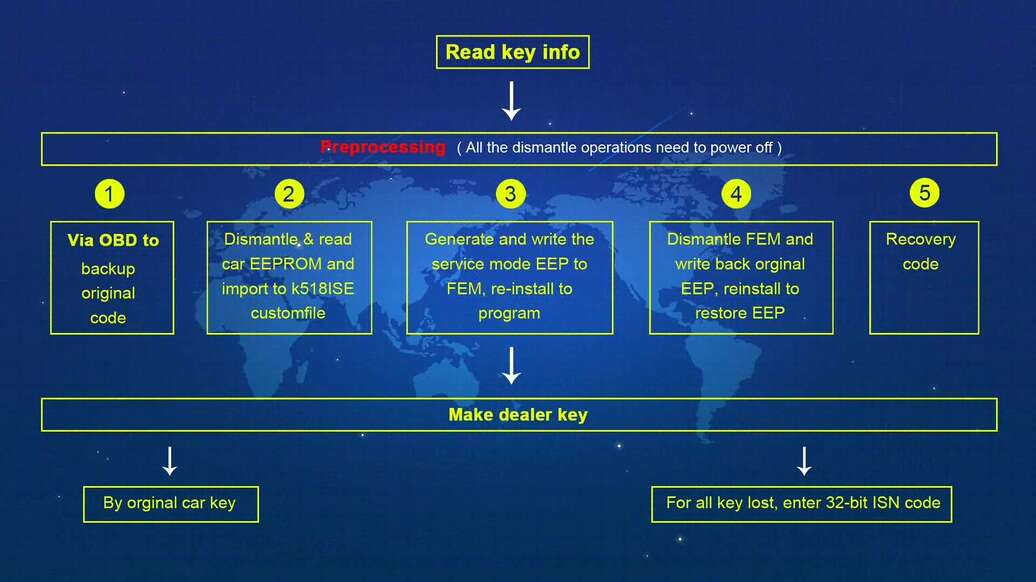

How to use Lonsdor K518ISE program BMW FEM BDC key even all key lost
CAS4 Enable/Disable Key

Free update for 2017 Ford Taurus key programming by OBD without pin code (2017-10-19)
Free update for 2017-Ford New Mondeo smart key programming (2017-10-18)
Free update BMW FEM Key Programming. No need open authorization. No need token(2017-10)
Fiat Ottimo Yue Yue/Flying Cheung smart key programming(2017-07-07)
(2017-04-19)
--[ World First] Add Mazda Angkesaila smart key program(2017);
--Adding Nissan key system (4 Digit Pin Code) ;
--Adding Nissan remote system ;
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) ;
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support Qashqai(after 2015);
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support Q5;
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support X-TRAIL(before 2013);
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support Kroraina;
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support QX60(after 2013);
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support teana-vip(after 2013);
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support Cima(after 2013);
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support JX35(after 2013);
Lonsdor K518 Immobilization Car List:
Check the detailed functions and car list here
Europe:
Audi, BMW, Benz, VW, Volvo, Citroen, Ferrari, Maserati, Fiat, Lamborghini, Jaguar, MG,
Land Rover, Bentley, Lancia, Opel, Peugeot, Porsche, DS, Renault, Alfa Romeo, Smart,
Borgward
America:
Cadillac, Chevrolet, Dodge, GMC, Buick, Hummer, Ford, JEEP, Lincoln, Mercury
Asia:
Honda, Hyundai, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki,
Toyota, Shigaoka Queen
China:
Iveco, Trumpchi, BYD, Geely, Chery, Great Wall, Young Lotus (Basically all Chinese car
models are included)
Odometer Adjustment Car List:
VW, Porsche, Ford, Jaguar, Land Rover, Mazda, Audi, Renault, Hummer, Hyundai, Kia...
More high-end cars will be updated very soon.
Note: K518ISE is still under rapid upgrading, more functions will be released soon, please refer to official website www.lonsdor.com, you can 鈥淥ne key update鈥 for the latest version by yourself.
Toyota/Lexus smart key all key lost via OBD
Lonsdor K518ISE can program Toyota/Lexus smart key all key lost via OBD by working together with extra SKE-LT Smart Key Emulator 4 in 1 Set (optional)

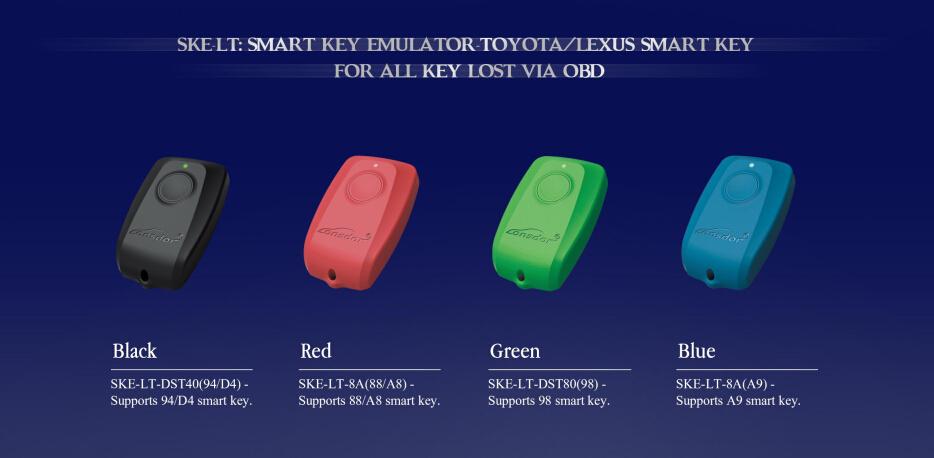

SKE-LT: Smart Key emulator - Toyota/Lexus smart key for all key lost via OBD.
Black: SKE-LT-DST40(94/D4) -Supports 94/D4 smart key.
Red: SKE-LT-8A(88/A8)-Support 88/A8 smart key.
Green: SKE-LT-DST80(98)-Supports 98 smart key.
Blue: SKE-LT-8A(A9)-Supports A9 smart key.

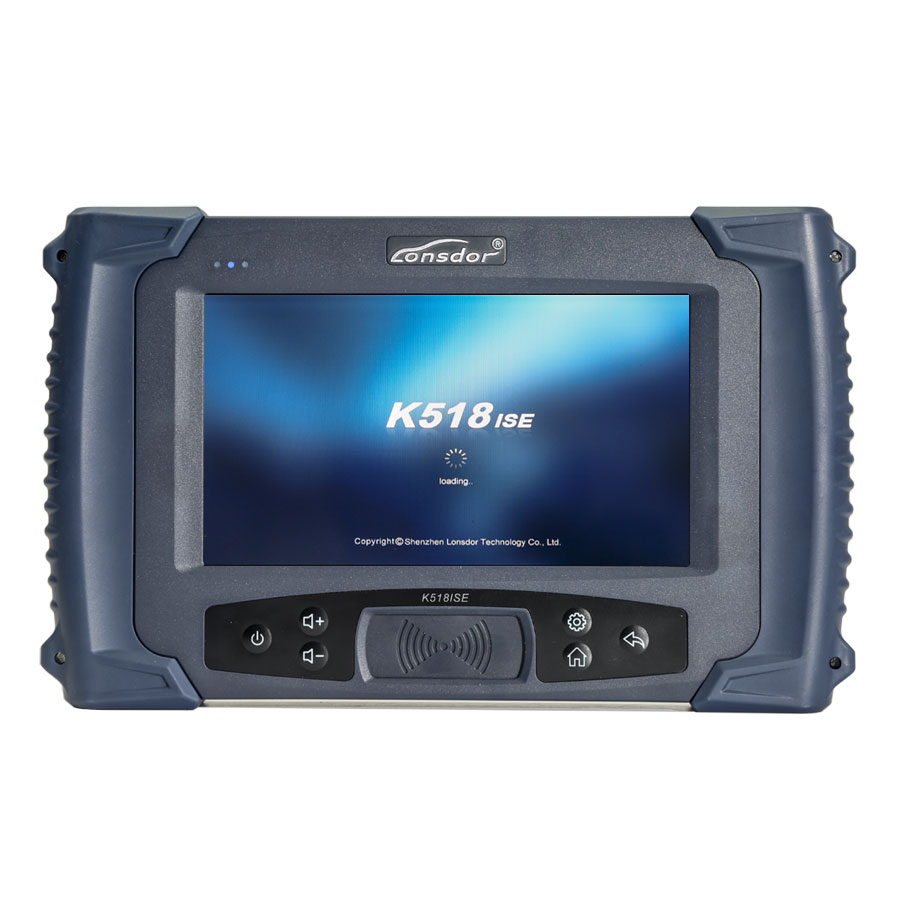

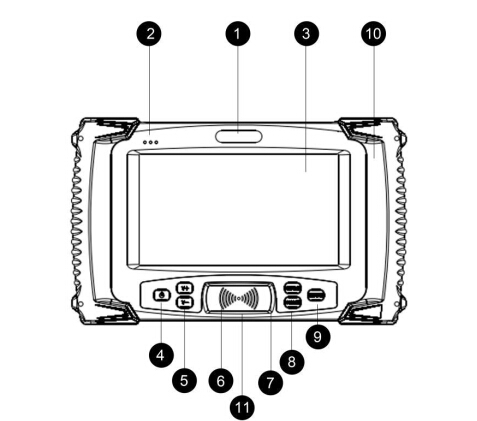

Lonsdor K518ISE Main Unit Appearance:

1. Trademark: Lonsdor
2. Three-color indicator in turn will be: red - external power supply; blue - system power; yellow - communication status
3. Capacitive touch screen: display and touch operation function.
4. Switch: press and hold for 3s to start. When in start state, press and hold for 3s to restart or shutdown, for 10s to force to restart.
5. Volume: adjust volume size
6. Key frequency & chip recognition system: place the key on the surface to detect frequency, push the slot shell to the right and put the key inside to detect chip
7. Setting: enter to set
8. Home: home page interface
9. Return: back to previous step
10. Built-in antenna: antenna inside
11. Model: K518ISE
Screen shot: press power button and volume down button together
K518ISE Top View:

1.Power socket 2.SD card slot
3.DB25 port 4.USB port
KPROG Adapter Appearance:
KPROG Adapter Front View:
1.Trademarks
2.Three-color indicator: Red:power light Blue:data light Yellow:comm status light
3.Simple horn seat:to connect with 20pin cable

KPROG Adapter UP View
Power socket
DB15 port
USB port

Functional accessories:
RN-01 board:read & write CEM data
E-01 board:read & write EEPROM data
FS-01 board:read & write KVM data
20P cable:connect adapter with function accessories
*The 3 extra connector s are for Honda(3-pin),Hyundai/Kia(10-pin) And Kia(20 pin) respectively.

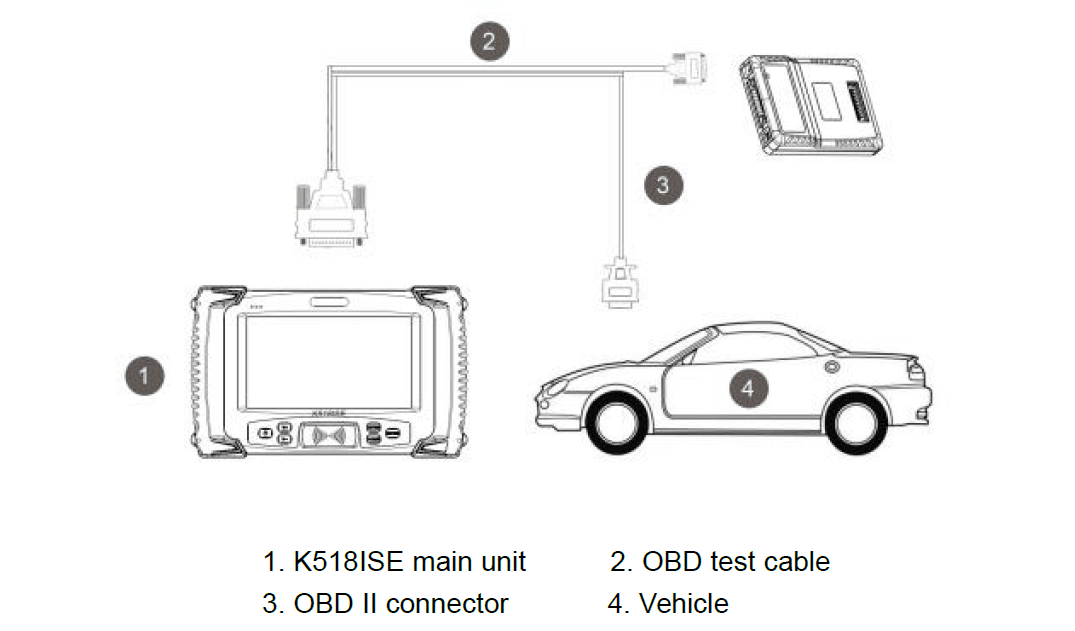

Lonsdor K518ISE Connection Picture:

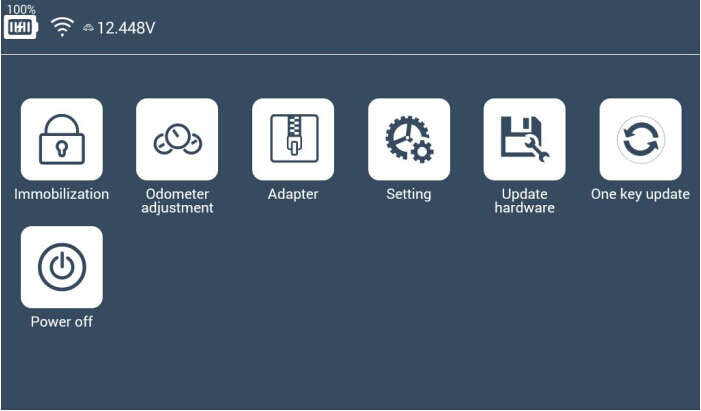

Lonsdor K518ISE Main interface:

Lonsdor K518ISE Setting interface:
How to Use Lonsdor K518ISE?
Here I take the Toyota/Lexus smart key all key lost as example.
1) Binding
1.Go to the 鈥淏ind emulator key鈥 function;
2.Turn on emulator key and put it into K518ISE key slot (put the status indicator down, make sure the key is active);
3.Following the system direction and click 鈥淥K鈥 to start binding;
4.After binding completed, the system will indicate 鈥淏inding successful鈥.
Note: The KPROG adapter is specialized for part of Volvo car series and the new Maserati for the time being, we are still developing some more car models that the adaptor can support in the near future, such as Jeep Grand Cherokee, please refer to our website or directly go to the鈥漁ne key update鈥 for latest news.
2) Backup EEPROM data
Connect K518ISE with car OBD port, enter into 鈥淏ackup immodata鈥 to back up the data.
3) Make emergency emulator key
After choosing the immo data, in a network environment, the system will indicate to choose the corresponding SKE emulator key model, please start the key and put it into K518ISE key slot(make sure the key is activate), follow the instruction to make an emulator key.
4) Add smart key
Click the car start button, put the generated SKE emulator key close to the start button, with induction the car will automatically activated.
The system will read current key count, then follow the instruction to add key.
Precaution
1.鈥滲ind emulator key鈥 can identify the SKE emulator key binding state;
2.SKE emulator key need to bind K518ISE host and can bind only for one time;
3.When making emulator key, make sure well net connection and to choose the corresponding SKE emulator key model correctly.
More detail pleas view our official website: K518ISE programs Toyota/Lexus smart key all key lost via OBD
Lonsdor K518ISE Update Guide:
There are 3 ways to update the system,and after you connect the k518ise to the network,it will updated to the latest version automatically.
One key update:quickly update the new added or modified functions.
APK update:this is used when the APK is updated.
Force to update:this is used when the device is faulty or to retrieve data.
Londor K518ISE Adaptor Binding:
Please note that KPROG adapter must be bound to K518ISE before using, here is the binding process:
Step 1. Connect adapter to K518ISE with mainline
Step 2. Connect K518ISE with 12V power supply
Step 3. Enter into 鈥淪etting鈥
Step 4. Click 鈥淏ind adapter鈥
Step 5. Click 鈥淥K鈥 to complete
Note: The KPROG adapter is specialized for part of Volvo car series and the new Maserati for the time being, we are still developing some more car models that the adaptor can support in the near future, such as Jeep Grand Cherokee, please refer to our website or directly go to the鈥漁ne key update鈥 for latest news
How to Register Lonsdor K518ISE best key programmer?
After system updating, you need go to registration&activation.
For new user,
Click on Registration,
Input: user name(email), name(min 2 char), password(min 6 char), email verification code
Click on YES
Lonsdor K518ISE registration completes
(if interrupted after registration is done, you will go to the System update鈥揜egistered user to proceed).
Then go to Activation confirmation to continue.
How to ActivateLonsdor K518ISE car key programmer tool?
After confirming activation, it will go thepassword Setup interface
set 6-digit numbers as your startup password information verification by Lonsdor
(5-30 minutes, you can check the progress by clicking 鈥淩efresh鈥 )
re-enter the password to verify
get the notification that verification successful
the whole process before using the device is complete.
The most important note:
1. User name must be workable email address, so that you can receive the verification codefrom Lonsdor by email.
2. Please pay attention to the difference between the registration password (min 6 char) and the startup password(6-digit), the former will generally only used when registration, so please commit the 6-digit startup password into memory, as this will be required every time when you start the device.
3. The account will be bound to the corresponding device for life, other accounts can not log in your device and your account can not log
in an registered or activated device either. 4. An account can be used to bind multiple new devices.

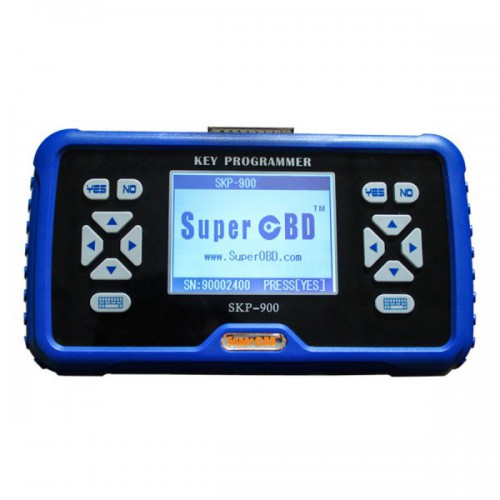

Lonsdor K518ISE vs. SKP1000 vs. OBDSTAR X300 Pro3 vs. SKP900
Product Name |
Lonsdor K518ISE |

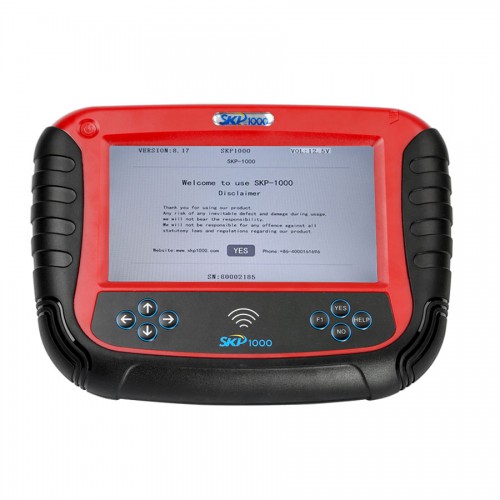

SKP1000 |

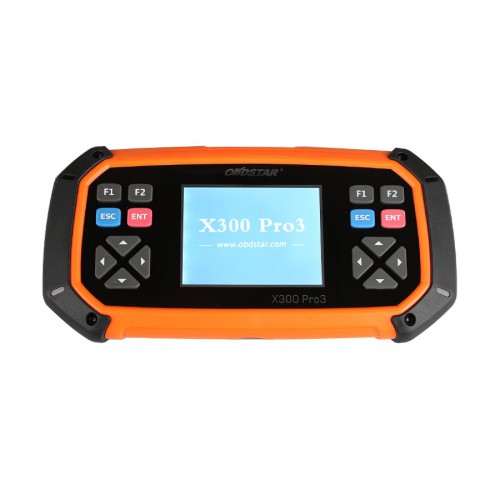

OBDSTAR X300 Pro3 |
SKP900 |
Appearance |
 |
 |
 |
 |
Item.No |
SK213 |
USSK223 |
USHKSK196 |
USSK155 |
Price |
$1,199 |
$499 |
$499 |
$429 |
Manufacturer |
Lonsdor |
Lonsdor |
OBDSTAR |
SuperOBD |
Official Website |
http://en.lonsdor.com |
http://www.gpobd.com/ |
http://www.obdstar.com |
http://superobd.com/ |
Update Method |
update online |
Lifetime free update software and firmware |
update online |
update online |
Vehicle Coverage |
has a wide range of vehicle coverage, incl. the luxury cars i.e BMW, Volvo, Ferrari, Bentley, Lamborghini as well as Volkswagen 4th 5th IMMO,Toyota/Lexus smart key all key lost via OBD etc. |
nearly the same vehicle coverage as SuperOBD skp900 |
Obdstar x300 vehicle list
Find the function you want,and download the vehicle list pdf to check |
Support almost all vehicles in the world |
Functions |
OBD mileage adjustment, remote controller, oil/service reset, ETC, EPB, EEPROM chip read.(BMW FEM module programming) |
Special function:OBD mileage adjustment, remote controller, oil/service reset, ETC, EPB, EEPROM chip read. |
X-300 pro3 Key Master will covers Skp-900, OBDSTAR X100 Pro and X300 Pro function, which can support Immobilizer, Odometer Adjust. EEprom/PIC, OBDII, EPB, Oil/Service reset and Battery Matching...
|
Key programming,read pin code |
Lonsdor K518ISE Technical Parameter:
RFID: Support 125KHz ASK,134.2KHz FSK
CPU: ARM Cortex-A7 Quad-core Processor Speed 1.34GHz
Display: 1024*600,7 inch IPS capacitive
Memory: eMMC 8G RAM 1G
Battery Capacity: 3800 mAh
Power Supply: DC12V 1A
Power port: 5.5x2.1mm
OBD Port: OBD-II
Comm Port:USB 2.0-type B
OBDII Protocols: ISO15765,ISO9141,ISO14230,SAEJ1850,VW TP1.6 TP2.0 etc
KPROG: Support programming MCU and EEPROM on ECU circuit board.
WIFI Communication Distance:10m
Lonsdor K518ISE Package List:
1* Portable Bag(big)
1*Main Host
1*Power Adaptor
1*USB Cable
1*Packing Bundle
1*OBD Test Cable
1*Extra Connector
1*User Manual
1*Portable Bag(small)
1*KPROG Adapter
1*RN-01 Board
1*E-01 Board
1*FS-01 Board
1*20P Cable
5*Backup Pin
1*Certificate
4pc x smart key emulator (optional)
聽
Lonsdor K518ISE Test Reports, how-to instruction, FAQ etc, click on: http://lonsdor-k518.blogspot.com/
For example, Lonsdor K518ISE Maserati-smart key-2016- Help File.
This Lonsdor K518ISE help file,it basically includes 4 parts: Function, Operation, Attention, and Reference.
Function
- The backup immodata: please refer to the "Operation" to backup immodata, after that program and delete key can be proceed;
- Add smart key: to program smart card, add key and all key lost have the same operation;
- Delete smart key: delete all the programmed smart cards.
Operation
- 2016- Maserati (Ghibli, Quattroporte, SUV: Levante) need to dismantle & read the onboard computer(ECU) data to get PIN code;
- Levante ECU located in the rear cover top of the car:
- The on-board computer of Ghibli and Quattroporte are located in the rear windshield, the former needs to dismantle from
the rear seat(see below). The latter needs to dismantle from the trunk audio position,then you will see the on-board computer.
- On-board computer appearance and dismantle/read eight feet chip (95640):
- Backup immodata (as shown below)
- Connect K518ISE main host to KPROG adapter, and connect 12V power supply (must use K518ISE dedicated power supply);
- Weld the eight feet chip (95640) on the "E-01 board";
- Click the menu to start backing up the data.
- Data backup complete, please weld the chip back to the onboard computer and install well;
Note: If you can not read data with the KPROG adapter, you can use a programmer to read and copy the data into the K518ISE specified folder, the path: K518 -> file -> feature_553
- Add / delete key
- Please follow the system prompts.
Attention
- The deleted smart card key can only be used for the vehicle to do program operation;
- Emergency flasher (dangerous warning light) position, as shown in red circle:
- For the new Maserati models, in the bottom of the pole position has a "knob" as shown below, cars without this knob belong to the old system before 2016.
Reference
Chip model: Dedicated smart card
PIN code requirement: Dismantle/read the onboard computer to get PIN code (Please refer to the "Operation" for details)
Remote generation: Program smart key complete, remote will automatically generated
Under the steering wheel:
聽
