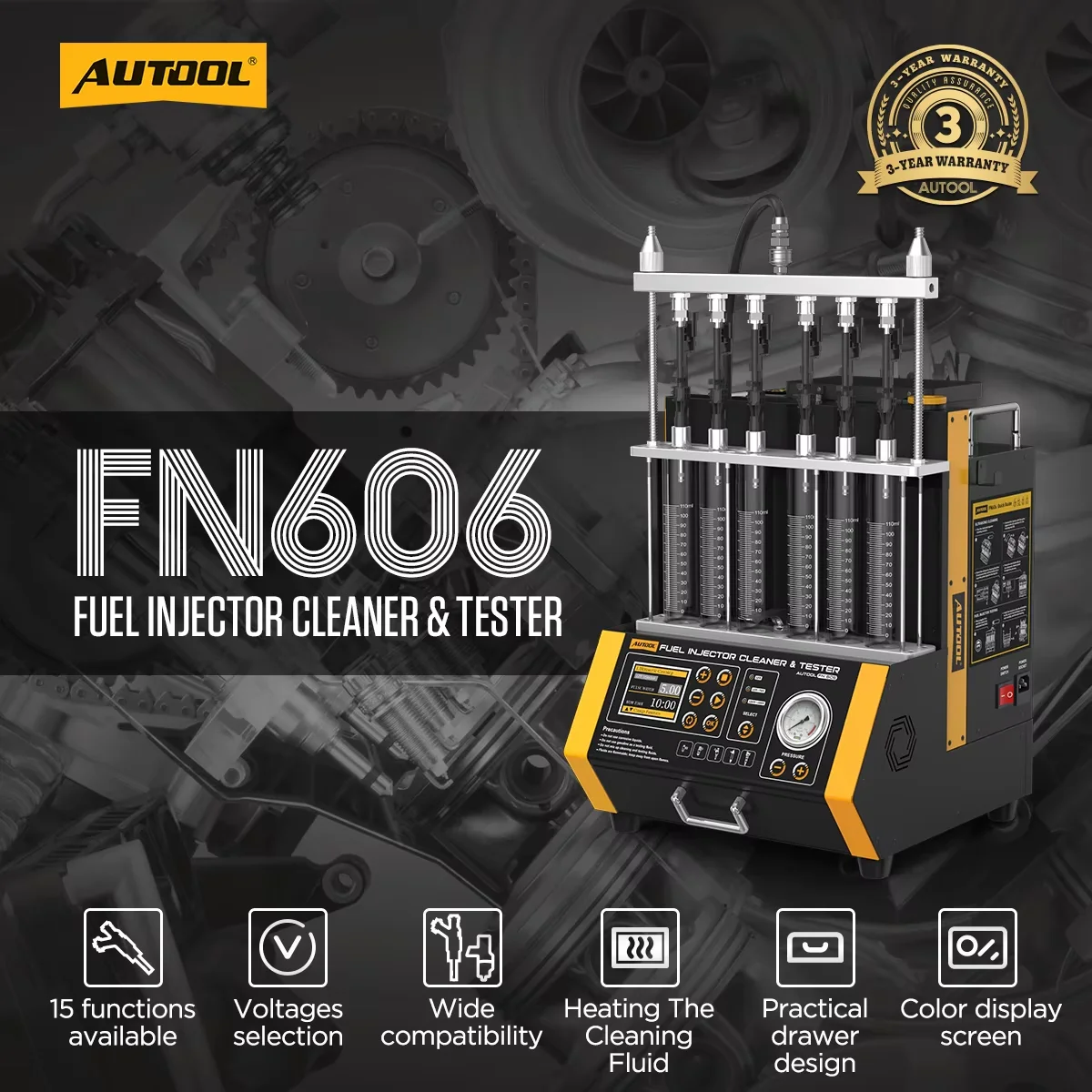

AUTOOL FN606 Fuel Injector Heated Cleaning Tester Machine for Car Motor 6-Cylinders Ultrasonic Cleaning GDI EFI FEI injector Cleaner

AUTOOL FN606 GDI Fuel Injector Cleaner & Tester is a high-efficiency professional device specially designed for six-cylinder engines. It perfectly integrates ultrasonic cleaning technology—with independent operation capability and a heating function to significantly boost cleaning efficiency and results—and a microcomputer-controlled closed-loop oil pressure system, enabling precise integrated cleaning and testing. The device can simulate various engine operating conditions to injectors of different vehicle models, supports non-disassembly and reverse cleaning of fuel injectors, and thus provides an efficient, reliable solution for automotive repair, maintenance, research, and educational training institutions.

3 Ultrasonic Cleaning Function

Ultrasonic cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with ultrasonic vibration to completely remove the carbon and impurities inside the injectors.

No-disassembly cleaning: Direct cleaning without disassembling the injectors, this function is an additional function, that requires special adapters.

Reverse Flush: Reverse flush is a way to clean the injectors with the test liquid flowing from the outlet to the inlet of the injector. Reverse flush may remove the dirt inside the injector or the injector Strainer (Only for the top fuel supply injector).

12 Test Function

Idle Speed Test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector.

Medium Speed Test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector.

High-Speed Test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector.

Acceleration Test: Simulate the acceleration state of the car and test the performance of the fuel injector.

Variable Speed Test: Simulate the variable Speed of the car and test the working performance of the fuel injector.

Leak Test: Test the sealing condition of the fuel injector.

Idle Speed Sprayability Test: Simulate the engine idling state and test the spraying performance of the fuel injector.

High-Speed Sprayability test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.

Flow Balance Test: Perform flow balance tests at different speeds.

Observation of Fuel Injection Shape: Observe whether the fuel injection shapes and angles of all fuel injection nozzles on the same car are uniform at various speeds.

Leak Detection Test: The leak detection test is to detect the tightness of the injector needle valve under the high pressure of the system.

AUTOOL FN606 Fuel Injector Tester & Cleaner Features

Fluid Heating Function: The FN606 injector cleaner features a built-in intelligent constant temperature function that quickly heats 550ml of fluid to 50°C and maintains that temperature.

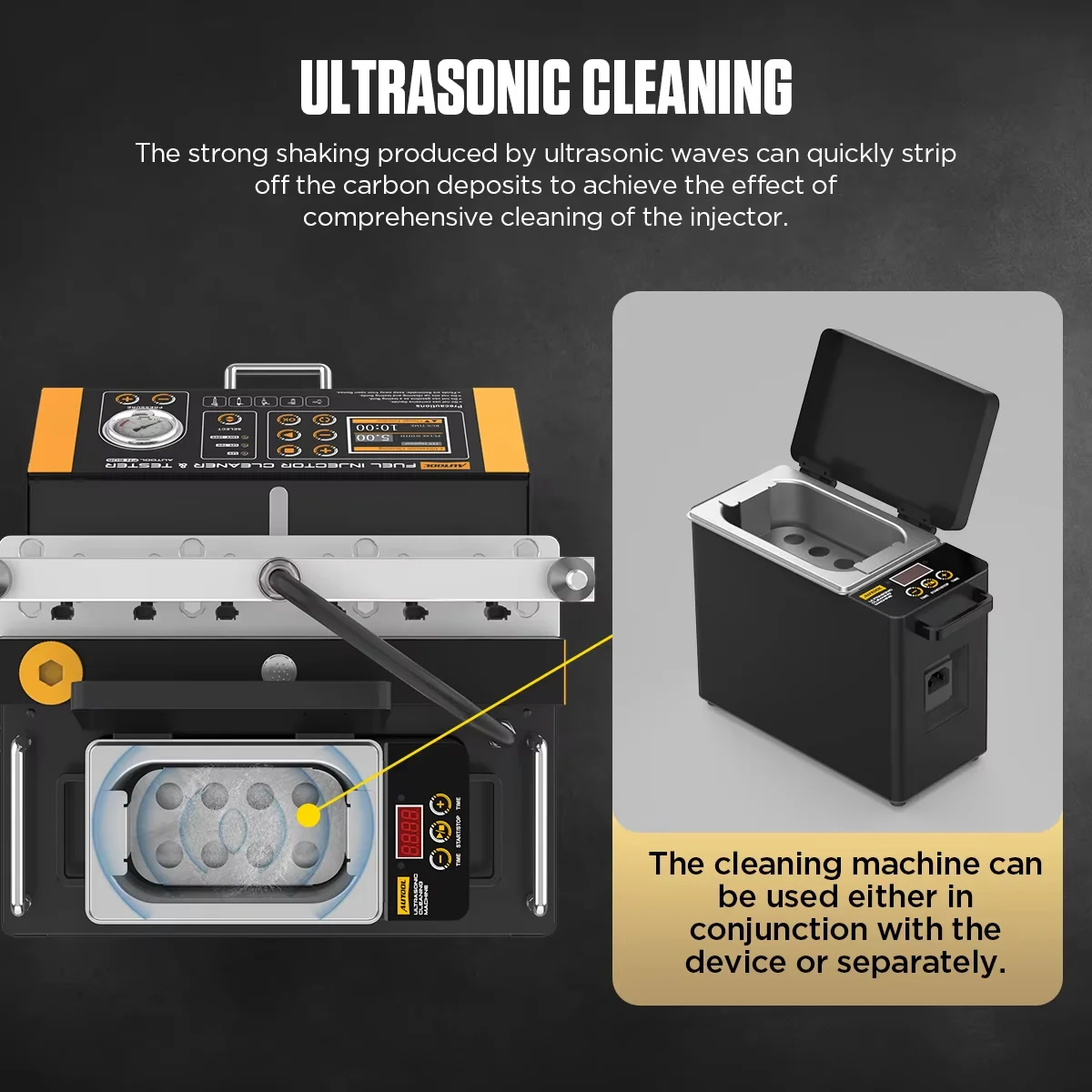

Standalone Ultrasonic Cleaner: Technicians can easily and efficiently perform regular injector maintenance.

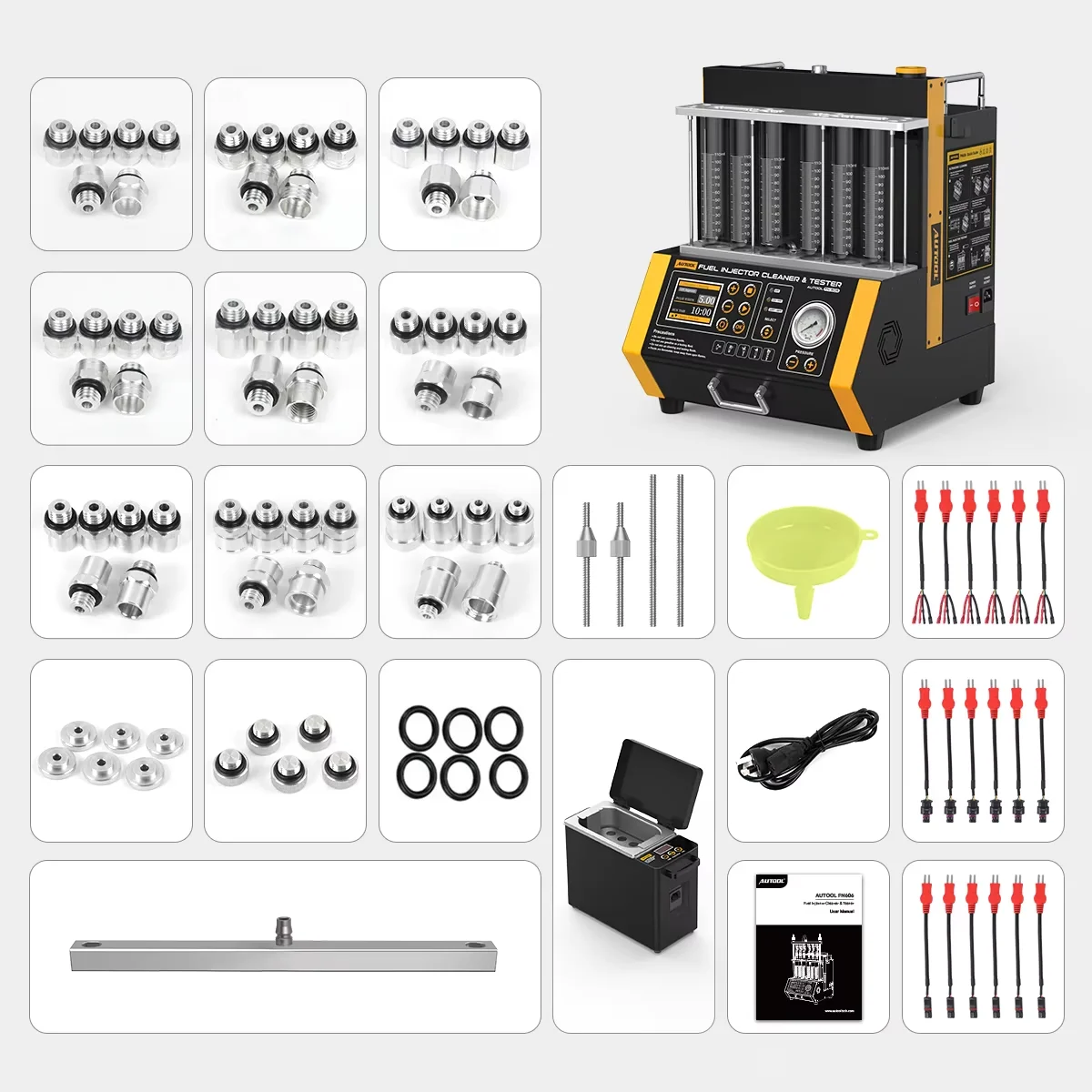

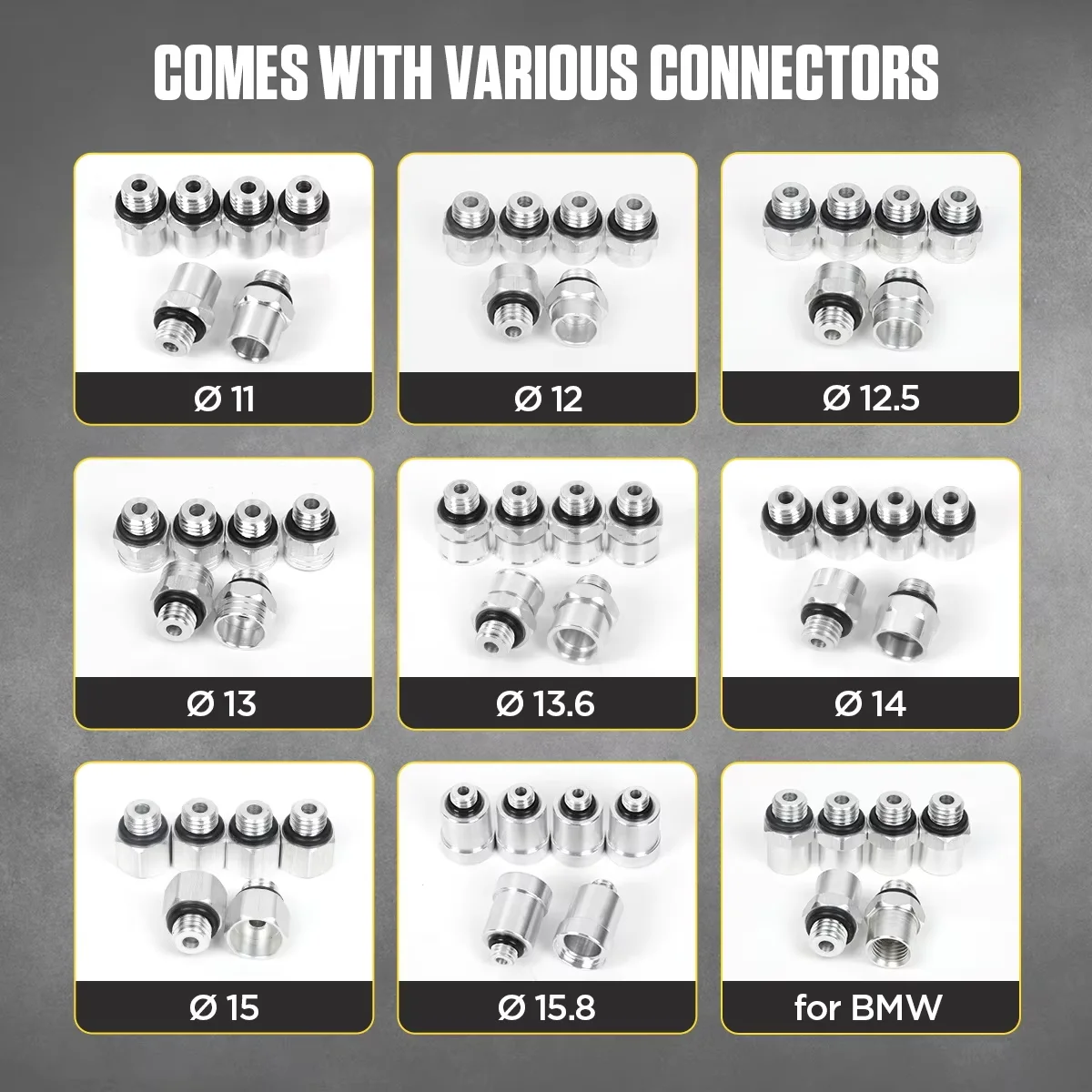

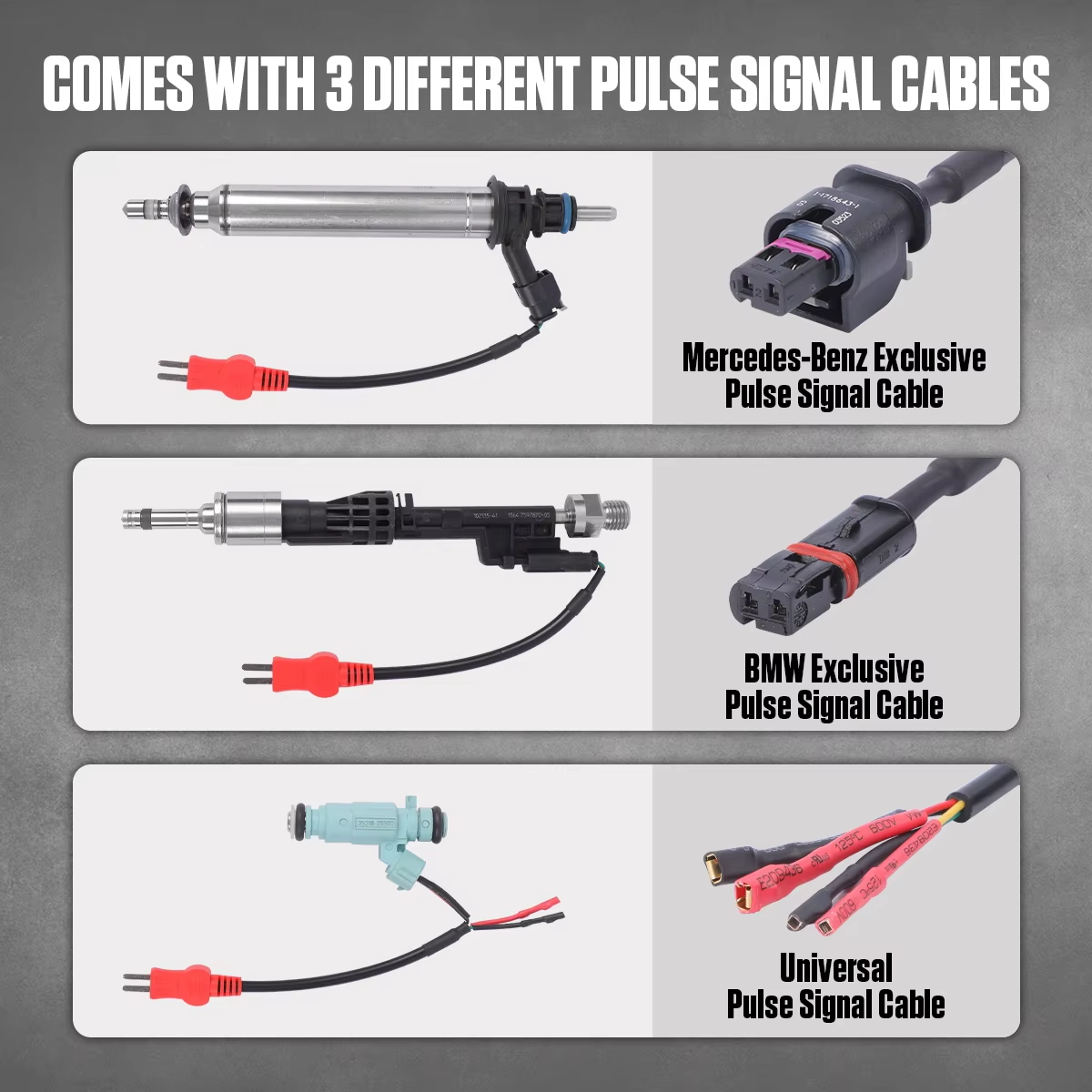

Wide Compatibility: Equipped with nine adapters, a BMW injector adapter, and connectors for various injector sizes, it can test most automotive injectors on the market.

Injector Protection: A self-protection function protects injectors from damage when testing GDI injectors.

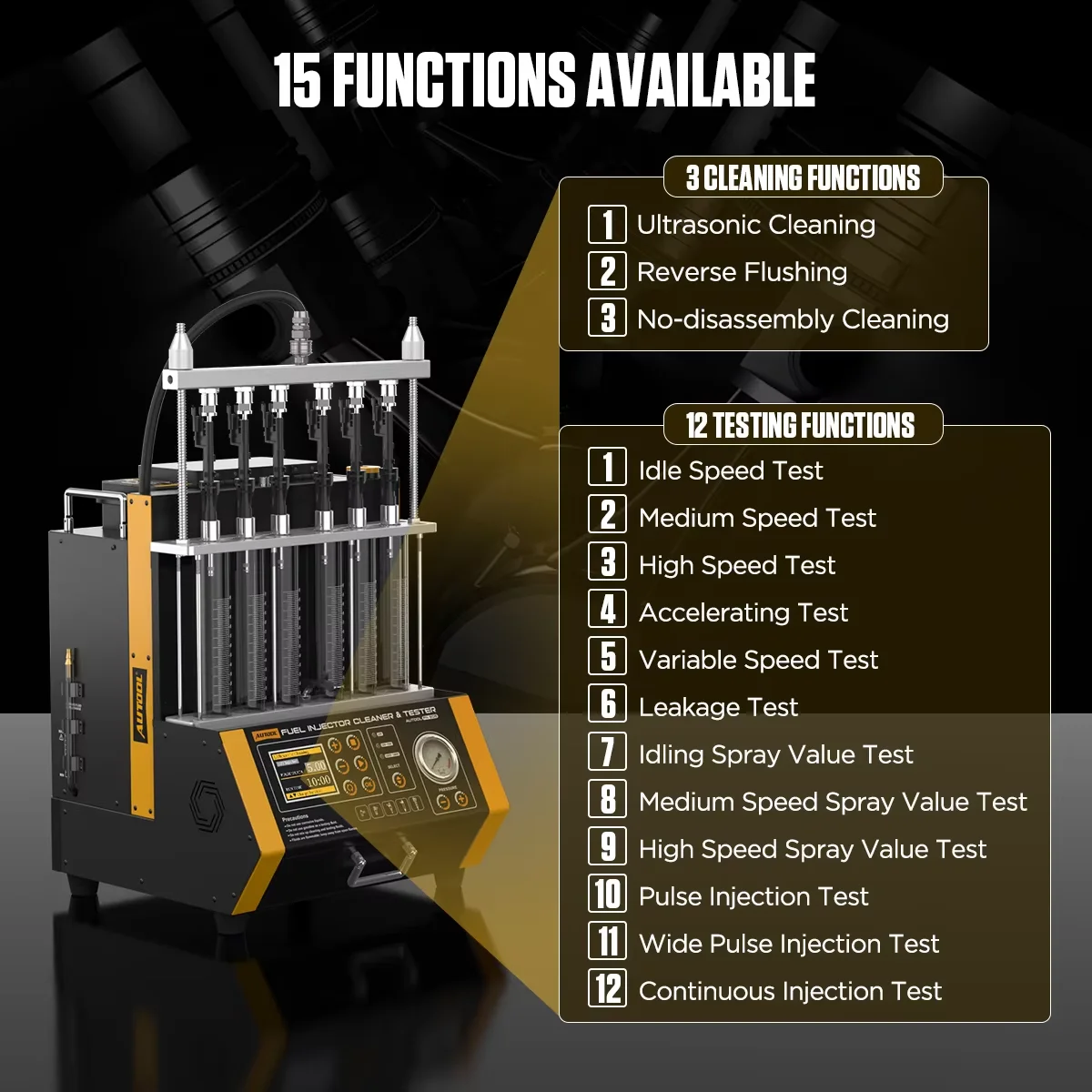

Comprehensive Function: The AUTOOL FN606 injector cleaner offers three cleaning modes and 12 test functions, providing efficient cleaning and comprehensive diagnostics to ensure optimal injector performance.

High Cleaning Efficiency: The system utilizes 28kHz high-frequency ultrasonic cleaning to effectively remove oil, carbon deposits, and gummy residue from automotive injectors, ensuring a fast and thorough cleaning process.

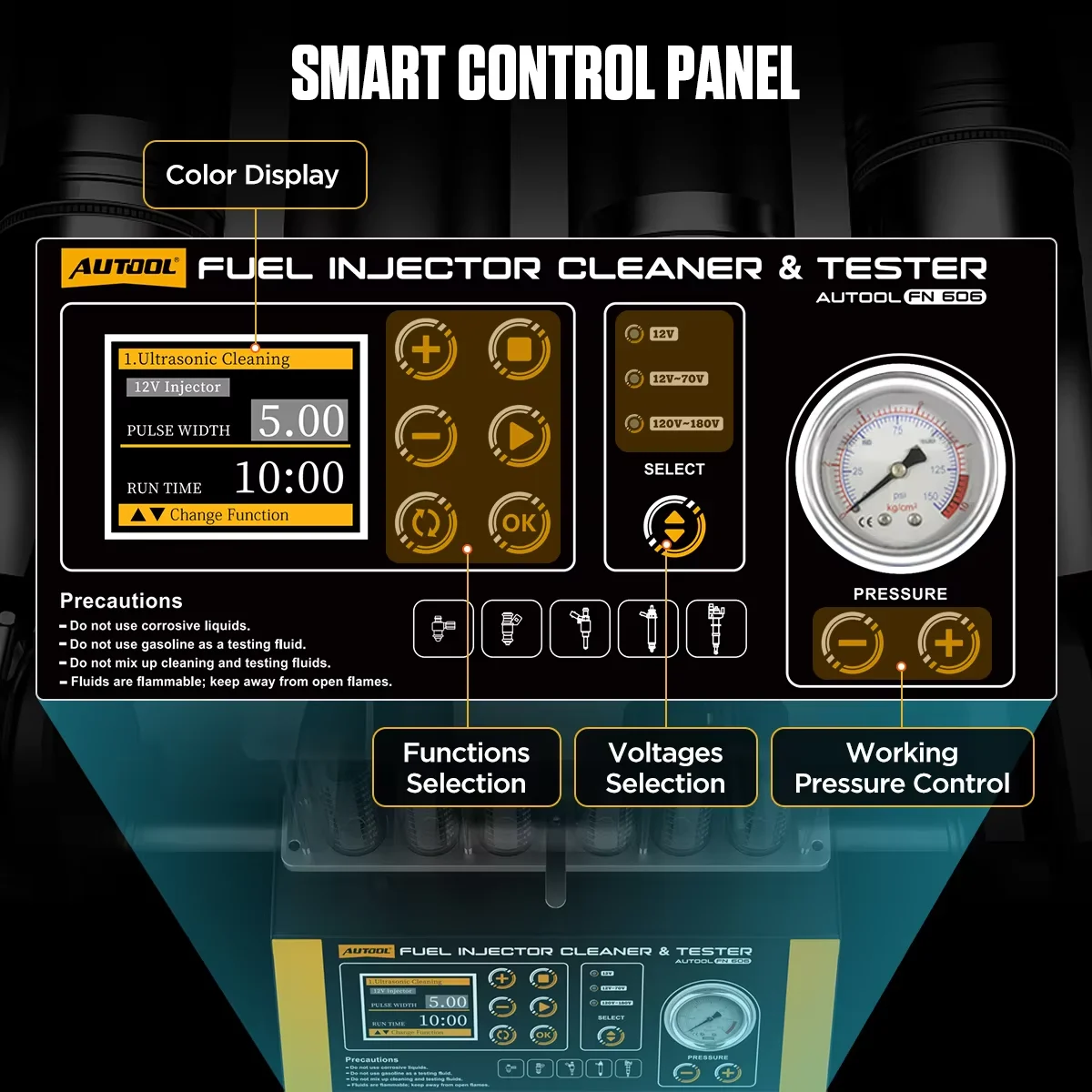

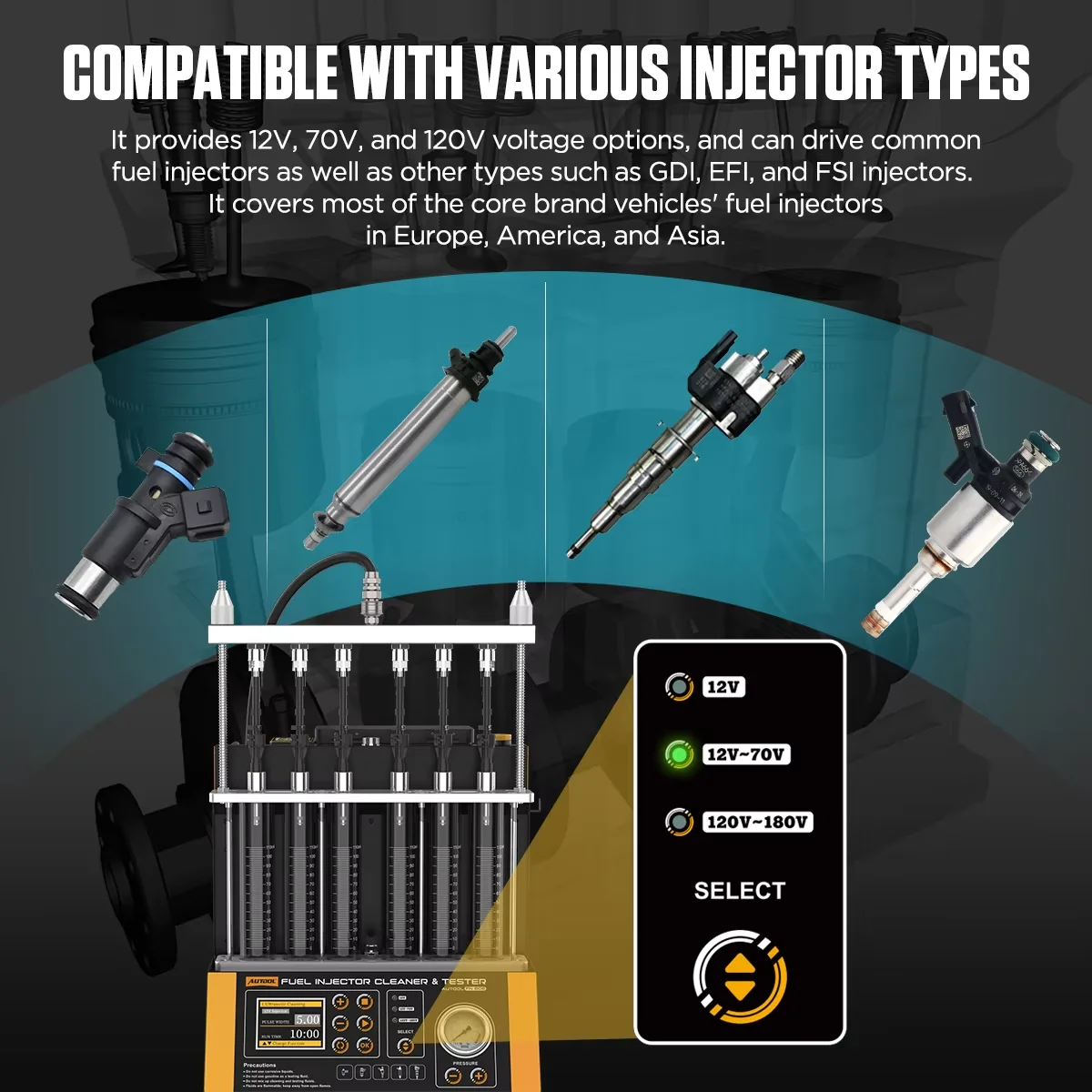

Multiple Voltage Options: The FN606 offers adjustable voltage outputs (12V, 12V-70V, 120V-180V) for different injectors. It intelligently identifies the required driving voltage for GDI injectors, preventing damage caused by incorrect settings and avoiding misfires or alarm signals.

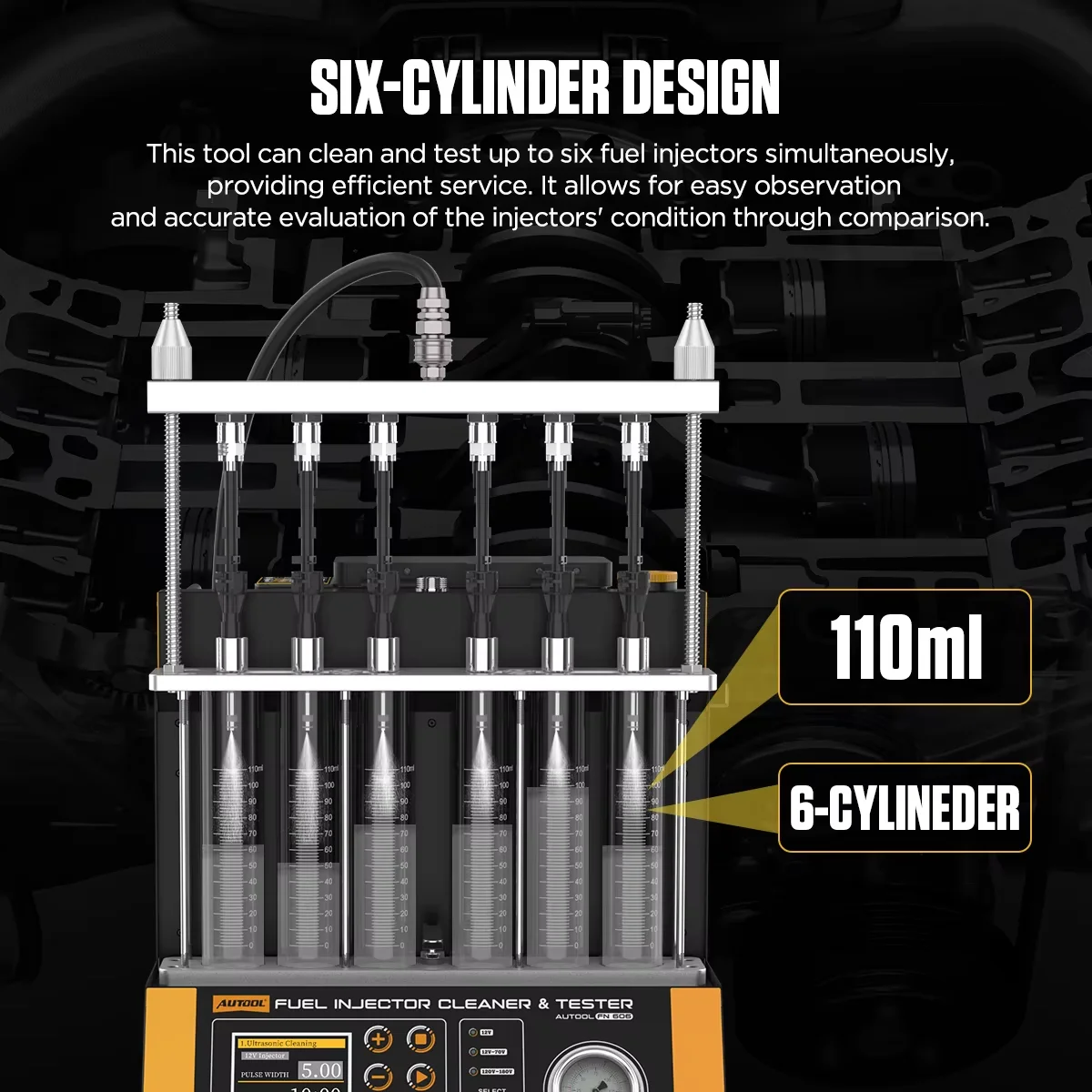

Smart Design: The 6-cylinder, 110ml explosion-proof glass tube design allows for simultaneous testing of up to six injectors. The durable explosion-proof glass prevents fluid leaks, ensuring safe and reliable operation.

Adjustable Operating Time: The injector cleaning time can be adjusted up to 10 minutes based on the level of injector contamination.

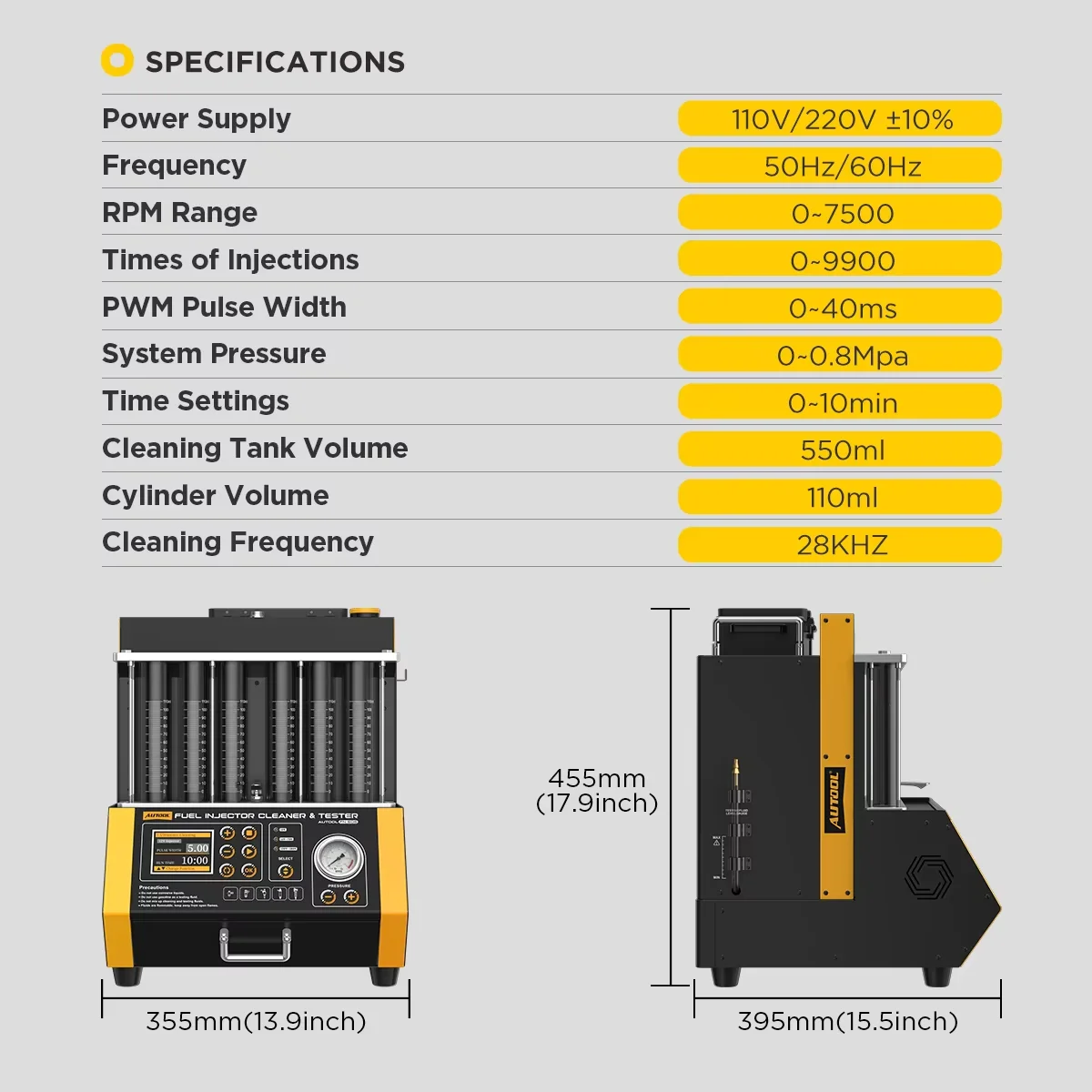

Parameter Specification

Power Supply: AC 110V/220V ±10%
Frequency: 50Hz/60Hz
Cleaning Tank Volume: 550ml
Speed Range: 0~7500RPM
Number of Injections :0~9900 times

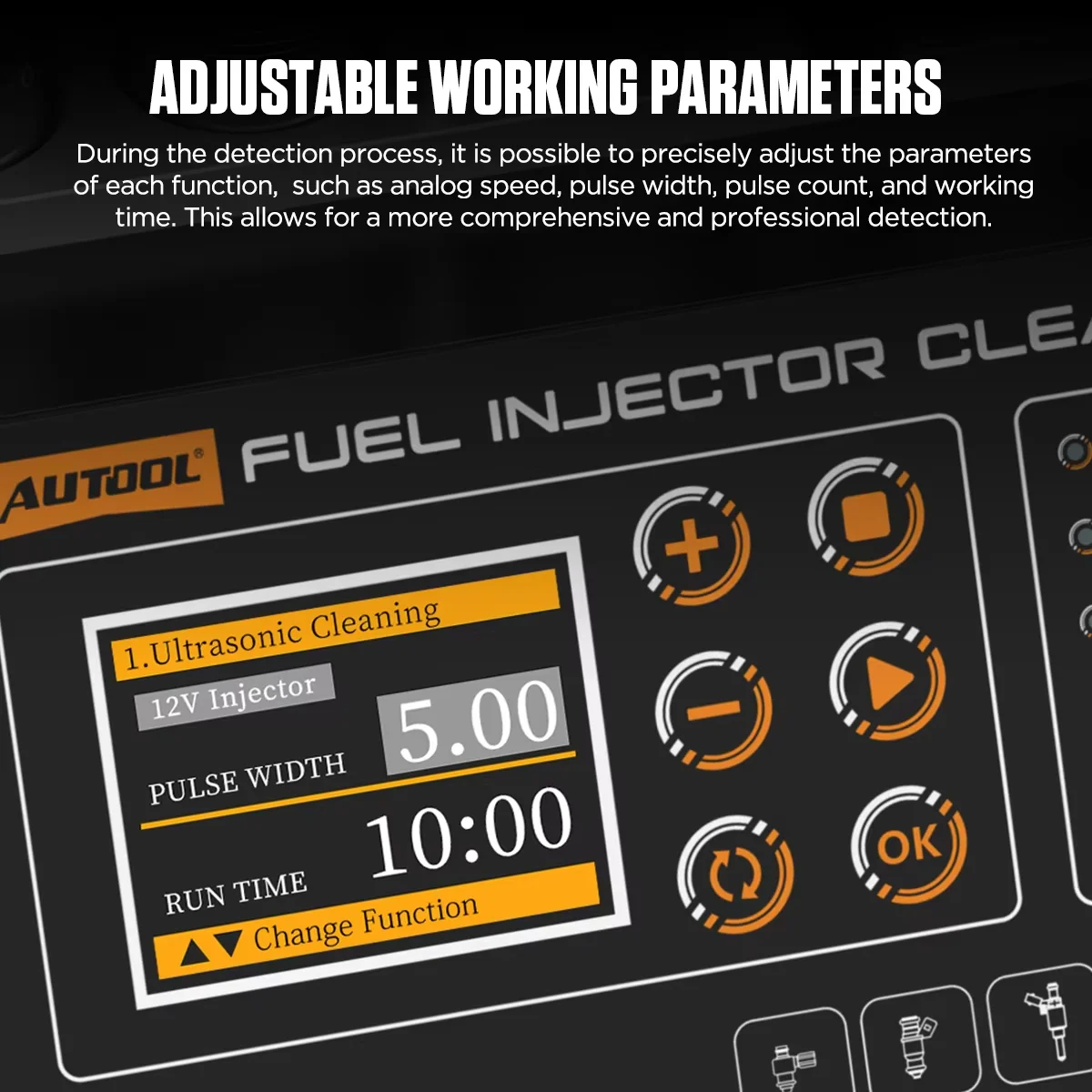

PWM Pulse Width: 0~40ms, step size 0.1ms
System Pressure :0~0.8MPa, adjustable
Time Settings: 0~10min, adjustable
Ultrasonic Cleaning Frequency :28kHz
Environmental Temperature: 0°C~40°C
Relative Humidity: <85%
External Magnetic Field Intensity: <400A/m
