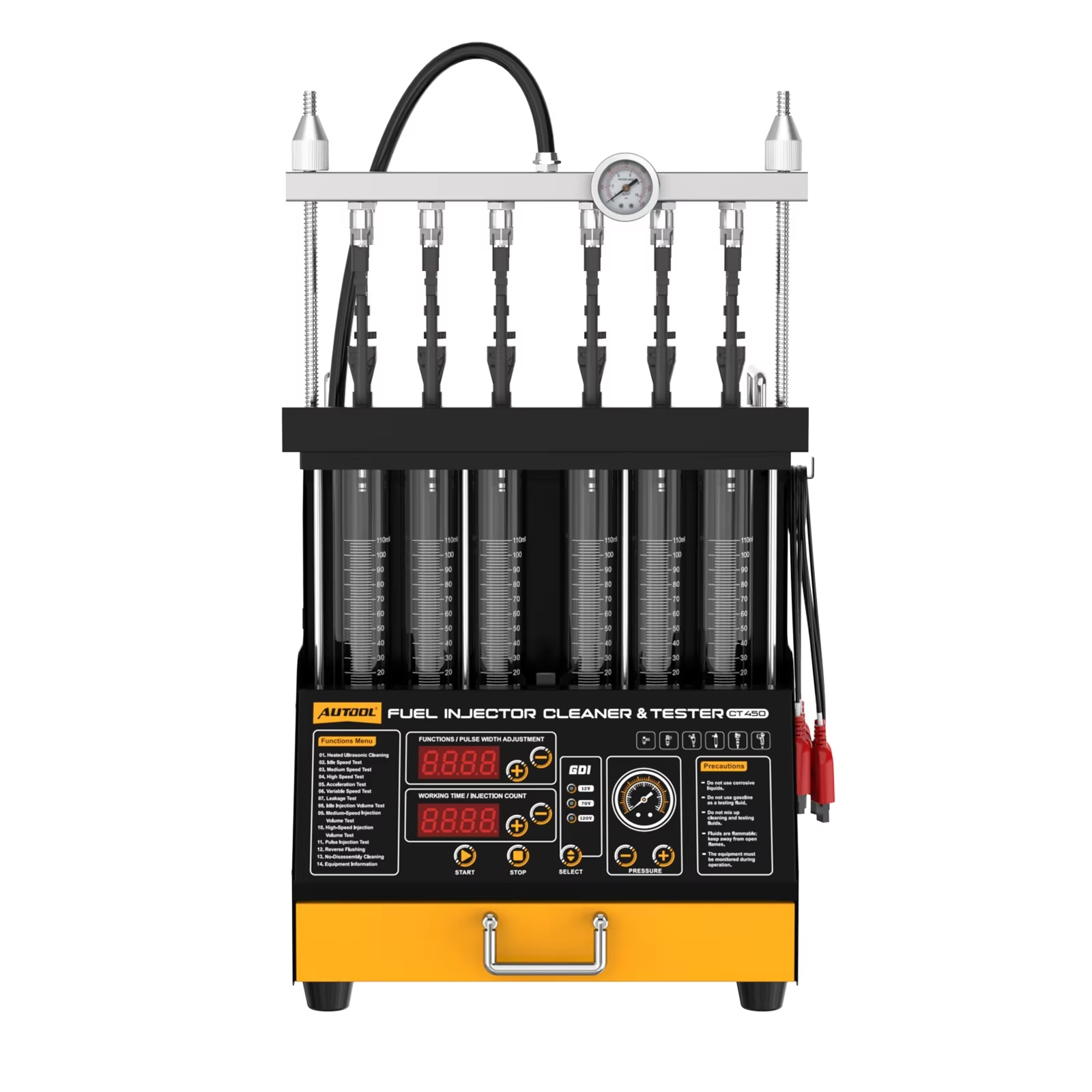

AUTOOL CT450 GDI Fuel Injector 6-cylinder Cleaner and Tester is a great upgrade, which adapts the latest GDI design. It can be heated up to 50°C,thoroughly removing carbon deposits from the injectors.It can clean and test standard injectors, EFI, FSI, Piezoelectric fuel injectors, as well as GDI injectors such as for Mercedes Benz, BMW, Audi, Porsche, Ford, and other direct injection engines. It comes with multi voltages available for GDI injectors, which enables to adapt for different types of injector testing. The machine is the necessary and preferred equipment for the automotive serving and maintenance, research, and teaching training departments.Support for more cars and motorcycles.Can only be used to clean diesel fuel injectors.The cleaning fluid is 3M car injector cleaning fluid, and the test fluid is industrial alcohol.

Notice :

The cleaning fluid is a cleaning fluid for engine carbon deposits. The test fluid in the glass tube can only be added with industrial alcohol. Please do not add other turbid liquids to avoid impurities in the added liquid, which will prevent the test fluid from being discharged from the glass tube. The equipment is damaged due to human factors, and the buyer cannot enjoy 3 years of free maintenance service, thank you

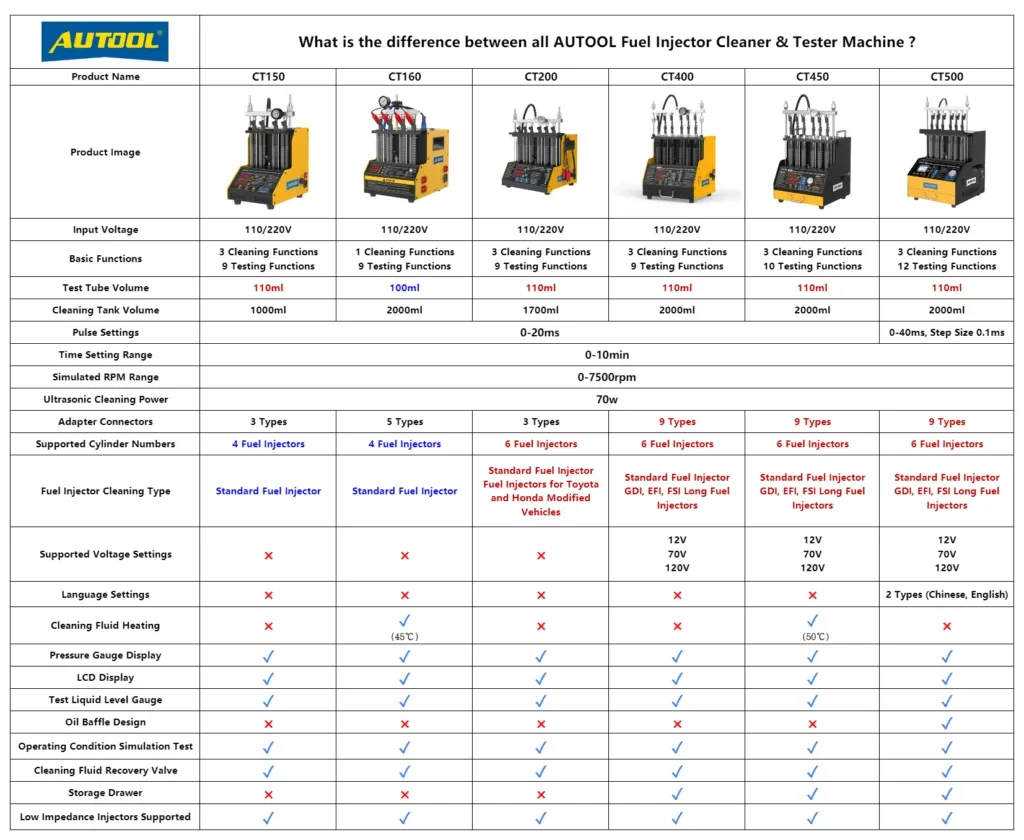

AUTOOL Cleaning Test Injectors Comparison:

Why Choose AUTOOL CT450 Automotive Injector Cleaner and Tester Machine

In view of the increasing maturity and use of the Gasoline direct injection, Gasoline direct injection is a technology that injects fuel directly into the cylinder and mixes it with the intake air. Compared to conventional injectors, the use of GDI can help improve engine efficiency and specific power output as well as reduce exhaust emissions. CT450 not only supports GDI, EFI, FSI and other types of fuel injectors, but also compatible with common standard fuel injectors. The CT400 is available in three voltages to drive the GDI injectors, 12V, 70V and 120V, which basically covers the injectors of the majority vehicle brands in Europe, America and Asia.

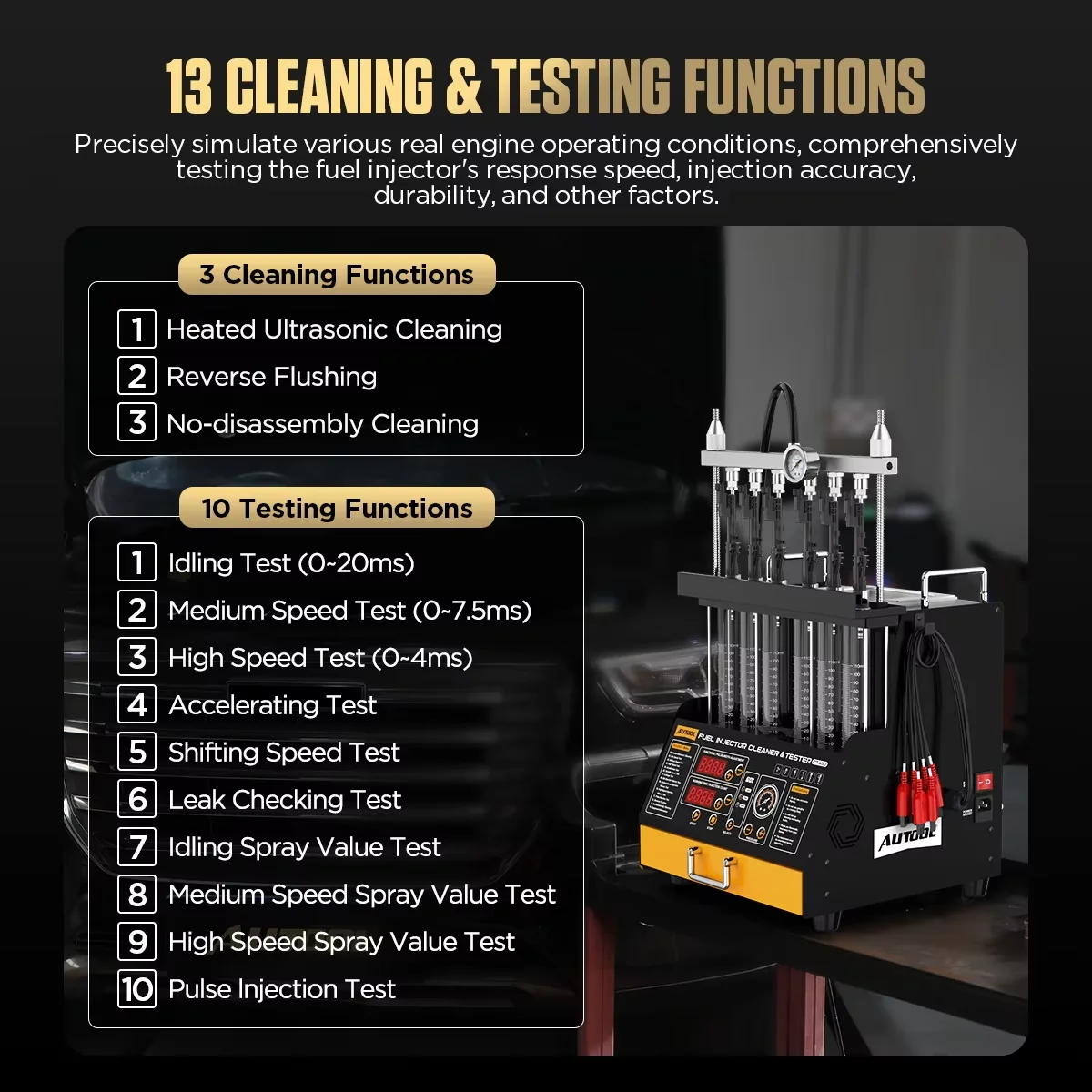

It is an expert in Injector solutions, featuring 13 injector-specific functions

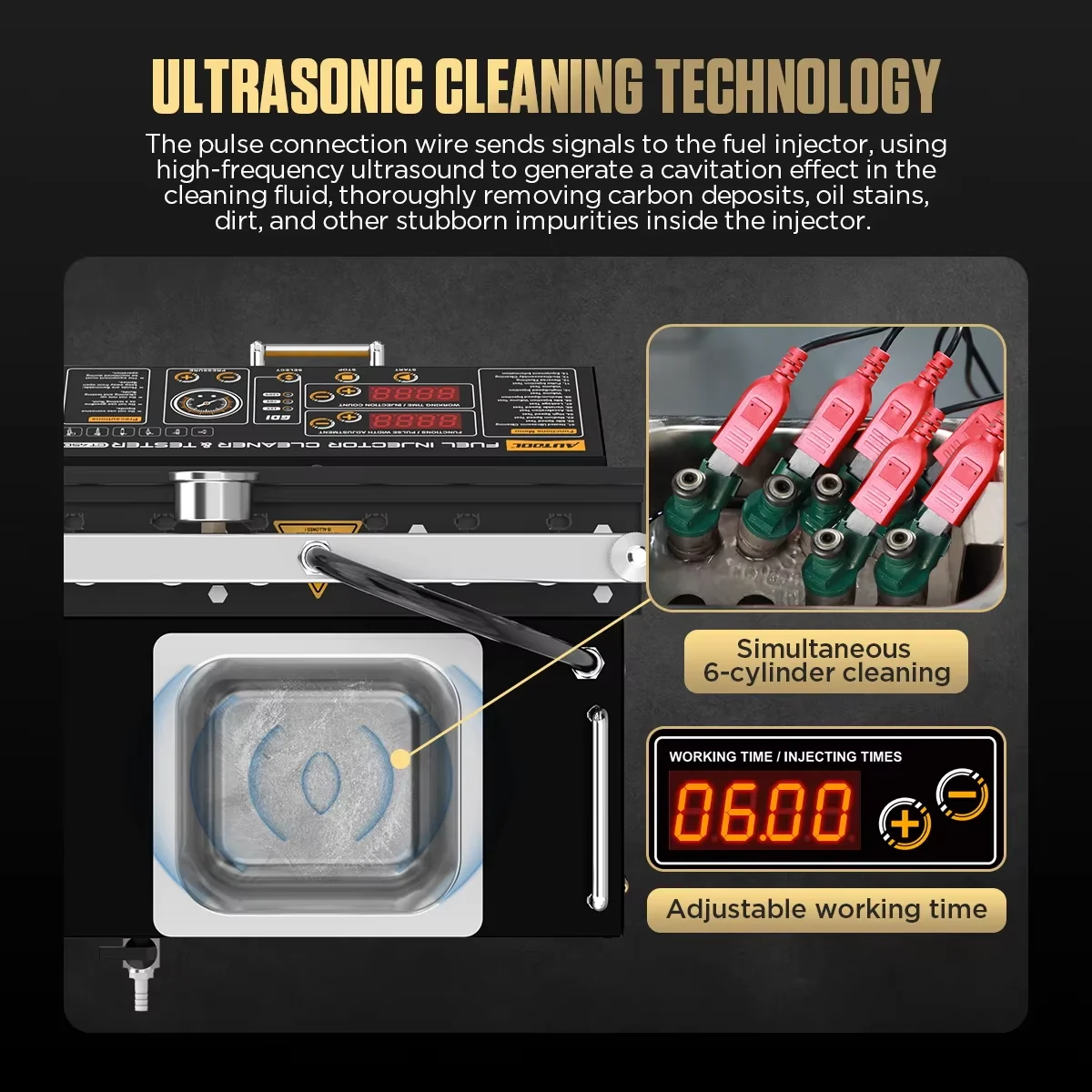

01.Ultrasonic Cleaning:
Capable of simultaneously cleaning single or multiple fuel injectors with ultrasonic waves. It can be heated up to 50°C,thoroughly removing carbon deposits from the injectors.

02.Uniformity Testing:
Measures the uniformity of fuel injection across all injectors.

03.Atomization Observation:
Equipped with a background light, allowing for a comprehen-sive and detailed observation of the atomization pattern of thefuel injectors.

04.Sealing Test:
Tests the sealing and lakage of the fuel injectors under highpressure.

05.Fuel Injection Quantity Testing:
Measures the amount of fuel injected under specific operating conditions (e.g., same time and frequency).

06.Newly Developed GDI Injector Drive Software: Capable of driving 12v, 70V, and 120V high-pressure injectors.

07.Utilizes ultrasonic cleaning technology with strong cleaning power, and heats up to 50°C for enhanced cleaning perfor-mance.

08.Adopts electronic pressure regulation control technology,ensuring stable oil pressure with a wide adjustable range.

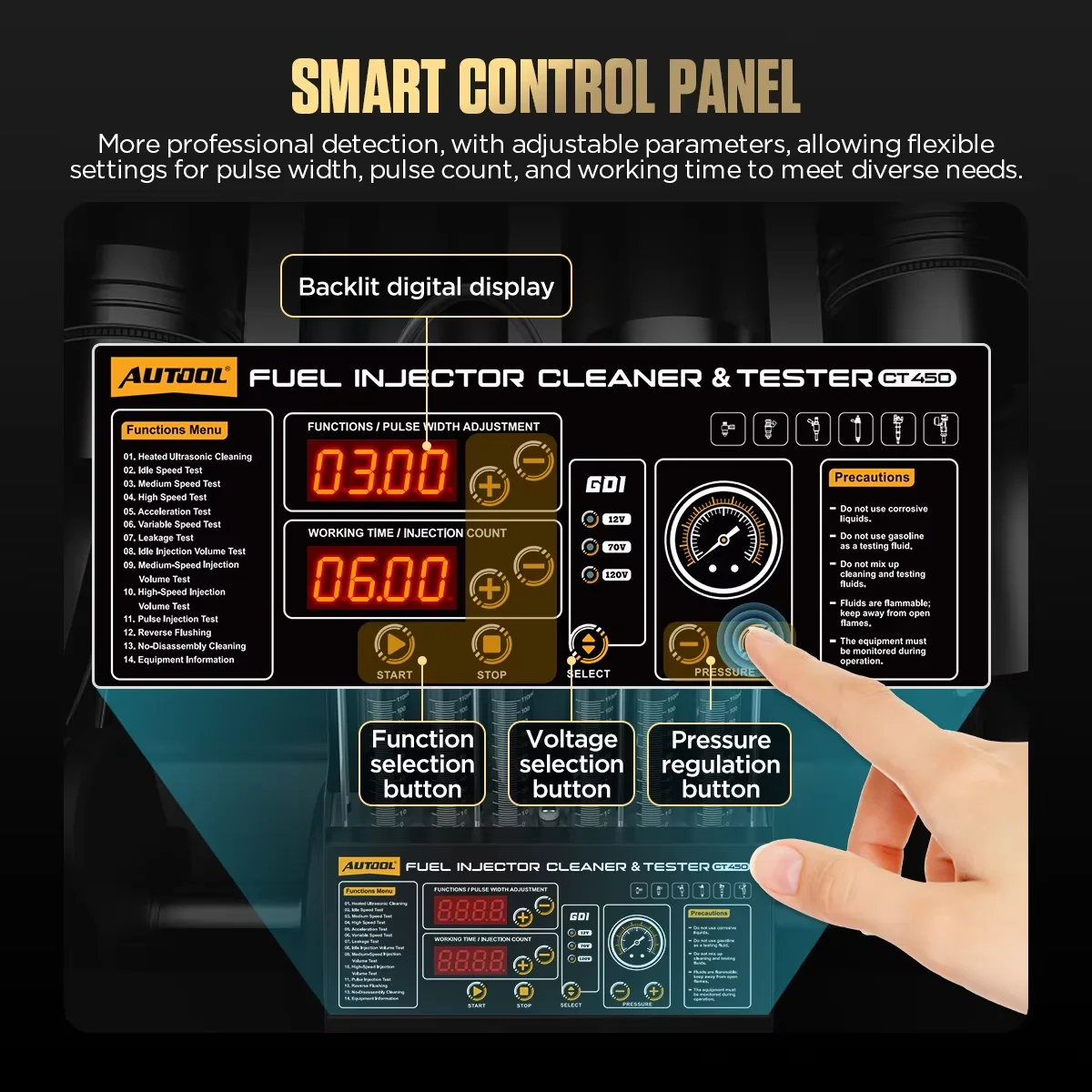

09.Features a high-definition digital display for intuitive operation,easy to learn and use.

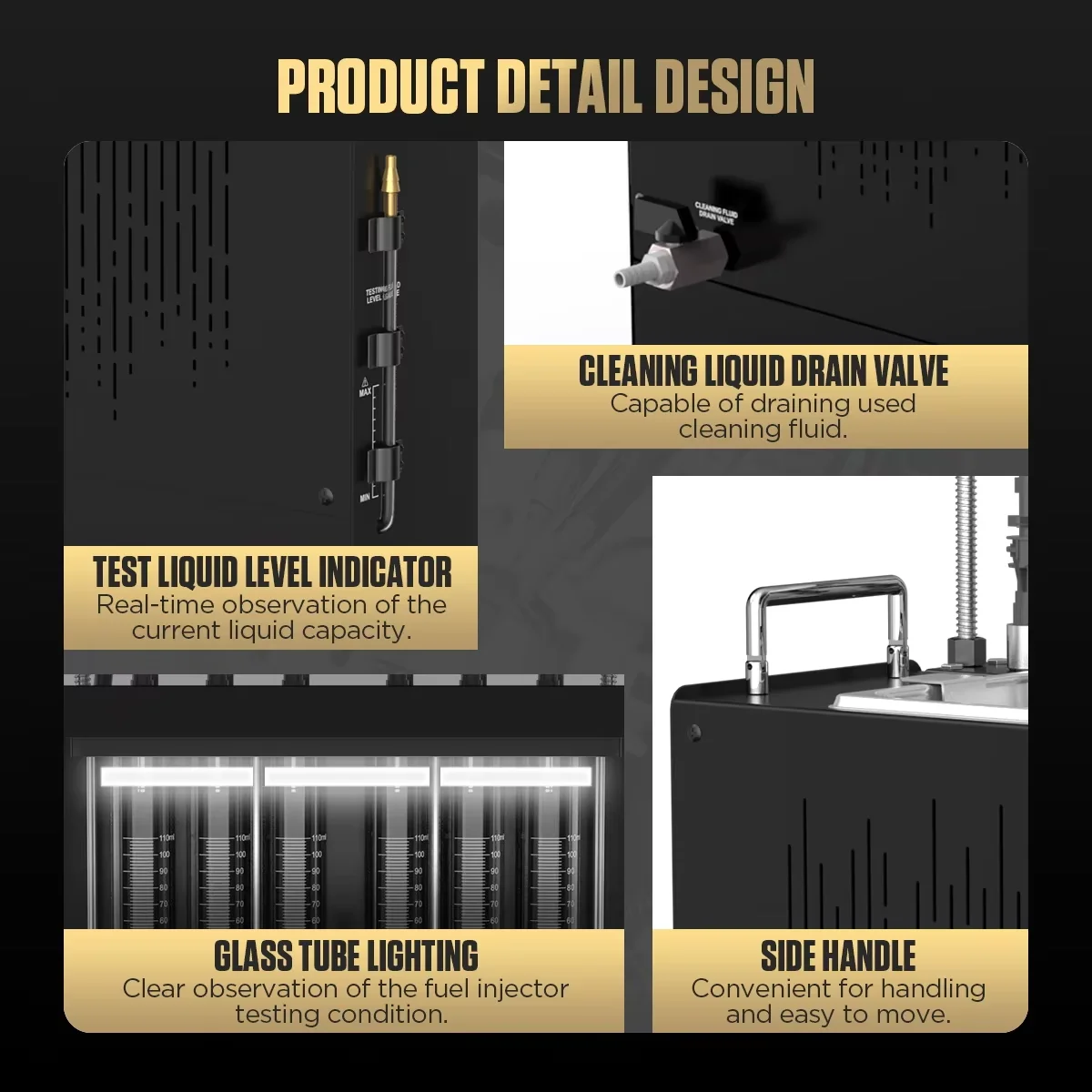

10.The oil tank level is clearly displayed, and the testing fluid can be recycled.

11.The bright LED background light allows for clear observation of the injector's operation.

12.Equipped with a patented, replaceable composite adapter suitable for various vehicle models.

13.The injector's testing time and pulse width can be freely adjust-ed within the allowed range.

How to choose test fluid?

The test fluid is used to test and judge whether the performance of the fuel injector is in good condition. It is a colorless and transparent liquid with no irritating odor, non-corrosive, and not easy to emit. Its function is to simulate various working states of the fuel injector as a medium. In order to achieve the best test effect, it is recommended to use professional automotive injector test fluids. If it is not available locally, as an alternative, it's recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the test fluid.

How to choose cleaning fluid?

Cleaning fluid is used to clean deposits (such as carbon deposits) on fuel injectors, and it is usually highly corrosive and flammable. In order to achieve the best test effect, it is recommended to use professional injector ultrasonic cleaning fluid. If it is not available locally, it's recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the cleaning fluid, but note that the effect may not good enough.

AUTOOL CT450 GDI Fuel Injector Cleaner & Tester Machine Feature

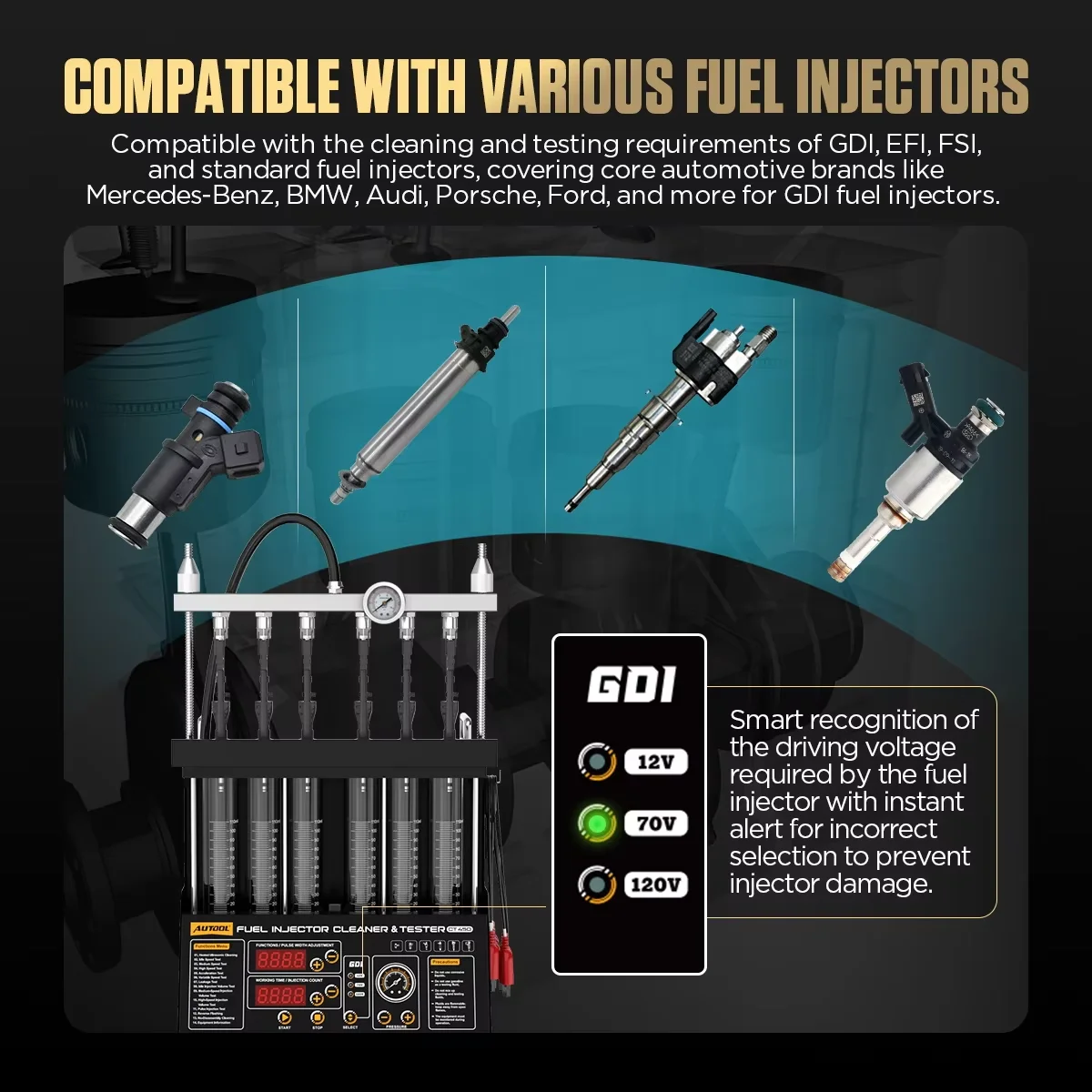

[For GDI, EFI, FEI Injector Cleaning&Test]: AUTOOL CT450 can clean and test not only standard injectors but also GDI injectors, such as for Mercedes-Benz, BMW, Audi, Porsche, Ford, and other direct injection engines.

[Multi Voltage Selection]: AUTOOL CT450 GDI Fuel Injector 6-cylinder Cleaner and Tester designs with various types of voltage output (12V, 70V & 120V) to be selected to adapt for different types of injector testing.

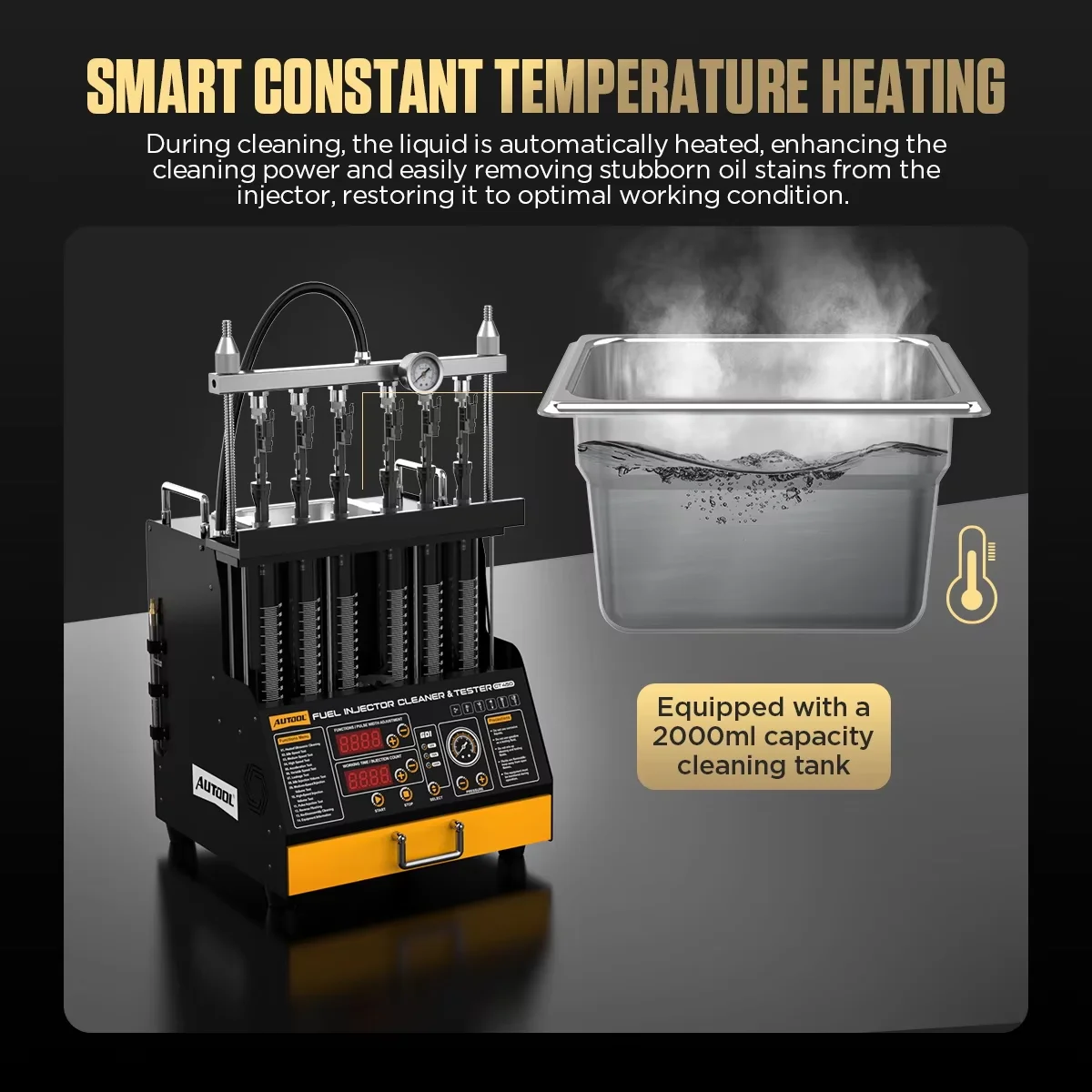

[Upgrade Ultrasonic Heated Cleaning]: Different from other cleaner& tester machines, It can be heated up to 50°C,thoroughly removing carbon deposits from the injectors.

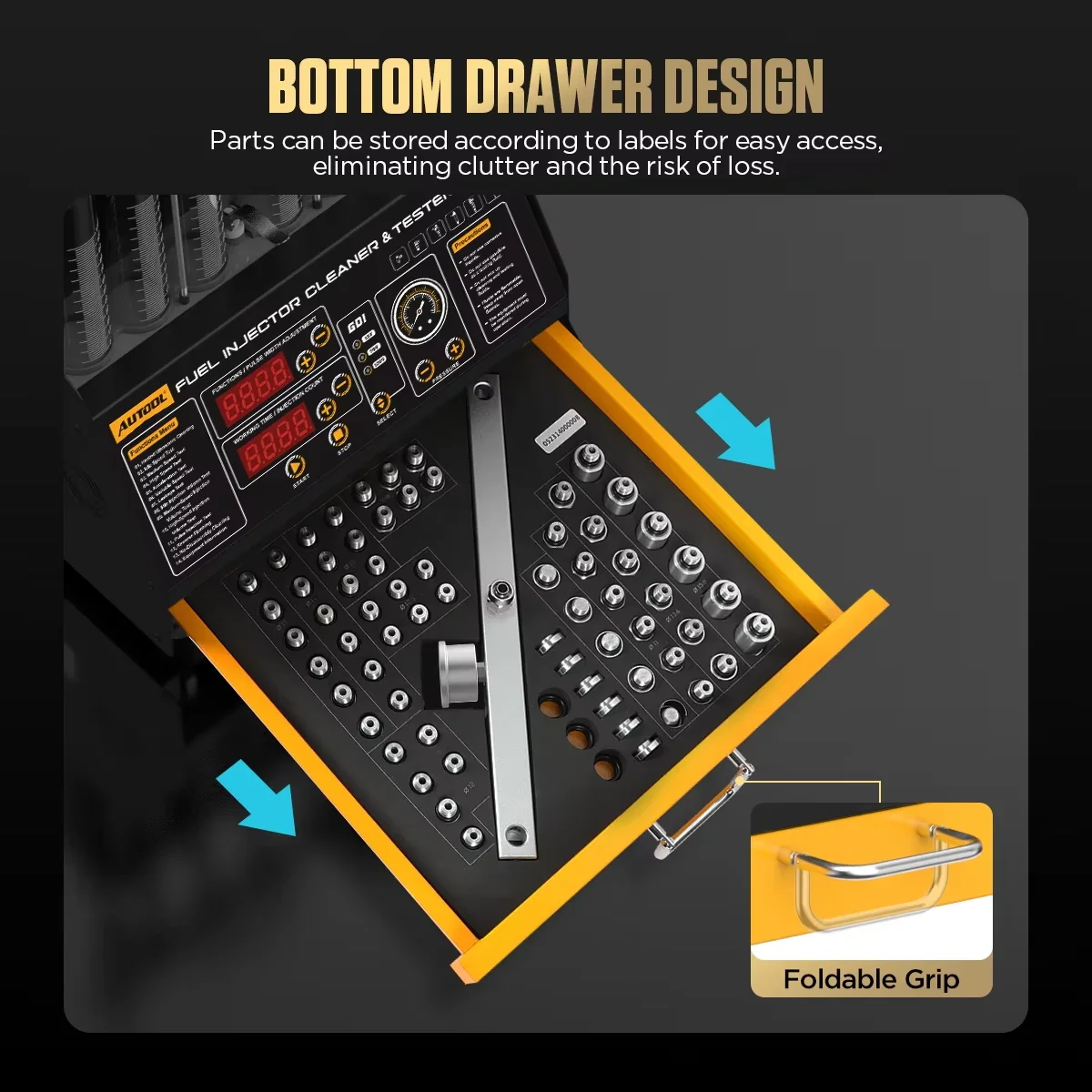

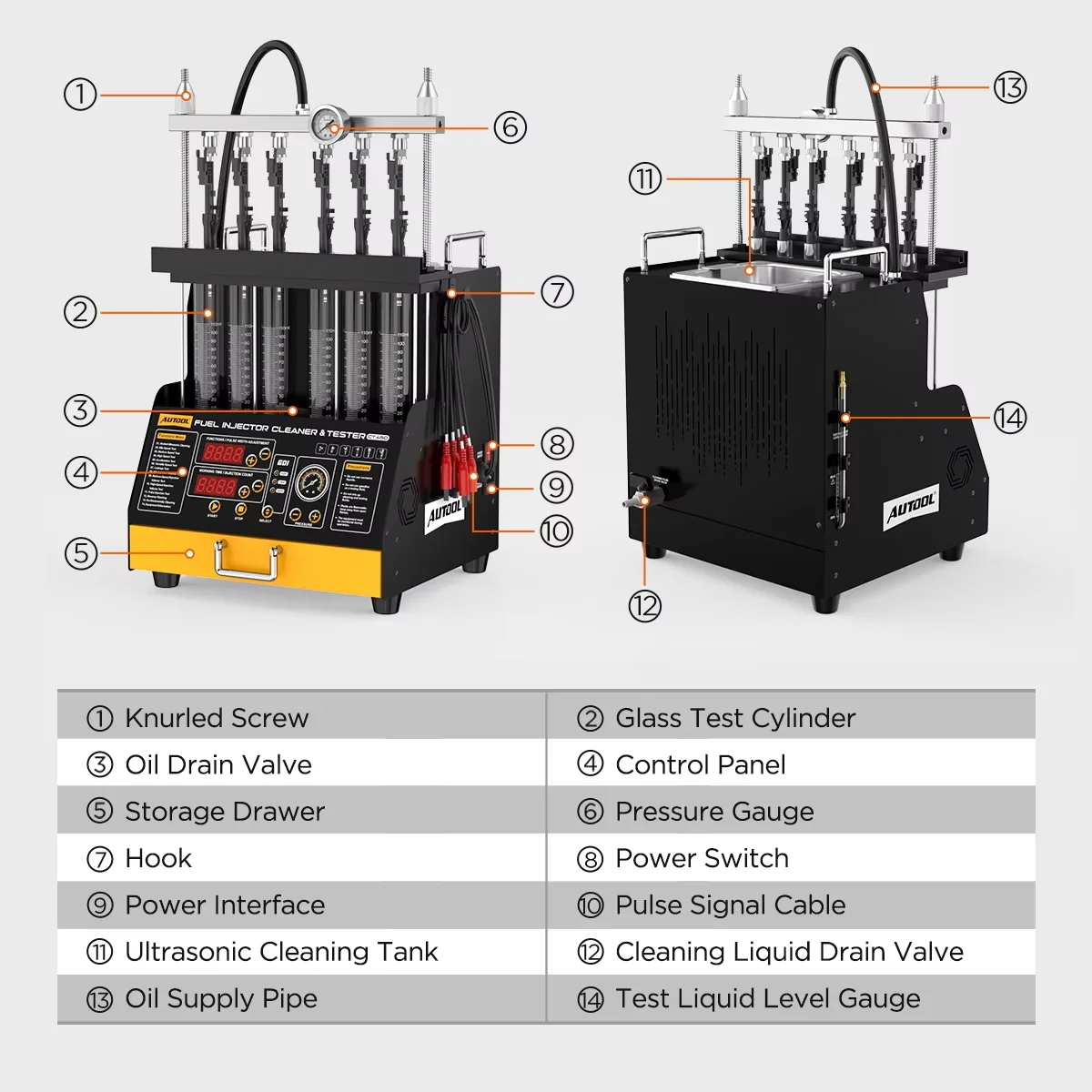

[Various Parts equipped&Portable Drawer ]: It is equipped with a variety of injector accessories for different needs. A portable drawer at the bottom is designed to store a variety of parts and for easy access.

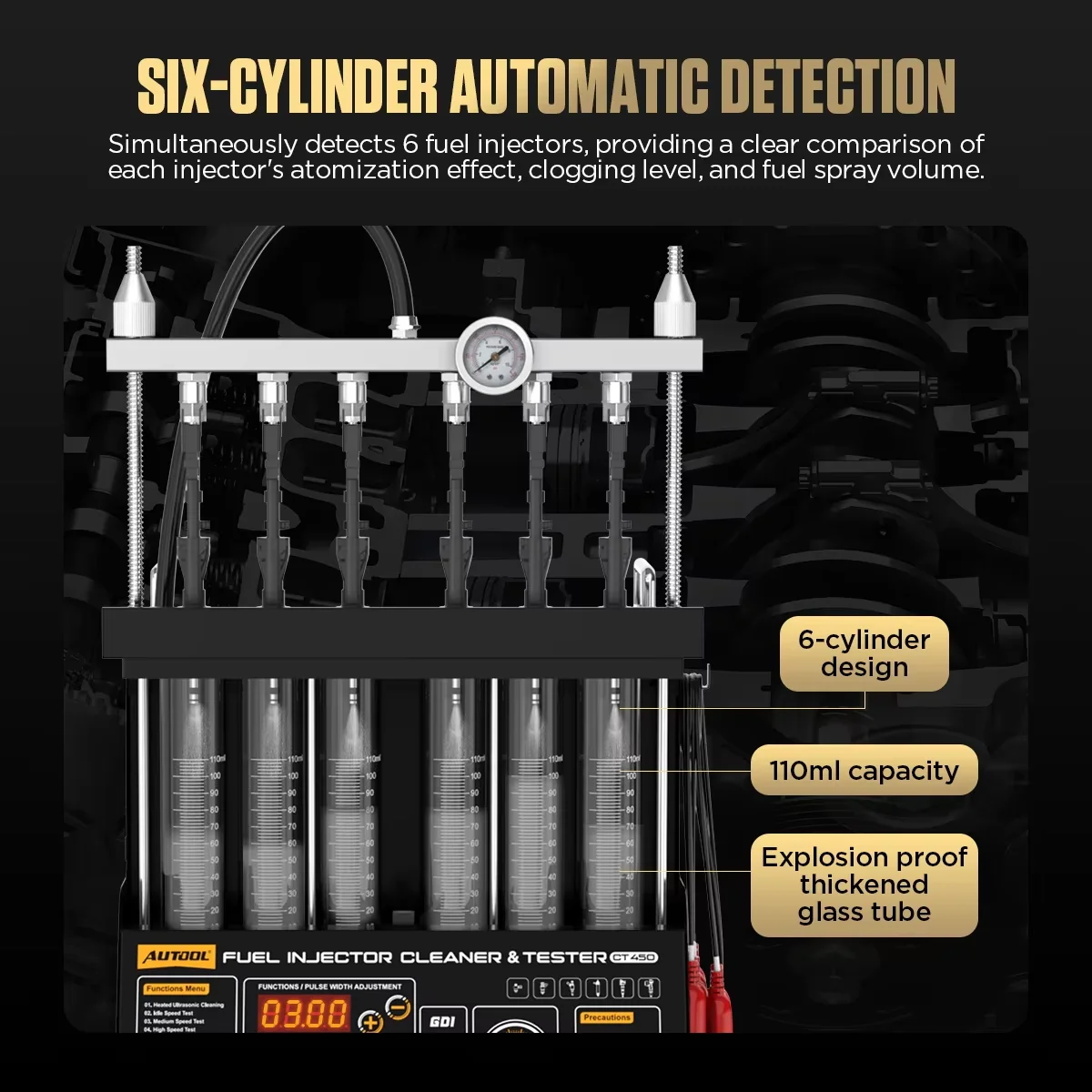

[6-Cylinder & 2 Draining Ports Design]: AUTOOL CT450 can test and clean 6 injectors at the same time for better efficiency; it also has both control valves for cleaning solution draining and test liquid recovery. Very easy and convenient to deal with and no worries about leaving a mess.

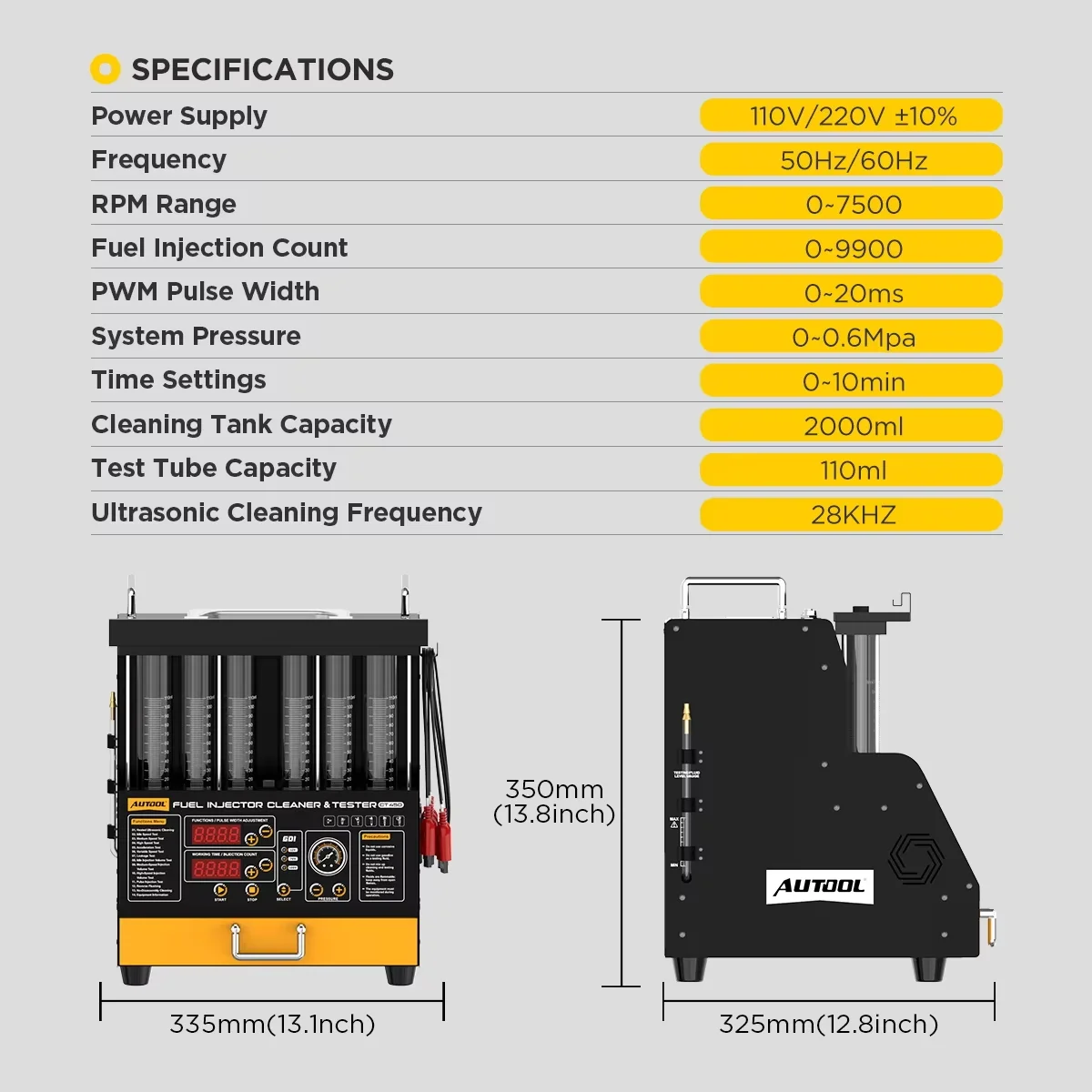

AUTOOL CT450 GDI Fuel Injector Cleaner & Tester Machine Parameter

Environmental Temperature:0°C~40°C
Relative Humidity:<85%
External Magnetic Field Intensity:<400A/m
Power:AC 110V/220V±10%
Frequency:50Hz/60Hz
Oil Tank Capacity:3000ml
Test Tube Capacity:110ml
RPM Range:0~7500RPM
Fuel Injection Count:0~9900times
PWM Pulse Width:0~20ms
System Pressure:0~0.55Mpa adjustable
Time Setting:0~10min
Ultrasonic Cleaning Frequency:28kHz

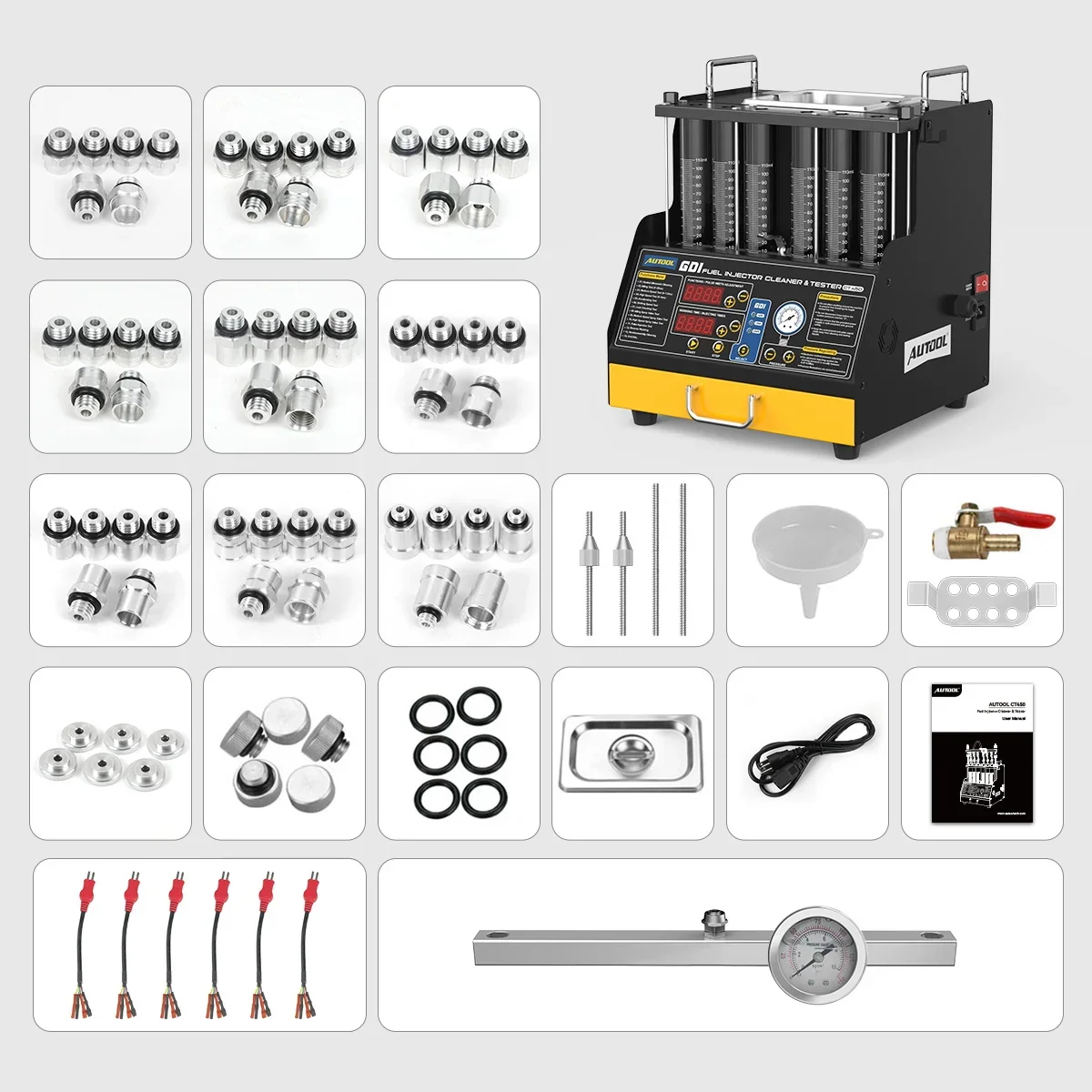

Packing List:

1pc * AUTOOL CT450 Fuel Injector Cleaner Tester Main Unit and 1pc * Funnel(for adding test fluid);

1pc * Ultrasonic Cleaning Bracket (for placing the injectors during cleaning)

1pc * Drain Valves(For recovering the cleaning fluid );

6pcs* injector sealing gaskets (used to seal the conjunction between fuel injector and oil separator)

4pcs * Fixing rods(For fixing the oil separator) and 4pcs * Fixing Nuts(For fixing the oil separator);

6pcs* Top inlet connectors φ11mm/φ12mm/φ12.5mm/φ13mm/φ14mm/φ15mm (for connecting the top of the injector and the oil separator hole)

6pcs* Top inlet connectors φ16mm (for connecting the top of the injector and the oil separator hole)

6pcs * Conical top inlet connectors φ10.5mm&13.6mm (for connecting the top of the injector and the oil separator hole)

6pcs *Adapter cables(For transferring the pulse signal line connector, instead of connecting the injector signal input pin)

1pc * Power Cable(for connecting power supply) and 1pc * Oil Separator(Distribution device for outputting pressurized test fluid to the injectors);

6pcs* BMW special adapter(special adapter for BMW 7 series GDI injector to connect oil separator)

6pcs* Special injector gaskets(for auxiliary installation of special fuel injectors)

5pcs * Special plugs for oil separator(used to block the holes on the oil separator)

1pc * Ultrasonic Cleaning Cover(for keeping the cleaning bath clean)

1pc * User Manual(Instructions)
