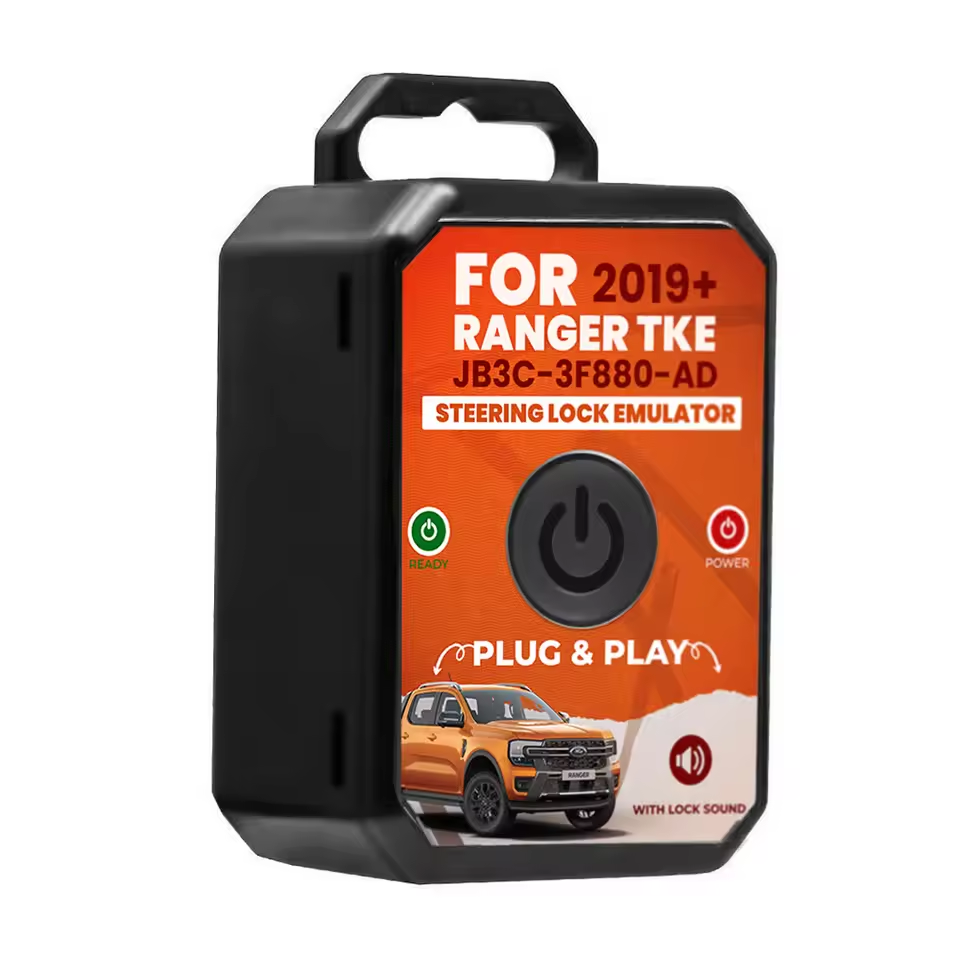

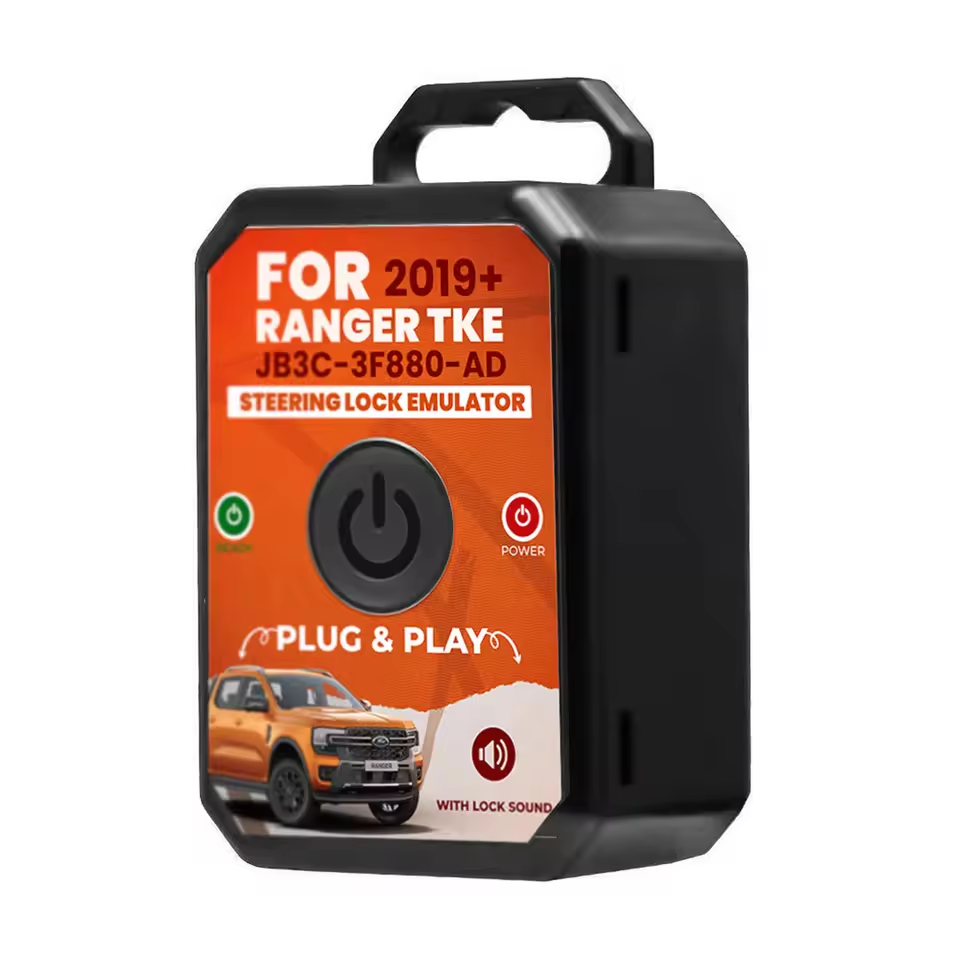

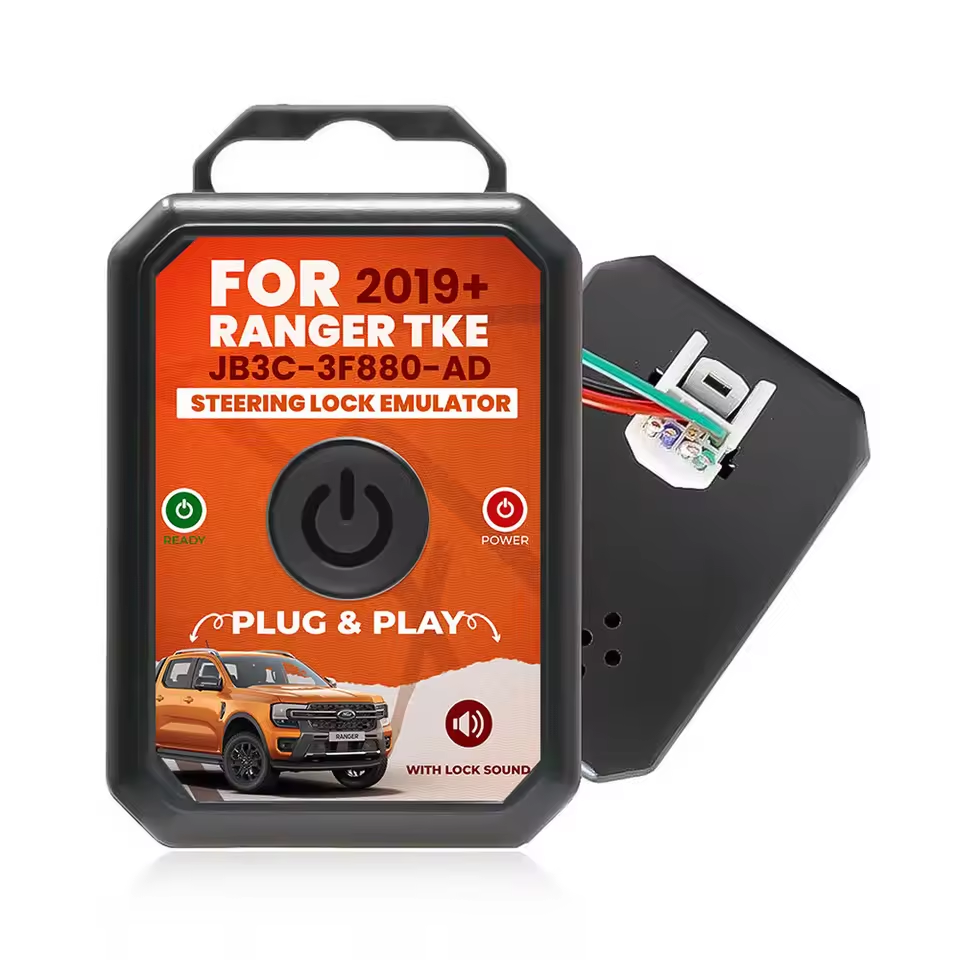

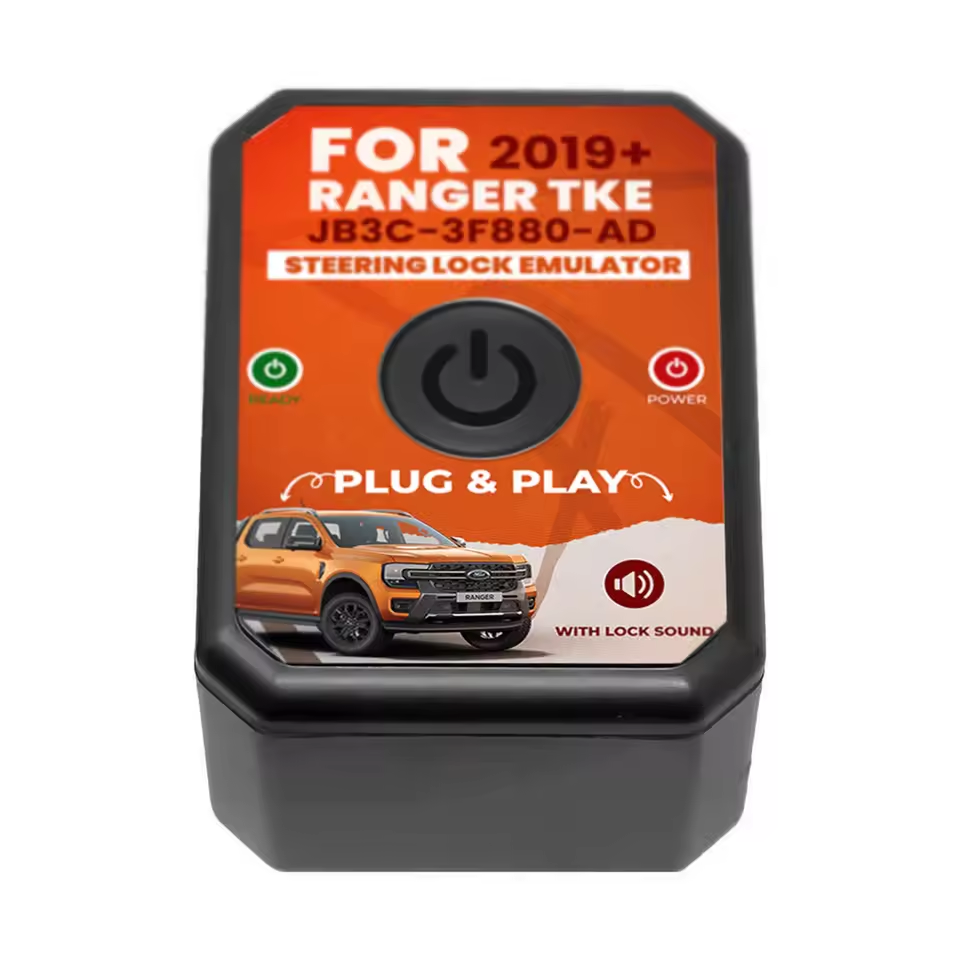

Steering Lock Emulator For Ford Ranger Figo JB3C-3F880-AD After 2019

Steering Lock Emulator For Ford Ranger after 2019 and Ford FIGO 2019.

Compatible to part number: JB3C-3F880-AD.

no need programming, plug and play.

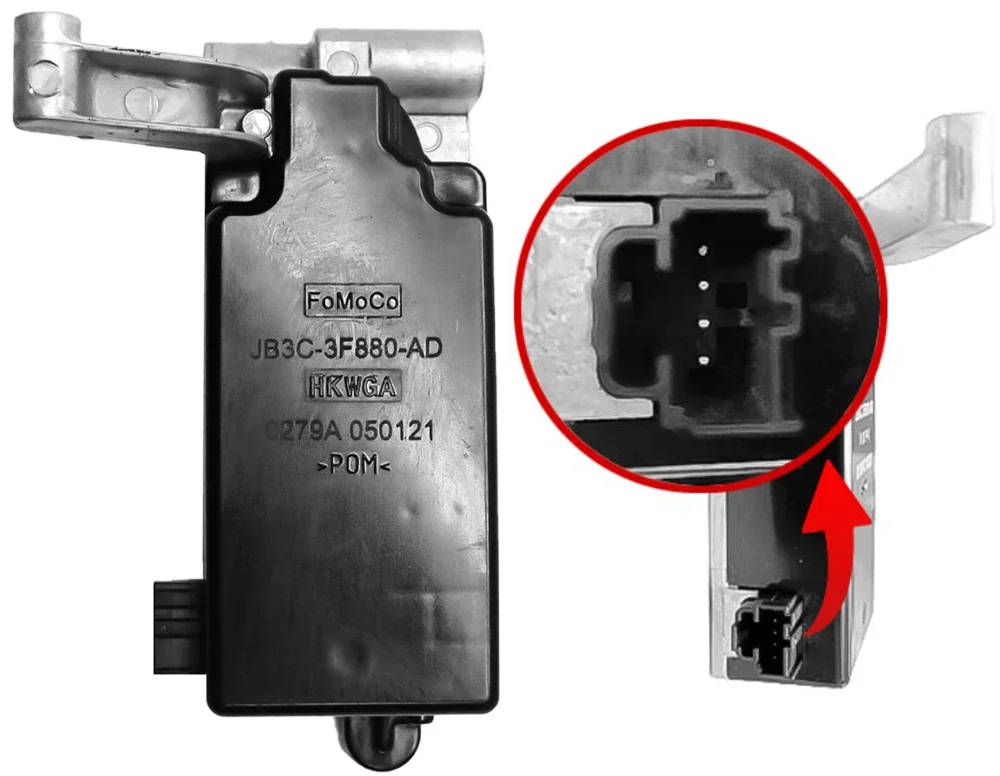

there steering lock as below:

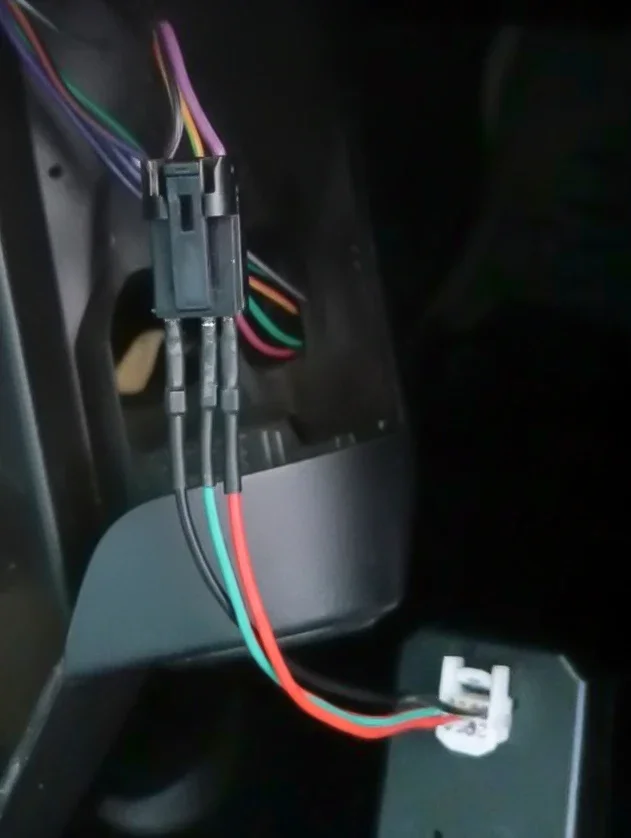

installing step:

1. Turn off the ignition.
2. Plug the ESL connector into the our emulator.
3.The SCL works only when it receives open and close signal.
4.Push the start button and the green led lights,If the red led blinks, there is an error that has to be erased by any diagnostic tool.

diagram:
