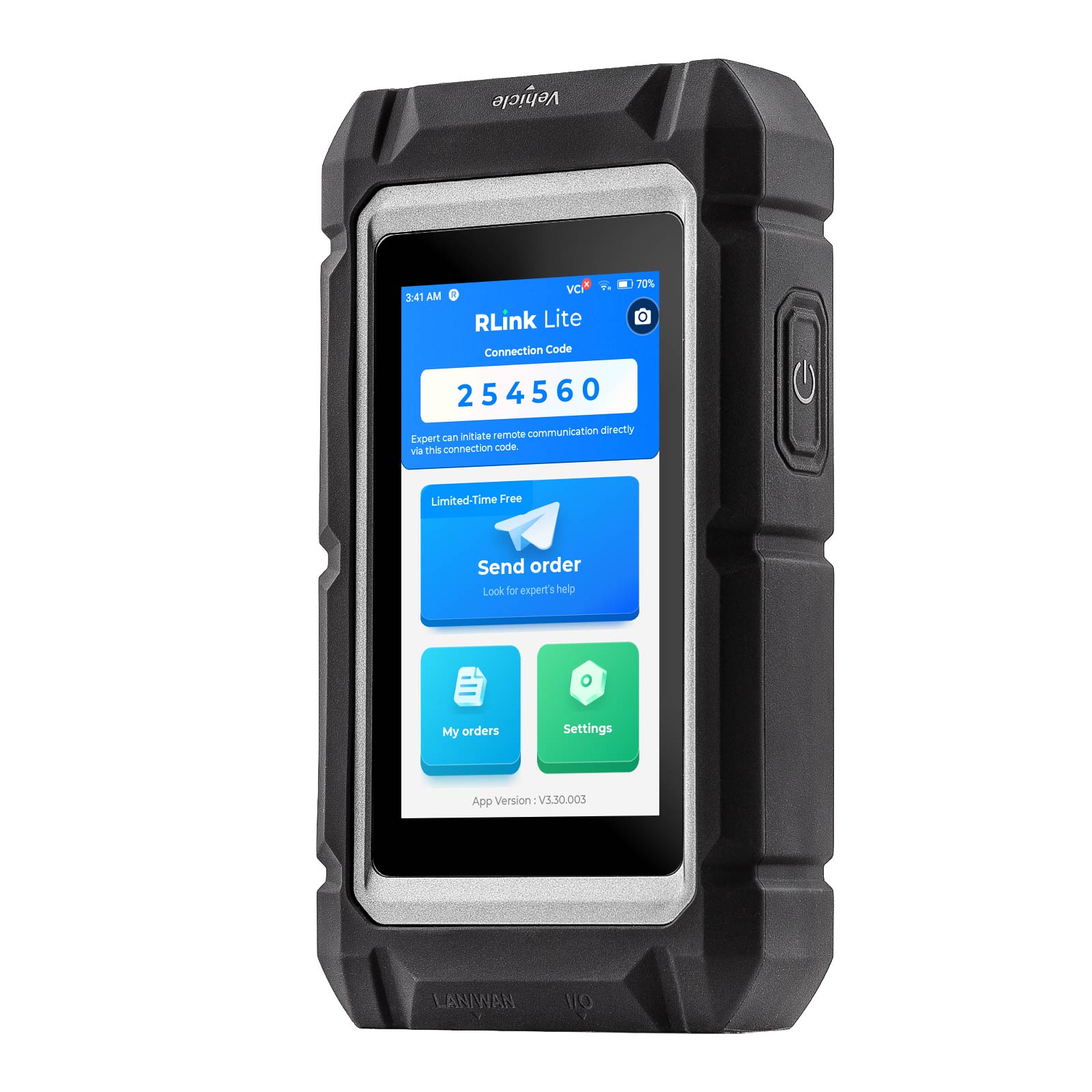

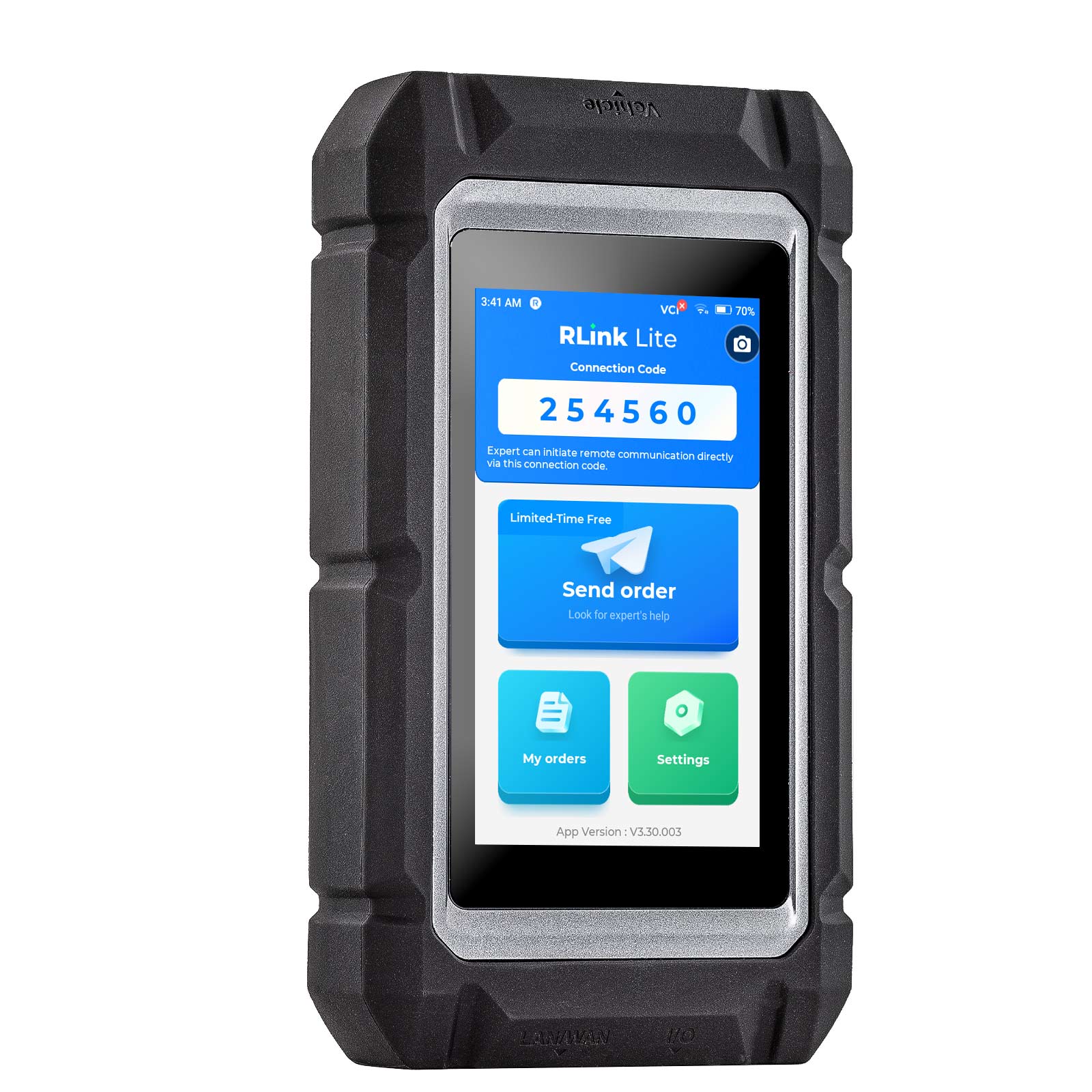

TOPDON RLink Lite 5 in 1 Diagnostic Tool Supports CAN FD, DoIP and Remote Diagnosis

The RLink Lite, independently developed by TOPDON, is a multifunctional diagnostic product that empowers users to achieve OE-level diagnostics for numerous vehicles with just one device. Equipped with a 5000mAh lithium battery and a user-friendly 5-inch LCD touchscreen, it operates smoothly without the need for external power.

The device offers two diagnostic modes: local and remote. In local mode, the RLink Lite acts as an OE software VCI box, allowing seamless OE-level diagnostics, programming, and coding for popular car brands like for Volkswagen, for Mercedes-Benz, for BMW, for Land Rover, for Porsche. When faced with challenging issues, users can leverage the RLink Lite's built-in order management system to submit online orders. Expert technicians on the other end can then remotely connect and resolve the issues, providing timely solutions.

The RLink Lite complies with three major automotive industry standards: D-PDU, J2534, and RP1210, ensuring wide vehicle coverage. Simplify your diagnostic process and expand your capabilities with the RLink Lite - the top choice for all your OEM diagnostic needs.


Features

• Two diagnostic modes: Local Diagnosis and Remote Diagnosis.

• Highly compatible with OE-level diagnostic software for performing diagnostic, programming, and coding tasks.

• Supports D-PDU, J2534, and RP1210 standards.

• Compatible with DoIP, CAN, CAN FD, J1850, and K line protocols.

• DMS (Driver Management System) accesses a diverse range of drivers for seamless integration with OE software.

• One-click installation of OE-level diagnostic software drivers and online upgrades.

• High-speed DoIP diagnostics for faster data transmission.

• The 5-inch LCD touchscreen with a user-friendly interface.

NOTE: Software is not included. Purchase optional 2TB HDD or 2TB SSD separately.

Remote Diagnostics only available in USA, Italy and UK.

RLink Lite Original Vehicle Diagnostic Software Supported List

V-A-G Benz BMW Land Rover Porsche

Specs

• Display: LCD 5-Inch, 854*480

• CPU:4-Core Processor, 1.8 GHzAndroid 11.0

• RAM: 2G

• ROM: 32G

• Battery: 5000 mAh / 3.7V

• Operating Voltage: 6~36V

• Storage Temperature: -20°C~60°C (-4°F~140°F)

• Working Temperature: 0°C~50°C (32°F~122°F)

• Dimension: 198*108*42 mm(7.80*4.25*1.65 inches)

• Protocols: SAE-J2534-1 & SAE-J2534-2 Pass-Thru; ISO 22900 MVCI & D-PDU; ISO 14229(UDS); ISO22901(ODX); ISO13400(-DOIP); SAE-J2610 SCI(Chrysler); ISO 15765(CAN); ISO 11898(DWCAN); ISO 14230(KWP2000); ISO 9141; J1850(VP-W/PWM); J2411(SWCAN); ISO 15765; J2740(GM ALDL); J2809(HONDA DIAG-H); J2818(KW81); J2819(TP16/TP20); FORD UBP; BMW DS2; CANFD

Topdon Rlink Lite 5 in 1 Features:

OE-Level Diagnostics Within Reach
Wondering how to achieve OE-level vehicle diagnostics without breaking the bank? Look no further than RLink Lite, the cost-effective VCI box designed as an alternative to various OEM diagnostic devices. With its exceptional compatibility, RLink Lite seamlessly conducts original equipment-level diagnostics, programming, and coding jobs, making it the go-to tool for repair shops and technicians to achieve OE-level diagnostics across various vehicle models.


Drive Diagnostics Beyond Limits
RLink Lite stands out with its extensive protocol support and wide vehicle coverage. Compatible with D-PDU, J2534, and RP1210 diagnostic standards, it seamlessly integrates with diverse protocols like DoIP, CAN, CAN FD, J1850, and K line. This ensures comprehensive coverage across various vehicle models, including big names like Mercedes-Benz, BMW, Porsche, VAG, and Land Rover.




One-Stop Solution for OE-Level Diagnostics
RLink Lite presents a comprehensive solution with our proprietary DMS (Driver Management System). Effortlessly access a diverse range of drivers for seamless integration with OE software. Navigate with ease using built-in OEM operation guides to swiftly master OE software. Simplify the process with a single click to download and update drivers. TOPDON always stands by technicians every step of the way and prepares them for the challenges and opportunities that lie ahead.


Faster, Smoother
Unlock unparalleled diagnostic efficiency with RLink Lite, supporting high-speed DoIP diagnostics for faster data transmission during vehicle diagnostics and programming. Utilizing existing Ethernet networks, it introduces unmatched flexibility, making diagnostics in modern vehicles more convenient and free from the constraints of physical connections.

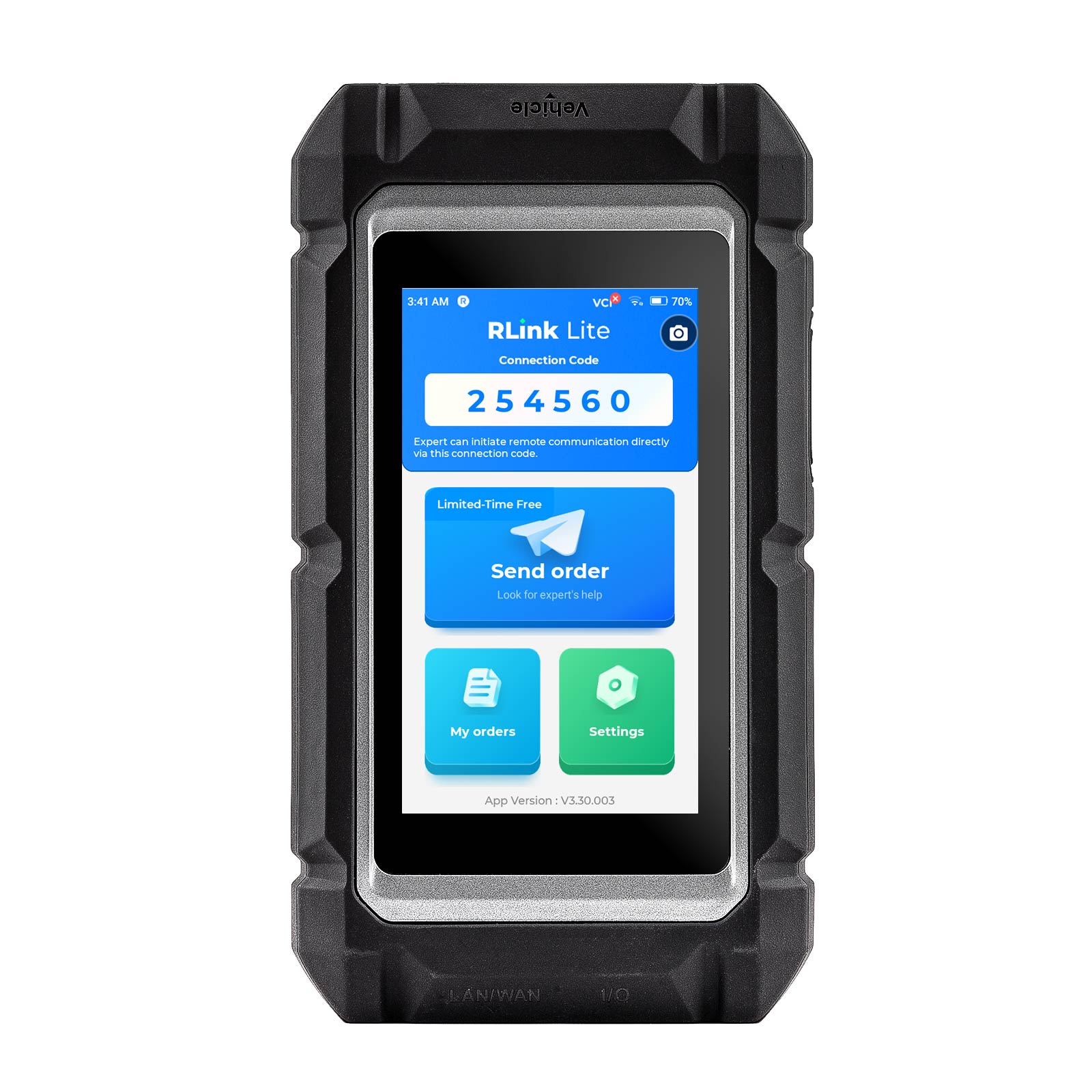

Easy and Intuitive Interface
The 5-inch LCD touchscreen features a user-friendly interface, providing a seamless and effortless experience. Users can navigate through operations with ease, maximizing the full range of its functionality.

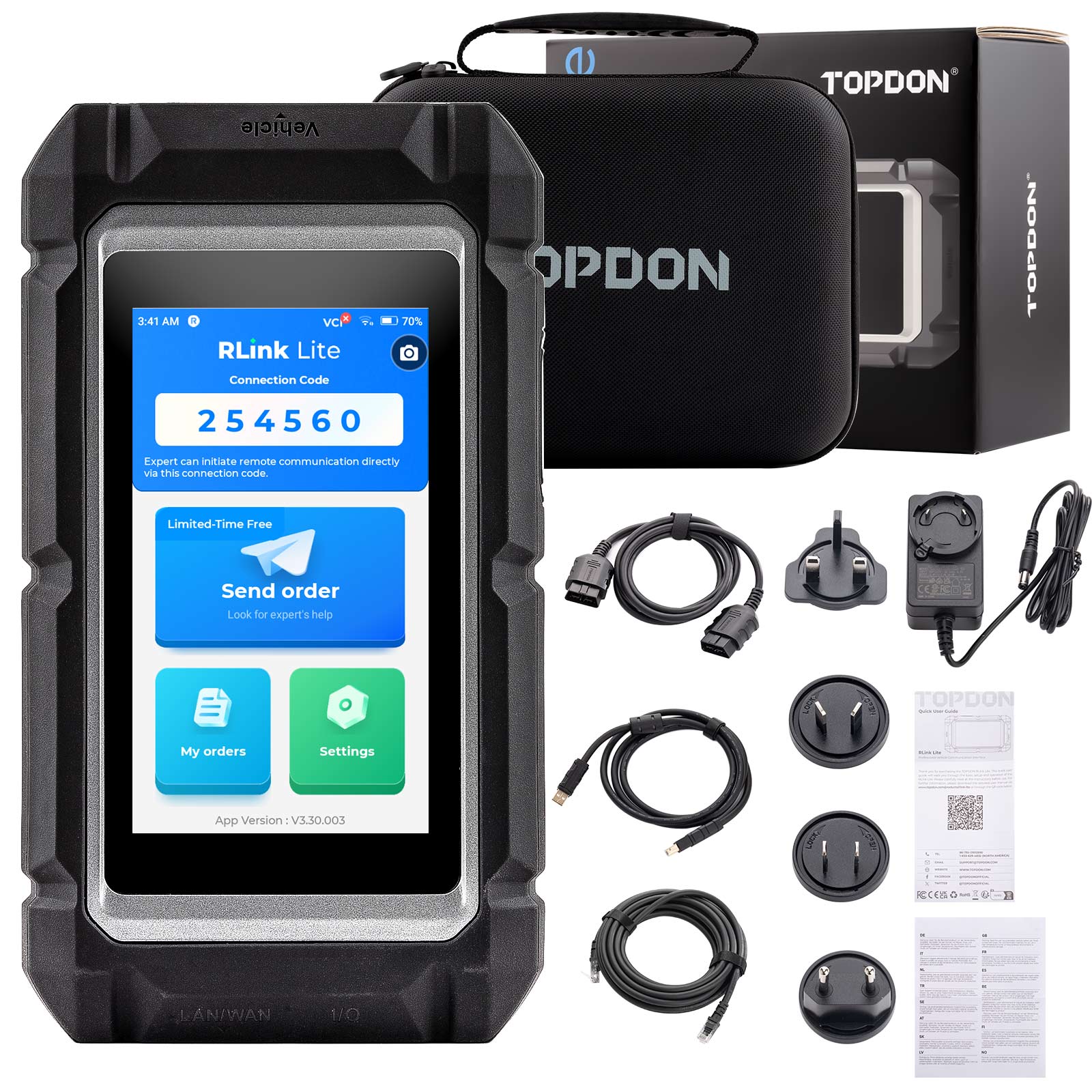

What's in the Box

• RLink Lite

• 2M OBD2 Diagnostic Cable

• 5M Network Cable

• 1.5M USB 2.0 Cable

• 12V DC Power Adapter

• Quick Start Guide

• Carrying Case
