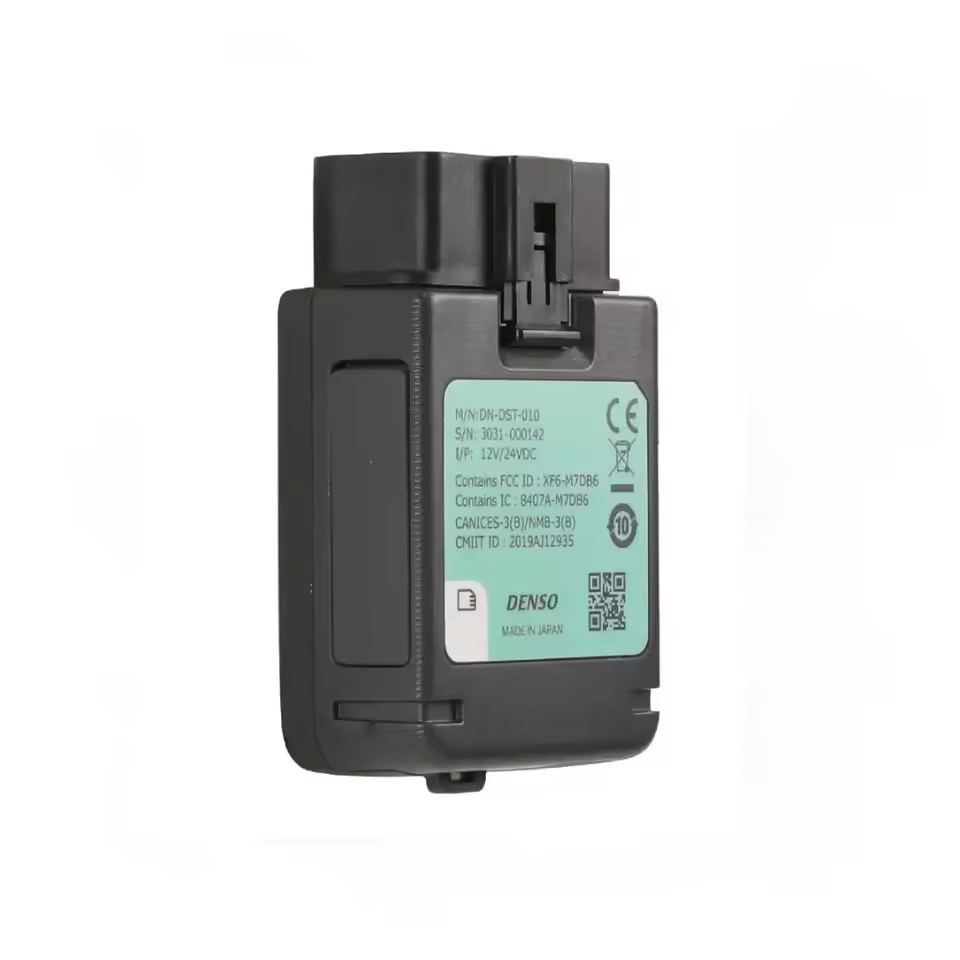

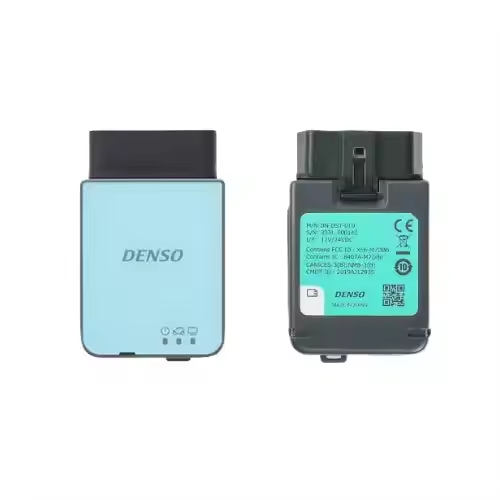

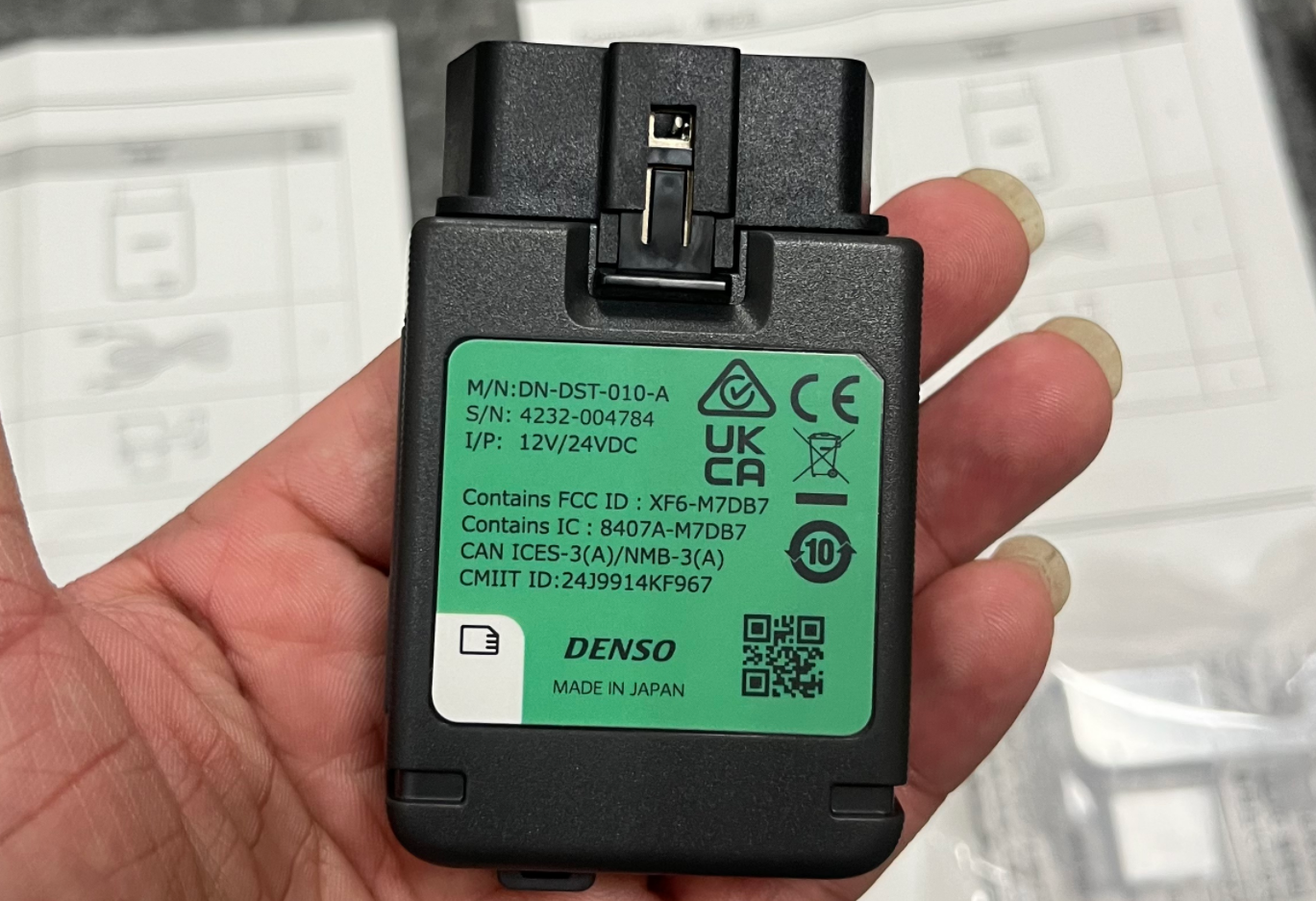

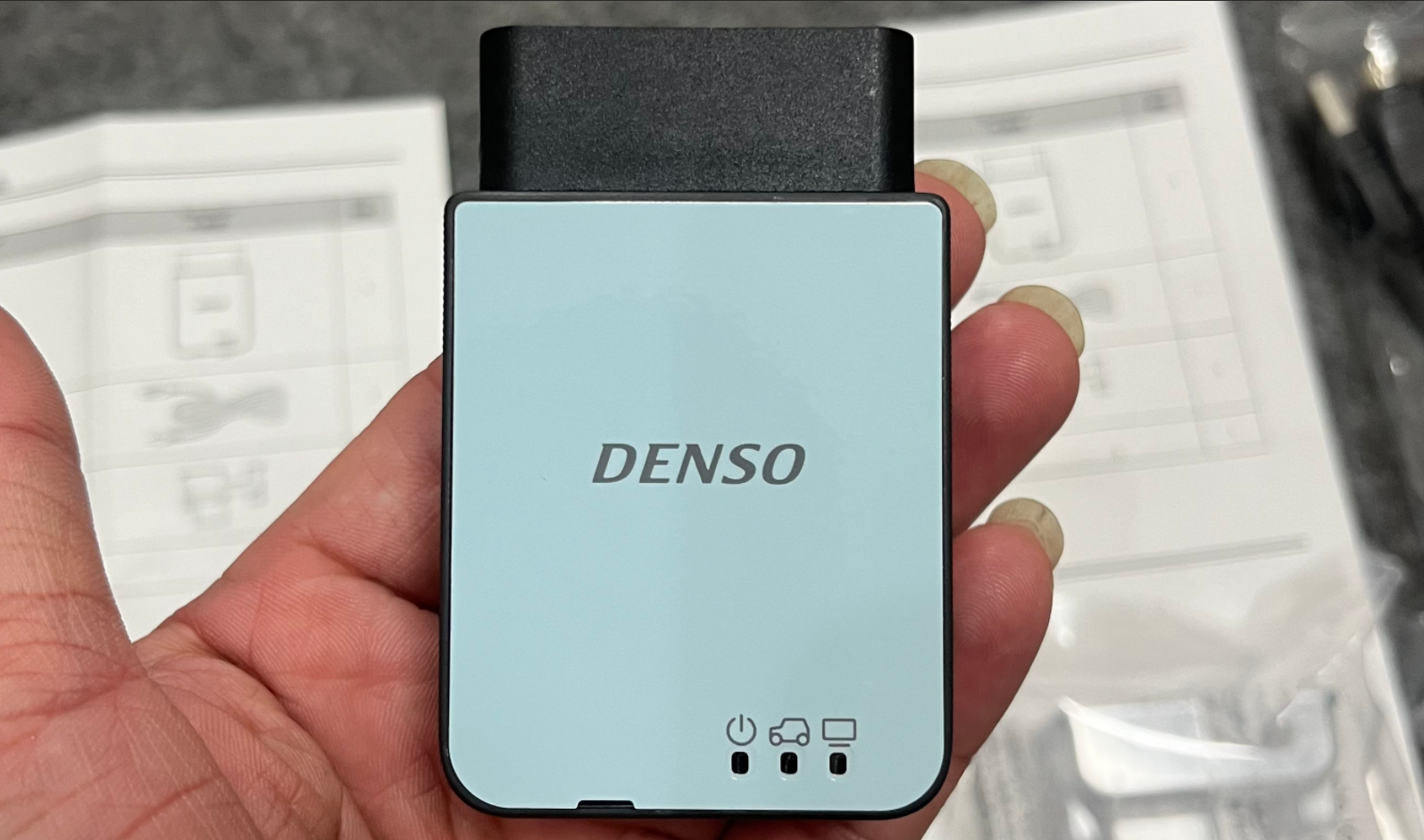

Original DENSO DST-NANO DST-010-A INTERFACE for SUBARU TOYOTA Honda DEALER SCAN TOOL Without Software
Fast communication specified in ISO13400 (Ethernet) is supported.
A built-in wireless module allows Wi-Fi and Bluetooth connection to a PC.
The certification mark of each country on the label is subject to change without notice.
Specifications
| Model No. | DN-DST-010-A | DN-DST-010-B |
|---|
| Part No. | 95171-0148* | 95171-0151* |
|---|
| Label color | DARK GREEN | BLUE |
|---|
| CPU | 32-bit microcomputer |
| External interface | PC communication | USB | USB2.0 x 1 (Mini-DIN connector) |
| Wireless LAN | IEEE802.11bgn 2.4GHz | - |
| Bluetooth | IEEE802.15.1 Ver.4.0/Class1 | - |

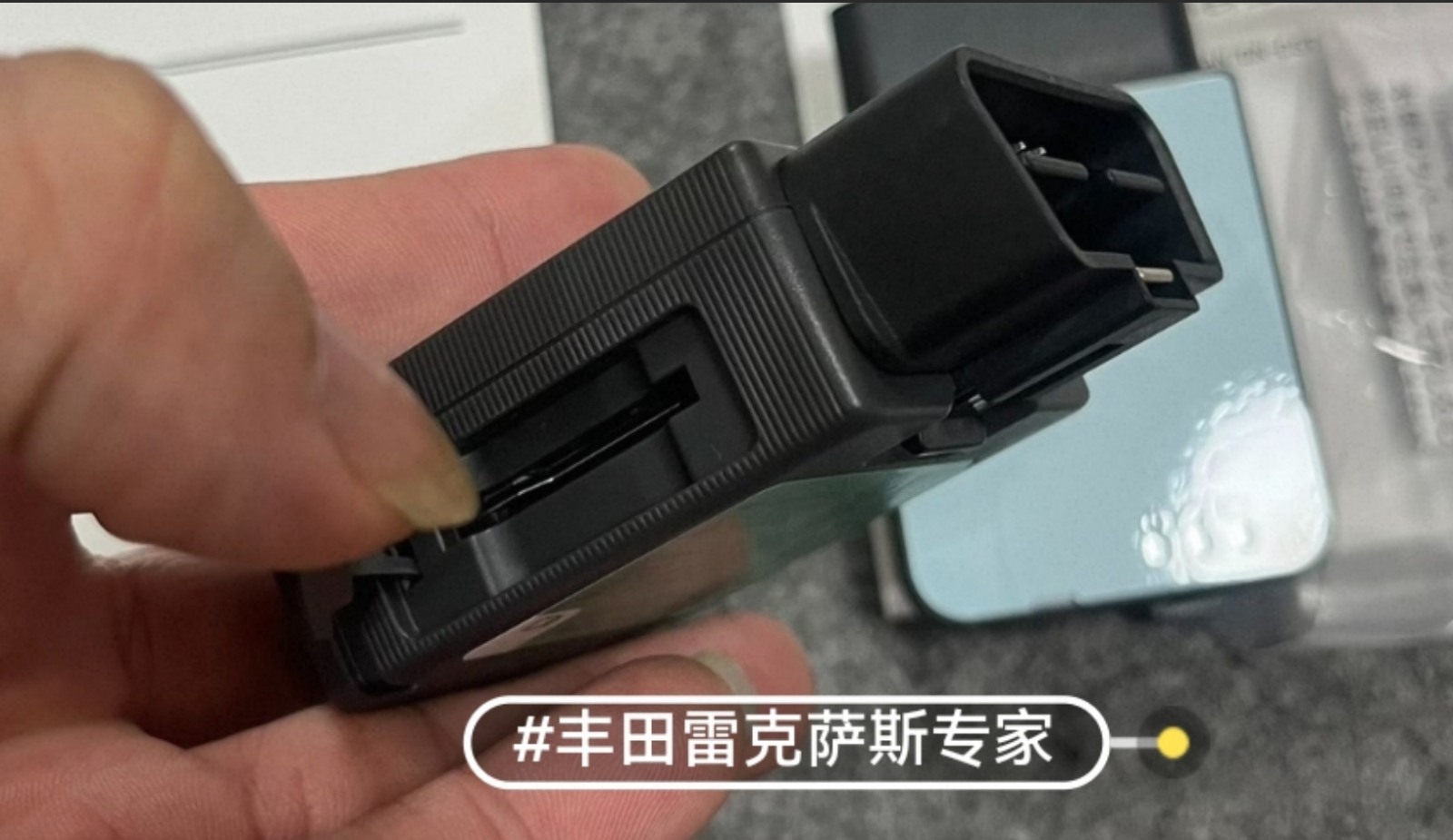

SD memory card (supporting SD and SDHC memory cards) | Slot x 1 |
| Vehicle communication | ISO9141(K/L) |
| HS-CAN,CAN-FD* |
| DoIP (Ethernet) |
| FOR HONDA Exclusive Communication (P-Line, Diag-X, Diag-H, SCS, WEN) |
| * Contact the distributor about other inquires related to communication with the vehicle. |
| Main unit power supply voltage | Vehicle power supply | DC6.5 ~ 32V |
| USB power (BUS power) | DC4.75 ~ 5.25V |
| Power consumption | MAX. 2.5W (12VDC) |
| Operating environment | Operating temperature [Storage temperature] | -10 ~ 50℃ [-10 ~ 60℃] |
| Operating humidity | 35 ~ 85% |
| Main unit dimensions | 47.2mm (W) x 73.0mm (H) x 22.5mm (D) |
| OS environment | OS: Windows 10/11, CPU: 1GHz or higher, Memory: 2GB or higher, Free disk space: 1GB or higher *Excluding ARM-based processors |
| Main unit mass | Approx. 70g |
| Model No. | DN-DST-010 |
|---|
| Part No. | 95171-0134* | 95171-0137* | 95171-0139* |
|---|
| Label color | GREEN | YELLOW | PINK |
|---|
| CPU | 32-bit microcomputer |
| External interface | PC communication | USB | USB2.0 x 1 (Mini-DIN connector) |
| Wireless LAN | IEEE802.11bgn 2.4GHz | - |
| Bluetooth | IEEE802.15.1 Ver.4.0/Class1 | - |
SD memory card (supporting SD and SDHC memory cards) | Slot x 1 | - | - |
| Vehicle communication | ISO9141(K/L) | ○ | ○ | ○ |
| HS-CAN,CAN-FD* | ○ | ○ | ○ |
| DoIP (Ethernet) | ○ | - | - |
| * Contact the distributor about other inquires related to communication with the vehicle. |
| Main unit power supply voltage | Vehicle power supply | DC6.5 ~ 32V |
| USB power (BUS power) | DC4.75 ~ 5.25V |
| Power consumption | MAX. 2.5W (12VDC) |
| Operating environment | Operating temperature [Storage temperature] | -10 ~ 50℃ [-10 ~ 60℃] |
| Operating humidity | 35 ~ 85% |
| Main unit dimensions | 47.2mm (W) x 73.0mm (H) x 22.5mm (D) |
| OS environment | OS: Windows 10/11, CPU: 1GHz or higher, Memory: 2GB or higher, Free disk space: 1GB or higher *Excluding ARM-based processors |
| Main unit mass | Approx. 70g | Approx. 60g | Approx. 60g |
*CAN-FD is available from DST-010 software Ver.3.2.0 onward.

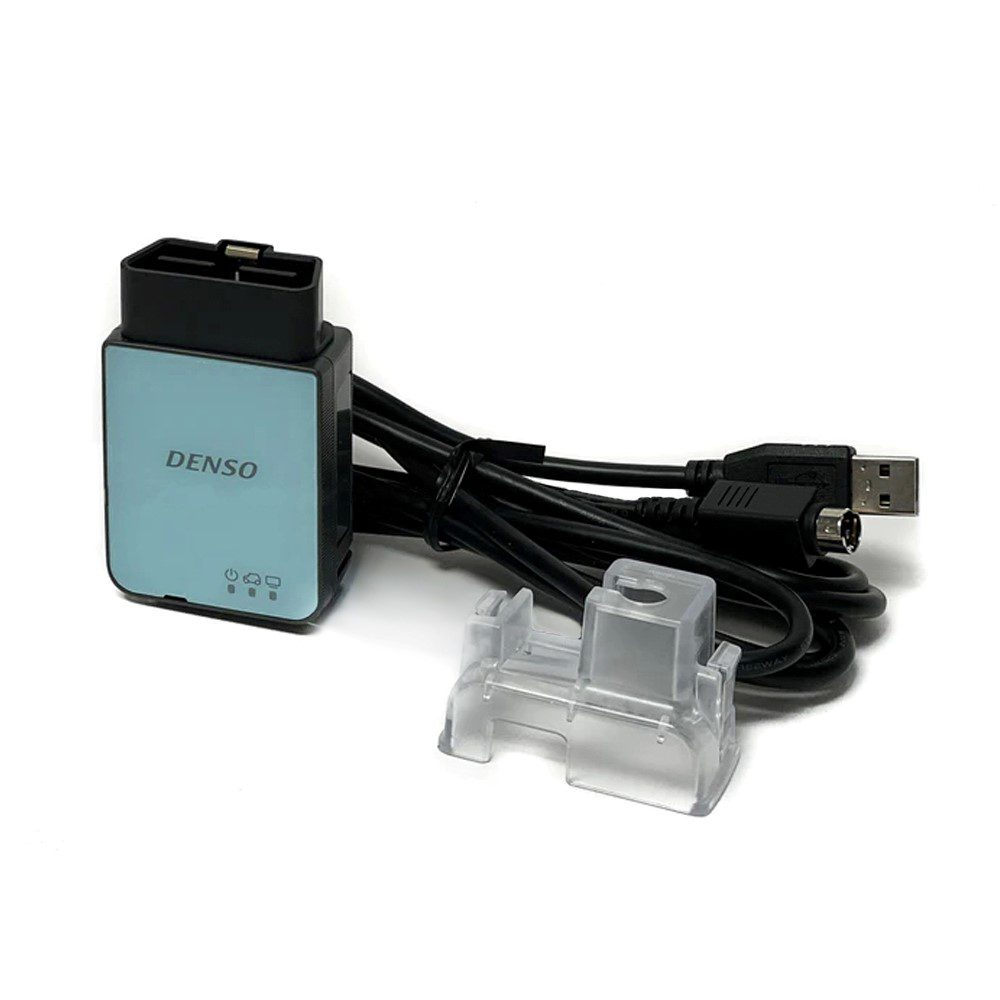

WHAT'S IN THE BOX
Main DENSO DST-010-A Unit
USB Cable
USB Bracket
DENSO Instruction Manual
Software List:
Toyota: 2023.02 Techstream 18.00.008 & GTS+ (install remotely by teamviewer )








Honda: 2023.06 I-HDS software version 1.008.023 by teamviewer or 2024 I-HDS latest software (contained in 256GB SSD disk)




Subaru: 2024.01 SSM3 + SSM4 software (contained in 256GB SSD disk)





Mazda: MDARS & IDS 140.00 (install remotely by teamviewer )
